Image sensor technologies

Image Sensor Technologies

Chris Soltesz

SSE Deluxe

Sony Electronics, Inc.

BPSD


Image sensor technologies1

Image Sensor Technologies

An introductory guide to CCD and CMOS imagers


Image Sensors

  • An image sensor is an electronic device that converts a image (light) to an electric signal.

    • They’re used in digital cameras and other imaging devices. Imagers are typically an array of charge-coupled devices (CCD) or CMOS sensors such as active-pixel sensors (APS).






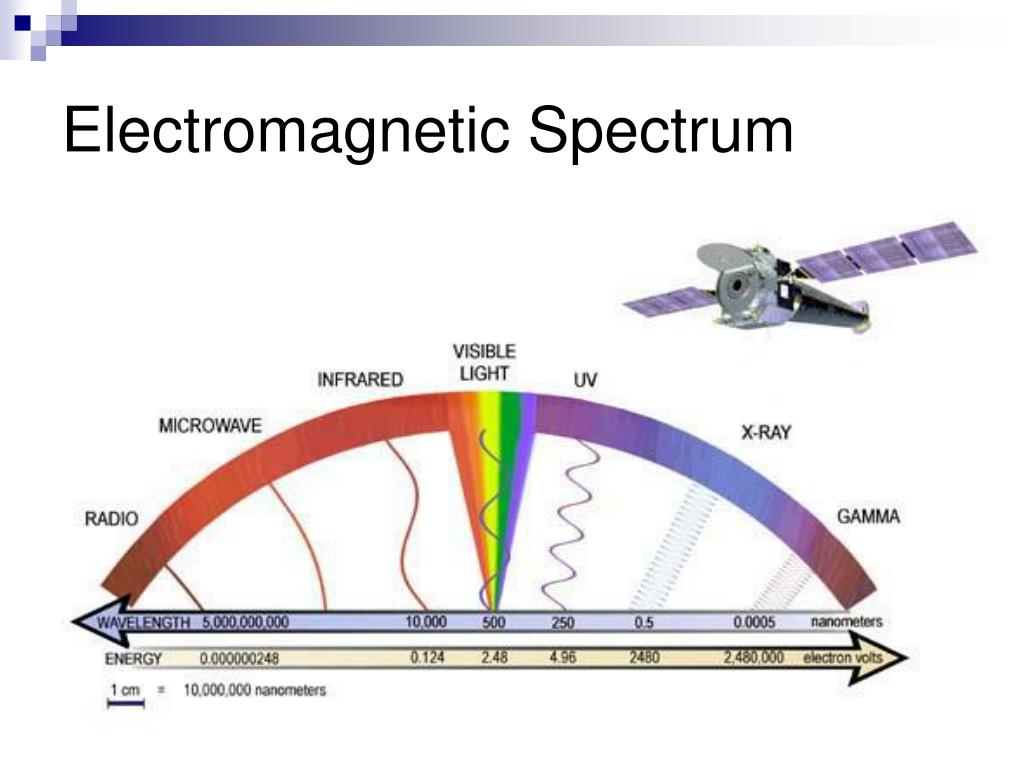

Color primaries1

R

Y

M

WHITE

G

B

C

BLUE

1

0

1

0

1

0

1

0

RED

1

1

0

0

1

1

0

0

GREEN

1

1

1

1

0

0

0

0

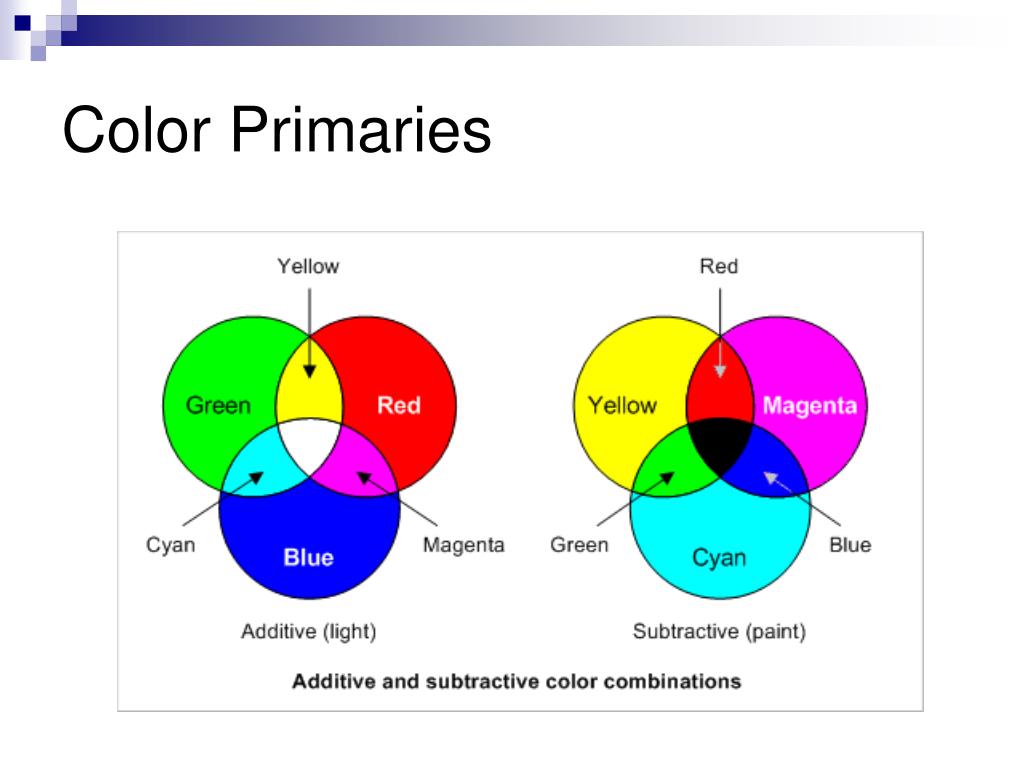

Color Primaries

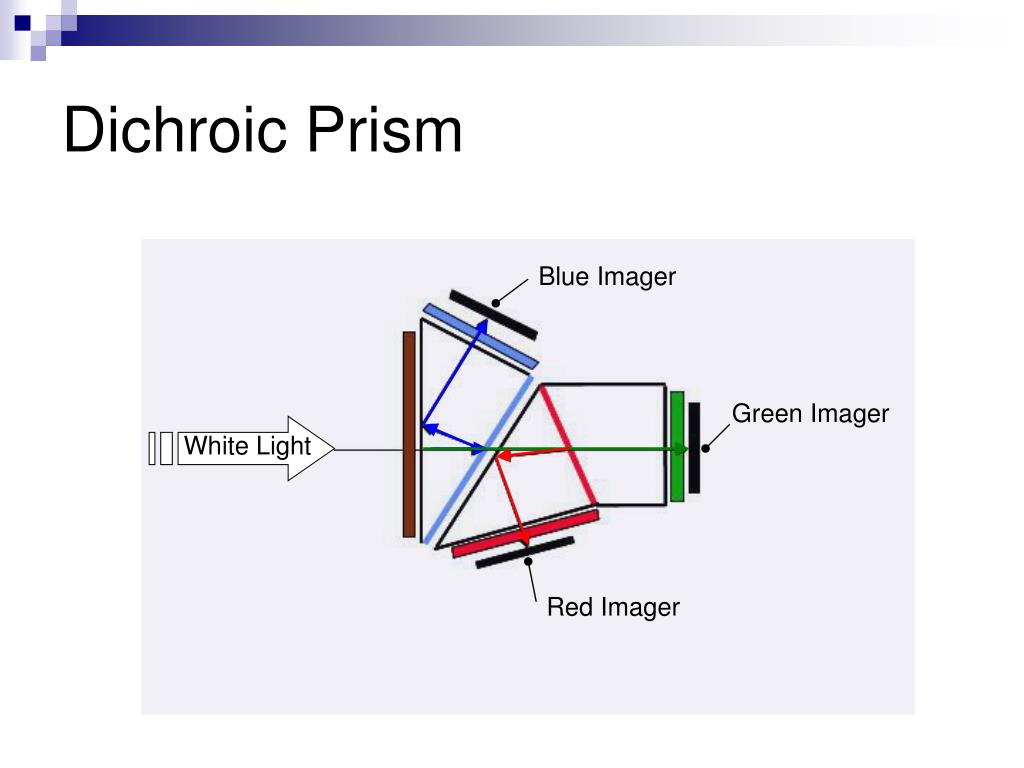

Dichroic prism

Blue Imager

Green Imager

White Light

Red Imager

Dichroic Prism





The difference is in the strategies and mechanisms developed to

carry out those functions.

What is the difference between CCD & CMOS imagers?

  • Generate and Collect Charge

  • Measure Charge and turn into voltage or current

  • Output the signal

  • Transfer Mechanism


Mechanism Differences to

CCD Image Sensor

Charge-to-voltage Conversion /Amplification

Charge

Transfer

Vertical and Horizontal CCD

Amplifier behind Horizontal CCD

Light-to-charge Conversion

Charge

Accumulation

Photo Sensor (Light-sensitive Region) of a Pixel

Charge-to-voltage Conversion /Amplification

Voltage Transfer

Amplifier within Pixel

Signal Wire (Micro Wire)

CMOS Image Sensor

Capacitance Equation

or

C = Capacitance

Q = Charge

V = Voltage


CCD Image Sensor to

Photo Sensor (b)(Light-sensitive Region)

Pixel (a)

Light

Charge (Electrons)

Vertical CCD (c)

Output

Amplifier (x)

Horizontal CCD (d)


CMOS Image Sensor to

Pixel (a)

Amplifier (y)

Photo Sensor (b)(Light-sensitive Region)

Light

Signal

ON

ON

ON

Charge

Pixel-select Switch (e)

Pixel Row (j)

Column Signal Wire(f)(Micro Wire)

Column-select Switch (g)

Column Circuit (h)

Row Signal Wire (i) (Micro Wire)

ON

Output



CCD Image Sensor to

Photo Sensor (b)(Light-sensitive Region)

Pixel (a)

Light

Charge (Electrons)

Vertical CCD (c)

Output

Amplifier (x)

Horizontal CCD (d)


Charge Transfer- toPhoto Sensor to Vertical CCD

Light

Charge (Electrons)

Photo Sensor

Charge (Electrons)

Gate Opens

Gate

Vertical CCD


Charge Transfer to

CCD

CCD

CCD

CCD

Charge

Charge

Charge

Charge

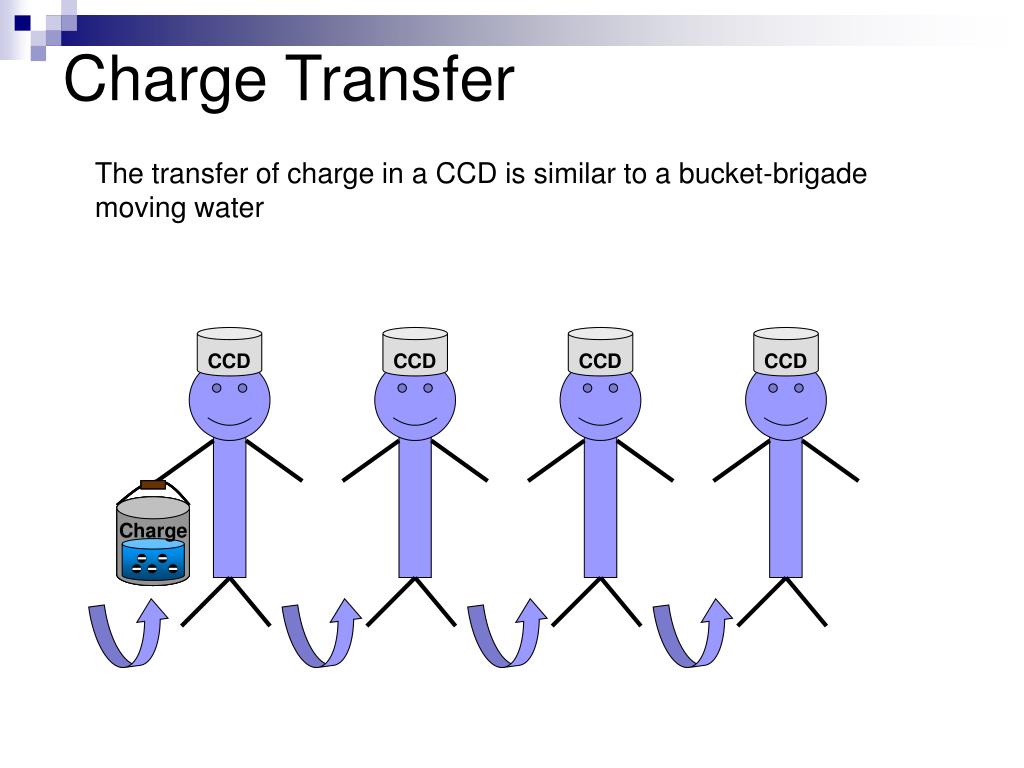

The transfer of charge in a CCD is similar to a bucket-brigade moving water


Amplifier of CCD Image Sensor to

Voltage Generated on Surface of FD

Horizontal CCD

Output

Output Gate

Amplifier

Gate

Gate

Gate

Micro Wire

Charge

Floating Diffusion (FD)



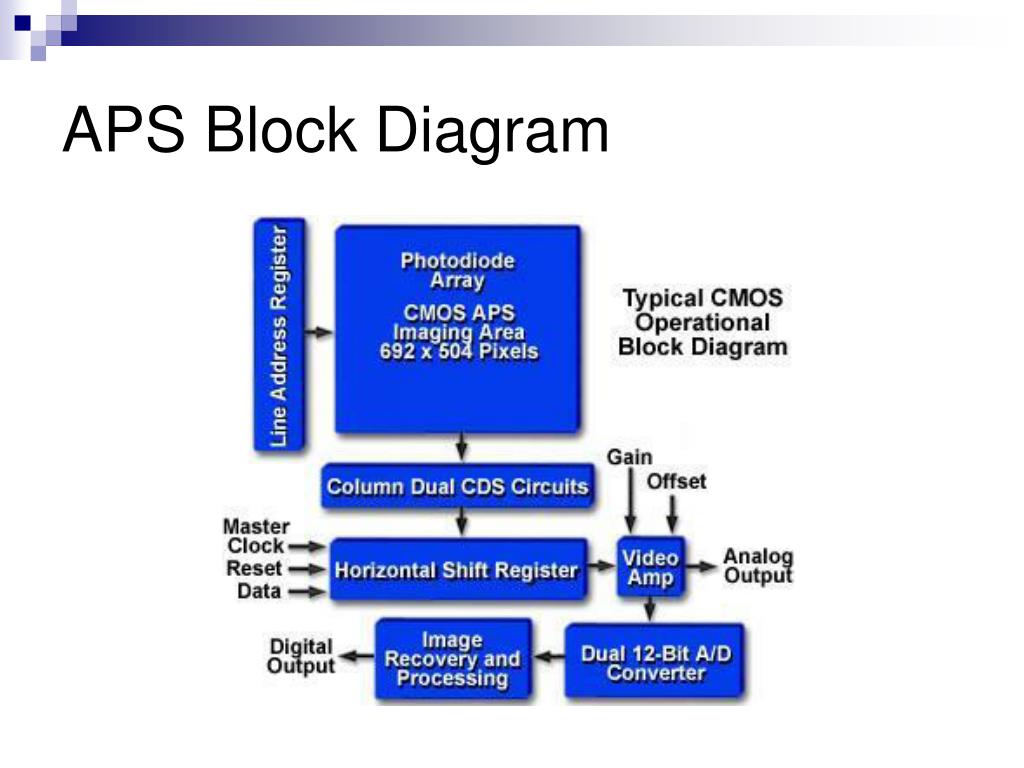

CMOS Image Sensor to

Photodiode Active-Pixel Architecture (APS)

Actual Photodiode Active-Pixel Architecture



CMOS Image Sensor to

Pixel (a)

Amplifier (y)

Photo Sensor (b)(Light-sensitive Region)

Light

Signal

ON

ON

ON

Charge

Pixel-select Switch (e)

Pixel Row (j)

Column Signal Wire(f)(Micro Wire)

Column-select Switch (g)

Column Circuit (h)

Row Signal Wire (i) (Micro Wire)

ON

Output


Voltage Detection to

Fig. A

When Charge is NOT Accumulated in Photo Sensor

Fig. B

When Charge is Accumulated in Photo Sensor

Surface Voltage to Amplifier

Surface Voltage to Amplifier

Surface Voltage

Light

Surface Voltage

0 V

0 V

Voltage

Voltage

Charge

High

Photo Sensor

Photo Sensor

High


Voltage Detection to

Fig. C

When Charge is NOT Accumulated in Photo Sensor

Fig. D

When Charge is Accumulated in Photo Sensor

Surface Voltage from Photo Sensor

Surface Voltage from Photo Sensor

Amplified Voltage

Amplified Voltage

0 V

0 V

V2

Current

Signal Voltage

V1

V1

Gate Lifts

High

Gate

High




CCD Image Sensor with 2-channel Horizontal CCDs to

Photo Sensor (Light-sensitive Area)

Light

Pixel

Charge (Electrons)

Vertical CCD

Output

Amplifier 1

Horizontal CCD 1

Channel 1

Horizontal CCD 2

Channel 2

Amplifier 2

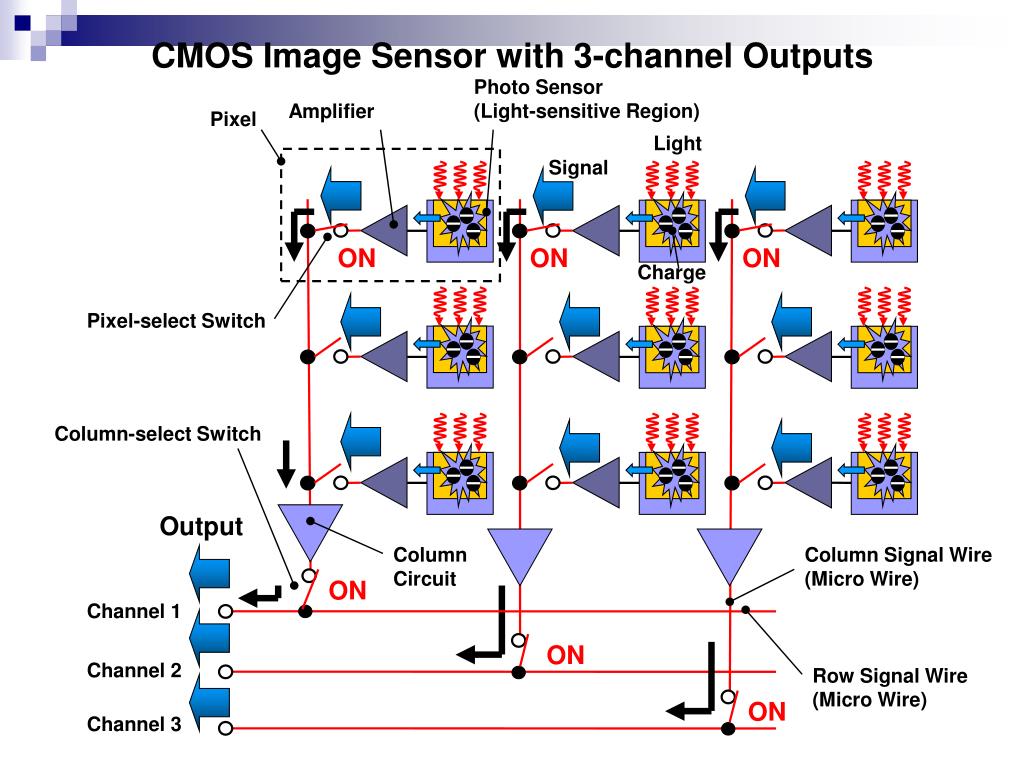

CMOS Image Sensor with 3-channel Outputs to

Photo Sensor (Light-sensitive Region)

Amplifier

Pixel

Light

Signal

ON

ON

ON

Charge

Pixel-select Switch

Column-select Switch

Output

Column Circuit

Column Signal Wire (Micro Wire)

ON

Channel 1

ON

Channel 2

Row Signal Wire (Micro Wire)

ON

Channel 3

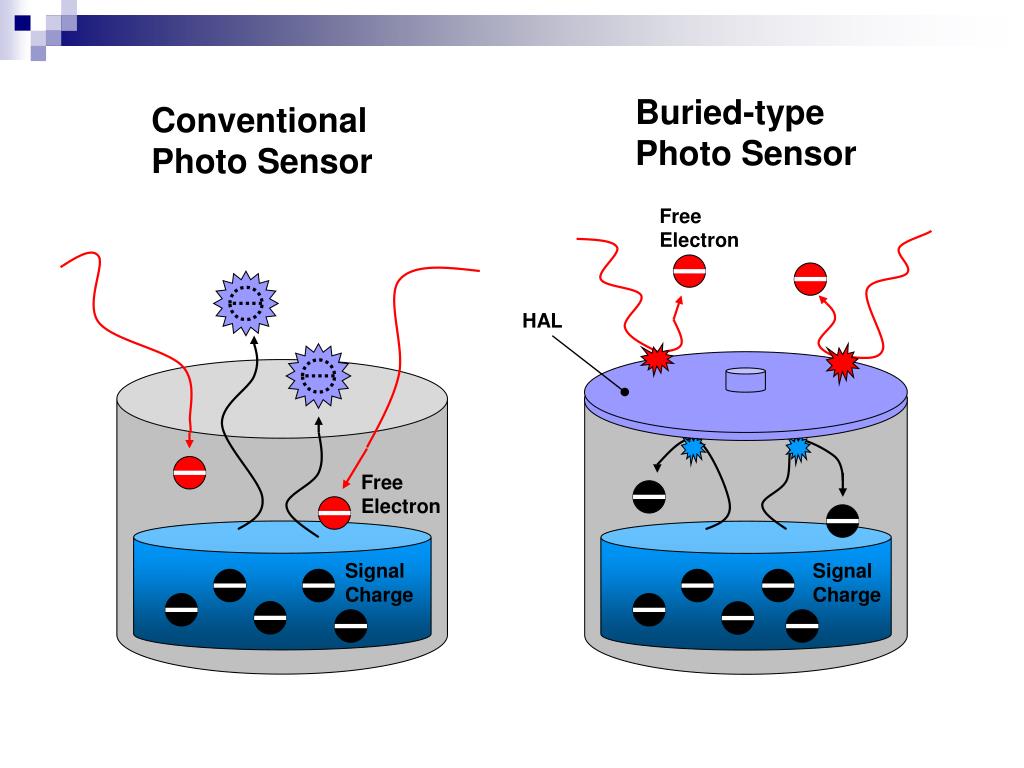

Buried-type Photo Sensor to

Conventional Photo Sensor

Free Electron

HAL

Free Electron

Signal Charge

Signal Charge


HAD-type CMOS Image Sensor to

Gate

Gate

Gate

Signal Wire

Poly-Si

Gate

Drain

Drain

Source

P+ (HAL)

P+

N

P+

N

N

N

P+

N

N

SiO2

P-type Si (Substrate)

Read-out Gate

FD Reset Gate

FD Reset Drain

Photo Sensor

Pixel-select Switch

Amplifier

Floating Diffusion (FD)



Micro condensing lens1
Micro Condensing Lens to

On-chip

Micro-lens

CCD Sensor

Structure

Power HAD CCD

Hyper HAD CCD


Power had ex imager

On-Chip-Micro lens to

On-Chip-Micro lens

Internal Lens

Photo-Shielding

film

Photo-Shielding

film

Poly Si

Poly Si

Sensor

V-register

Sensor

V-register

Fig.-1 Power HAD CCD Sensor Construction

Fig.-2 New CCD Sensor Construction

Power HAD EX Imager

Performance Improvement With New CCD construction

Thinner Insulation

Film

Improvement of Smear with thinner insulation membrane

Power HAD CCD camera :

-125dB (Typical)

Power HAD EX CCD camera  :

-140dB (Typical)



Pros cons of imagers
Pros & Cons of Imagers to

Feature Comparison


Pros cons of imagers1
Pros & Cons of Imagers to

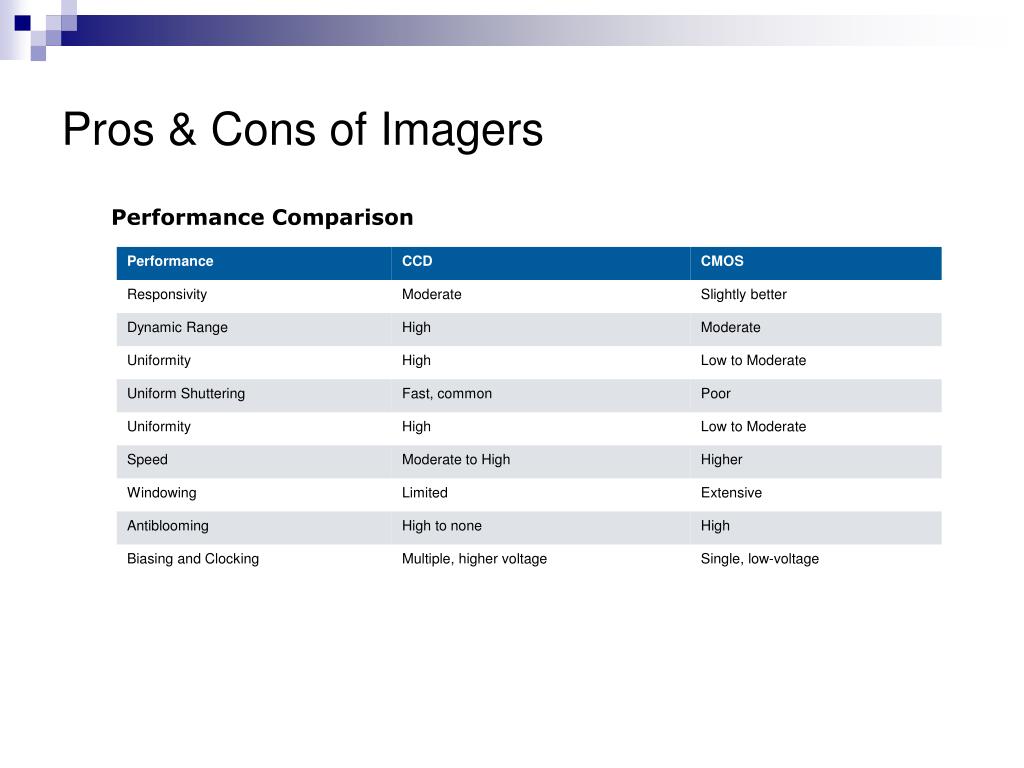

Performance Comparison


Pros cons of imagers2
Pros & Cons of Imagers to

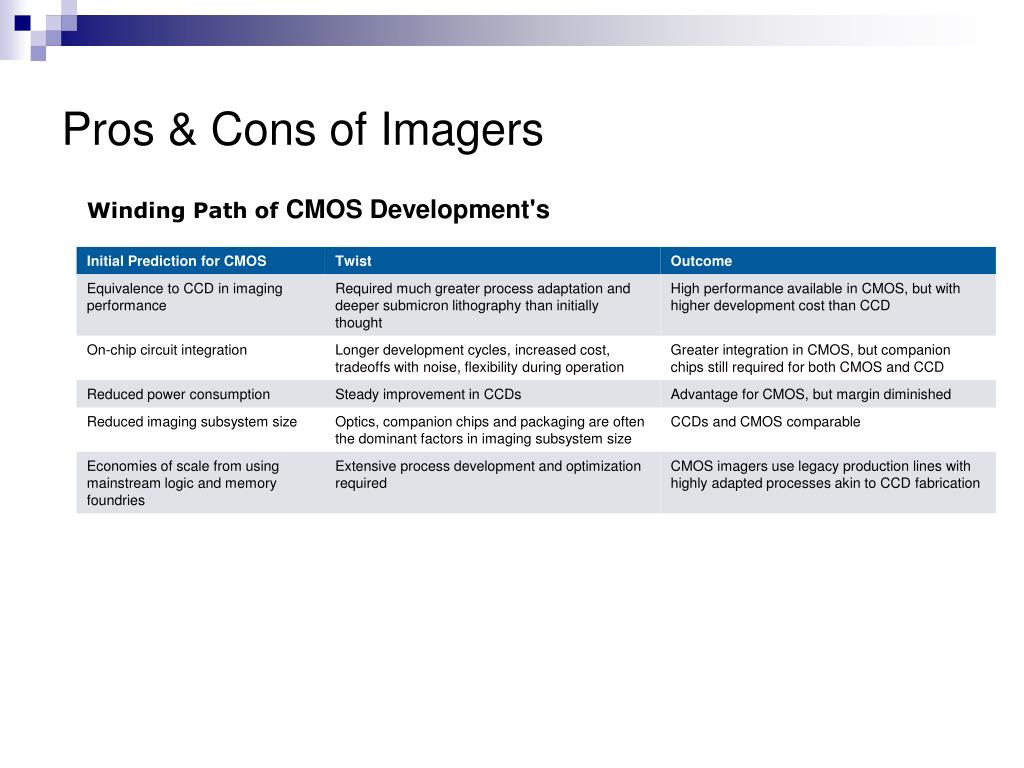

Winding Path of CMOS Development's
