EU DataGrid - Network Monitoring

Richard Hughes-Jones, University of Manchester

Thanks to a wireless connected Titanium in the [email protected]

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester


SURFnet

Manc

UvA

SuperJANET4

CERN

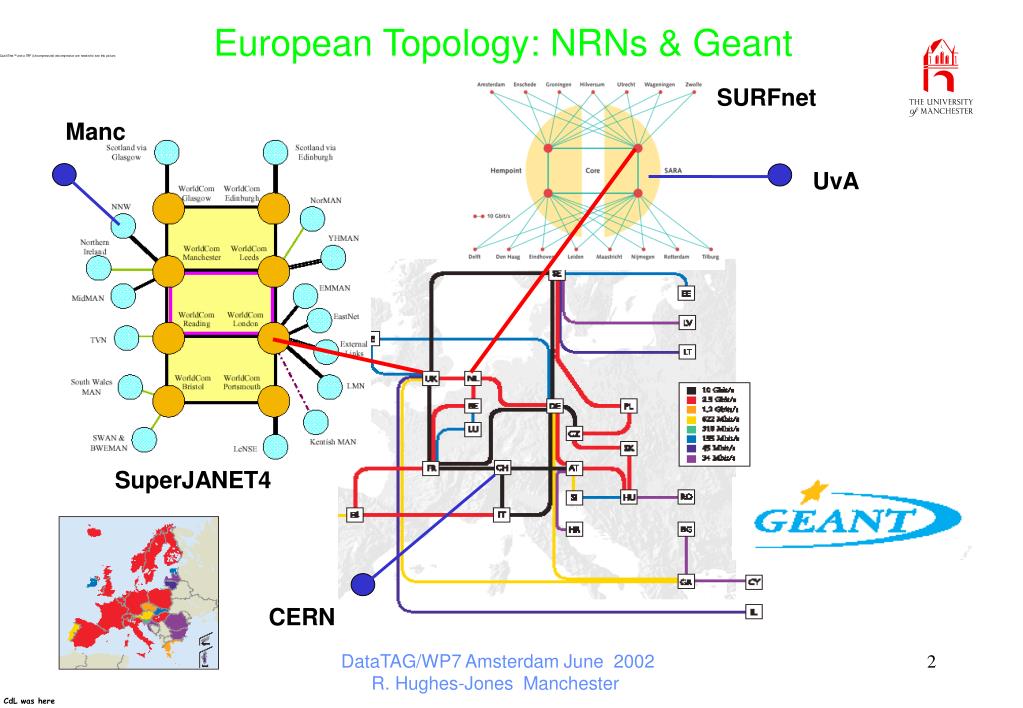

European Topology: NRNs & Geant

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester


Gigabit throughput on the production wan

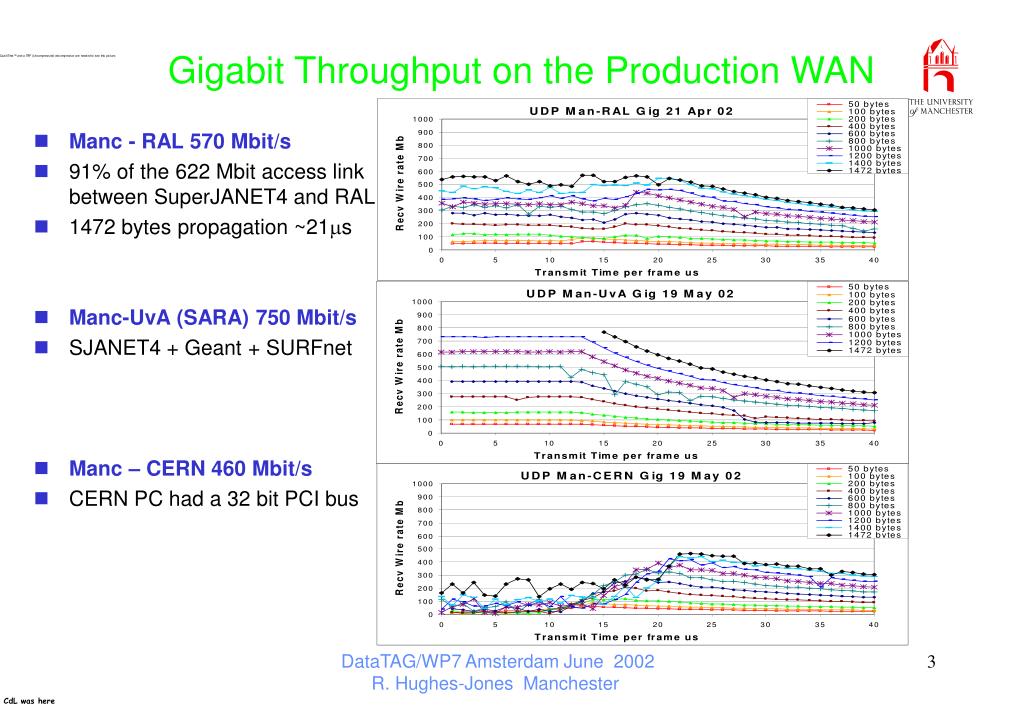

Gigabit Throughput on the Production WAN

  • Manc - RAL 570 Mbit/s

  • 91% of the 622 Mbit access link between SuperJANET4 and RAL

  • 1472 bytes propagation ~21s

  • Manc-UvA (SARA) 750 Mbit/s

  • SJANET4 + Geant + SURFnet

  • Manc – CERN 460 Mbit/s

  • CERN PC had a 32 bit PCI bus

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester


Gigabit tcp on the production wan 01

Window Mbytes for

UDP BW

750 Mbit/s 460 Mbit/s

Window for

BW 1 Gbit/s

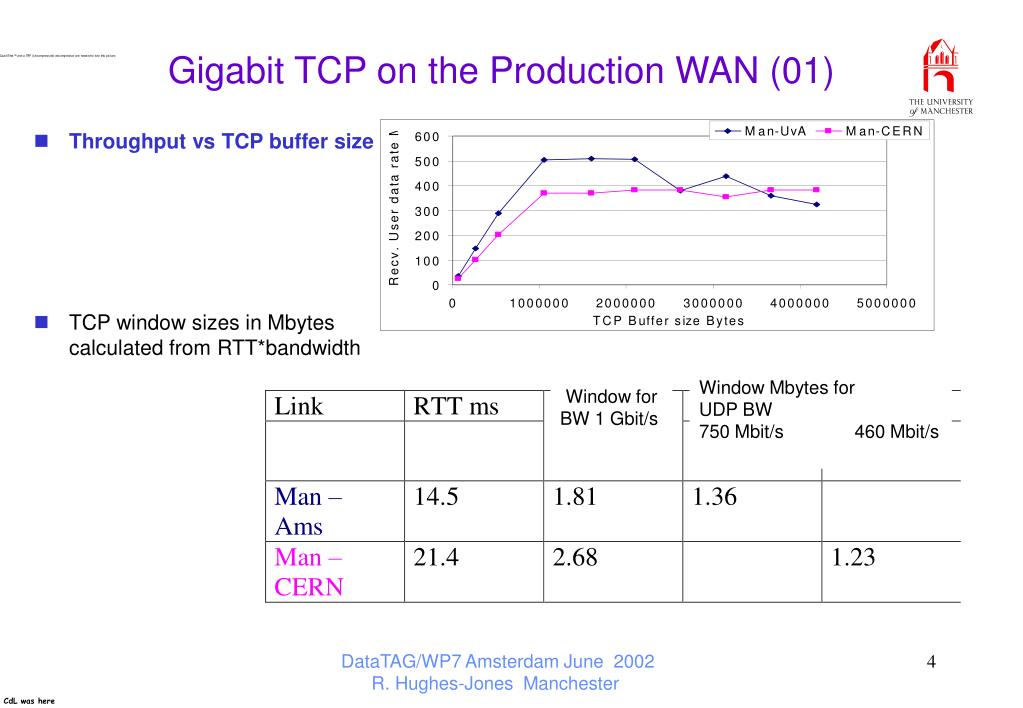

Gigabit TCP on the Production WAN (01)

  • Throughput vs TCP buffer size

  • TCP window sizes in Mbytes calculated from RTT*bandwidth

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester


Gigabit tcp on the production wan man cern
Gigabit TCP on the Production WAN Man-CERN

  • Throughput vs n-streams

  • Default buffer size slope = ~25 Mbit/s/stream up to 9 streams then 15 Mbit/s/stream

  • With larger buffers rate of increase per stream is larger

  • Plateaus at about 7 streams giving a total throughput of ~400 Mbit/s

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester

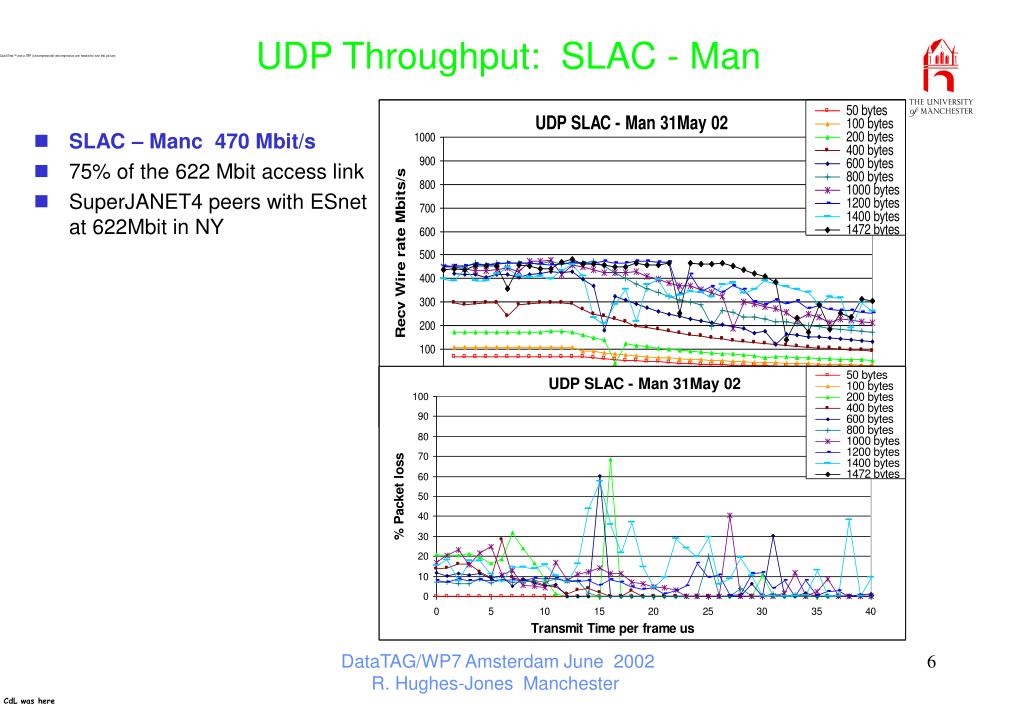

UDP Throughput: SLAC - Man

  • SLAC – Manc 470 Mbit/s

  • 75% of the 622 Mbit access link

  • SuperJANET4 peers with ESnet at 622Mbit in NY

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester


Gigabit tcp on throughput man slac

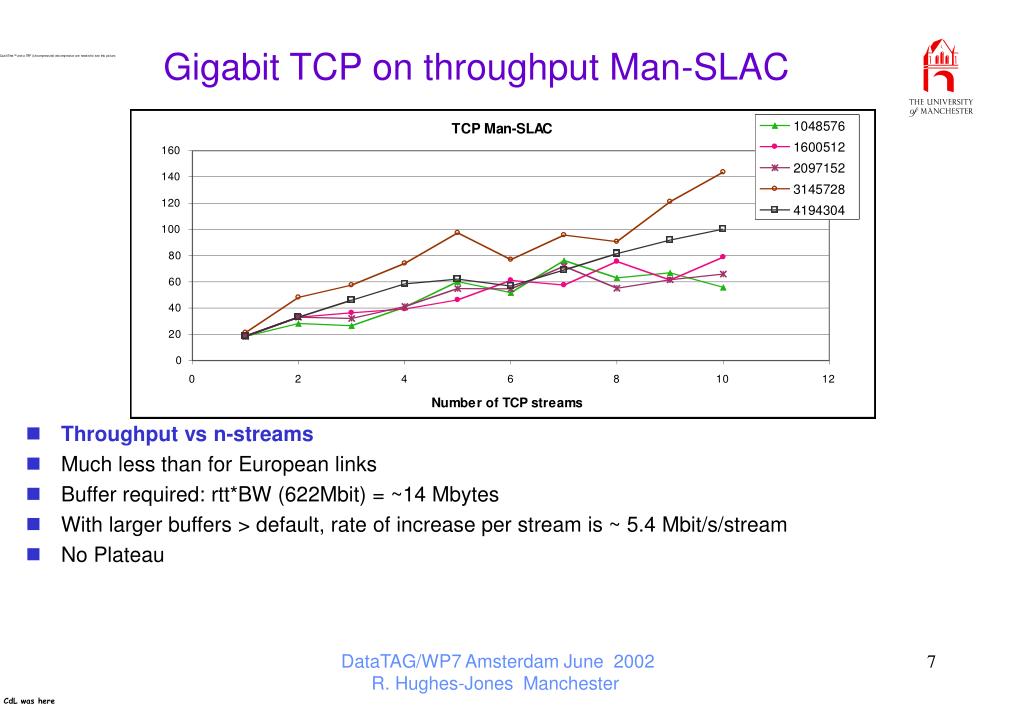

Gigabit TCP on throughput Man-SLAC

  • Throughput vs n-streams

  • Much less than for European links

  • Buffer required: rtt*BW (622Mbit) = ~14 Mbytes

  • With larger buffers > default, rate of increase per stream is ~ 5.4 Mbit/s/stream

  • No Plateau

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester


Udpmon ripe man sara from 25 may 02

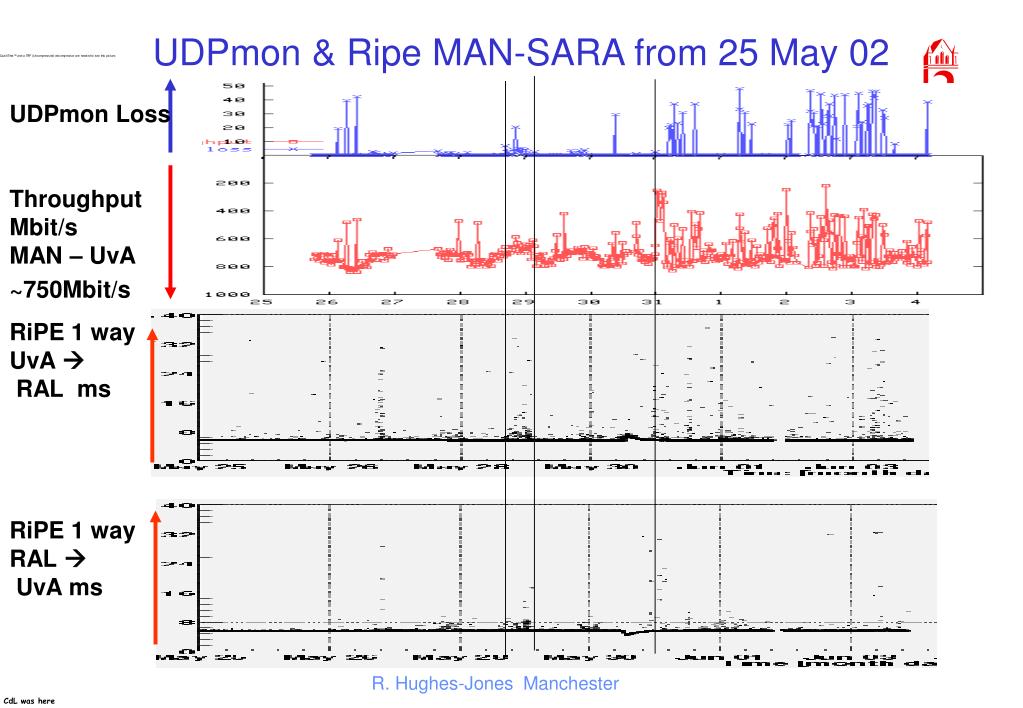

UDPmon & Ripe MAN-SARA from 25 May 02

UDPmon Loss

Throughput

Mbit/s

MAN – UvA

~750Mbit/s

RiPE 1 way

UvA 

RAL ms

RiPE 1 way

RAL 

UvA ms

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester


Iperf pinger udpmon uk lyon from 25 may 02 04 jun 02

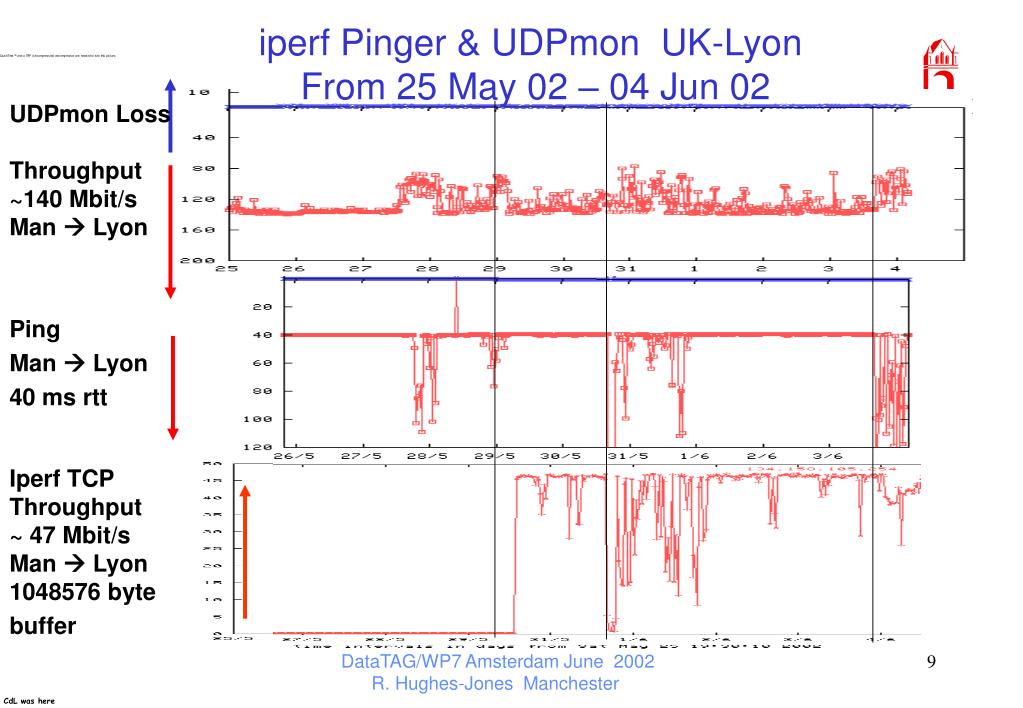

iperf Pinger & UDPmon UK-Lyon From 25 May 02 – 04 Jun 02

UDPmon Loss

Throughput

~140 Mbit/s

Man  Lyon

Ping

Man  Lyon

40 ms rtt

Iperf TCP Throughput

~ 47 Mbit/s

Man  Lyon

1048576 byte

buffer

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester


Work on end systems pci syskonnect sk 9843

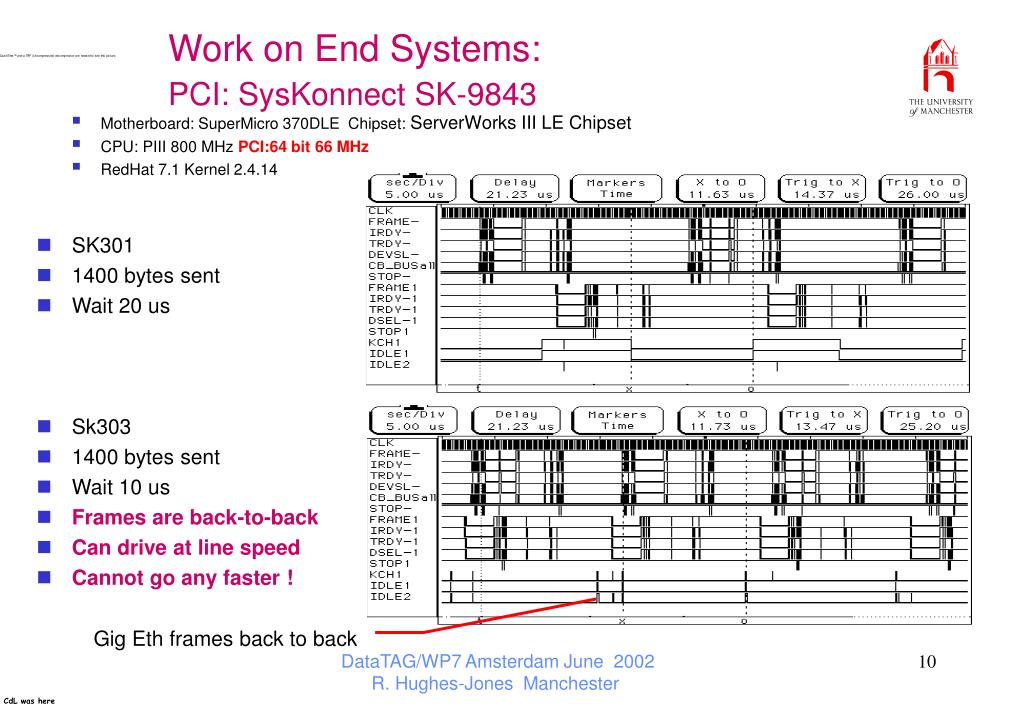

Work on End Systems: PCI: SysKonnect SK-9843

  • Motherboard: SuperMicro 370DLE Chipset: ServerWorks III LE Chipset

  • CPU: PIII 800 MHz PCI:64 bit 66 MHz

  • RedHat 7.1 Kernel 2.4.14

  • SK301

  • 1400 bytes sent

  • Wait 20 us

  • Sk303

  • 1400 bytes sent

  • Wait 10 us

  • Frames are back-to-back

  • Can drive at line speed

  • Cannot go any faster !

Gig Eth frames back to back

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester


Pci intel pro 1000

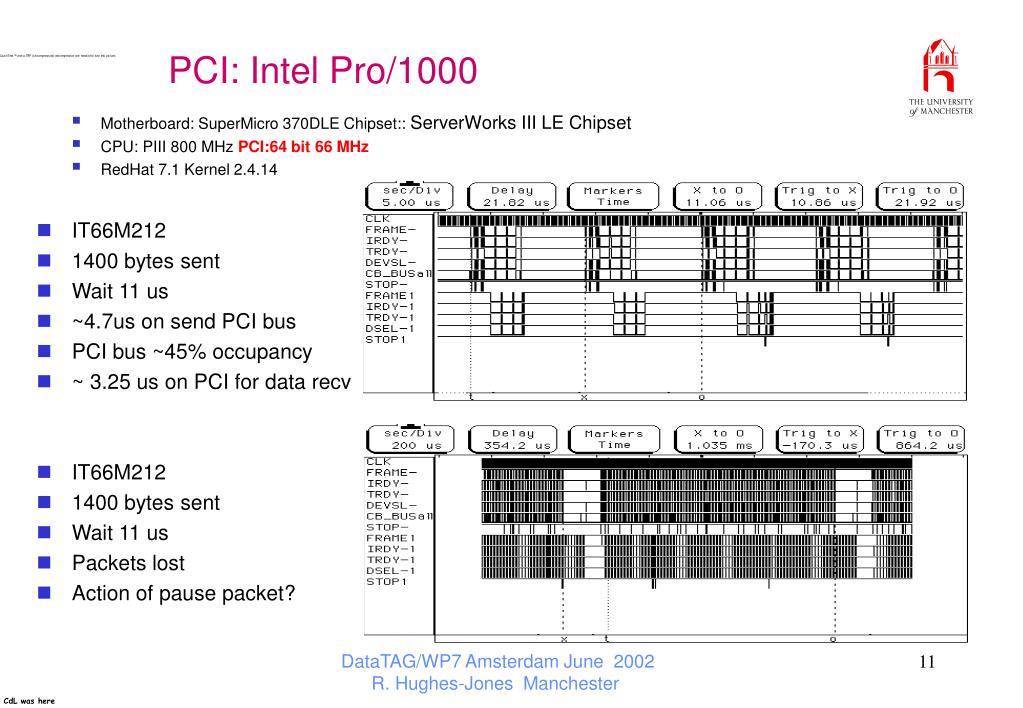

PCI: Intel Pro/1000

  • Motherboard: SuperMicro 370DLE Chipset:: ServerWorks III LE Chipset

  • CPU: PIII 800 MHz PCI:64 bit 66 MHz

  • RedHat 7.1 Kernel 2.4.14

  • IT66M212

  • 1400 bytes sent

  • Wait 11 us

  • ~4.7us on send PCI bus

  • PCI bus ~45% occupancy

  • ~ 3.25 us on PCI for data recv

  • IT66M212

  • 1400 bytes sent

  • Wait 11 us

  • Packets lost

  • Action of pause packet?

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester


Udp throughput intel pro 1000 on b2b p4dp6
UDP Throughput: Intel Pro/1000on B2B P4DP6

  • Motherboard: SuperMicro P4DP6 Chipset: Intel E7500 (Plumas)

  • CPU: Dual Xeon Prestonia (2cpu/die) 2.2 GHz Slot 4: PCI, 64 bit, 66 MHz

  • RedHat 7.2 Kernel 2.4.14

  • Max throughput 950Mbit/s

  • Some throughput drop for packets >1000 bytes

  • Loss NIC dependent

  • Loss not due to user  Kernel moves

  • Traced to discards in the receiving IP layer ???

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester


Packet loss where

UDPmon

UDPmon

UDP

UDP

IP

IP

Eth drv

Eth drv

Gig Switch

HW

HW

  • No loss at switch

  • But Pause packet seen to sender

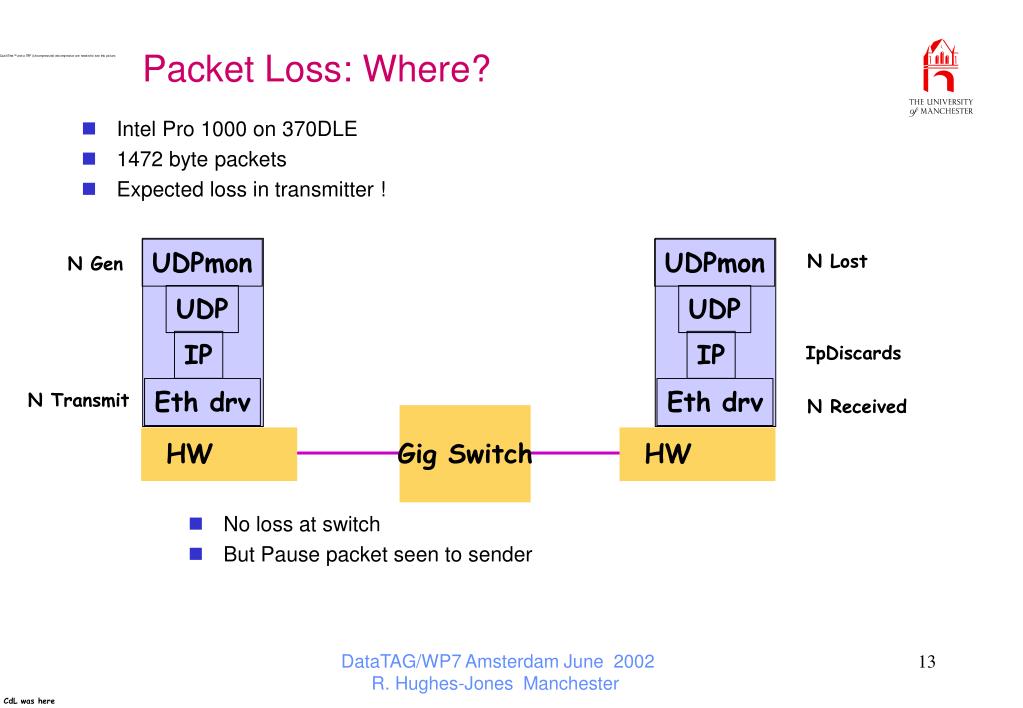

Packet Loss: Where?

  • Intel Pro 1000 on 370DLE

  • 1472 byte packets

  • Expected loss in transmitter !

N Lost

N Gen

IpDiscards

N Transmit

N Received

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester


Interrupt coalescence latency
Interrupt Coalescence: Latency

  • Intel Pro 1000 on 370DLE 800 MHz CPU

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester


Interrupt coalescence latency1

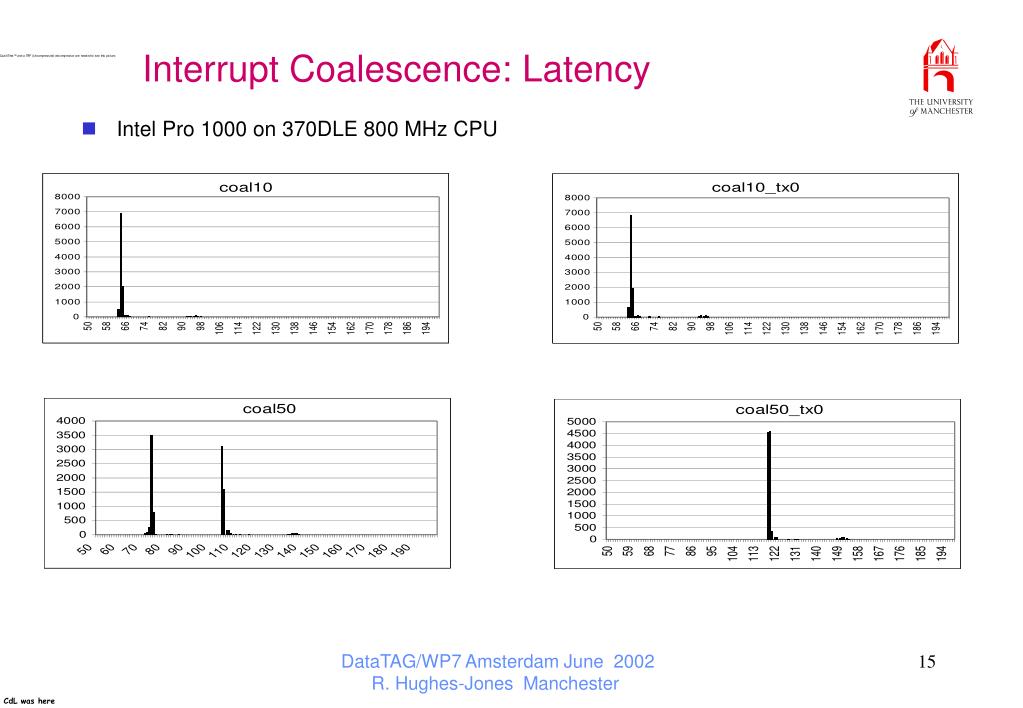

Interrupt Coalescence: Latency

  • Intel Pro 1000 on 370DLE 800 MHz CPU

DataTAG/WP7 Amsterdam June 2002

R. Hughes-Jones Manchester


Interrupt coalescence throughput
Interrupt Coalescence: Throughput

  • Intel Pro 1000 on 370DLE

DataTAG/WP7 Amsterdam June 2002
