Presentation Transcript

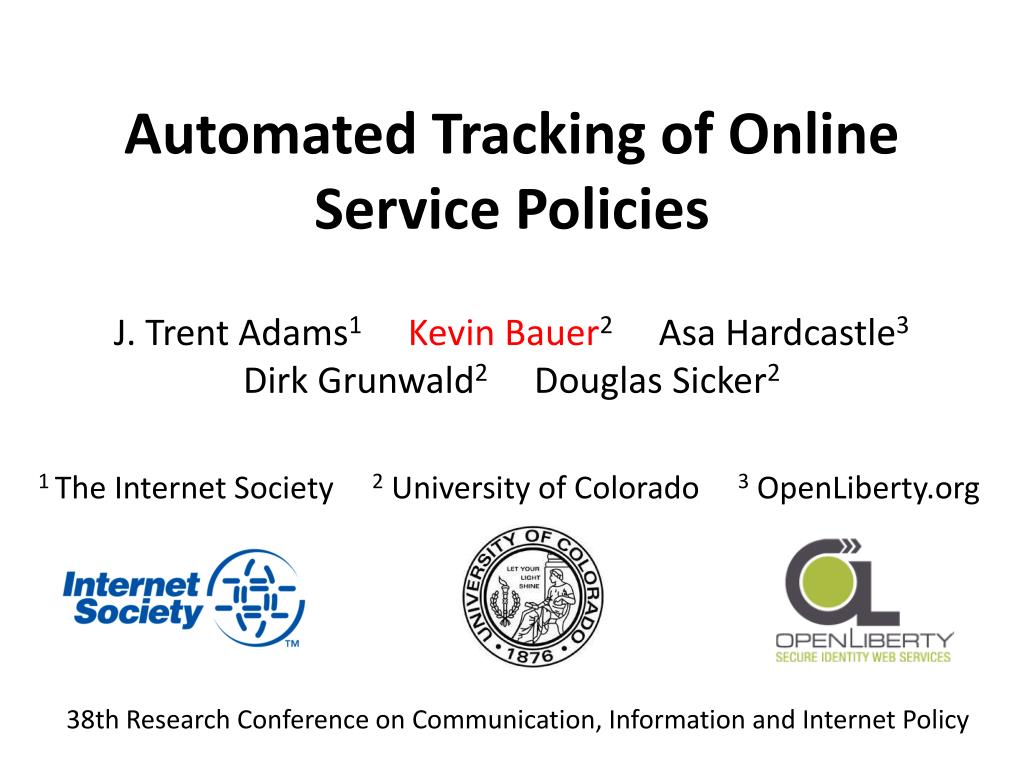

Automated tracking of online service policies

Automated Tracking of Online Service Policies

J. Trent Adams1Kevin Bauer2Asa Hardcastle3 Dirk Grunwald2 Douglas Sicker2

1 The Internet Society 2University of Colorado 3OpenLiberty.org

38th Research Conference on Communication, Information and Internet Policy


What they know

What They Know

Possible medical conditions

Social relationships

Offline behaviors

Personal interests

Search queries

Web browsing habits

Shopping habits

Financial status

TPRC 2010: Automated Tracking of Online Service Policies


User tracking is easy and common

User Tracking is Easy and Common

Additional tracking elements:

Sites often embed cookies

and other tools to explicitly

identify and track users

When a user

visits a website…

Website

dictionary.reference.com

Implicit information revealed:

IP address

HTTP request headers

(user-agent, operating system,

local time and language, referrer)

This information alone can be used

to construct an identifying, trackable

profile [EFF’sPanopticlick, PETS ’10]

Source:

http://blogs.wsj.com/wtk

TPRC 2010: Automated Tracking of Online Service Policies


The need for clear policy articulation

The Need for Clear Policy Articulation

Pros of natural language policies

Given the inherent privacy risks in ordinary web browsing, most sites explicitly

explain how they handle sensitive user data (PII) in a human-readable, natural

language privacy policy or terms of service document

Near universal deployment

Cons of natural language policies

Users must find, read, and

comprehend the policies

Comprehension is poor

for natural language policies

[McDonald et al., PETS ’09]

TPRC 2010: Automated Tracking of Online Service Policies

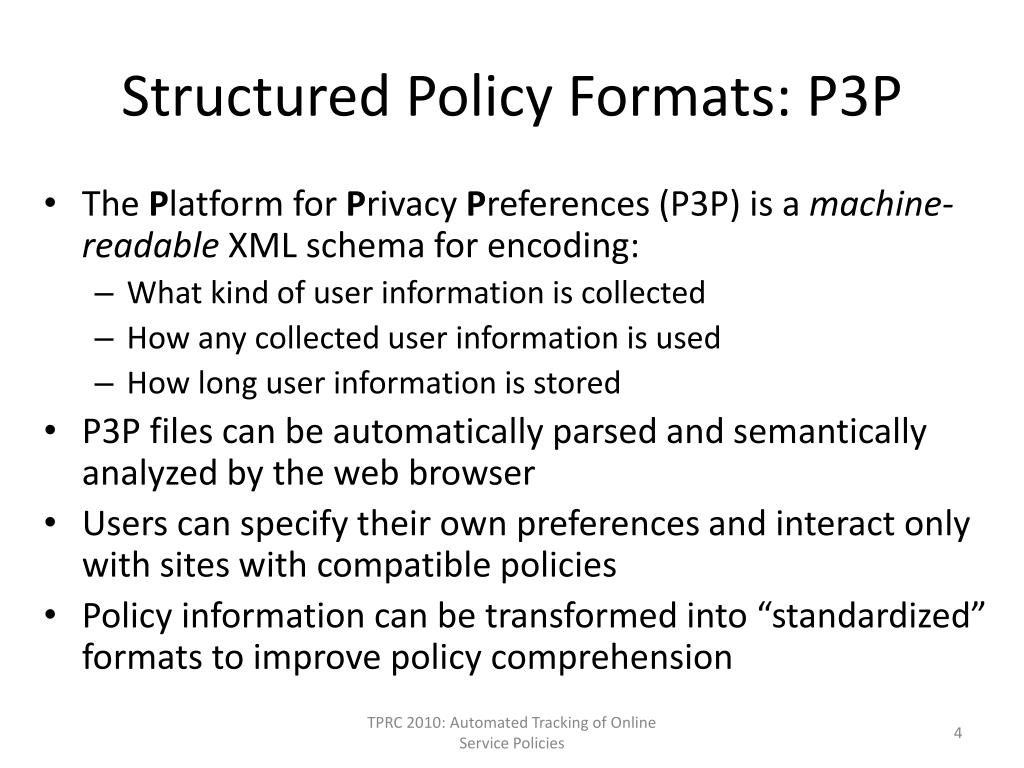

Structured policy formats p3p

Structured Policy Formats: P3P

  • The Platform for Privacy Preferences (P3P) is a machine-readable XML schema for encoding:

    • What kind of user information is collected

    • How any collected user information is used

    • How long user information is stored

  • P3P files can be automatically parsed and semantically analyzed by the web browser

  • Users can specify their own preferences and interact only with sites with compatible policies

  • Policy information can be transformed into “standardized” formats to improve policy comprehension

TPRC 2010: Automated Tracking of Online Service Policies

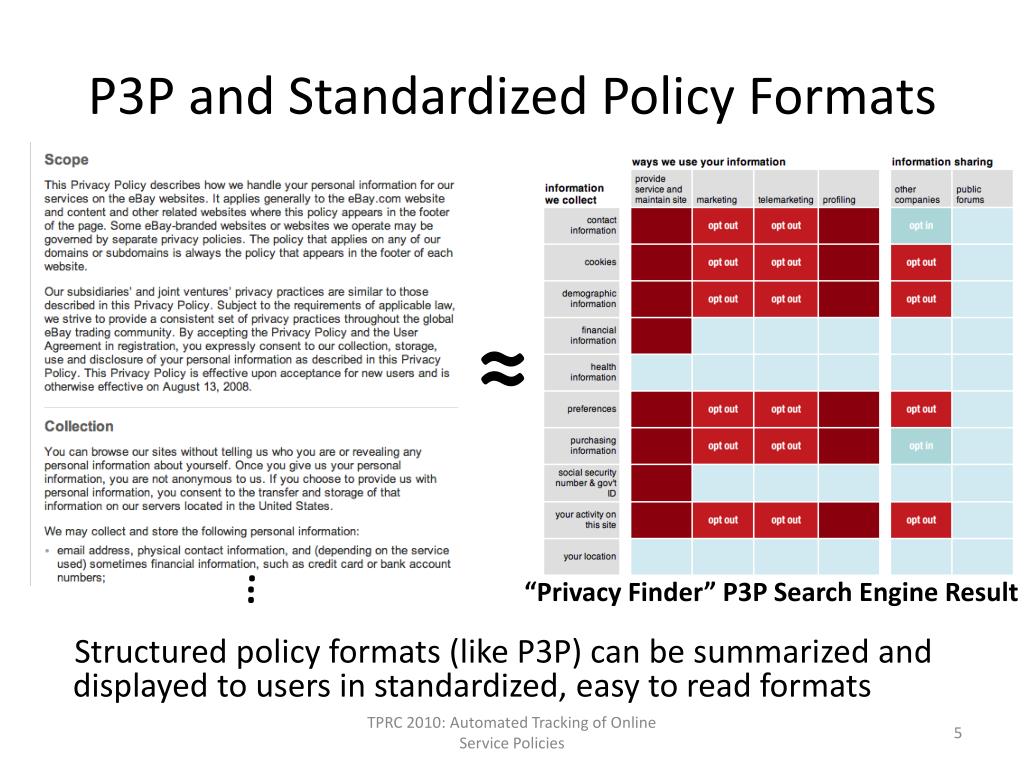

P3p and standardized policy formats

P3P and Standardized Policy Formats

Structured policy formats (like P3P) can be summarized and displayed to users in standardized, easy to read formats

.

.

.

“Privacy Finder” P3P Search Engine Result

TPRC 2010: Automated Tracking of Online Service Policies


Slow adoption for p3p

Slow Adoption for P3P

A study by Cranoret al. found that the most popular web sites tend to be more likely to offer P3P, but overall deployment is very low

2006: Only 10.25% offer P3P

2008: Only 13.59% offer P3P

Source: Cranoret al., Electronic Commerce

Research and Applications 2008

TPRC 2010: Automated Tracking of Online Service Policies


Our goal make interacting with natural language policies easier

Our Goal: Make Interacting with Natural Language Policies Easier

P3P adoption is limited, but human-readable policies are prevalent

This is a stop-gap measure: Until a structured policy format is widely

adopted, we must interact with natural language policies

New

structured

policy format?

Natural language

policy tracking

P3P

Our contribution: Design and implement Policy Audit System

- Aggregates natural language policies for a wide variety of websites

- Periodically checks these policy documents for updates

- Enables distribution of policies to interested users

- Notifies users about specific changes in policies

TPRC 2010: Automated Tracking of Online Service Policies


Policy audit system architecture

Policy Audit System: Architecture

Key Components:

- Policy Monitor: Periodically fetches known policy documents for

a large set of websites; checks policies for changes

-Policy Library: The collection of policy documents for each site over time

-Policy Library Mirrors: Copies of the policy library hosted by third parties

-Clients: Offers a way for users to obtain current or past policy information

TPRC 2010: Automated Tracking of Online Service Policies


Policy monitor

Policy Monitor

  • Periodically fetches a set of policy document URLs

  • Extracts relevant policy text using standard text parsing techniques

  • Compares the latest version to previously seen version to detect changes

  • Records latest version (if changed)

  • Based on the EFF’sTOSBack service (http://www.tosback.org)

TPRC 2010: Automated Tracking of Online Service Policies


Policy library

Policy Library

  • The Policy Monitor produces a library of policy documents, as they change over time

  • The Policy Library is a directory structure available via the web:

    • A list of tracked web websites

    • Policy text snapshots, or previous versions

    • Various metadata to help find the latest document version

  • The master library is hosted by the University of Colorado

  • Currently tracking 76 distinct policies (more coming soon)

TPRC 2010: Automated Tracking of Online Service Policies


Policy library mirrors

Policy Library Mirrors

  • Policy Library copies that are distributed among trusted parties

  • The Electronic Frontier Foundation (EFF), the Center for Democracy and Technology (CDT), and the University of Colorado host Policy Library mirrors

TPRC 2010: Automated Tracking of Online Service Policies

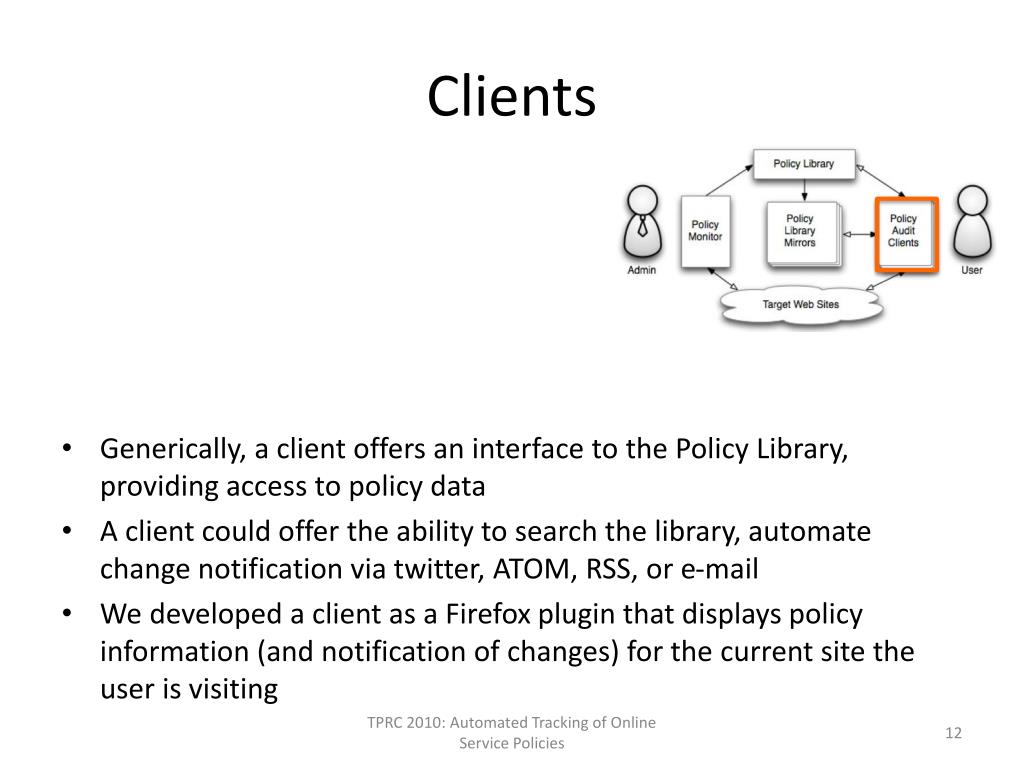

Clients

Clients

  • Generically, a client offers an interface to the Policy Library, providing access to policy data

  • A client could offer the ability to search the library, automate change notification via twitter, ATOM, RSS, or e-mail

  • We developed a client as a Firefox plugin that displays policy information (and notification of changes) for the current site the user is visiting

TPRC 2010: Automated Tracking of Online Service Policies


Example client firefox browser plug in

Example Client: Firefox Browser Plug-in*

  • Accesses the Policy Library and alerts the user when they visit a website that publishes a policy that the Policy Monitor is tracking

Visiting a site that’s

not tracked

Visiting a tracked site

with an unread policy

Visiting a tracked

site with an updated

policy since last visit

Visiting a tracked

site, but no change

in policy since last visit

Alert Icons

* sponsored by

TPRC 2010: Automated Tracking of Online Service Policies

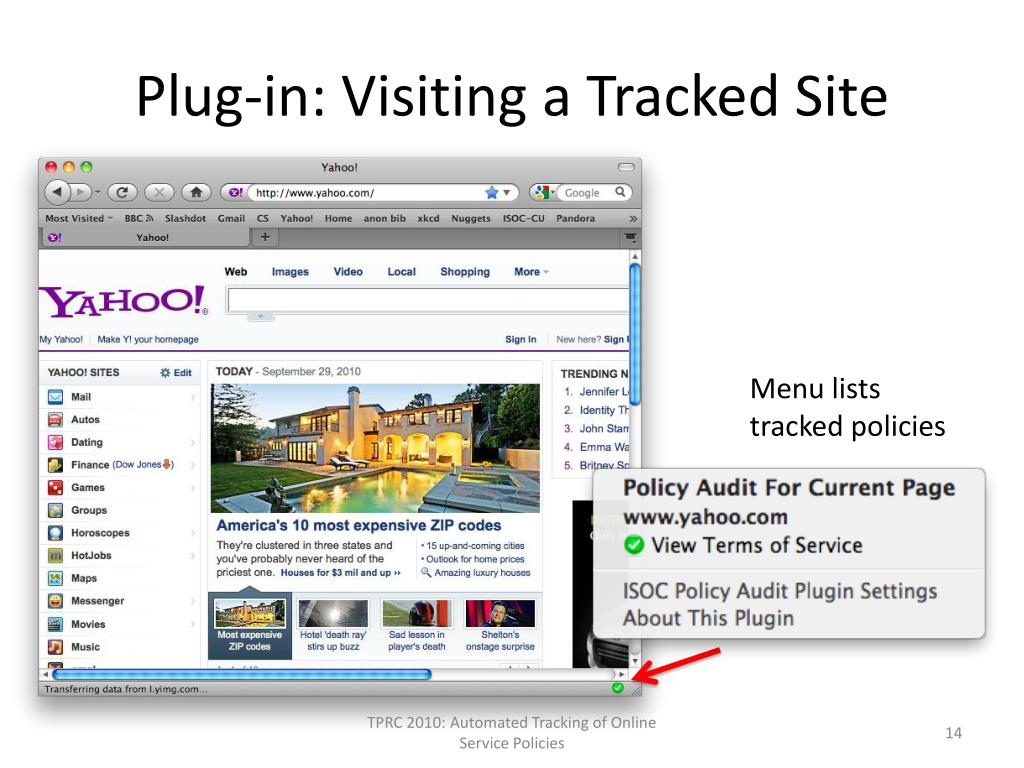

Plug in visiting a tracked site

Plug-in: Visiting a Tracked Site

Menu lists

tracked policies

TPRC 2010: Automated Tracking of Online Service Policies

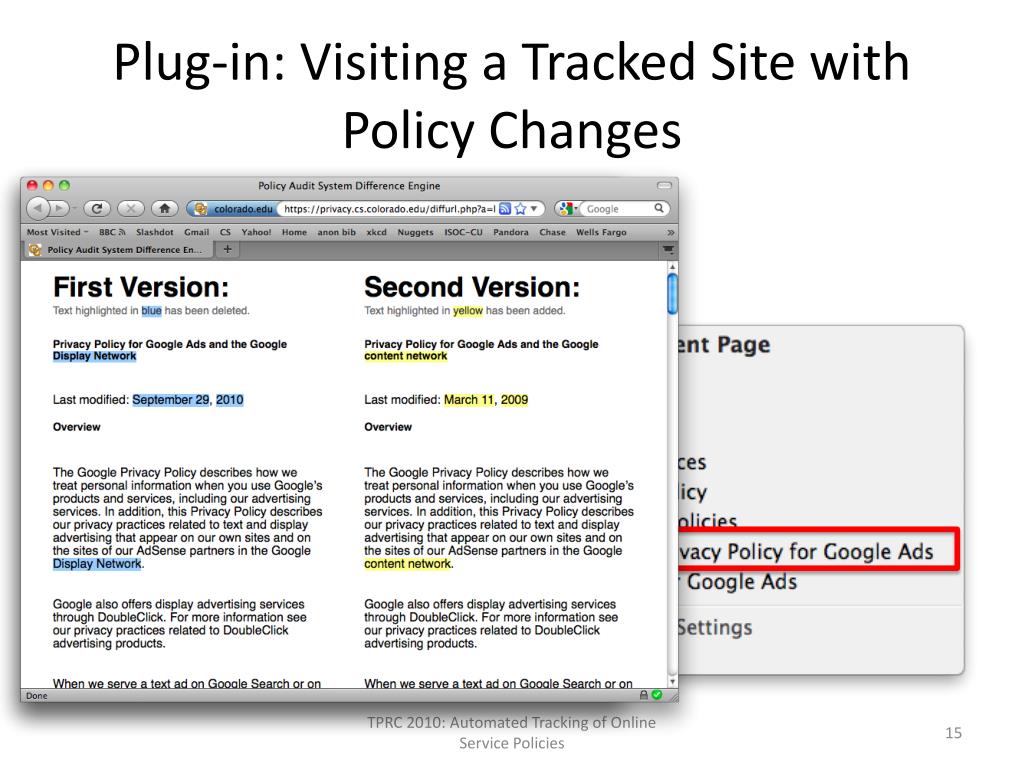

Plug in visiting a tracked site with policy changes

Plug-in: Visiting a Tracked Site with Policy Changes

TPRC 2010: Automated Tracking of Online Service Policies

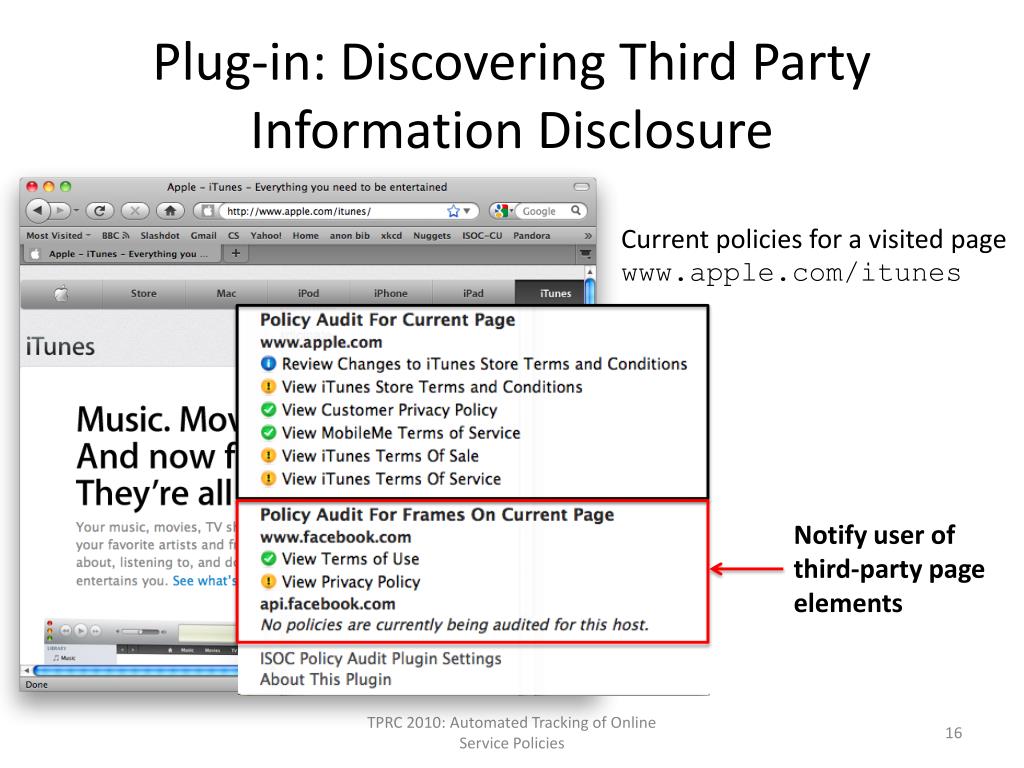

Plug in discovering third party information disclosure

Plug-in: Discovering Third Party Information Disclosure

Current policies for a visited page

www.apple.com/itunes

Notify user of

third-party page

elements

TPRC 2010: Automated Tracking of Online Service Policies


Summary and conclusion

Summary and Conclusion

  • Given the absence of a widely adopted structured policy format, we argue that steps should be taken to make natural language policies easier for users to understand

  • To this end, we present the Policy Audit System to track natural language policy documents and notify users of policy updates

  • Our hope is that this work helps individuals make sense of natural language policies while we wait for a structured policy data format to be widely adopted

    For more information

    Project overview: http://www.policymonitor.org/about

    Development community: http://www.policymonitor.org/sourcecode

    Firefox plug-in download: http://www.policymonitor.org/auditplugin

Thank you

[email protected]

TPRC 2010: Automated Tracking of Online Service Policies
