  1. A Pre-Study Towards Investigating the Art of Choosing Right Level of Input Data • Paper 125, PMAPS 2012, Istanbul • June 12, Session 24 • Carl Johan Wallnerström1, Sabina Stenberg2, Patrik Hilber1, • 1Royal Institute of Technology – KTH, Stockholm, Sweden • 2Uppsala University / Svenska Kraftnät (Swedish • national grid) C. J. Wallnerström, KTH - Royal Insitue of Technology

  2. Background In many countries there is a tendency towards both an increased demand of cost-effectiveness and at the same time high reliability, e.g. as a consequence of quality regulations and/or mandatory customer compensations Important to investigate if the introduction of more comprehensive analysis methods are needed or not C. J. Wallnerström, KTH - Royal Insitue of Technology

  3. Overall issue Collecting and using comprehensive input data in analyses is expensive, but using to rough methods could however give inaccurate results The aim of this paper is to provide a minor contribution (pre-study) to this major issue: Highlight the potential problem of using mean values Provide a method to evaluate existing methods used by DSOs to see if more detailed input data gives different results C. J. Wallnerström, KTH - Royal Insitue of Technology

  4. Problem of using mean values Traditional reliability analysis applied to power distribution often use mean values All outages are not about mean length. Some outages are due to switching possibilities short, while some major outages can last >12 hours. This can be a problem if: The mean consequence from all outages is not equal to the consequence of a mean outage, i.e. if the consequences are not linear dependent with outage length C. J. Wallnerström, KTH - Royal Insitue of Technology

  5. Consequences of outages Overall economic consequence categories due to regulation/laws – current situation in Sweden: Outages <0.05 hours: Currently no legal cost for the DSO, but should be reported separately (perhaps included in future version of tariff regulation) Outages 0.05-12 hours: Input to tariff regulations (SAIFI and SAIDI), can collectively affect tariff framework despite each customer’s individual reliability C. J. Wallnerström, KTH - Royal Insitue of Technology

  6. Consequences of outages Outages >12 hours: Mandatory individual customer compensation witch increases with time 12-24 hours: First compensation level, 12.5 % of annual tariff (or min ~100 Euro) >24 hours: Higher customer compensation levels, but also since 2011 possible additional consequences followed by a 24 hour functional requirement due to the law An alternative strategy to only using mean values, that relatively easy can be implemented, is to divide outages into length categories C. J. Wallnerström, KTH - Royal Insitue of Technology

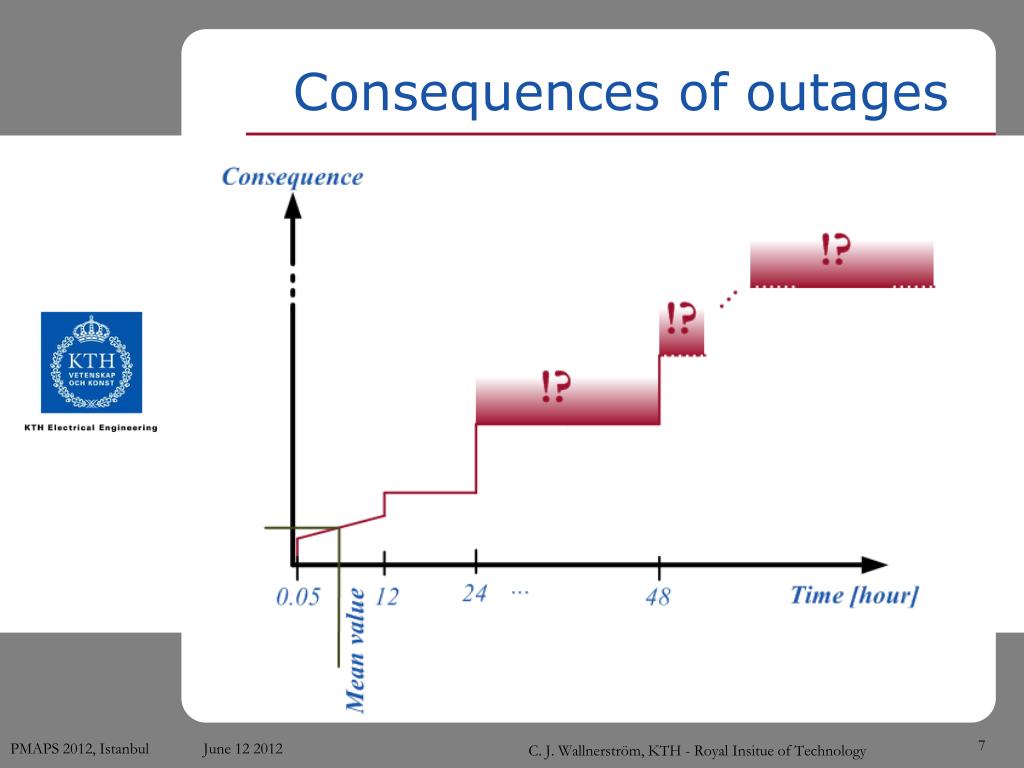

  7. Consequences of outages C. J. Wallnerström, KTH - Royal Insitue of Technology

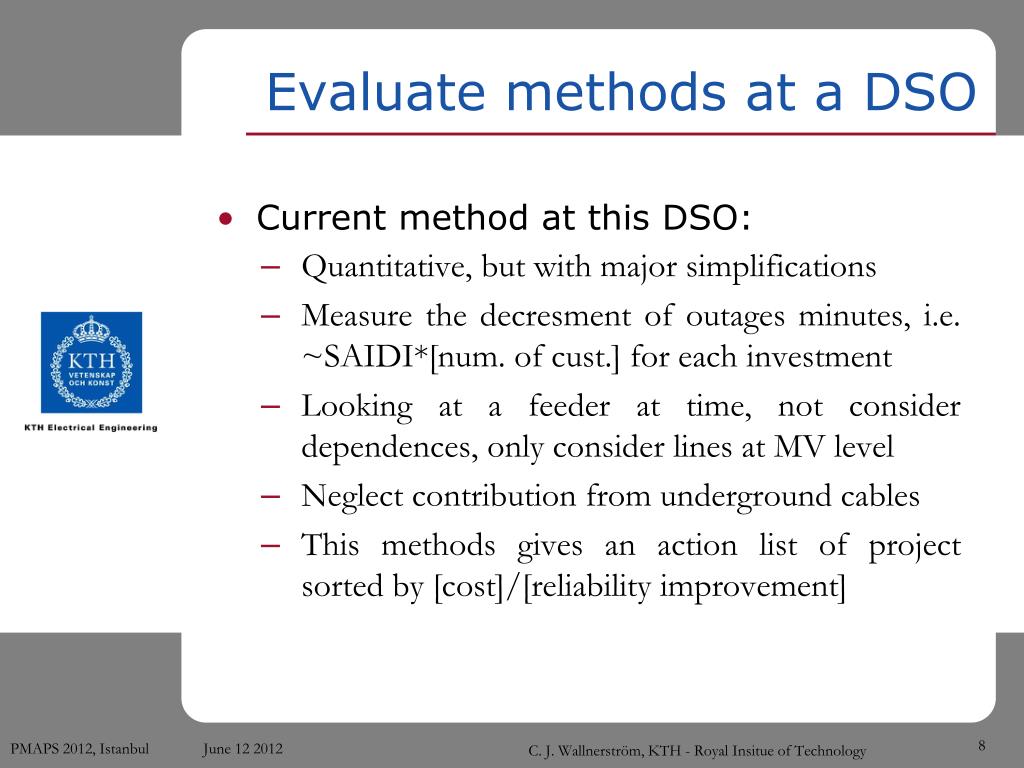

  8. Evaluate methods at a DSO Current method at this DSO: Quantitative, but with major simplifications Measure the decresment of outages minutes, i.e. ~SAIDI*[num. of cust.] for each investment Looking at a feeder at time, not consider dependences, only consider lines at MV level Neglect contribution from underground cables This methods gives an action list of project sorted by [cost]/[reliability improvement] C. J. Wallnerström, KTH - Royal Insitue of Technology

  9. Evaluate method at a DSO Will a more comprehensive reliability analysis method give: Another project priority? Other kind of investments preferred? E.g. less focus on replacing OH lines with cables? More or less investments that are profitable? 1st question easiest to test C. J. Wallnerström, KTH - Royal Insitue of Technology

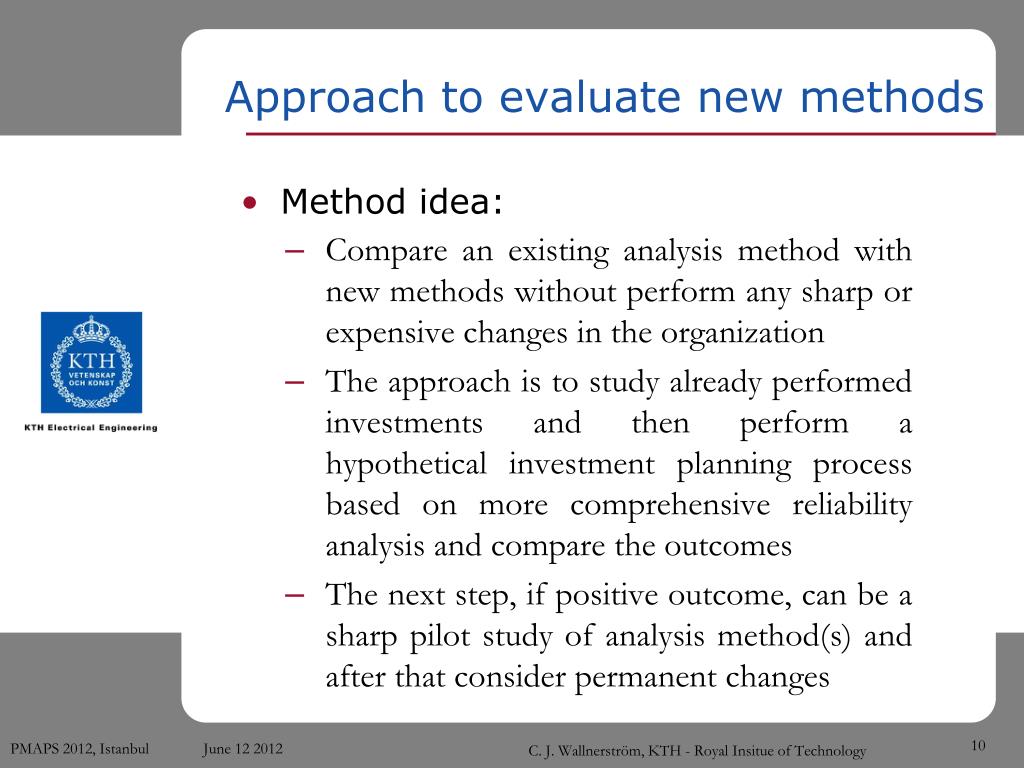

  10. Approach to evaluate new methods Method idea: Compare an existing analysis method with new methods without perform any sharp or expensive changes in the organization The approach is to study already performed investments and then perform a hypothetical investment planning process based on more comprehensive reliability analysis and compare the outcomes The next step, if positive outcome, can be a sharp pilot study of analysis method(s) and after that consider permanent changes C. J. Wallnerström, KTH - Royal Insitue of Technology

  11. Closure Important issues are highlighted: A tendency towards increased demand of cost-effectiveness on the one hand, and high reliability on the other → more important to chose good analysis methods The problem of using average values The difficulty to chose right level of input data A method to investigate whether a more comprehensive analysis method give different outcome, without perform any sharp changes C. J. Wallnerström, KTH - Royal Insitue of Technology

  12. Thank you for your attention! cjw@kth.se, www.ee.kth.se/rcam C. J. Wallnerström, KTH - Royal Insitue of Technology
