Presentation Transcript


Oasis semantic support for electronic business document interoperability set tc overview

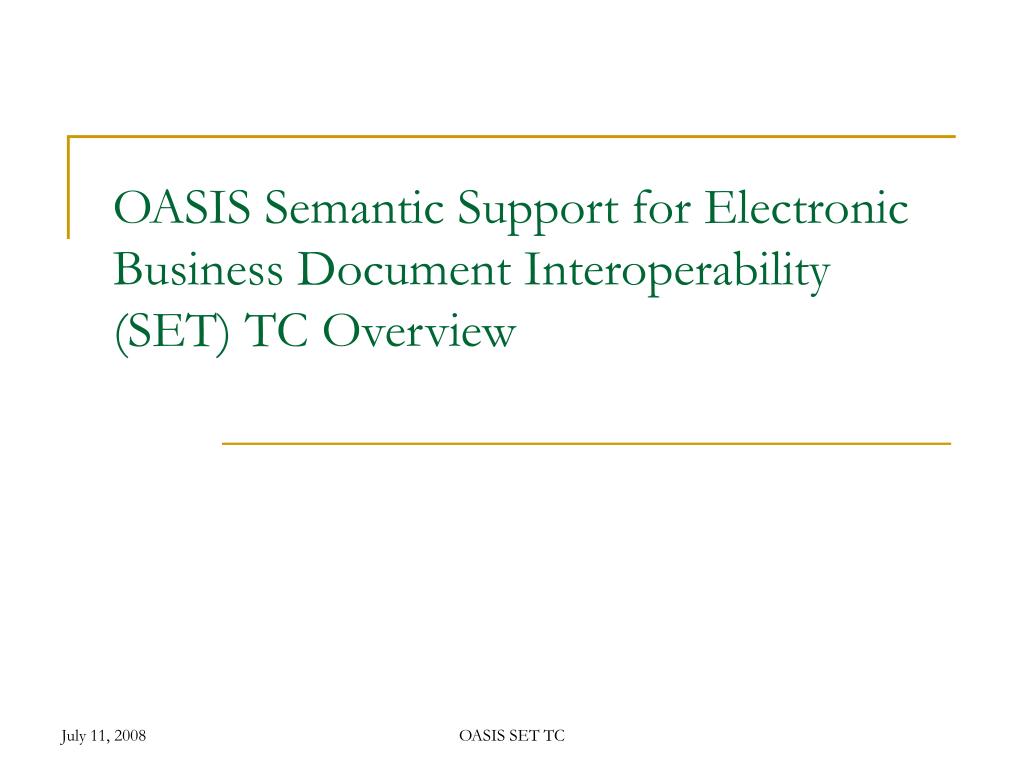

OASIS Semantic Support for Electronic Business Document Interoperability (SET) TC Overview

OASIS SET TC


Talk outline

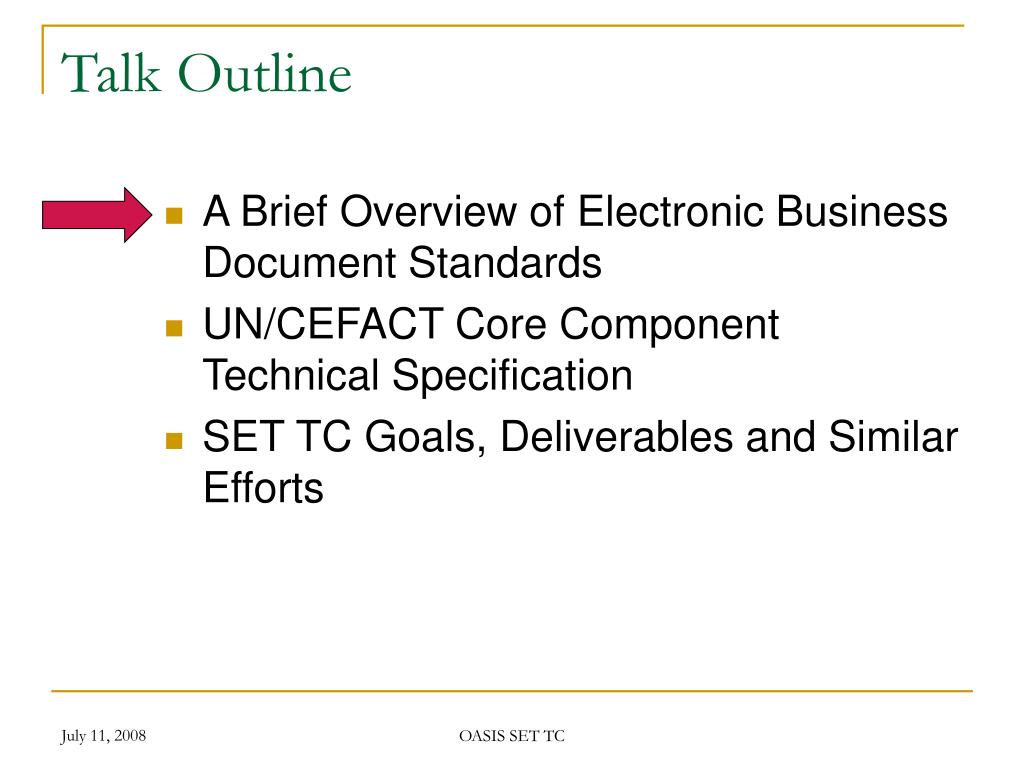

Talk Outline

  • A Brief Overview of Electronic Business Document Standards

  • UN/CEFACT Core Component Technical Specification

  • SET TC Goals, Deliverables and Similar Efforts

OASIS SET TC


Development of electronic business document interoperability standards

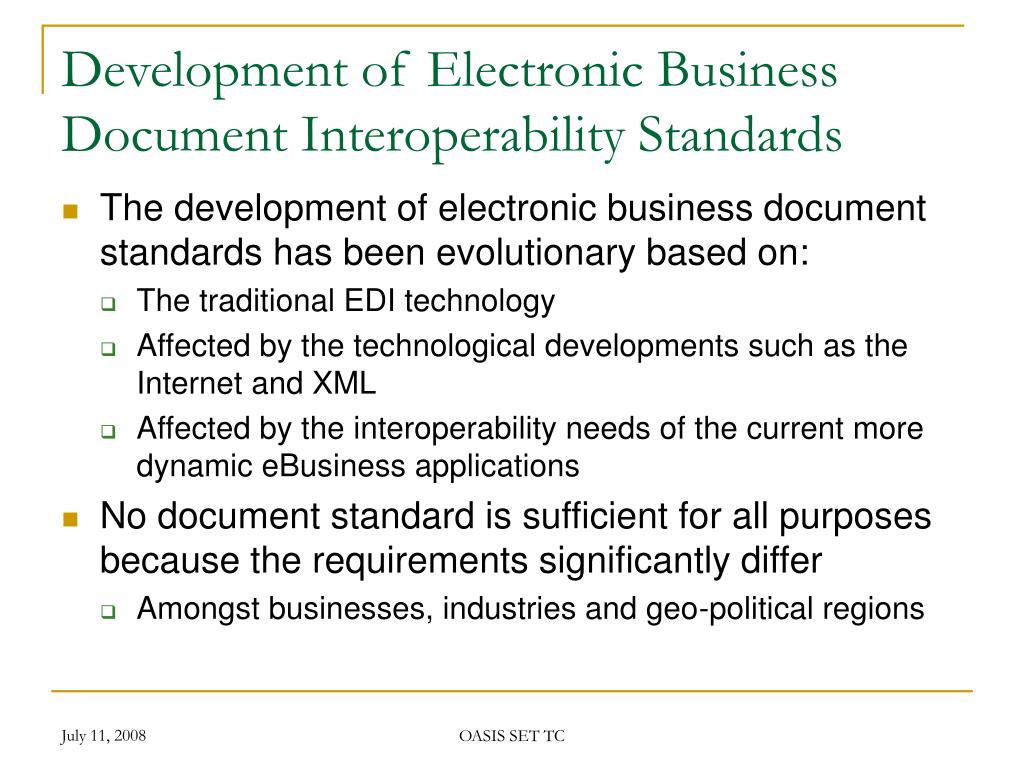

Development of Electronic Business Document Interoperability Standards

  • The development of electronic business document standards has been evolutionary based on:

    • The traditional EDI technology

    • Affected by the technological developments such as the Internet and XML

    • Affected by the interoperability needs of the current more dynamic eBusiness applications

  • No document standard is sufficient for all purposes because the requirements significantly differ

    • Amongst businesses, industries and geo-political regions

OASIS SET TC


Some example business document standards

Some Example Business Document Standards

Vertical Standards

RosettaNet, CIDX, PIDX, OTA, HL7, …

Horizontal Standards

OAGIS, GS1 eCom, xCBL, cXML, UN/CEFACT CCL, UBL, …

A survey and analysis of electronic business document standards investigating:

The document design principles

The use of code lists

The use of XML namespaces

How the standards handle extensibility and customization

is available at:

Kabak Y., Dogac A., “A Survey and Analysis of Electronic Business Document Standards”, Submitted to ACM Computing Surveys

http://www.srdc.metu.edu.tr/webpage/publications

OASIS SET TC


Talk outline1

Talk Outline

  • A Brief Overview of Electronic Business Document Standards

  • UN/CEFACT Core Component Technical Specification

  • SET TC Goals, Deliverables and Similar Efforts

OASIS SET TC


Un cefact core component technical specification ccts

UN/CEFACT Core Component Technical Specification (CCTS)

  • The ultimate aim of business document interoperability is to

    • Exchange business data among partners without any prior agreements related to the document syntax and semantics

    • Hence support “Interoperability Service Utility (ISU)” at the content level as defined by the Enterprise Interoperability Roadmap of European Commission

  • Therefore, document standard need to adapt to different contexts, be extensible and customizable

  • UN/CEFACT Core Component Technical Specification (CCTS) is an important landmark in this direction

OASIS SET TC


Un cefact core component technical specification ccts1

UN/CEFACT Core Component Technical Specification (CCTS)

  • UN/CEFACT CCTS provides a methodology to identify a set of reusable building blocks, called Core Components to create electronic documents

  • Core Components represent the common data elements of everyday business documents such as “Address”, “Amount”, or “Line Item”

  • These reusable building blocks are then assembled into business documents such as “Order” or “Invoice” by using the CCTS methodology

  • UN/CEFACT CCTS Core Components are syntax independent

OASIS SET TC


Un cefact core component technical specification ccts2

UN/CEFACT Core Component Technical Specification (CCTS)

  • Core components are defined to be context-independent so that they can later be restricted to different contexts:

    • BusinessProcess Context

    • Product Classication Context

    • Industry Classication Context

    • Geopolitical Context

    • Business Process Role Context

    • Supporting Role Context

    • System Capabilities Context

    • Official Constraints Context

OASIS SET TC


Main features of ccts approach

Main Features of CCTS Approach

  • Business document schemas are composed of several basic and aggregate components

  • Aggregate components themselves are collections of other basic and aggregate components in a recursive manner

  • Standard components are modified in response to contexual needs

  • When a document schema needs to be customized for a context, users need to discover or provide component versions applicable to that particular context

OASIS SET TC


Why ccts is important

Why CCTS is important?

  • This concept of defining context-free reusable building blocks, which are available from a single common repository, is an important innovation:

    • The incompatibility in electronic documents is incremental rather than wholesale

    • The users are expected to model their business documents by using the existing core components and by restricting them to their context with well defined rules

    • Dynamic creation of interoperable documents becomes possible because if users cannot find proper components to model their documents, they can create and publish new core components

    • The horizontal interoperability among different industries is greatly facilitated by using a single common repository and by customizing the components to different industry contexts

OASIS SET TC


Some of the un cefact ccts based business document standards

Some of the UN/CEFACT CCTS based Business Document Standards

UN/CEFACT Core Components Library (CCL) 07A

96 ACC, 212 ASCC, 636 BCC

184 ABIE, 337 ASBIE, 1011 BBIE

35 Datatypes

Universal Business Language (UBL) 2.0

Open Applications Group Integration Specification (OAGIS) 9.0

Global Standards One (GS1) XML

All standards implement CCTS differently!

OASIS SET TC


Oasis universal business language ubl 2 0

OASIS Universal Business Language (UBL) 2.0

The first implementation of UN/CEFACT CCTS in XML

31 Horizontal Business Document Schemas

Invoice, Order, Dispatch Advice,…

Schemas for common reusable entities

Amount, Payment, Item, …

OASIS SET TC


The problem continues all ccts based standards use ccts differently

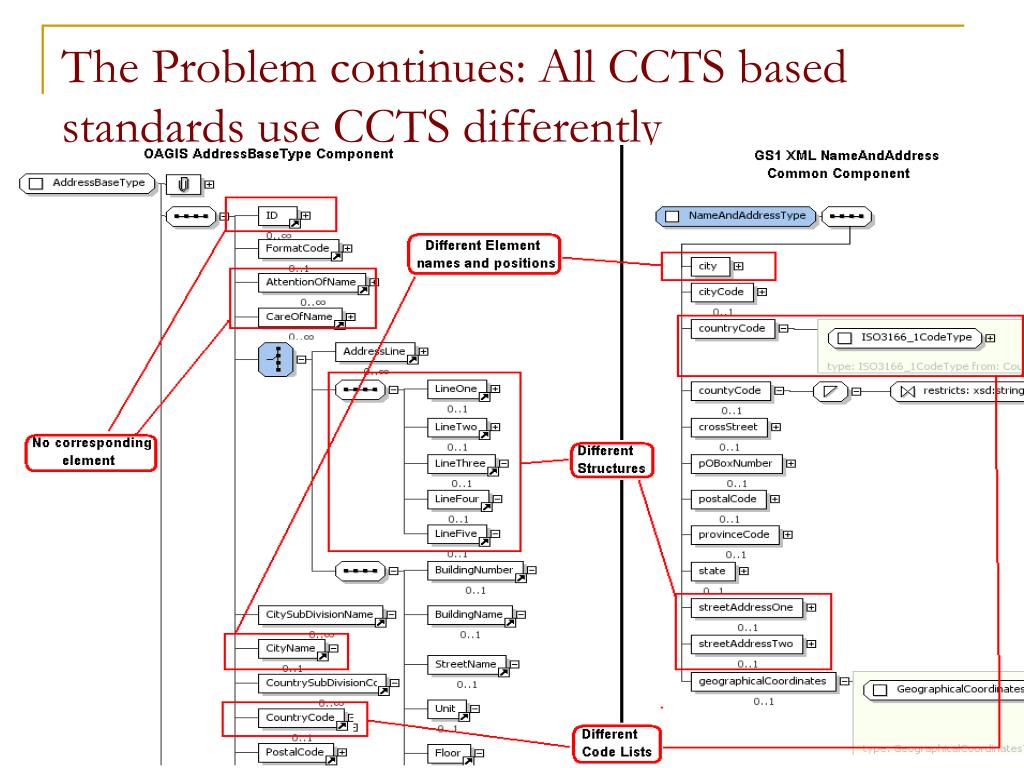

The Problem continues: All CCTS based standards use CCTS differently

OASIS SET TC


Providing semantic support for the interoperability of ccts based electronic business documents

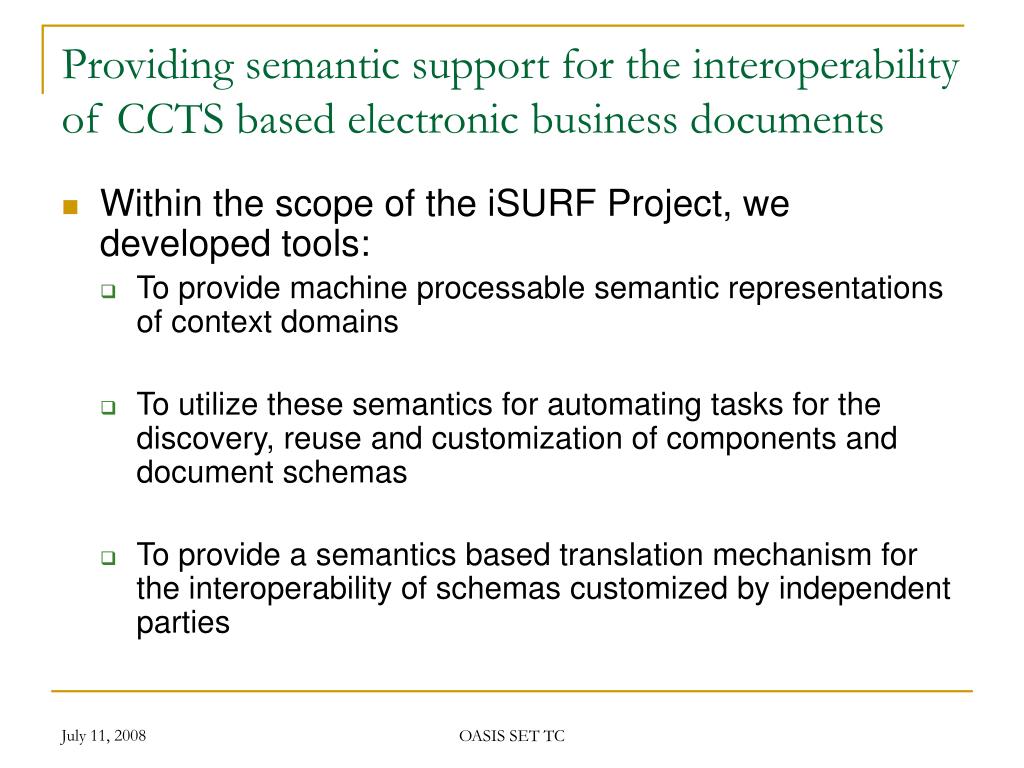

Providing semantic support for the interoperability of CCTS based electronic business documents

  • Within the scope of the iSURF Project, we developed tools:

    • To provide machine processable semantic representations of context domains

    • To utilize these semantics for automating tasks for the discovery, reuse and customization of components and document schemas

    • To provide a semantics based translation mechanism for the interoperability of schemas customized by independent parties

OASIS SET TC


Talk outline2

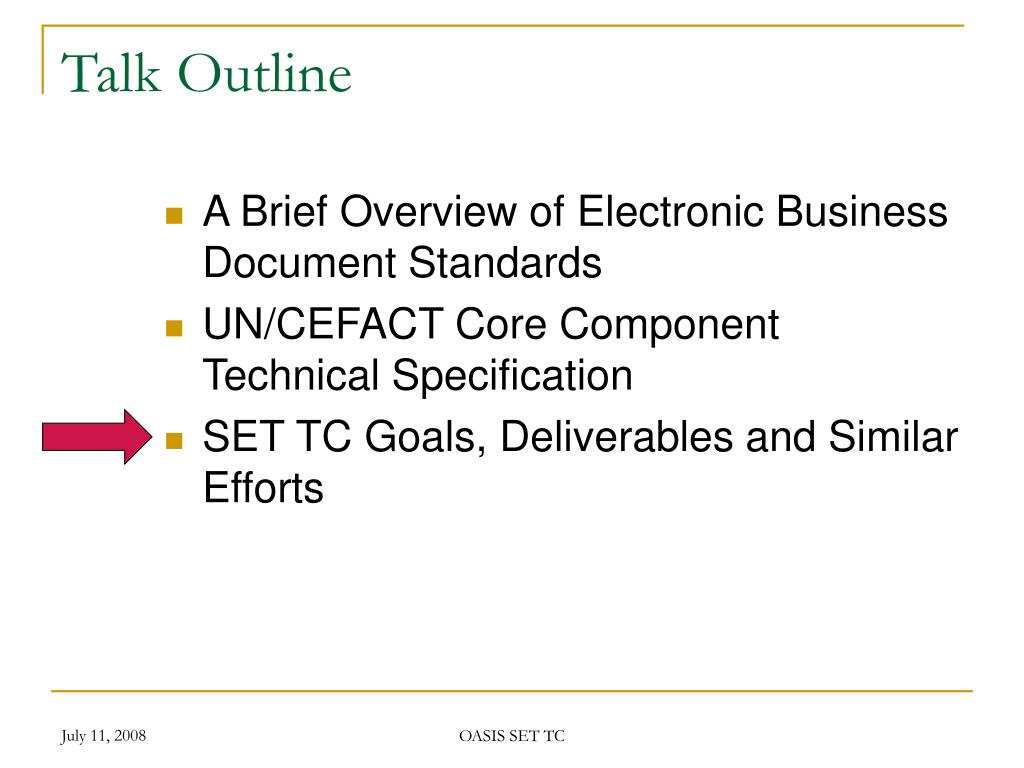

Talk Outline

  • A Brief Overview of Electronic Business Document Standards

  • UN/CEFACT Core Component Technical Specification

  • SET TC Goals, Deliverables and Similar Efforts

OASIS SET TC


The motivation context categories

The Motivation: Context Categories

  • Eight categories has been defined for the business context

  • Specific code lists and classification schemas are suggested for each category:

    • Code lists and classification taxonomies provide context values

    • There are other relevant classifications in use today and there may be others in future

  • Quoting from an email in the Ontolog Forum by Duane Nickull:

    • “Even when the CCTS group decided to limit their context qualifier set to only 8 context aspects, they still had an almost infinite explosion of context. If you took 8 singular contexts and had only 300 enumerated values for each one, the number is so large no one group could ever possibly list all the combinations in a lifetime without computers”

OASIS SET TC


Set tc goals

SET TC Goals…

  • Providing Semantic Support for CCTS Context Domains

  • Providing Semantic Support for Customization of Core Components and Business Document Schemas

  • Providing Semantic Support for Document Translation

OASIS SET TC


Similar work un cefact tmg ucm

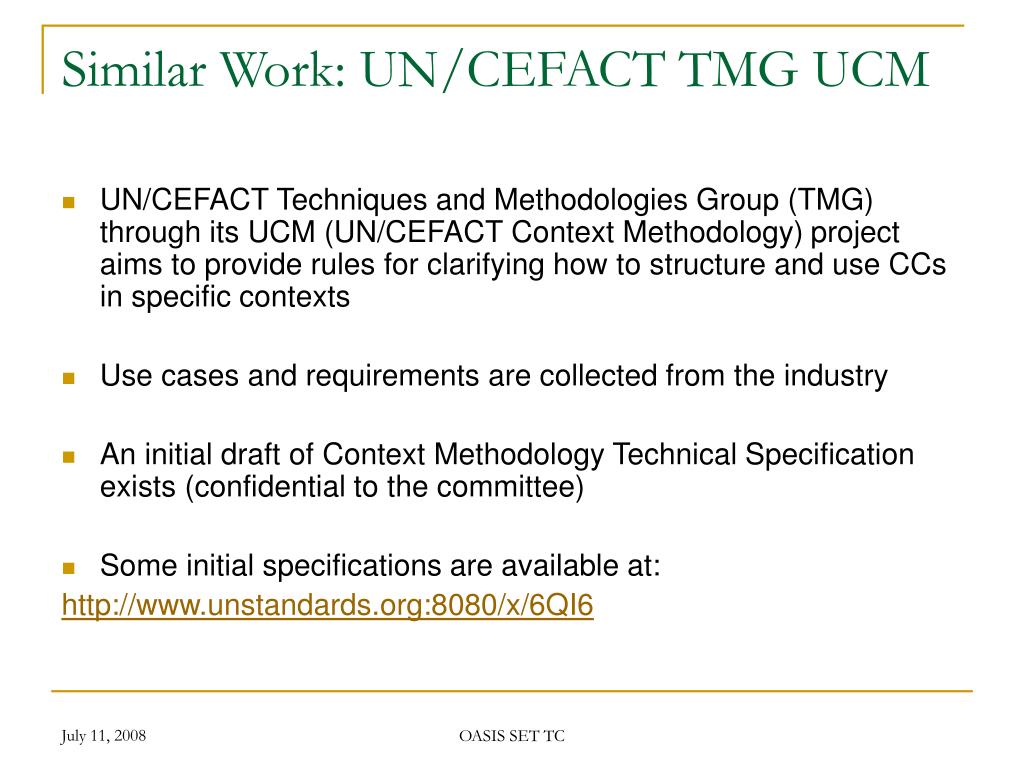

Similar Work: UN/CEFACT TMG UCM

  • UN/CEFACT Techniques and Methodologies Group (TMG) through its UCM (UN/CEFACT Context Methodology) project aims to provide rules for clarifying how to structure and use CCs in specific contexts

  • Use cases and requirements are collected from the industry

  • An initial draft of Context Methodology Technical Specification exists (confidential to the committee)

  • Some initial specifications are available at:

    http://www.unstandards.org:8080/x/6QI6

OASIS SET TC


Set tc deliverables

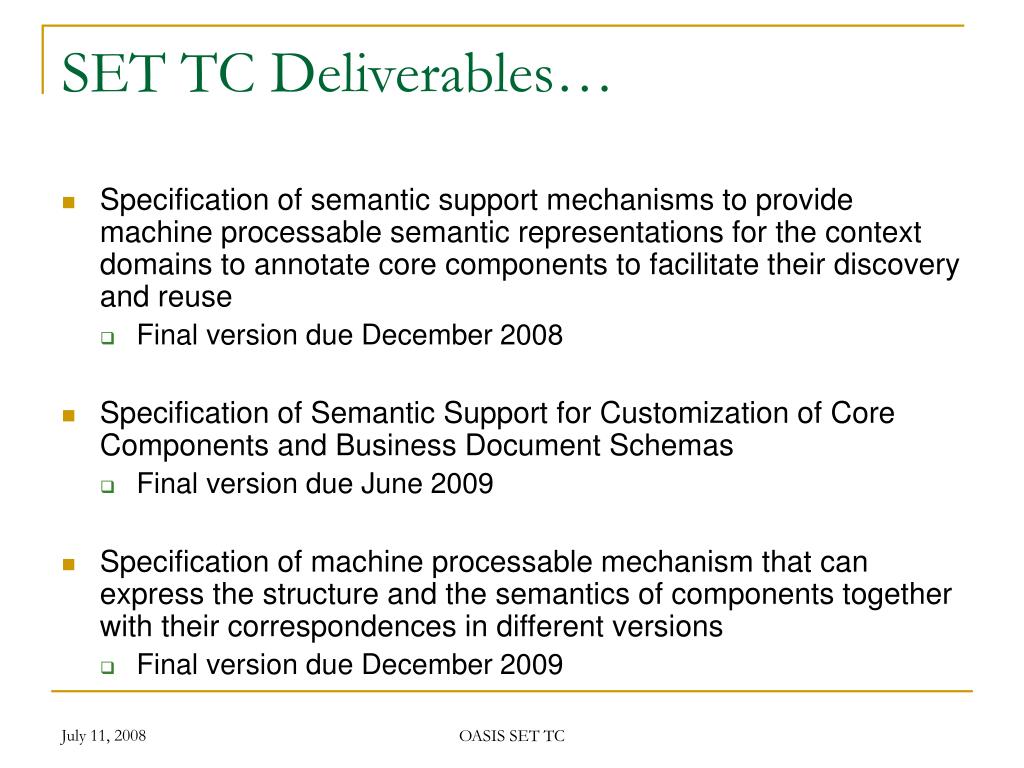

SET TC Deliverables…

  • Specification of semantic support mechanisms to provide machine processable semantic representations for the context domains to annotate core components to facilitate their discovery and reuse

    • Final version due December 2008

  • Specification of Semantic Support for Customization of Core Components and Business Document Schemas

    • Final version due June 2009

  • Specification of machine processable mechanism that can express the structure and the semantics of components together with their correspondences in different versions

    • Final version dueDecember 2009

OASIS SET TC


Set tc next meetings

SET TC Next Meetings…

  • Month of August 2008: August 14, 2008

  • Month of September 2008: September 26, 2008

  • Month of October 2008: October 30, 2008

  • Month of November 2008: November 21, 2008

  • Month of December 2008: December 19, 2008

OASIS SET TC


Thank you for your attention

Thank you for your attention!
