Configuring ospf part 2 of 2

Configuring OSPF – Part 2 of 2

CIS 185 CCNP ROUTE

Rick Graziani

Cabrillo College

[email protected]

Last Updated: Fall 2010


Ospf part 2

OSPF Part 2

  • Review of Areas

  • NSSA (Not-So-Stubby-Areas)

  • Multiple ABRs

  • Virtual Links

  • Route Summarization

  • Default Routes

  • Authentication

  • OSPF over Frame Relay

  • LSDB Overload Protection

  • Passive Interface


Quick review

Quick Review


Lsa 1s router lsas

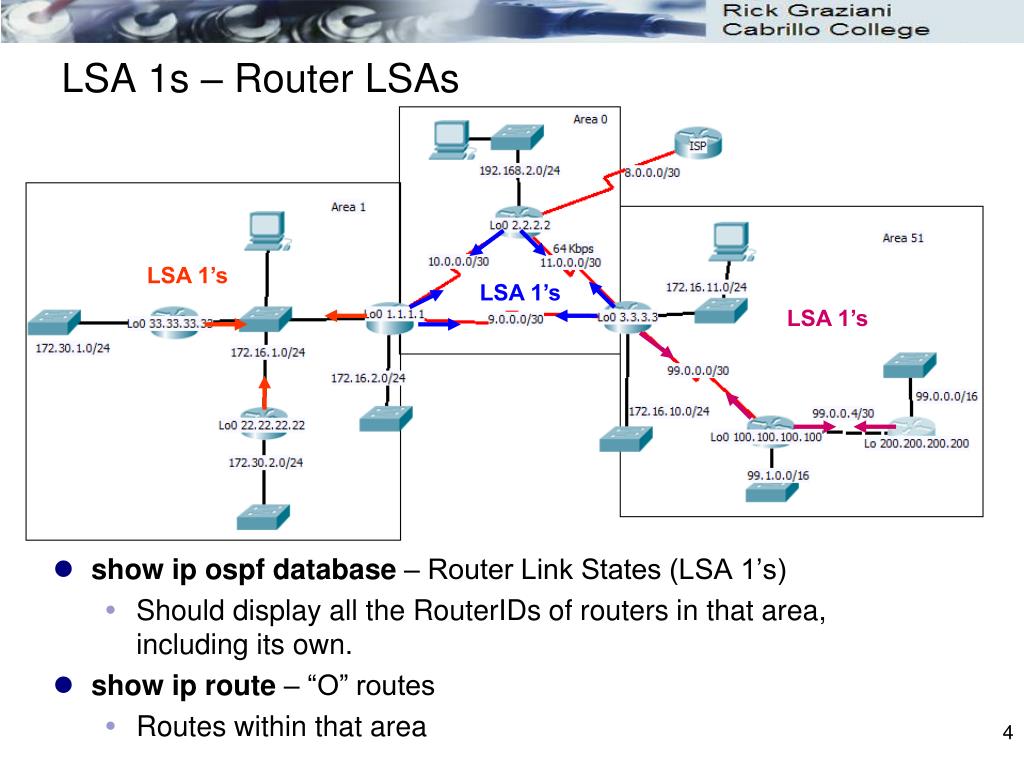

LSA 1s – Router LSAs

LSA 1’s

LSA 1’s

LSA 1’s

  • show ip ospf database – Router Link States (LSA 1’s)

    • Should display all the RouterIDs of routers in that area, including its own.

  • show ip route – “O” routes

    • Routes within that area


Lsa 2s network lsas

LSA 2s – Network LSAs

LSA 2’s

LSA 2’s

  • show ip ospf database – Net Link States (LSA 2’s)

    • Net Link States (LSA2’s) should display the RouterIDs of the DRs on all multi-access networks in the area and their IP addresses.

  • show ip route – “O” routes

    • Routes within that area


Lsa 3 summary lsas

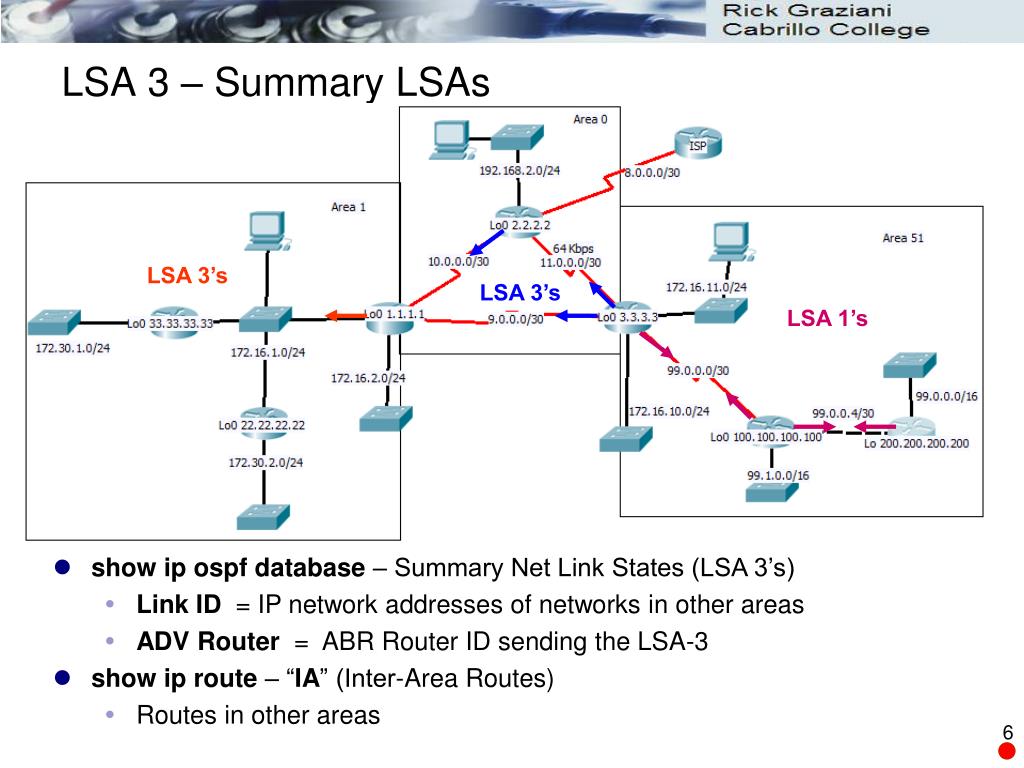

LSA 3 – Summary LSAs

LSA 3’s

LSA 3’s

LSA 1’s

  • show ip ospf database – Summary Net Link States (LSA 3’s)

    • Link ID = IP network addresses of networks in other areas

    • ADV Router = ABR Router ID sending the LSA-3

  • show ip route – “IA” (Inter-Area Routes)

    • Routes in other areas


Lsa 4 asbr summary link states

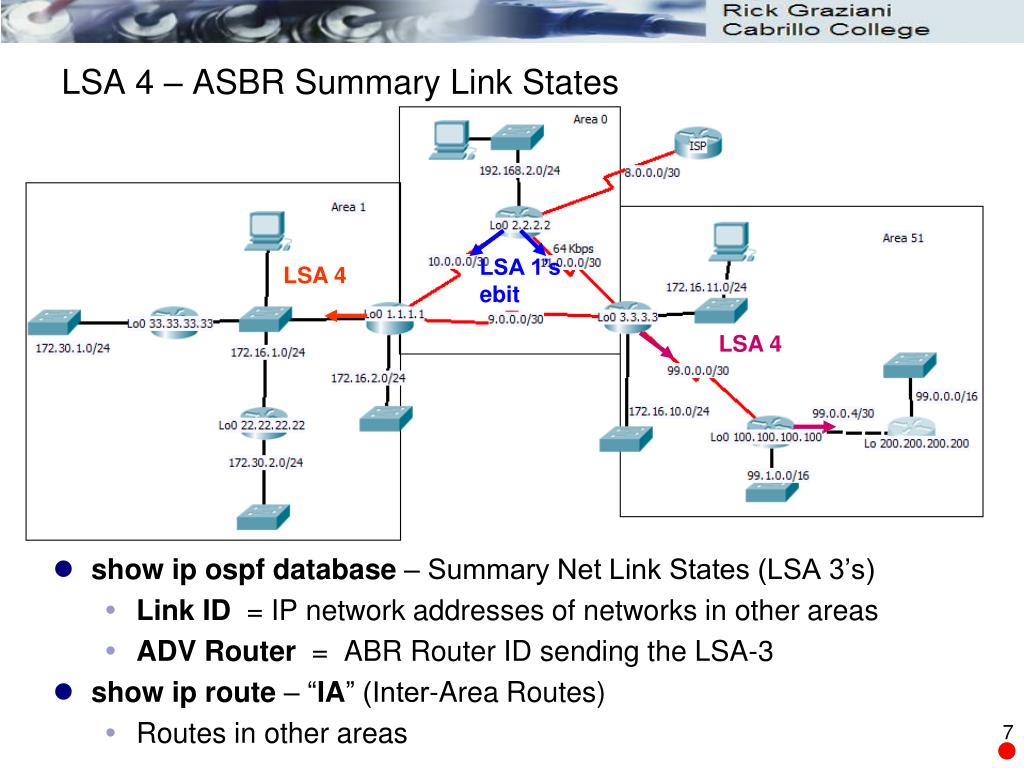

LSA 4 – ASBR Summary Link States

LSA 1’s ebit

LSA 4

LSA 4

  • show ip ospf database – Summary Net Link States (LSA 3’s)

    • Link ID = IP network addresses of networks in other areas

    • ADV Router = ABR Router ID sending the LSA-3

  • show ip route – “IA” (Inter-Area Routes)

    • Routes in other areas


Lsa 5 external link states

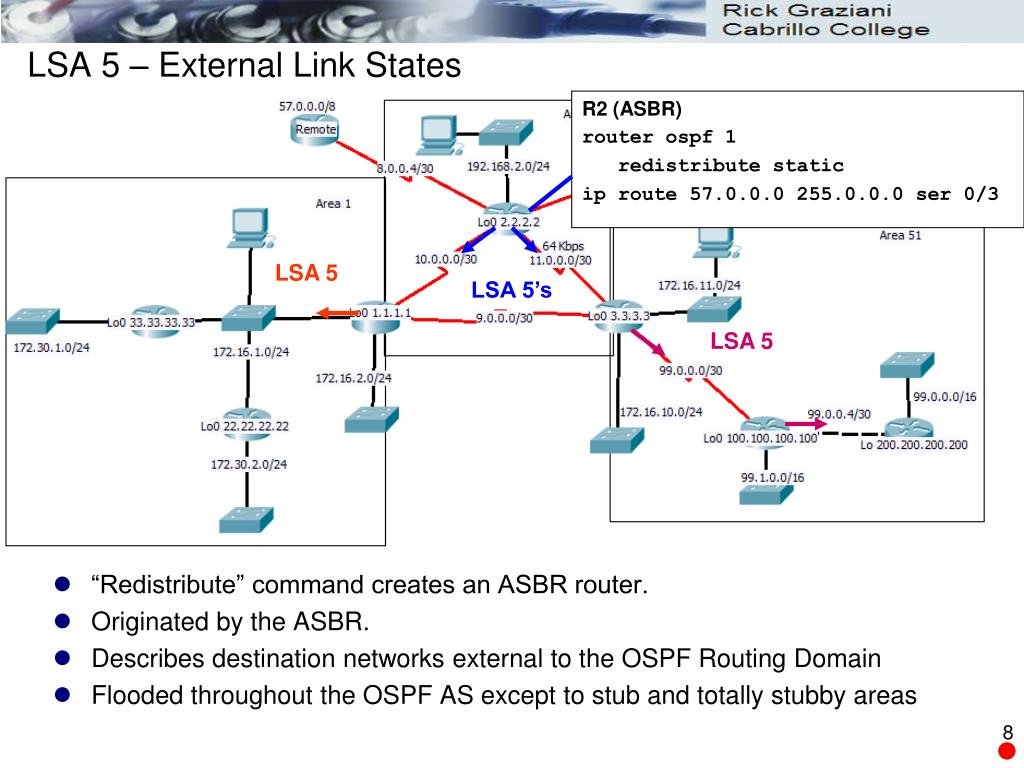

LSA 5 – External Link States

R2 (ASBR)

router ospf 1

redistribute static

ip route 57.0.0.0 255.0.0.0 ser 0/3

LSA 5

LSA 5’s

LSA 5

  • “Redistribute” command creates an ASBR router.

  • Originated by the ASBR.

  • Describes destination networks external to the OSPF Routing Domain

  • Flooded throughout the OSPF AS except to stub and totally stubby areas


Configuring ospf part 2 of 2

Stub Area

LSA 1s still sent within each area.

Stub Area

LSA 3

LSA 3

LSA 4

LSA 4

Blocked

LSA 5

LSA 5

Blocked

Default route to ABR injected

We only see routes in our area, other areas, and a default route.

No external routes.

  • Sent by ABR: LSA 3s (Inter-Area routes)

  • Blocked:

    • LSA 4s (reachability to ASBR)

    • LSA 5s (External routes)

  • The ABR injects a default route into the stub area, pointing to the ABR.

    • This does not mean the ABR has a default route of its own.

  • Changes in External routes no longer affect Stub Area routing tables.


Configuring ospf part 2 of 2

Totally Stubby Area

LSA 1s still sent within each area.

Totally Stubby Area

Stub Area

  • Blocked

LSA 3

LSA 3

  • Blocked

LSA 4

LSA 4

Blocked

  • Blocked

LSA 5

LSA 5

Blocked

Default route to ABR injected

Default route to ABR injected

We only see routes in our area and a default route.

No inter-area or external routes.

We only see routes in our area, other areas, and a default route.

No external routes.

  • Blocked:

    • LSA 3s (Inter-Area routes)

    • LSA 4s (reachability to ASBR)

    • LSA 5s (External routes)

  • The ABR injects a default route into the stub area, pointing to the ABR.

    • This does not mean the ABR has a default route of its own.

  • Changes in other areas and external routes no longer affect Stub Area routing tables.


Nssa not so stubby areas

NSSA (Not-So-Stubby-Areas)


Nssa not so stubby area

NSSA (Not So Stubby Area)


Nssa not so stubby area1

NSSA (Not So Stubby Area)

  • Relatively new, standards based OSPF enhancement, RFC 1587.

  • NSSA allows an area to remain a stub area, but carry external routing information (Type 7 LSAs) from its stubby end back towards the OSPF backbone.

  • ASBR in NSSA injects external routing information into the backbone and the NSSA area, but rejects external routing information coming from the ABR.

  • The ABR does not inject a default route into the NSSA.

    • This is true for a NSSA Stub, but a default route is injected for a NSSA Totally Stubby area.

  • Note: RFC 1587, “A default route must not be injected into the NSSA as a summary (type-3) LSA as in the stub area case.”

  • What???

  • Following scenario is only example of how NSSA works. For the purposes of learning about NSSAs, don’t get hung up on the why’s and what if’s.


Configuring ospf part 2 of 2

Default route via RTG

NSSA Stub Area

  • Area 2 would like to be a stub network.

  • RTH only supports RIP, so RTG will run RIP and redistribute those routes in OSPF.

  • What type of OSPF router does this make RTG?

    • Unfortunately, this makes the area 2 router, RTG, an ASBR.

  • Why is this a problem?

    • Stub areas cannot contain an ASBR.

  • In this example RTH does not need to learn routes from OSPF, a default route to RTG is all it needs.

  • But all OSPF routers must know about the networks attached to the RIP router, RTH. to route packets to it.


Configuring ospf part 2 of 2

Default route via RTG

LSA 7

LSA 7

LSA 5

LSA 7

LSA 7

LSA 7s Blocked

LSA 7

LSA 7

NSSA Stub Area (cont.)

  • NSSA allow external routes to be advertised into the OSPF AS while retaining the characteristics of a stub area to the rest of the OSPF AS.

  • ASBR RTG will originate Type-7 LSAs to advertise the external destinations.

  • These LSA 7s are flooded through the NSSA but are blocked by the NSSA ABR.

  • The NSSA ABR translates LSA 7s into LSA 5s and flood other areas.


Configuring ospf part 2 of 2

Default route via RTG

LSA 7

LSA 7

LSA 5

LSA 7

LSA 7

LSA 7s Blocked

LSA 7

LSA 7

Type 7 LSA NSSA External Link Entry

  • Originated by an ASBR connected to an NSSA.

  • Flooded throughout NSSAs and translated into LSA Type 5 messages by ABRs.

  • Routes learned via Type-7 LSAs are denoted by either a default “N1” or an “N2” in the routing table. (Relative to E1 and E2).


Configuring ospf part 2 of 2

NSSA Generic

Default route via RTG

LSA 7

LSA 7

LSA 5

LSA 7

LSA 7

LSA 7s Blocked

Configuring NSSA Stub Area

Configured for all routers in Area 2:

router ospf 1

network 172.16.2.0 0.0.0.255 area 2

area 2 nssa

LSA 7

LSA 7


Nssa not so stubby area2

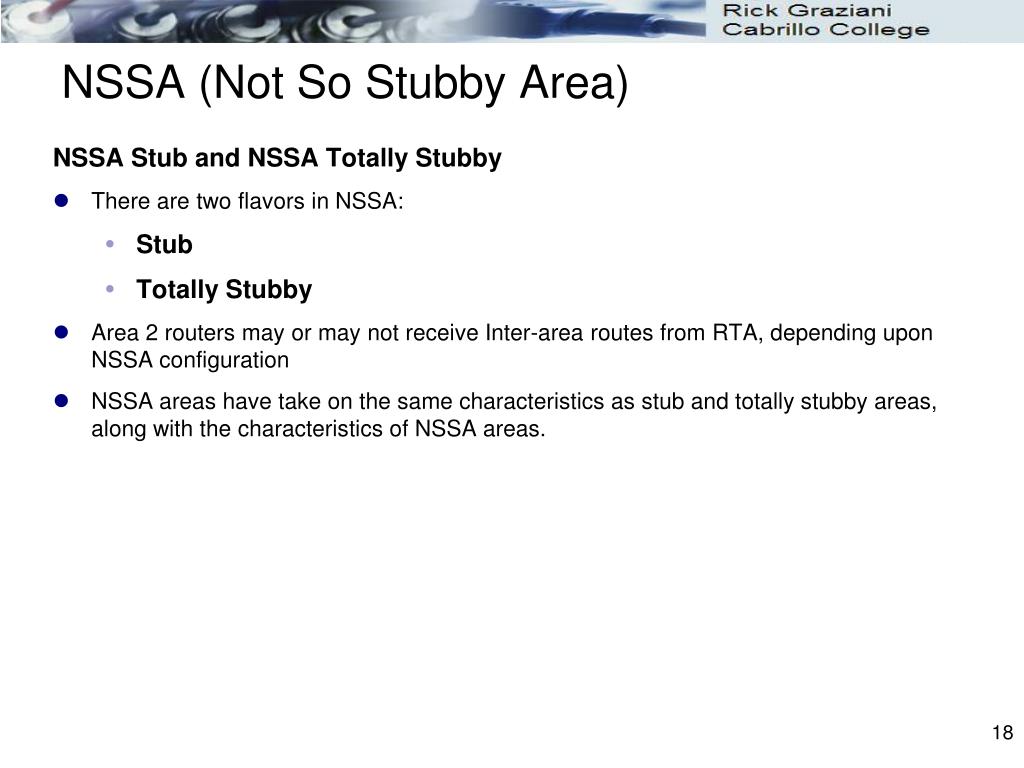

NSSA (Not So Stubby Area)

NSSA Stub and NSSA Totally Stubby

  • There are two flavors in NSSA:

    • Stub

    • Totally Stubby

  • Area 2 routers may or may not receive Inter-area routes from RTA, depending upon NSSA configuration

  • NSSA areas have take on the same characteristics as stub and totally stubby areas, along with the characteristics of NSSA areas.


Nssa stub

NSSA –Stub

NSSA stub areas:

  • NSSAs that block type 4 and 5, but allow type 3.

  • To make a stub area into an NSSA, use the following command under the OSPF configuration.

  • This command must be configured on all routers in area 2.

    router ospf 1

    area 2 nssa


Configuring ospf part 2 of 2

NSSA Stub Areas

Default route via RTG

LSA 3s

RTH routes:N1/N2

LSA 4s & LSA 5s

X

LSA 7

0.0.0.0/0

RTH routes:E1/E2

X

LSA 7

LSA 5

LSA 7

LSA 7

LSA 7s Blocked

LSA 7

LSA 7

  • Internal NSSA routers have:

    • All area 2 routes

    • External routes from RTH (N1/N2)

    • Inter-area routes from RTB

  • Area 0 routers have from area 2:

    • All area 2 routes

    • External routes from RTH (E1/E2)


Configuring ospf part 2 of 2

NSSA Stub Areas

Default route via RTG

LSA 3s

RTH routes:N1/N2

LSA 4s & LSA 5s

X

LSA 7

RTH routes:E1/E2

0.0.0.0/0

X

LSA 7

LSA 5

LSA 7

LSA 7

LSA 7s Blocked

Area 2 routers:

router ospf 1

network 172.16.2.0 0.0.0.255 area 2

area 2 nssa

LSA 7

LSA 7


Nssa totally stubby

NSSA – Totally Stubby

NSSA Totally Stubby Area

  • NSSA totally stub areas: Allow only summary default routes and filters everything else.

  • To configure an NSSA totally stub area, use the following command under the OSPF configuration on the NSSA ABR:

    router ospf 1

    area 2 nssa no-summary

    • Configure this command on NSSA ABRs only.

  • All other routers in area 2 (internal area 2 routers):

    router ospf 1

    area 2 nssa

  • After defining the NSSA totally stub area, area 2 has the following characteristics (in addition to the above NSSA characteristics):

    • No type 3 (except default), 4 or 5 LSAs are allowed in area 2.

    • A default route is injected into the NSSA totally stub area as a type 3 summary LSA by the ABR.


Configuring ospf part 2 of 2

NSSA Totally Stubby Areas

Default route via RTG

LSA 3s

X

RTH routes: N1/N2

LSA 4s & LSA 5s

X

LSA 7

RTH routes:E1/E2

0.0.0.0/0 (LSA 3)

LSA 7

LSA 5

LSA 7

LSA 7

LSA 7s Blocked

RTB (ABR):

router ospf 1

network 172.16.1.0 0.0.0.255 area 0

network 172.16.2.0 0.0.0.255 area 2 ...

area 2 nssa no-summary

Area 2 routers:

router ospf 1

network 172.16.2.0 0.0.0.255 area 2

area 2 nssa

LSA 7

LSA 7


Configuring ospf part 2 of 2

NSSA Totally Stubby Areas

Default route via RTG

LSA 3s

X

RTH routes: N1/N2

LSA 4s & LSA 5s

X

LSA 7

RTH routes:E1/E2

0.0.0.0/0 (LSA 3)

LSA 7

LSA 5

LSA 7

LSA 7

LSA 7s Blocked

  • Internal NSSA routers have:

    • All area 2 routes

    • External routes from RTH (N1/N2)

    • Default route from RTB

  • Area 0 routers have from area 2:

    • All area 2 routes

    • External routes from RTH (E1/E2)

LSA 7

LSA 7


Multiple abrs

Multiple ABRs


Multiple abrs if you want to experiment

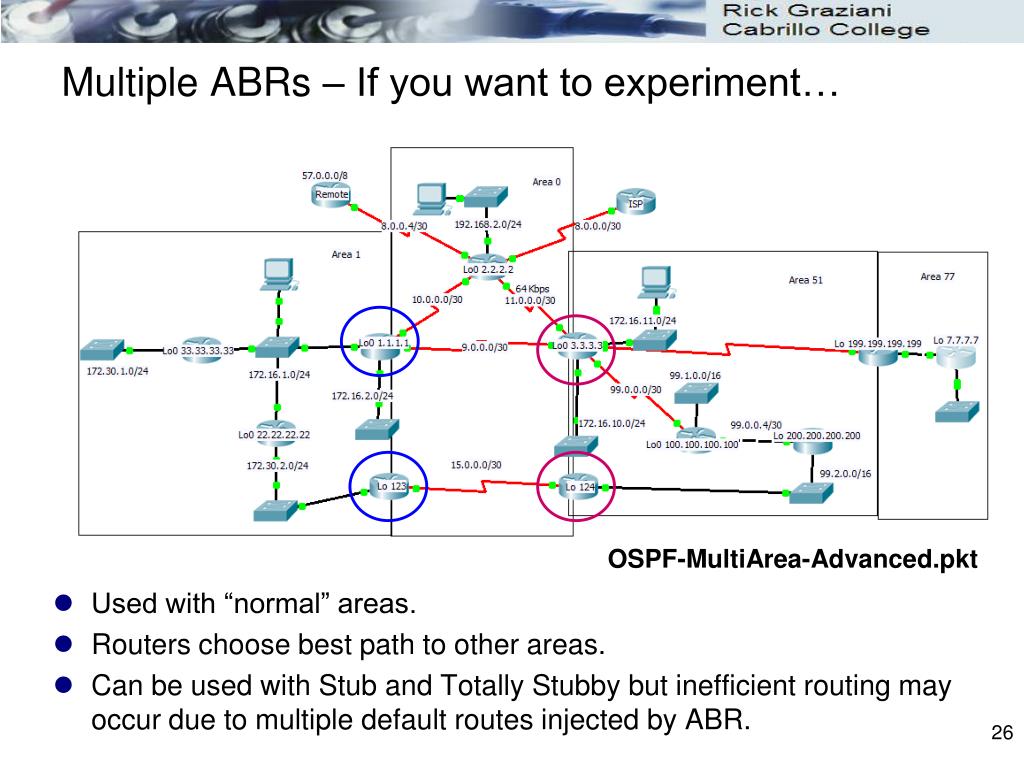

Multiple ABRs – If you want to experiment…

  • Used with “normal” areas.

  • Routers choose best path to other areas.

  • Can be used with Stub and Totally Stubby but inefficient routing may occur due to multiple default routes injected by ABR.

OSPF-MultiArea-Advanced.pkt


Multiple abrs1

Multiple ABRs

Routing Table

ABR1

RTA

Distribute List

Network X

LSA 1’s

RTB

SPF

ABR2

RTC

  • Intra-area routes, OSPF uses pure Link State logic.

  • All routers inside the area have an identical copy of the LSDB for that area.

LSDB

Area 51

Area 0


Multiple abrs2

Multiple ABRs

To ABR

Routing Table

ABR1

RTA

Link State Logic

Distribute List

Network X

LSA 3’s

RTB

Distance Vector Logic

SPF

ABR2

RTC

  • Best route to reach each ABR is an intra-area SPF calculation.

  • Interarea routes (LSA 3s) use Distance Vector logic.

  • ABR advertises Type 3 Summary LSAs (metric but not topology information).

  • Total cost to Network X = Cost to ABR + ABR’s cost to Network X.

  • RTB selects best route to Network X via ABR1 and/or ABR2.

LSDB

LSA 3’s

Area 51

Area 0


Multiple abrs3

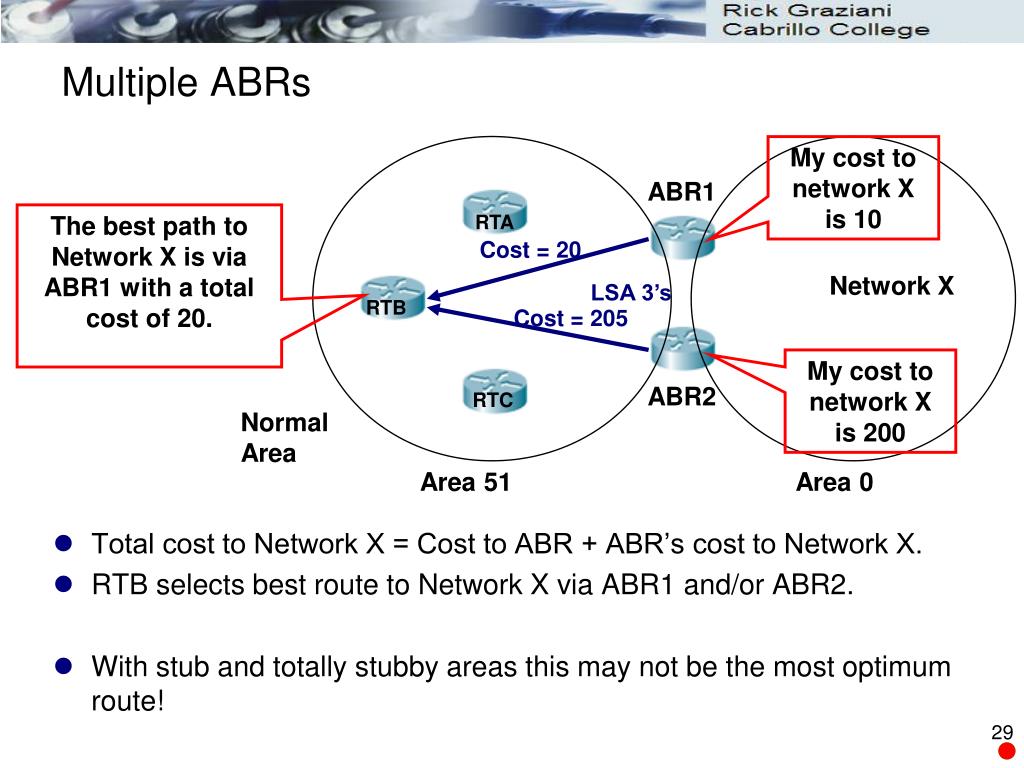

Multiple ABRs

My cost to network X is 10

ABR1

The best path to Network X is via ABR1 with a total cost of 20.

RTA

Cost = 20

Network X

LSA 3’s

RTB

Cost = 205

My cost to network X is 200

ABR2

RTC

Normal Area

  • Total cost to Network X = Cost to ABR + ABR’s cost to Network X.

  • RTB selects best route to Network X via ABR1 and/or ABR2.

  • With stub and totally stubby areas this may not be the most optimum route!

Area 51

Area 0


Multiple abrs stub networks

Multiple ABRs – Stub Networks

ABR2 is “closer” a lesser metric, so I will use ABR2 for all routes outside my area even if its not the most optimum path.

My cost to network X is 10

ABR1

RTA

Cost = 10

Network X

LSA 3’s

RTB

Cost = 5

Default Route

My cost to network X is 200

ABR2

RTC

Totally Stubby Area

  • Stub and totally stubby area ABRs inject a default route into the area.

    • Stub ABRs block LSA 4’s and 5’s (external networks)

    • Totally Stubby ABRs block LSA 3’s (interarea networks), 4’s and 5’s (external networks)

  • In both cases internal routers can only determine the best route to an ABR, which may not be the best route to the destination network.

Area 51

Area 0


Virtual links

Virtual Links


Virtual links1

Virtual Links


Virtual links2

Virtual Links

  • All areas in an OSPF autonomous system must be physically connected to the backbone area (area 0).

  • This is not always possible, you can use a virtual link to connect to the backbone through a non-backbone area.

  • Transit area - The area through which you configure the virtual link and must have full routing information.

    • Must be configured between two ABRs.

    • The transit area cannot be a stub area.


Virtual links3

Virtual Links

  • A virtual link has the following two requirements:

    • It must be established between two routers that share a common area and are both ABRs.

    • One of these two routers must be connected to the backbone.

  • Doyle, “should be used only as a temporary fix to an unavoidable topology problem.”


Virtual links4

Virtual Links

  • Routers do not have to be directly connected.


Configuring ospf part 2 of 2

The command to configure a virtual link is as follows:

area <area-id> virtual-link <remote-router-id>

RTA(config)#router ospf 1

RTA(config-router)#network 192.168.0.0 0.0.0.255 area 51

RTA(config-router)#network 192.168.1.0 0.0.0.255 area 3

RTA(config-router)#area 3 virtual-link 10.0.0.1

...

RTB(config)#router ospf 1

RTB(config-router)#network 192.168.1.0 0.0.0.255 area 3

RTB(config-router)#network 192.168.2.0 0.0.0.255 area 0

RTB(config-router)#area 3 virtual-link 10.0.0.2


Virtual links5

Virtual Links

  • OSPF allows for linking discontinuous parts of the backbone using a virtual link.

  • OSPF messages between virtual link routers sent as unicast.

router ospf 1

area 1 virtual-link 4.4.4.4

interface loopback 1

ip address 1.1.1.1 255.255.255.0

router ospf 4

area 1 virtual-link 1.1.1.1

interface loopback 1

ip address 4.4.4.4 255.255.255.0

C1

C2


Configuring ospf part 2 of 2

  • Routers use of the Do Not Age (DNA) bit, so periodic reflooding (every 30 minutes) will not occur over this virtual link.

  • OSPF Note: Router IDs do not have to be advertised and therefore may not be pingable.

C1# show ip ospf virtual-links

Virtual Link OSPF_VL0 to router 4.4.4.4 is up

Run as demand circuit

DoNotAge LSA allowed.

Transit area 1, via interface FastEthernet0/1, Cost of using 3

Transmit Delay is 1 sec, State POINT_TO_POINT,

Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5

Hello due in 00:00:02

Adjacency State FULL (Hello suppressed)


Configuring ospf part 2 of 2

  • "In the area 0 via interface OSPF VL0" – confirming that the neighbor relationship does indeed exist in area 0.

C1# show ip ospf neighbor

Neighbor ID Pri State Dead Time Address Interface

4.4.4.4 0 FULL/ - - 10.24.1.1 OSPF_VL0

2.2.2.2 1 FULL/DR 00:00:35 10.21.1.2 FastEthernet0/1

C1# show ip ospf neighbor detail 4.4.4.4

Neighbor 4.4.4.4, interface address 10.24.1.1

In the area 0 via interface OSPF_VL0


Route summarization

Route Summarization


Route summarization1

Route Summarization

Inter-Area Route Summarization - Area Range

  • By default ABRs do not summarize routes between areas.

  • In OSPF, an ABR will advertise networks in one area into another area.

  • If at least one component subnet exists (subnets that sit inside the range), then the ABR advertises the summary route as a Type 3 LSA.

  • If no component subnets exist, the ABR does not advertise the summary.

  • The ABR assigns a metric for the summary route's Type 3 LSA, by default, to match the best (lowest) metric amongst all component subnets.

  • The area range command can also explicitly set the cost of the summary.

    On the ABR (Summarizes routes before injecting them into different area)

    Router(config-router)# area area-idrangenetwork-address subnet-mask

  • area-id - Identifier of the area about which routes are to be summarized. (From area)


Configuring ospf part 2 of 2

172.17.1.0/24 172.17.2.0/24 172.17.3.0/24 172.17.4.0/24 172.17.5.0/24 172.17.6.0/24 172.17.7.0/24

  • Summarize Area 1 172.17.0.0 routes on Area 1 ABRs .


Configuring ospf part 2 of 2

172.17.1.0/24 172.17.2.0/24 172.17.3.0/24 172.17.4.0/24 172.17.5.0/24 172.17.6.0/24 172.17.7.0/24

172.17. 0000 0001 . 0000 0000

172.17. 0000 0010 . 0000 0000

172.17. 0000 0011 . 0000 0000

172.17. 0000 0100 . 0000 0000

172.17. 0000 0101 . 0000 0000

172.17. 0000 0110 . 0000 0000

172.17. 0000 0111 . 0000 0000


Configuring ospf part 2 of 2

172.17.1.0/24 172.17.2.0/24 172.17.3.0/24 172.17.4.0/24 172.17.5.0/24 172.17.6.0/24 172.17.7.0/24

172.17.0.0 255.255.248.0 (/21)

172.17. 0000 0001 . 0000 0000

172.17. 0000 0010 . 0000 0000

172.17. 0000 0011 . 0000 0000

172.17. 0000 0100 . 0000 0000

172.17. 0000 0101 . 0000 0000

172.17. 0000 0110 . 0000 0000

172.17. 0000 0111 . 0000 0000


Configuring ospf part 2 of 2

172.17.1.0/24 172.17.2.0/24 172.17.3.0/24 172.17.4.0/24 172.17.5.0/24 172.17.6.0/24 172.17.7.0/24

router ospf 1

area 1 range 172.17.0.0 255.255.248.0

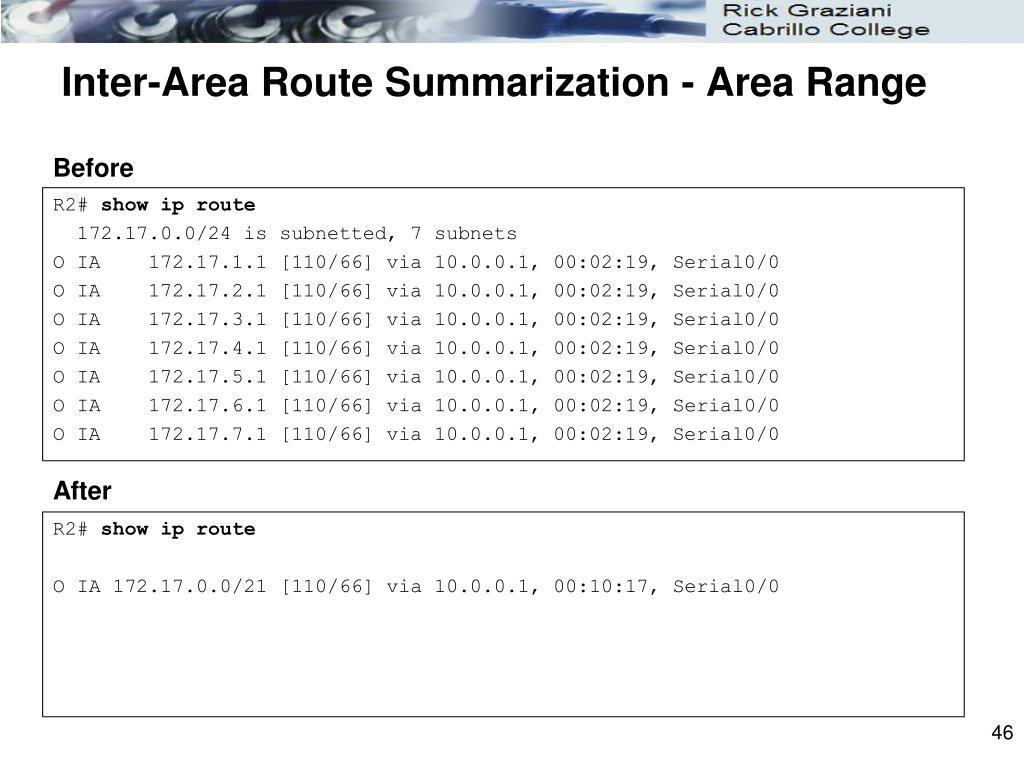

Inter area route summarization area range

Inter-Area Route Summarization - Area Range

Before

R2# show ip route

172.17.0.0/24 is subnetted, 7 subnets

O IA 172.17.1.1 [110/66] via 10.0.0.1, 00:02:19, Serial0/0

O IA 172.17.2.1 [110/66] via 10.0.0.1, 00:02:19, Serial0/0

O IA 172.17.3.1 [110/66] via 10.0.0.1, 00:02:19, Serial0/0

O IA 172.17.4.1 [110/66] via 10.0.0.1, 00:02:19, Serial0/0

O IA 172.17.5.1 [110/66] via 10.0.0.1, 00:02:19, Serial0/0

O IA 172.17.6.1 [110/66] via 10.0.0.1, 00:02:19, Serial0/0

O IA 172.17.7.1 [110/66] via 10.0.0.1, 00:02:19, Serial0/0

After

R2# show ip route

O IA 172.17.0.0/21 [110/66] via 10.0.0.1, 00:10:17, Serial0/0


Configuring ospf part 2 of 2

128.213.64.0 /24 … 128.213.95.0 /24

External Route Summarization - summary-address

  • When redistributing routes from other protocols into OSPF (later), each route is advertised individually in an external link state advertisement (LSA).

  • However, you can configure the Cisco IOS software to advertise a single route for all the redistributed routes that are covered by a specified network address and mask.

  • Doing so helps decrease the size of the OSPF link state database.

    On the ASBR only (Summarizes external routes before injecting them into the OSPF domain.)

    Router(config-router)# summary-address network-address subnet-mask

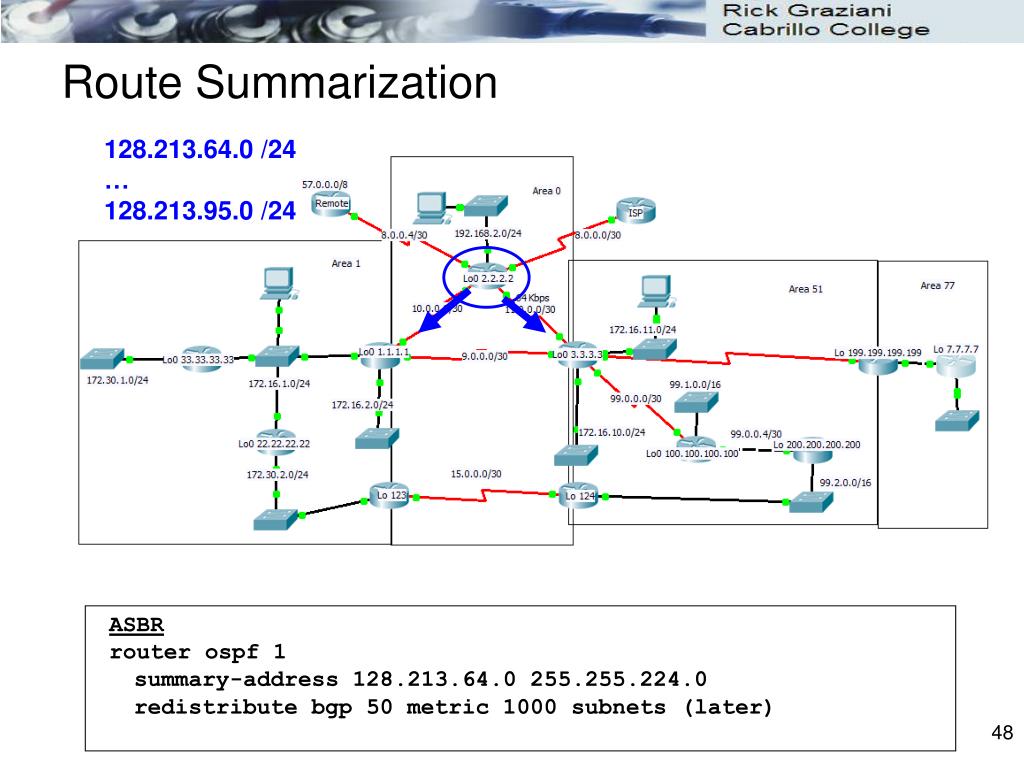

Route summarization2

Route Summarization

128.213.64.0 /24 … 128.213.95.0 /24

ASBR

router ospf 1

summary-address 128.213.64.0 255.255.224.0

redistribute bgp 50 metric 1000 subnets (later)


Default routes

Default Routes

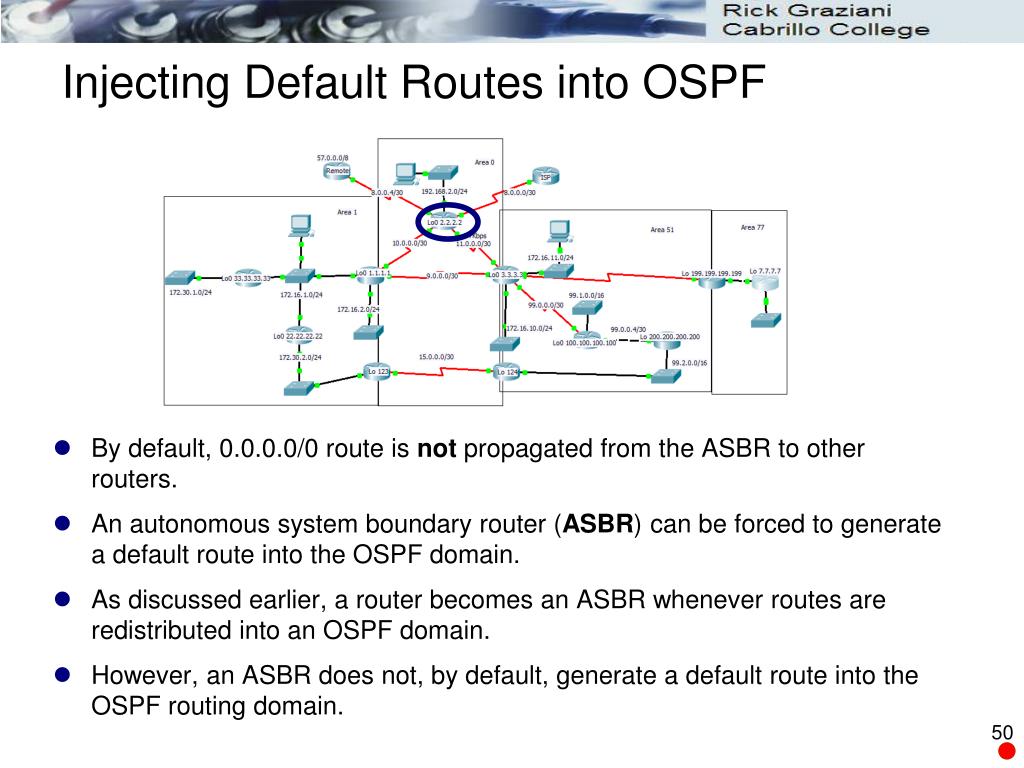

Injecting default routes into ospf

Injecting Default Routes into OSPF

  • By default, 0.0.0.0/0 route is not propagated from the ASBR to other routers.

  • An autonomous system boundary router (ASBR) can be forced to generate a default route into the OSPF domain.

  • As discussed earlier, a router becomes an ASBR whenever routes are redistributed into an OSPF domain.

  • However, an ASBR does not, by default, generate a default route into the OSPF routing domain.


Injecting default routes into ospf1

Injecting Default Routes into OSPF

The way that OSPF generates default routes (0.0.0.0) varies depending on the type of area the default route is being injected into.

Stub and Totally Stubby Areas

  • For stub and totally stubby areas, the area border router (ABR) to the stub area generates a summary link-state advertisement (LSA) with the link-state ID 0.0.0.0.

  • This is true even if the ABR doesn't have a default route.

  • In this scenario, you don't need to use the default-information originate command.


Configuring ospf part 2 of 2

Stub Area

LSA 1s still sent within each area.

Stub Area

LSA 3

LSA 3

LSA 4

LSA 4

Blocked

LSA 5

LSA 5

Blocked

Default route to ABR injected

We only see routes in our area, other areas, and a default route.

No external routes.

  • Sent by ABR: LSA 3s (Inter-Area routes)

  • Blocked:

    • LSA 4s (reachability to ASBR)

    • LSA 5s (External routes)

  • The ABR injects a default route into the stub area, pointing to the ABR.

    • This does not mean the ABR has a default route of its own.

  • Changes in External routes no longer affect Stub Area routing tables.


Configuring ospf part 2 of 2

Totally Stubby Area

LSA 1s still sent within each area.

Totally Stubby Area

Stub Area

  • Blocked

LSA 3

LSA 3

  • Blocked

LSA 4

LSA 4

Blocked

  • Blocked

LSA 5

LSA 5

Blocked

Default route to ABR injected

Default route to ABR injected

We only see routes in our area and a default route.

No inter-area or external routes.

We only see routes in our area, other areas, and a default route.

No external routes.

  • Blocked:

    • LSA 3s (Inter-Area routes)

    • LSA 4s (reachability to ASBR)

    • LSA 5s (External routes)

  • The ABR injects a default route into the stub area, pointing to the ABR.

    • This does not mean the ABR has a default route of its own.

  • Changes in other areas and external routes no longer affect Stub Area routing tables.


Injecting default routes into ospf2

Injecting Default Routes into OSPF

Normal Areas

  • By default, in normal areas routers don't generate default routes.

  • To have an OSPF router generate a default route, use the default-information originate command.

  • This generates an external type-2 link with link-state ID 0.0.0.0 and network mask 0.0.0.0.

  • This command should only be used on the ASBR.

    • Some documentation states this command works only on an ASBR while other documentation states this command turns a router into an ASBR.


Injecting default routes into ospf3

Injecting Default Routes into OSPF

To have OSPF generate a default route use the following:

router ospf 10

default-information originate [always] [metricmetric-value] [metric-typetype-value] [route-mapmap-name]


Injecting default routes into ospf4

Injecting Default Routes into OSPF

There are two ways to generate a default.

1) default-information originate

  • Conditional: If the ASBR already has the default route (ip route 0.0.0.0 0.0.0.0), you can advertise 0.0.0.0 into the area.

    2) default-information originate always

  • Unconditional: If the ASBR doesn't have the route (ip route 0.0.0.0 0.0.0.0), you can add the keyword always to the default-information originate command, and then advertise 0.0.0.0.

  • You should be careful when using the always keyword. If your router advertises a default (0.0.0.0) inside the domain and does not have a default itself or a path to reach the destinations, routing will be broken.


Configuring ospf part 2 of 2

Injecting Default Routes into OSPF

ASBR

router ospf 1

network 172.16.1.0 0.0.0.255 area 0

default-information originate

ip route 0.0.0.0 0.0.0.0 10.0.0.2


Configuring ospf part 2 of 2

Injecting Default Routes into OSPF

No 0.0.0.0/0 route, but propagated anyway or “always”

ASBR

router ospf 1

network 172.16.1.0 0.0.0.255 area 0

default-information originate always


Configuring ospf part 2 of 2

Redistributing External Routes

E1 vs. E2 External Routes

  • External routes fall under two categories:

    • External type 1

    • External type 2.

  • The difference between the two is in the way the cost (metric) of the route is being calculated.

  • A type 1 (E1) cost is the addition of the external cost and the internal cost used to reach that route.

  • The cost of a type 2(E2) route is always the external cost, irrespective of the interior cost to reach that route.

    • Type 2 (E2) is the default!


Configuring ospf part 2 of 2

Redistributing External Routes (FYI for now)

router ospf 1

redistribute routing-protocolmetric-type [1|2] subnets

  • metric-type 1 - A type 1 cost is the addition of the external cost and the internal cost used to reach that route.

    redistribute rip [metric value] metric-type 1

  • metric-type 2 - The cost of a type 2 route is always the external cost, irrespective of the interior cost to reach that route.

    redistribute rip [metric value] metric-type 2

  • The subnets keyword redistributes subnet details.

    • Without it subnetted networks would not be redistributed.

    • Only classful network addresses (non-subnets) would be distributed. (more later)

  • We will look at this command, along with internal/external costs, later in the chapter discussion route redistribution.


Redistributing external routes fyi for now

Redistributing External Routes (FYI for now)

metric-type 2 - The cost of a type 2 route is always the external cost, irrespective of the interior cost to reach that route.

redistribute rip [metric value] metric-type 2 subnets

More later, but here is a taste of the metricvalue option …

  • If a value is not specified for the metricvalue option, and no value is specified using the default-metric command, the default metric value is 0, except for OSPF where the default cost is 20.

  • 0 is only understood by IS-IS and not by RIP, IGRP and EIGRP.

  • RIP, IGRP and EIGRP must have the appropriate metrics assigned to any redistributed routes, or redistribution will not work.

  • Use a value consistent with the destination protocol.

  • More later!


Configuring ospf part 2 of 2

Redistributing External Routes

metric-type 1

RIP routes redistributed with a metric (cost) of 500 plus the outgoing cost of the interface and a metric-type 1

564

564

565

566

ASBR

router ospf 1

redistribute rip metric 500 metric-type 1

network 206.202.0.0 0.0.0.255 area 0


Configuring ospf part 2 of 2

Redistributing External Routes

metric-type 2

RIP routes redistributed with a metric (cost) of 500 and a metric-type 2 (default)

500

500

500

500

ASBR

router ospf 1

redistribute rip metric 500 metric-type 2

network 206.202.0.0 0.0.0.255 area 0


Authentication

Authentication


Configuring simple or plain text authentication

Configuring Simple or Plain Text Authentication

configure a password for the interface using the ip ospf authentication-key command.

Rtr(config-if)# ip ospf authentication-key passwd

  • password = Clear text unless message-digest is used (next)

    • Maximum 8 characters

    • Passwords do not have to be the same throughout an area, but they must be same between neighbors.

      For simple password authentication, use the ip ospf authentication command without any parameters.

      Rtr(config-if)# ip ospf authentication


Configuring plain text authentication

Configuring Plain Text Authentication


Configuring ospf part 2 of 2

  • Verify


Configuring ospf part 2 of 2

R1# debug ip ospf adjacency

  • The debug ip ospf adj command is used to display OSPF adjacency-related events and is useful when troubleshooting authentication.

  • Will show any unsuccessful authentication information (such as authentication type).


Configuring md5 authentication

Configuring MD5 Authentication

Assign a key ID and key to be used with neighboring routers that are using the OSPF MD5 authentication:

Rtr(config-if)# ip ospf message-digest-key key-id md5 password

  • Key-id = 1 to 255, must match on each router to authenticate.

  • md5 = Encryption-type

  • password = encrypted

    • Passwords do not have to be the same throughout an area, but they must be same between neighbors.

    • Maximum 16 characters

  • Specify the authentication type using the interface configuration command:

    Rtr(config-if)# ip ospf authentication [message-digest | null]


Configuring md 5authentication

Configuring MD 5Authentication


Configuring ospf part 2 of 2

  • Verify


Configuring ospf part 2 of 2

  • Verify


Configuring ospf part 2 of 2

  • Verify


Configuring ospf part 2 of 2

  • Verfy


Configuring ospf part 2 of 2

  • Troubleshooting (Different Key IDs)


Configuring ospf part 2 of 2

MD5 Authentication (FYI) http://www.cisco.com/en/US/tech/tk713/tk507/technologies_tech_note09186a00800b4131.shtml

1

2

3

4

5

6


Simple authentication over virtual link

Simple Authentication over Virtual Link


Configuring ospf part 2 of 2

  • On router R1, simple password authentication is configured for the whole area 0, with the:

    area 0 authentication

  • The virtual link, connecting area 2 to area 0, is created via transit area 1 with plain text authentication and the authentication key cisco, with:

    area 1 virtual-link 3.3.3.3 authentication-key cisco

  • The configuration of router R3 is similar to router R1.


Mpls and frame relay

MPLS and Frame Relay


Adjacency over layer 2 mpls vpn

Adjacency over Layer 2 MPLS VPN

  • EoMPLS is also known as a type of MetroEthernet

  • R1 and R2 exchange Ethernet frames transparently across the MPLS backbone

  • They are connected to Provider Edge (PE) routers.

  • The PE1 router:

    • Takes encapsulates the Ethernet frame into an MPLS packet and forwards it across the backbone to the PE2 router

  • The PE2 router:

    • Decapsulates the MPLS packet

    • Reproduces the Ethernet frame on its Ethernet link to router R2


Configuring ospf part 2 of 2

  • When deploying OSPF over EoMPLS, there are no changes to the OSPF configuration from the customer perspective.

    • The PE1 and PE2 routers are not visible.

    • A neighbor relationship is established directly between routers R1 and R2 (just like any Ethernet broadcast network).

    • The OSPF network type is a multiaccess broadcast network so DR and BDR routers are elected.


Adjacency over layer 3 mpls vpn

Adjacency over Layer 3 MPLS VPN

  • To the customer routers running OSPF (routers R1 and R2), the Layer 3 MPLS VPN backbone looks like a standard corporate backbone.

  • The CE routers form adjacencies with the PE routers.

  • The OSPF network type of the CE-PE link can be point-to-point, broadcast or NBMA.


Ospf over frame relay

OSPF over Frame Relay

  • Frame Relay is a multiaccess network similar to Ethernet LAN.

    • A single access circuit provides access to multiple neighboring routers (networks).

  • Unlike Ethernet:

    • Each virtual circuit between routers needs to be created, managed and maintained by the frame relay service provider.

    • Broadcast and multicast packets must be sent as individual packets for each router. (Non-Broadcast)

  • By default, OSPF cannot build adjacencies with neighbor routers over NBMA interfaces


Configuring ospf part 2 of 2

Full-mesh

  • All routers have virtual circuits (VCs) to all other destinations.

  • Although costly, provides direct connections from each site to all other sites and allows for redundancy.

  • As the number of nodes in the full-mesh topology increases, the topology becomes increasingly expensive.

  • n(n – 1)/2, where n is the number of nodes in the network.


Configuring ospf part 2 of 2

Partial-mesh

  • Not all sites have direct access to a central site.

  • This method reduces the cost compared to implementing a full-mesh topology.


Configuring ospf part 2 of 2

Hub-and-Spoke or Star

  • Most common Frame Relay network topology.

  • Remote sites connect to a central site that generally provides a service or application.

  • The least expensive topology because it requires the fewest PVCs.

  • The central router provides a multipoint connection because it typically uses a single physical interface to interconnect multiple PVCs

  • Each connection between central site and remote sites is a separate PVC


Configuring ospf part 2 of 2

  • There are many ways to implement OSPF over Frame Relay.

  • In most cases there is more than one way to do it.

  • Decisions:

    • One subnet or individual subnets?

    • Are multicasts and broadcasts supported by the network?

    • Do I want the neighbor adjacencies to be discovered automatically or should I configure them manually?

    • Are all my routers Cisco routers?

    • Do I want the use of a DR/BDR to be the central point of LSA distribution?


Configuring ospf part 2 of 2

  • ip ospf network

    • To configure the OSPF network type to a type other than the default for a given medium, use the ip ospf networkcommand in interface configuration mode.

    • The default depends upon the type of medium


Broadcast cisco

Broadcast (cisco)

  • Topologies: Full-mesh or Partial-mesh

  • Note: Makes the WAN interface look like a LAN

  • Subnet: One subnet

  • Adjacency: Automatically discovered by OSPF multicasts

  • DR/BDR: Elected

  • RFC or Cisco: Cisco

    Notes:

  • Workaround for statically listing all existing neighboring routers

  • Take special care to ensure either a full-mesh topology or a static election of the DR based on the interface priority.

Router(config-router)#ip ospf network broadcast


Non broadcast rfc

Router(config-router)#ip ospf network non-broadcast

Non- Broadcast (RFC)

  • Topologies: Full-mesh or Partial-mesh or Star

  • Note: OSPF emulates operation over a broadcast network.

  • Subnet: One subnet

  • Adjacency: Must be manually configured using the neighbor command (non-broadcast mode)

    • neighbor statements required only on the DR and BDR

  • DR/BDR: Elected

    • DR and BDR must have full connectivity to all other routers (DROTHERs)

    • DR must be the Hub in Hub-and-Spoke topology

  • RFC or Cisco: RFC

    Notes:

  • Routers B and C could be configured with the ip ospf priority 0 command and/or Router A includes the priority 0 option in its neighbor command to ensure Router A becomes the DR.


Point to multipoint broadcast rfc

Router(config-router)#ip ospf network point-to-multipoint

Point-to-Multipoint (broadcast)(RFC)

  • Topologies: Partial-mesh or Star

  • Note: Used when VCs support multicast and broadcast

    • OSPF treats all router-to-router connections over the nonbroadcast network as if they are point-to-point links.

  • Subnet: One subnet

  • Adjacency: Automatically discovered by OSPF multicasts

  • DR/BDR: None

  • RFC or Cisco: RFC

    Notes:

  • Multicasts and broadcasts must be enabled on the VCs for RFC compliant point-to-multipoint to be used.

  • If not routers cannot dynamically discover neighbors - Cisco mode should be used (next)


Point to multipoint non broadcast cisco

Router(config-router)#ip ospf network point-to-multipoint non-broadcast

Point-to-Multipointnon-broadcast (cisco)

  • Topologies: Partial-mesh or Star

  • Note: Used when VCs cannot support multicast and broadcast

  • Subnet: One subnet

  • Adjacency: Must be manually configured using the neighbor command (like in non-broadcast mode)

    RouterA(config-router)# neighbor 192.168.1.2

    RouterA(config-router)# neighbor 192.168.1.3

  • DR/BDR: None

  • RFC or Cisco: cisco

    Notes:

  • Used when multicasts and broadcasts cannot be enabled on the VCs, so RFC compliant point-to-multipoint cannot be used because routers cannot dynamically discover neighbors.


Point to point non broadcast cisco

Router(config-router)#ip ospf network point-to-point

Point-to-Pointnon-broadcast (cisco)

192.168.1.1

192.168.2.1

192.168.2.2

  • Topologies: Partial-mesh or Star

  • Note: Used when only two routers need on form an adjacency on a pair of interfaces

  • Subnet: Different IP subnet on each interface

  • Adjacency: Automatically discovered by OSPF multicasts

  • DR/BDR: none

  • RFC or Cisco: cisco

    Notes:

  • Cisco point-to-point can also be used with Ethernet interfaces.

    • ip ospf network point-to-point on an Ethernet interface means no DR or BDR will be elected.


Ospf lsdb overload protection

OSPF LSDB Overload Protection


Configuring ospf part 2 of 2

  • Router keeps count of the number of received (non-self-generated) LSAs that it keeps in its LSDB.

  • If other routers are misconfigured, causing, for example, a redistribution of a large number of prefixes, large numbers of LSAs can be generated.

  • These excessive LSAs can drain local CPU and memory resources.

  • OSPF LSDB overload protection can be configured to protect against this

    • Cisco IOS Software Release 12.3(7)T and later (and some specific earlier releases)

  • OSPF command: max-lsa maximum-number [threshold-percentage] [warning-only] [ignore-timeminutes] [ignore-countcount-number] [reset-timeminutes]


Configuring ospf part 2 of 2

Error Message

Notification Message

  • Router keeps count of the number of received (non-self-generated) LSAs that it keeps in its LSDB.

  • When this number reaches a configured threshold number:

    • An error message is logged

    • A notification is sent when it exceeds the threshold number

  • If the LSA count still exceeds the threshold after one minute:

    • OSPF goes into the ignore state

    • OSPF process takes down all adjacencies

    • Clears the OSPF database

    • No OSPF packets are sent or received by interfaces that belong to that OSPF process.

  • OSPF process remains in the ignore state for the time defined by the ignore-time parameter.

  • ignore-countparameter defines the maximum number of times that the OSPF process can consecutively enter the ignore state before remaining permanently down and requiring manual intervention.

  • reset-timeparameter defines the time the OSPF process remains normal and then the ignore state counter is reset to 0.


Ospf passive interface

OSPF Passive-Interface


Configuring ospf part 2 of 2

passive-interface type number [default] router configuration command

  • Prevents OSPF routing updates from being sent through the specified router interface.

  • This command can be used with all IP-based routing protocols except BGP

  • OSPF’s behavior with this command is different than other routing protocols

  • With OSPF the specified interface appears as a stub network (not a stub area) in OSPF domain.

  • OSPF routing information is neither sent nor received through the interface.

  • As long as the appropriate network command is still used the router will still advertise the network to its OSPF neighbors.


Configuring ospf part 2 of 2

  • Router R1 has three interfaces that act as stub networks.

    • LSAs are not sent or received through these interfaces

    • The only interface that should participate in the OSPF process is interface Serial0/0/1.

  • For Router R2, only one interface is a stub interface, where the propagation of LSAs should be stopped, interface Ethernet0.


Configuring ospf part 2 of 21

Configuring OSPF – Part 2 of 2

CIS 185 CCNP ROUTE

Rick Graziani

Cabrillo College

[email protected]


  • Login
