Open system solutions a framework for success september 2007

“Open System Solutions…a Framework for Success”September 2007

Steve Lucas – Sales Manager, Vykon Security

Scott Muench - Technical Sales Manager

© 2007 Tridium, Inc.


Open system solutions a framework for success september 2007

Agenda

  • Open Systems Overview

  • The Technology - Niagara Framework

  • Example Solution

  • Integrator Toolkit

  • Summary of Benefits

  • Q & A


Open system solutions a framework for success september 2007

CFO

HVAC

Lighting

Fire

XML SQL

MODBUS

HTTPHTML

Facility

Management

ODBC SNMP

JDBC

FTP

LEGACY

Security

SMTP

WAP

Maintenance

Energy

And More

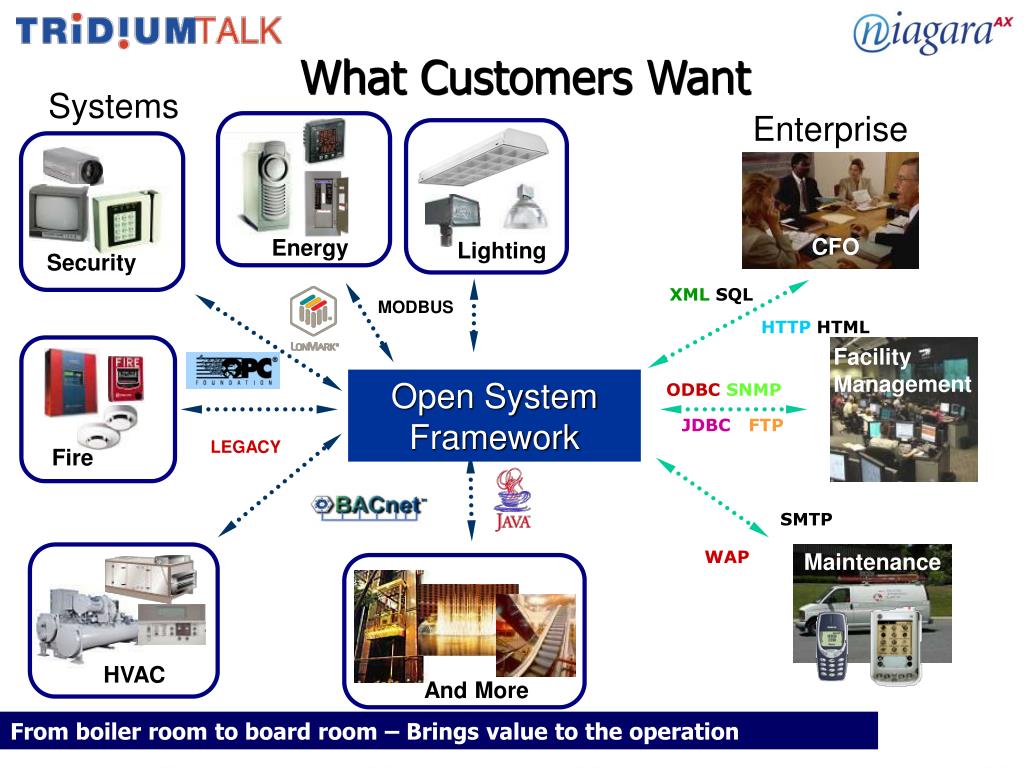

What Customers Want

Systems

Enterprise

Open System

Framework

From boiler room to board room – Brings value to the operation


Open system solutions a framework for success september 2007

Open System Framework


Open system solutions a framework for success september 2007

Open System Life Cycle Costs

  • Do they cost more or less than closed systems?

  • How much does it cost to acquire? (Initial Capital Investment)

  • What’s it cost to keep? (Ongoing Maintenance)

  • How does it help or hinder me in day to day activities? (Impact upon Operations)

  • If I need to change, modify or enhance it, what does it cost and how quickly can it be done? (Reconfiguration/Enhancement Costs)

  • Is it worth anything when I’m done with it? (Residual Value)


Open system solutions a framework for success september 2007

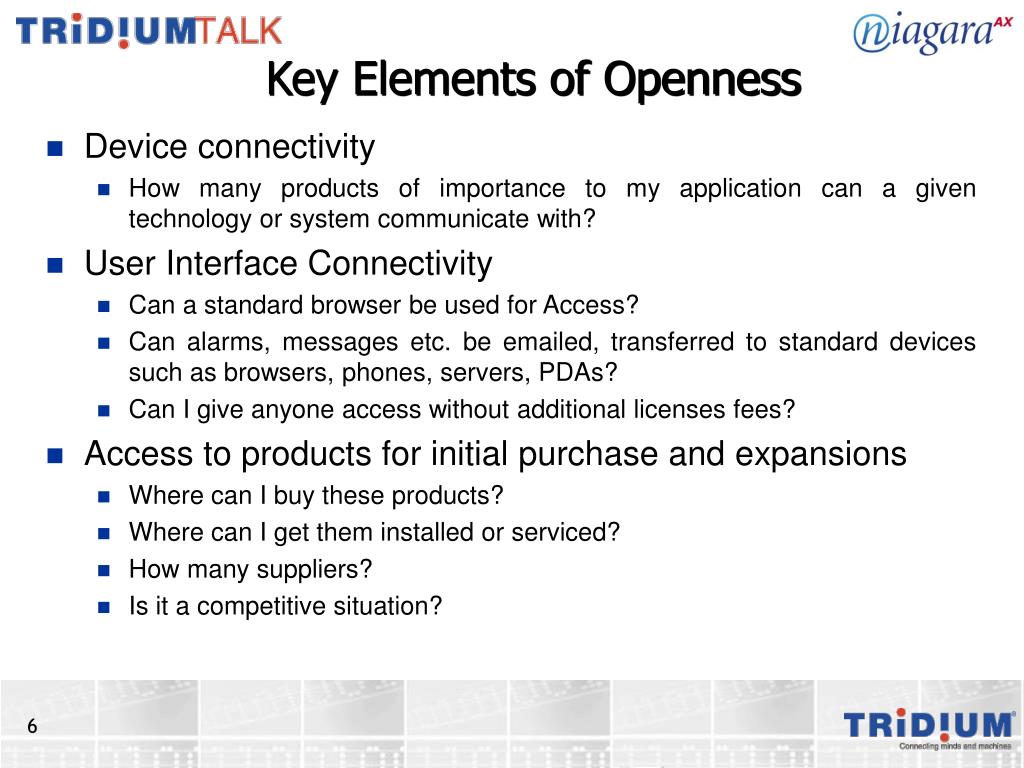

Key Elements ofOpenness

  • Device connectivity

    • How many products of importance to my application can a given technology or system communicate with?

  • User Interface Connectivity

    • Can a standard browser be used for Access?

    • Can alarms, messages etc. be emailed, transferred to standard devices such as browsers, phones, servers, PDAs?

    • Can I give anyone access without additional licenses fees?

  • Access to products for initial purchase and expansions

    • Where can I buy these products?

    • Where can I get them installed or serviced?

    • How many suppliers?

    • Is it a competitive situation?


Open system solutions a framework for success september 2007

Key Elements ofOpenness

  • Third party development of complimentary enterprise applications

    • Can independent developers create new products and applications that work coherently with the system?

  • Public interfaces (“APIs”) to allow 3rd party access to data

    • Are there published interfaces that makes it easy to access system data?

  • Support for accepted standard protocols

    • Does the system in question support the “lion’s share” of relevant standard communication protocols?

  • Compatibility with standard databases

    • Can data from the system be easily shared with common database formats used throughout my enterprise?


Open system solutions a framework for success september 2007

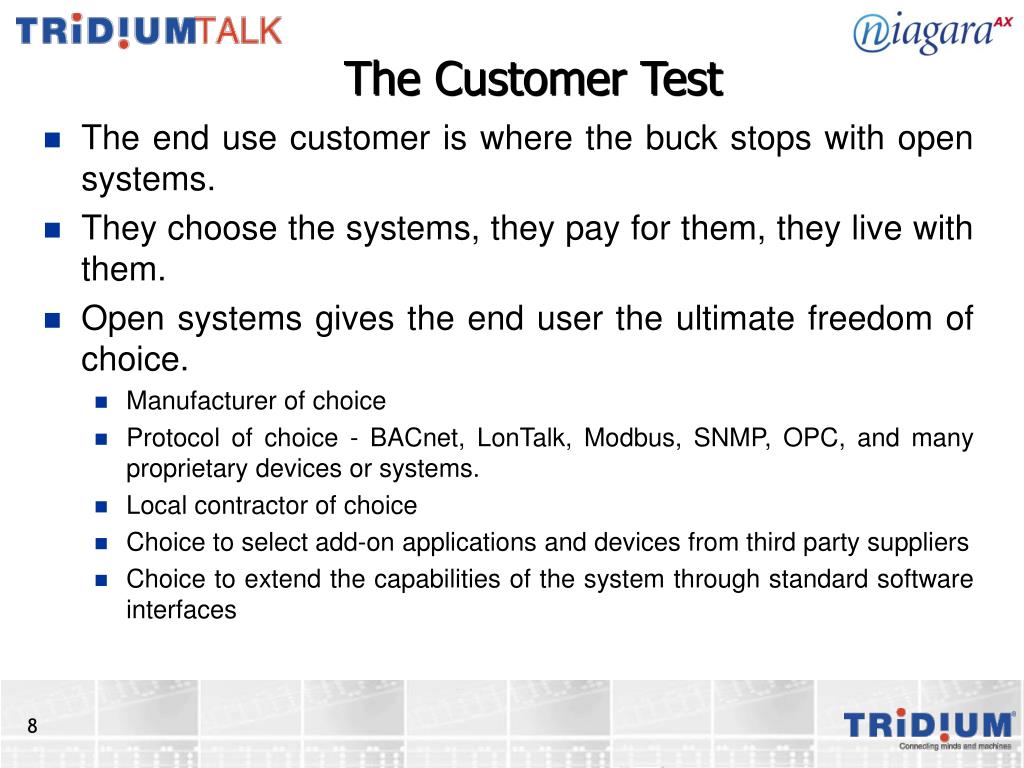

The Customer Test

  • The end use customer is where the buck stops with open systems.

  • They choose the systems, they pay for them, they live with them.

  • Open systems gives the end user the ultimate freedom of choice.

    • Manufacturer of choice

    • Protocol of choice - BACnet, LonTalk, Modbus, SNMP, OPC, and many proprietary devices or systems.

    • Local contractor of choice

    • Choice to select add-on applications and devices from third party suppliers

    • Choice to extend the capabilities of the system through standard software interfaces


Open system solutions a framework for success september 2007

IBM

HTTPHTMLXML

OPEN

ODBC

SMTP

JDBC

FTP

CORBASOAPSNMP

Open System Framework Model


The technology niagara framework

The Technology - Niagara Framework

  • Unifies heterogeneous devices, protocols, data via a robust component model foundation

  • Internet standards built in

  • Scalable, embeddable solution – same software can be used in small low cost devices and at enterprise app level

  • Real time – connects real time data from field devices to enterprise applications, provides local control execution

  • Integrated tools support programming for non-programmers: domain experts build end-use applications with a graphical tool – no coding

  • Connects disparate devices for coordinated peer-to-peer control in the field independent of any central server

  • Open development platform (extensive open APIs) allows partners to independently develop differentiated products and apps


Open system solutions a framework for success september 2007

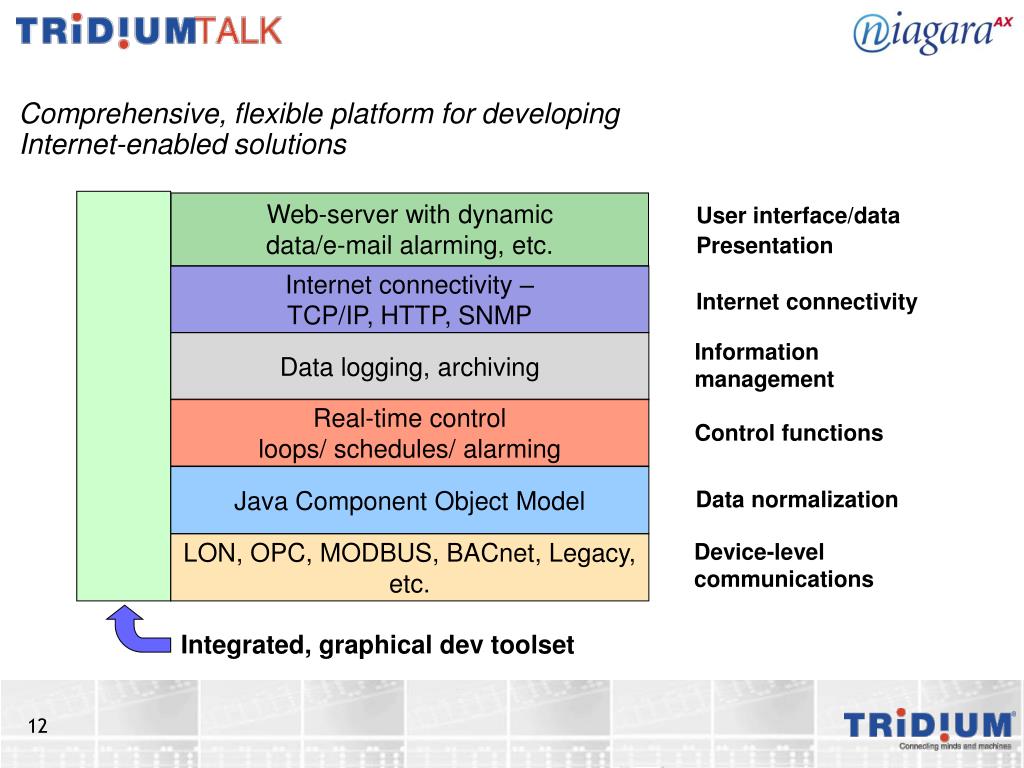

Web-server with dynamic

data/e-mail alarming, etc.

Internet connectivity – TCP/IP, HTTP, SNMP

Data logging, archiving

Real-time control

loops/ schedules/ alarming

Java Component Object Model

LON, OPC, MODBUS, BACnet, Legacy, etc.

Integrated, graphical dev toolset

Comprehensive, flexible platform for developing Internet-enabled solutions

User interface/data

Presentation

Internet connectivity

Information

management

Control functions

Data normalization

Device-level

communications


Open system solutions a framework for success september 2007

Open System Solution - Example


Open system solutions a framework for success september 2007

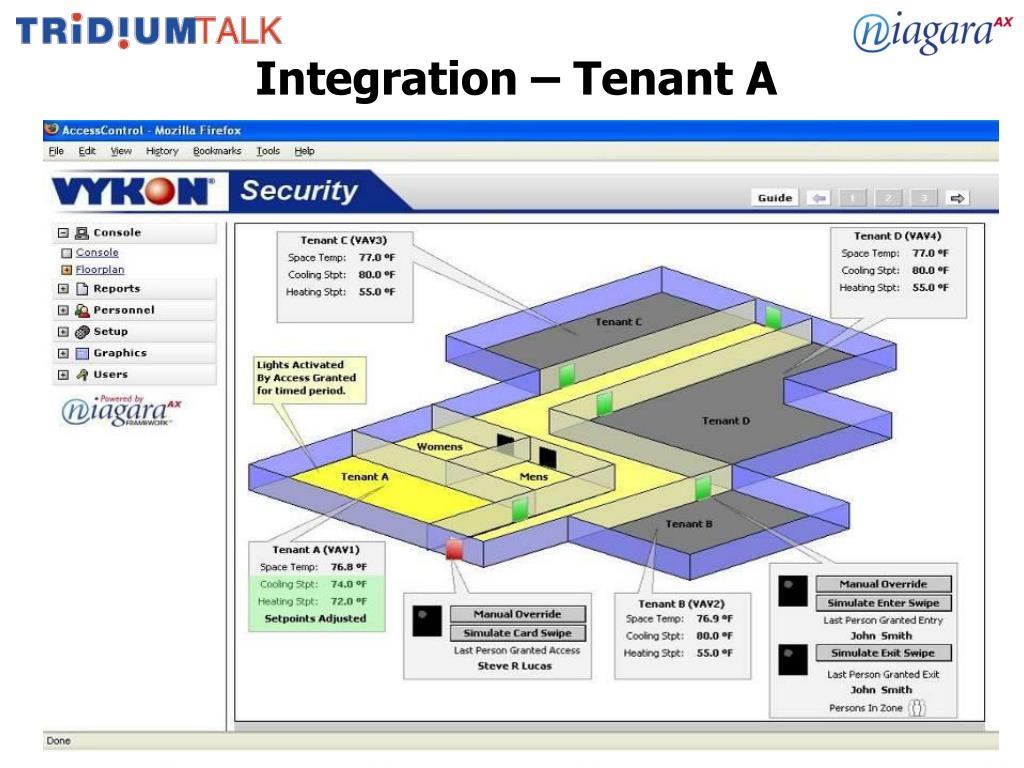

Integration – Tenant A


Open system solutions a framework for success september 2007

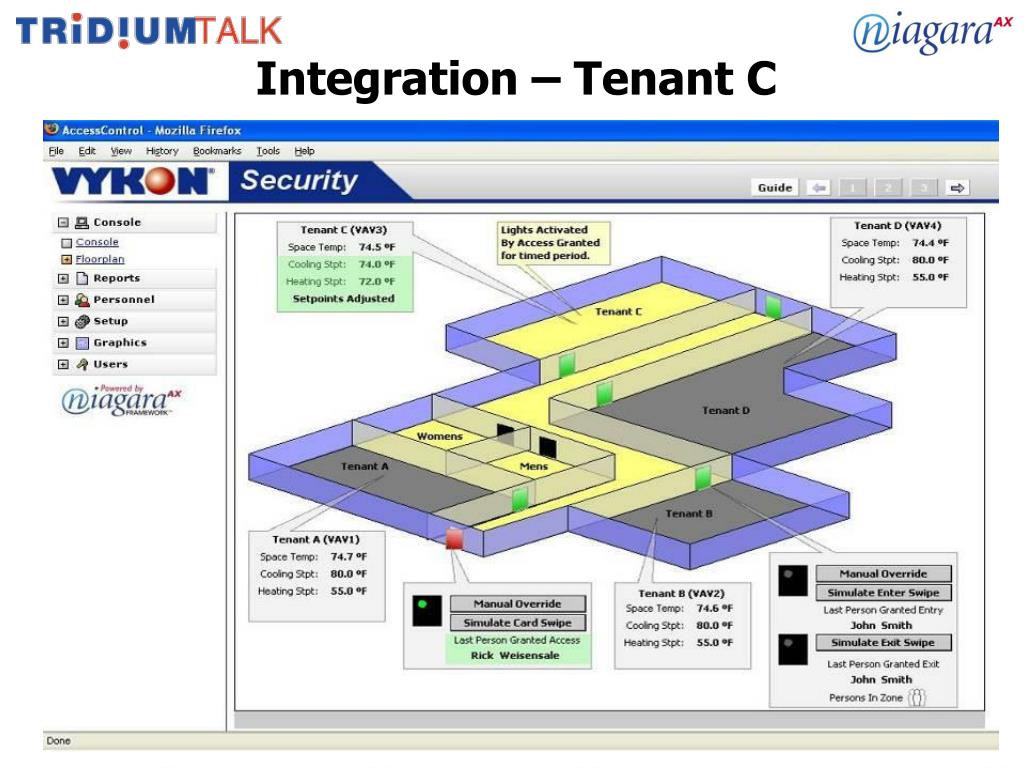

Integration – Tenant C


Open system solutions a framework for success september 2007

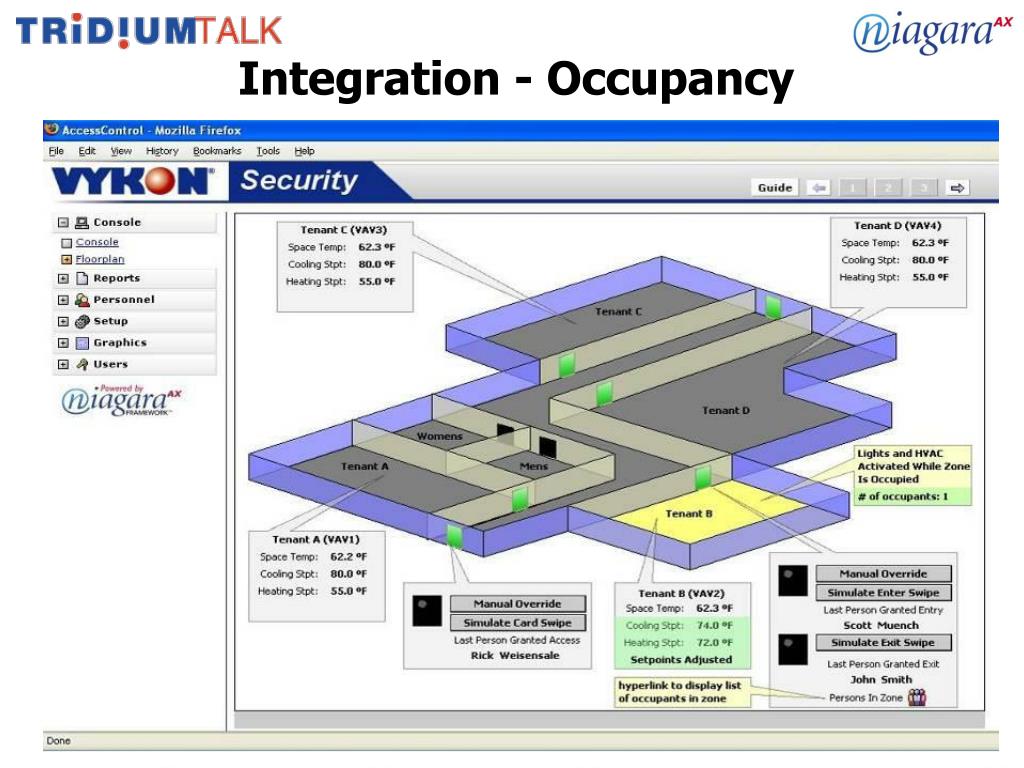

Integration - Occupancy


Open system solutions a framework for success september 2007

Multiple Occupants


Open system solutions a framework for success september 2007

Return to Unoccupied


Open system solutions a framework for success september 2007

Application Development Tool


Open system solutions a framework for success september 2007

Control Functions

  • Supervisory Control

    • Global algorithms

    • Schedules

    • Data Integration

  • Access System Logic

  • Business Rule Processing


Open system solutions a framework for success september 2007

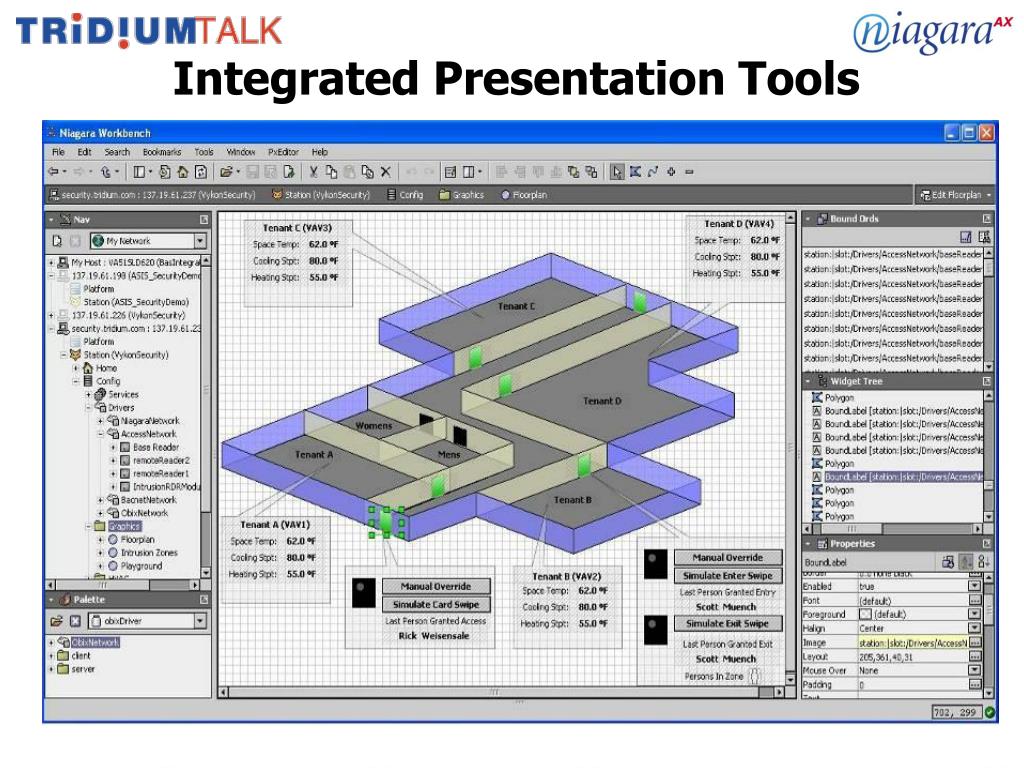

Integrated Presentation Tools


Open system solutions a framework for success september 2007

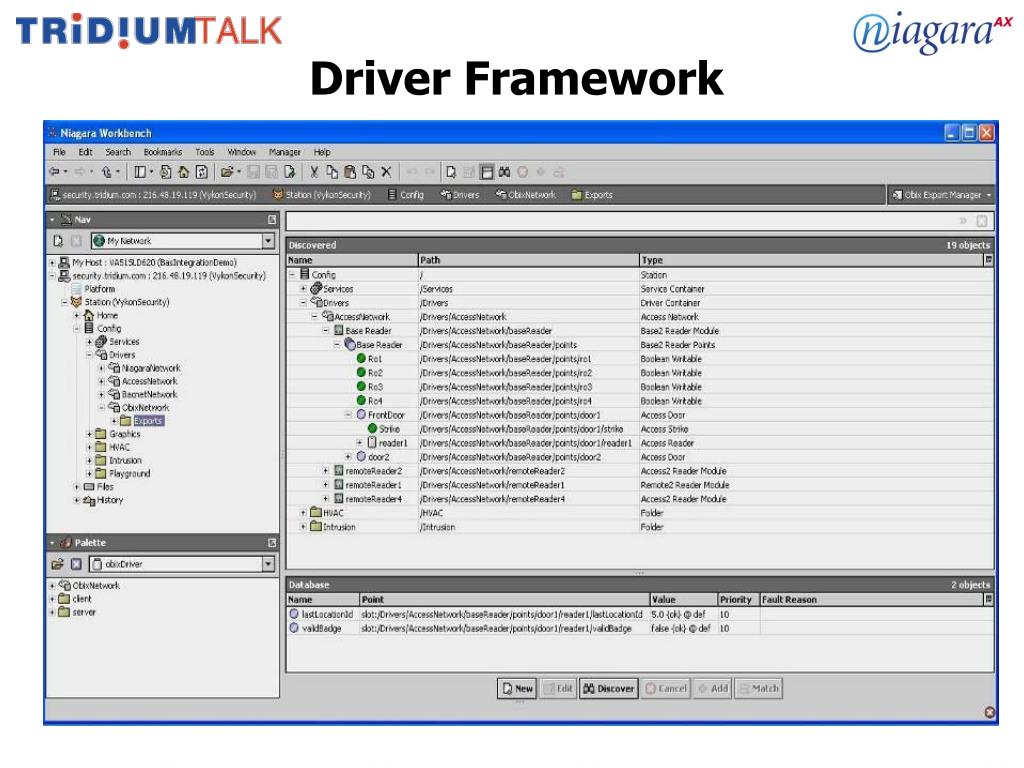

Driver Framework


Benefits of open systems solution

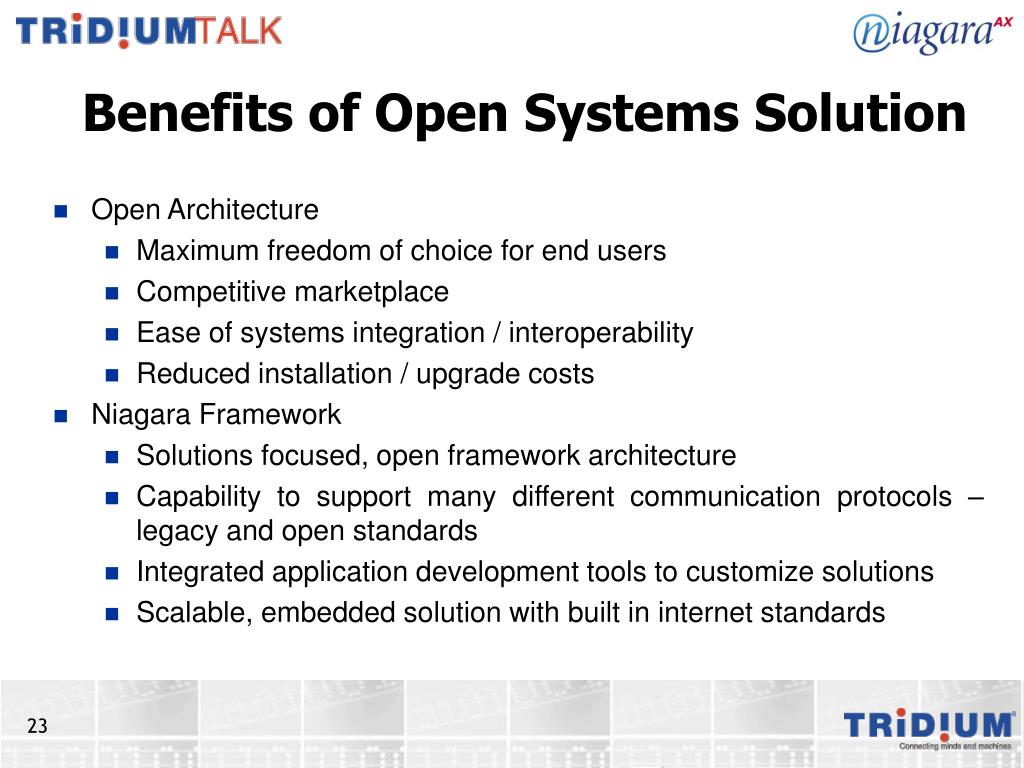

Benefits of Open Systems Solution

  • Open Architecture

    • Maximum freedom of choice for end users

    • Competitive marketplace

    • Ease of systems integration / interoperability

    • Reduced installation / upgrade costs

  • Niagara Framework

    • Solutions focused, open framework architecture

    • Capability to support many different communication protocols – legacy and open standards

    • Integrated application development tools to customize solutions

    • Scalable, embedded solution with built in internet standards


Open system solutions a framework for success september 2007

Q & A

  • We would like your feedback on today’s TridiumTALK

  • If you have any further questions, comments or topic suggestions, please email them to [email protected]

  • Exhibiting at ASIS – Booth # 107 – stop by and see us!

Steve Lucas

Rick Weisensale

Scott Muench
