  1. 2006 Camcorders

  2. 2006 Mini DV Camcorders

  3. New Live Slow Super High-Band Processor Low Light Plus 3-D NR Low Light Plus F 1.2 Super Bright Lens Tele- Conversion Built In Auto Illumi-Light Data Battery JVC Technology Concept for 2006 JVCFocuseson PictureQuality with Innovative & Unique Technologies High Quality Picture High Quality Picture In addition to current JVC original technologies including Super High-Band Processor and NightAlive, we developed the new 3D NR and Auto Illumi. Light in order to further improve picture quality especially when shooting in low-light environments.

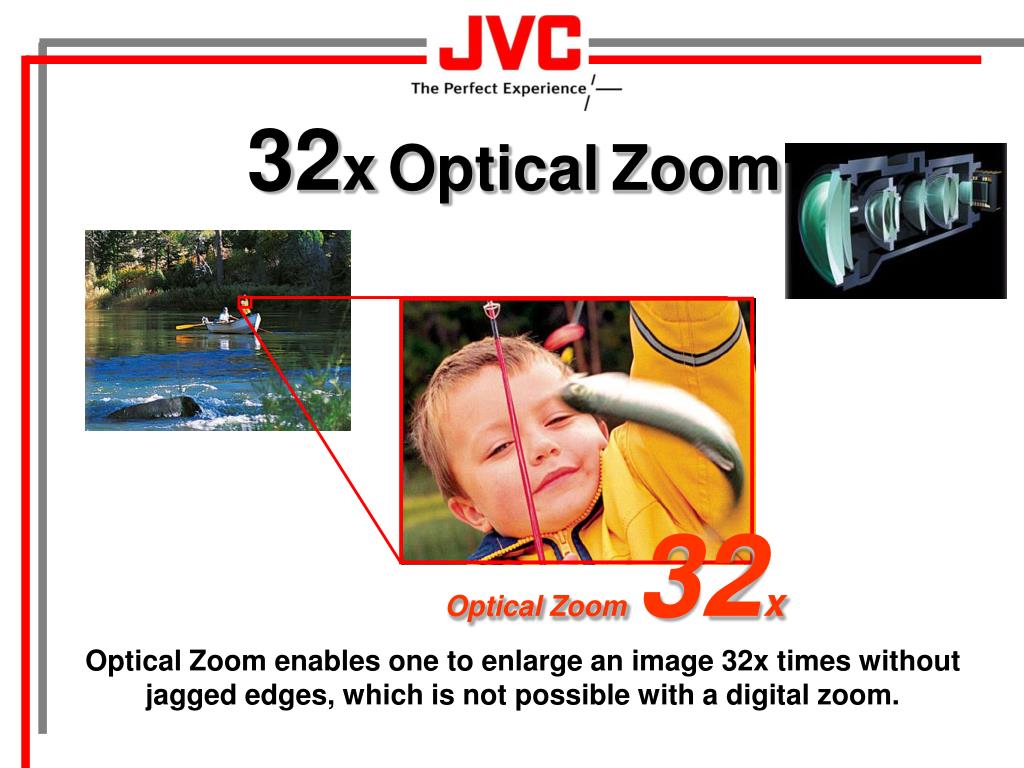

  4. 32xOpticalZoom Optical Zoom32x Optical Zoom enables one to enlarge an image 32x times without jagged edges, which is not possible with a digital zoom.

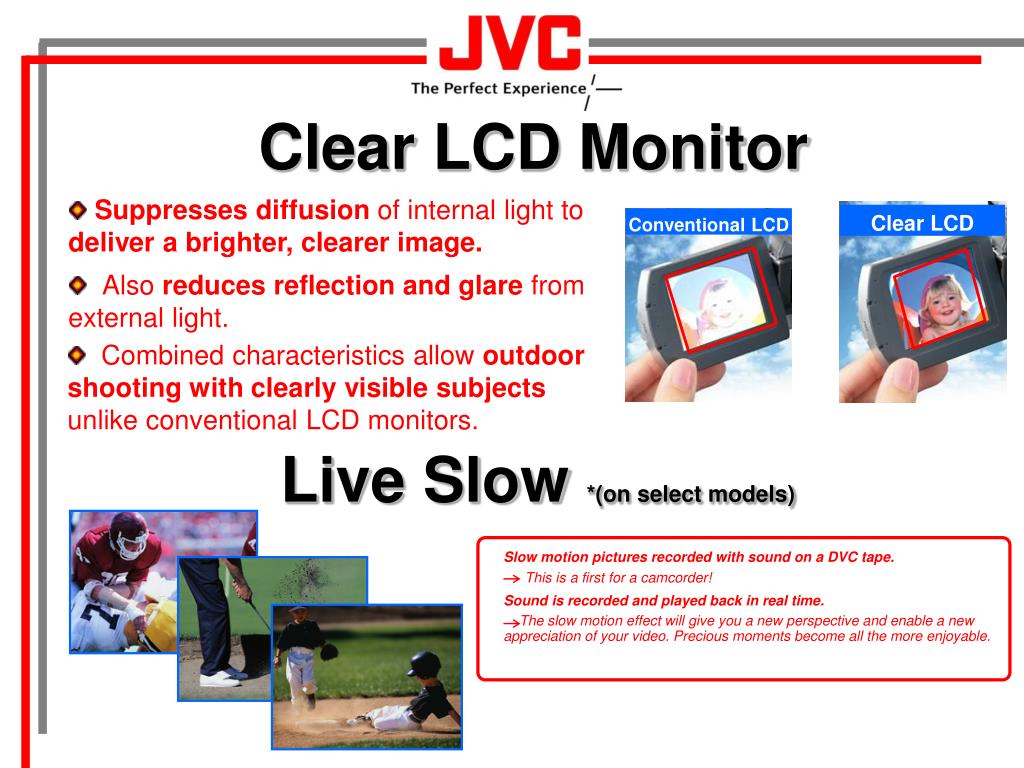

  5. Conventional LCD Clear LCD Monitor • Suppresses diffusion of internal light to deliver a brighter, clearer image. Clear LCD • Also reduces reflection and glare from external light. • Combined characteristics allow outdoor shooting with clearly visible subjects unlike conventional LCD monitors. Live Slow *(on select models) Slow motion pictures recorded with sound on a DVC tape. This is a first for a camcorder! Sound is recorded and played back in real time. The slow motion effect will give you a new perspective and enable a new appreciation of your video. Precious moments become all the more enjoyable.

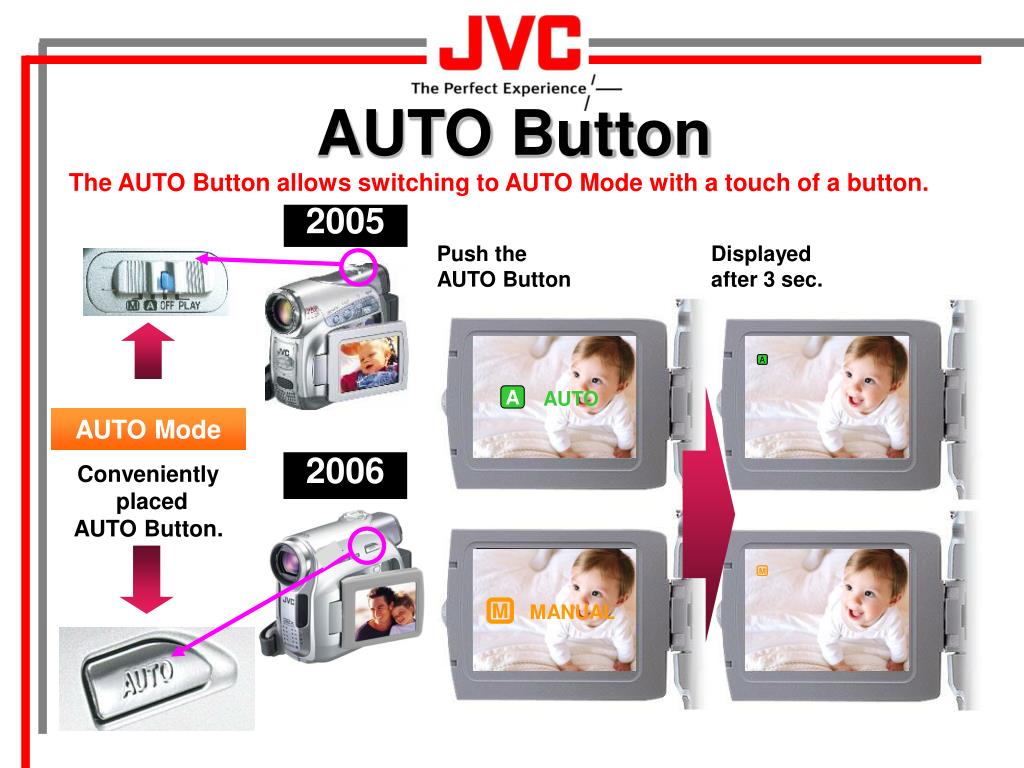

  6. A A M M AUTO Button The AUTO Button allows switching to AUTO Mode with a touch of a button. 2005 Push the AUTO Button Displayed after 3 sec. AUTO AUTO Mode 2006 Conveniently placed AUTO Button. MANUAL

  7. Up MENU/SET Down First Screen Second Screen Third Screen SET Menu On-Screen Display (Non-DSC Models) 2005 2006 Up SET Right Left The menu layers are sorted by categories making the OSD simpler and more user-friendly. Now, the navigating the menu is much easier to operate. MENU MENU ON/OFF Down

  8. Up MENU/SET Down SET Menu On-Screen Display (All Models with DSC) 2005 2006 Third Screen First Screen Second Screen First Screen Up SET Right Left The menu layers are sorted by categories making the OSD simpler and more user-friendly. In this way, navigating the menu is much easier. MENU MENU ON/OFF Down

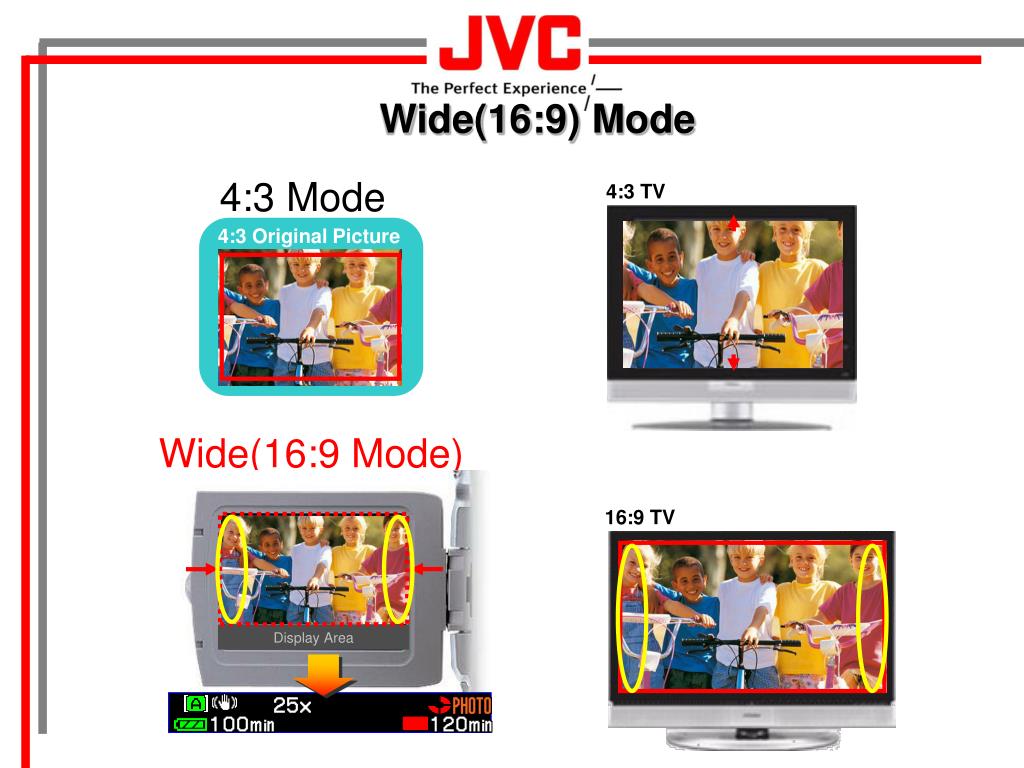

  9. Wide(16:9) Mode 4:3 Mode 4:3 TV 4:3 Original Picture Wide(16:9 Mode) 16:9 TV Display Area

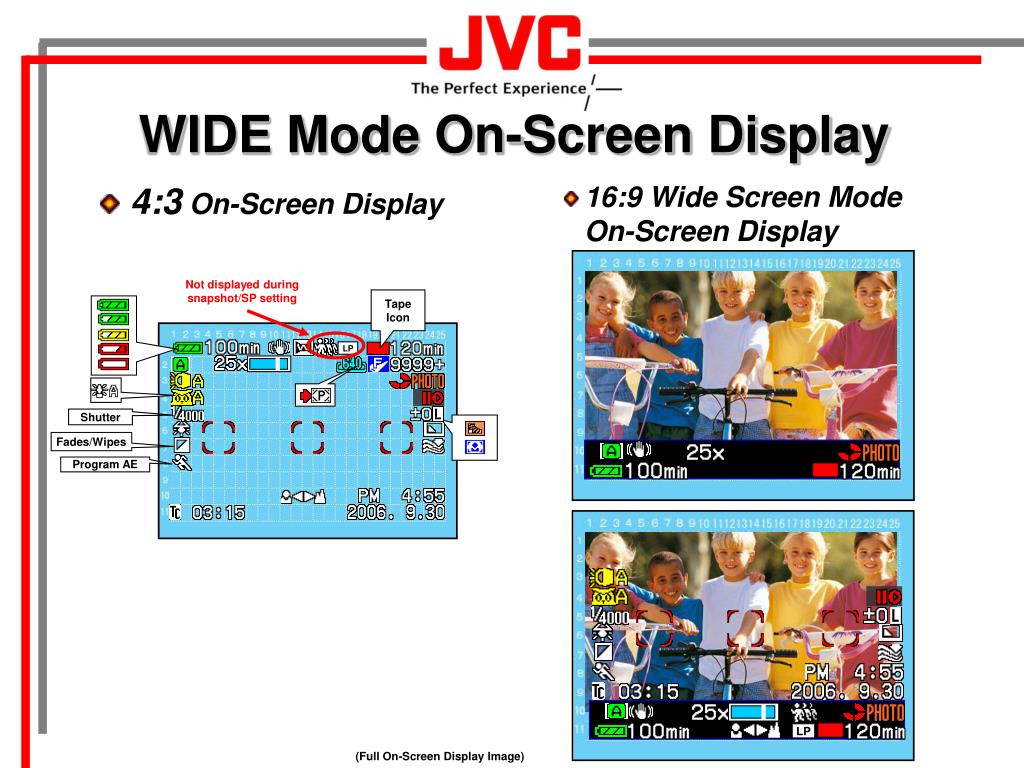

  10. LP WIDE Mode On-Screen Display • 4:3 On-Screen Display • 16:9 Wide Screen Mode On-Screen Display Not displayed during snapshot/SP setting Tape Icon Shutter Fades/Wipes Program AE LP (Full On-Screen Display Image)

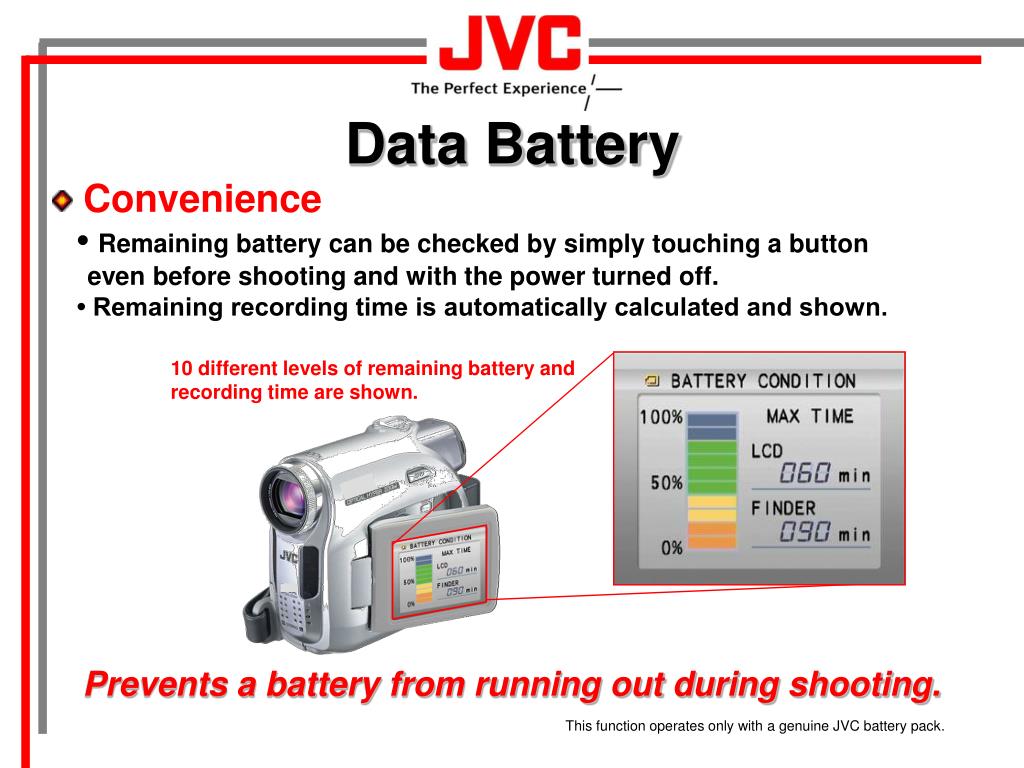

  11. Data Battery • Convenience • Remaining battery can be checked by simply touching a button even before shooting and with the power turned off. • Remaining recording time is automatically calculated and shown. 10 different levels of remaining battery and recording time are shown. Prevents a battery from running out during shooting. This function operates only with a genuine JVC battery pack.

  12. NightAlive • Boosts the intensity of existing light for a bright, full-color picture without additional lighting. Auto Illumi. Light • By using LED with 1/10th power consumption of conventional video light. Super High-Band Processor Frequency characteristics of CCD output Assures high resolution image “source” for superior quality videos and digital stills. Luminance signal Color signal High-bandprocessor • Digital improves the camera signal to boost resolution before recording. Conventional process Signal interference area 6.75 MHz

  13. D Series Design (GR-D370): Stylish and Slim 32x Optical Zoom Well-placed Controls Slim form Stylish: Shoulder Cut Form Power Button One-hand operation is possible Auto Button

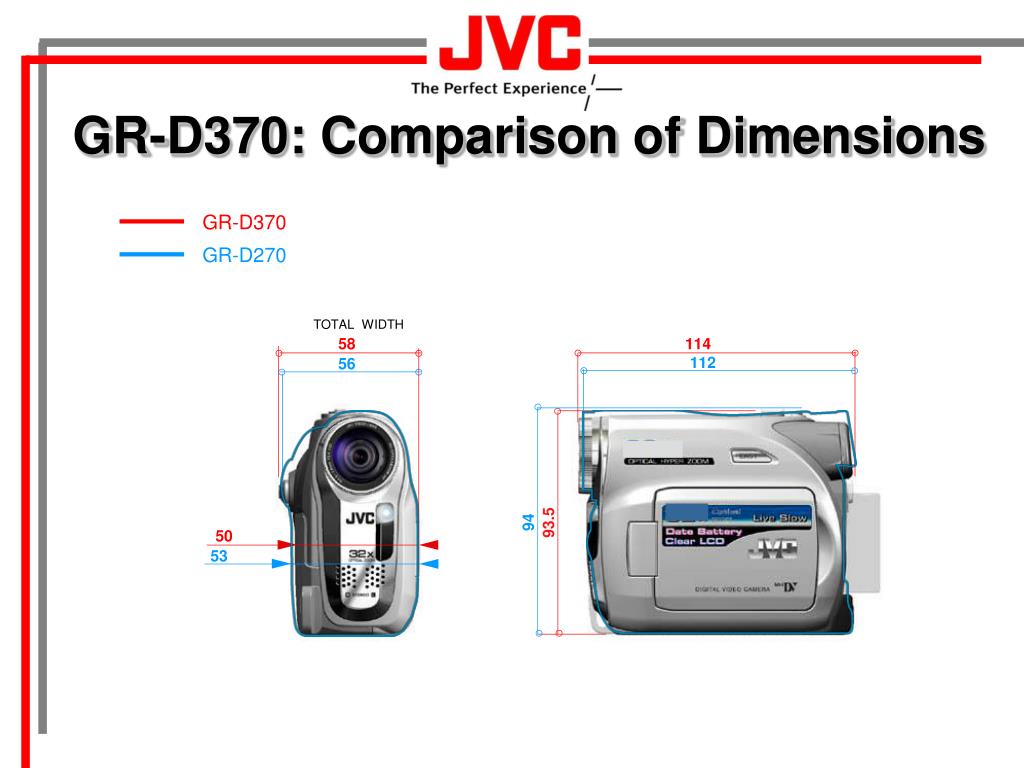

  14. GR-D370 GR-D270 GR-D370: Comparison of Dimensions TOTAL WIDTH 58 114 112 56 94 93.5 50 53

  15. GR-D350 GR-D370 GR-D395 GR-D396 $299.95 $329.95 $369.95 $379.95 GR-D350/370/395/396 Comparison BVP February February March March DSC MODELS (640 x 480) NON DSC Avail. 32x Optical Zoom / 800 x Digital Zoom CCD:1/6” 680K- pixel CCD 520 Horizontal Lines of Resolution 16:9 Video Mode Color Viewfinder Clear LCD Auto Illumi.Light NO NO Live Slow NO USB NO SD/ MMC Card Slot 4 Languages 7 Languages Remote Control Included NO English English Data BatteryVF707 VF714 2x VF707 Spanish Spanish French French 4 Language 7 Languages Portuguese Portuguese NO Photo Nav. Software Japanese Korean Chinese (Tr)

  16. TENTATIVE 2006 Mega-pixel MiniDV Camcorders

  17. F1.2 Lens F1.8 Lens Low Light Plus (F1.2 Super Bright Lens) • Aspherical lens for high-precision optics • F1.2 is 2.3-times the brightness of F1.8 and 1.8-times the brightness of F1.6. New F1.2 lens is used for the GR-D650 camera.

  18. JVC’s proven picture improvement technology for VCRs has been adopted for video cameras. JVC made it possible to cut noise when shooting in low light environments using our original 3D NR technology to deliver high quality results. When shooting in dark environments, noise elements are visible throughout the image, producing a coarse picture with obscured borders such as facial shapes. Low-Light Plus (3D NR) • Able to reduce video noise by approx. 30%, especially when shooting in low light. • Edge flicker is inhibited, enabling even subjects that contain lots of high frequency range elements such as hair, to be shot as pure, bright, low-noise images.

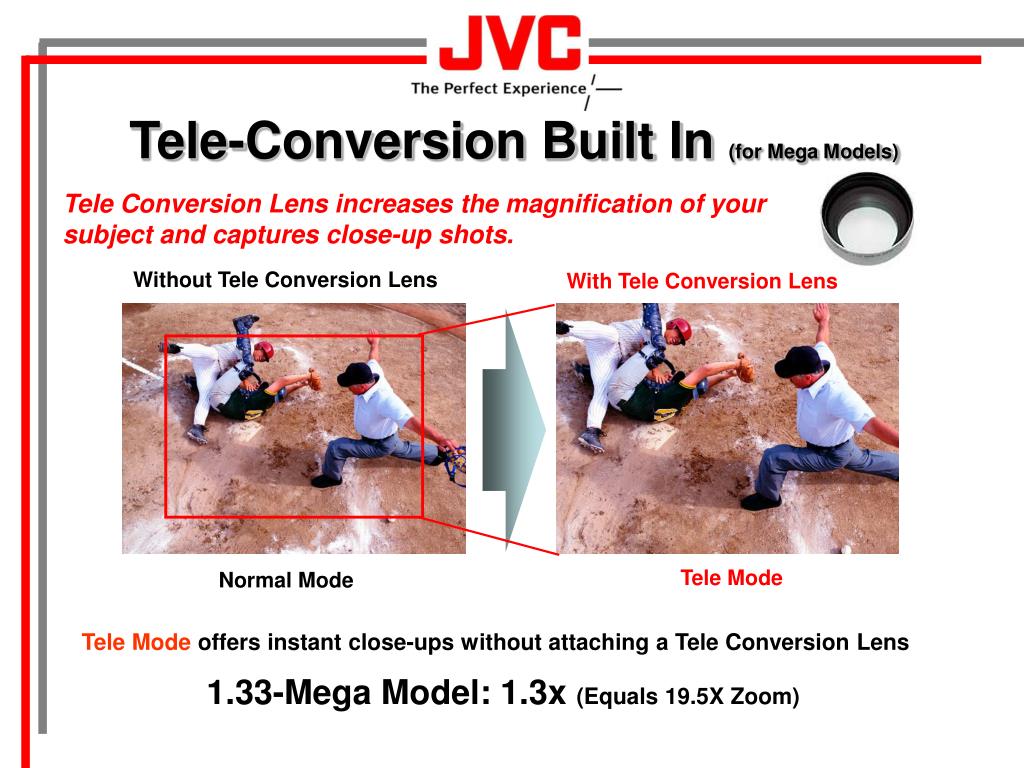

  19. Tele-Conversion Built In (for Mega Models) Tele Conversion Lens increases the magnification of your subject and captures close-up shots. Without Tele Conversion Lens With Tele Conversion Lens Tele Mode Normal Mode Tele Modeoffers instant close-ups without attaching a Tele Conversion Lens 1.33-Mega Model: 1.3x (Equals 19.5X Zoom)

  20. Wide(16:9) Mode 4:3 Mode 4:3 TV 4:3 Original Picture Wide(16:9 Mode) 16:9 TV Display Area

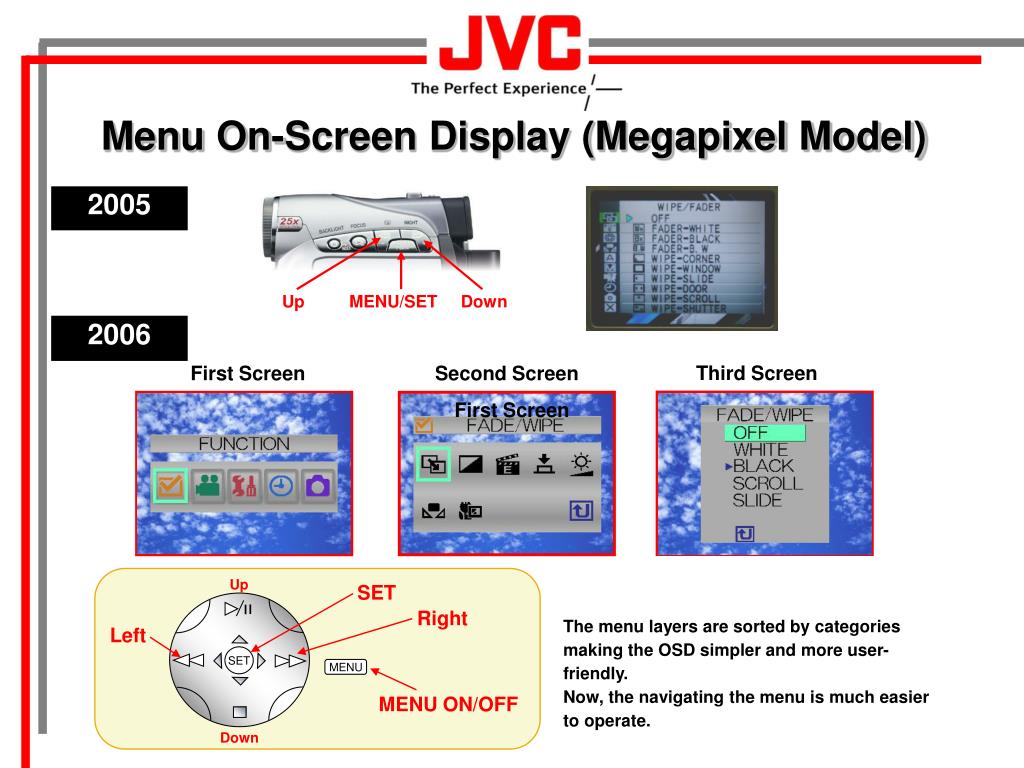

  21. Up MENU/SET Down SET Menu On-Screen Display (Megapixel Model) 2005 2006 Third Screen First Screen Second Screen First Screen Up SET Right The menu layers are sorted by categories making the OSD simpler and more user-friendly. Now, the navigating the menu is much easier to operate. Left MENU MENU ON/OFF Down

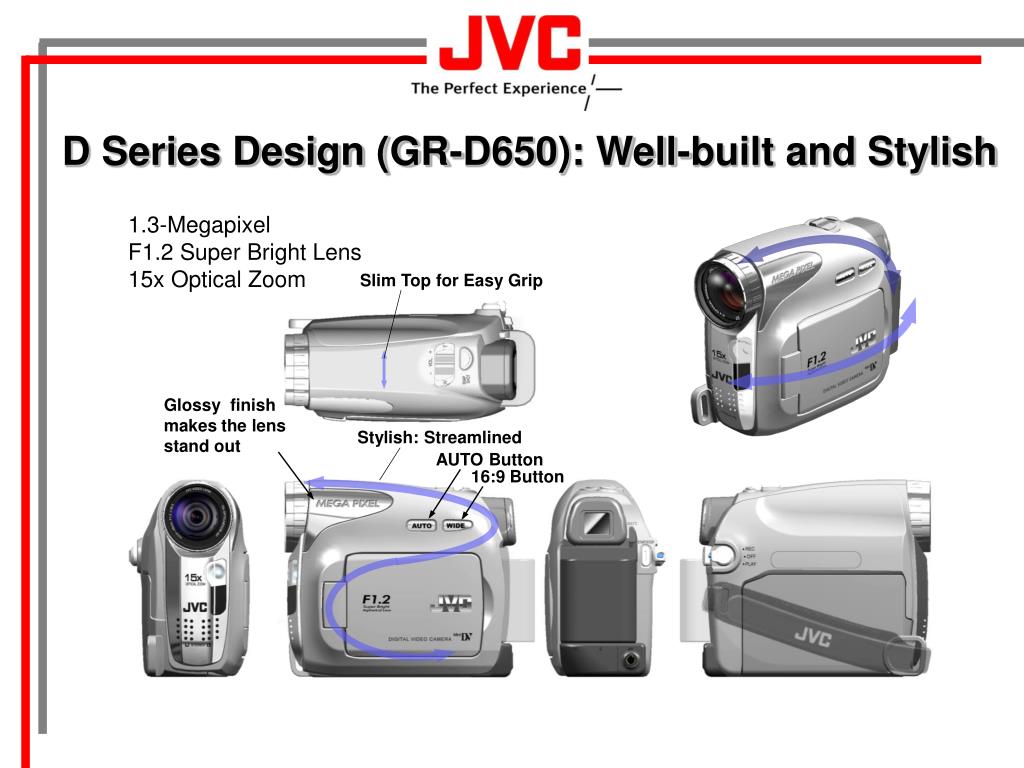

  22. D Series Design (GR-D650): Well-built and Stylish 1.3-Megapixel F1.2 Super Bright Lens 15x Optical Zoom Slim Top for Easy Grip Glossy finish makes the lens stand out Stylish: Streamlined AUTO Button 16:9 Button

  23. CCD:1/5” 1.33 Mega- pixel CCD GR-D650 Lens Performance: F1.2 540 Horizontal Lines of Resolution April 15x Optical Zoom $399.95 3DNR Built-in Tele Conversion 1.3x 16:9 Wide Screen Mode Clear LCD Auto Illumi.Light USB Power-Linked Operation Live Slow Digital Stills (1280 x 960) Data BatteryVF707 7 Languages 7 Languages English Spanish Color Viewfinder French Remote Control Included Portuguese Japanese SD/ MMC Card Slot

  24. TENTATIVE 2006 Compact VHS Camcorders

  25. Product Highlights • 20x Optical Zoom • 800x Digital Hyper Zoom • Digital Picture Improvement Technology *Picture Stabilizer *Digital TBC (Time Base Corrector) *Digital CNR (Chroma Noise Reduction) *108 Combinations of Digital Special Effects (11x) and Scene Transitions (10x) • Multi-Language Instant Titles (4 Languages) • Manual Focus • Flying Erase Head • Built-in Battery Charger GR-AXM18 Compact VHS Camera Basic Features • 2.5” LCD Color Monitor • 20x Optical Zoom • 800x Digital Hyper Zoom • Viewfinder • 320k pixel CCD Avail. Feb. - $199.95

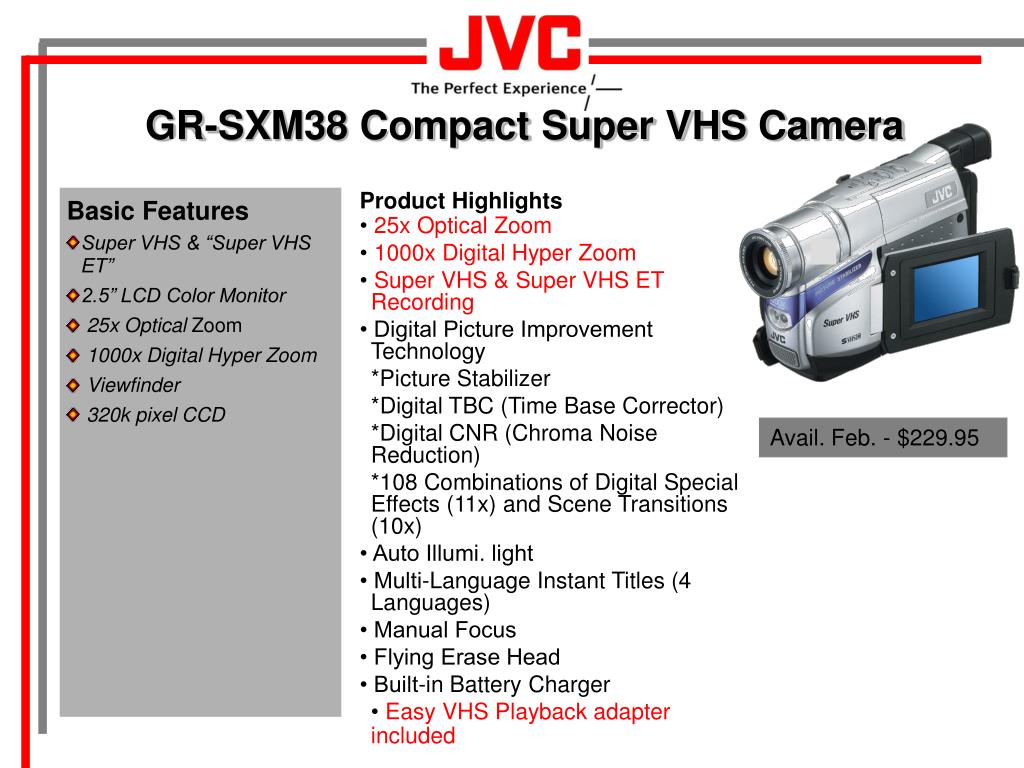

  26. Product Highlights • 25x Optical Zoom • 1000x Digital Hyper Zoom • Super VHS & Super VHS ET Recording • Digital Picture Improvement Technology *Picture Stabilizer *Digital TBC (Time Base Corrector) *Digital CNR (Chroma Noise Reduction) *108 Combinations of Digital Special Effects (11x) and Scene Transitions (10x) • Auto Illumi. light • Multi-Language Instant Titles (4 Languages) • Manual Focus • Flying Erase Head • Built-in Battery Charger • Easy VHS Playback adapter included GR-SXM38 Compact Super VHS Camera Basic Features • Super VHS & “Super VHS ET” • 2.5” LCD Color Monitor • 25x Optical Zoom • 1000x Digital Hyper Zoom • Viewfinder • 320k pixel CCD Avail. Feb. - $229.95
