BlueJ Chapter 5

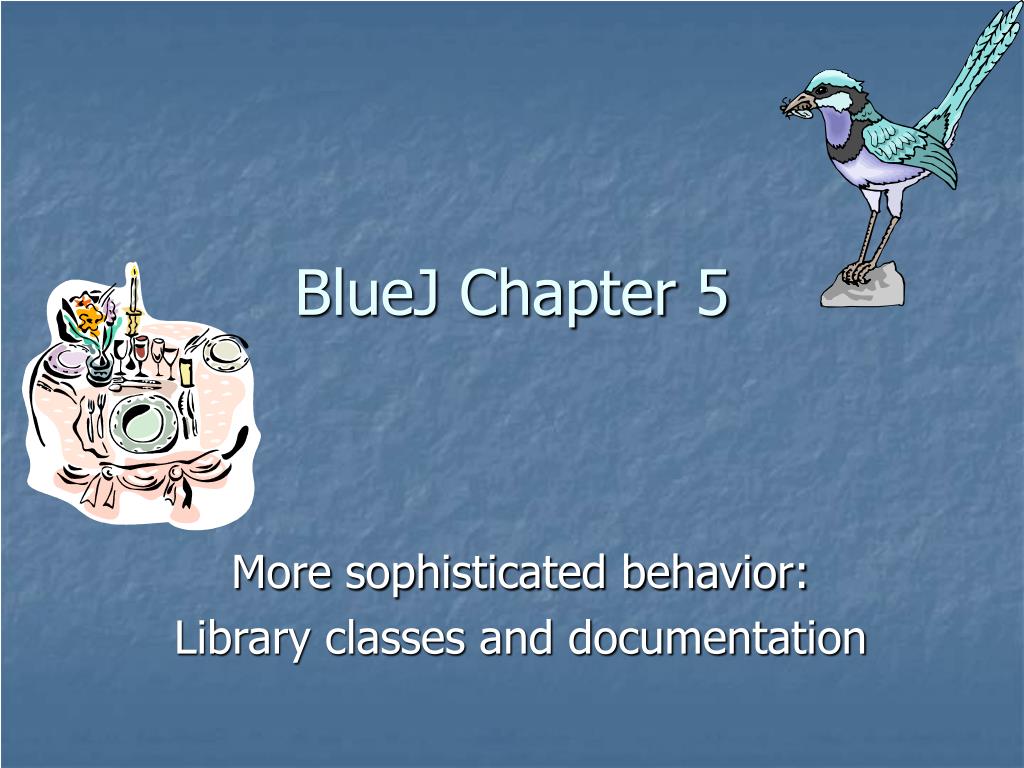

1. BlueJ Chapter 5 More sophisticated behavior: Library classes and documentation

2. Java constructs to be discussed in this chapter: String ArrayList Random HashMap HashSet Iterator String Tokenizer Static final

3. 1. Review • Arraylist • Useful class from the Java library • store an arbitrary number of objects • Knowing how to use the libraries is essential to becoming an advanced Java programmer • Too big to memorize, thousands of classes • Learn how to read the API • HOW it’s implemented doesn’t matter • ALL is well documented so others can use it

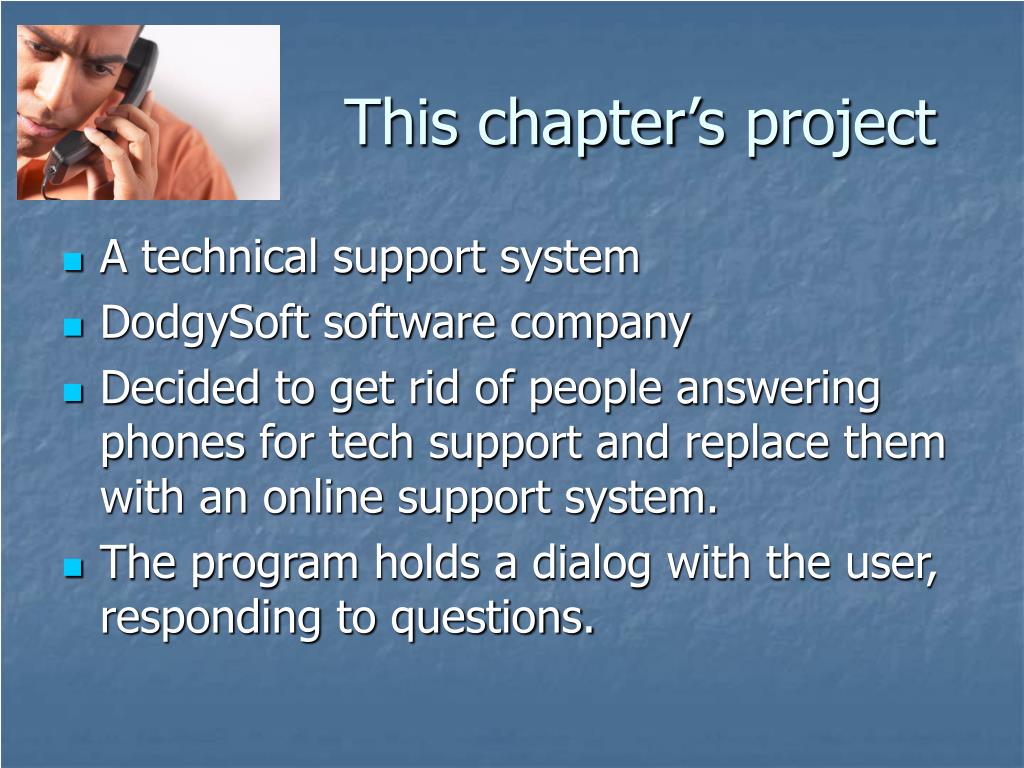

4. This chapter’s project • A technical support system • DodgySoft software company • Decided to get rid of people answering phones for tech support and replace them with an online support system. • The program holds a dialog with the user, responding to questions.

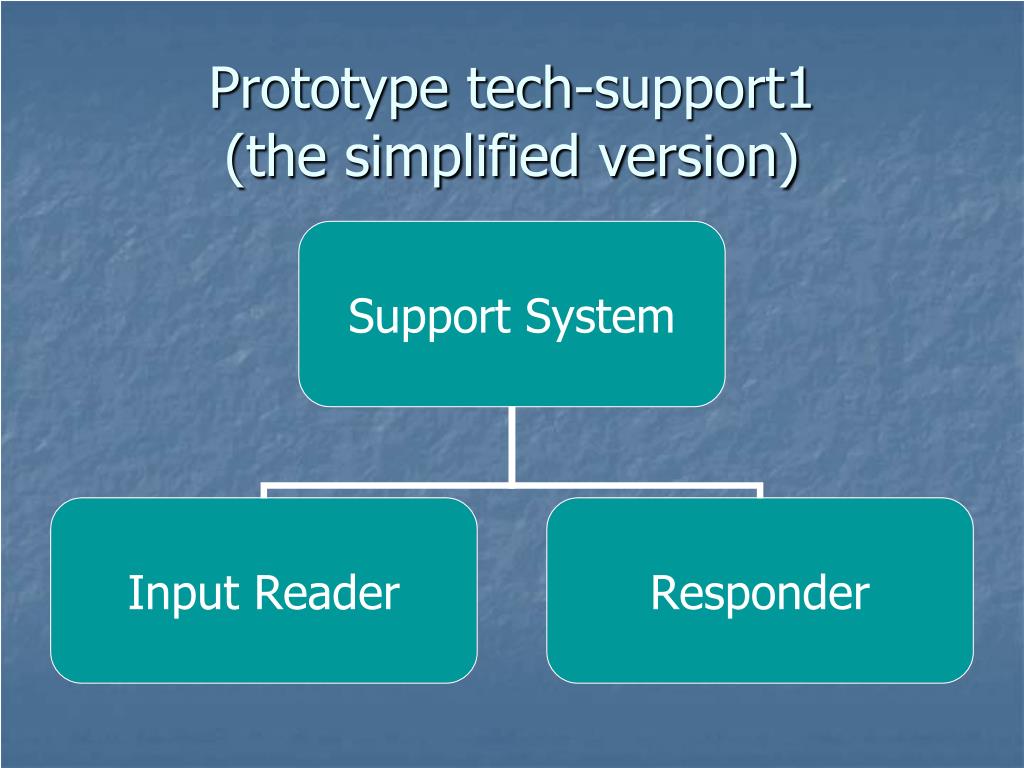

5. Prototype tech-support1(the simplified version)

6. Developing the system • The prototype support system starts out very dumb. • Always gives the same response • First understand how it works, then improve upon it.

7. 2. Refer to the API • One method used in the start method of the SupportSystem class is startsWith • Find documentation for the String class for a description of how the method works • (Appendix F of the BlueJ book tells how to set up BlueJ to access a local copy of the API to run faster, can we do this?

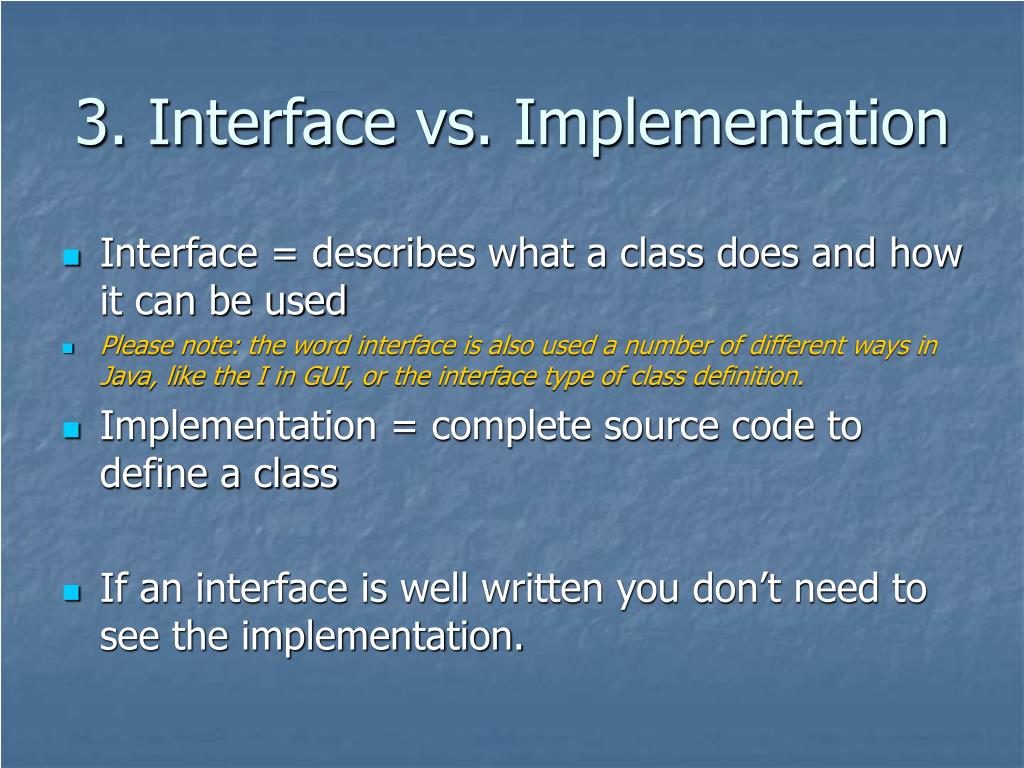

8. 3. Interface vs. Implementation • Interface = describes what a class does and how it can be used • Please note: the word interface is also used a number of different ways in Java, like the I in GUI, or the interface type of class definition. • Implementation = complete source code to define a class • If an interface is well written you don’t need to see the implementation.

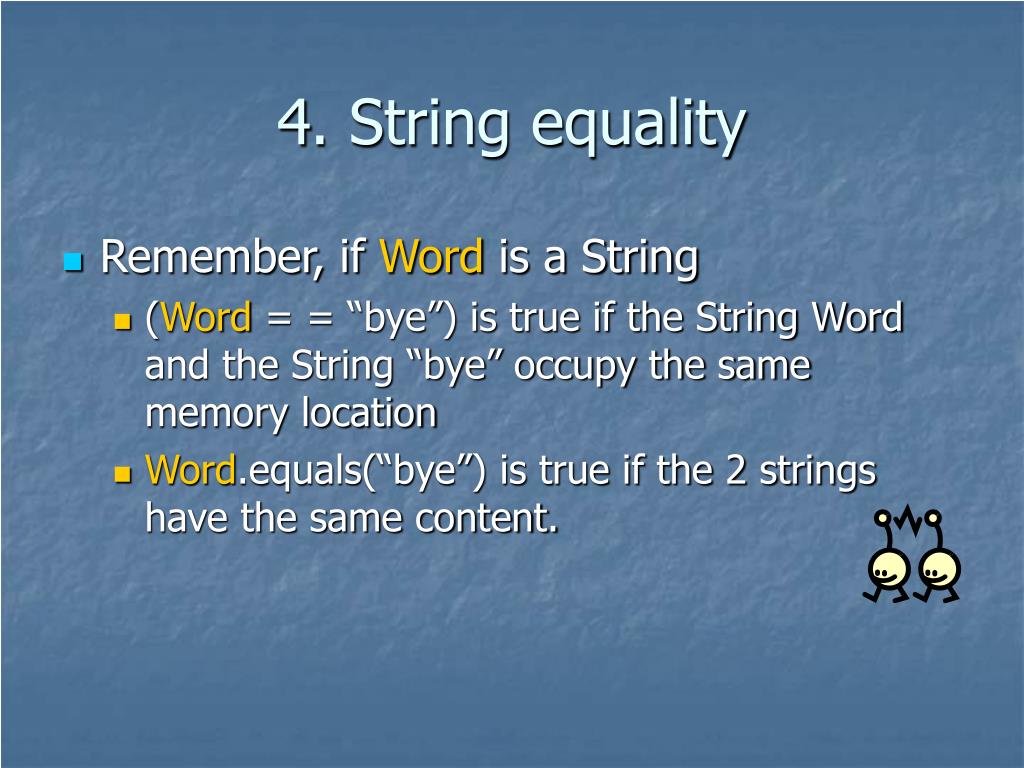

9. 4. String equality • Remember, if Word is a String • (Word = = “bye”) is true if the String Word and the String “bye” occupy the same memory location • Word.equals(“bye”) is true if the 2 strings have the same content.

10. Improving the system • First improvement: • Vary the responses • Start with random responses unrelated to user input • Create an ArrayList of possible string responses

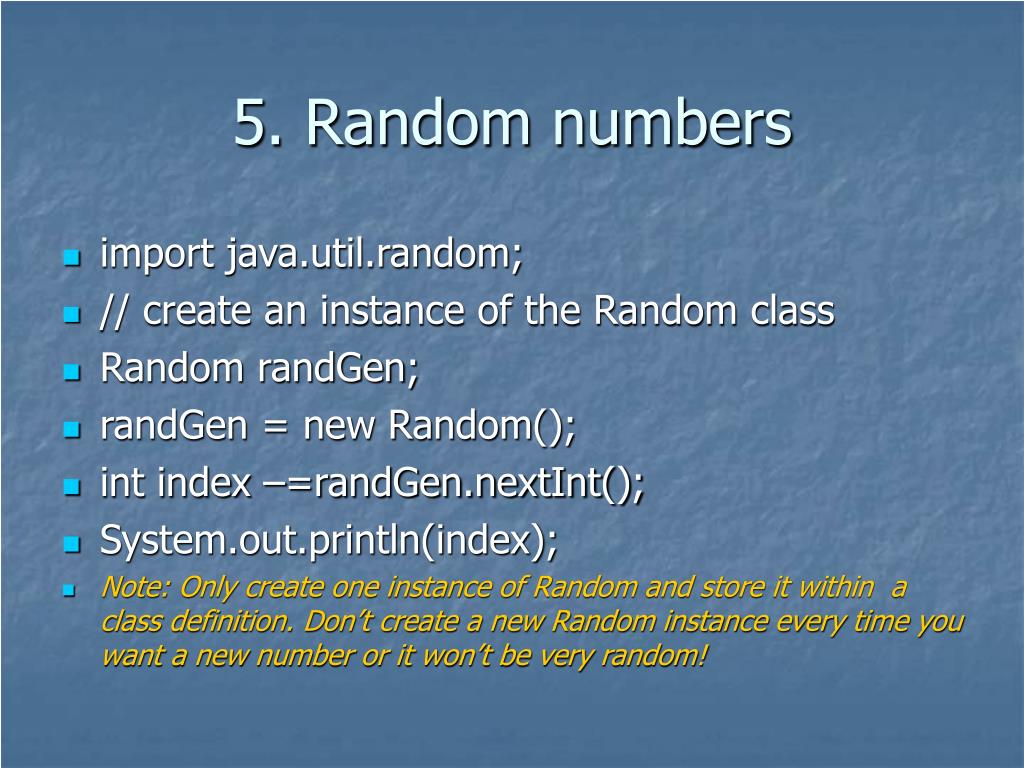

11. 5. Random numbers • import java.util.random; • // create an instance of the Random class • Random randGen; • randGen = new Random(); • int index –=randGen.nextInt(); • System.out.println(index); • Note: Only create one instance of Random and store it within a class definition. Don’t create a new Random instance every time you want a new number or it won’t be very random!

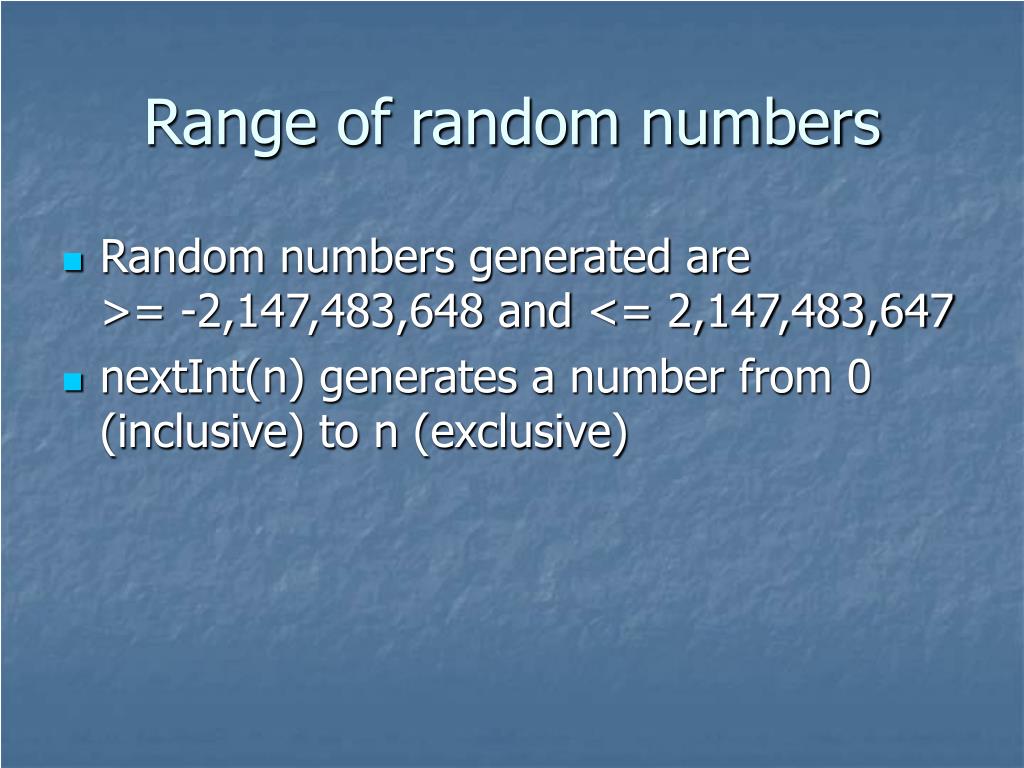

12. Range of random numbers • Random numbers generated are >= -2,147,483,648 and <= 2,147,483,647 • nextInt(n) generates a number from 0 (inclusive) to n (exclusive)

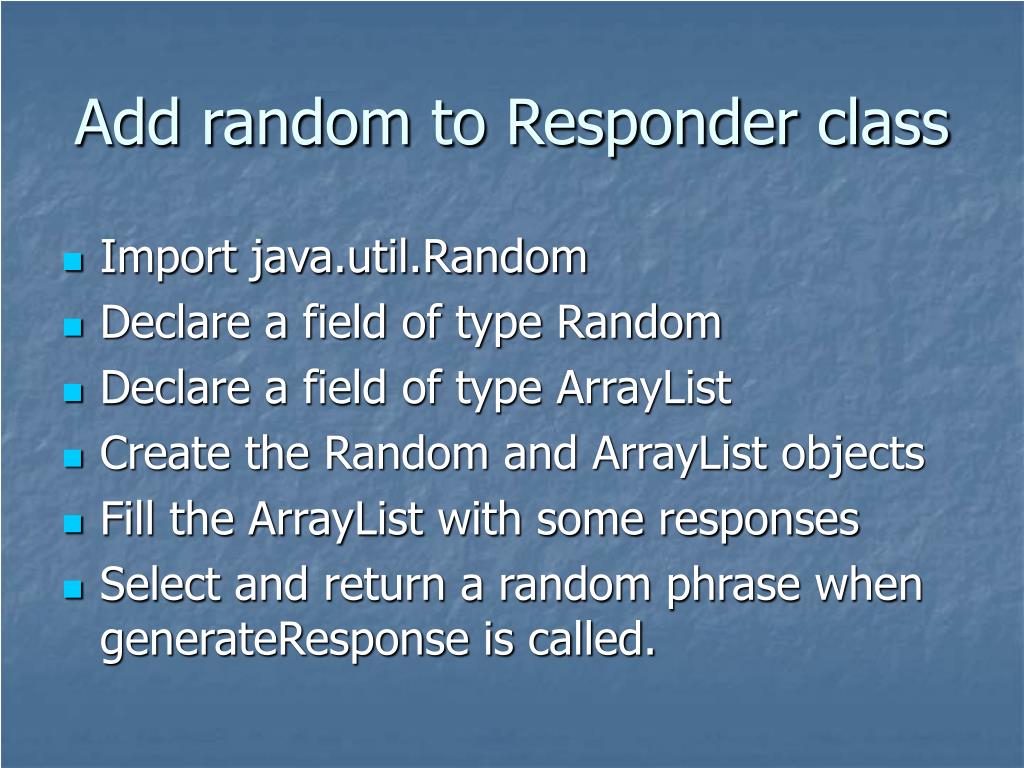

13. Add random to Responder class • Import java.util.Random • Declare a field of type Random • Declare a field of type ArrayList • Create the Random and ArrayList objects • Fill the ArrayList with some responses • Select and return a random phrase when generateResponse is called.

14. 6. Review: ArrayLists • // import the package to use • import java.util.ArrayList; • // create a list • ArrayList<String> myList = new ArrayList<String>(); • // the size method returns the number of elements in the list • int size = myList.size(); • // the get method returns an element at an index • // you must cast to the type of result you want • String nthAnswer = myList.get(n); // no need to cast

15. int index = randomGenerator.nextInt(responses.size()); return responses.get(index); int listSize = responses.size(); int index = randomGenerator.nextInt(listSize); return responses.get(index); Which is easier to read?

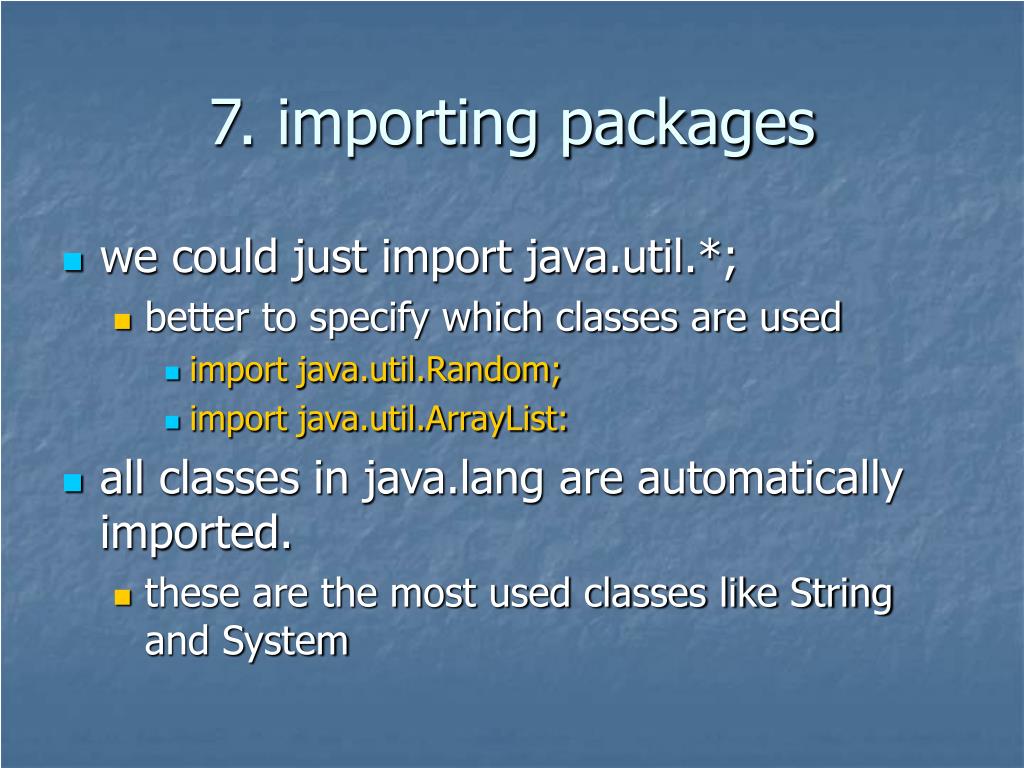

16. 7. importing packages • we could just import java.util.*; • better to specify which classes are used • import java.util.Random; • import java.util.ArrayList: • all classes in java.lang are automatically imported. • these are the most used classes like String and System

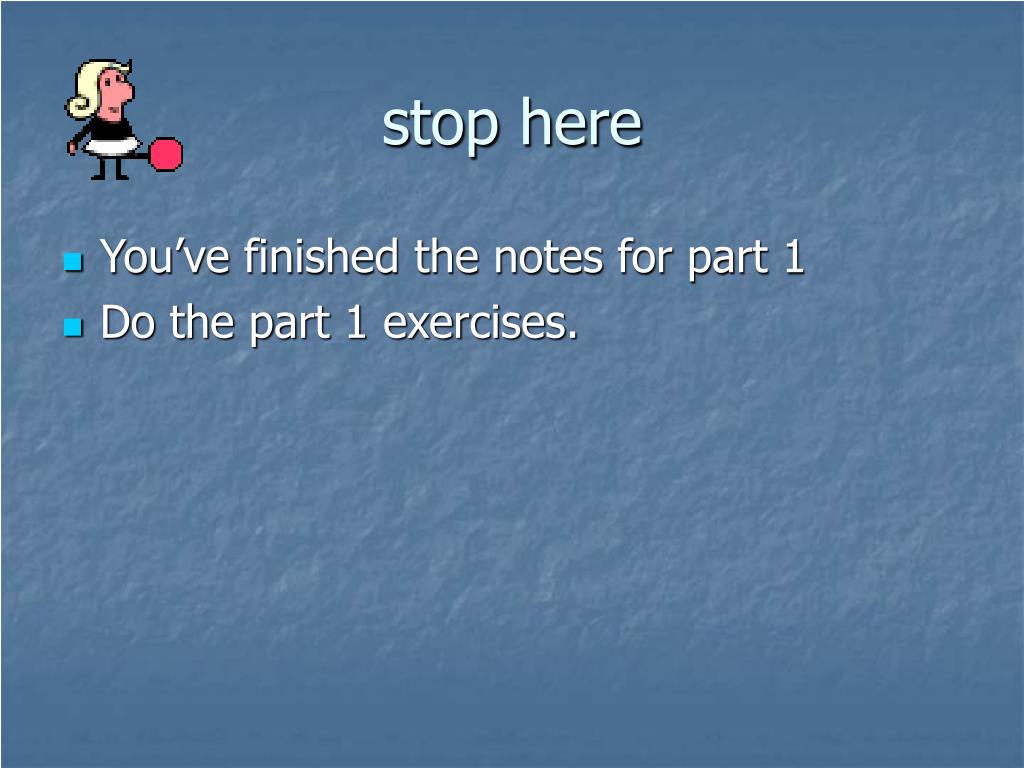

17. stop here • You’ve finished the notes for part 1 • Do the part 1 exercises.

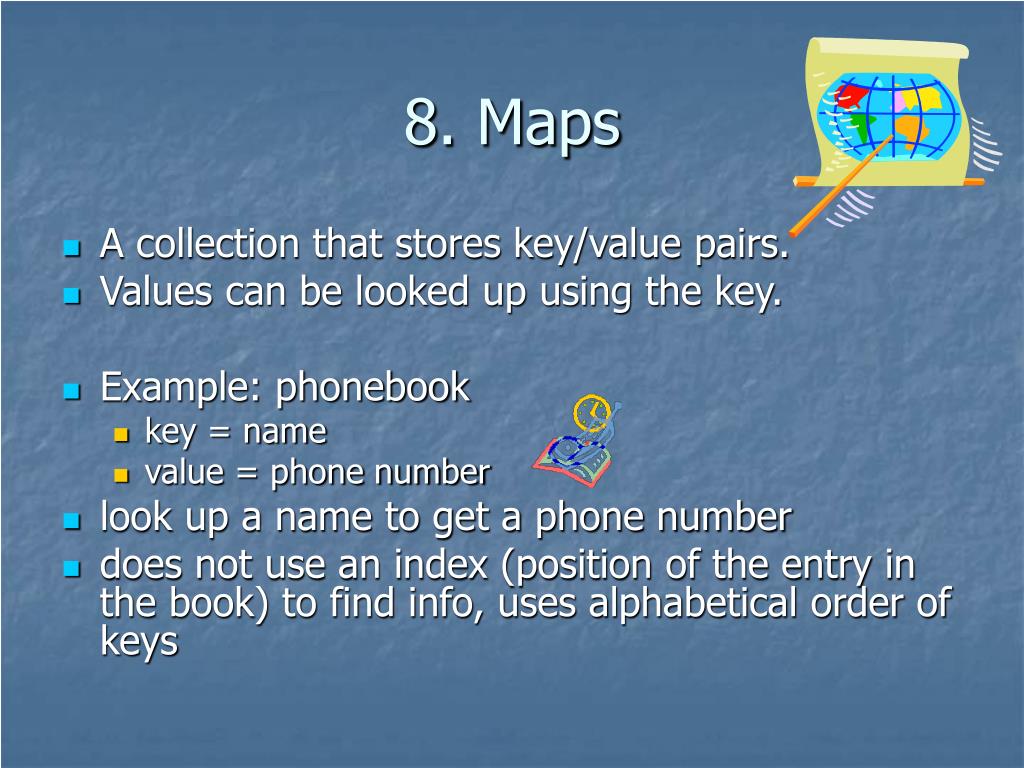

18. 8. Maps • A collection that stores key/value pairs. • Values can be looked up using the key. • Example: phonebook • key = name • value = phone number • look up a name to get a phone number • does not use an index (position of the entry in the book) to find info, uses alphabetical order of keys

19. 9. HashMap • a special kind of map. • put inserts an entry into the map • get retrieves a value for a given key • HashMap phoneBook = new HashMap(); • // add numbers to book • phoneBook.put(“Li Wei”, “(410) 335-1234”); • phoneBook.put(“Ann Day”, “(301) 555-1212”); • // look up a number • String s = (String) phoneBook.get(“Li Wei”);

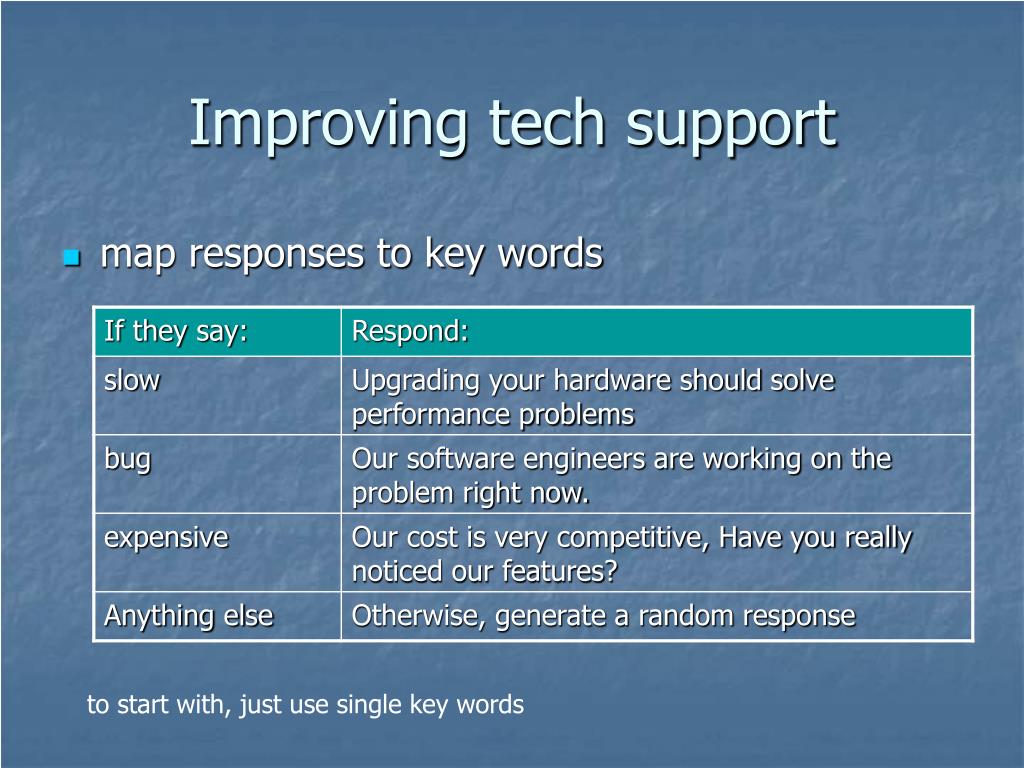

20. Improving tech support • map responses to key words to start with, just use single key words

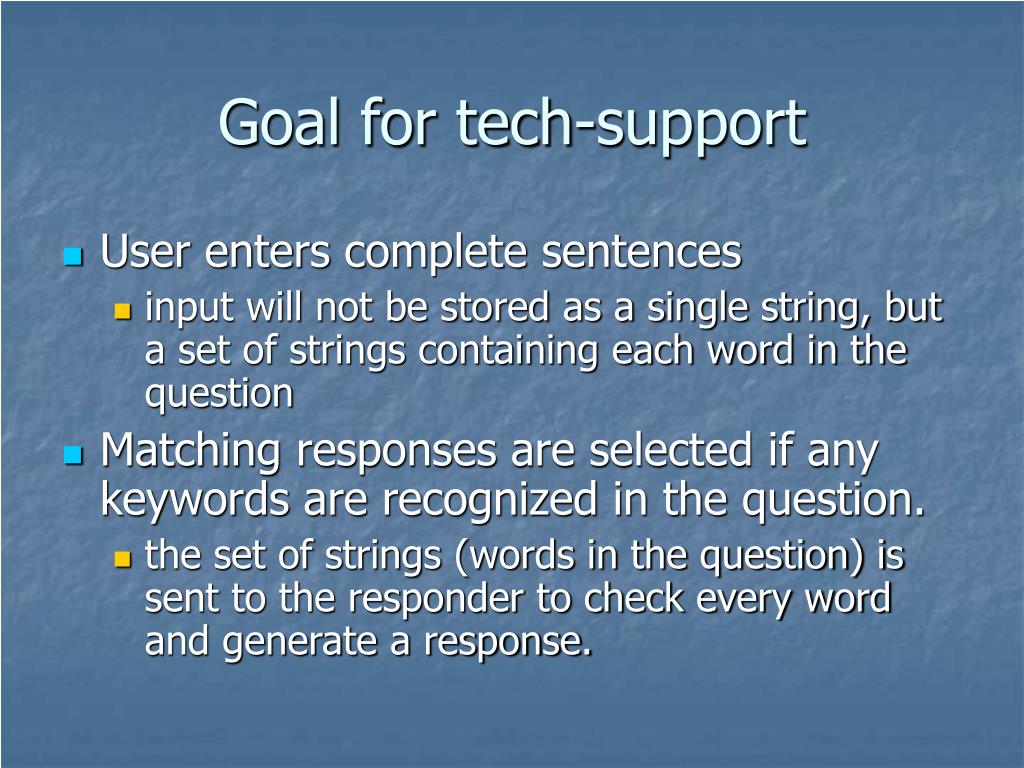

21. Goal for tech-support • User enters complete sentences • input will not be stored as a single string, but a set of strings containing each word in the question • Matching responses are selected if any keywords are recognized in the question. • the set of strings (words in the question) is sent to the responder to check every word and generate a response.

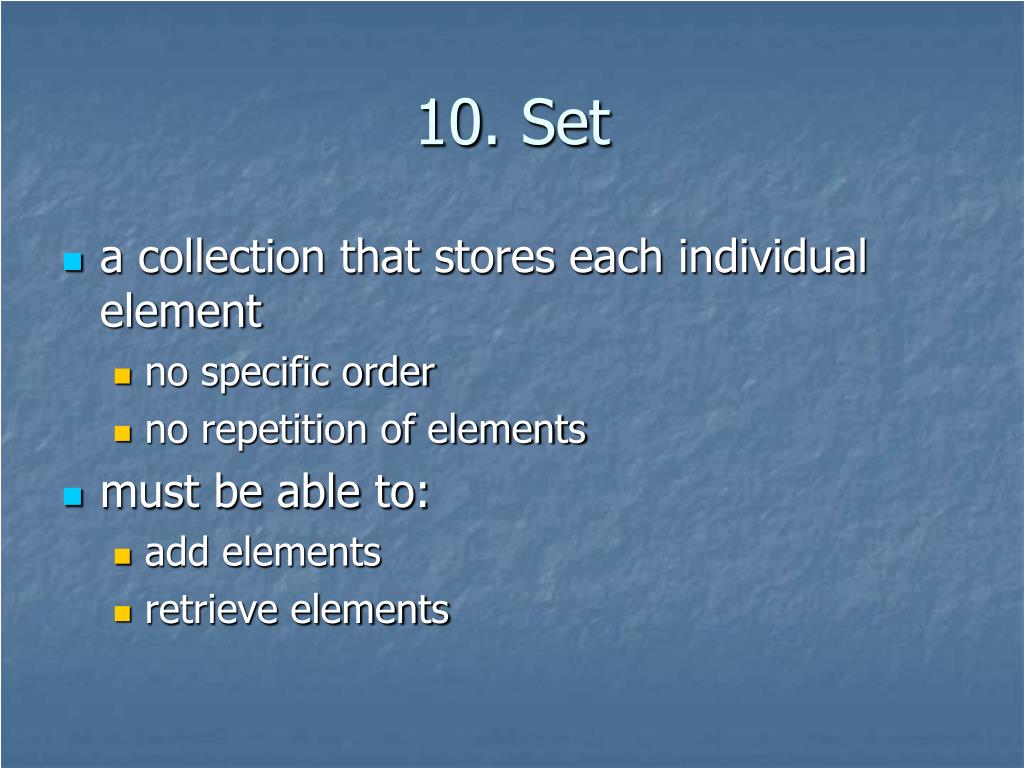

22. 10. Set • a collection that stores each individual element • no specific order • no repetition of elements • must be able to: • add elements • retrieve elements

23. 11. Java collections

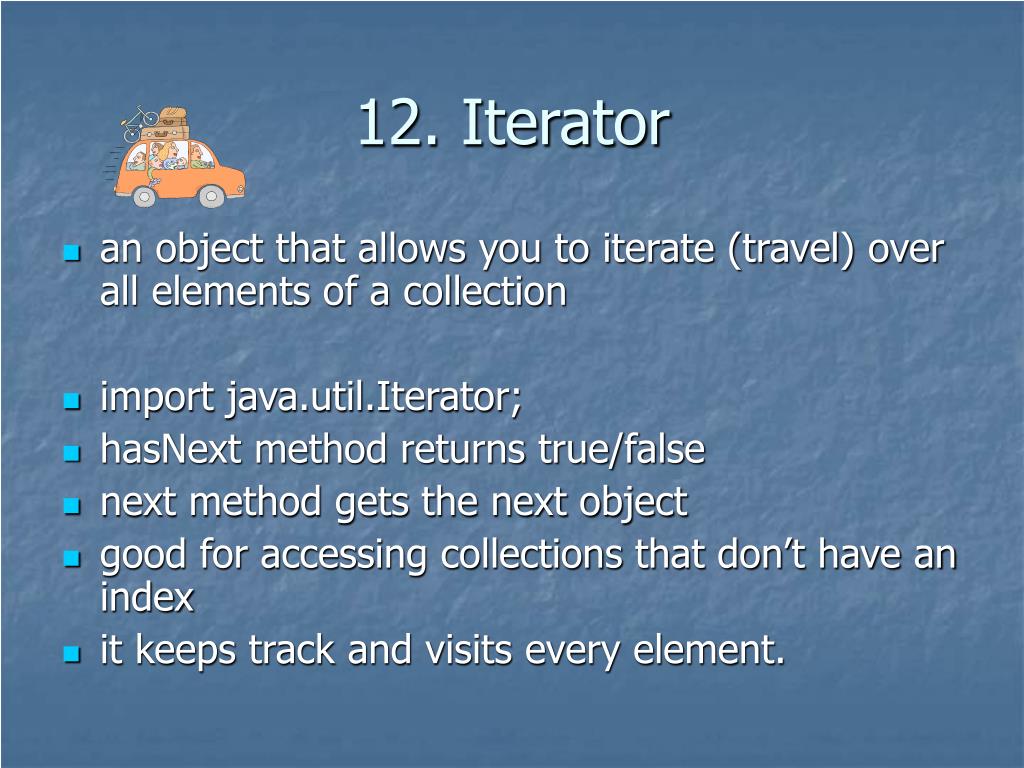

24. 12. Iterator • an object that allows you to iterate (travel) over all elements of a collection • import java.util.Iterator; • hasNext method returns true/false • next method gets the next object • good for accessing collections that don’t have an index • it keeps track and visits every element.

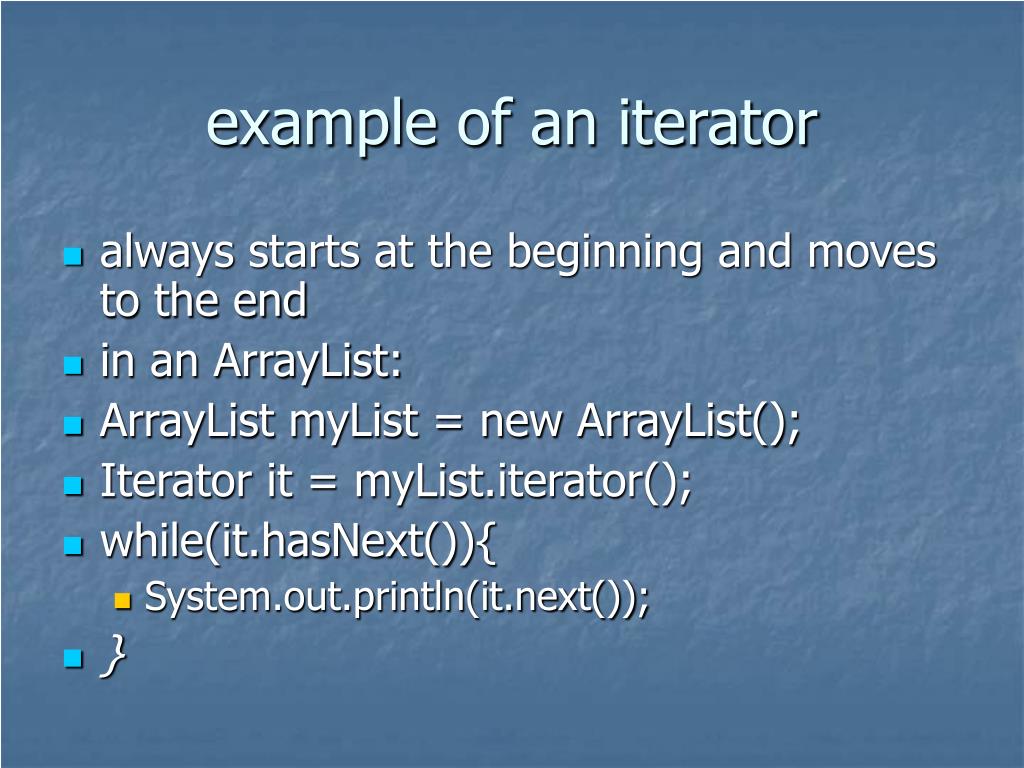

25. example of an iterator • always starts at the beginning and moves to the end • in an ArrayList: • ArrayList myList = new ArrayList(); • Iterator it = myList.iterator(); • while(it.hasNext()){ • System.out.println(it.next()); • }

26. 13.Using sets • import java.util.HashSet; • import java.util.Iterator; • add words from the input into the set • HashSet myset = new HashSet(); • mySet.add(word1); • mySet.add(word2); // how to get the words?

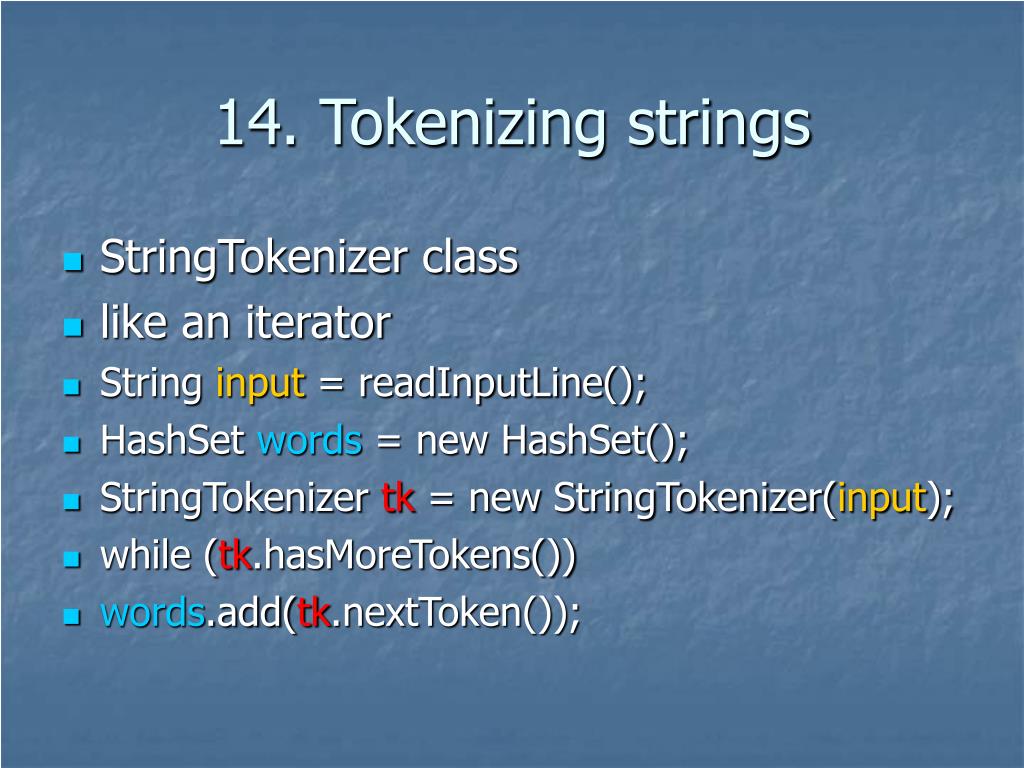

27. 14. Tokenizing strings • StringTokenizer class • like an iterator • String input = readInputLine(); • HashSet words = new HashSet(); • StringTokenizer tk = new StringTokenizer(input); • while (tk.hasMoreTokens()) • words.add(tk.nextToken());

28. Finishing tech support • When changing the input to produce a set of words instead of a single string: • must also adjust SupportSystem and Responder classes • the result of the getInput method is now a HashSet • the parameter into generateResponse is now a HashSet • if no words in the set are recognized, generate a random response.

29. Documentation • A serious problem in real-world projects • A commercial application may have hundreds of thousands of lines of code in thousands of classes • Nobody should have to read your actual code to understand how it works. • The documentation should explain everything.

30. 15. javadoc in BlueJ • Generate documentation function in main menu • Interface view option in editor shows a preview of the documentation for a single class.

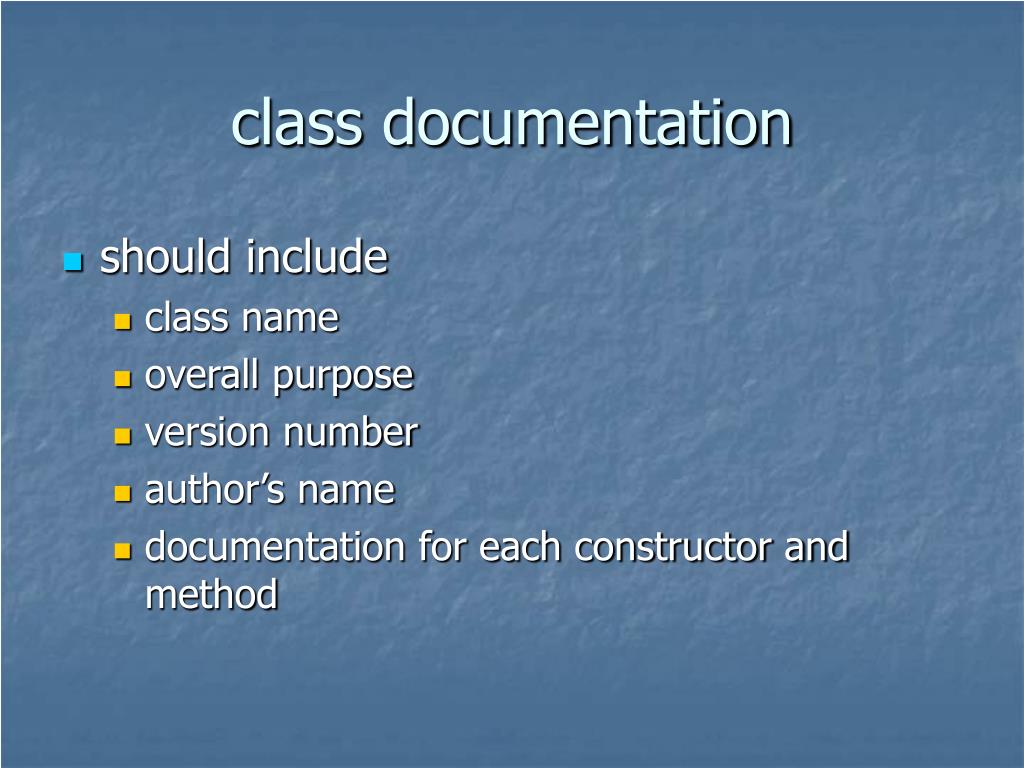

31. class documentation • should include • class name • overall purpose • version number • author’s name • documentation for each constructor and method

32. documentation for each constructor and method • should include: • name of method • return type • parameter names and types • description of purpose of method • description of each parameter • description of value returned. • Additionally a Read Me file is usually included in each project.

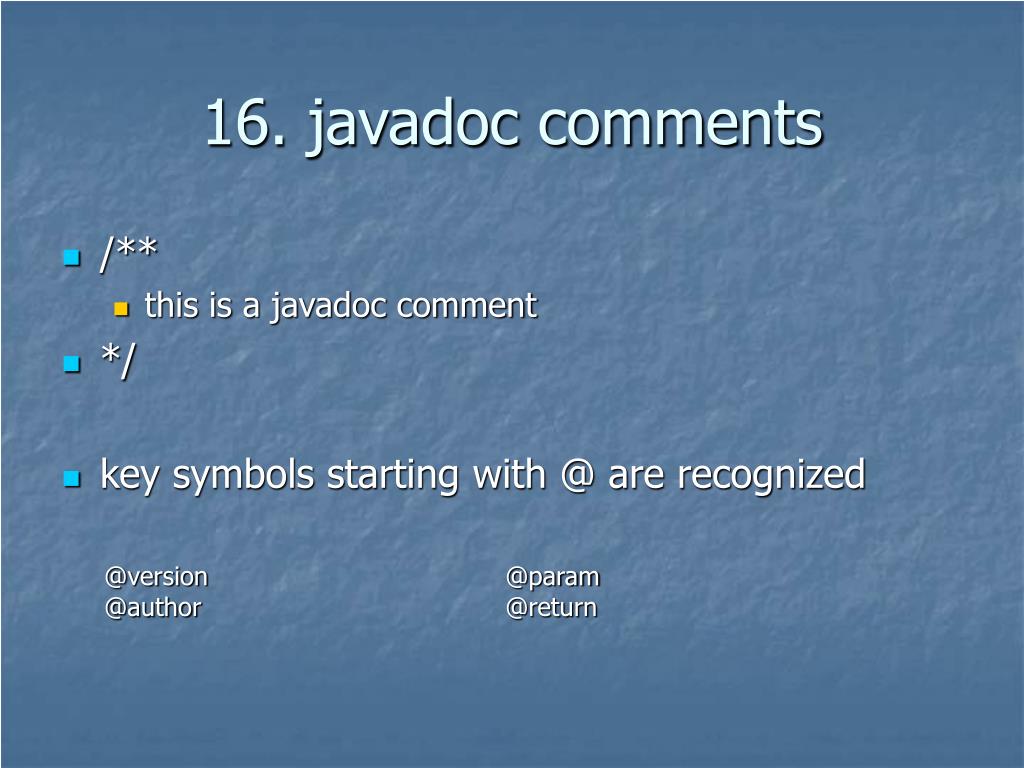

33. 16. javadoc comments • /** • this is a javadoc comment • */ • key symbols starting with @ are recognized @version @author @param @return

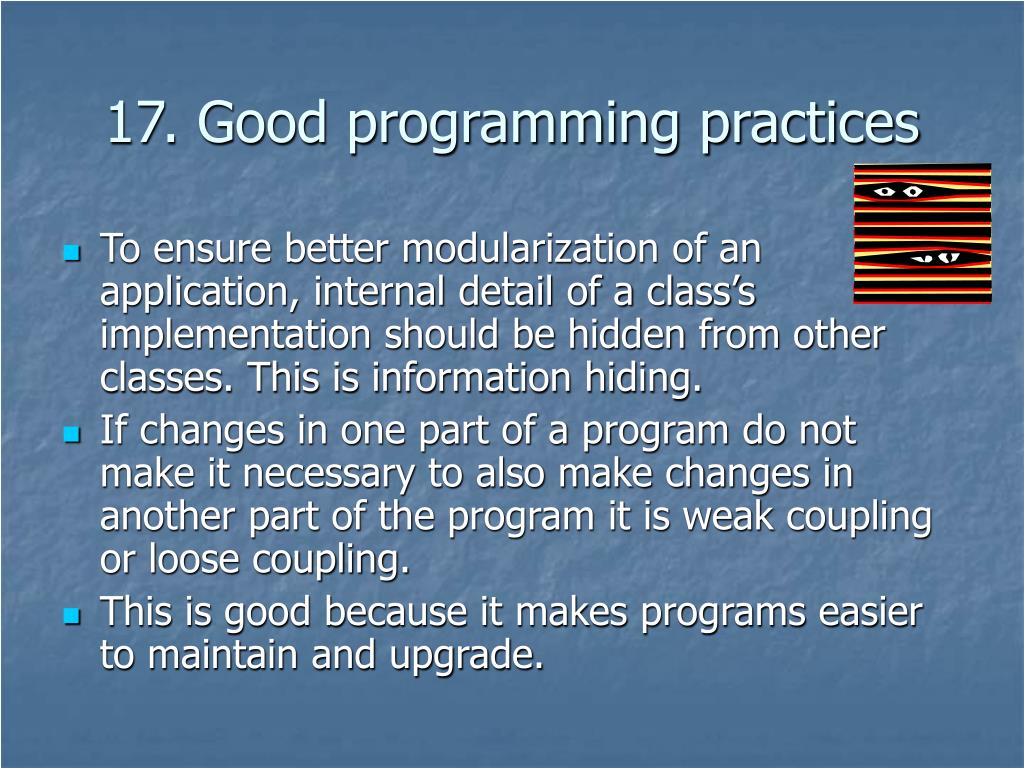

34. 17. Good programming practices • To ensure better modularization of an application, internal detail of a class’s implementation should be hidden from other classes. This is information hiding. • If changes in one part of a program do not make it necessary to also make changes in another part of the program it is weak coupling or loose coupling. • This is good because it makes programs easier to maintain and upgrade.

35. 18. Public vs. private • Access modifiers • define the visibility of a field, constructor or method. • things marked private are within the implementation and don’t need documentation externally. (like javadoc)

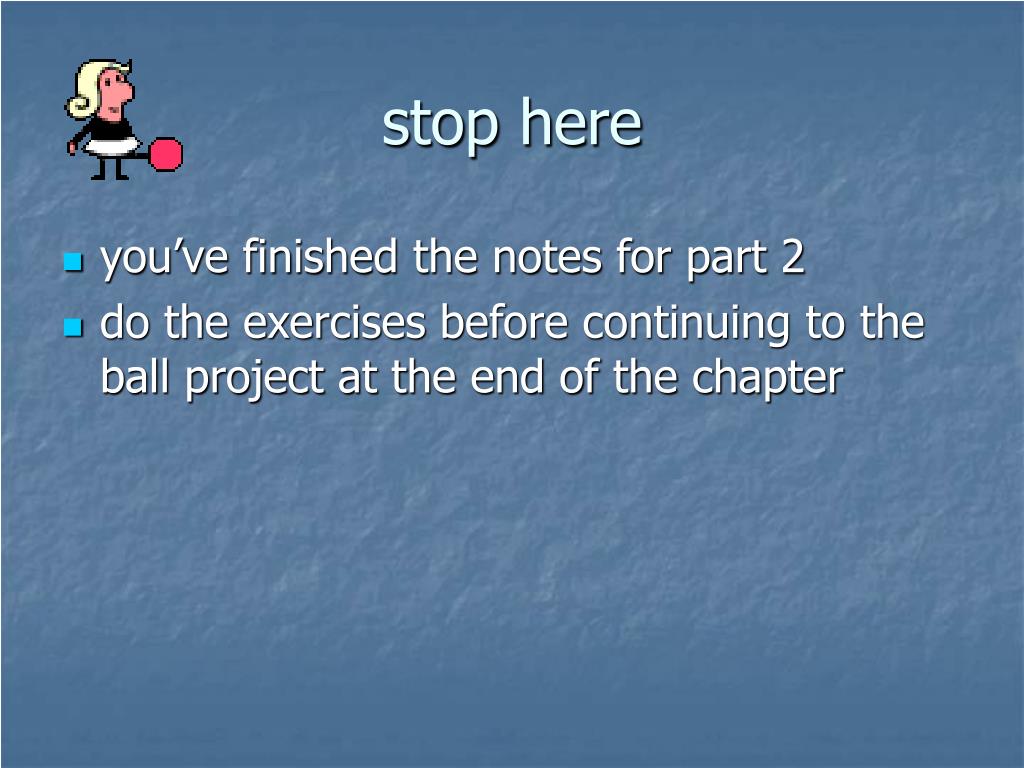

36. stop here • you’ve finished the notes for part 2 • do the exercises before continuing to the ball project at the end of the chapter

37. Ball project

38. Altering the Ball Demo • Good practice to study these concepts • The Canvas class should not need any modification • A canvas can be used by creating an instance and making it visible using the setVisible method.

39. 19. Class variables and constants • static variables exist one per CLASS. not one for each instance of the class. • // in bouncingBall • private static final int gravity = 3; • private int xPosition; • private int YPosition; • If 3 instances of Bouncing Balls are created • there will be one gravity variable • 3 xPositions and 3 yPositions • each ball has an individual x and y position, but all have the same gravity.

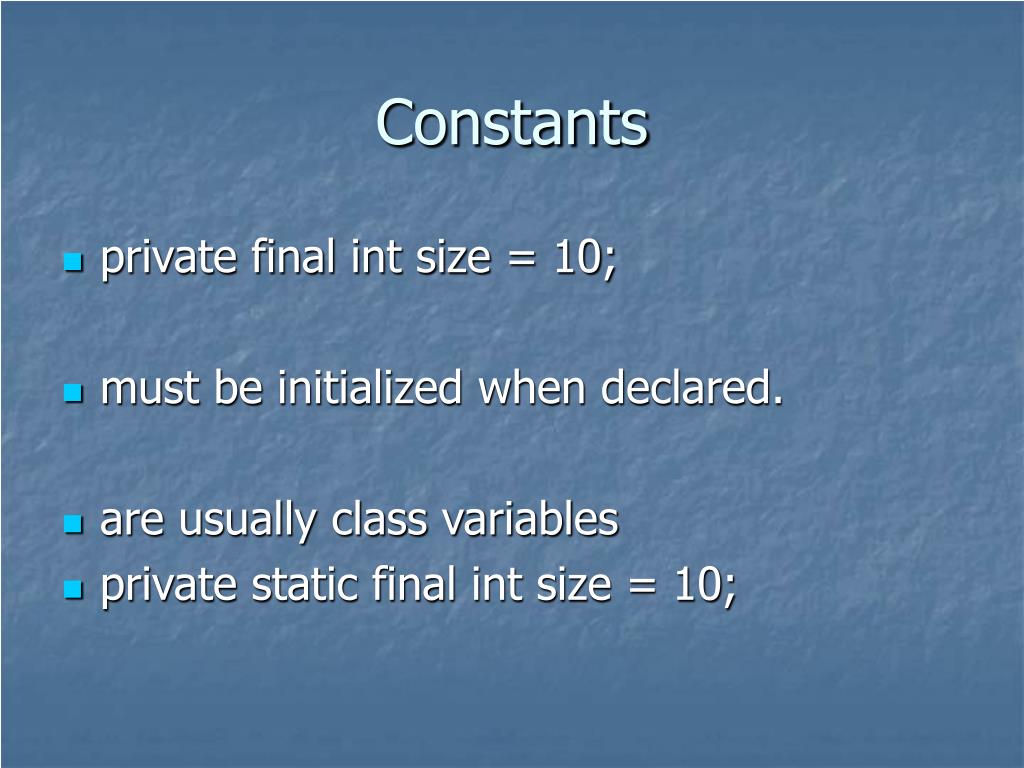

40. Constants • private final int size = 10; • must be initialized when declared. • are usually class variables • private static final int size = 10;

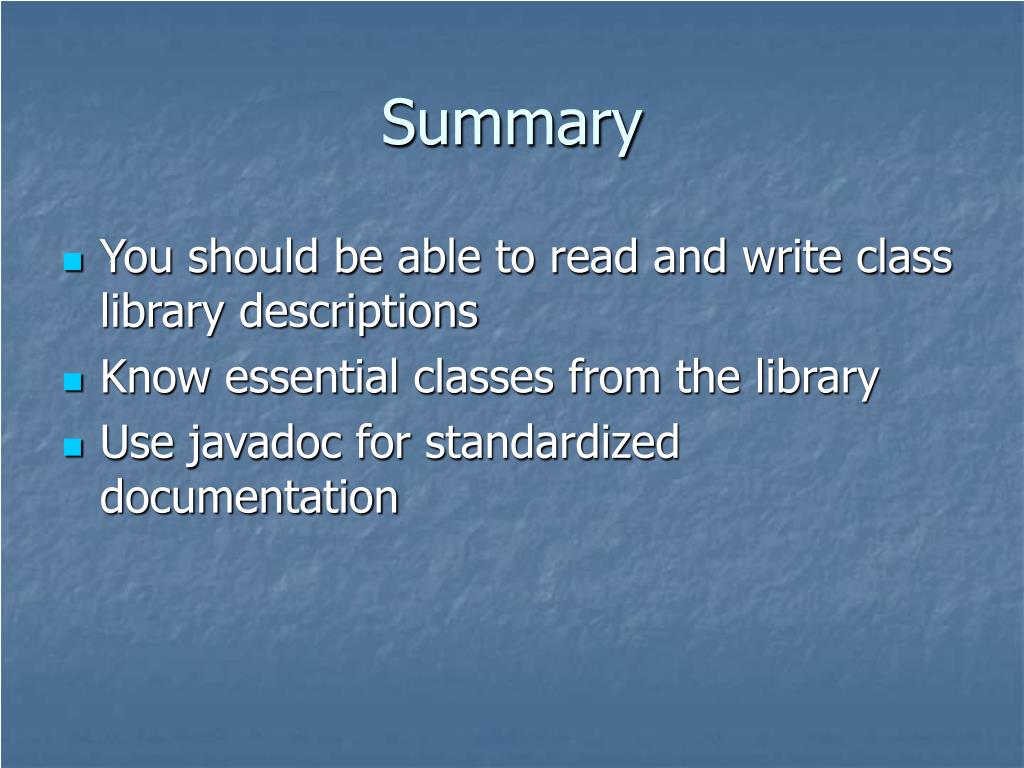

41. Summary • You should be able to read and write class library descriptions • Know essential classes from the library • Use javadoc for standardized documentation

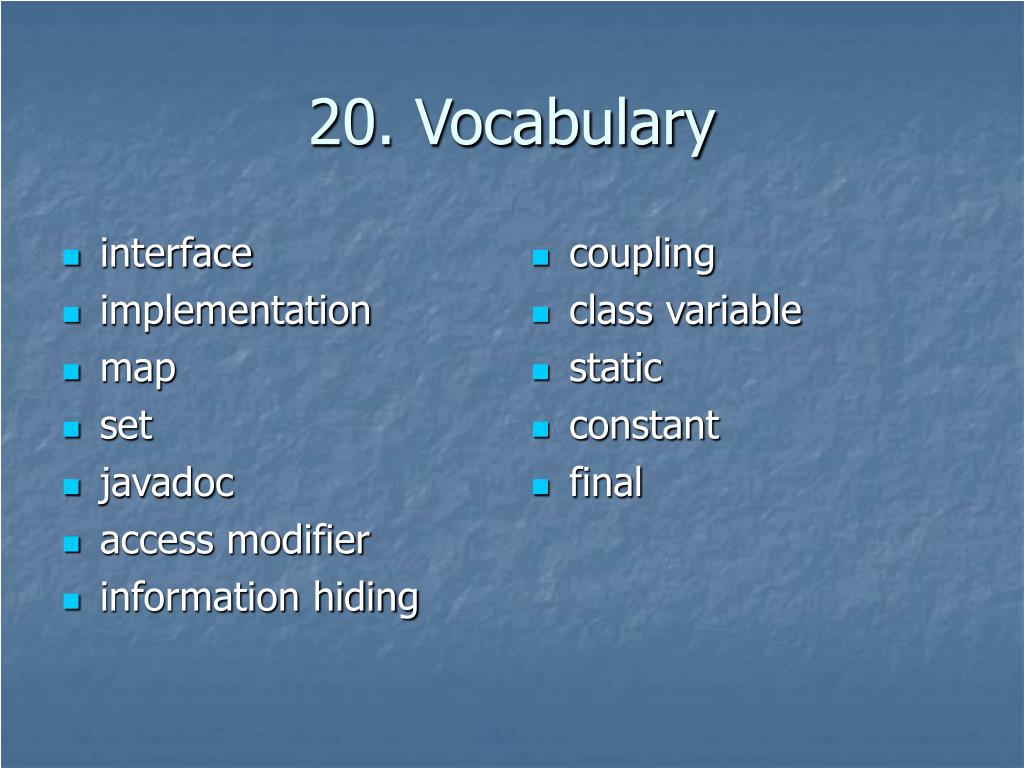

42. interface implementation map set javadoc access modifier information hiding coupling class variable static constant final 20. Vocabulary
