Automatic Bomb Calorimeter

Automatic Bomb Calorimeter with removable cover design, automatically detects the refrigerating capacity and balance the circulation system w.r.t.<br>last time caloric value. Need to open the lid to put the bomb inside the instrument. Equipped with advance small oxygen filling instrument with low <br>malfunction rate<br>

kibmer
Download Presentation

Automatic Bomb Calorimeter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

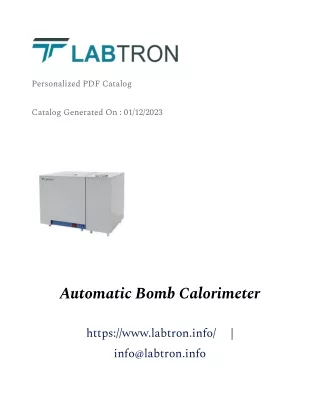

  1. Personalized PDF Catalog Catalog Generated On : 01/12/2023 Automatic Bomb Calorimeter https://www.labtron.info/ info@labtron.info |

  2. Description : Automatic Bomb Calorimeter with removable cover design, automatically detects the refrigerating capacity and balance the circulation system w.r.t. last time caloric value. Need to open the lid to put the bomb inside the instrument. Equipped with advance small oxygen filling instrument with low malfunction rate. Specifications : Calorimeter Isoperibol type Temperature 5 to 40°C range

  3. Measurement 5 to 40 MJ/ kg range The outer barrel temperature Operation Mode is constant Temperature 0.0001°C resolution Precision RSD ≤0.1 % Testing time 8 min Power ≤1.5 kW Power supply 220 V, 50/60 Hz Dimension 540 × 420 × 420 mm

  4. Weight 45 kg Features : Semi-conductor water refrigeration system Probe type electronic measuring cup to measure inner bucket water No need to measure water and adjust water temperature Auto stop and auto draining joints

  5. Use of advance USB technology Supports Windows system, links electronic scale, shares data via network CE certified Applications : Used in coal, petroleum, cement, farming, medical research, electronics for measurement of calorific value of solid and liquid combustible materials.

  6. www.labtron.info

  7. Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.info | Website: https://www.labtron.info/ | Phone: +44 2080 043 608
