Smoke management in the monterey area

SMOKE MANAGEMENT IN THE MONTEREY AREA

Presented at:2011 NATIONAL AIR QUALITY CONFERENCE, SAN DIEGO

Presented by:Bob NunesMonterey Bay Unified Air Pollution Control District


Challenges faced

CHALLENGES FACED

A Diverse Air Basin Setting Creates Very Different Conditions for Smoke Management between the Cool Coastal Plain and the Hot Inland Valleys.

For this reason, the Air District created separate coastal vs. inland zones for our Smoke Management Program.

COASTALINLAND

Monterey

King City

Fort Hunter Liggett


Typical smoke behavior in a marine environment

TYPICAL SMOKE BEHAVIOR IN A MARINE ENVIRONMENT

Smoke Behaves Like Marine Stratus, Becomes Trapped Under

the Marine Inversion and Fumigates Smoke to the Ground-Level


Good smoke management smoke jettisoned vertically 1 000 s of feet in the air far above population

GOOD SMOKE MANAGEMENTSmoke jettisoned vertically 1,000’s of feet in the air, far above population.

BAD SMOKE BEHAVIOR

Smoke tracking along the ground where it can impact nearby communities.


Components of district smp

COMPONENTS OF DISTRICT SMP

Ag Burns – Burn clean ag waste under permissive burn day conditions.

Range Improvement Burns - High emission events where the objective is to move the smoke above or away from population centers.

Fire Hazard Reduction – Reduce hazardous fuel build-up along the Wildland-Urban Interface.


Backyard burning

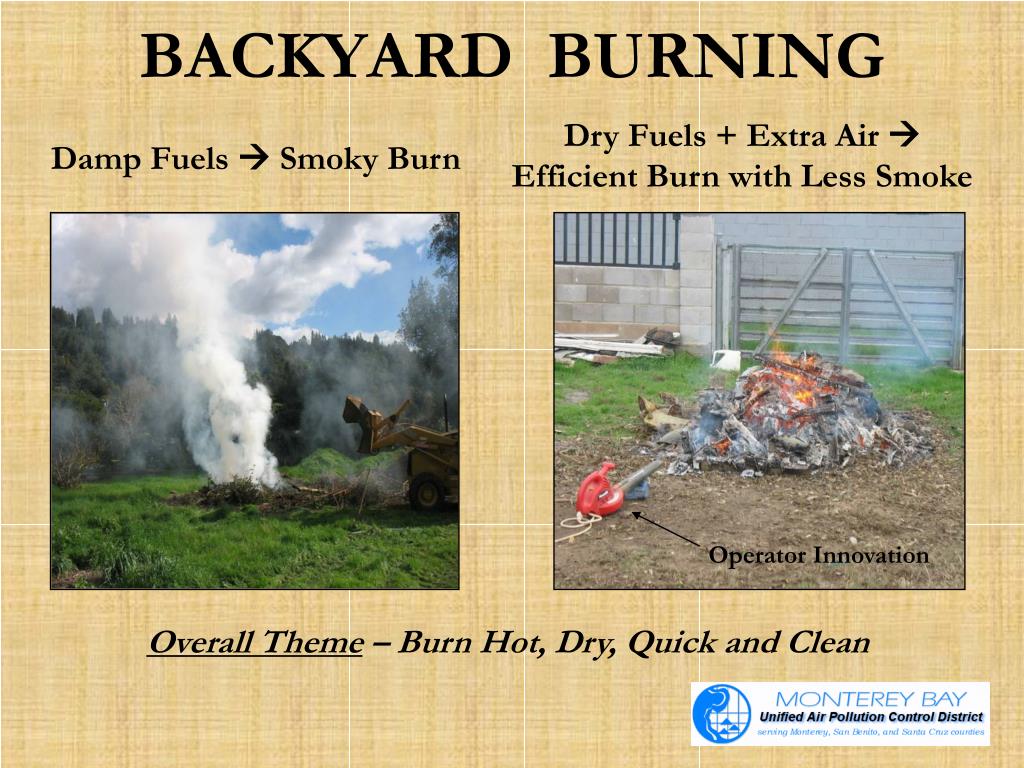

BACKYARD BURNING

Dry Fuels + Extra Air  Efficient Burn with Less Smoke

Damp Fuels  Smoky Burn

Operator Innovation

Overall Theme – Burn Hot, Dry, Quick and Clean


Smoke management in the monterey area

SUPERFUND PRESCRIBED BURNS AT FORMER FORT ORD

Smoke Management in a Challenging Setting

7


Critical decisions

Critical Decisions

  • What’s at Stake?

    • Each MOB day costs ~$250k

  • Public Health

    • The most significant air quality event in the district

  • Public Safety

    • Fire control

    • Removal of dangerous UXOs


Specific district tasks

SPECIFIC DISTRICT TASKS

OPERATIONAL CYCLE:

  • Input to the planning process

    • Prescribed Burn Plan, Smoke Management Rx, Air Monitoring Plan.

  • Collaborate with NPS on forecasts and monitoring during the burn season.

  • On-site advisor for Incident Commander during burns.

    • Contribute directly to “Go No Go” Decisions

  • After Action Review of each burn with

    recommendations for next annual Burn Plan.

  • Assist BRAC with District related responses to

    public comments.


Phases of a fort ord prescribed burn

Phases of a Fort Ord Prescribed Burn

There are two basic phases:

  • Active Ignition – This is when the burn is actively ignited using aerial ignition and approx 90%+ of the emissions are jettisoned several 1,000’ above through the thermally buoyant column. The SMRx defines conditions necessary for this to occur to prevent significant impacts on population (~ 1 to 3 hours).

  • Post Ignition Smolder – In the absence of active ignition, residual smoke losses buoyancy and tends to waft near the surface. About 90% of the off-site smoke impacts occur during this phase. ~ (4 to 36 hrs)


Measurements models and napalm

Measurements. Models and NAPALM!

  • http://www.youtube.com/watch?v=u1kpobfCgAk


Smoke management strategy

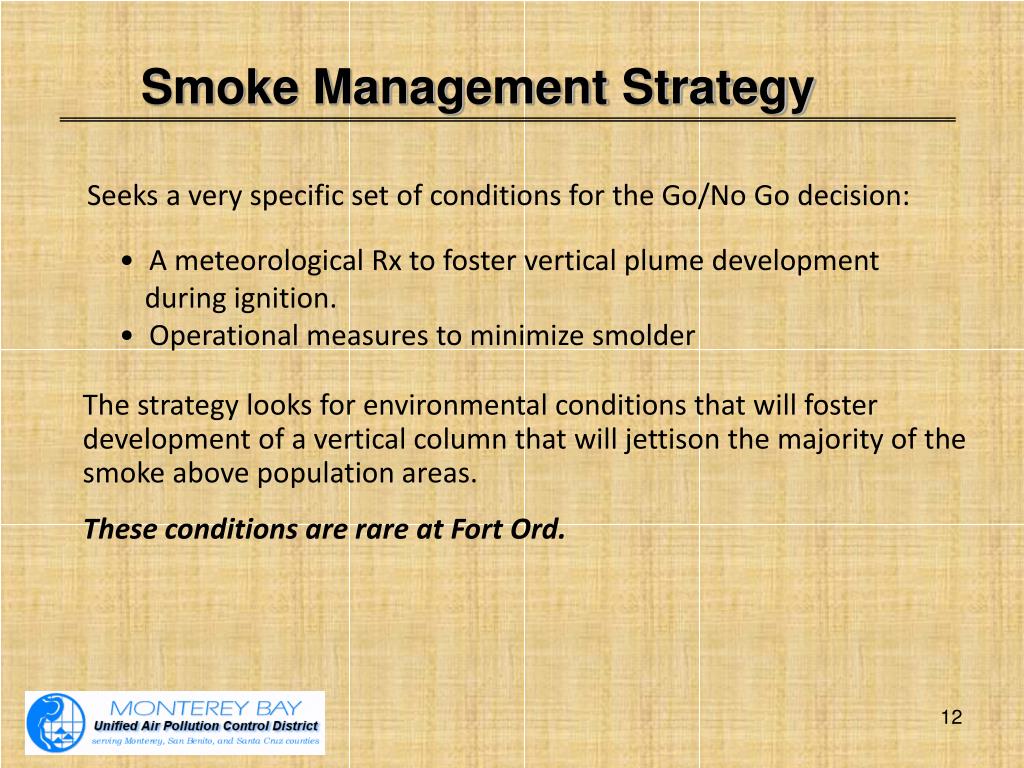

Smoke Management Strategy

  • Seeks a very specific set of conditions for the Go/No Go decision:

    • A meteorological Rx to foster vertical plume development during ignition.

    • Operational measures to minimize smolder

The strategy looks for environmental conditions that will foster development of a vertical column that will jettison the majority of the smoke above population areas.

These conditions are rare at Fort Ord.


Good ignition

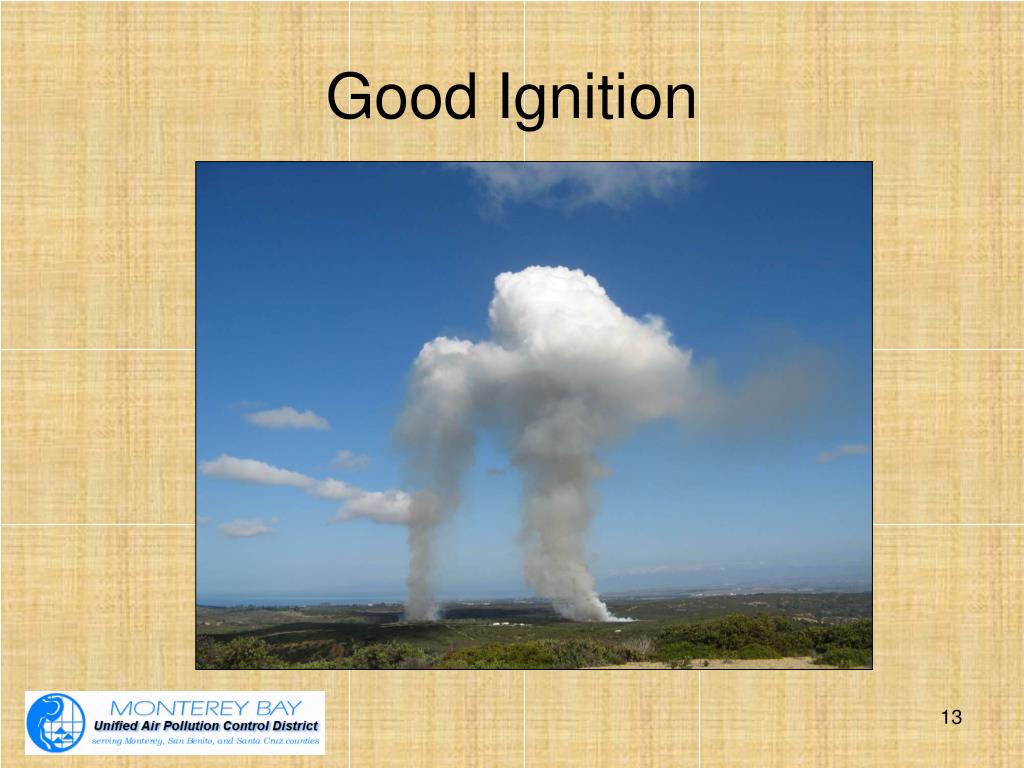

Good Ignition


Smoke management in the monterey area

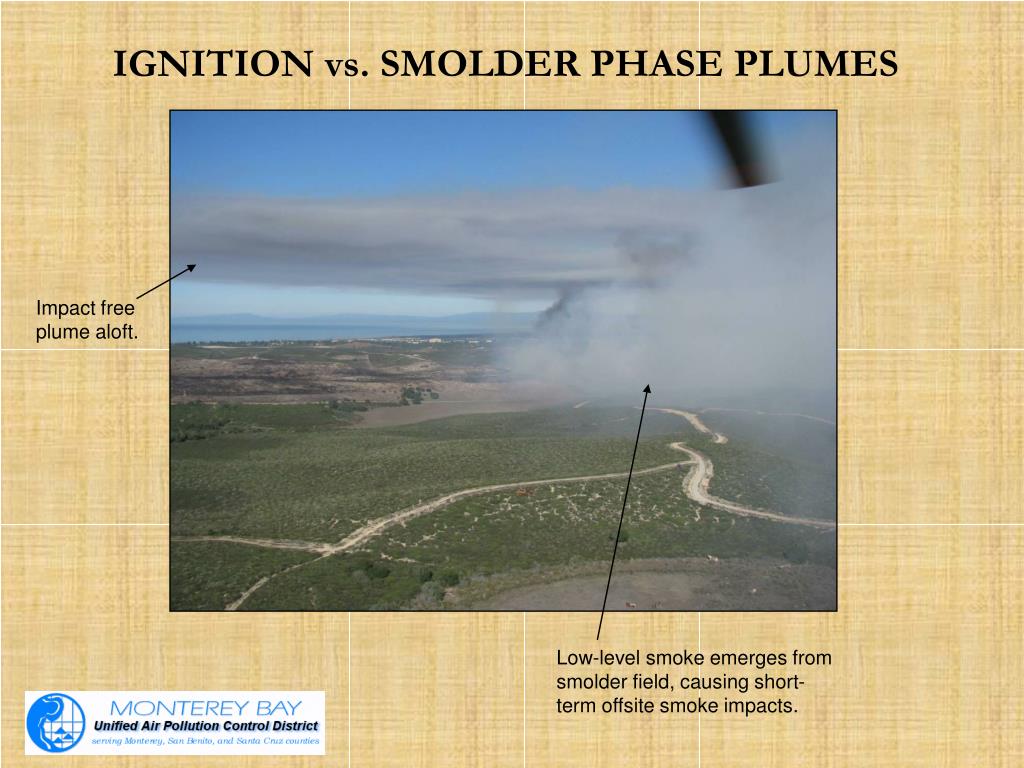

IGNITION vs. SMOLDER PHASE PLUMES

Impact free

plume aloft.

Low-level smoke emerges from smolder field, causing short-term offsite smoke impacts.


Smoke management in the monterey area

METEOROLOGICAL MONITORING


Network instrumentation

Network Instrumentation

  • ASC SoDAR’s (2)

    • Winds to 300m

  • Vaisala RWP/RASS

    • Winds ~150m-3000m

    • Virtual Temp ~1000m

  • RAWS (7)

    • SFC Met

      • Temp, RH Winds

    • Moisture Sticks


Critical tools sfc obs

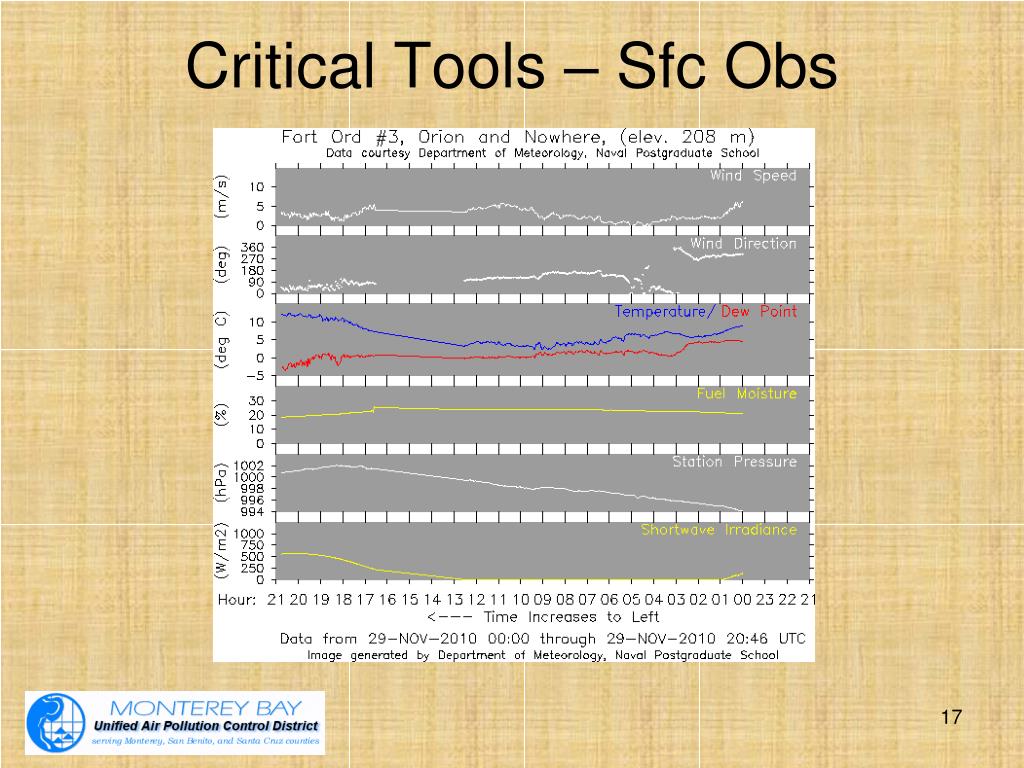

Critical Tools – Sfc Obs


Smoke management in the monterey area

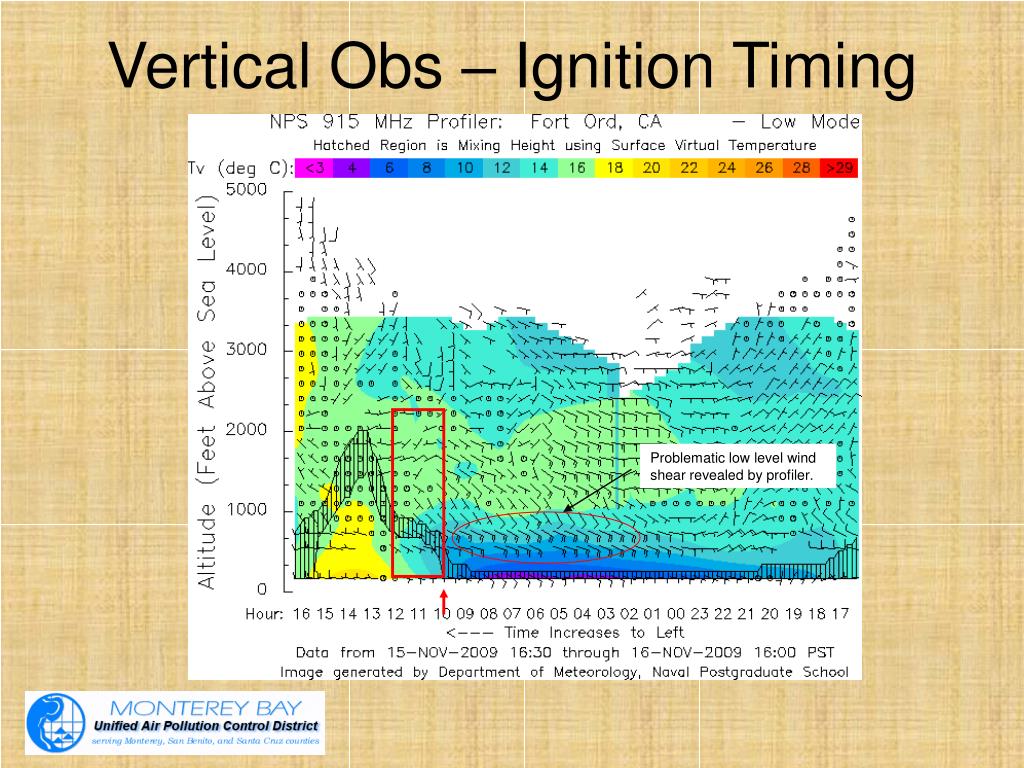

Vertical Obs – Ignition Timing

Problematic low level wind shear revealed by profiler.


Smoke management in the monterey area

Vertical Obs – Post Assessment

Wind Driven Smoke

Training Over Surface

SODAR Reveals

the Presence of Lo-

Level Wind Shear


Mesoscale meteorological models

MESOSCALE METEOROLOGICAL MODELS

  • MM5 run at the Naval Portgraduate School

    • 4km

  • CANSAC Consortium

    • MM5 4km and 12km

    • WRF 2km

  • We need to move forward with fully implemented WRF and suite of products


Smoke management in the monterey area

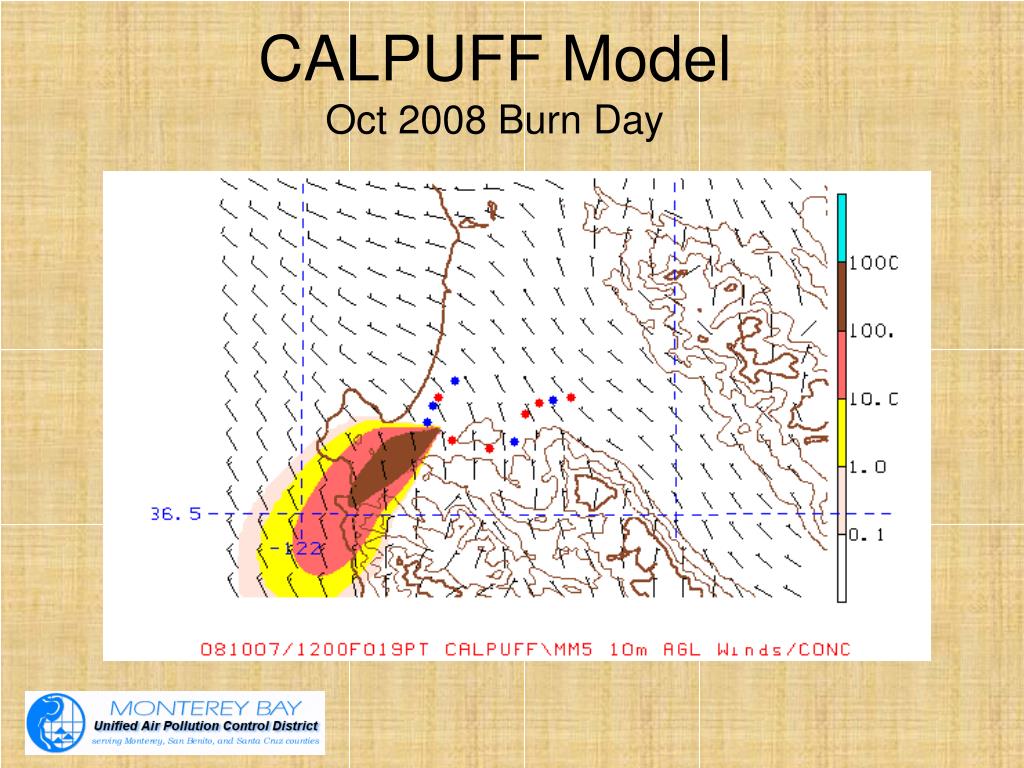

CALPUFF Model

Oct 2008 Burn Day


District 2010 air monitoring

DISTRICT 2010 AIR MONITORING

Continuous hourly eBAMS PM2.5 monitors were deployed at 3 school sites:

  • Marshall School

  • Ingham School

  • Manzanita School

These were co-located

at sites where an Army contractor was monitoring PM10.

District eBAM PM2.5 monitor


Air quality index for smoke management

Air Quality Index for Smoke Management

  • AQI

    • Normally based on the 24 hr averages

    • 1 to 3 hr from 2008 Wildfire Smoke Guidelines

  • AQI for Assessing Smoke Impact

    • Used by CARB

    • AQI Break Points (1 to 3 hr average PM2.5 conc.)

      • Good 0-38 ug/m3

      • Moderate 39-88

      • Unhealthy for Sensitive Groups 89-138

      • Unhealthy 139-351

      • Very Unhealthy 352-526

      • Hazardous > 526

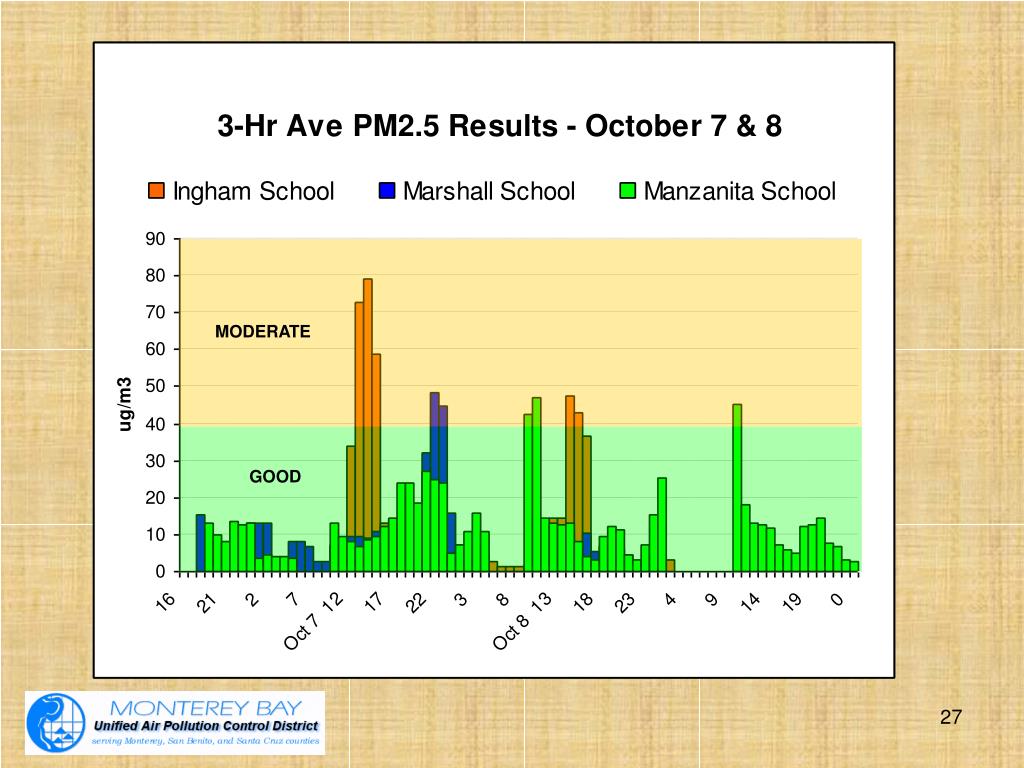

Smoke management in the monterey area

MODERATE

GOOD


Take away message

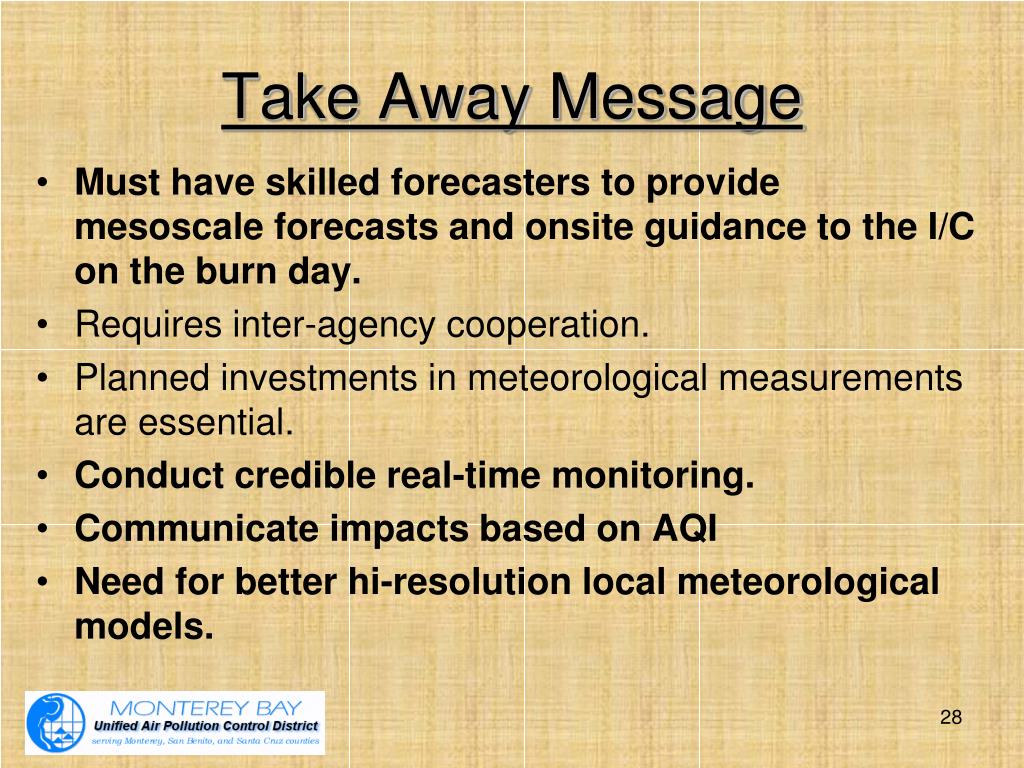

Take Away Message

  • Must have skilled forecasters to provide mesoscale forecasts and onsite guidance to the I/C on the burn day.

  • Requires inter-agency cooperation.

  • Planned investments in meteorological measurements are essential.

  • Conduct credible real-time monitoring.

  • Communicate impacts based on AQI

  • Need for better hi-resolution local meteorological models.


Smoke management in the monterey area

Questions?

Contacts:

Bob Nunes

[email protected]

(831)647-9411 x226

Betsy Hibbits

[email protected]

(831)647-9411 x213
