Presentation Transcript
slide1

DENVER

INTERNATIONAL AIRPORT

FUEL IMPORT INTERFACE

MAXIMO TRANSPORTATION 6.3

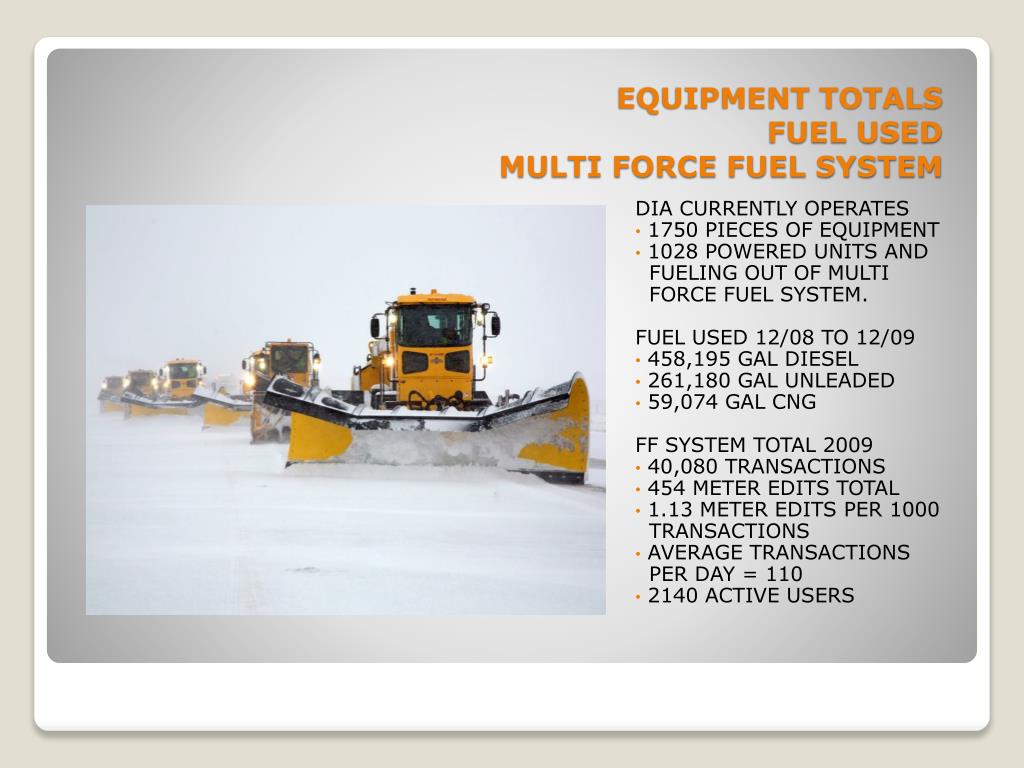

equipment totals fuel used multi force fuel system
EQUIPMENT TOTALSFUEL USEDMULTI FORCE FUEL SYSTEM

DIA CURRENTLY OPERATES

1750 PIECES OF EQUIPMENT

1028 POWERED UNITS AND

FUELING OUT OF MULTI

FORCE FUEL SYSTEM.

FUEL USED 12/08 TO 12/09

458,195 GAL DIESEL

261,180 GAL UNLEADED

59,074 GAL CNG

FF SYSTEM TOTAL 2009

40,080 TRANSACTIONS

454 METER EDITS TOTAL

1.13 METER EDITS PER 1000

TRANSACTIONS

AVERAGE TRANSACTIONS

PER DAY = 110

2140 ACTIVE USERS

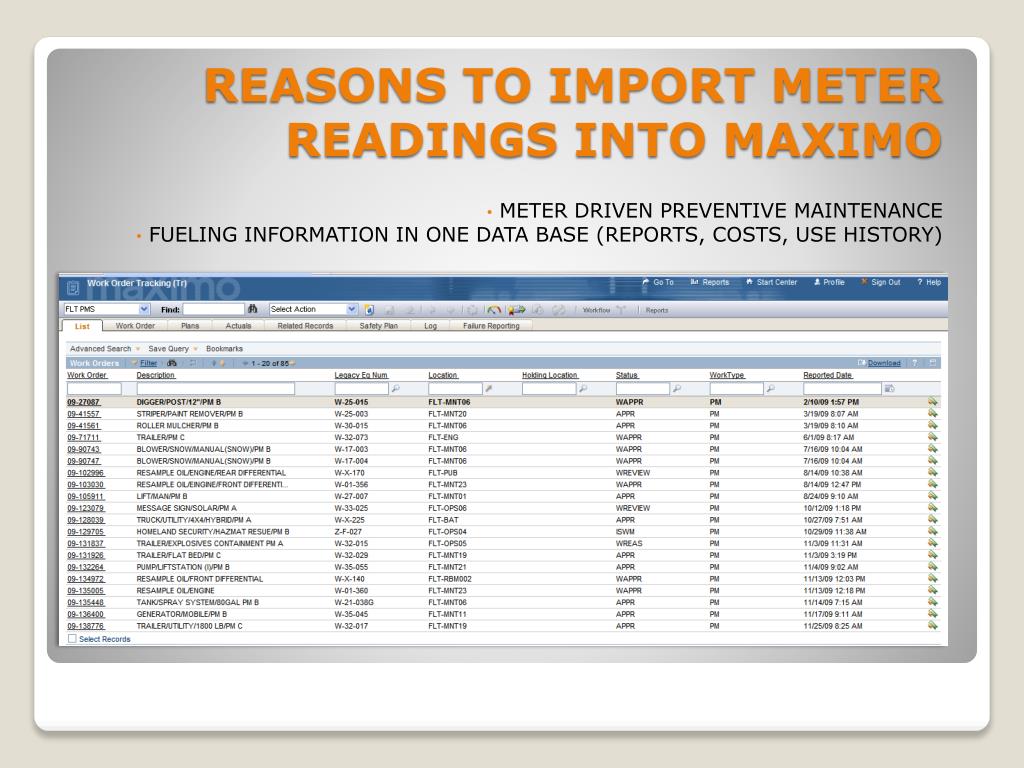

reasons to import meter readings into maximo
REASONS TO IMPORT METER READINGS INTO MAXIMO

METER DRIVEN PREVENTIVE MAINTENANCE

FUELING INFORMATION IN ONE DATA BASE (REPORTS, COSTS, USE HISTORY)

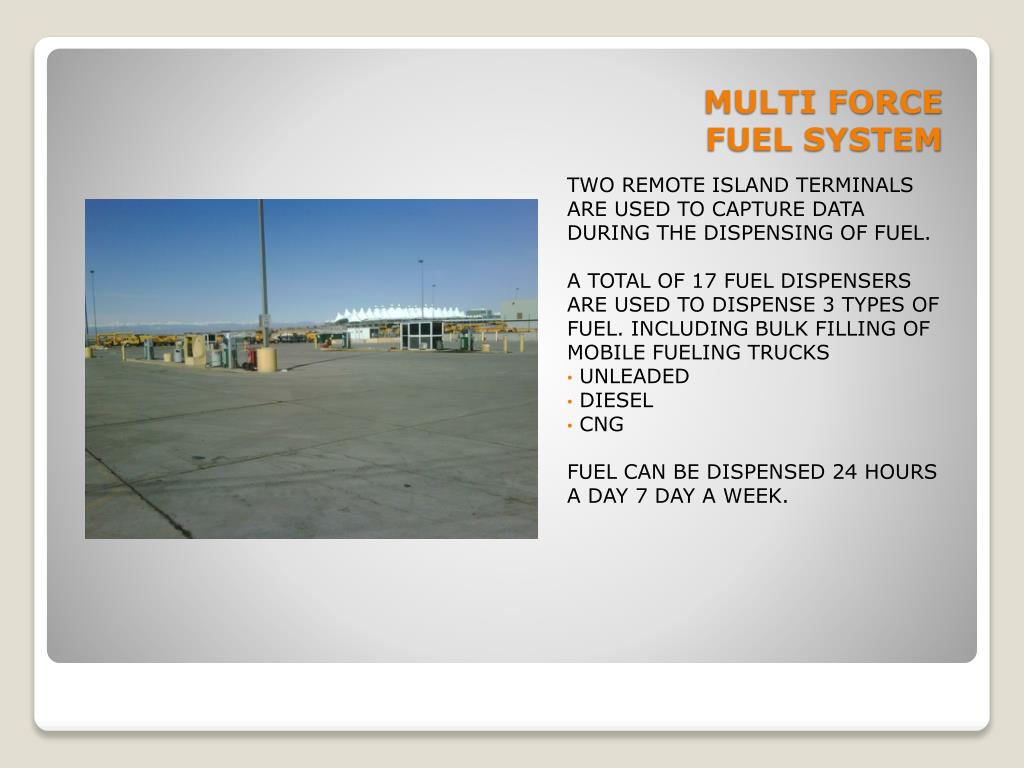

multi force fuel system
MULTI FORCE FUEL SYSTEM

TWO REMOTE ISLAND TERMINALS ARE USED TO CAPTURE DATA DURING THE DISPENSING OF FUEL.

A TOTAL OF 17 FUEL DISPENSERS ARE USED TO DISPENSE 3 TYPES OF FUEL. INCLUDING BULK FILLING OF MOBILE FUELING TRUCKS

UNLEADED

DIESEL

CNG

FUEL CAN BE DISPENSED 24 HOURS A DAY 7 DAY A WEEK.

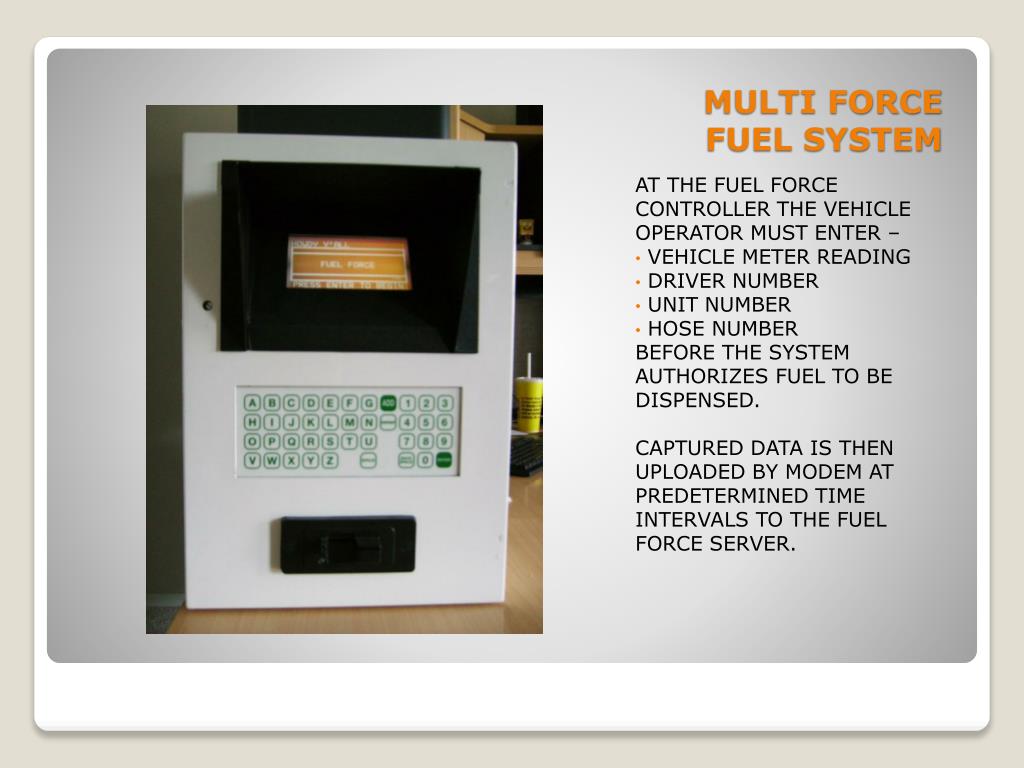

multi force fuel system5
MULTI FORCE FUEL SYSTEM

AT THE FUEL FORCE CONTROLLER THE VEHICLE OPERATOR MUST ENTER –

VEHICLE METER READING

DRIVER NUMBER

UNIT NUMBER

HOSE NUMBER

BEFORE THE SYSTEM AUTHORIZES FUEL TO BE DISPENSED.

CAPTURED DATA IS THEN UPLOADED BY MODEM AT PREDETERMINED TIME INTERVALS TO THE FUEL FORCE SERVER.

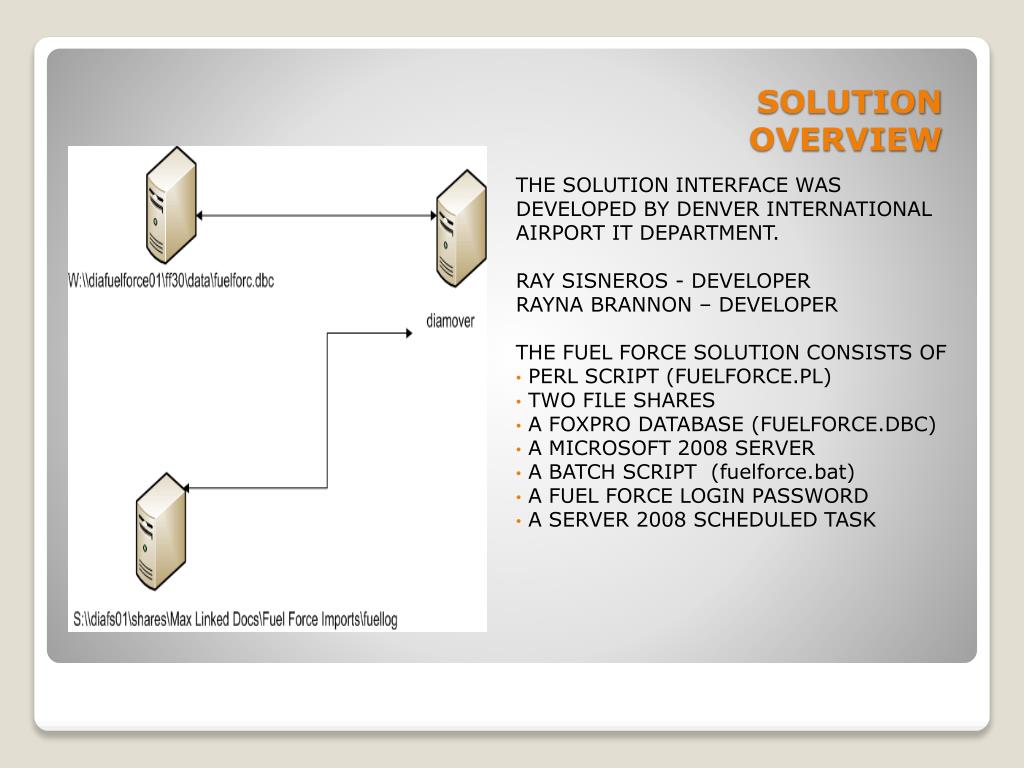

solution overview
SOLUTION OVERVIEW

THE SOLUTION INTERFACE WAS DEVELOPED BY DENVER INTERNATIONAL

AIRPORT IT DEPARTMENT.

RAY SISNEROS - DEVELOPER

RAYNA BRANNON – DEVELOPER

THE FUEL FORCE SOLUTION CONSISTS OF

PERL SCRIPT (FUELFORCE.PL)

TWO FILE SHARES

A FOXPRO DATABASE (FUELFORCE.DBC)

A MICROSOFT 2008 SERVER

A BATCH SCRIPT (fuelforce.bat)

A FUEL FORCE LOGIN PASSWORD

A SERVER 2008 SCHEDULED TASK

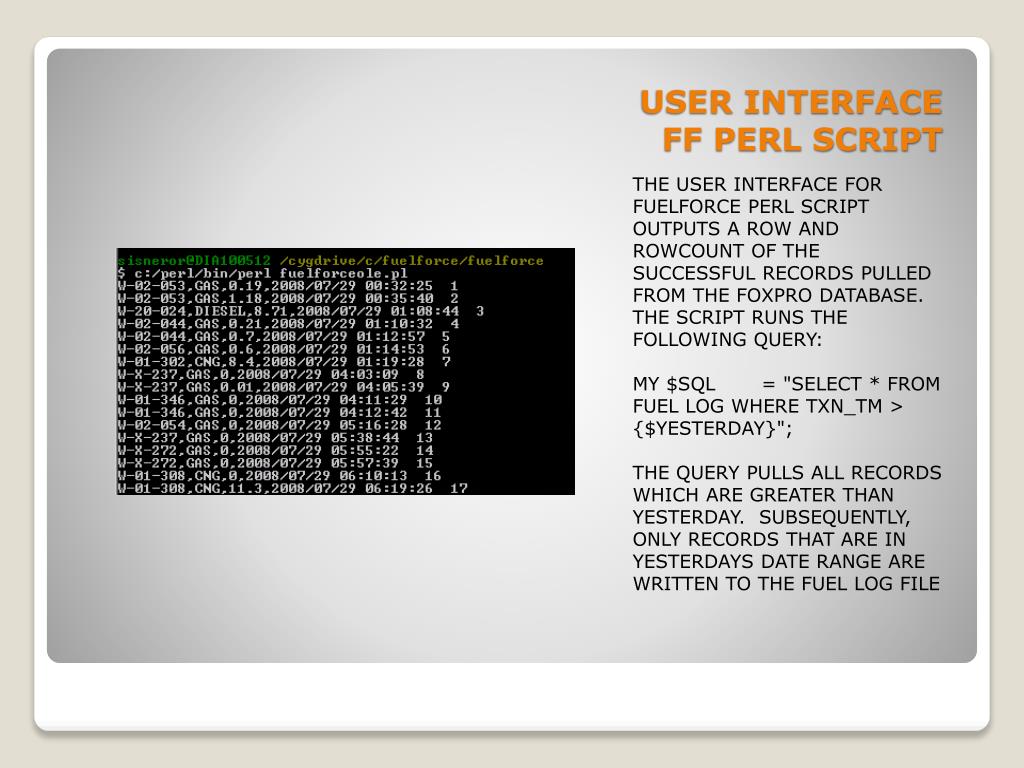

user interface ff perl script
USER INTERFACE FF PERL SCRIPT

THE USER INTERFACE FOR FUELFORCE PERL SCRIPT OUTPUTS A ROW AND ROWCOUNT OF THE SUCCESSFUL RECORDS PULLED FROM THE FOXPRO DATABASE. THE SCRIPT RUNS THE FOLLOWING QUERY:

MY $SQL = "SELECT * FROM FUEL LOG WHERE TXN_TM > {$YESTERDAY}";

THE QUERY PULLS ALL RECORDS WHICH ARE GREATER THAN YESTERDAY. SUBSEQUENTLY, ONLY RECORDS THAT ARE IN YESTERDAYS DATE RANGE ARE WRITTEN TO THE FUEL LOG FILE

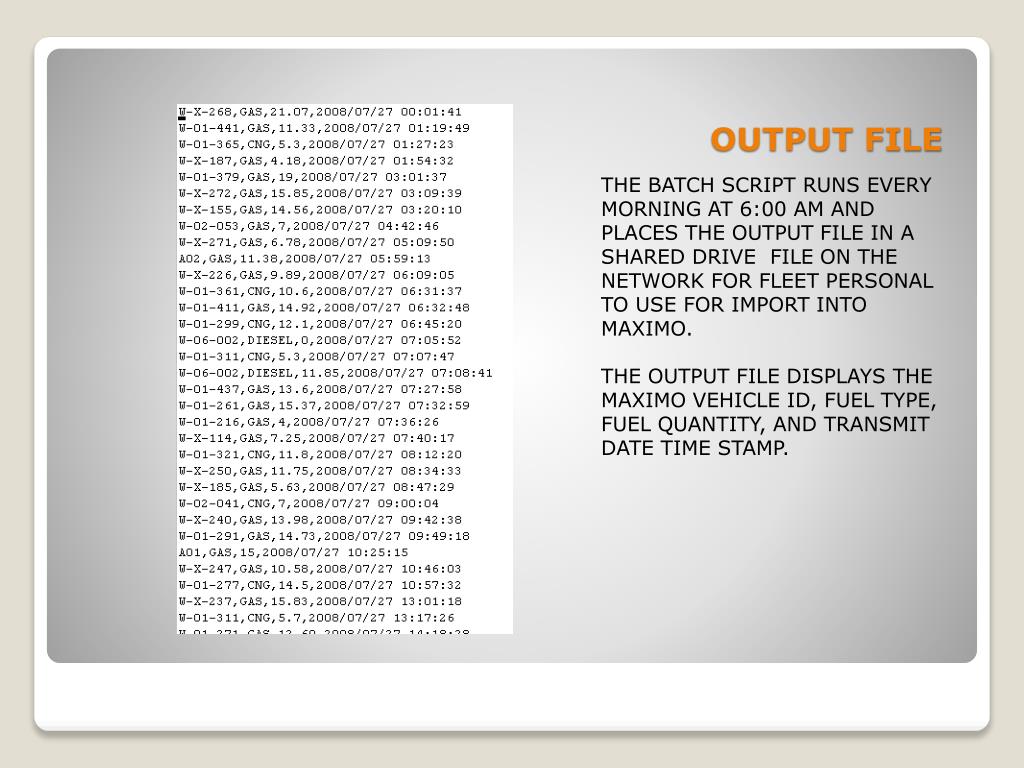

output file
OUTPUT FILE

THE BATCH SCRIPT RUNS EVERY MORNING AT 6:00 AM AND PLACES THE OUTPUT FILE IN A SHARED DRIVE FILE ON THE NETWORK FOR FLEET PERSONAL TO USE FOR IMPORT INTO MAXIMO.

THE OUTPUT FILE DISPLAYS THE MAXIMO VEHICLE ID, FUEL TYPE, FUEL QUANTITY, AND TRANSMIT DATE TIME STAMP.

importing meter transactions

IMPORTING METER TRANSACTIONS

IMPORTING OUTPUT FILE INTO MAXIMO

DUE DILIGENCE & RESPONSIBILITIES

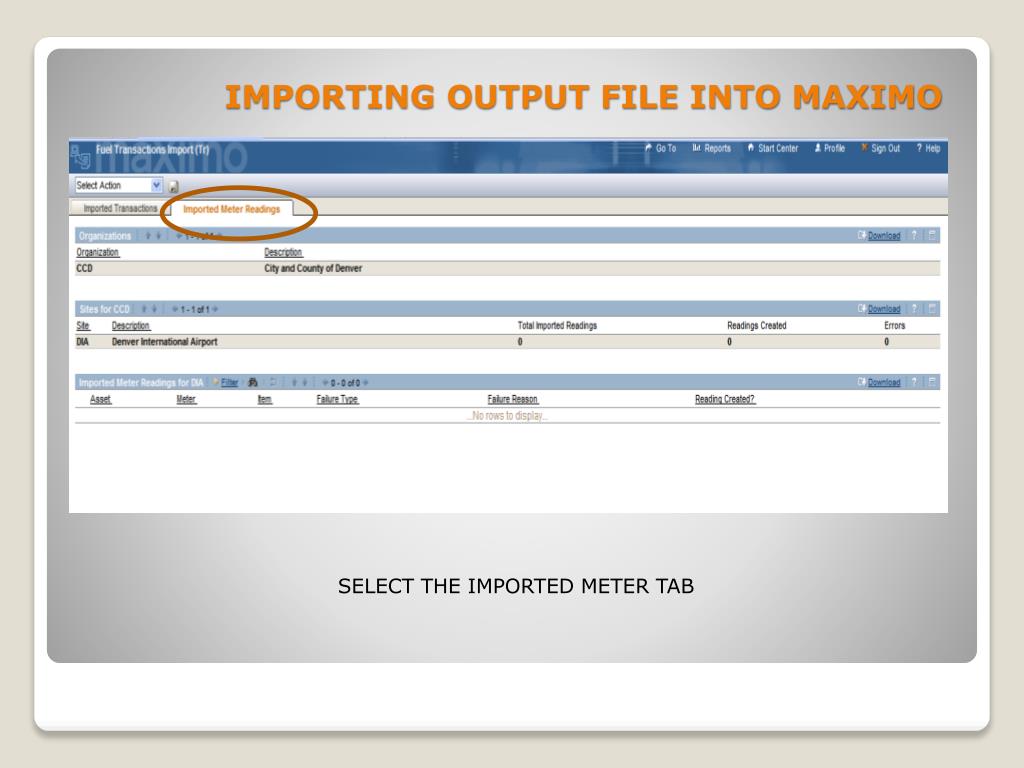

importing output file into maximo
IMPORTING OUTPUT FILE INTO MAXIMO

SELECT THE IMPORTED METER TAB

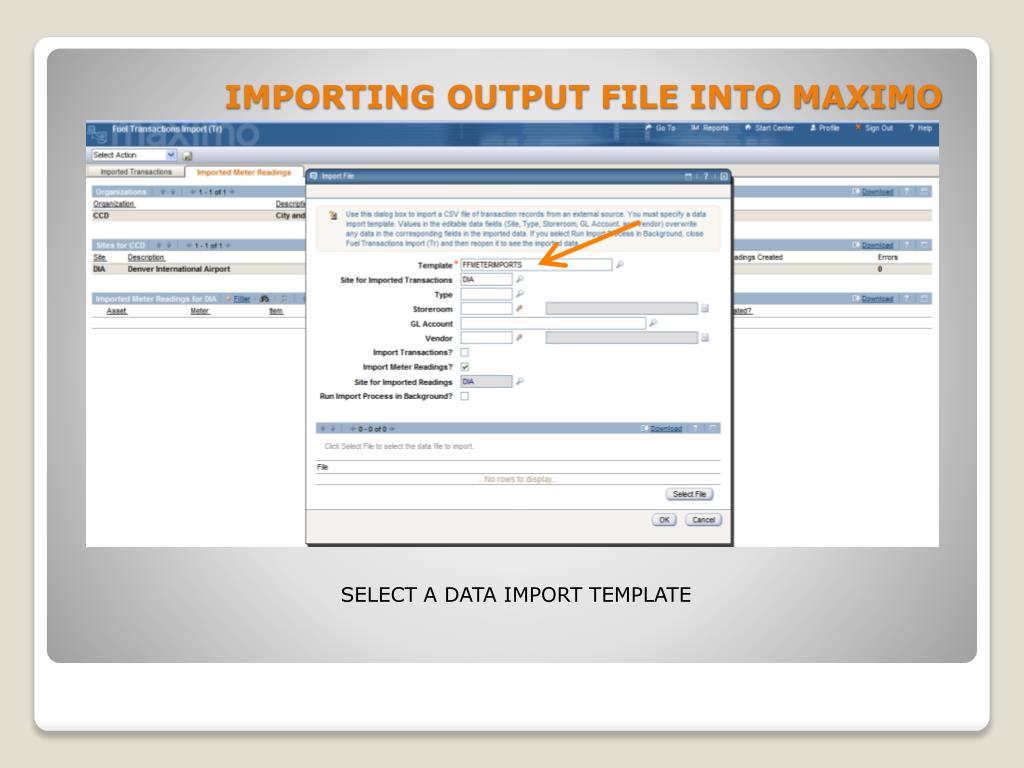

importing output file into maximo11
IMPORTING OUTPUT FILE INTO MAXIMO

SELECT A DATA IMPORT TEMPLATE

importing output file into maximo12
IMPORTING OUTPUT FILE INTO MAXIMO

SELECT SITE FOR IMPORTED TRANSACTIONS

importing output file into maximo13
IMPORTING OUTPUT FILE INTO MAXIMO

SELECT CHECK BOX FOR IMPORT READINGS

importing output file into maximo14
IMPORTING OUTPUT FILE INTO MAXIMO

CHECK SELECT FILE BOX TO CHOSE FILE TO IMPORT

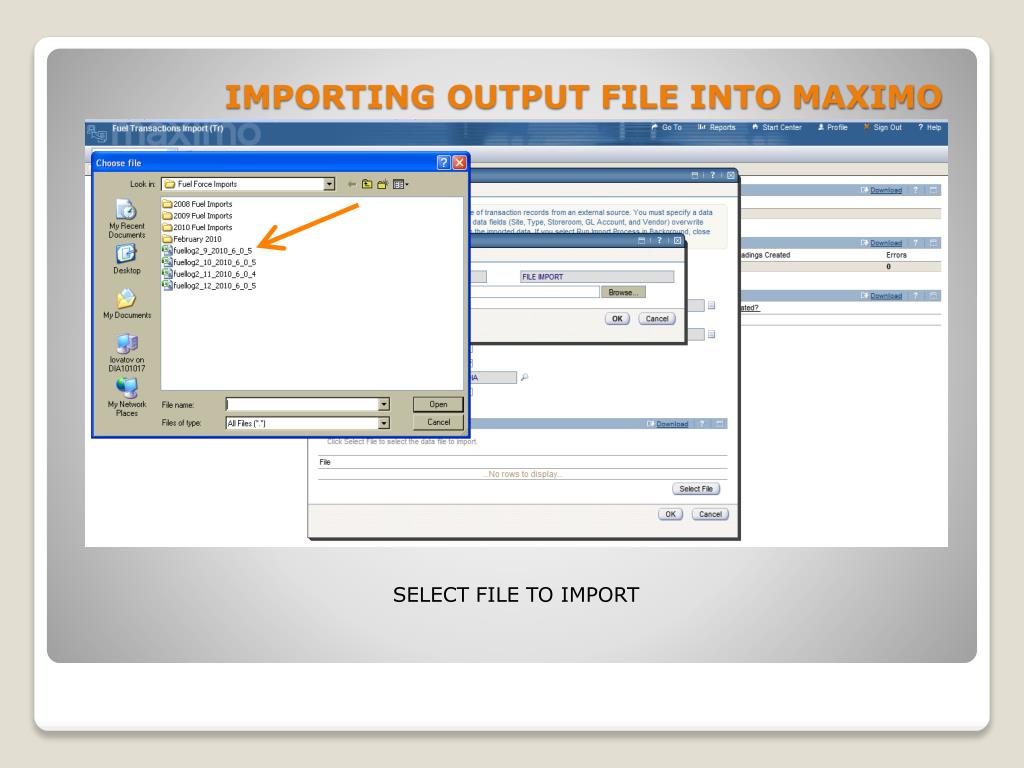

importing output file into maximo15
IMPORTING OUTPUT FILE INTO MAXIMO

CHECK BROWSE AND SELECT FILE TO IMPORT

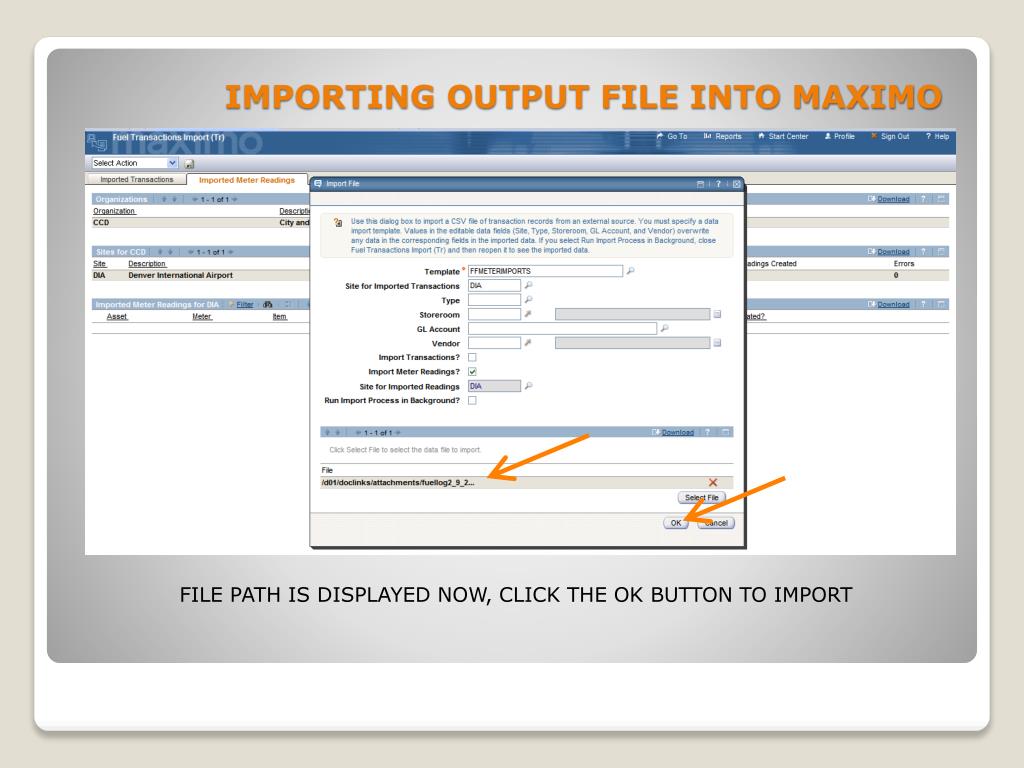

importing output file into maximo17
IMPORTING OUTPUT FILE INTO MAXIMO

FILE PATH IS DISPLAYED NOW, CLICK THE OK BUTTON TO IMPORT

importing output file into maximo18
IMPORTING OUTPUT FILE INTO MAXIMO

OUTPUT FILE CREATED FROM FUEL FORCE IS PUT THRU THE IMPORT TEMPLATE

importing output file into maximo19
IMPORTING OUTPUT FILE INTO MAXIMO

COUNT OF METER RECORDS CREATED WILL DISPLAY

importing output file into maximo20
IMPORTING OUTPUT FILE INTO MAXIMO

METER RECORDS HAVE NOW BEEN IMPORTED INTO THE METER TRANSACTION TABLE

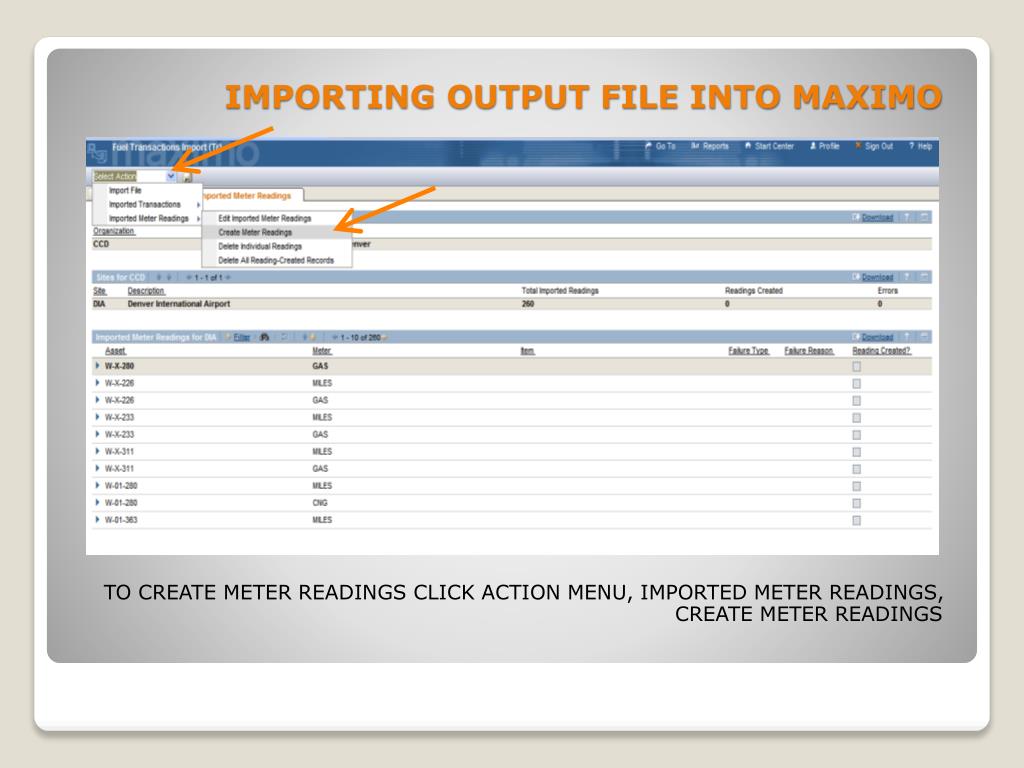

importing output file into maximo21
IMPORTING OUTPUT FILE INTO MAXIMO

TO CREATE METER READINGS CLICK ACTION MENU, IMPORTED METER READINGS, CREATE METER READINGS

importing output file into maximo22
IMPORTING OUTPUT FILE INTO MAXIMO

SELECT CREATE READINGS

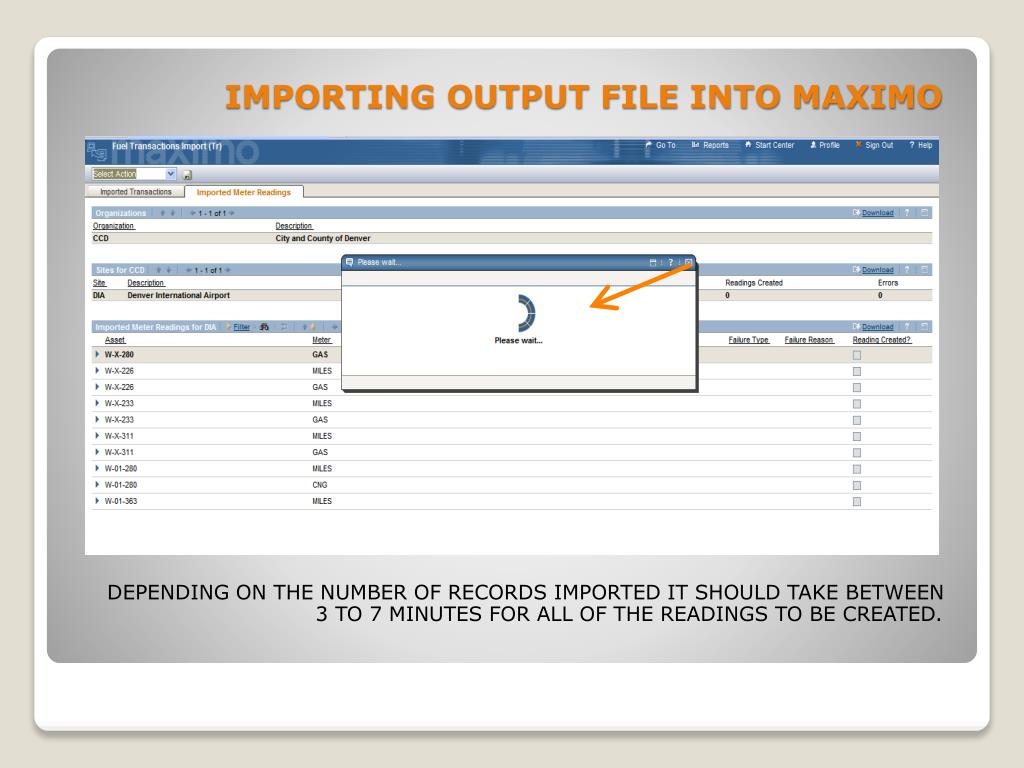

importing output file into maximo23
IMPORTING OUTPUT FILE INTO MAXIMO

DEPENDING ON THE NUMBER OF RECORDS IMPORTED IT SHOULD TAKE BETWEEN 3 TO 7 MINUTES FOR ALL OF THE READINGS TO BE CREATED.

importing output file into maximo24
IMPORTING OUTPUT FILE INTO MAXIMO

A DIALOG BOX WILL SHOW UP AND LIST THE NUMBER OF READINGS CREATED ALONG WITH THE NUMBER OF METER RECORDS WITH ERRORS

importing output file into maximo25
IMPORTING OUTPUT FILE INTO MAXIMO

NOW THAT READINGS HAVE BEEN CREATED YOU NEED TO CLEAR THE METER TRANSACTION TABLE AND YOU DO THIS BY CLICKING ON THE ACTION MENU, IMPORTED METER READINGS, DELETE ALL CREATE METER READINGS

importing output file into maximo26
IMPORTING OUTPUT FILE INTO MAXIMO

A WARNING BOX WILL COME UP WARNING YOU THAT ALL READING-CREATED RECORDS WILL BE DELETED. IT IS OK TO DELETE THESE READINGS BECAUSE THEY HAVE ALREADY BEEN WRITTEN TO THEIR DESIGNATED EQUIPMENT METER TABLES.

importing output file into maximo27
IMPORTING OUTPUT FILE INTO MAXIMO

NOW THAT ALL READING-CREATED RECORDS HAVE BEEN CLEARED FROM THE TRANSACTION TABLE YOU ARE LEFT WITH THE RECORDS THAT COULD NOT HAVE READINGS CREATED FROM THEM BECAUSE OF VARIOUS ERRORS.

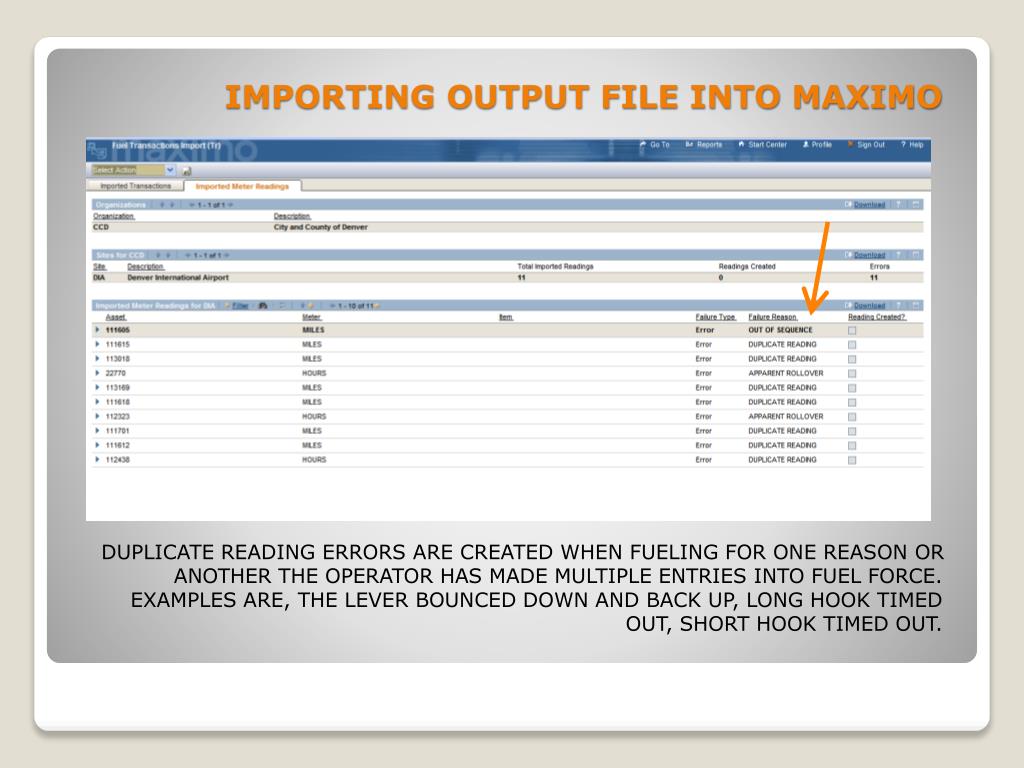

importing output file into maximo28
IMPORTING OUTPUT FILE INTO MAXIMO

DUPLICATE READING ERRORS ARE CREATED WHEN FUELING FOR ONE REASON OR ANOTHER THE OPERATOR HAS MADE MULTIPLE ENTRIES INTO FUEL FORCE. EXAMPLES ARE, THE LEVER BOUNCED DOWN AND BACK UP, LONG HOOK TIMED OUT, SHORT HOOK TIMED OUT.

importing output file into maximo29
IMPORTING OUTPUT FILE INTO MAXIMO

DUPLICATE READING ERRORS SHOULD BE DELETED. BECAUSE THEY ARE DUPLICATES OF RECORDS ALREADY CREATED IN THE EQUIPMENT METER RECORDS AND ARE NOT NEEDED.

importing output file into maximo30
IMPORTING OUTPUT FILE INTO MAXIMO

OUT OF SEQUENCE ERRORS NORMAL OCCUR WHEN THE TRANSACTION METER READING IS GREATER THAN METER READING OF THE LAST METER UPDATE ALREADY IN THE DESIGNATED EQUIPMENT METER IN MAXIMO. A COMMON EXAMPLE IS A FLEET TECH HAS UPDATED THE RECORD BEFORE THE METER IMPORT IS COMPLETED.

importing output file into maximo31
IMPORTING OUTPUT FILE INTO MAXIMO

APPARENT ROLLOVER ERRORS NORMAL OCCUR WHEN THE TRANSACTION METER READING IS LESS THAN METER READING OF THE LAST METER UPDATE ALREADY IN THE DESIGNATED EQUIPMENT METER IN MAXIMO. A COMMON EXAMPLE IS A OPERATOR OR FLEET TECH ENTERED THE WRONG METER READING OR A READING FROM THE WRONG METER.

importing output file into maximo32
IMPORTING OUTPUT FILE INTO MAXIMO

APPARENT ROLLOVER AND OUT OF SEQUENCE ERRORS ARE RESEARCHED IN METER HISTORY IN MAXIMO AND IN FUEL FORCE AND CORRECTED IF POSSIBLE. AFTER CORRECTING EITHER THE DATE OR METER READING IN THE EQUIPMENT METER HISTORY THE CREATE METER READING PROCESS CAN BE RUN AGAIN. OCCASIONALLY YOU WILL NOT BE ABLE TO CORRECT A METER AND THEN THE RECORD IS JUST DELETED.

due diligence

DUE DILIGENCE

KEYS USERS AT DIA

MAINTENANCE IN FUEL FORCE

MAINTENANCE IN MAXIMO

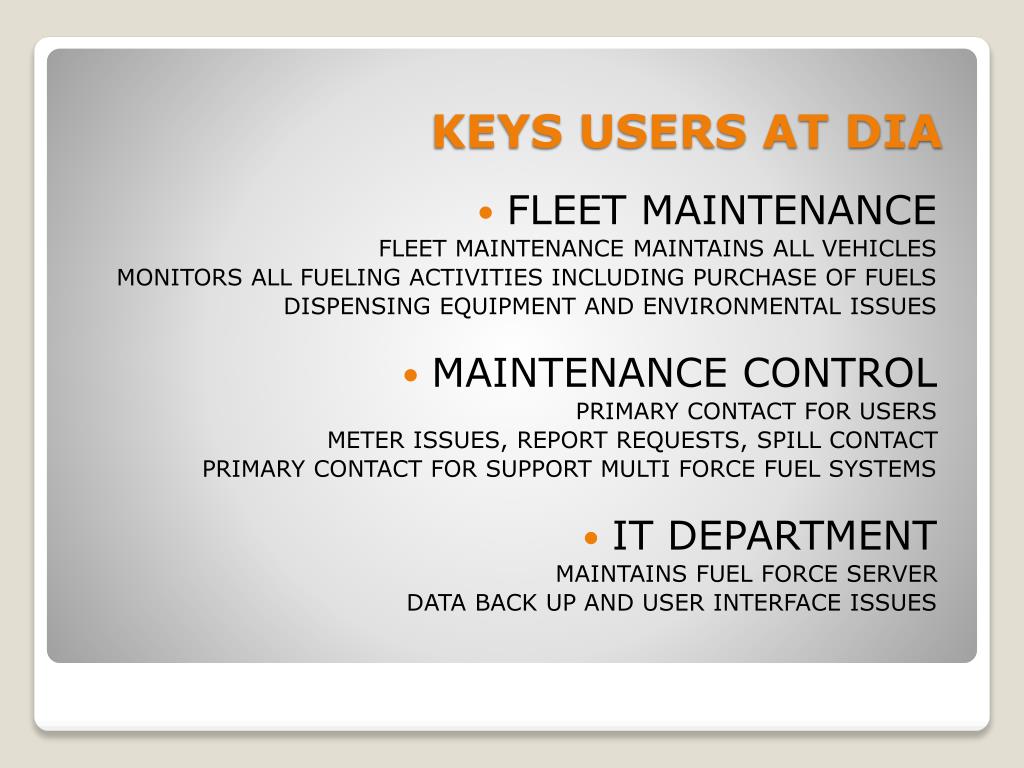

keys users at dia
KEYS USERS AT DIA
  • FLEET MAINTENANCE

FLEET MAINTENANCE MAINTAINS ALL VEHICLES

MONITORS ALL FUELING ACTIVITIES INCLUDING PURCHASE OF FUELS

DISPENSING EQUIPMENT AND ENVIRONMENTAL ISSUES

  • MAINTENANCE CONTROL

PRIMARY CONTACT FOR USERS

METER ISSUES, REPORT REQUESTS, SPILL CONTACT

PRIMARY CONTACT FOR SUPPORT MULTI FORCE FUEL SYSTEMS

  • IT DEPARTMENT

MAINTAINS FUEL FORCE SERVER

DATA BACK UP AND USER INTERFACE ISSUES

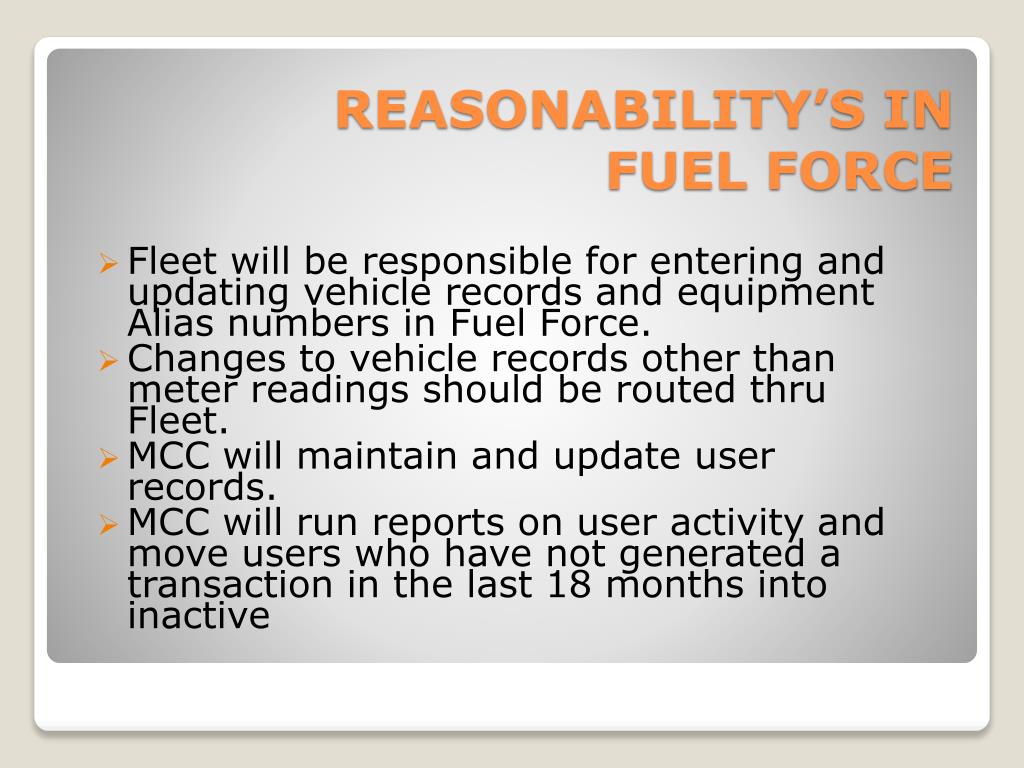

reasonability s in fuel force
Fleet will be responsible for entering and updating vehicle records and equipment Alias numbers in Fuel Force.

Changes to vehicle records other than meter readings should be routed thru Fleet.

MCC will maintain and update user records.

MCC will run reports on user activity and move users who have not generated a transaction in the last 18 months into inactive

Reasonability’s in Fuel force
slide36
MCC will continue to maintain remote island terminals and be the first point of contact for trouble calls at the remote island terminals.
  • IT and MCC will maintain the Fuel Force server and security access for Key users of database interface.
  • MCC will continue to be the main contact for reports for other groups.

Reasonability’s in Fuel force

responsibility s in maximo
Responsibility\'s in maximo

WHEN METERS ARE ENTERED INTO THE WORK ORDER BY FLEET TECHS SOMETIMES THEY COME ACROSS METER ENTRIE’S THAT ARE INCORRECT.

A FORM WAS CREATED TO CAPTURE

CHANGES NEEDED IN MAXIMO

METERS

VRMS (COMPONENT CODES)

PM FREQUENCY

PM JOB PLAN CHANGES.

FLEET PLANER IS RESPONSIBLE FOR

CORRECTING METERS

RUNNING IMPORT FUNCTION

MONITORING INTEGRITY OF METER

IMPORTS
