Presentation Transcript

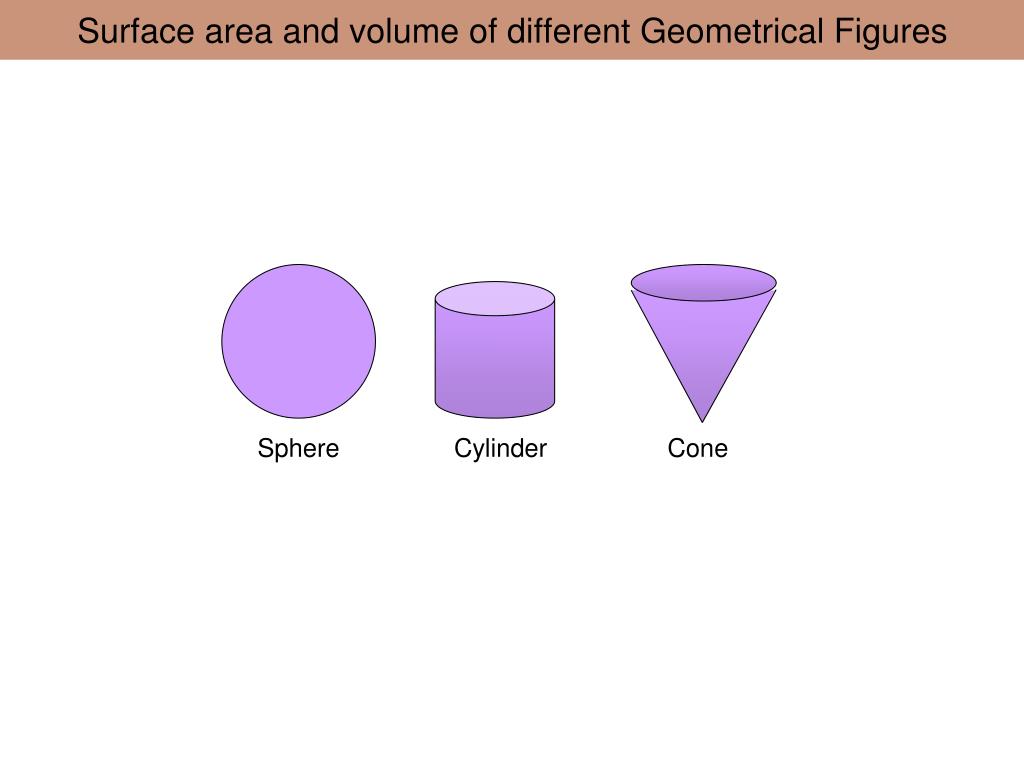

Surface area and volume of different geometrical figures

Sphere

Cylinder

Cone

Surface area and volume of different Geometrical Figures


Surface area and volume of different geometrical figures

Outer Curved Surface area of cylinder

r

r

h

Click to animate

Activity -: Keep bangles of same radius one over another. It will form a cylinder.

Circumference of circle = 2 π r

Formation of Cylinder by bangles

It is the area covered by the outer surface of a cylinder.

Circumference of circle = 2 π r

Area covered by cylinder = Surface area of of cylinder = (2 π r) x( h)


Surface area and volume of different geometrical figures

Total Surface area of a solid cylinder

Curved surface

circular surfaces

=

Area of curved surface +

area of two circular surfaces

=(2 π r) x( h) + 2 π r2

= 2 π r( h+ r)


Surface area and volume of different geometrical figures

Other method of Finding Surface area of cylinder with the help of paper

r

h

h

2πr

Surface area of cylinder = Area of rectangle= 2 πrh


Surface area and volume of different geometrical figures

Volume of cylinder

r

h

Volume of cylinder = Area of base x vertical height

= π r2 xh


Surface area and volume of different geometrical figures

Cone

l = Slant height

h

Base

r


Surface area and volume of different geometrical figures

Volume of a Cone

Click to See the experiment

h

h

Here the vertical height and radius of cylinder & cone are same.

r

r

3( volume of cone) = volume of cylinder

3( V) = π r2h

V = 1/3 π r2h


Surface area and volume of different geometrical figures

if both cylinder and cone have same height and radius then volume of a cylinder is three times the volume of a cone ,

Volume = 3V

Volume =V


Surface area and volume of different geometrical figures

Mr. Mohan has only a little jar of juice he wants to distribute it to his three friends. This time he choose the cone shaped glass so that quantity of juice seem to appreciable.


Surface area and volume of different geometrical figures

Surface area of cone

l

2πr

l

l

2πr

Area of a circle having sector (circumference) 2π l = π l 2

Area of circle having circumference 1 = π l 2/ 2 π l

So area of sector having sector 2 π r = (π l 2/ 2 π l )x 2 π r = π rl


Surface area and volume of different geometrical figures

Comparison of Area and volume of different geometrical figures


Surface area and volume of different geometrical figures

Area and volume of different geometrical figures

r

r

r

r/√2

l=2r

r


Surface area and volume of different geometrical figures

Total surface Area and volume of different geometrical figures and nature

r

r

r

r

l=3r

1.44r

22r

So for a given total surface area the volume of sphere is maximum. Generally most of the fruits in the nature are spherical in nature because it enables them to occupy less space but contains big amount of eating material.


Surface area and volume of different geometrical figures

Think :- Which shape (cone or cylindrical) is better for collecting resin from the tree

Click the next


Surface area and volume of different geometrical figures

3r

r

r

V= 1/3π r2(3r)

V= π r3

Long but Light in weight

Small niddle will require to stick it in the tree,so little harm in tree

V= π r2 (3r)

V= 3 π r3

Long but Heavy in weight

Long niddle will require to stick it in the tree,so much harm in tree


Surface area and volume of different geometrical figures

Bottle

Cone shape

Cylindrical shape


Surface area and volume of different geometrical figures

r

V1

If we make a cone having radius and height equal to the radius of sphere. Then a water filled cone can fill the sphere in 4 times.

r

r

V=1/3 πr2h

If h = r then

V=1/3 πr3

V1 = 4V = 4(1/3 πr3)

= 4/3 πr3


Surface area and volume of different geometrical figures

Volume of a Sphere

Click to See the experiment

r

r

h=r

Here the vertical height and radius of cone are same as radius of sphere.

4( volume of cone) = volume of Sphere

4( 1/3πr2h) = 4( 1/3πr3 ) = V

V = 4/3 π r3


Surface area and volume of different geometrical figures

Thanks

U.C. Pandey R.C.Rauthan, G.C.Kandpal
