  1. SIXTH EDITION MALVINO Electronic PRINCIPLES

  2. Bipolar Transistors Chapter 6

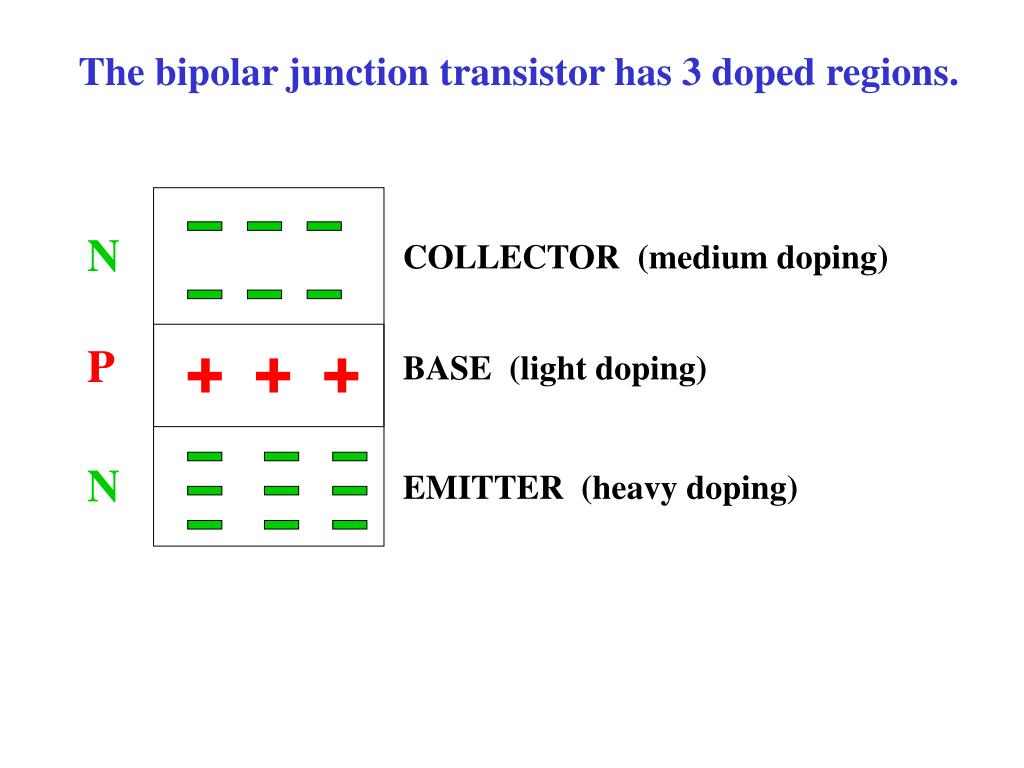

  3. The bipolar junction transistor has 3 doped regions. N COLLECTOR (medium doping) P BASE (light doping) N EMITTER (heavy doping)

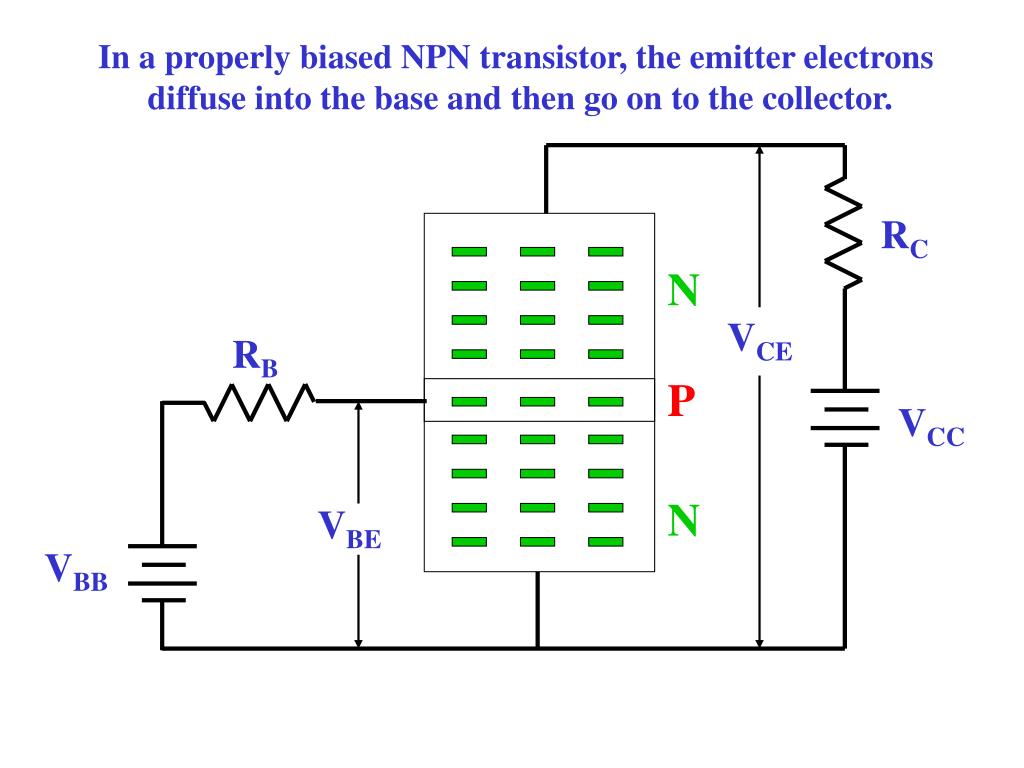

  4. In a properly biased NPN transistor, the emitter electrons diffuse into the base and then go on to the collector. RC N VCE RB P VCC N VBE VBB

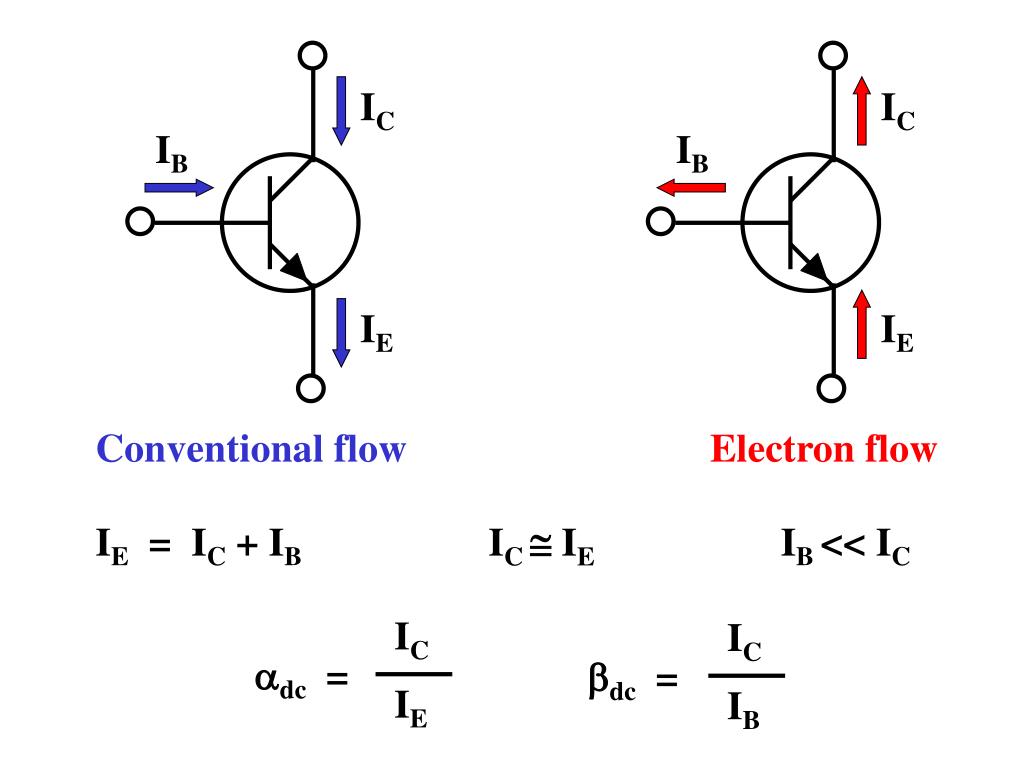

  5. IC IC IB IB IE IE IC IC bdc = adc = IB IE Conventional flow Electron flow IE = IC + IB IC @ IE IB << IC

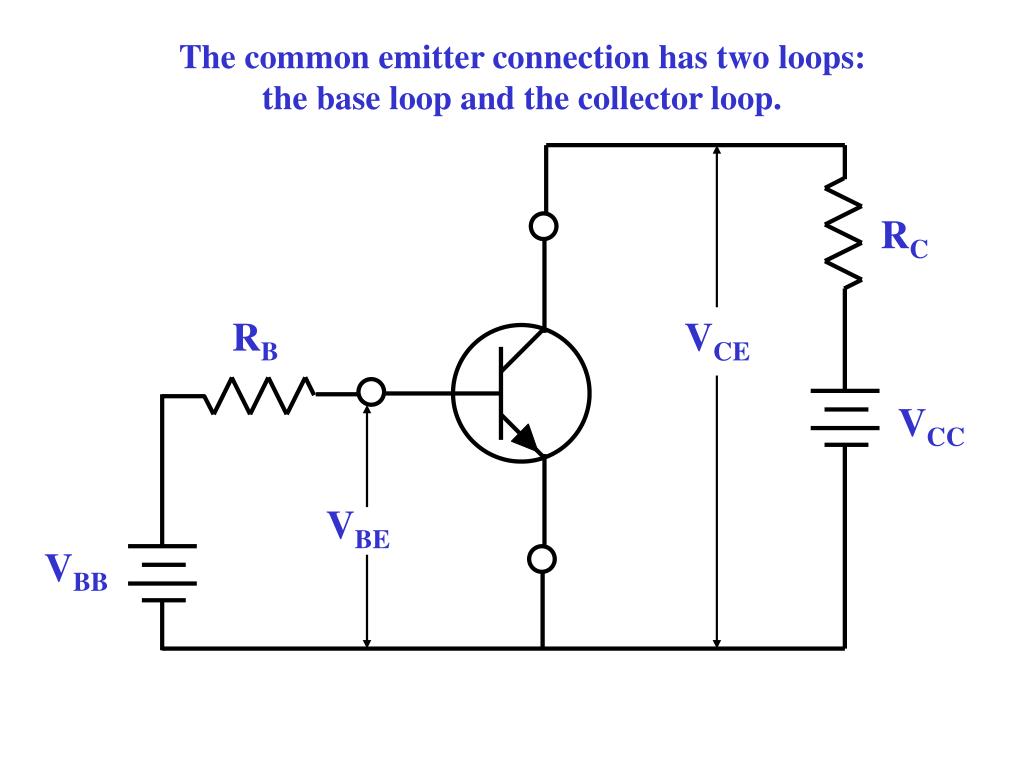

  6. The common emitter connection has two loops: the base loop and the collector loop. RC RB VCE VCC VBE VBB

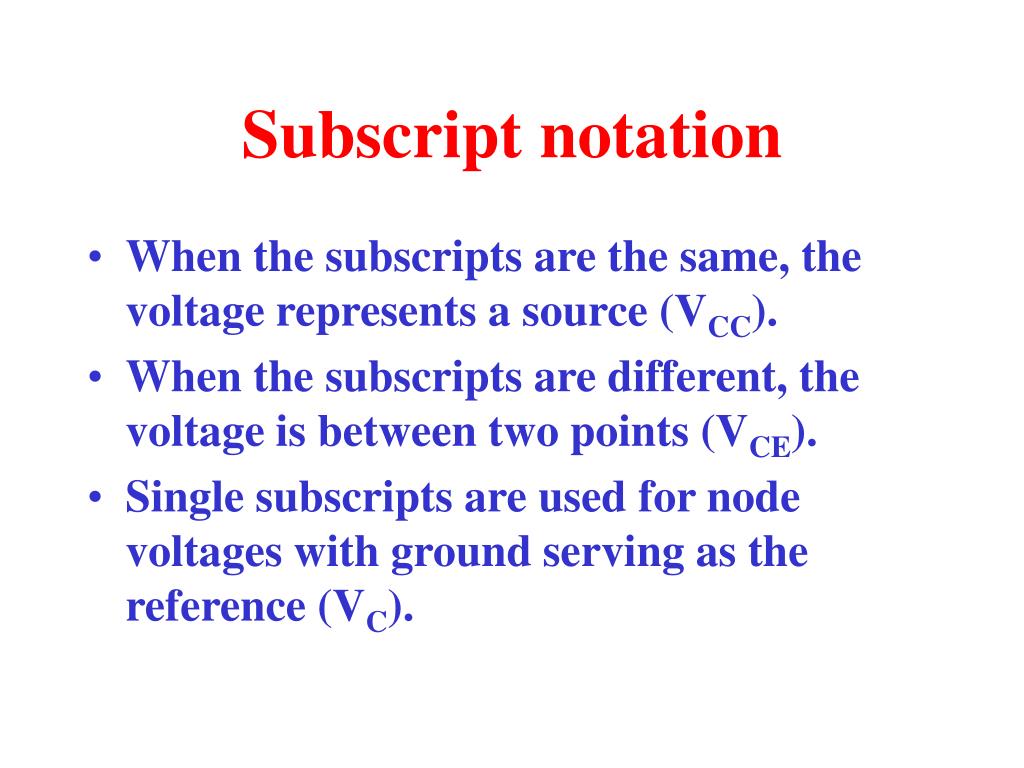

  7. Subscript notation • When the subscripts are the same, the voltage represents a source (VCC). • When the subscripts are different, the voltage is between two points (VCE). • Single subscripts are used for node voltages with ground serving as the reference (VC).

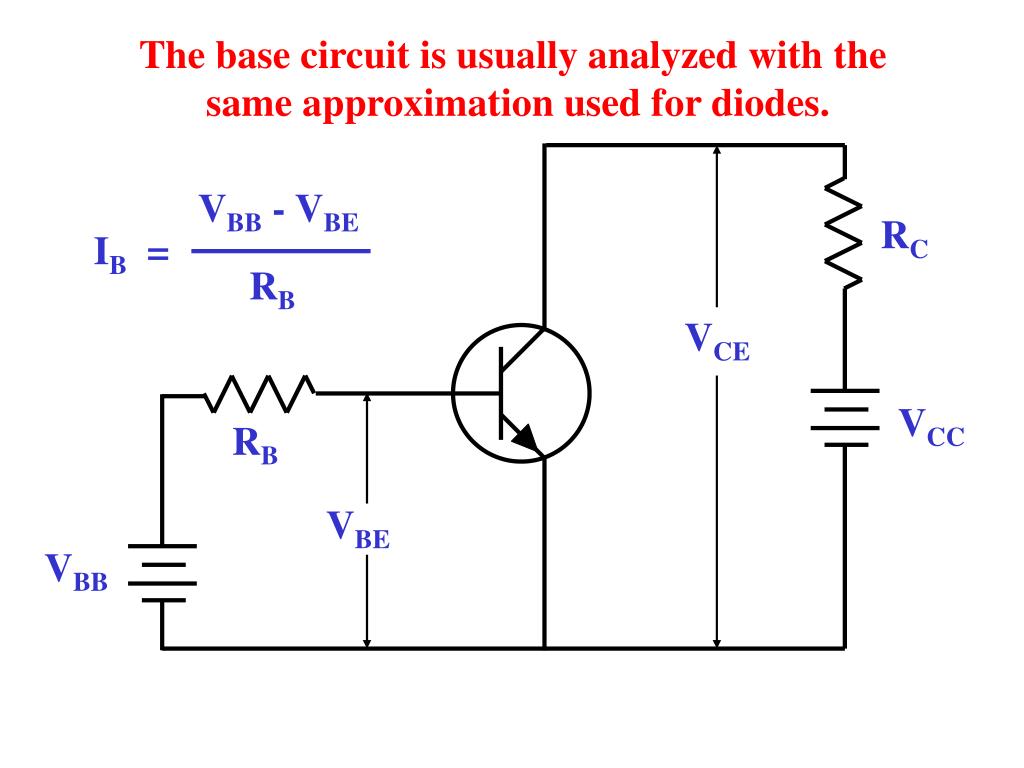

  8. The base circuit is usually analyzed with the same approximation used for diodes. VBB - VBE RC IB = RB VCE VCC RB VBE VBB

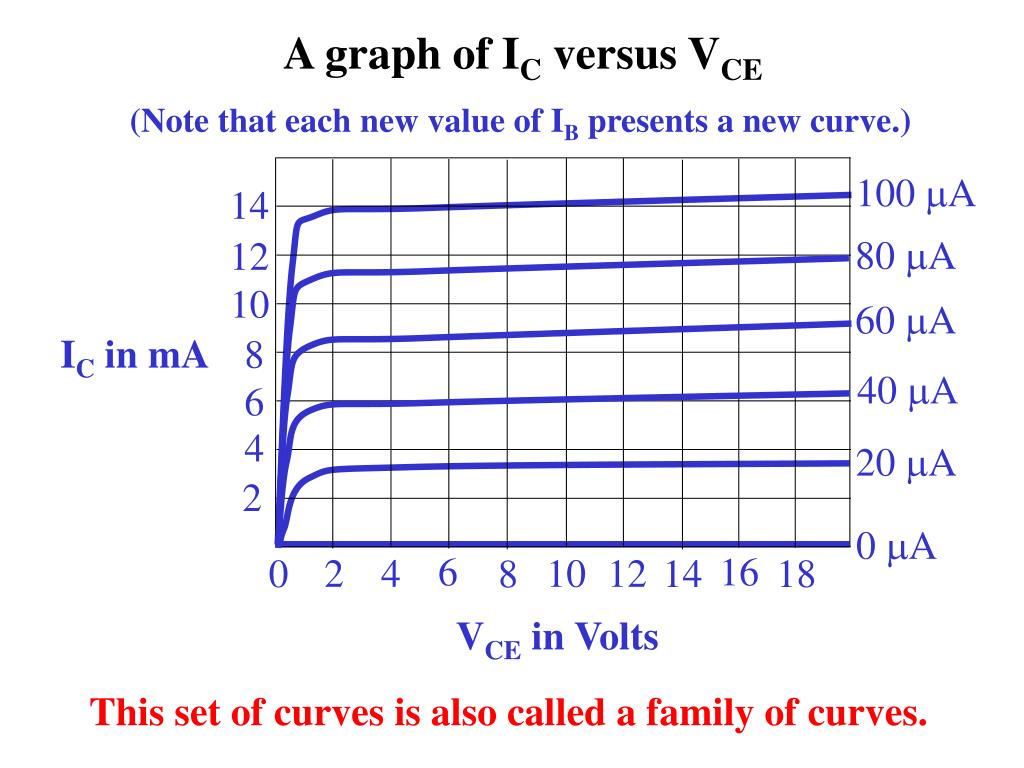

  9. 100 mA 80 mA 60 mA 40 mA 20 mA 0 mA A graph of IC versus VCE (Note that each new value of IB presents a new curve.) 14 12 10 IC in mA 8 6 4 2 6 16 2 4 10 12 0 14 18 8 VCE in Volts This set of curves is also called a family of curves.

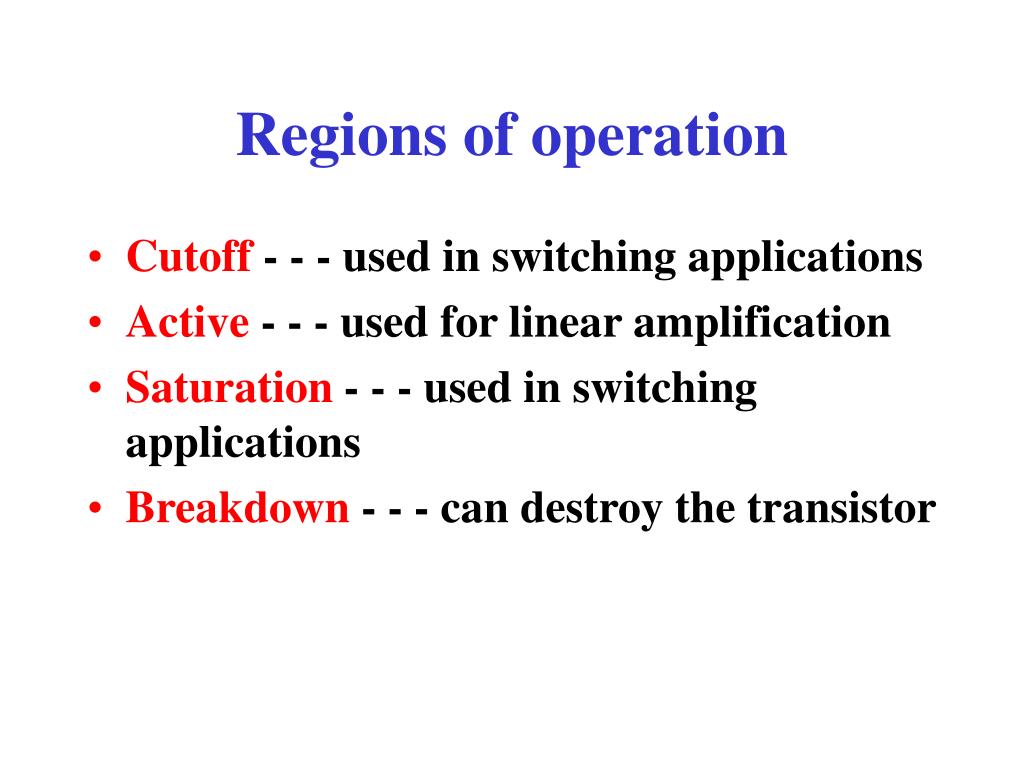

  10. Regions of operation • Cutoff - - - used in switching applications • Active - - - used for linear amplification • Saturation - - - used in switching applications • Breakdown - - - can destroy the transistor

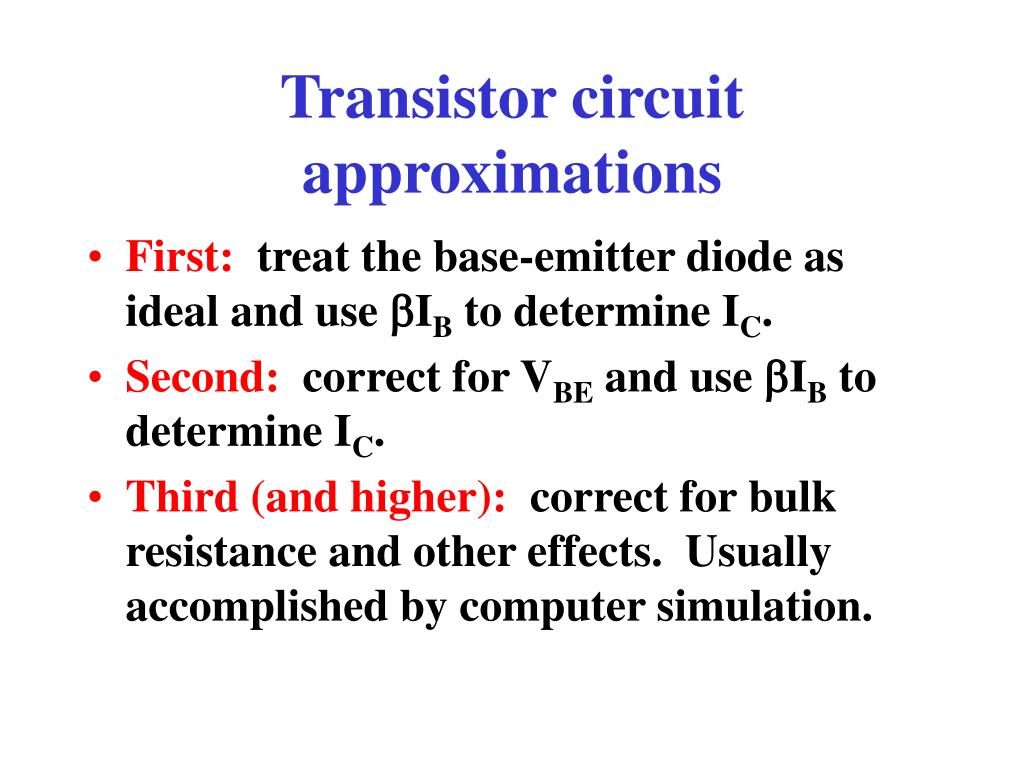

  11. Transistor circuit approximations • First: treat the base-emitter diode as ideal and use bIB to determine IC. • Second: correct for VBE and use bIB to determine IC. • Third (and higher): correct for bulk resistance and other effects. Usually accomplished by computer simulation.

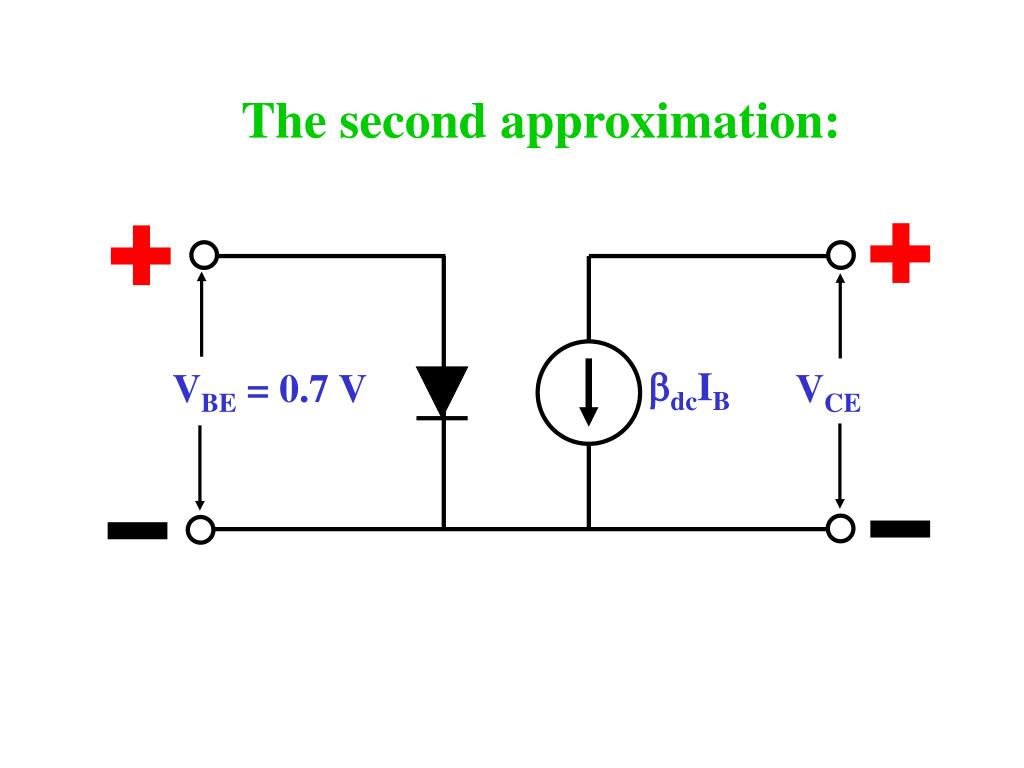

  12. The second approximation: bdcIB VBE = 0.7 V VCE

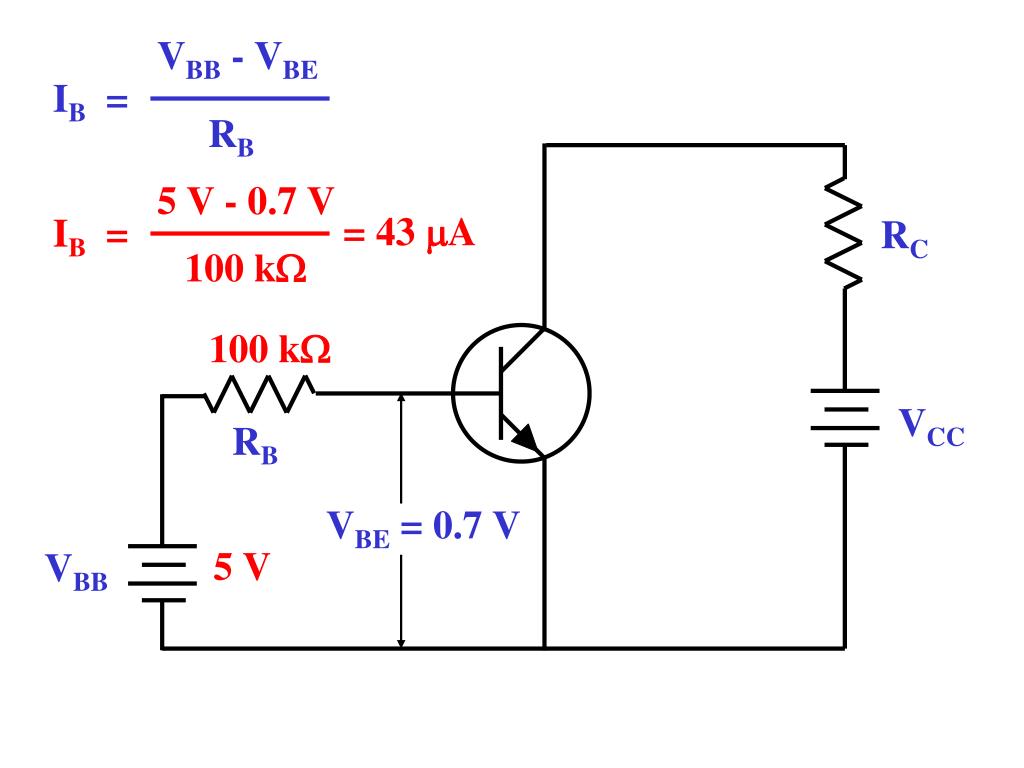

  13. VBB - VBE IB = RB 5 V - 0.7 V = 43 mA IB = RC 100 kW 100 kW VCC RB VBE = 0.7 V 5 V VBB

  14. IC = bdc IB IC = 100 x 43 mA = 4.3 mA RC 100 kW bdc = 100 VCC RB IB = 43 mA 5 V VBB

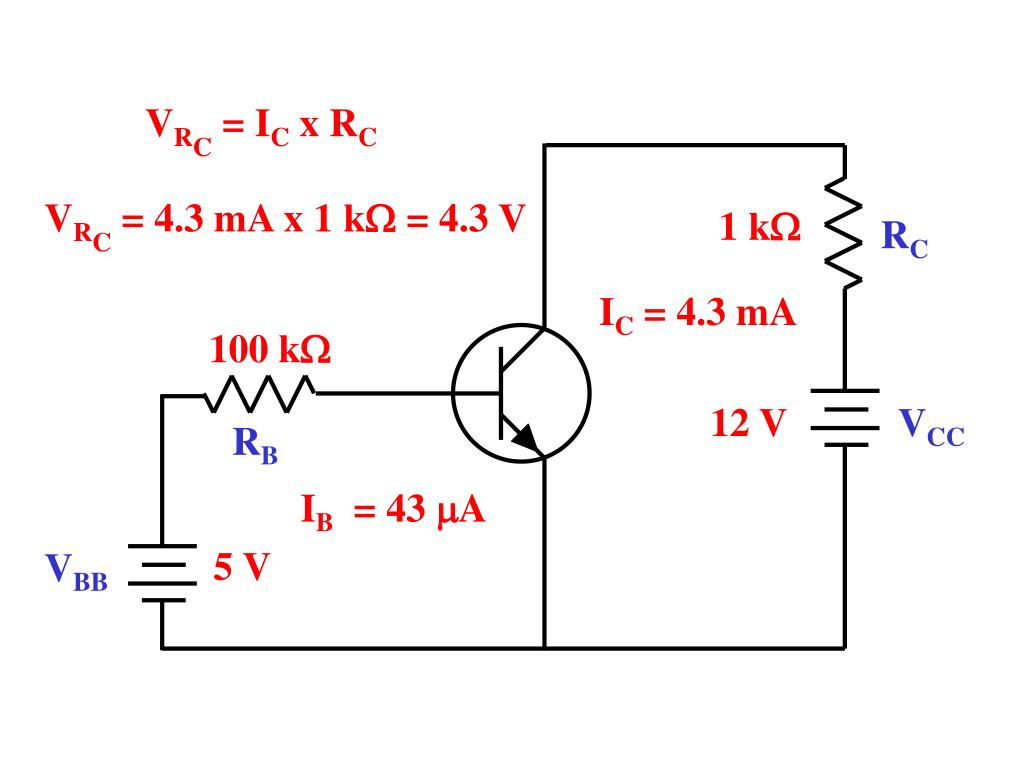

  15. VRC = IC x RC VRC = 4.3 mA x 1 kW = 4.3 V 1 kW RC IC = 4.3 mA 100 kW 12 V VCC RB IB = 43 mA 5 V VBB

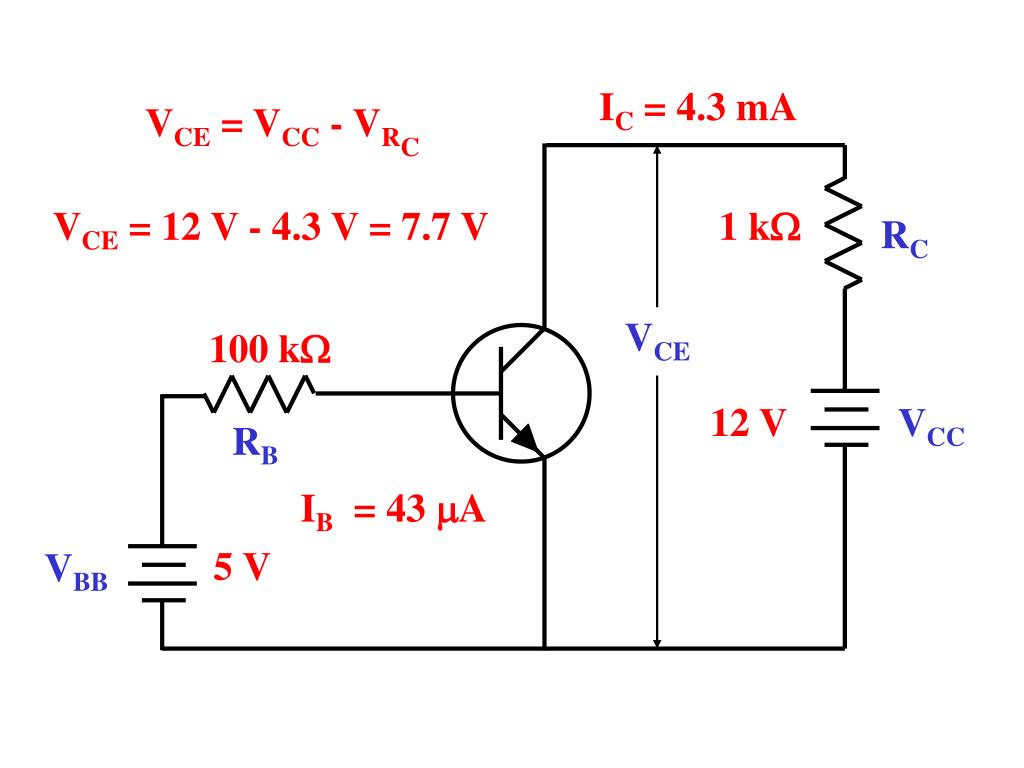

  16. IC = 4.3 mA VCE = VCC - VRC VCE = 12 V - 4.3 V = 7.7 V 1 kW RC VCE 100 kW 12 V VCC RB IB = 43 mA 5 V VBB

  17. Typical Breakdown Ratings • VCB = 60 V • VCEO = 40 V • VEB = 6 V • Note: these are reverse breakdown ratings

  18. A graphic view of collector breakdown 14 12 10 IC in mA 8 6 4 2 0 50 VCE in Volts

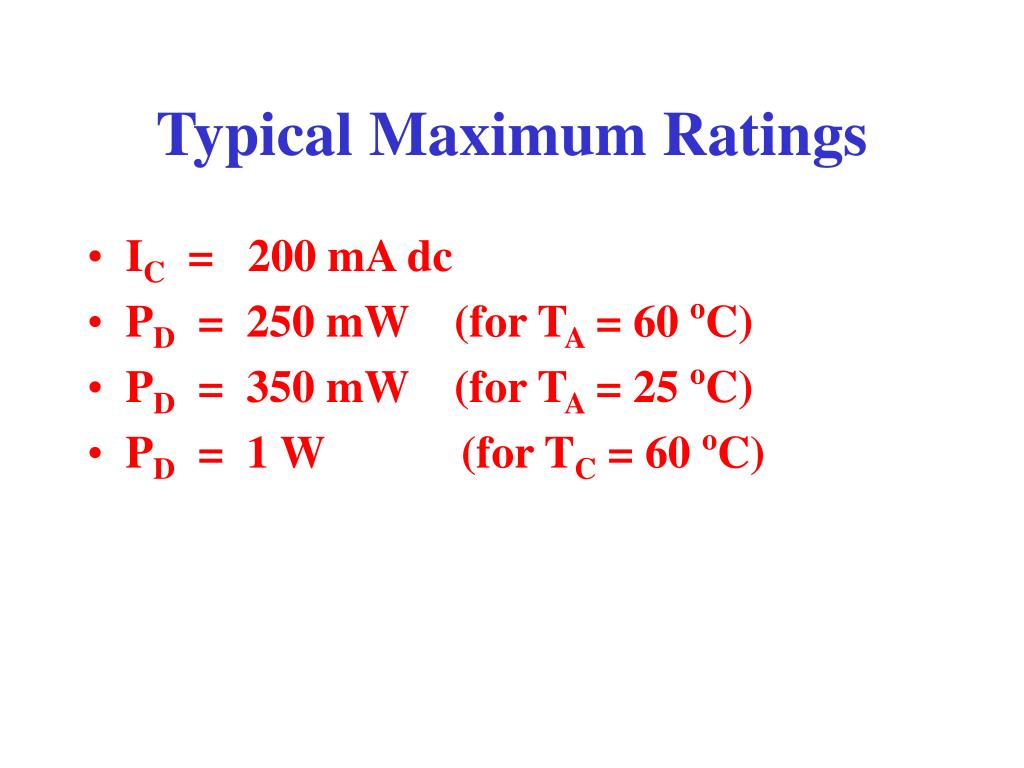

  19. Typical Maximum Ratings • IC = 200 mA dc • PD = 250 mW (for TA = 60 oC) • PD = 350 mW (for TA = 25 oC) • PD = 1 W (for TC = 60 oC)

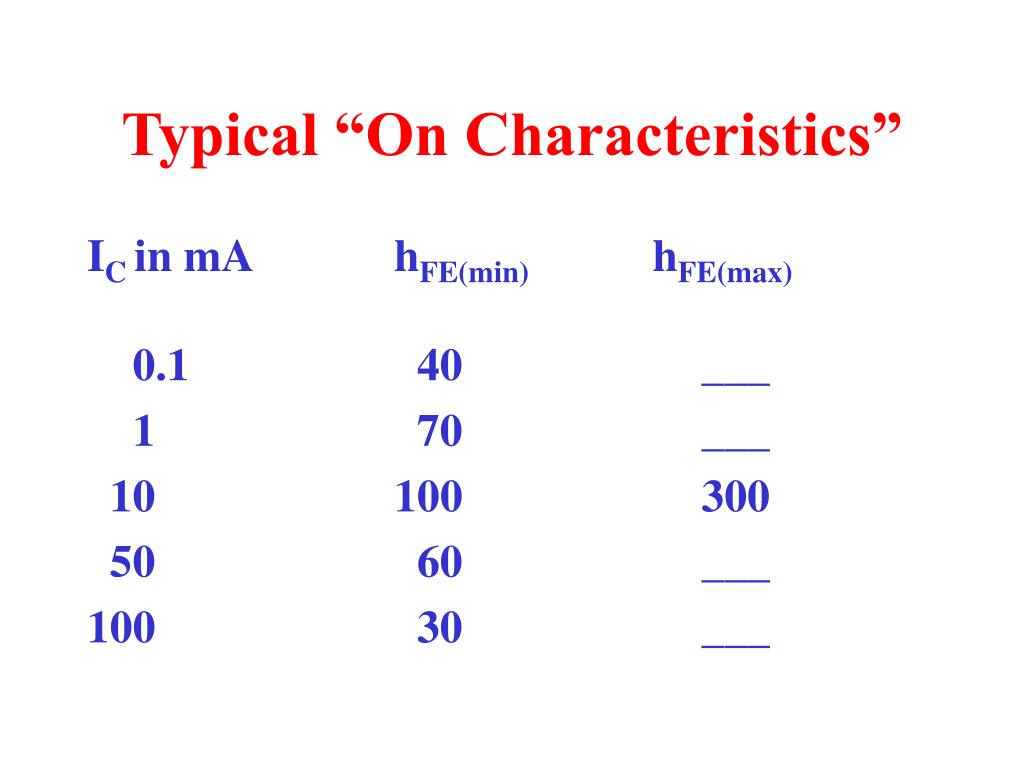

  20. Typical “On Characteristics” IC in mA hFE(min) hFE(max) 0.1 40 ___ 1 70 ___ 10 100 300 50 60 ___ 100 30 ___

  21. Troubleshooting • Look for gross voltage errors. • First approximation and mental estimates will usually suffice. • Resistors don’t short but circuit boards can. • Circuit boards can and do open. • Junctions can and do short. • Junctions can and do open.
