Presentation Transcript


T2 4 business process re engineering

T2.4: Business Process Re-engineering


Global vision

Four viewpoints:

Business (process): T1.6

Information system (functions, macroscopic flows): T2.4

Software systems (software, component, project,…): T2.2

Physical systems: Infrastructure and enterprise network elements (hardware machines, …): T2.2

Global vision

Business representation

FLUX

Zone 2

Zone 3

Zone 1

IS representation

Software systems representation

Physical infrastructure representation

REGNET review


Objectives 1 2

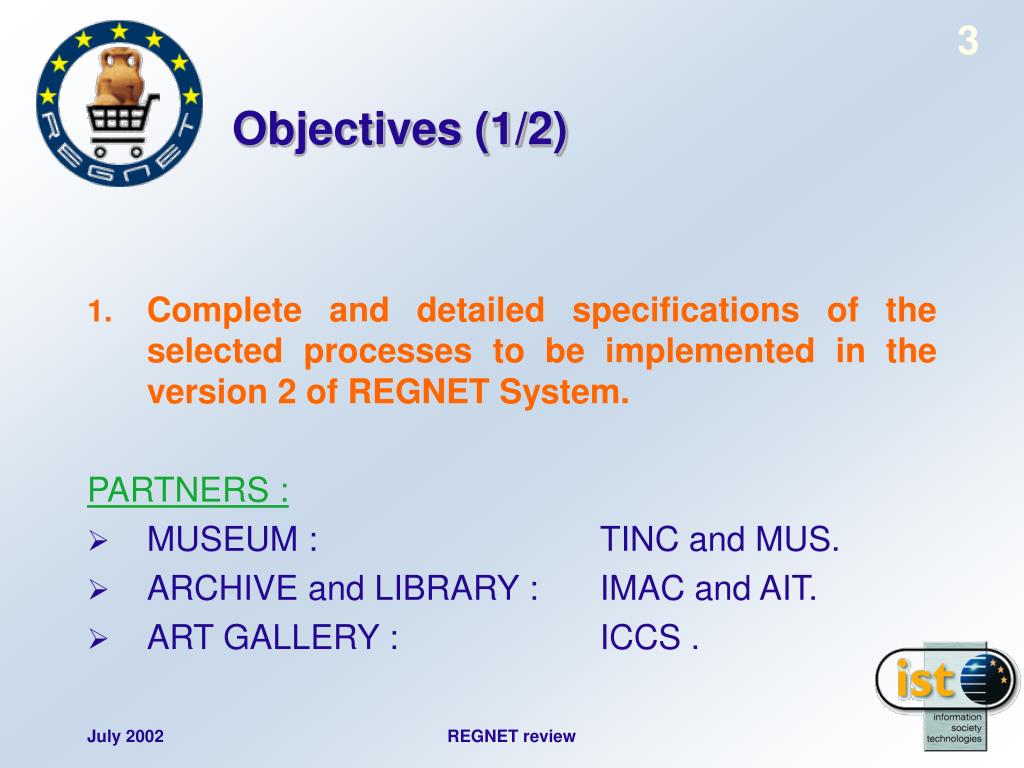

Objectives (1/2)

  • Complete and detailed specifications of the selected processes to be implemented in the version 2 of REGNET System.

    PARTNERS :

  • MUSEUM : TINC and MUS.

  • ARCHIVE and LIBRARY : IMAC and AIT.

  • ART GALLERY : ICCS .

REGNET review


Objectives 2 2

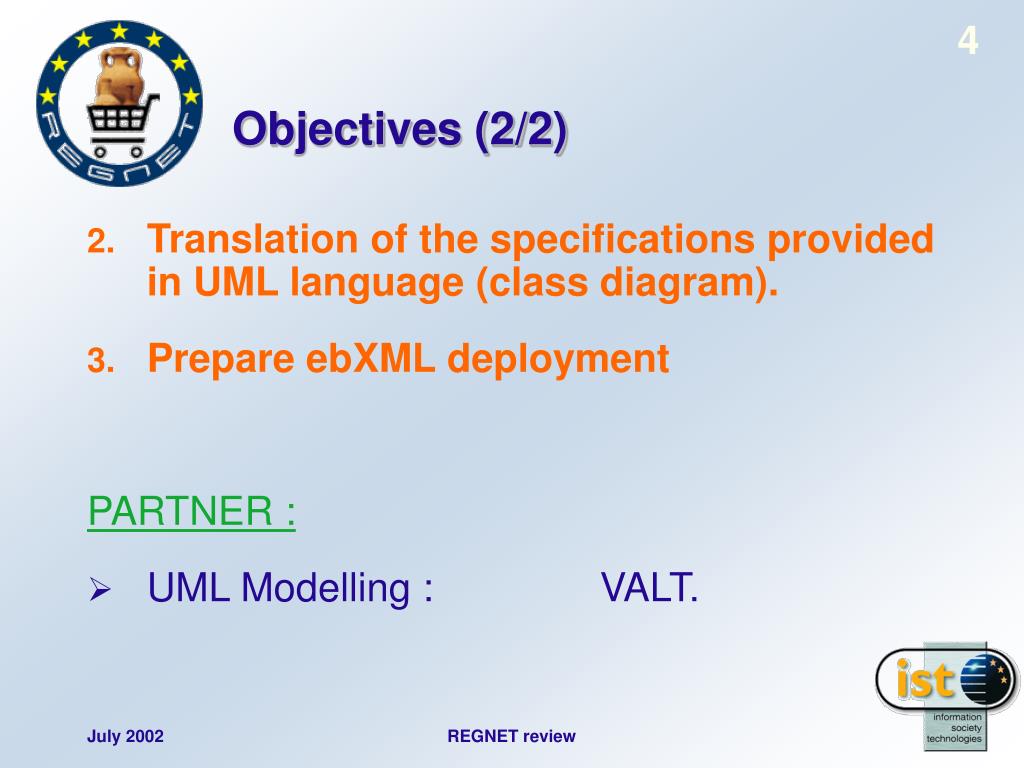

Objectives (2/2)

  • Translation of the specifications provided in UML language (class diagram).

  • Prepare ebXML deployment

    PARTNER :

  • UML Modelling : VALT.

REGNET review


Methodology 1 3

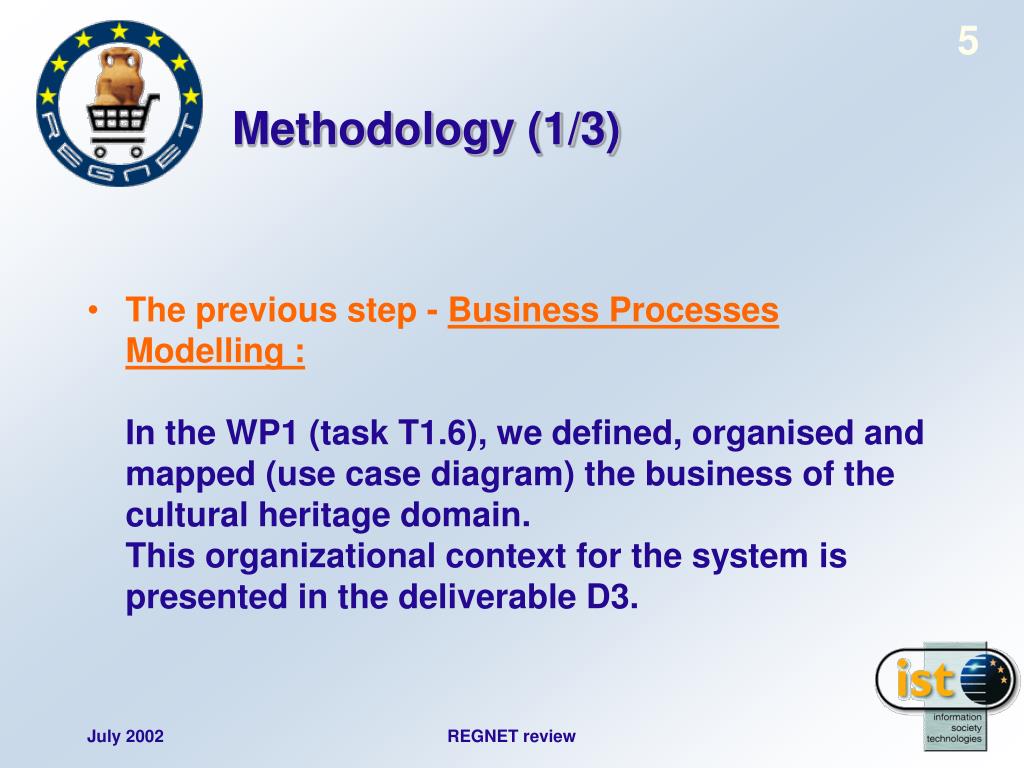

Methodology (1/3)

  • The previous step - Business Processes Modelling :In the WP1 (task T1.6), we defined, organised and mapped (use case diagram) the business of the cultural heritage domain.This organizational context for the system is presented in the deliverable D3.

REGNET review


Methodology 2 3

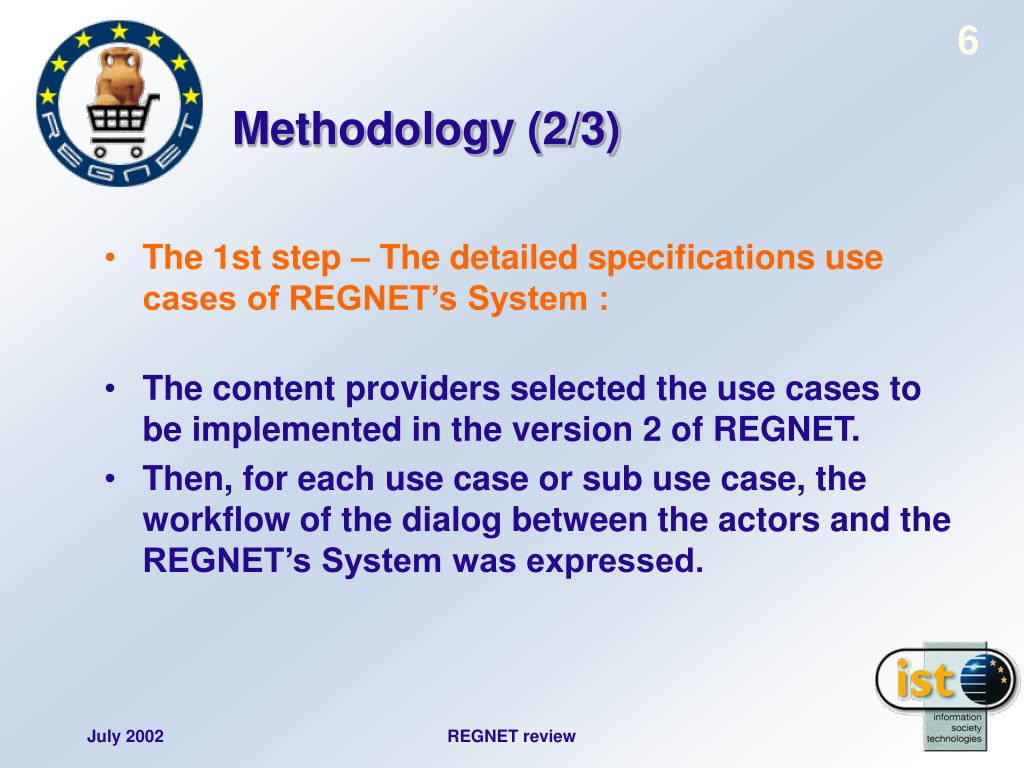

Methodology (2/3)

  • The 1st step – The detailed specifications use cases of REGNET’s System :

  • The content providers selected the use cases to be implemented in the version 2 of REGNET.

  • Then, for each use case or sub use case, the workflow of the dialog between the actors and the REGNET’s System was expressed.

REGNET review


Methodology 3 3

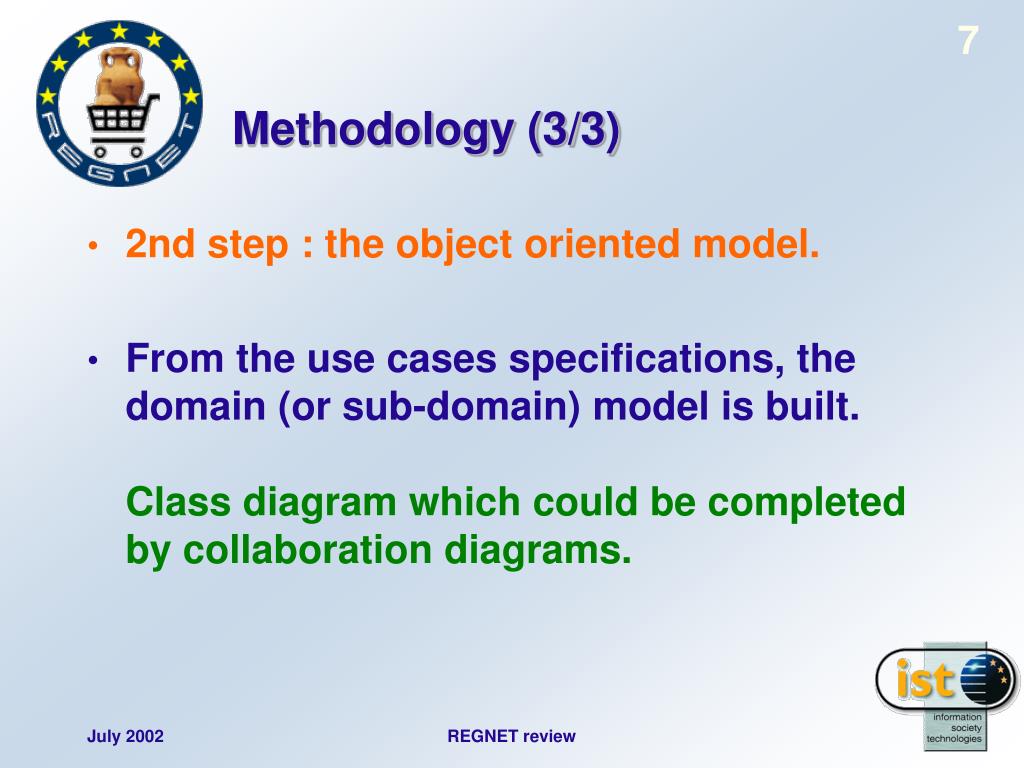

Methodology (3/3)

  • 2nd step : the object oriented model.

  • From the use cases specifications, the domain (or sub-domain) model is built.Class diagram which could be completed by collaboration diagrams.

REGNET review

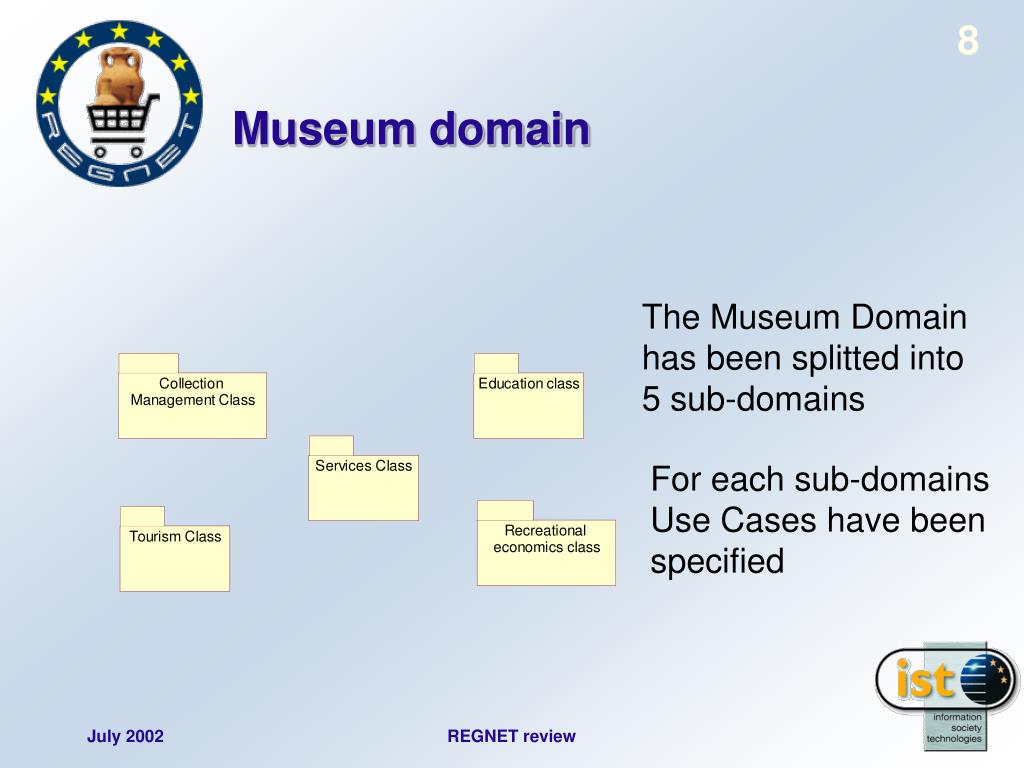

Museum domain

Museum domain

The Museum Domain has been splitted into 5 sub-domains

For each sub-domains Use Cases have been specified

REGNET review


Use case specifications

Use Case Specifications

REGNET review


From use case to class diagram i e loan category

From Use Case to Class Diagram ( i.e. : Loan Category)

Attribut

Concept

Association

REGNET review

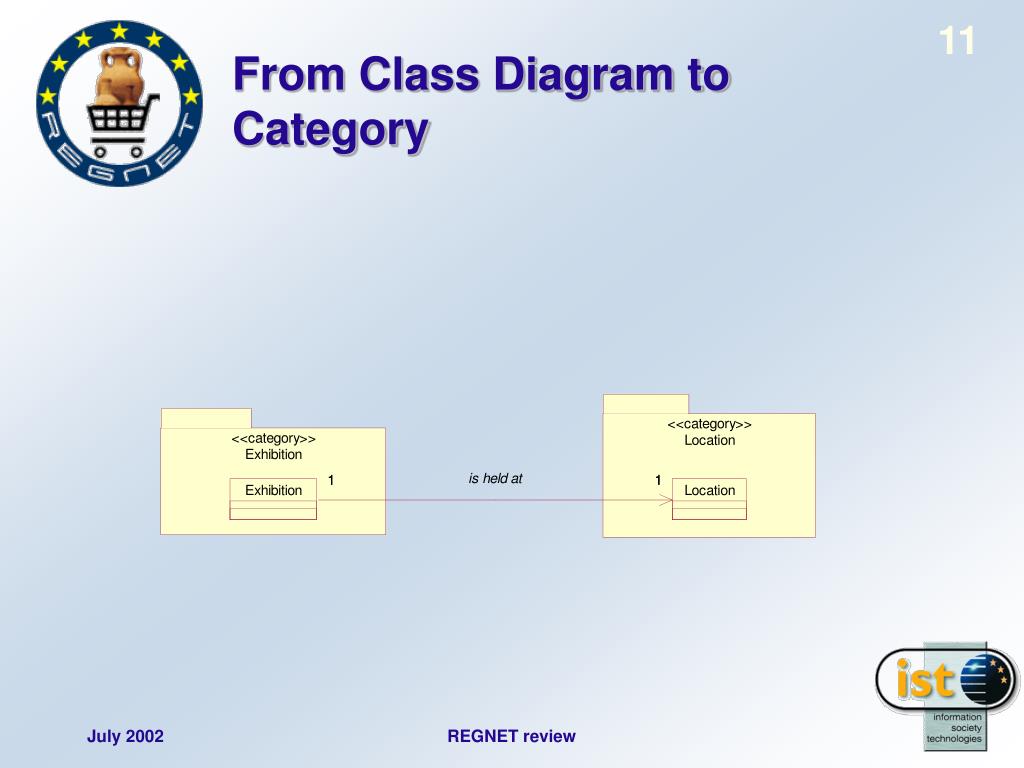

From class diagram to category

From Class Diagram to Category

REGNET review


Example of categories identified from collection management use cases

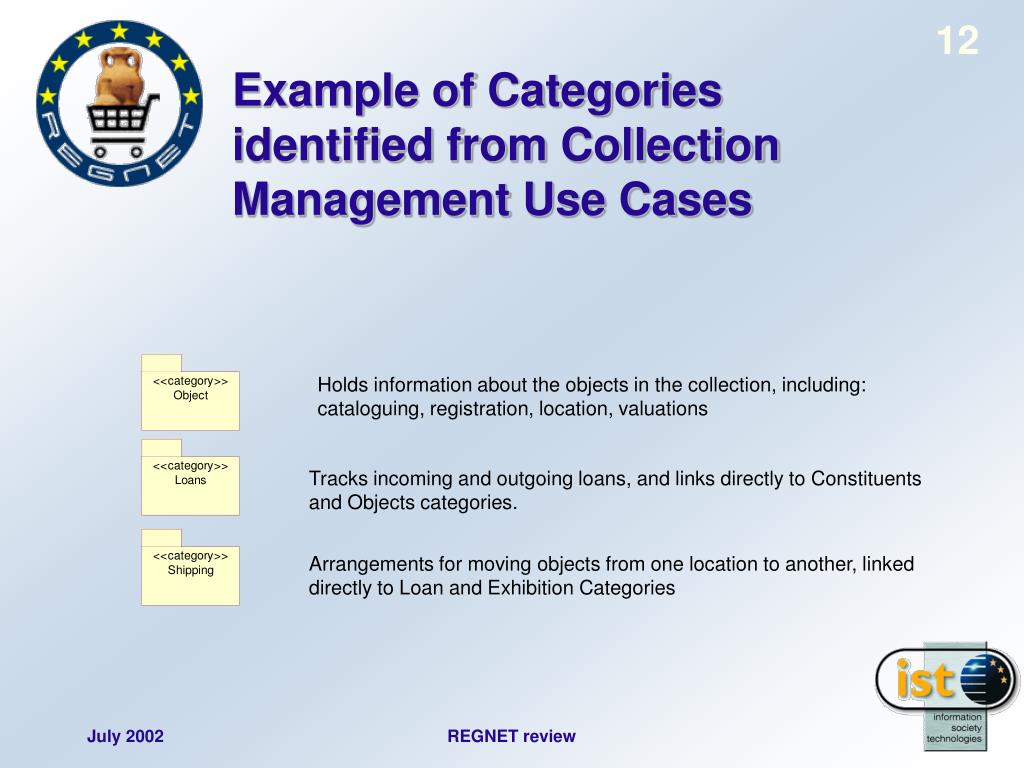

Example of Categories identified from Collection Management Use Cases

Holds information about the objects in the collection, including: cataloguing, registration, location, valuations

Tracks incoming and outgoing loans, and links directly to Constituents and Objects categories.

Arrangements for moving objects from one location to another, linked directly to Loan and Exhibition Categories

REGNET review


T2 4 business process re engineering

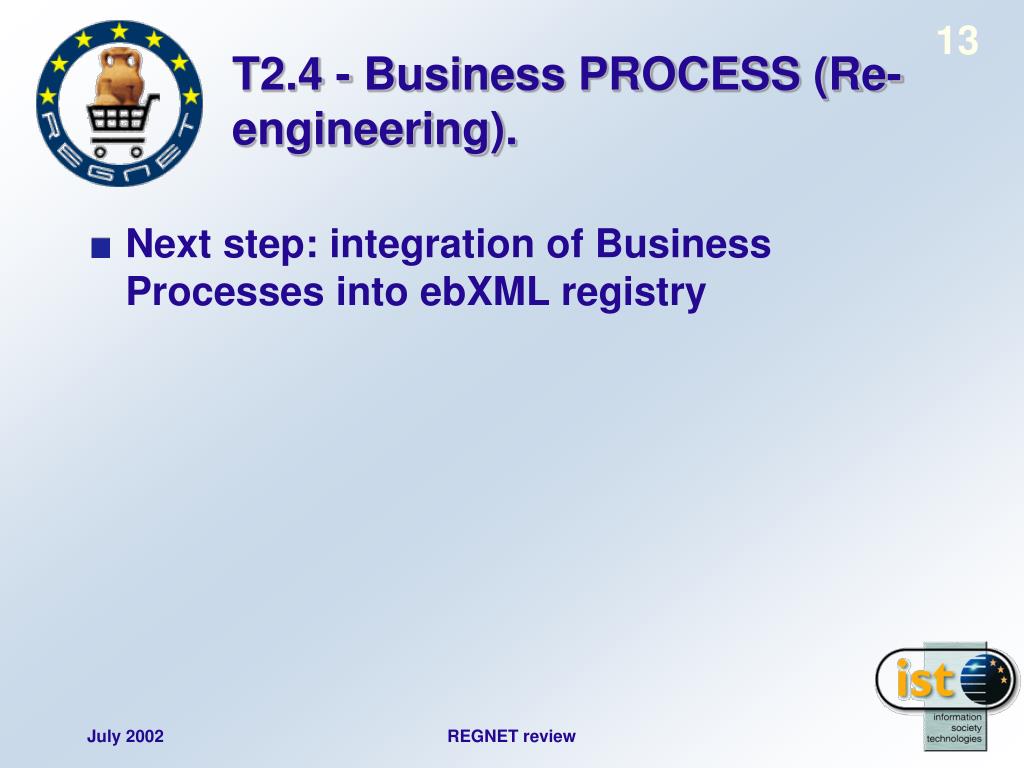

T2.4 - Business PROCESS (Re-engineering).

  • Next step: integration of Business Processes into ebXML registry

REGNET review


T2 4 business process re engineering

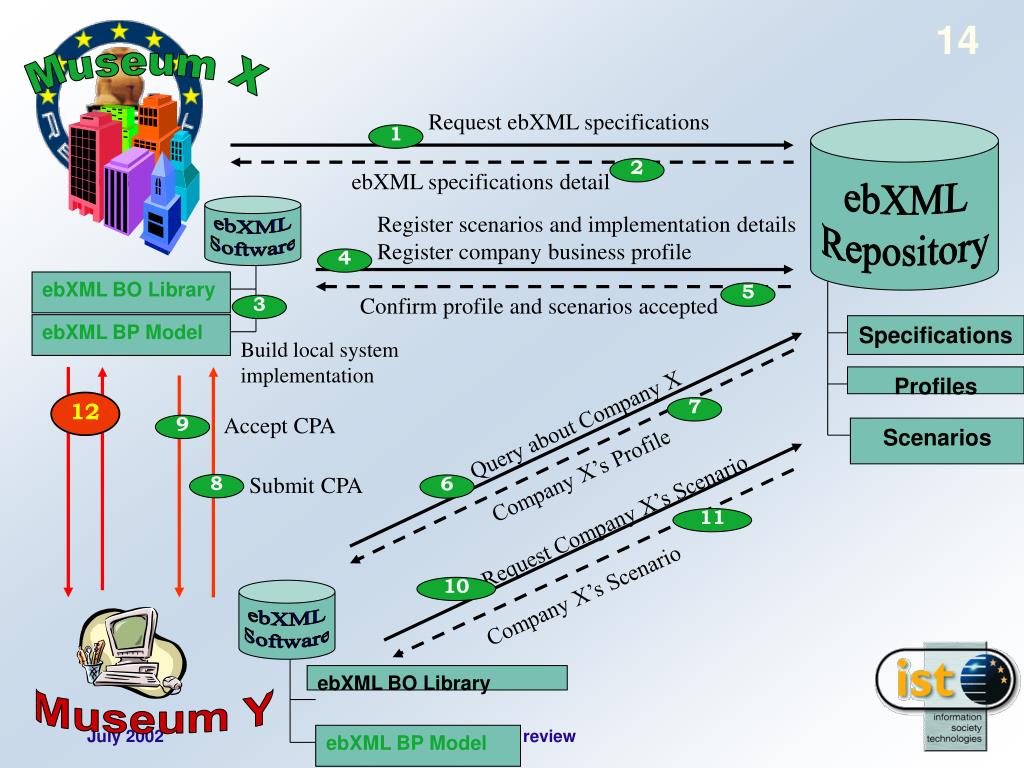

Museum X

Request ebXML specifications

1

2

ebXML specifications detail

ebXML

Repository

Register scenarios and implementation details

Register company business profile

ebXML

Software

4

ebXML BO Library

5

Confirm profile and scenarios accepted

3

ebXML BP Model

Specifications

Build local system

implementation

Profiles

Query about Company X

12

7

Accept CPA

9

Scenarios

Company X’s Profile

Submit CPA

8

6

Request Company X’s Scenario

11

Company X’s Scenario

10

ebXML

Software

ebXML BO Library

Museum Y

REGNET review

ebXML BP Model


T2 4 business process re engineering

Borrower

Lender

UN/CEFACT UMM:

Business Process

as activity

diagram

REGNET review


Conversion uml xml

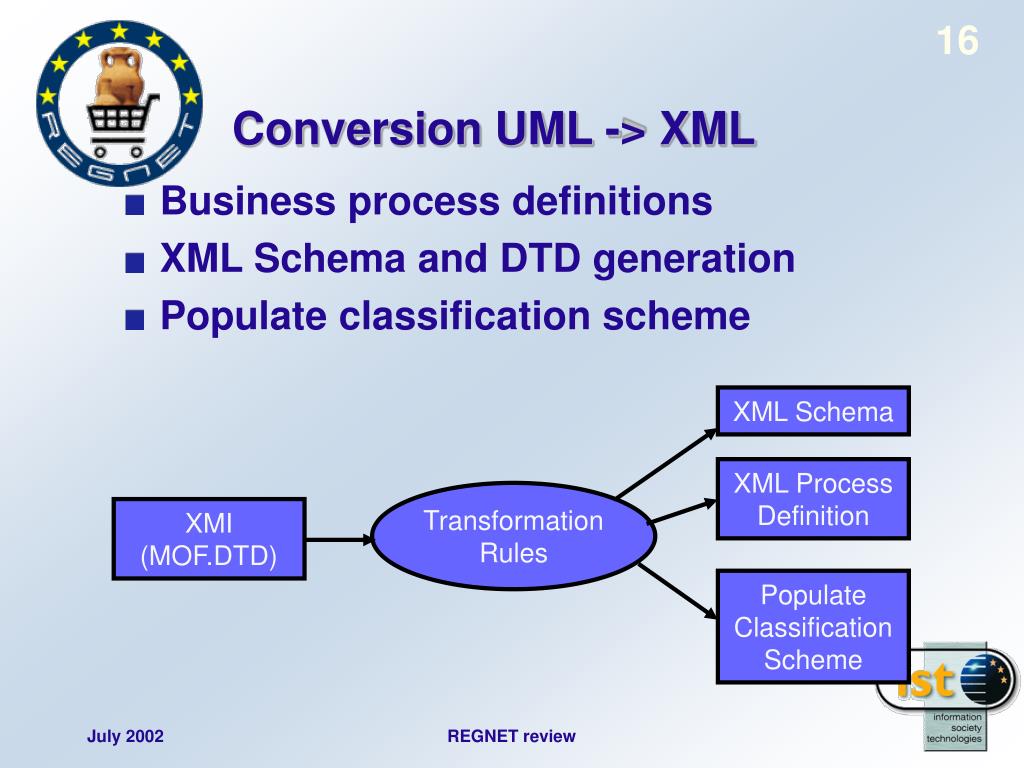

Conversion UML -> XML

Business process definitions

XML Schema and DTD generation

Populate classification scheme

XML Schema

XML Process Definition

Transformation

Rules

XMI

(MOF.DTD)

Populate Classification Scheme

REGNET review


T2 4 business process re engineering

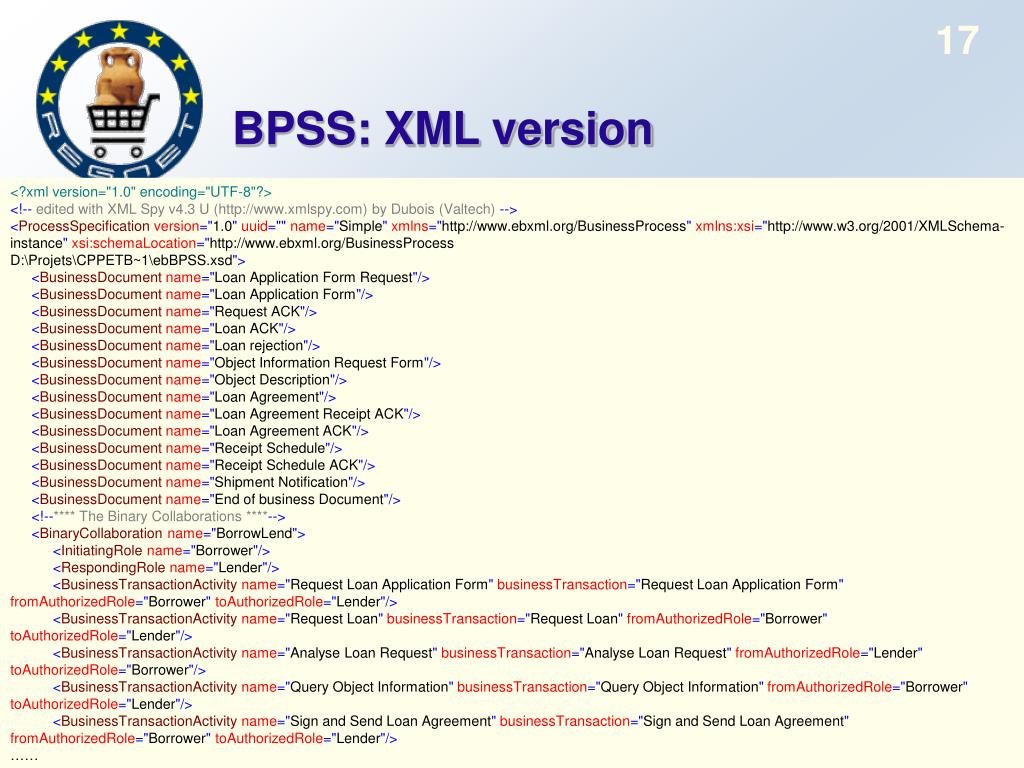

BPSS: XML version

<?xml version="1.0" encoding="UTF-8"?>

<!-- edited with XML Spy v4.3 U (http://www.xmlspy.com) by Dubois (Valtech) -->

<ProcessSpecification version="1.0" uuid="" name="Simple" xmlns="http://www.ebxml.org/BusinessProcess" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.ebxml.org/BusinessProcess

D:\Projets\CPPETB~1\ebBPSS.xsd">

<BusinessDocument name="Loan Application Form Request"/>

<BusinessDocument name="Loan Application Form"/>

<BusinessDocument name="Request ACK"/>

<BusinessDocument name="Loan ACK"/>

<BusinessDocument name="Loan rejection"/>

<BusinessDocument name="Object Information Request Form"/>

<BusinessDocument name="Object Description"/>

<BusinessDocument name="Loan Agreement"/>

<BusinessDocument name="Loan Agreement Receipt ACK"/>

<BusinessDocument name="Loan Agreement ACK"/>

<BusinessDocument name="Receipt Schedule"/>

<BusinessDocument name="Receipt Schedule ACK"/>

<BusinessDocument name="Shipment Notification"/>

<BusinessDocument name="End of business Document"/>

<!--**** The Binary Collaborations ****-->

<BinaryCollaboration name="BorrowLend">

<InitiatingRole name="Borrower"/>

<RespondingRole name="Lender"/>

<BusinessTransactionActivity name="Request Loan Application Form" businessTransaction="Request Loan Application Form" fromAuthorizedRole="Borrower" toAuthorizedRole="Lender"/>

<BusinessTransactionActivity name="Request Loan" businessTransaction="Request Loan" fromAuthorizedRole="Borrower" toAuthorizedRole="Lender"/>

<BusinessTransactionActivity name="Analyse Loan Request" businessTransaction="Analyse Loan Request" fromAuthorizedRole="Lender" toAuthorizedRole="Borrower"/>

<BusinessTransactionActivity name="Query Object Information" businessTransaction="Query Object Information" fromAuthorizedRole="Borrower" toAuthorizedRole="Lender"/>

<BusinessTransactionActivity name="Sign and Send Loan Agreement" businessTransaction="Sign and Send Loan Agreement" fromAuthorizedRole="Borrower" toAuthorizedRole="Lender"/>

……

REGNET review


T2 4 business process re engineering

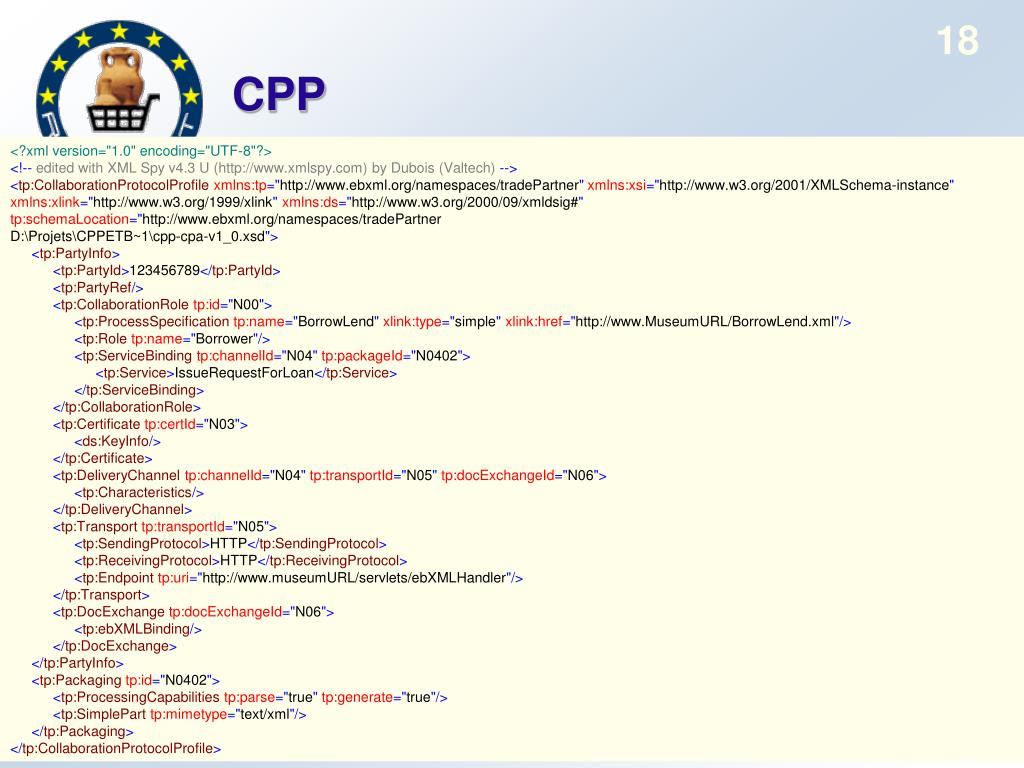

CPP

<?xml version="1.0" encoding="UTF-8"?>

<!-- edited with XML Spy v4.3 U (http://www.xmlspy.com) by Dubois (Valtech) -->

<tp:CollaborationProtocolProfile xmlns:tp="http://www.ebxml.org/namespaces/tradePartner" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xlink="http://www.w3.org/1999/xlink" xmlns:ds="http://www.w3.org/2000/09/xmldsig#" tp:schemaLocation="http://www.ebxml.org/namespaces/tradePartner

D:\Projets\CPPETB~1\cpp-cpa-v1_0.xsd">

<tp:PartyInfo>

<tp:PartyId>123456789</tp:PartyId>

<tp:PartyRef/>

<tp:CollaborationRole tp:id="N00">

<tp:ProcessSpecification tp:name="BorrowLend" xlink:type="simple" xlink:href="http://www.MuseumURL/BorrowLend.xml"/>

<tp:Role tp:name="Borrower"/>

<tp:ServiceBinding tp:channelId="N04" tp:packageId="N0402">

<tp:Service>IssueRequestForLoan</tp:Service>

</tp:ServiceBinding>

</tp:CollaborationRole>

<tp:Certificate tp:certId="N03">

<ds:KeyInfo/>

</tp:Certificate>

<tp:DeliveryChannel tp:channelId="N04" tp:transportId="N05" tp:docExchangeId="N06">

<tp:Characteristics/>

</tp:DeliveryChannel>

<tp:Transport tp:transportId="N05">

<tp:SendingProtocol>HTTP</tp:SendingProtocol>

<tp:ReceivingProtocol>HTTP</tp:ReceivingProtocol>

<tp:Endpoint tp:uri="http://www.museumURL/servlets/ebXMLHandler"/>

</tp:Transport>

<tp:DocExchange tp:docExchangeId="N06">

<tp:ebXMLBinding/>

</tp:DocExchange>

</tp:PartyInfo>

<tp:Packaging tp:id="N0402">

<tp:ProcessingCapabilities tp:parse="true" tp:generate="true"/>

<tp:SimplePart tp:mimetype="text/xml"/>

</tp:Packaging>

</tp:CollaborationProtocolProfile>

REGNET review


Ebxml registry

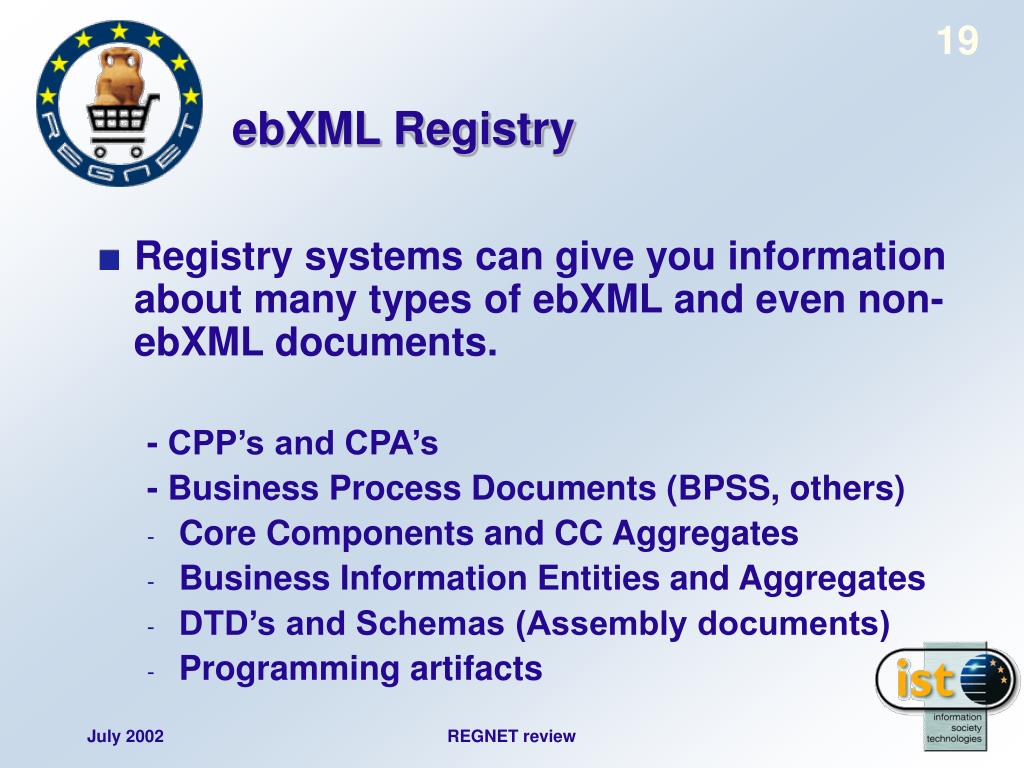

ebXML Registry

  • Registry systems can give you information about many types of ebXML and even non-ebXML documents.

    - CPP’s and CPA’s

    - Business Process Documents (BPSS, others)

    • Core Components and CC Aggregates

    • Business Information Entities and Aggregates

    • DTD’s and Schemas (Assembly documents)

    • Programming artifacts

REGNET review

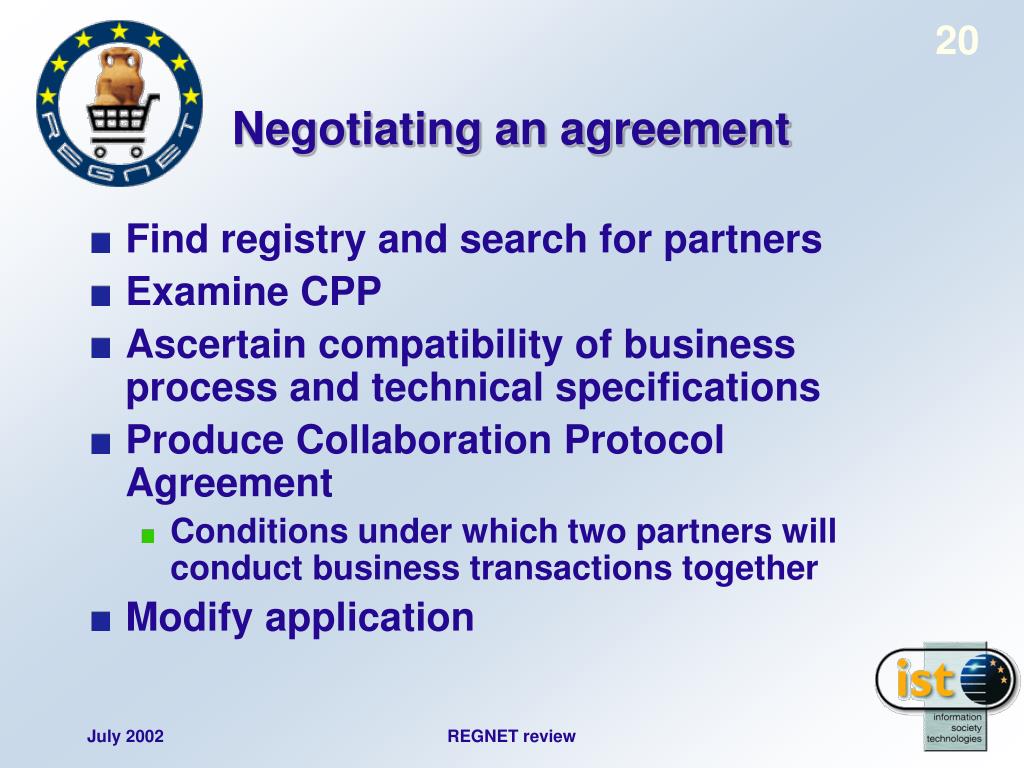

Negotiating an agreement

Negotiating an agreement

  • Find registry and search for partners

  • Examine CPP

  • Ascertain compatibility of business process and technical specifications

  • Produce Collaboration Protocol Agreement

    • Conditions under which two partners will conduct business transactions together

  • Modify application

REGNET review


Ebxml registry deploiement

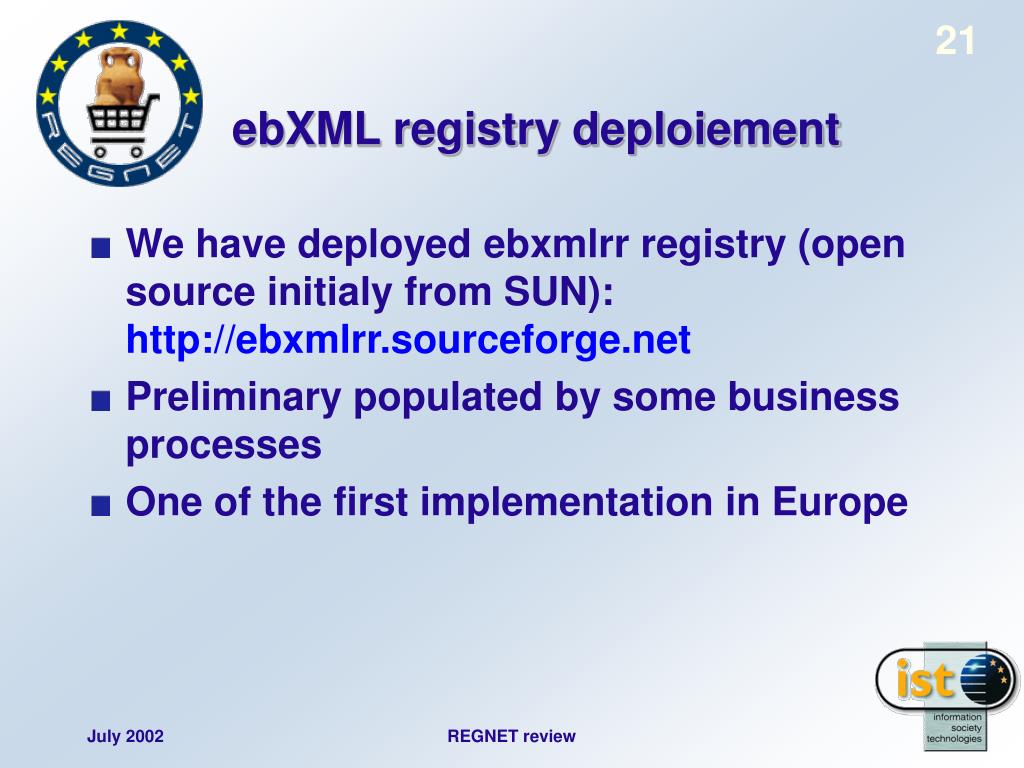

ebXML registry deploiement

  • We have deployed ebxmlrr registry (open source initialy from SUN): http://ebxmlrr.sourceforge.net

  • Preliminary populated by some business processes

  • One of the first implementation in Europe

REGNET review
