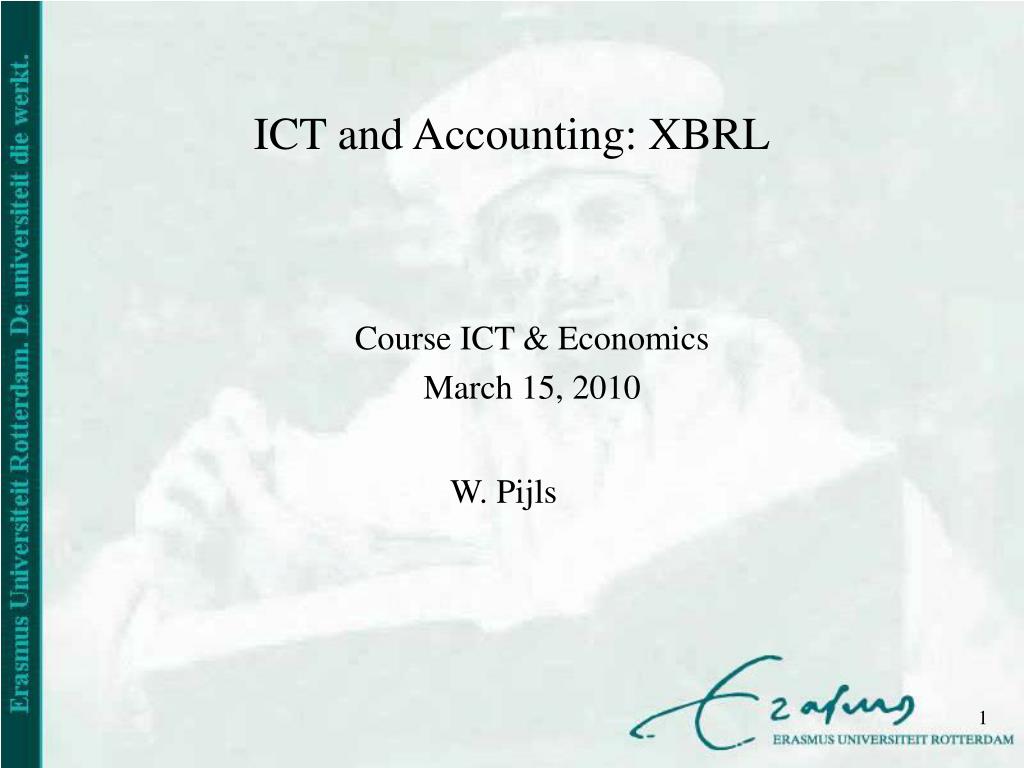

  1. Course ICT & Economics March 15, 2010 ICT and Accounting: XBRL W. Pijls

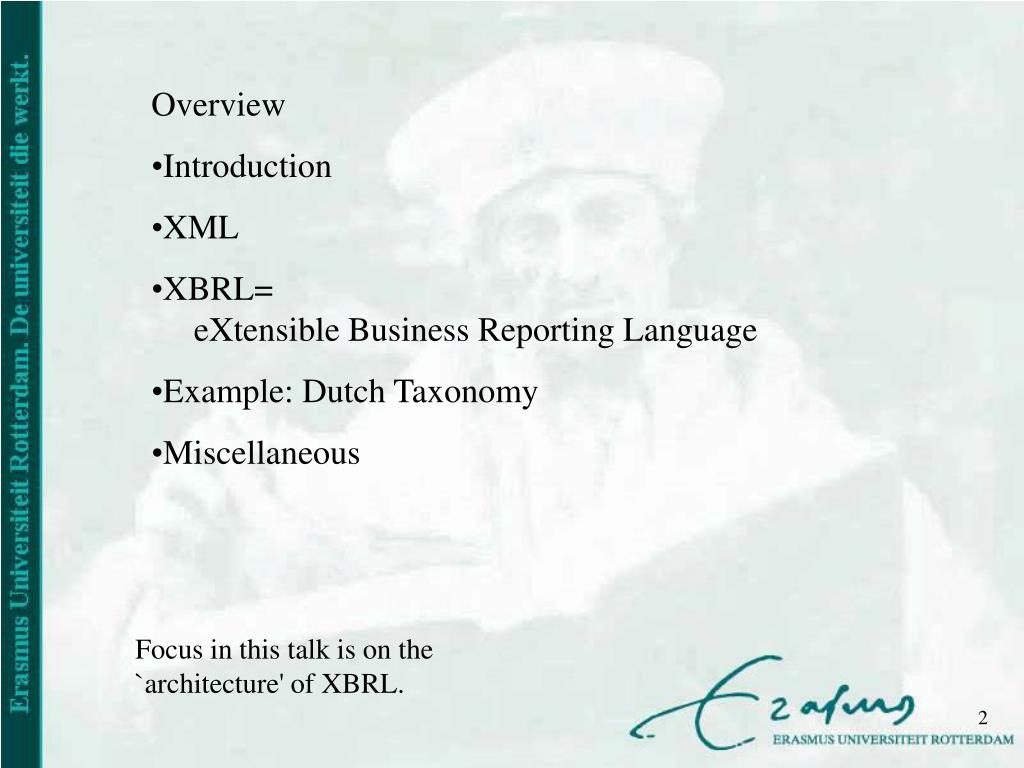

  2. Overview • Introduction • XML • XBRL= eXtensible Business Reporting Language • Example: Dutch Taxonomy • Miscellaneous Focus in this talk is on the `architecture' of XBRL.

  3. What is XBRL? XBRL is a language for financial reporting,to be used in annual reports, income statements, balance sheets. (XBRL is an open standard, comparable to EDI in logistics). XBRL was designed in 1999 by Charles Hoffman CPA. Initially XBRL-FR (FR=Financial Reporting) was designed, for external accounting. In 2005 XBRL-International published the XBRL-GL specification.(GL=Global Ledger) for internal accounting. The current version is XBRL 2.1 (differs strongly from 2.0 and 1.0 !) .see: http://www.xbrl.org/SpecRecommendations/

  4. The global organisation is XBRL International.www.xbrl.org Many countries have local XBRL organisations. In the Netherlands: XBRL-Nederland, www.xbrl-nederland.nl. Some countries have national jurisdictions governing the adoption of XBRL. In the Netherlands: XBRL Dutch Taxonomy Project or in Dutch: XBRL-NTP, www.xbrl-ntp.nl. Ministries of Finance and Justice, KvK (Chamber of Commerce), Tax service, CBS (Statistics Agency), Accounting firms (Big 4) and Banks are participants in XBRL-NTP.

  5. XBRL is based upon XML=eXtensible Markup Language Unfortunately: The specification and definition of XBRL is very complex! From the viewpoint of a computer scientist, there are several objections.

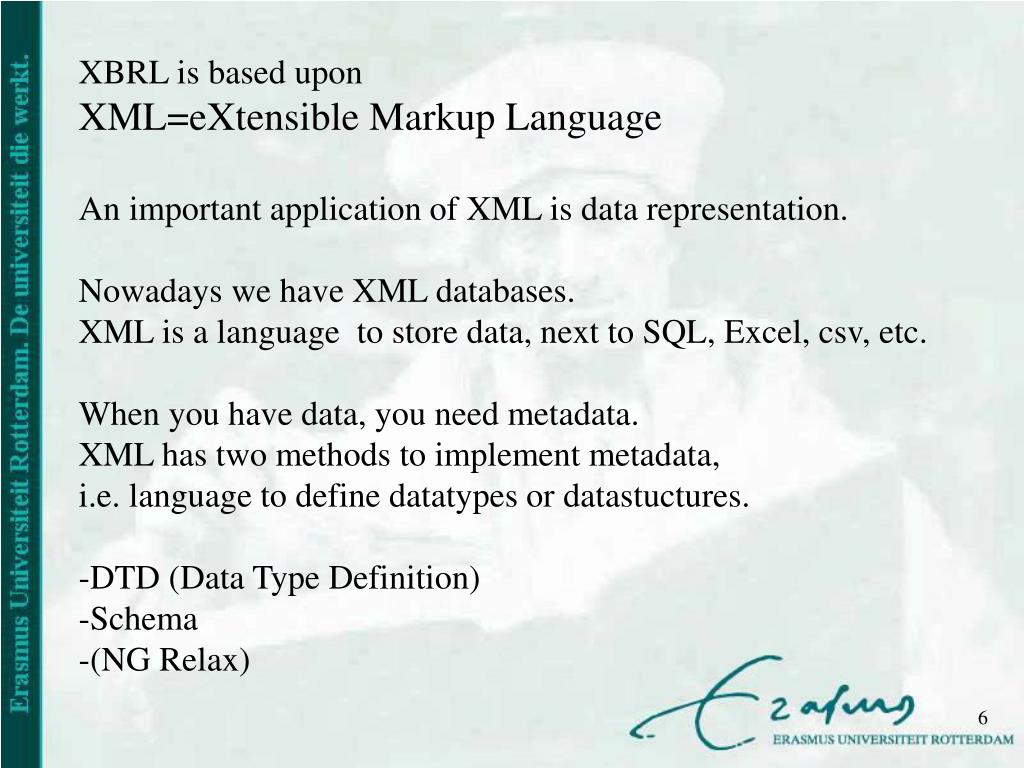

  6. XBRL is based upon XML=eXtensible Markup Language An important application of XML is data representation. Nowadays we have XML databases. XML is a language to store data, next to SQL, Excel, csv, etc. When you have data, you need metadata. XML has two methods to implement metadata, i.e. language to define datatypes or datastuctures. -DTD (Data Type Definition) -Schema -(NG Relax)

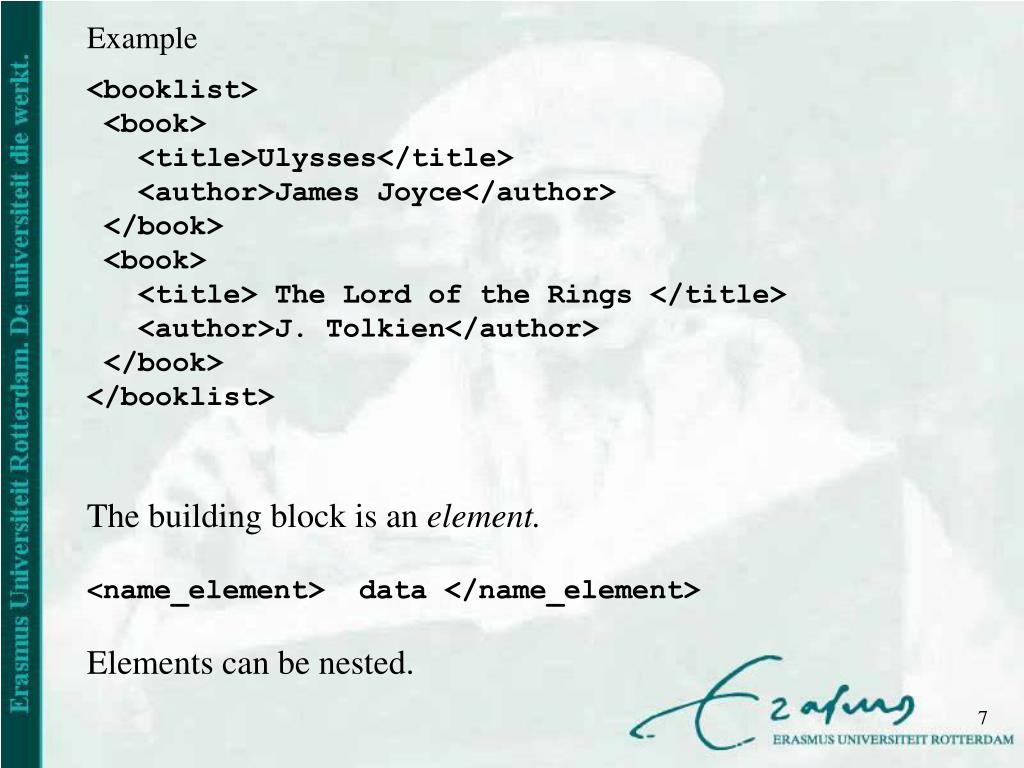

  7. Example <booklist> <book> <title>Ulysses</title> <author>James Joyce</author> </book> <book> <title> The Lord of the Rings </title> <author>J. Tolkien</author> </book></booklist> The building block is an element. <name_element> data </name_element> Elements can be nested.

  8. DTD A DTD file describes the structure of an XML file using EBNF(Extended Backus-Naur Form) is known from programming languages, which are also described by BNF. The structure of the previous XML-file: <!DOCTYPE booklist[<!ELEMENT booklist(book+)><!ELEMENT book(title, author|editor, publisher, price)><!ELEMENT title(#PCDATA)<!ELEMENT author(#PCDATA) etc. ]> PCDATA=parser character data

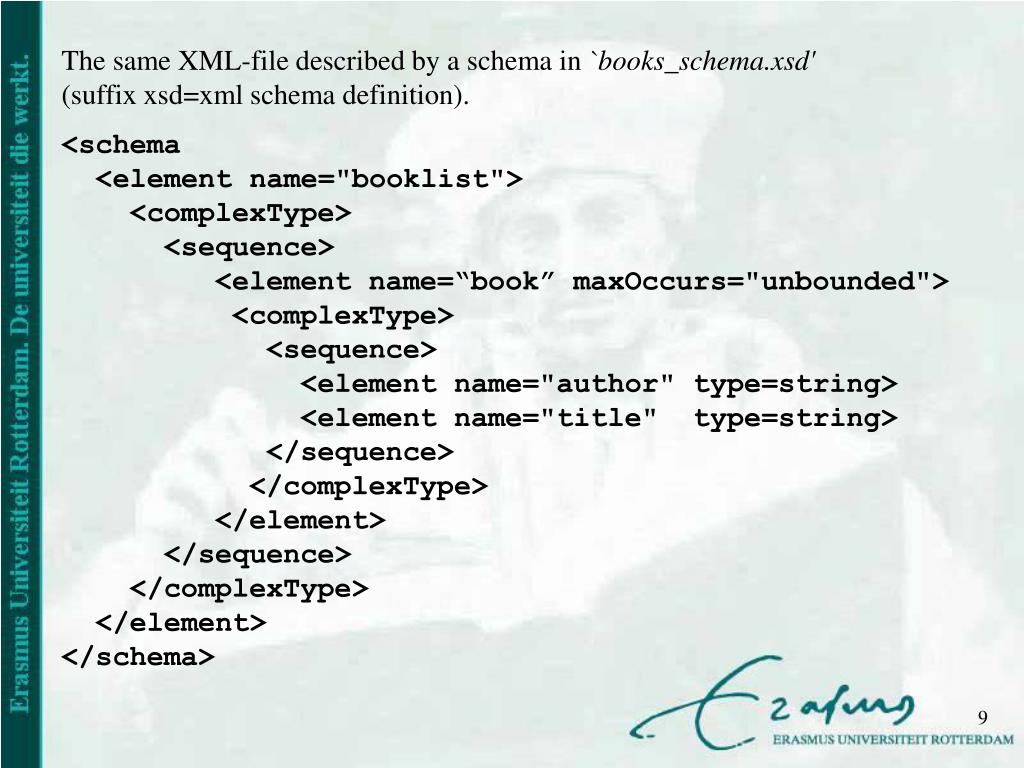

  9. The same XML-file described by a schema in `books_schema.xsd'(suffix xsd=xml schema definition). <schema <element name="booklist"> <complexType> <sequence> <element name=“book” maxOccurs="unbounded"> <complexType> <sequence> <element name="author" type=string> <element name="title" type=string> </sequence> </complexType> </element> </sequence> </complexType> </element></schema>

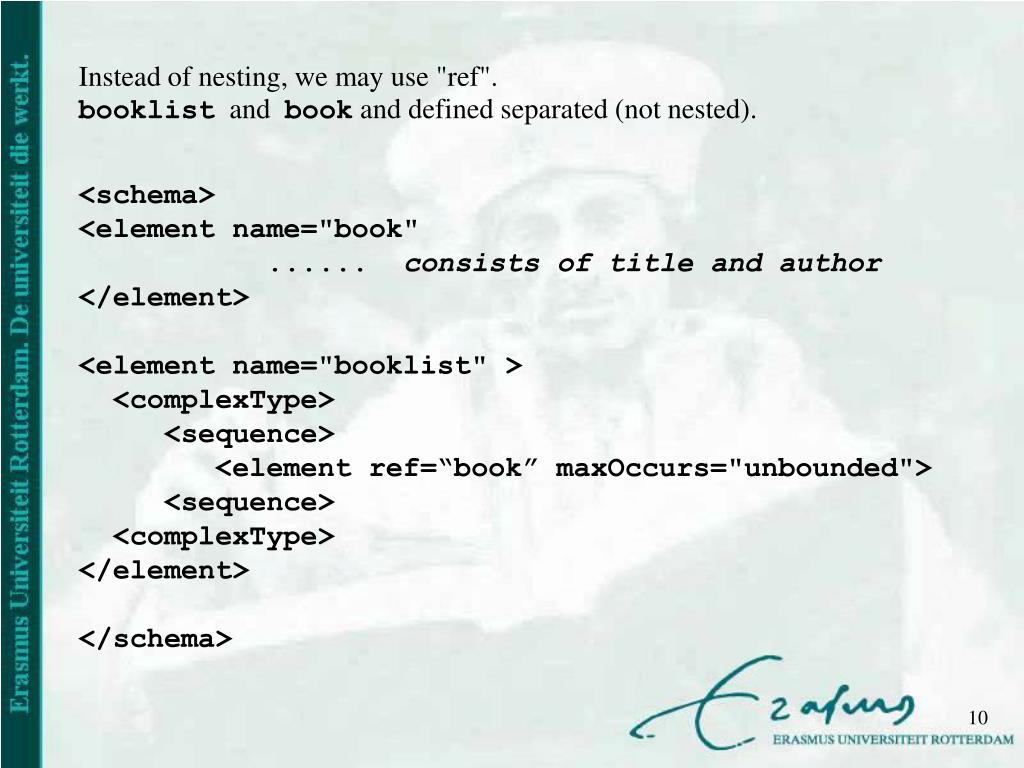

  10. Instead of nesting, we may use "ref".booklist and book and defined separated (not nested). <schema> <element name="book" ...... consists of title and author </element> <element name="booklist" ><complexType> <sequence> <element ref=“book” maxOccurs="unbounded"> <sequence> <complexType></element></schema>

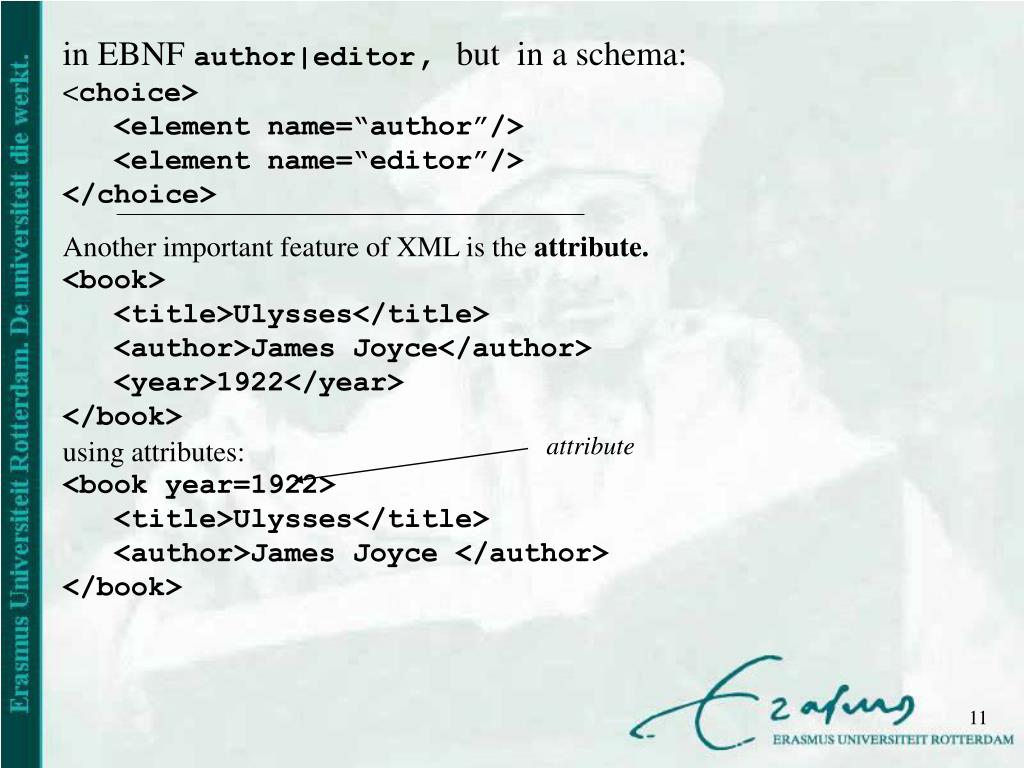

  11. in EBNF author|editor, but in a schema:<choice> <element name=“author”/> <element name=“editor”/></choice> Another important feature of XML is the attribute. <book> <title>Ulysses</title> <author>James Joyce</author> <year>1922</year></book> using attributes: <book year=1922> <title>Ulysses</title> <author>James Joyce </author></book> attribute

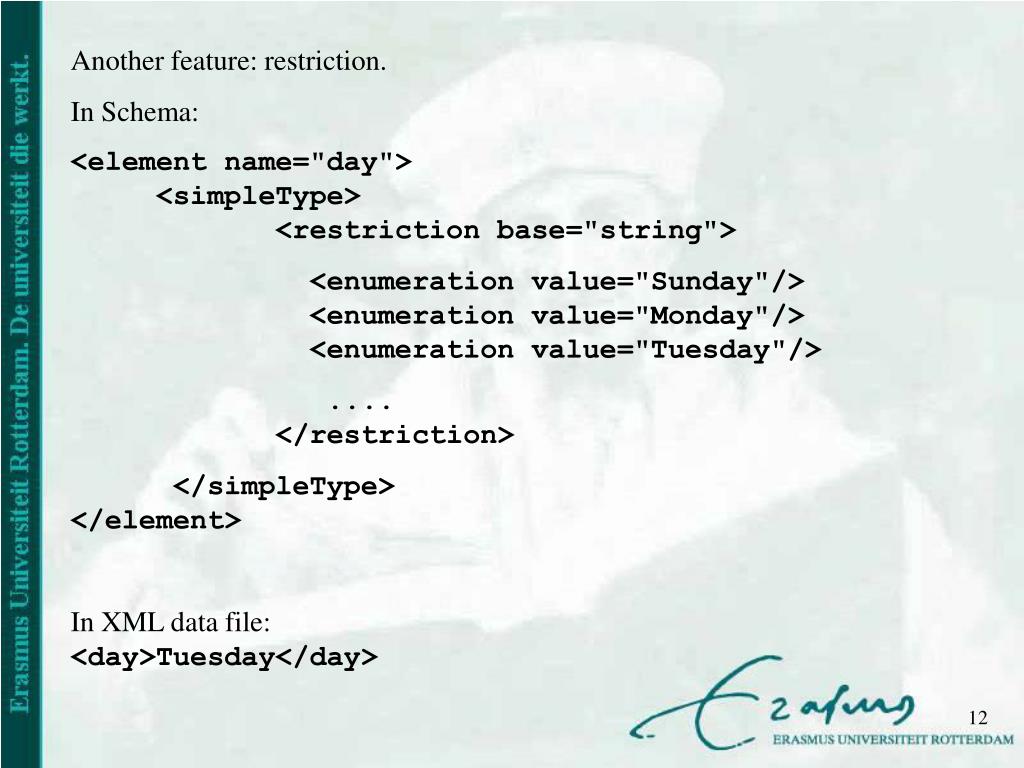

  12. Another feature: restriction. In Schema: <element name="day"> <simpleType> <restriction base="string"> <enumeration value="Sunday"/> <enumeration value="Monday"/> <enumeration value="Tuesday"/> .... </restriction> </simpleType></element> In XML data file:<day>Tuesday</day>

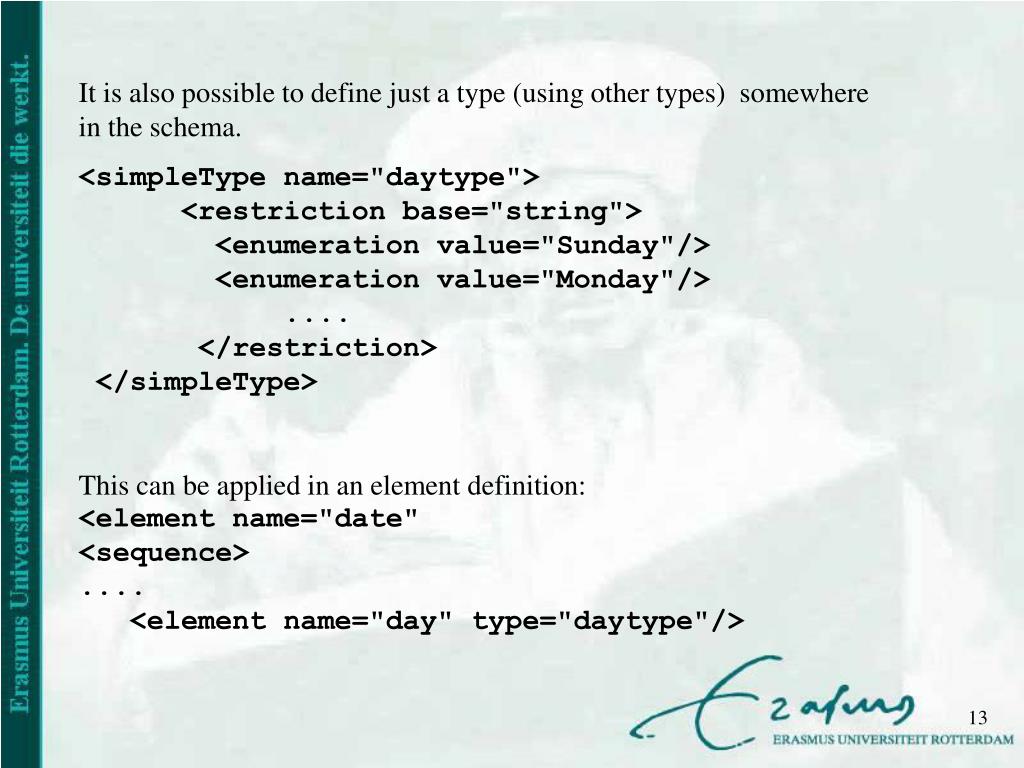

  13. It is also possible to define just a type (using other types) somewhere in the schema. <simpleType name="daytype"> <restriction base="string"> <enumeration value="Sunday"/> <enumeration value="Monday"/> .... </restriction> </simpleType> This can be applied in an element definition:<element name="date" <sequence> .... <element name="day" type="daytype"/>

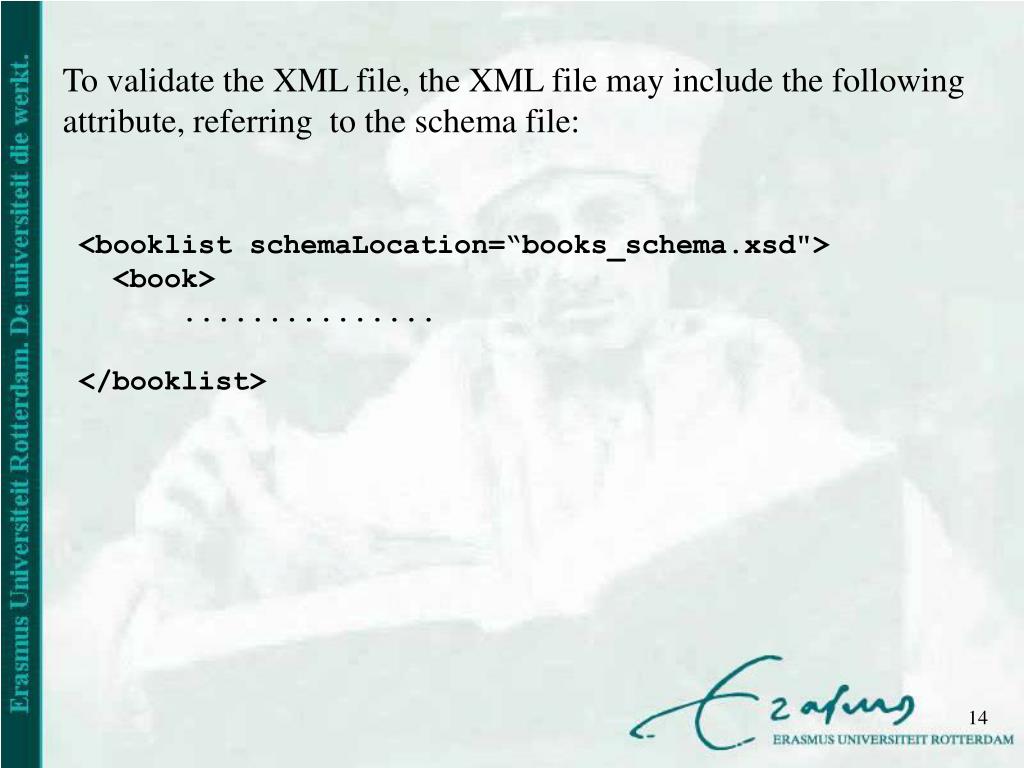

  14. To validate the XML file, the XML file may include the following attribute, referring to the schema file: <booklist schemaLocation=“books_schema.xsd"> <book> ............... </booklist>

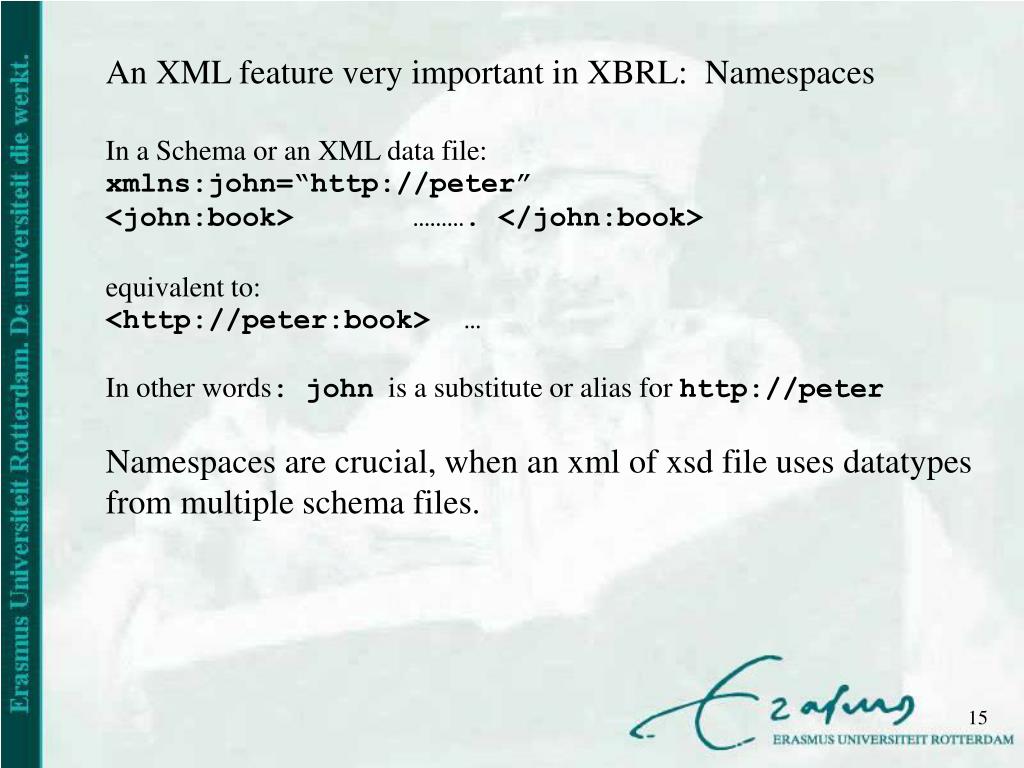

  15. An XML feature very important in XBRL: Namespaces • In a Schema or an XML data file: • xmlns:john=“http://peter”<john:book> ………. </john:book> • equivalent to:<http://peter:book> … • In other words: john is a substitute or alias for http://peter • Namespaces are crucial, when an xml of xsd file uses datatypes from multiple schema files.

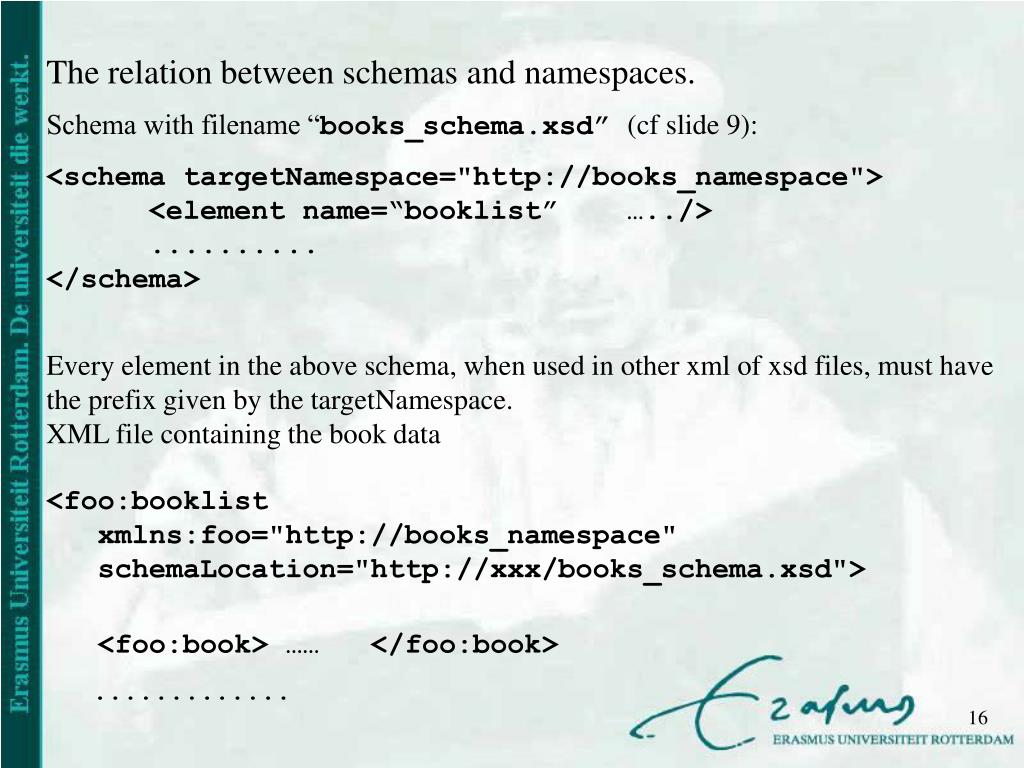

  16. The relation between schemas and namespaces. Schema with filename “books_schema.xsd” (cf slide 9): <schema targetNamespace="http://books_namespace"> <element name=“booklist” …../> ..........</schema> Every element in the above schema, when used in other xml of xsd files, must have the prefix given by the targetNamespace.XML file containing the book data <foo:booklist xmlns:foo="http://books_namespace" schemaLocation="http://xxx/books_schema.xsd"> <foo:book> …… </foo:book> .............

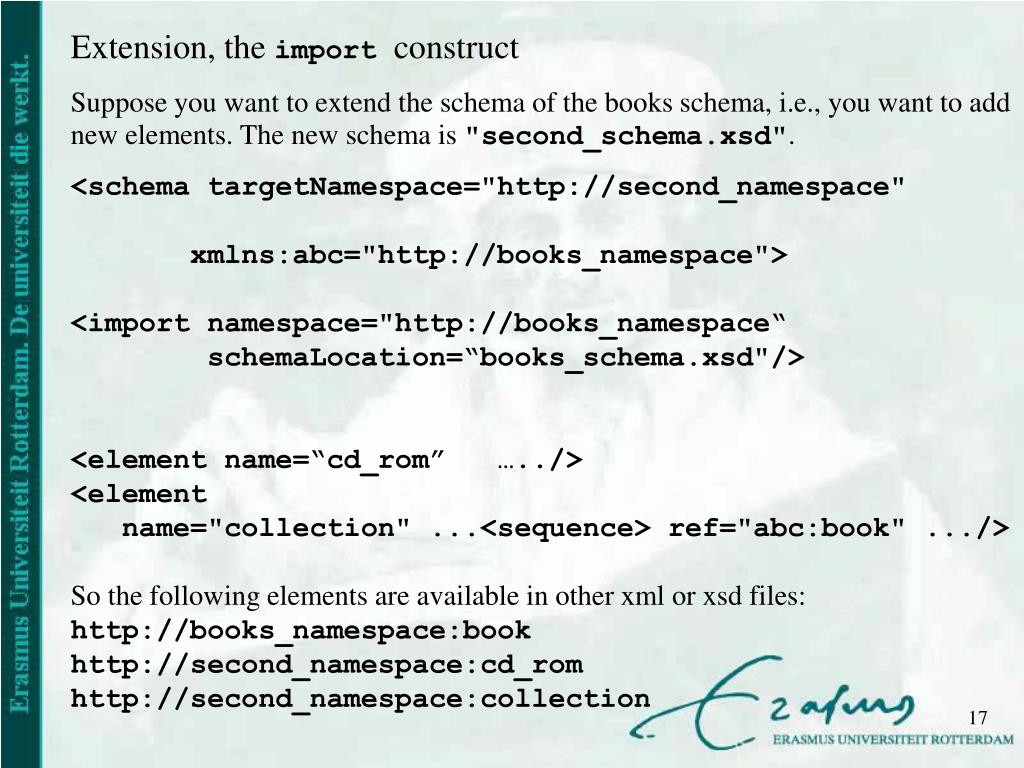

  17. Extension, the import construct Suppose you want to extend the schema of the books schema, i.e., you want to add new elements. The new schema is "second_schema.xsd". <schema targetNamespace="http://second_namespace" xmlns:abc="http://books_namespace"><import namespace="http://books_namespace“ schemaLocation=“books_schema.xsd"/> <element name=“cd_rom” …../> <element name="collection" ...<sequence> ref="abc:book" .../> So the following elements are available in other xml or xsd files: http://books_namespace:book http://second_namespace:cd_rom http://second_namespace:collection

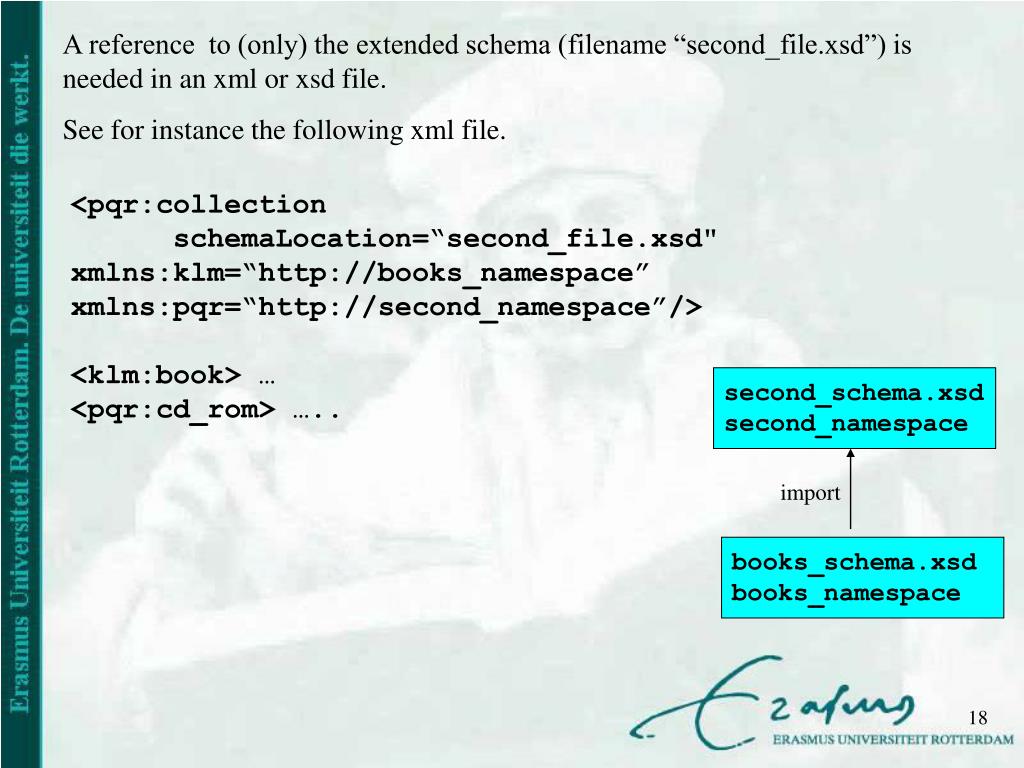

  18. A reference to (only) the extended schema (filename “second_file.xsd”) is needed in an xml or xsd file. See for instance the following xml file. <pqr:collection schemaLocation=“second_file.xsd"xmlns:klm=“http://books_namespace”xmlns:pqr=“http://second_namespace”/> <klm:book> …<pqr:cd_rom> ….. second_schema.xsdsecond_namespace import books_schema.xsdbooks_namespace

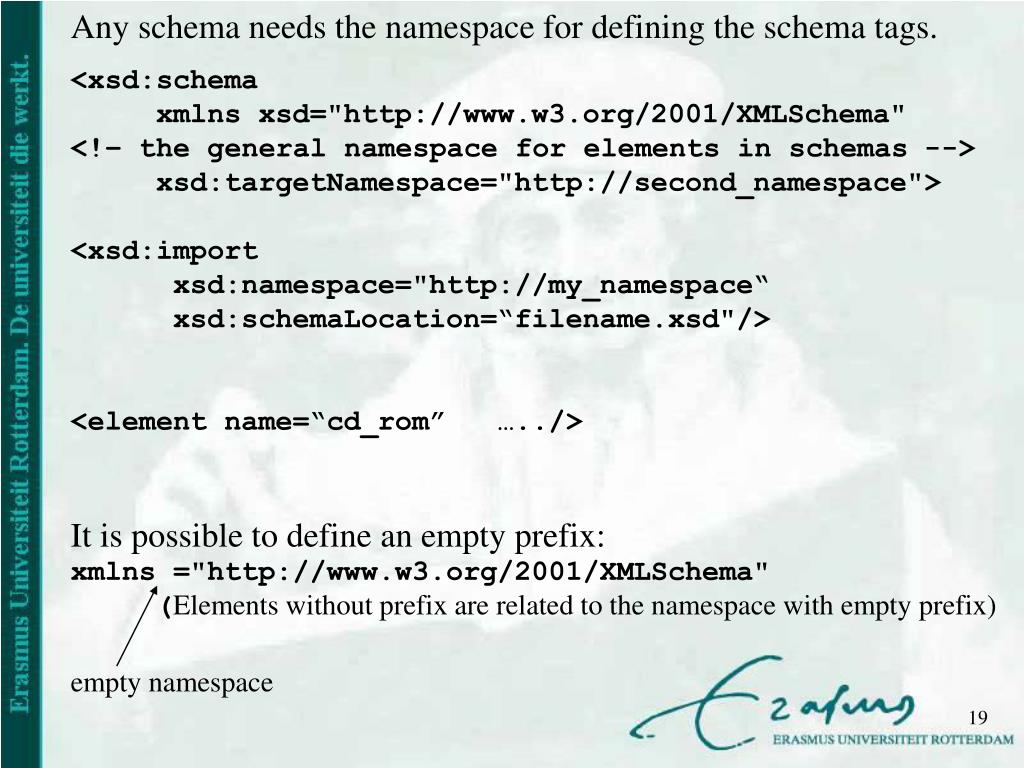

  19. Any schema needs the namespace for defining the schema tags. <xsd:schema xmlns xsd="http://www.w3.org/2001/XMLSchema"<!– the general namespace for elements in schemas --> xsd:targetNamespace="http://second_namespace"> <xsd:import xsd:namespace="http://my_namespace“ xsd:schemaLocation=“filename.xsd"/> <element name=“cd_rom” …../> It is possible to define an empty prefix: xmlns ="http://www.w3.org/2001/XMLSchema" (Elements without prefix are related to the namespace with empty prefix) empty namespace

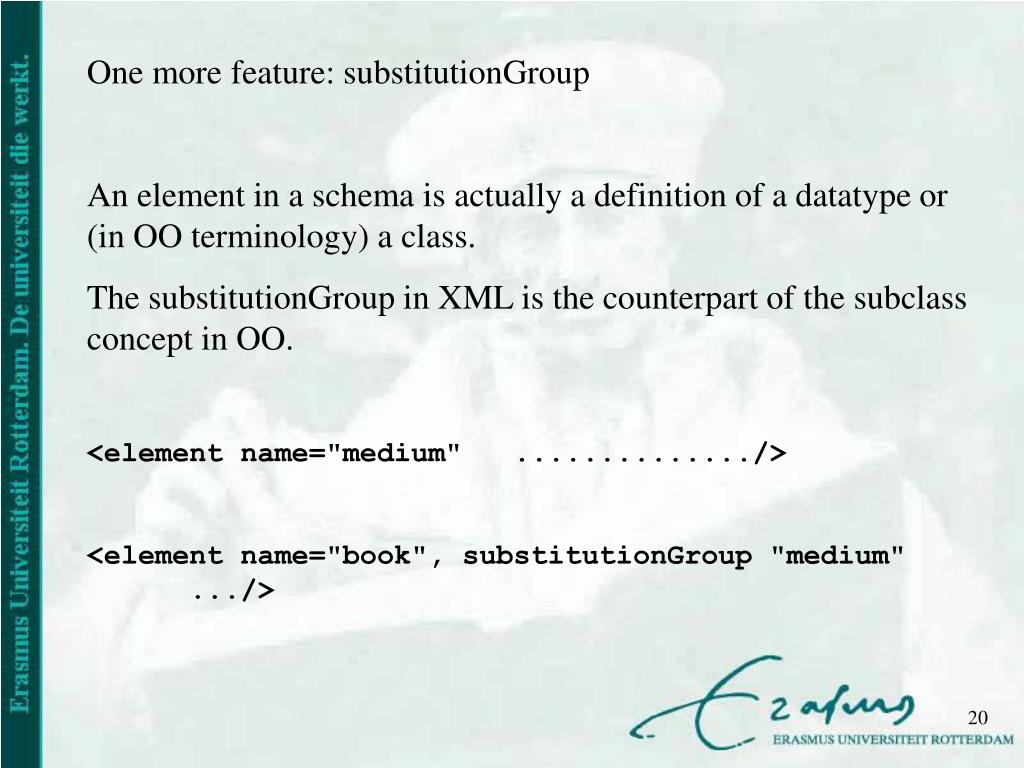

  20. One more feature: substitutionGroup An element in a schema is actually a definition of a datatype or (in OO terminology) a class. The substitutionGroup in XML is the counterpart of the subclass concept in OO. <element name="medium" ............../> <element name="book", substitutionGroup "medium" .../>

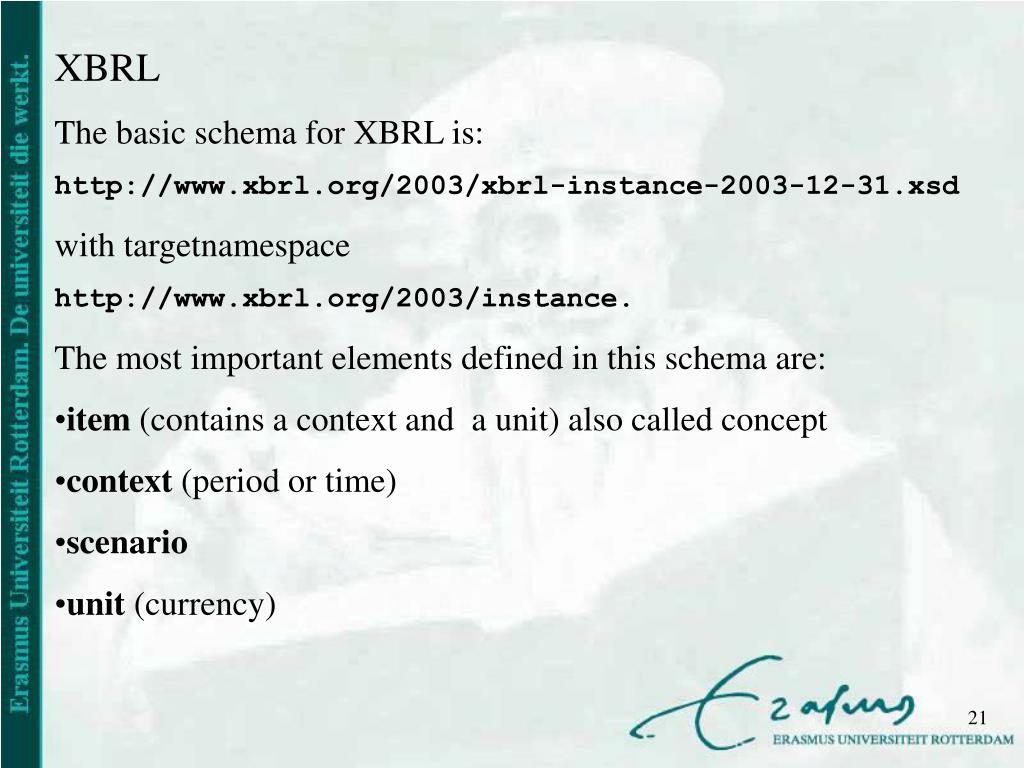

  21. XBRL • The basic schema for XBRL is: • http://www.xbrl.org/2003/xbrl-instance-2003-12-31.xsd • with targetnamespace • http://www.xbrl.org/2003/instance. • The most important elements defined in this schema are: • item (contains a context and a unit) also called concept • context (period or time) • scenario • unit (currency)

  22. A common xbrl schema (.xsd –file) contains financial items. Here are some fragments of a common .xsd-file: targetnamespace"my_Taxonomy" xmlns:xbrli="http://www.xbrl.org/2003/instance" <import namespace="http://www.xbrl.org/2003/instance" schemaLocation="http://www.xbrl.org/2003/ xbrl-instance-2003-12-31.xsd" /> <element id="Assets" name="Assets" substitutionGroup="xbrli:item" type="xbrli:monetaryItemType" xbrli:periodType="instant"/>

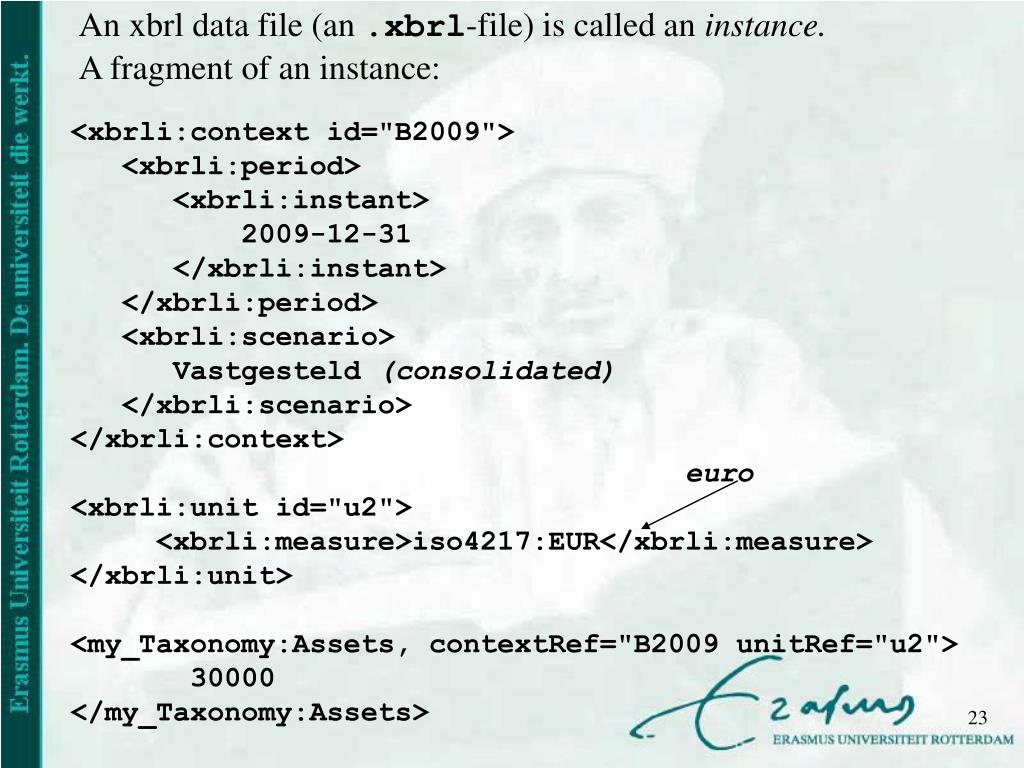

  23. An xbrl data file (an .xbrl-file) is called an instance.A fragment of an instance: <xbrli:context id="B2009"> <xbrli:period> <xbrli:instant> 2009-12-31 </xbrli:instant> </xbrli:period> <xbrli:scenario> Vastgesteld (consolidated) </xbrli:scenario> </xbrli:context> euro <xbrli:unit id="u2"> <xbrli:measure>iso4217:EUR</xbrli:measure> </xbrli:unit> <my_Taxonomy:Assets, contextRef="B2009 unitRef="u2"> 30000 </my_Taxonomy:Assets>

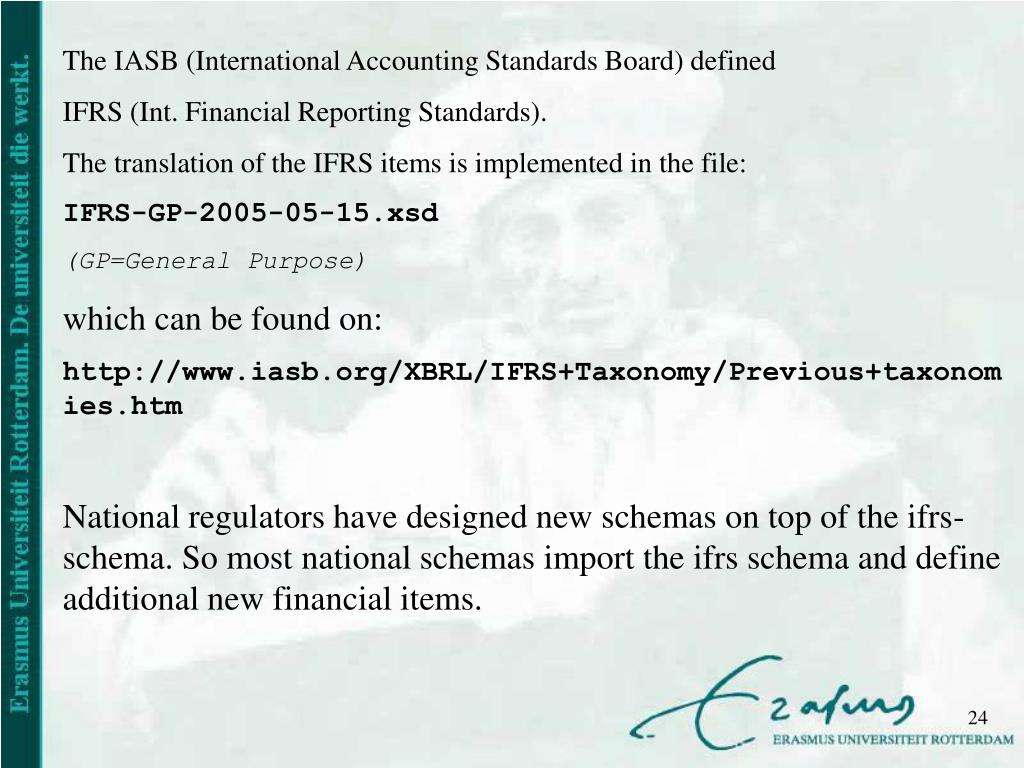

  24. The IASB (International Accounting Standards Board) defined IFRS (Int. Financial Reporting Standards). The translation of the IFRS items is implemented in the file: IFRS-GP-2005-05-15.xsd (GP=General Purpose) which can be found on: http://www.iasb.org/XBRL/IFRS+Taxonomy/Previous+taxonomies.htm National regulators have designed new schemas on top of the ifrs-schema. So most national schemas import the ifrs schema and define additional new financial items.

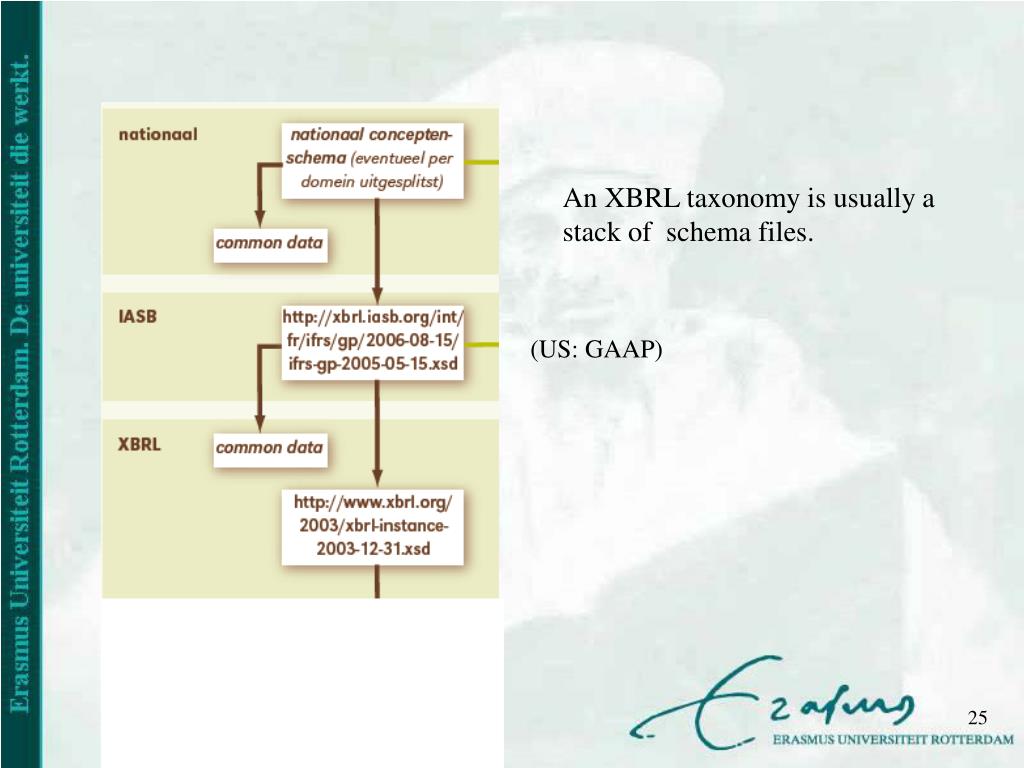

  25. An XBRL taxonomy is usually a stack of schema files. (US: GAAP)

  26. An xbrl schema is usually a long list of items (more formally: a list of elements where each element belongs to the substitutionGroup `xbrli:item'). An instance (=xbrl data file) consists usually of -some units (currencies) -some contexts (periods of instants) -a long list of items (with a unit and a context as attributes) The global stucture of a schema and an instance is linear, i.e., there is hardly any nesting.

  27. A set of XBRL metadata is called a Taxonomy.(or DTS=Discoverable Taxonomy Set) • A taxonomy consists of (one or more) schema(s) and a set of linkbases. A schema refers to some linkbases. • Five types of linkbases. • Label linkbase • Presentation linkbase • Calculation linkbase • Reference linkbase • Definition linkbase • The next slides show parts of a label and a presentation linkbase

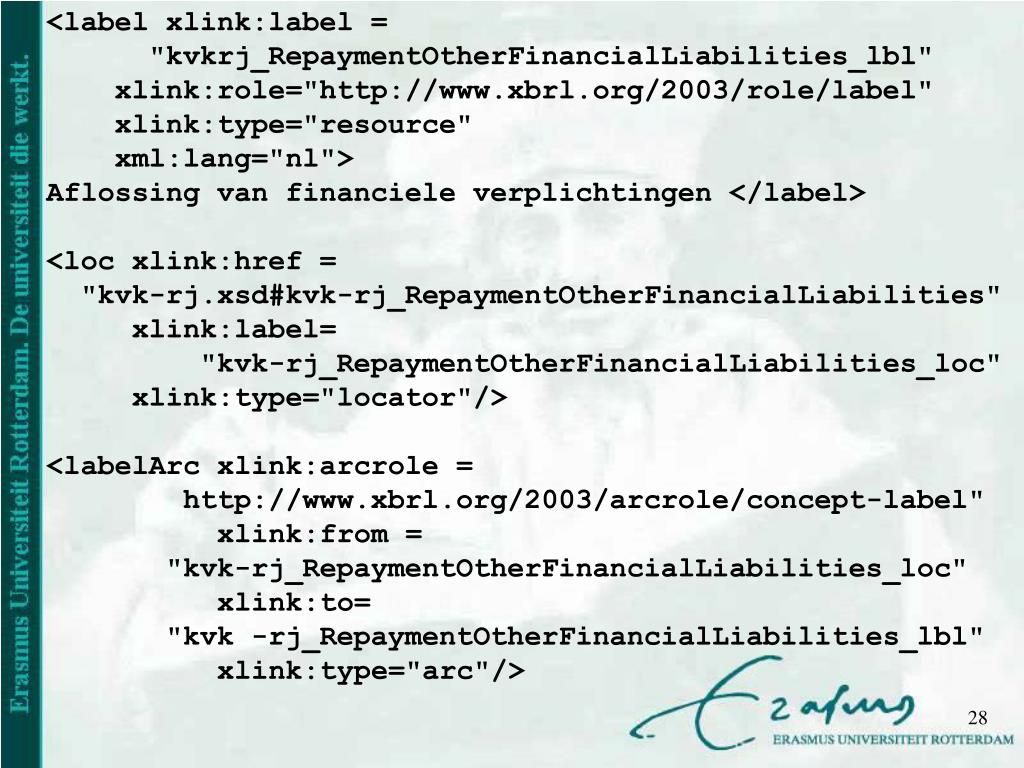

  28. <label xlink:label = "kvkrj_RepaymentOtherFinancialLiabilities_lbl" xlink:role="http://www.xbrl.org/2003/role/label" xlink:type="resource" xml:lang="nl">Aflossing van financiele verplichtingen </label> <loc xlink:href = "kvk-rj.xsd#kvk-rj_RepaymentOtherFinancialLiabilities" xlink:label= "kvk-rj_RepaymentOtherFinancialLiabilities_loc" xlink:type="locator"/> <labelArc xlink:arcrole = http://www.xbrl.org/2003/arcrole/concept-label" xlink:from = "kvk-rj_RepaymentOtherFinancialLiabilities_loc" xlink:to= "kvk -rj_RepaymentOtherFinancialLiabilities_lbl" xlink:type="arc"/>

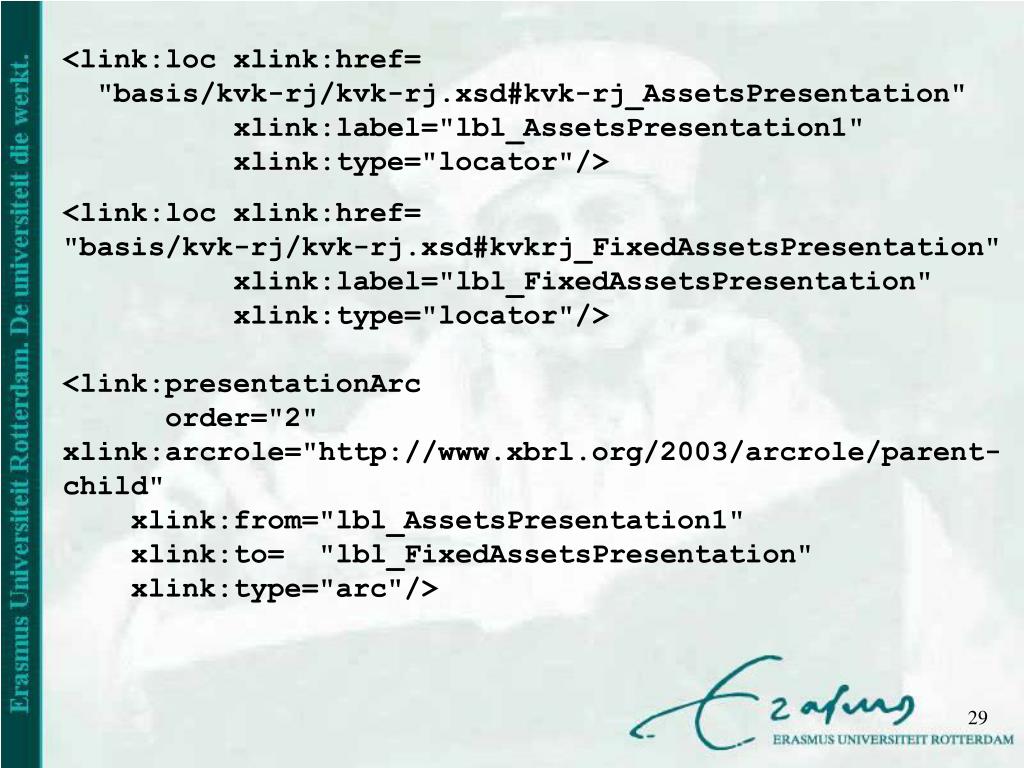

  29. <link:loc xlink:href= "basis/kvk-rj/kvk-rj.xsd#kvk-rj_AssetsPresentation" xlink:label="lbl_AssetsPresentation1" xlink:type="locator"/> <link:loc xlink:href= "basis/kvk-rj/kvk-rj.xsd#kvkrj_FixedAssetsPresentation" xlink:label="lbl_FixedAssetsPresentation" xlink:type="locator"/> <link:presentationArc order="2" xlink:arcrole="http://www.xbrl.org/2003/arcrole/parent-child" xlink:from="lbl_AssetsPresentation1" xlink:to= "lbl_FixedAssetsPresentation" xlink:type="arc"/>

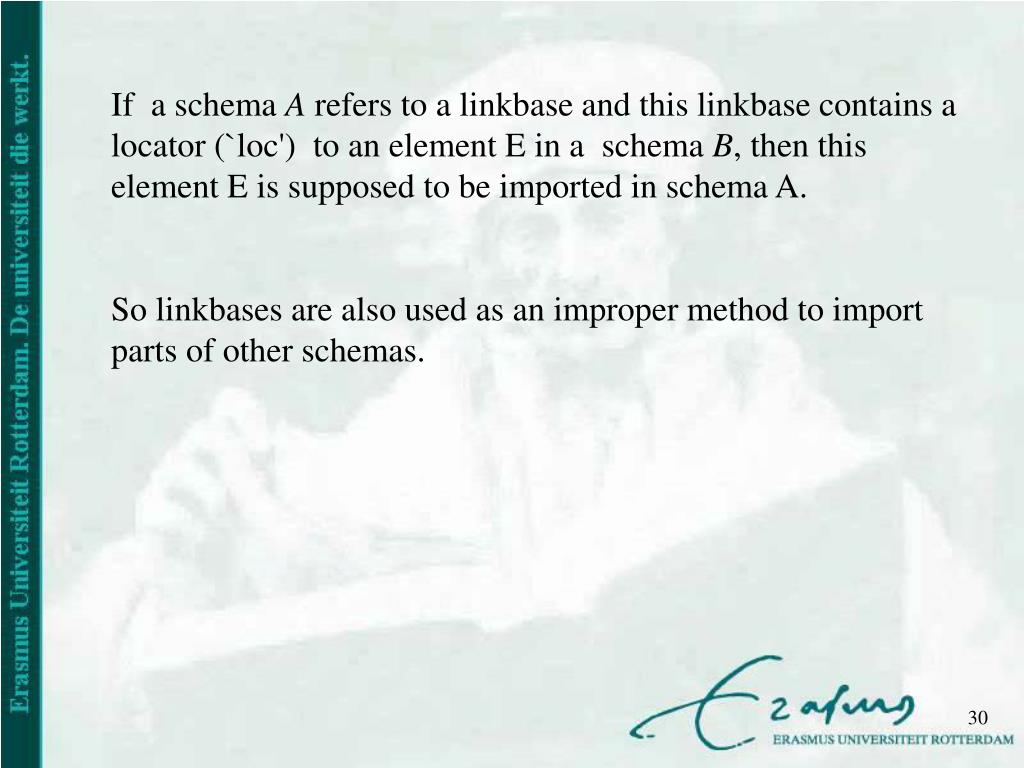

  30. If a schema A refers to a linkbase and this linkbase contains a locator (`loc') to an element E in a schema B, then this element E is supposed to be imported in schema A. So linkbases are also used as an improper method to import parts of other schemas.

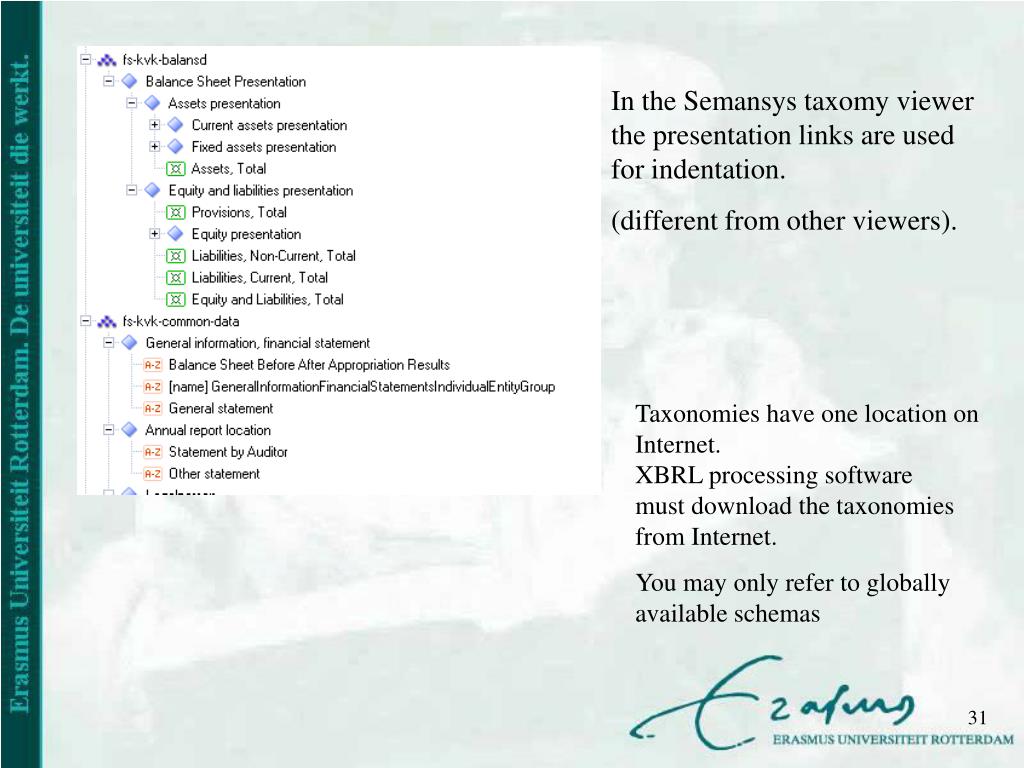

  31. In the Semansys taxomy viewer the presentation links are used for indentation. (different from other viewers). Taxonomies have one location on Internet.XBRL processing software must download the taxonomies from Internet. You may only refer to globally available schemas

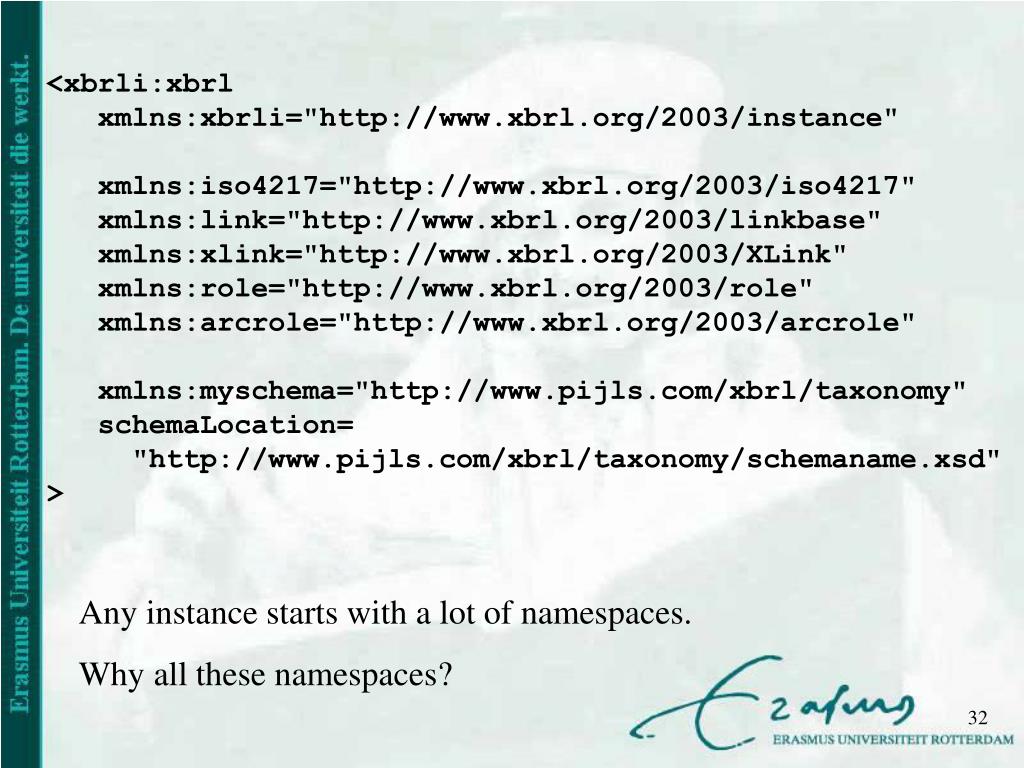

  32. <xbrli:xbrl xmlns:xbrli="http://www.xbrl.org/2003/instance" xmlns:iso4217="http://www.xbrl.org/2003/iso4217" xmlns:link="http://www.xbrl.org/2003/linkbase" xmlns:xlink="http://www.xbrl.org/2003/XLink" xmlns:role="http://www.xbrl.org/2003/role" xmlns:arcrole="http://www.xbrl.org/2003/arcrole" xmlns:myschema="http://www.pijls.com/xbrl/taxonomy" schemaLocation= "http://www.pijls.com/xbrl/taxonomy/schemaname.xsd" > Any instance starts with a lot of namespaces. Why all these namespaces?

  33. Software. There are several XBRL tools available which show and construct taxonomies and instances in a human readable style. -Altova MissionKit, www.altova.com -Fujitsu, http://software.fujitsu.com/en/interstage-xwand/ activity/xbrltools/index.html--Semanys (Zoetermeer) www.semanys.com -Reporting Standard, http://www.reportingstandard.com/ -XBRL core (open source), java libraryhttp://sourceforge.net/projects/xbrlcore/

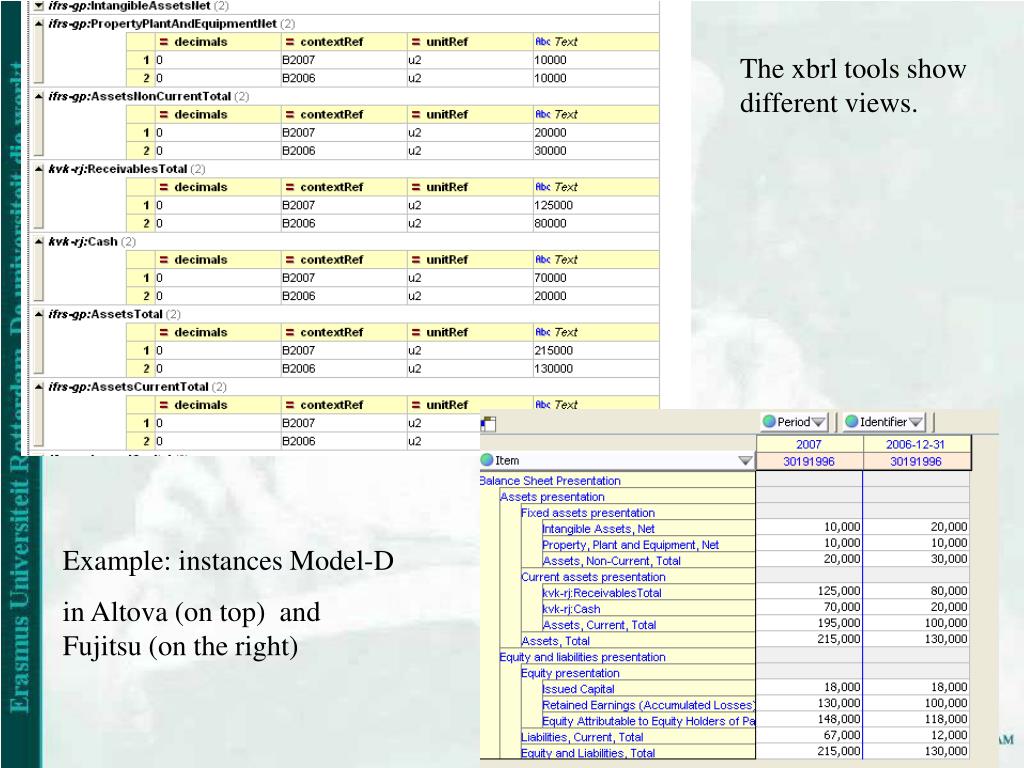

  34. The xbrl tools show different views. Example: instances Model-D in Altova (on top) and Fujitsu (on the right)

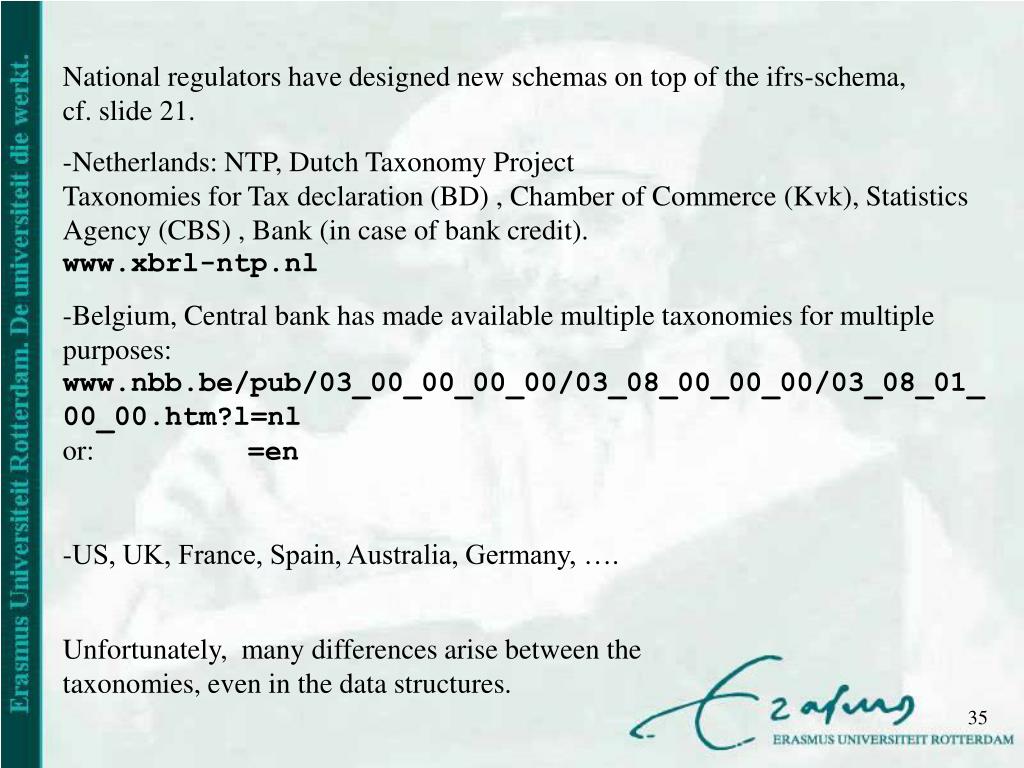

  35. National regulators have designed new schemas on top of the ifrs-schema, cf. slide 21. -Netherlands: NTP, Dutch Taxonomy ProjectTaxonomies for Tax declaration (BD) , Chamber of Commerce (Kvk), Statistics Agency (CBS) , Bank (in case of bank credit). www.xbrl-ntp.nl -Belgium, Central bank has made available multiple taxonomies for multiple purposes:www.nbb.be/pub/03_00_00_00_00/03_08_00_00_00/03_08_01_00_00.htm?l=nlor: =en -US, UK, France, Spain, Australia, Germany, …. Unfortunately, many differences arise between the taxonomies, even in the data structures.

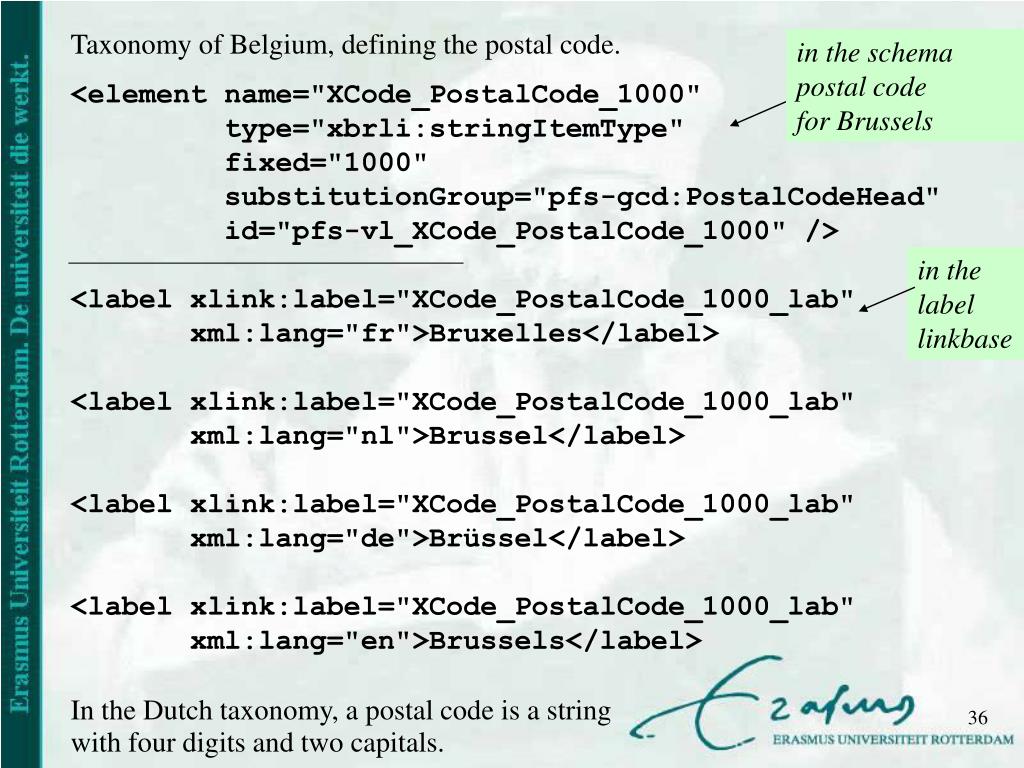

  36. Taxonomy of Belgium, defining the postal code. <element name="XCode_PostalCode_1000" type="xbrli:stringItemType" fixed="1000" substitutionGroup="pfs-gcd:PostalCodeHead" id="pfs-vl_XCode_PostalCode_1000" /> <label xlink:label="XCode_PostalCode_1000_lab" xml:lang="fr">Bruxelles</label> <label xlink:label="XCode_PostalCode_1000_lab" xml:lang="nl">Brussel</label> <label xlink:label="XCode_PostalCode_1000_lab" xml:lang="de">Brüssel</label> <label xlink:label="XCode_PostalCode_1000_lab" xml:lang="en">Brussels</label> In the Dutch taxonomy, a postal code is a string with four digits and two capitals. in the schemapostal codefor Brussels in thelabel linkbase

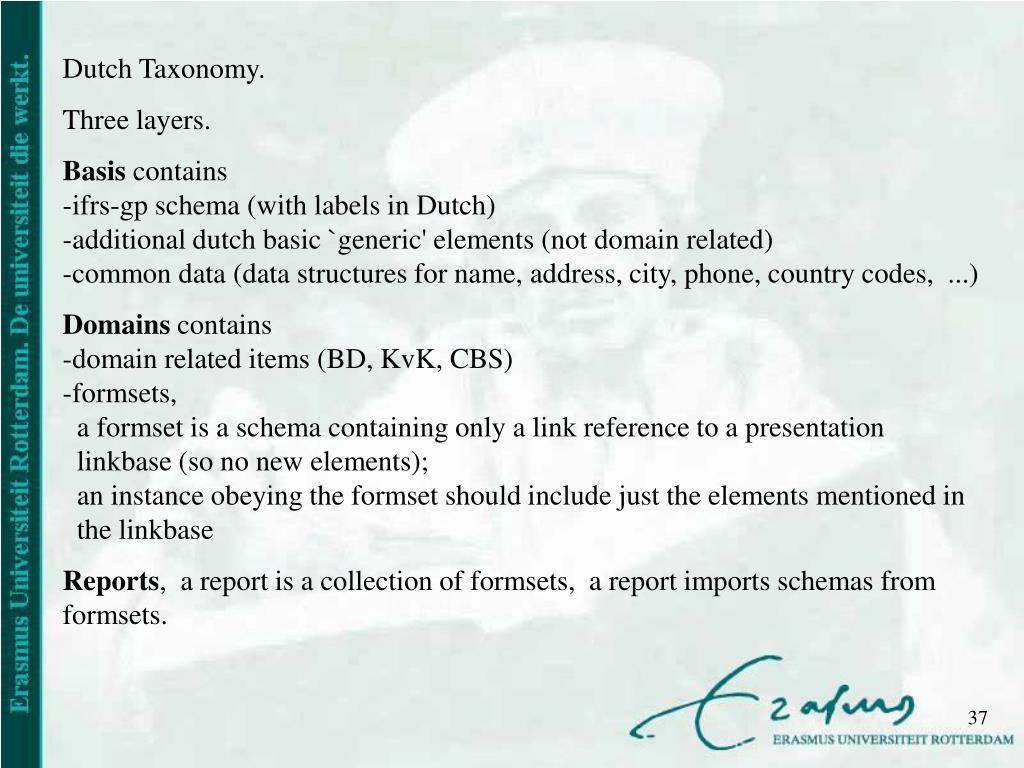

  37. Dutch Taxonomy. Three layers. Basis contains -ifrs-gp schema (with labels in Dutch)-additional dutch basic `generic' elements (not domain related)-common data (data structures for name, address, city, phone, country codes, ...) Domains contains-domain related items (BD, KvK, CBS)-formsets, a formset is a schema containing only a link reference to a presentation linkbase (so no new elements); an instance obeying the formset should include just the elements mentioned in the linkbase Reports, a report is a collection of formsets, a report imports schemas from formsets.

  38. XBRL in Belgium

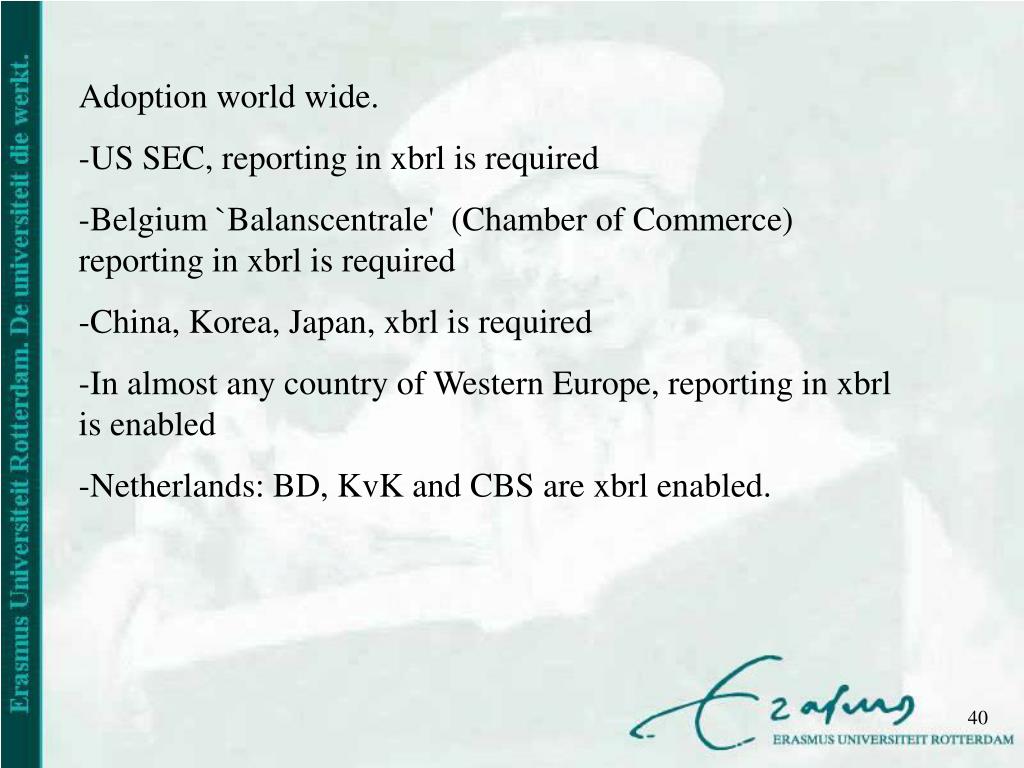

  39. Adoption world wide. -US SEC, reporting in xbrl is required -Belgium `Balanscentrale' (Chamber of Commerce) reporting in xbrl is required -China, Korea, Japan, xbrl is required -In almost any country of Western Europe, reporting in xbrl is enabled -Netherlands: BD, KvK and CBS are xbrl enabled.

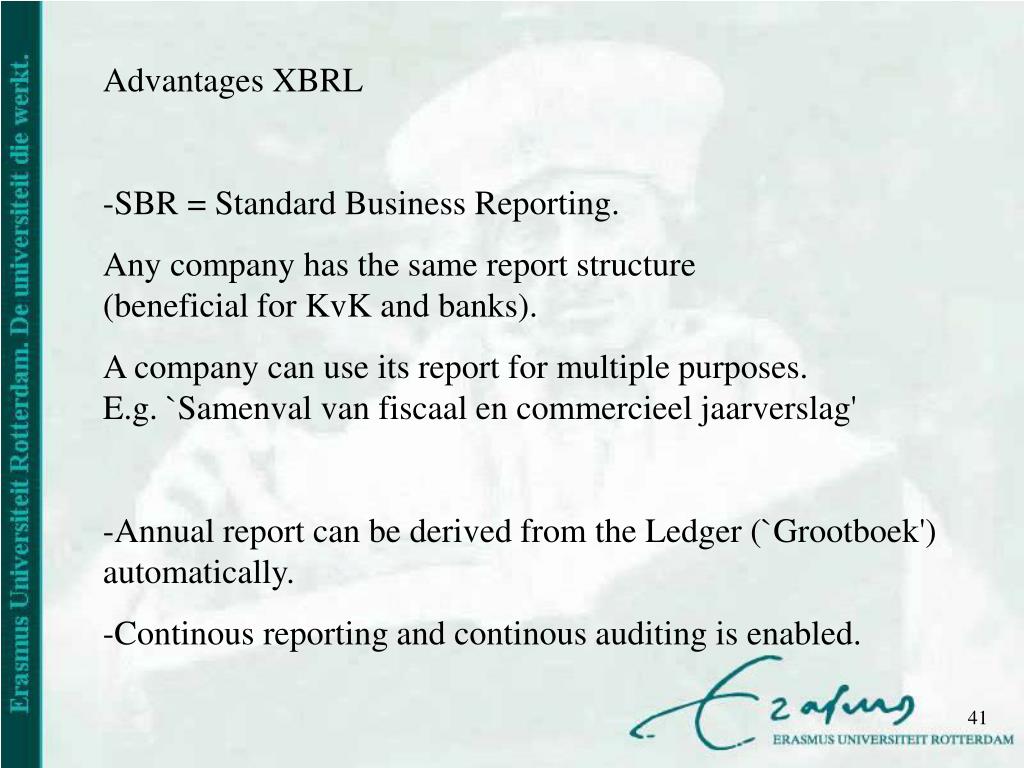

  40. Advantages XBRL -SBR = Standard Business Reporting. Any company has the same report structure(beneficial for KvK and banks). A company can use its report for multiple purposes.E.g. `Samenval van fiscaal en commercieel jaarverslag' -Annual report can be derived from the Ledger (`Grootboek') automatically. -Continous reporting and continous auditing is enabled.

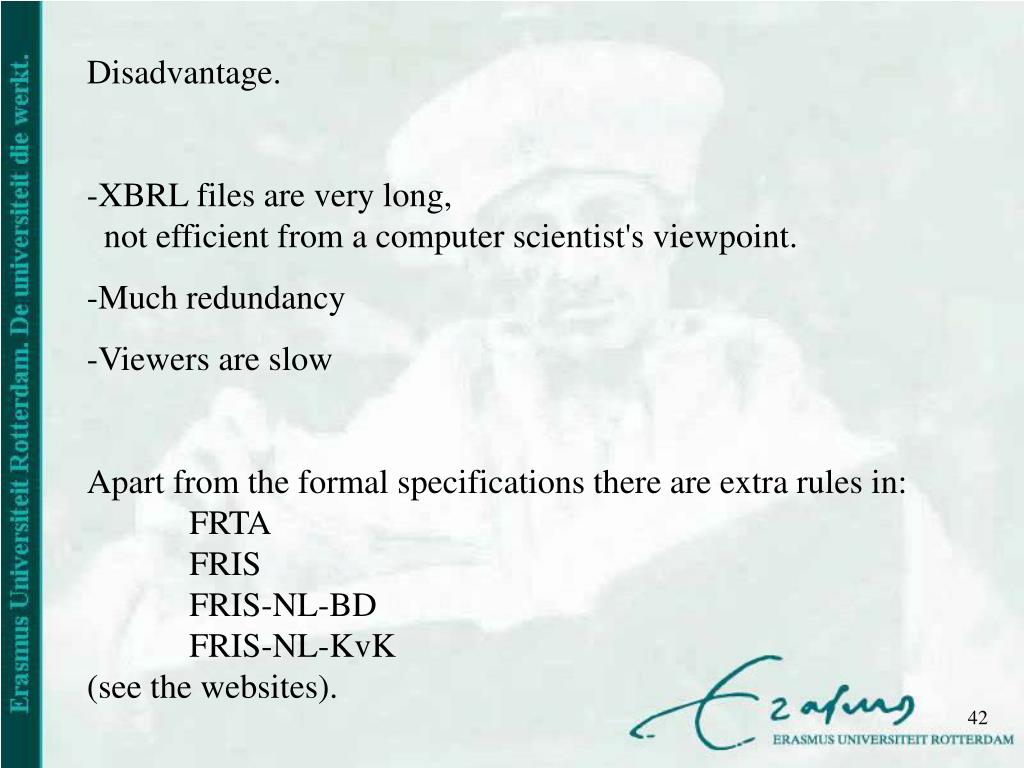

  41. Disadvantage. -XBRL files are very long, not efficient from a computer scientist's viewpoint. -Much redundancy -Viewers are slow Apart from the formal specifications there are extra rules in: FRTA FRIS FRIS-NL-BD FRIS-NL-KvK (see the websites).

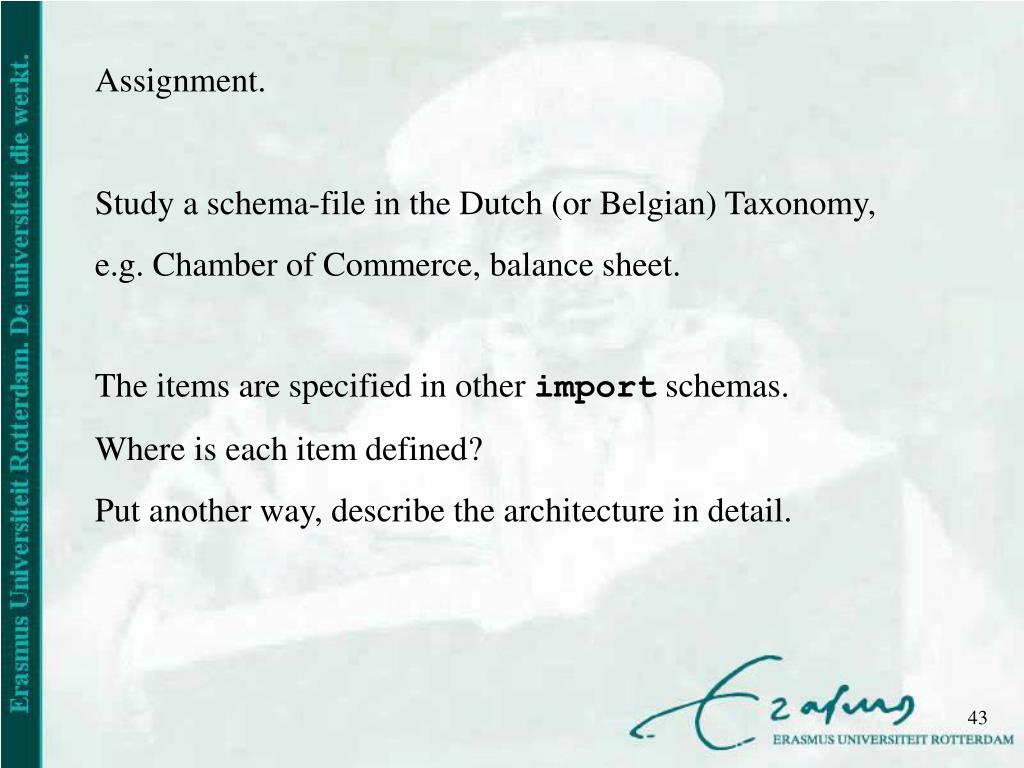

  42. Assignment. Study a schema-file in the Dutch (or Belgian) Taxonomy, e.g. Chamber of Commerce, balance sheet. The items are specified in other import schemas. Where is each item defined? Put another way, describe the architecture in detail.
