Advantages Of Servo Volatage Stabilizers

In this presentation. you can know about advantages of servo voltage stabilizers in ahmedabad.

kevinshebgal
Download Presentation

Advantages Of Servo Volatage Stabilizers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

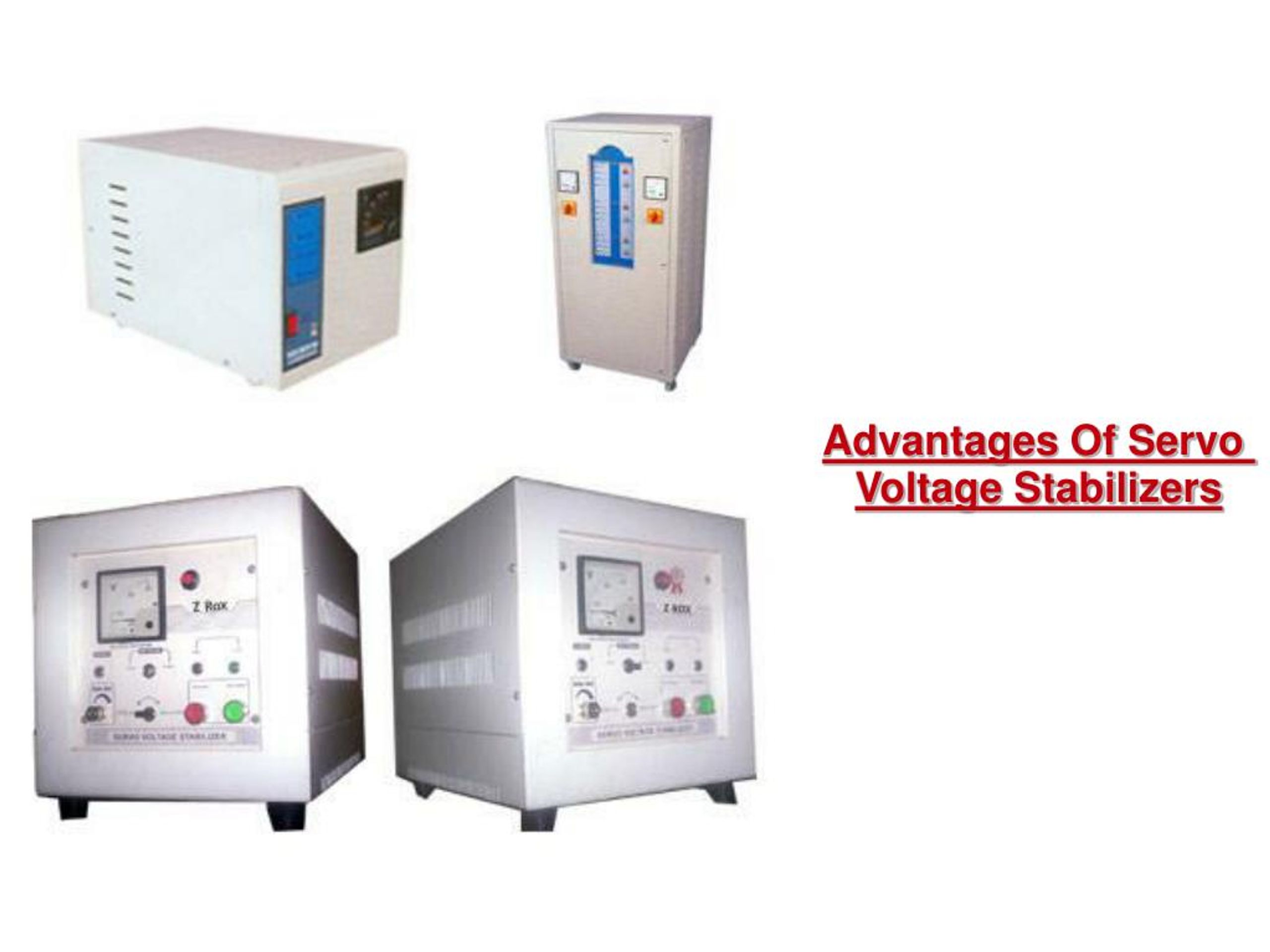

  1. Advantages Of Servo Voltage Stabilizers

  2. The SERVO CONTROLLED VOLTAGE STABILIZER utilizes a motor driven variable auto transformer & a Buck\Boost transformer which is connected between the incoming phase supply & the load.

  3. 1. Simple construction and operating principle: A servo voltage stabilizer has simple construction consisting of a variac , ac synchronous motor, simple electronic sensing circuit consisting of triacs, comparator, mocs, trasnsistors etc

  4. 2.Lesser distortion in the output waveform :- Since the number of relays are less as compared to other stabilizers, the time lag due to switching is less compared to others.

  5. 3. Use of analog electronic circuit :- The electronic circuit used in the control circuit of the servo control voltage stabilizer is an analog one.

  6. 4. Suitable for large loads:- Servo voltage stabilizer ahmedabad is best suited for large loads at the output.

  7. PPT Created By :-
