The Hertzsprung-Russell Diagram

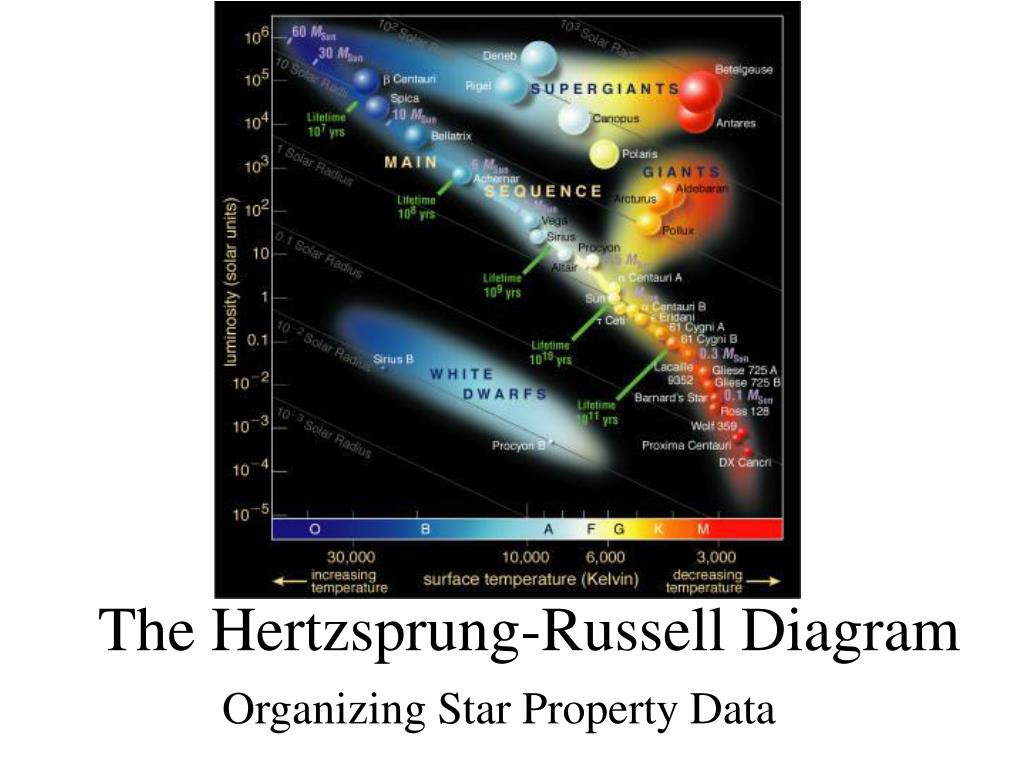

The Hertzsprung-Russell Diagram. Organizing Star Property Data. The H-R Diagram. The “H-R” Diagram was invented around 1910 to organize stars based on their properties. The diagram is a graph. Vertically the scale is increasing Luminosity Horizontally the scale is Spectral Class/Temperature

Download Presentation

The Hertzsprung-Russell Diagram

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The Hertzsprung-Russell Diagram Organizing Star Property Data

  2. The H-R Diagram The “H-R” Diagram was invented around 1910 to organize stars based on their properties. The diagram is a graph. Vertically the scale is increasing Luminosity Horizontally the scale is Spectral Class/Temperature From Hot (O class) to Cool (M class).

  3. H-RDiagram Notice there are 4 groups: Most Stars are “Main Sequence” Others are: White Dwarfs, Giants and Supergiants

  4. In general the hotter the star is the brighter it will be. Thus you would expect stars of the same size but different temperatures to form a diagonal line called an equal radius line. Equal Radius lines can be added to an H-R diagram Equal Radius Lines

  5. About the Groups White Dwarfs are hot, but not that bright, so they must be small. Giants and Supergiants are cool, but bright so they must be very large. The Main-Sequence is steeper than an “equal radius line” This is because large mass main sequence stars fuse fuel faster, making them hotter, thus brighter
