MAC Partial Proposal for TGn

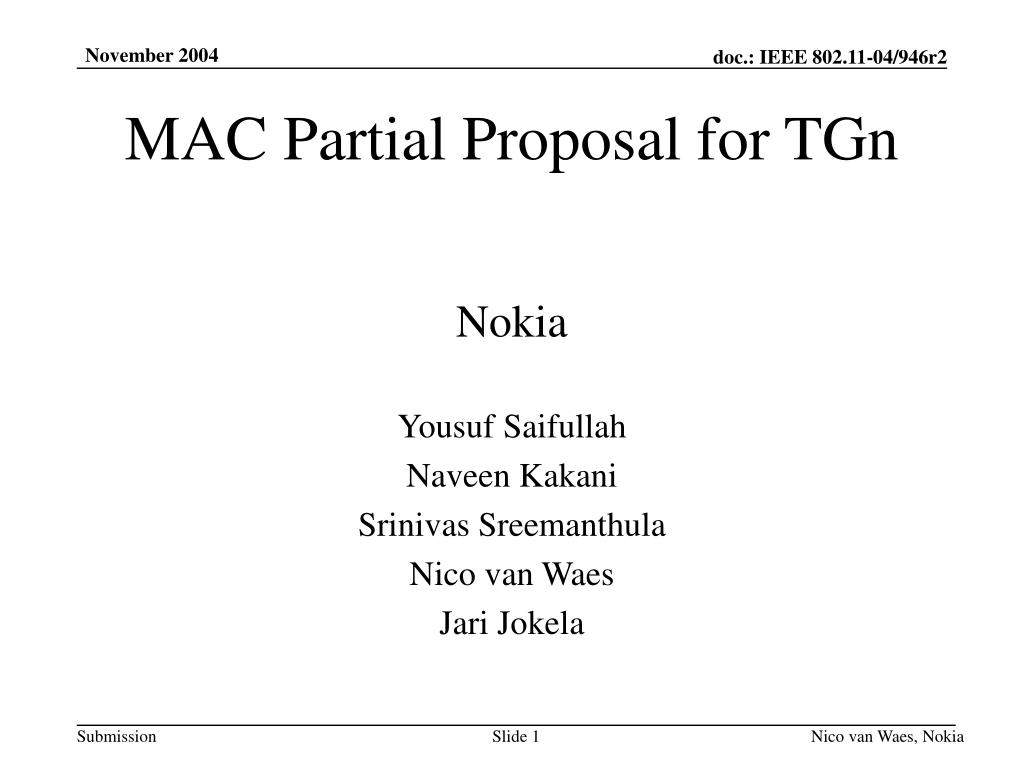

1. MAC Partial Proposal for TGn Nokia Yousuf Saifullah Naveen Kakani Srinivas Sreemanthula Nico van Waes Jari Jokela Nico van Waes, Nokia

2. Introduction • MAC efficiency is an important aspect of the goal of achieving 100 Mbps at the MAC SAP in a robust, economically attractive fashion. • Power Efficiency is a critical aspect of making 802.11n suitable for the handset market. • The following MAC features are proposed for achieving these goals: • Multi data rate frame aggregation (Nokia, Philips, and Samsung merged this as MMRA) • Power Efficiency in aggregation • MAC Header Compression • Aggregate ACK Nico van Waes, Nokia

3. Power Efficiency • Power efficiency is important for small handheld devices. These devices will be an important segment of WLAN High Throughput products. • Power efficiency should not be compromised in Frame Aggregation. • Provide power efficiency by placing MPDU lengths along with the receiving STA’s MAC address in the ACH. Doesn’t compromise MAC throughput efficiency • A STA reads ACH determines the position of its MPDUs and reads them only without reading MPDUs of other STAs. • Additional power saving can be achieved by sending the MPDUs for power save terminals first in the aggregated frame and by this way maximize the deep sleep duration. Nico van Waes, Nokia

4. MAC Header Compression • With the High Throughput need and new applications (e.g. VoIP), MAC header (36 bytes) is becoming a significant overhead • MAC Header Compression Procedure • An AP creates a mapping between 1 byte unique Compression ID (CID) and the set of addresses in the MAC Header (Addr 1 to 4). • AP establishes the same CID in the non-AP STA by introducing “CID Association” procedure. For example: AP and STA exchange a CID Association Request followed by ACK. • The CID is established prior to exchanging any data frames • AP and STA start exchanging Compressed Header (CH) MPDU • MAC HC procedure is equally applicable for adhoc mode Nico van Waes, Nokia

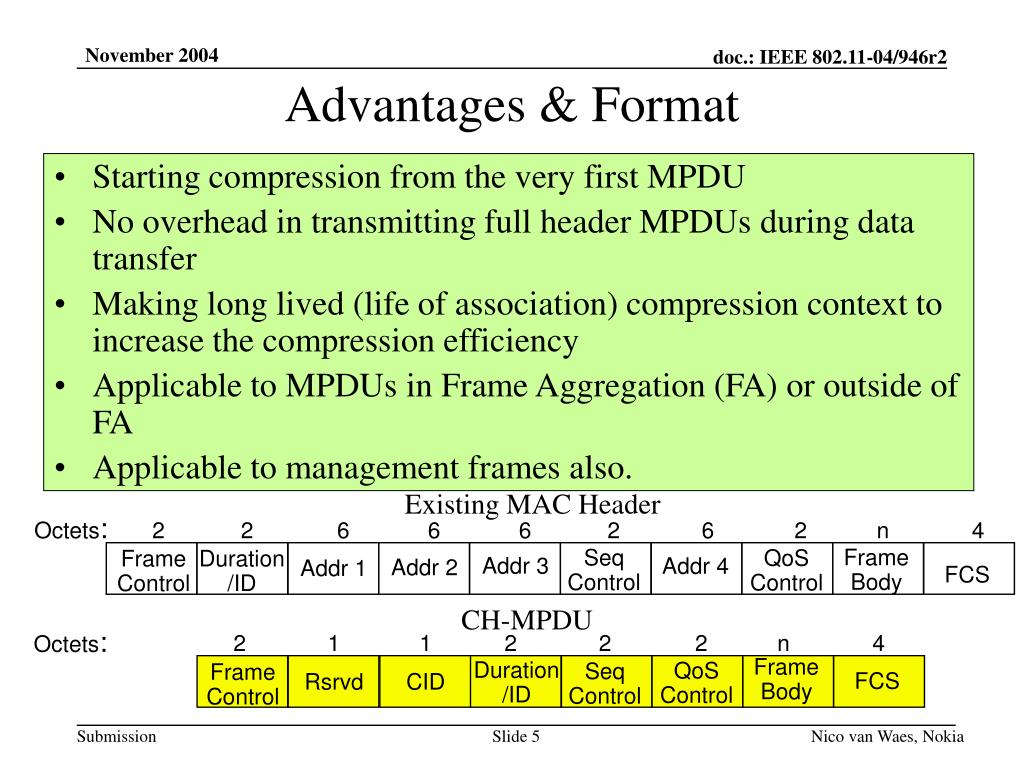

5. FrameBody Seq Control QoSControl FrameControl Duration /ID Addr 3 Addr 4 Addr 2 Addr 1 FCS Advantages & Format • Starting compression from the very first MPDU • No overhead in transmitting full header MPDUs during data transfer • Making long lived (life of association) compression context to increase the compression efficiency • Applicable to MPDUs in Frame Aggregation (FA) or outside of FA • Applicable to management frames also. Existing MAC Header Octets: 2 2 6 6 6 2 6 2 n 4 CH-MPDU Octets: 2 1 1 2 2 2 n 4 FrameBody Duration /ID QoSControl Seq Control FrameControl FCS Rsrvd CID Nico van Waes, Nokia

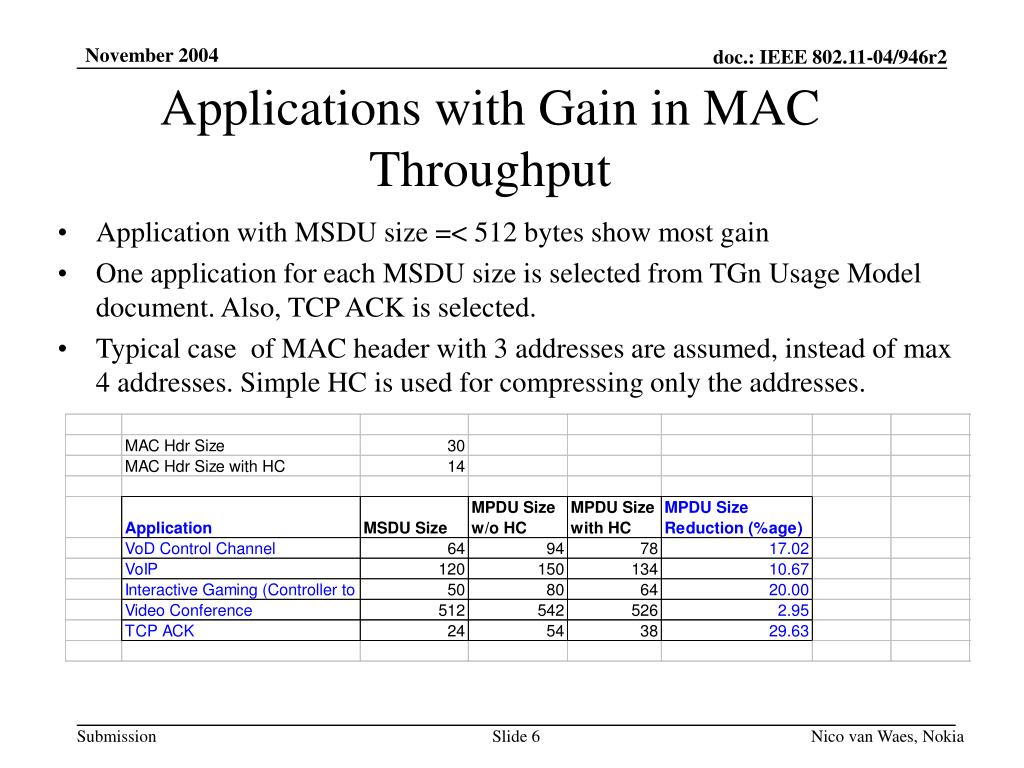

6. Applications with Gain in MAC Throughput • Application with MSDU size =< 512 bytes show most gain • One application for each MSDU size is selected from TGn Usage Model document. Also, TCP ACK is selected. • Typical case of MAC header with 3 addresses are assumed, instead of max 4 addresses. Simple HC is used for compressing only the addresses. Nico van Waes, Nokia

7. ACK Aggregation • Frame Aggregation (FA) feature sends multiple MPDUs together. For the MPDUs needing ACK, the receiving STAs could send either Block ACK or Normal ACK in the reverse link. • There is significant redundancy in using both, even if FA is used in the reverse link. • Normal ACK adds considerable overhead in the traffic, even in an aggregated frame, since an ACK frame (14 bytes) is sent for each MPDU • A Block ACK frame size is 152 bytes. Block ACK is defined on a TID basis. An aggregated frame may contain MPDUs with different TIDs for a STA. This would still result into multiple Block ACK Req and Block ACK per STA. Nico van Waes, Nokia

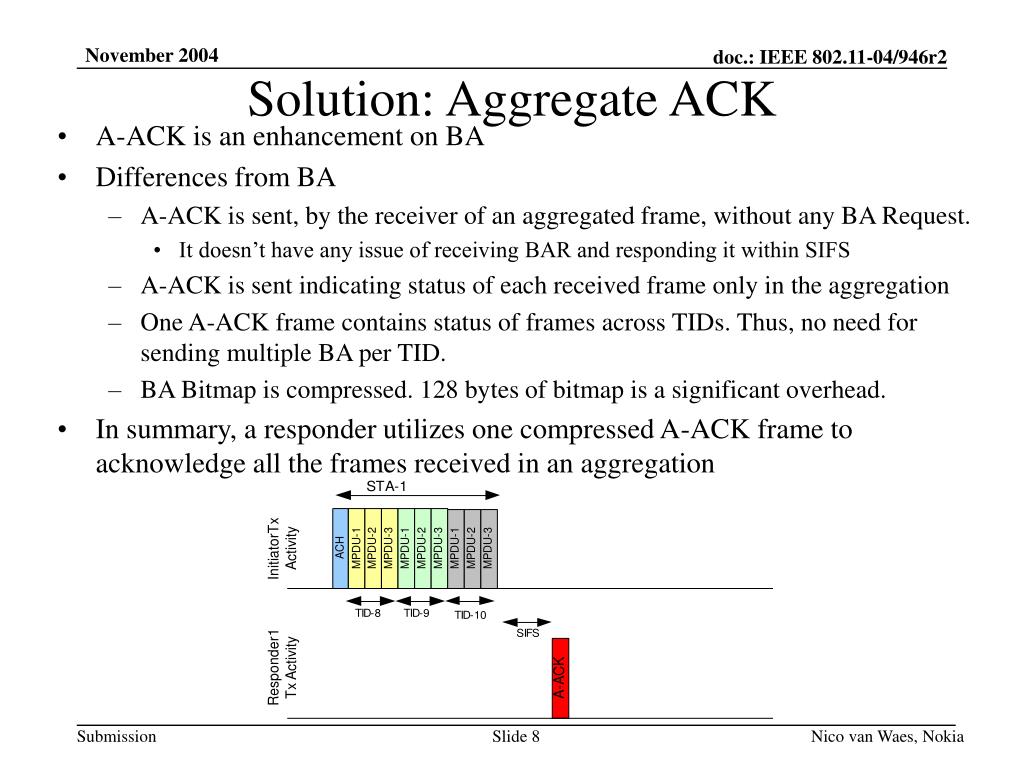

8. Solution: Aggregate ACK • A-ACK is an enhancement on BA • Differences from BA • A-ACK is sent, by the receiver of an aggregated frame, without any BA Request. • It doesn’t have any issue of receiving BAR and responding it within SIFS • A-ACK is sent indicating status of each received frame only in the aggregation • One A-ACK frame contains status of frames across TIDs. Thus, no need for sending multiple BA per TID. • BA Bitmap is compressed. 128 bytes of bitmap is a significant overhead. • In summary, a responder utilizes one compressed A-ACK frame to acknowledge all the frames received in an aggregation Nico van Waes, Nokia

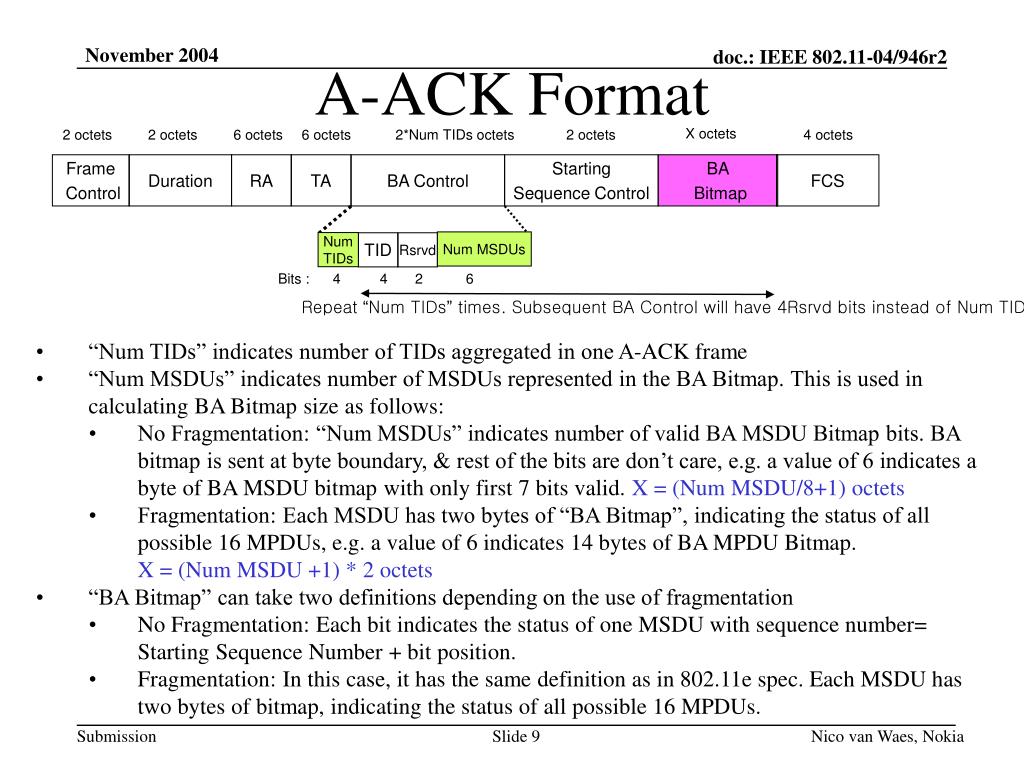

9. A-ACK Format X octets 2 octets 2 octets 6 octets 6 octets 2*Num TIDs octets 2 octets 4 octets Frame Control Duration RA TA BA Control Starting Sequence Control BA Bitmap FCS Num MSDUs NumTIDs TID Rsrvd Bits : 4 4 2 6 Repeat “Num TIDs” times. Subsequent BA Control will have 4Rsrvd bits instead of Num TIDs. • “Num TIDs” indicates number of TIDs aggregated in one A-ACK frame • “Num MSDUs” indicates number of MSDUs represented in the BA Bitmap. This is used in calculating BA Bitmap size as follows: • No Fragmentation: “Num MSDUs” indicates number of valid BA MSDU Bitmap bits. BA bitmap is sent at byte boundary, & rest of the bits are don’t care, e.g. a value of 6 indicates a byte of BA MSDU bitmap with only first 7 bits valid. X = (Num MSDU/8+1) octets • Fragmentation: Each MSDU has two bytes of “BA Bitmap”, indicating the status of all possible 16 MPDUs, e.g. a value of 6 indicates 14 bytes of BA MPDU Bitmap. X = (Num MSDU +1) * 2 octets • “BA Bitmap” can take two definitions depending on the use of fragmentation • No Fragmentation: Each bit indicates the status of one MSDU with sequence number= Starting Sequence Number + bit position. • Fragmentation: In this case, it has the same definition as in 802.11e spec. Each MSDU has two bytes of bitmap, indicating the status of all possible 16 MPDUs. Nico van Waes, Nokia

10. A-ACK Format Considerations • It is likely that MSDU fragmentation will not be used in aggregation. However, a generic A-ACK structure is defined that is used for both fragmentation and/or no-fragmentation case. • No explicit need for negotiating fragmentation/no-fragmentation structure between receiver and originator. Based on fragmented/no-fragmented frames sent/received in aggregation, the originator/receiver decode/encode 1 bit/2 bytes per “Num MSDU” value. • The originator and receiver both know the “Num of TIDs”, “Num of MSDUs” per TID, and fragmentation/no-fragmentation received in an aggregated frame. Thus, can calculate the exact size of A-ACK from receiver, this helps in setting NAV accurately. Nico van Waes, Nokia

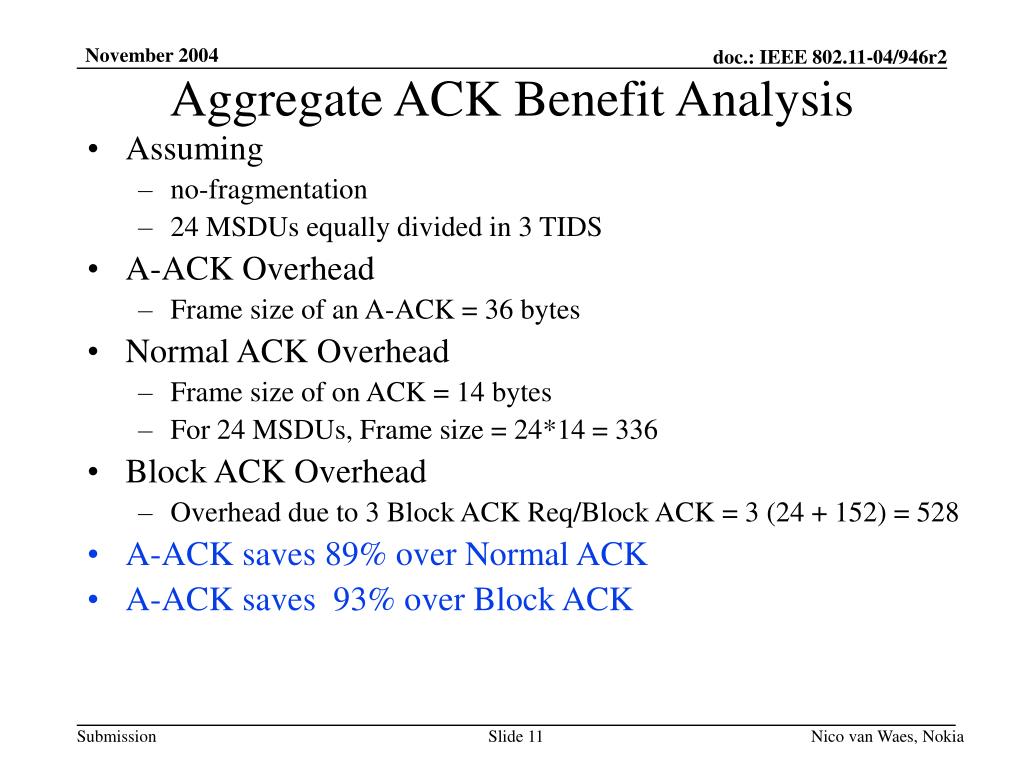

11. Aggregate ACK Benefit Analysis • Assuming • no-fragmentation • 24 MSDUs equally divided in 3 TIDS • A-ACK Overhead • Frame size of an A-ACK = 36 bytes • Normal ACK Overhead • Frame size of on ACK = 14 bytes • For 24 MSDUs, Frame size = 24*14 = 336 • Block ACK Overhead • Overhead due to 3 Block ACK Req/Block ACK = 3 (24 + 152) = 528 • A-ACK saves 89% over Normal ACK • A-ACK saves 93% over Block ACK Nico van Waes, Nokia

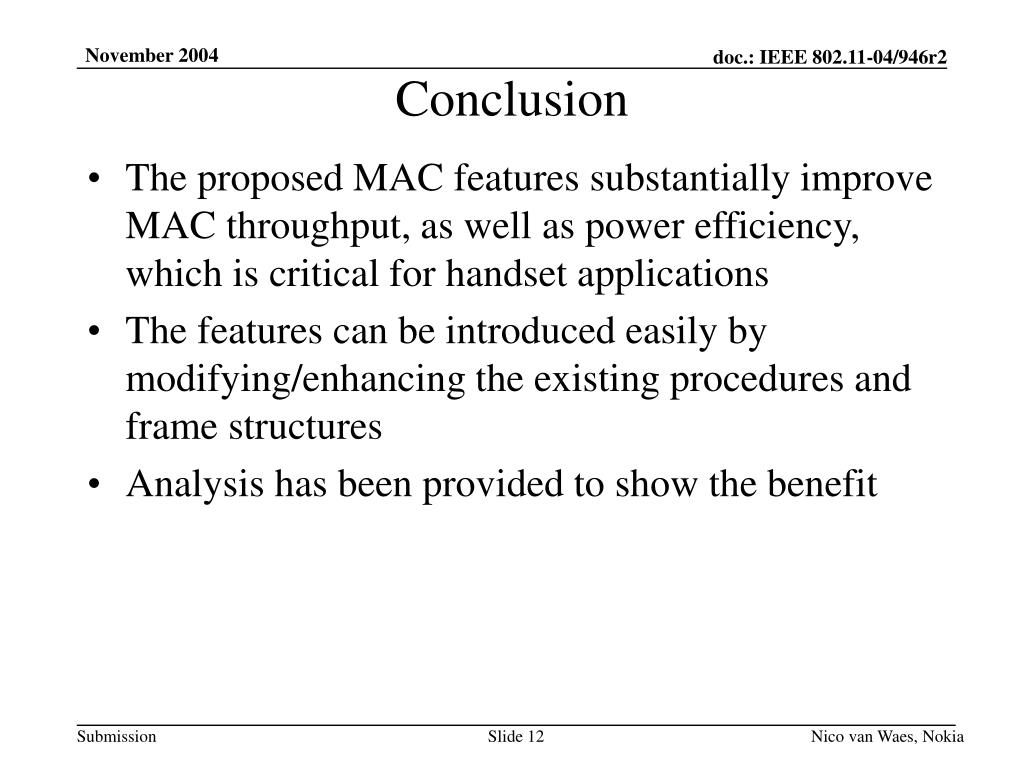

12. Conclusion • The proposed MAC features substantially improve MAC throughput, as well as power efficiency, which is critical for handset applications • The features can be introduced easily by modifying/enhancing the existing procedures and frame structures • Analysis has been provided to show the benefit Nico van Waes, Nokia
