html5-img
1 / 8

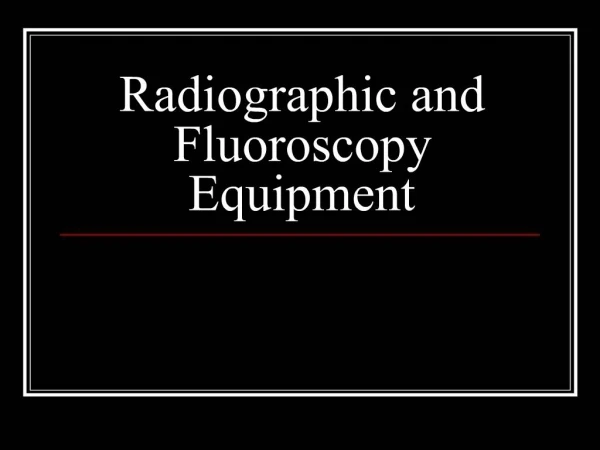

Radiographic and Fluoroscopy Equipment

Radiographic equipment:. (1) X-ray tube- - anode/cathode- tube stand allows for sliding-longitudinal, transverse, and vertical.. (2) Collimator- below x-ray tube- controls size and shape of x-ray field- use a light source to project a representation of the x-ray field onto the patient

keran
Download Presentation

Radiographic and Fluoroscopy Equipment

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

    1. Radiographic and Fluoroscopy Equipment

    2. Radiographic equipment: (1) X-ray tube- - anode/cathode - tube stand allows for sliding-longitudinal, transverse, and vertical.

    4. (3) X-ray table- tilt, non-tilt, free floating or stationary and height adjustable or nonadjustable. Tilt from horizontal to vertical Bucky tray- below table, holds x-ray cassette, can be manually moved the entire length of the table and locked into place

    6. console kVp- 1 kv=1000 volts minor and major knobs –range 30-150 kvp mA- 1 mA= 1/1000 of an ampere- amt of current- range 100-400 mA for dx radiography Time- seconds- 25% increments mAs- how many x-rays for how long Exposure- activate the rotor to begin- cause anode to rotate-prepare tube for exposure-second switch takes the exposure- automatic timer shuts it off.

    7. Wall mounted Bucky Standing patients Pull out tray and place cassette in the tray and lock it in place- can move entire Bucky system along vertical plane. Alignment- table, tube and Bucky all move separately- be careful to check after positioning the patient that all parts are in alignment.

    8. Components of Fluoroscopy X-ray tube- located under x-ray table opposite from the tube-image intensifier- intercept attenuated beam-transform into electronic image. Television monitor displays the image Radiologist views a physiologic event

More Related
