Profile of HDF-EOS5 Files

Abe Taaheri, Raytheon Information Systems

Larry Klein, RS Information Systems

HDF-EOS Workshop X

November 2006

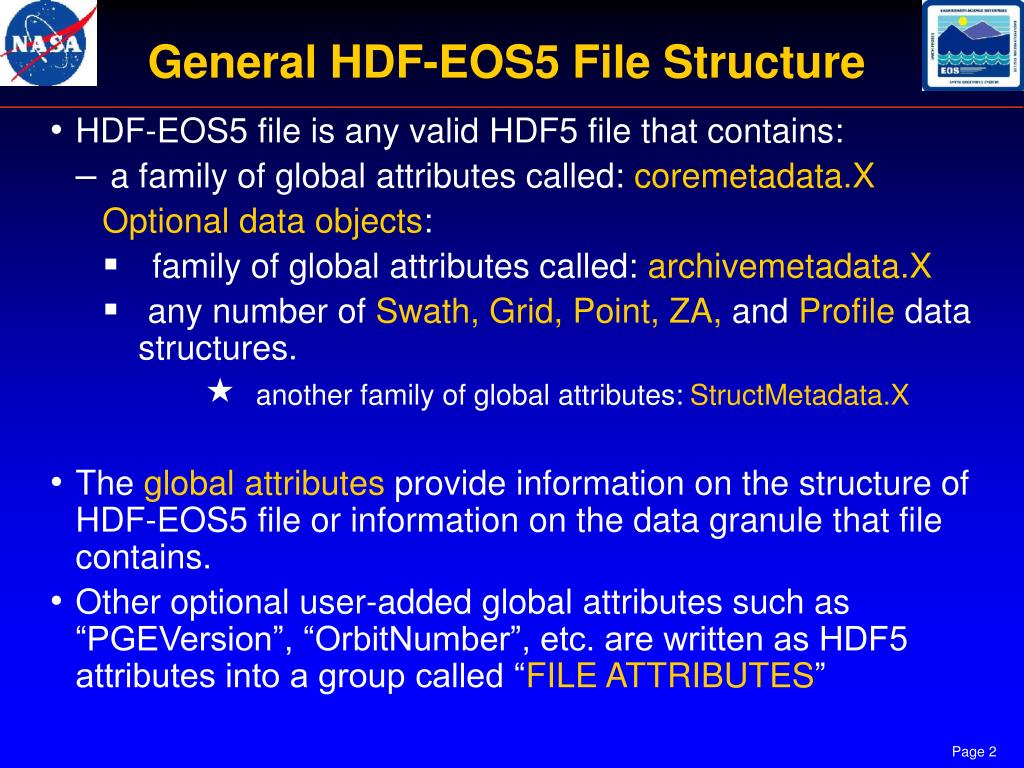

General hdf eos5 file structure

General HDF-EOS5 FileStructure

  • HDF-EOS5 file is any valid HDF5 file that contains:

    • a family of global attributes called: coremetadata.X

      Optional data objects:

      • family of global attributes called: archivemetadata.X

      • any number of Swath, Grid, Point, ZA, and Profile data structures.

        • another family of global attributes: StructMetadata.X

  • The global attributes provide information on the structure of HDF-EOS5 file or information on the data granule that file contains.

  • Other optional user-added global attributes such as “PGEVersion”, “OrbitNumber”, etc. are written as HDF5 attributes into a group called “FILE ATTRIBUTES”


General hdf eos5 file structure1

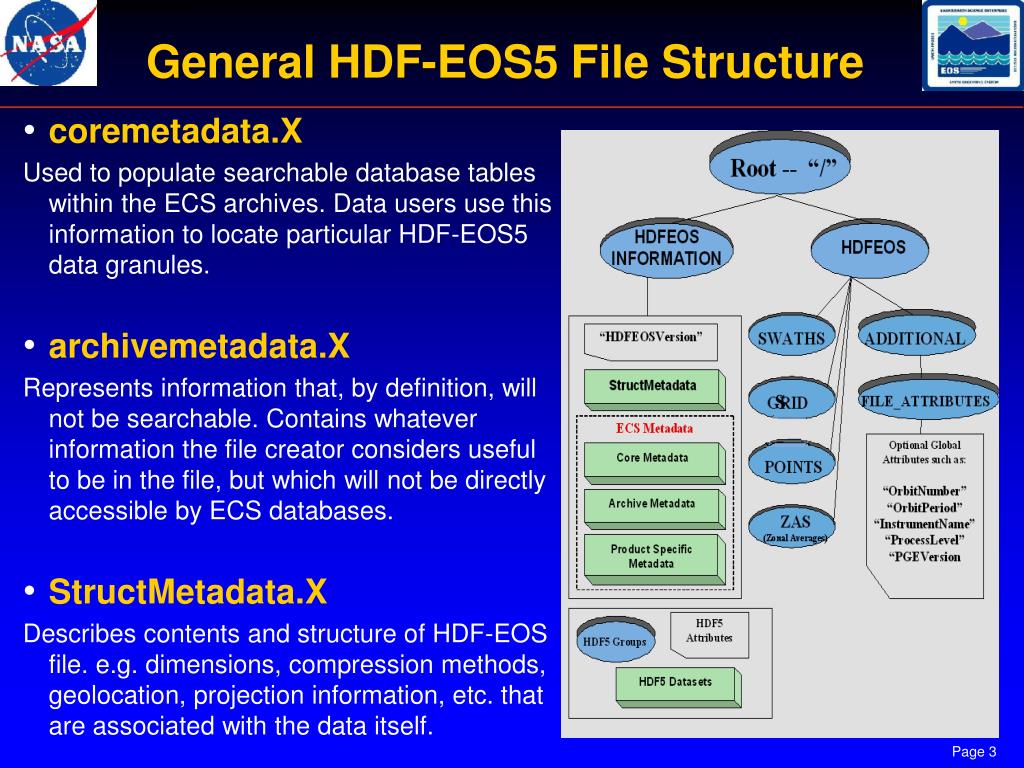

General HDF-EOS5 FileStructure

  • coremetadata.X

    Used to populate searchable database tables within the ECS archives. Data users use this information to locate particular HDF-EOS5 data granules.

  • archivemetadata.X

    Represents information that, by definition, will not be searchable. Contains whatever information the file creator considers useful to be in the file, but which will not be directly accessible by ECS databases.

  • StructMetadata.X

    Describes contents and structure of HDF-EOS file. e.g. dimensions, compression methods, geolocation, projection information, etc. that are associated with the data itself.

S


General hdf eos5 file structure2

General HDF-EOS5 FileStructure

  • An HDF-EOS5 file

    • can contain any number of Grid, Point, Swath, ZonalAverage, and Profile data structures

    • has no size limits.

      • A file containing 1000's of objects could cause program execution slow-downs

    • can be hybrid, containing plain HDF5 objects for special purposes.

      • HDF5 objects must be accessed by the HDF5 library and not by HDF­EOS5 extensions.

      • will require more knowledge of file contents on the part of an applications developer or data user.


Swath structure

Swath Structure

  • For a typical satellite swath, an instrument takes a series of scans perpendicular to the ground track of the satellite as it moves along that ground track

  • Or a sensor measures a vertical profile, instead of scanning across the ground track


Swath structure1

Swath Structure

Data

Field.1

Profile

Field.1

Profile

Field.n

HDF5 Attribute

Each Data Field object can have Attributes and/or Dimension Scales

HDF5

Dataset

“SWATHS”

group

  • Swath_X groups are created when swaths are created

  • Data/Geo fields’ parent group are created when fields are defined.

  • Swath attributes are set as Object Attributes.

  • Attributes for Data, Profile, or Gelocation Fields groups are set as Group Attributes

  • Dataset related attributesset for each data field or geolocation field are called Local Attributes. They may contain attributes such as fillvalue, units, etc.

“Swath_1”

“Swath_N”

Object Attribute

<SwathName>:

<AttrName>

Geolocation

Fields

Profile Fields

Data Fields

Group Attribute

<DataFields>:

<AttrName>

Data

Field.n

Longitude

Latitude

Local Attribute

<FieldName>:

<AttrName>

Colatitude

Time

HDF5 Group


Swath structure2

Swath Structure

  • Geolocation Fields

  • Geolocation fields allow the Swath to be accurately tied to particular points on the Earth’s surface.

  • At least a time field (“Time”) or a latitude/longitude field pair (“Latitude” and “Longitude”). “Colatitude” may be substituted for “Latitude.”

  • Fields must be either one- or two-dimensional

  • The “Time” field is always in TAI format (International Atomic Time)

*DD = Decimal Degree


Swath structure3

Swath Structure

  • Data Fields

    • Fields may have up to 8 dimensions.

    • An “unlimited” dimension must be the first dimension (in C-order).

    • For all multi-dimensional fields in scan- or profile-oriented Swaths, the dimension representing the “along track” dimension must precede the dimension representing the scan or profile dimension(s) (in C-order).

    • Compression is selectable at the field level within a Swath. All HDF5-supported compression methods are available through the HDF-EOS5 library. The compression method is stored within the file. Subsequent use of the library will un-compress the file. As in HDF5 the data needs to be chunked before the compression is applied.

    • Field names:

      • may be up to 64 characters in length.

      • Any character can be used with the exception of, ",", ";", " and "/".

      • are case sensitive.

      • must be unique within a particular Swath structure.


Compression codes

Compression Codes

For Compression the data storage must be CHUNKED first


Compression codes1

Compression Codes

For Compression the data storage must be CHUNKED first


Swath structure4

Swath Structure

A “Normal” Dimension Map

  • Dimension maps are the glue that holds the SWATH together. They define the relationship between data fields and geolocation fields by defining, one-by-one, the relationship of each dimension of each geolocation field with the corresponding dimension in each data field.

A “Backwards” Dimension Map


Grid structure

Grid Structure

  • A grid contains grid corner locations and a set of projection equations (or references to them) along with their relevant parameters.

  • The equations and parameters can be used to compute the latitude and longitude for any point in the grid.

  • Important features of a Grid data set: the data fields, the dimensions, and the projection

A Data Field in a Mercator-Projected Grid

A Data Field in an Interrupted Goode’s Homolosine-Projected Grid

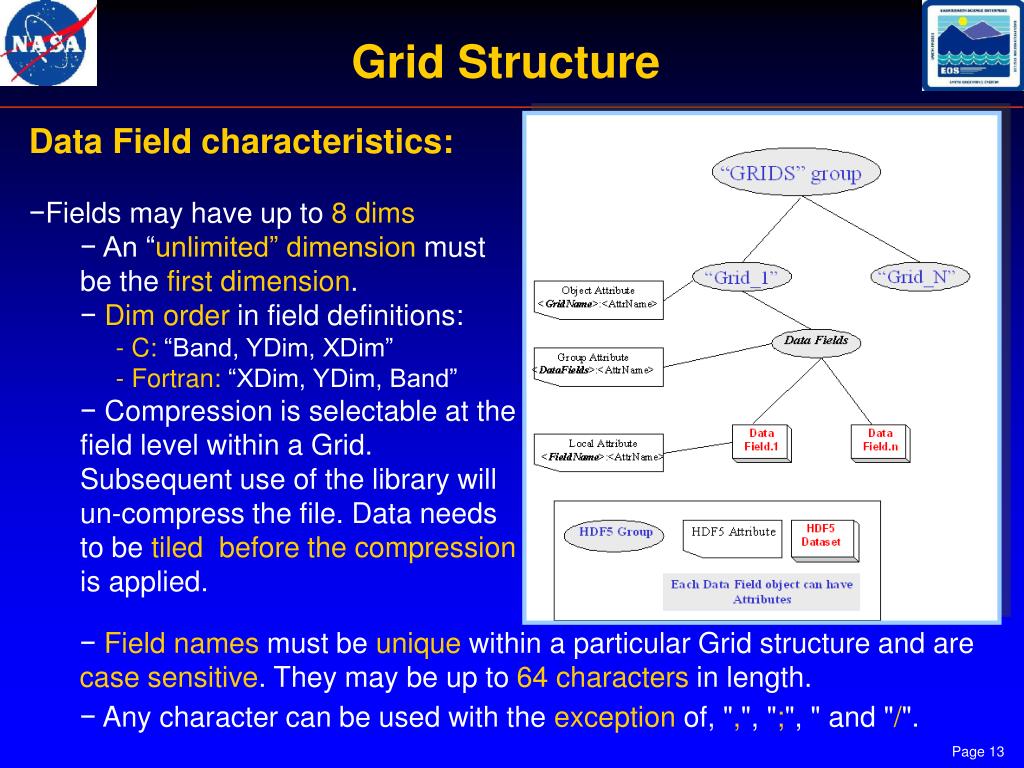

Grid structure1

Grid Structure

  • Data Field characteristics:

  • Fields may have up to 8 dims

    • An “unlimited” dimension must be the first dimension.

    • Dim order in field definitions:

    • - C: “Band, YDim, XDim”

    • - Fortran: “XDim, YDim, Band”

    • Compression is selectable at the field level within a Grid. Subsequent use of the library will un-compress the file. Data needs to be tiled before the compression is applied.

  • Field names must be unique within a particular Grid structure and are case sensitive. They may be up to 64 characters in length.

  • Any character can be used with the exception of, ",", ";", " and "/".

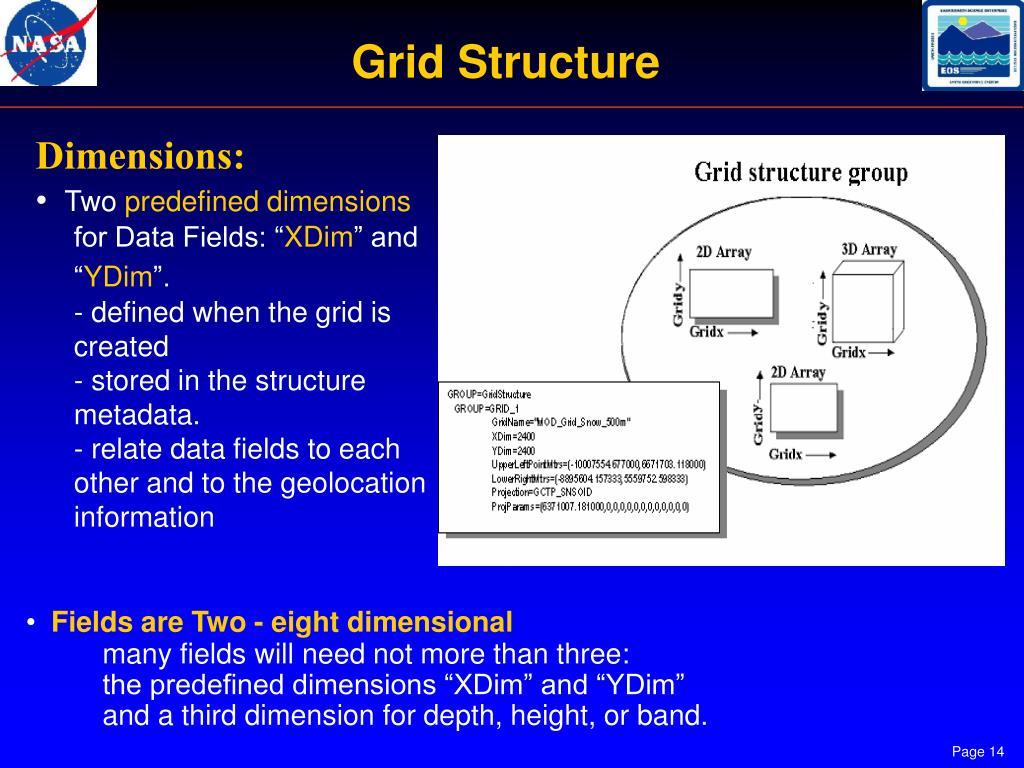

Grid structure2

Grid Structure

  • Fields are Two - eight dimensional

    many fields will need not more than three:

    the predefined dimensions “XDim” and “YDim”

    and a third dimension for depth, height, or band.

  • Dimensions:

  • Two predefined dimensions for Data Fields: “XDim” and “YDim”.

  • - defined when the grid is created

  • - stored in the structure metadata.

  • - relate data fields to each other and to the geolocation information


Grid structure3

Grid Structure

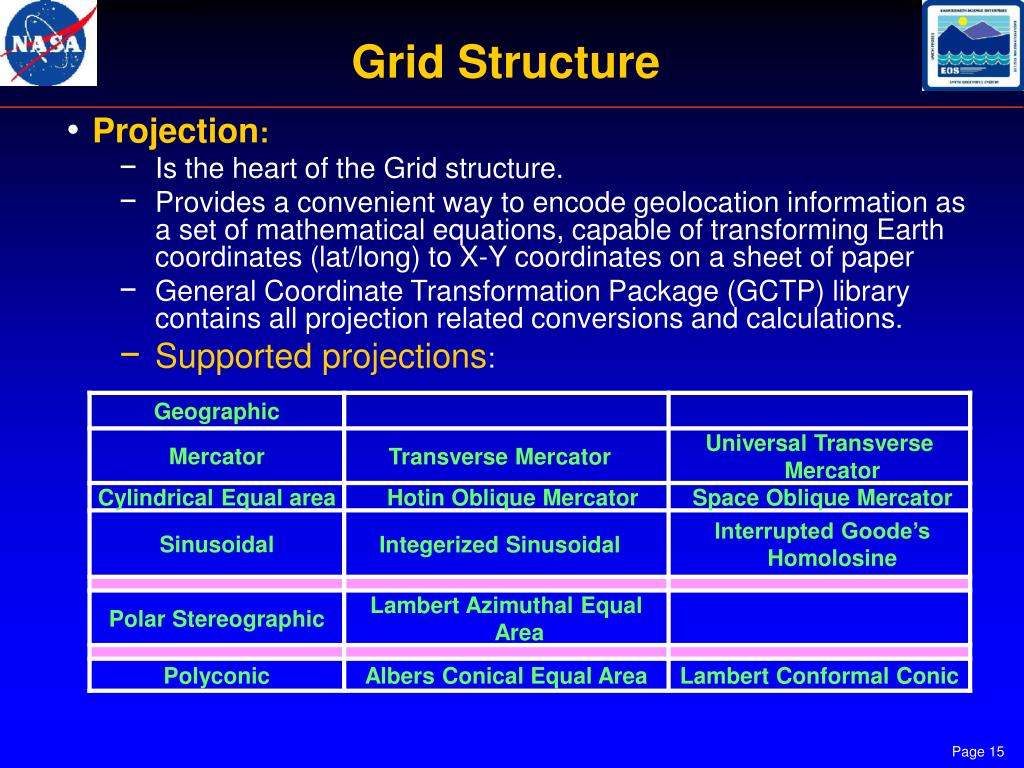

  • Projection:

    • Is the heart of the Grid structure.

    • Provides a convenient way to encode geolocation information as a set of mathematical equations, capable of transforming Earth coordinates (lat/long) to X-Y coordinates on a sheet of paper

    • General Coordinate Transformation Package (GCTP) library contains all projection related conversions and calculations.

    • Supported projections:

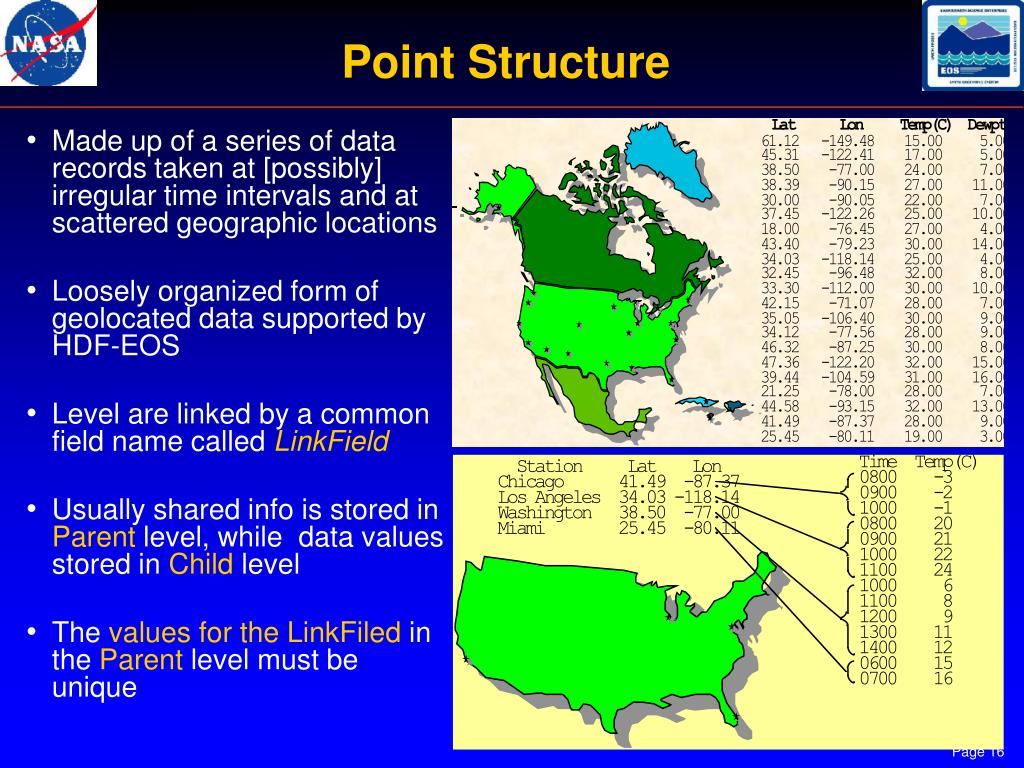

Point structure

Point Structure

  • Made up of a series of data records taken at [possibly] irregular time intervals and at scattered geographic locations

  • Loosely organized form of geolocated data supported by HDF-EOS

  • Level are linked by a common field name called LinkField

  • Usually shared info is stored in Parent level, while data values stored in Child level

  • The values for theLinkFiled in the Parent level must be unique

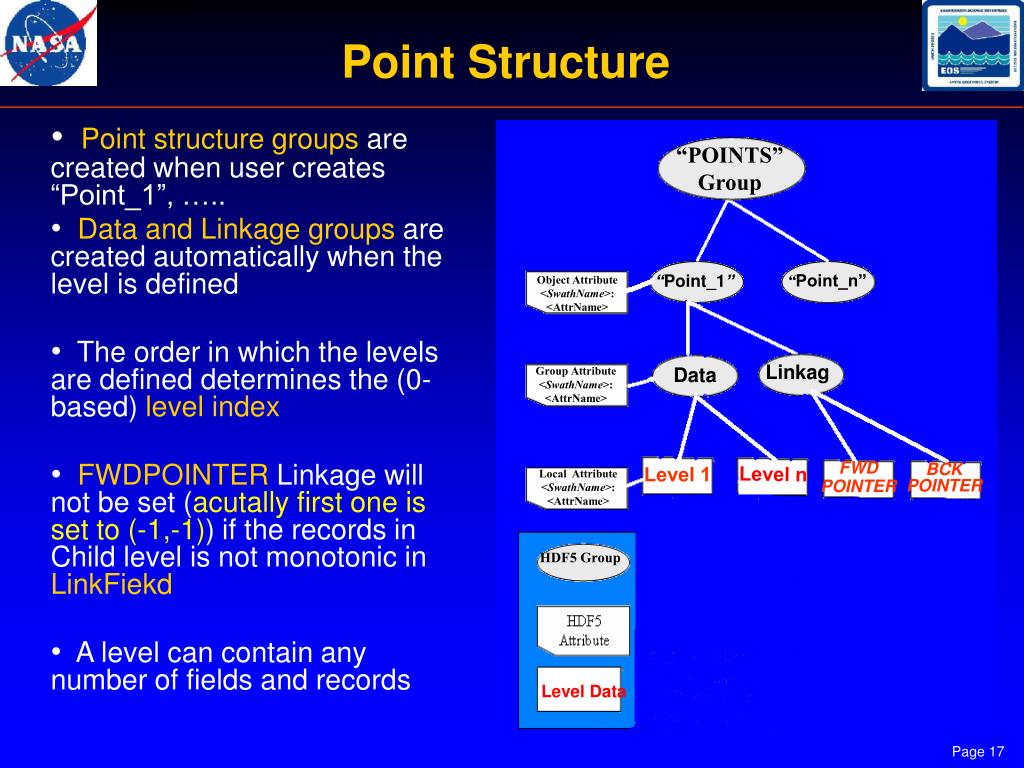

Point structure1

Point Structure

  • Point structure groups are created when user creates “Point_1”, …..

  • Data and Linkage groups are created automatically when the level is defined

  • The order in which the levels are defined determines the (0-based) level index

  • FWDPOINTER Linkage will not be set (acutally first one is set to (-1,-1)) if the records in Child level is not monotonic in LinkFiekd

  • A level can contain any number of fields and records

“POINTS” Group

“Point_n”

“Point_1”

Object Attribute

<SwathName>:

<AttrName>

Linkag

Data

Group Attribute

<SwathName>:

<AttrName>

FWD

POINTER

Level n

Level 1

BCK

POINTER

Local Attribute

<SwathName>:

<AttrName>

HDF5 Group

Level Data


Za structure

ZA Structure

  • “Zonal Average” structure is basically a swath like structure without geolocation.

  • The interface is designed to support data that has not associated with specific geolocation information.

“ZAS”

group

“Za_1”

“Za_n”

Object Attribute

<SwathName>:

<AttrName>

Data Fields

Group Attribute

<DataFields>:

<AttrName>

Data

Field.n

Local Attribute

<FieldName>:

<AttrName>

HDF5 Group


H5dump output of a simple hdf eos5 file

“h5dump” output of a simpleHDF-EOS5 file

HDF5 "Grid.he5" {

GROUP "/" {

GROUP "HDFEOS" {

GROUP "ADDITIONAL" {

GROUP "FILE_ATTRIBUTES" {

}

}

GROUP "GRIDS" {

GROUP "TMGrid" {

GROUP "Data Fields" {

DATASET "Voltage" {

DATATYPE H5T_IEEE_F32BE

DATASPACE SIMPLE { ( 5, 7 ) / ( 5, 7 ) }

DATA {

(0,0): -1.11111,-1.11111,-1.11111,-1.11111,-1.11111,

(0,5): -1.11111,-1.11111,

………………………………..

(4,0): -1.11111,-1.11111,-1.11111,-1.11111,-1.11111,

(4,5): -1.11111,-1.11111

}


H5dump output of a simple hdf eos5 file cont

“h5dump” output of a simpleHDF-EOS5 file (cont.)

ATTRIBUTE "_FillValue" {

DATATYPE H5T_IEEE_F32BE

DATASPACE SIMPLE { ( 1 ) / ( 1 ) }

DATA {

(0): -1.11111

}

}

}

}

}

}

}

GROUP "HDFEOS INFORMATION" {

ATTRIBUTE "HDFEOSVersion" {

DATATYPE H5T_STRING {

STRSIZE 32;

STRPAD H5T_STR_NULLTERM;

CSET H5T_CSET_ASCII;

CTYPE H5T_C_S1;

}


H5dump output of a simple hdf eos5 file cont1

“h5dump” output of a simpleHDF-EOS5 file (cont.)

DATASPACE SCALAR

DATA {

(0): "HDFEOS_5.1.10"

}

}

DATASET "StructMetadata.0" {

DATATYPE H5T_STRING {

STRSIZE 32000;

STRPAD H5T_STR_NULLTERM;

CSET H5T_CSET_ASCII;

CTYPE H5T_C_S1;

}

DATASPACE SCALAR

DATA {

(0): "GROUP=SwathStructure

END_GROUP=SwathStructure

GROUP=GridStructure

GROUP=GRID_1

GridName="TMGrid"

XDim=5

YDim=7


H5dump output of a simple hdf eos5 file cont2

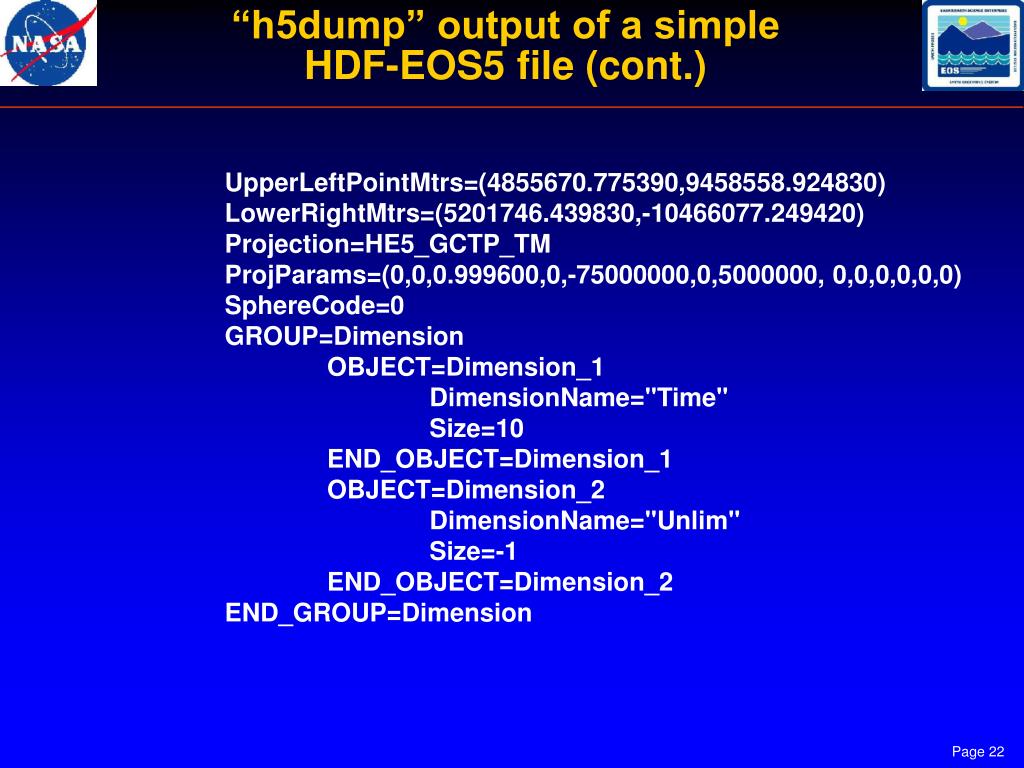

“h5dump” output of a simpleHDF-EOS5 file (cont.)

UpperLeftPointMtrs=(4855670.775390,9458558.924830)

LowerRightMtrs=(5201746.439830,-10466077.249420)

Projection=HE5_GCTP_TM

ProjParams=(0,0,0.999600,0,-75000000,0,5000000, 0,0,0,0,0,0)

SphereCode=0

GROUP=Dimension

OBJECT=Dimension_1

DimensionName="Time"

Size=10

END_OBJECT=Dimension_1

OBJECT=Dimension_2

DimensionName="Unlim"

Size=-1

END_OBJECT=Dimension_2

END_GROUP=Dimension

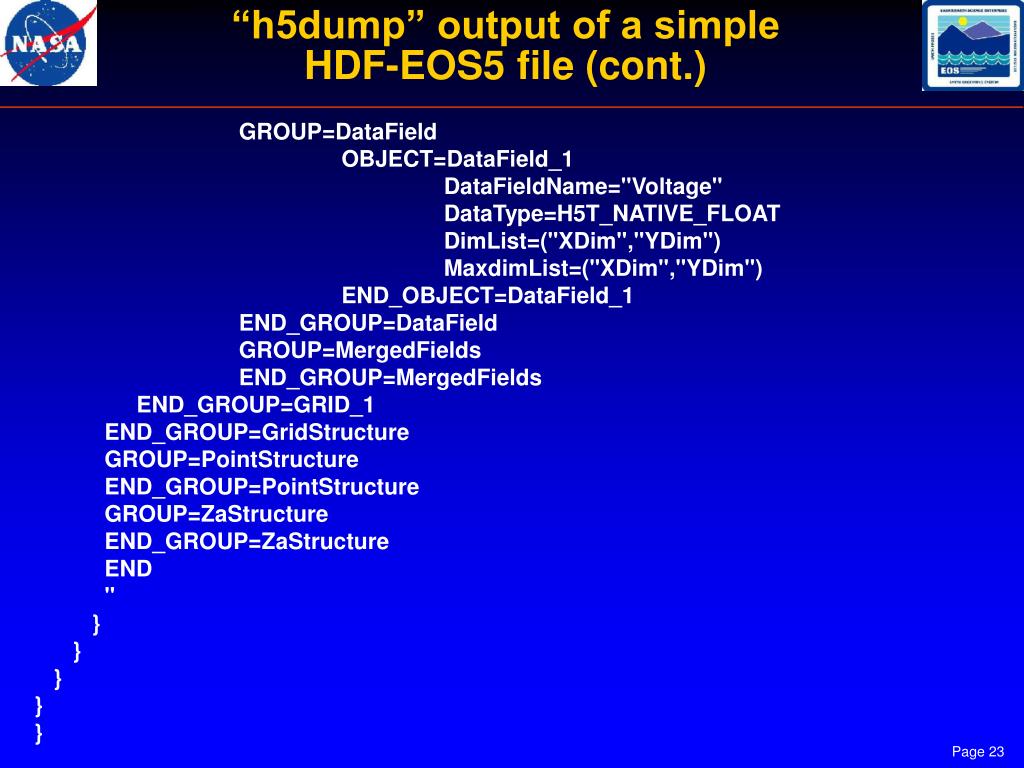

H5dump output of a simple hdf eos5 file cont3

“h5dump” output of a simpleHDF-EOS5 file (cont.)

GROUP=DataField

OBJECT=DataField_1

DataFieldName="Voltage"

DataType=H5T_NATIVE_FLOAT

DimList=("XDim","YDim")

MaxdimList=("XDim","YDim")

END_OBJECT=DataField_1

END_GROUP=DataField

GROUP=MergedFields

END_GROUP=MergedFields

END_GROUP=GRID_1

END_GROUP=GridStructure

GROUP=PointStructure

END_GROUP=PointStructure

GROUP=ZaStructure

END_GROUP=ZaStructure

END

"

}

}

}

}

}

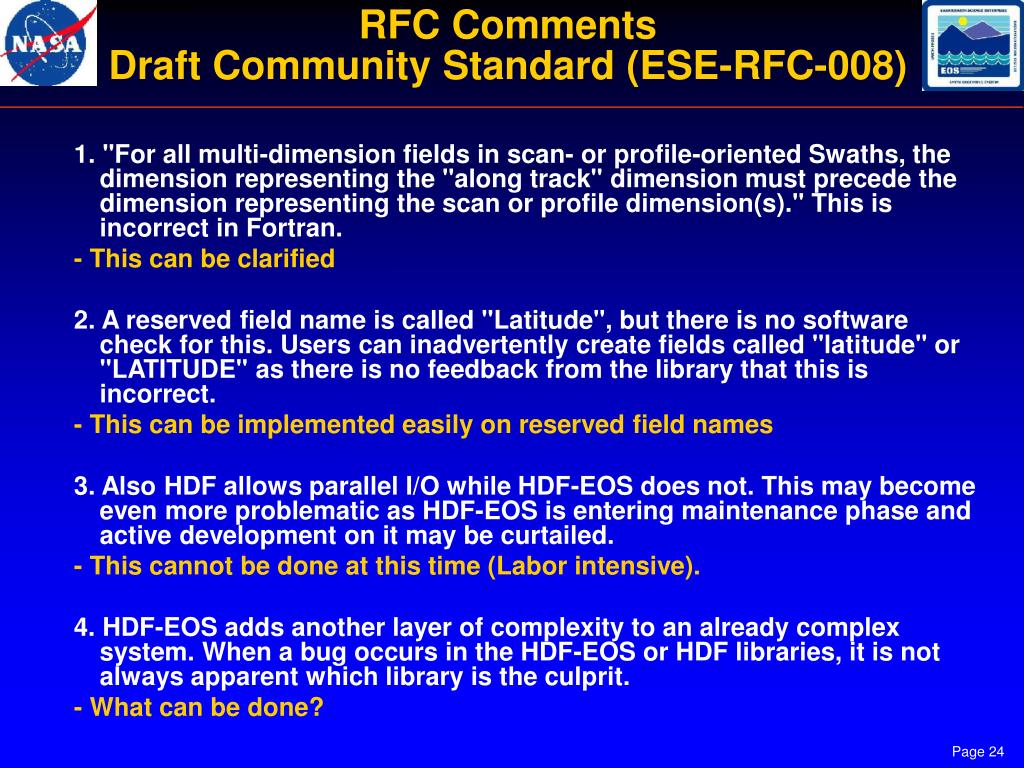

Rfc comments draft community standard ese rfc 008

RFC CommentsDraft Community Standard (ESE-RFC-008)

1. "For all multi-dimension fields in scan- or profile-oriented Swaths, the dimension representing the "along track" dimension must precede the dimension representing the scan or profile dimension(s)." This is incorrect in Fortran.

- This can be clarified

2. A reserved field name is called "Latitude", but there is no software check for this. Users can inadvertently create fields called "latitude" or "LATITUDE" as there is no feedback from the library that this is incorrect.

- This can be implemented easily on reserved field names

3. Also HDF allows parallel I/O while HDF-EOS does not. This may become even more problematic as HDF-EOS is entering maintenance phase and active development on it may be curtailed.

- This cannot be done at this time (Labor intensive).

4. HDF-EOS adds another layer of complexity to an already complex system. When a bug occurs in the HDF-EOS or HDF libraries, it is not always apparent which library is the culprit.

- What can be done?


Rfc comments draft community standard ese rfc 0081

RFC CommentsDraft Community Standard (ESE-RFC-008)

5. HDF-EOS is a complicated library which requires support. With the release of HDF-EOS5 in Toolkit 5.2.14, the Swath, Grid and EH support libraries total over 60,000 lines of code.

6. We must be confident that the original HDF5 and HDF-EOS5 developers, or qualified successors, continue to support these formats.

- If we also consider TOOLKIT, HDF(EOS)View, etc total should more than 2,000,000 lines of code, that needs support.

7. If a file contains 2 or more grids, and the grids each contain identically named fields then everything is fine when data is accessed via the HDF-EOS interface, but users of tools which in turn use the basic HDF4 interface are not able to distinguish between them. These tools reportedly include GRADS, HDFLook, and Giovanni.

- One should access HDF_EOS objects only using HDF-EOS interfaces.

8. I did not see anything on the Point and Zonal Average APIs in the specification. I don's see anything on datatypes, but that is probably covered in the HDF5 Specification. I'm assuming a reference guide would have more detail.

- Zonal Average is like Swath without geolocation field. As far as we know Point has not been used in any product.


Rfc comments draft community standard ese rfc 0082

RFC CommentsDraft Community Standard (ESE-RFC-008)

9. I have never tried to develop an implementation of HDF-EOS5. However, the standard doesn't provide sufficient information to either reproduce or parse a correct coremetadata string. The standard stipulates the syntax of the structural metadata string description language (ODL), but contains no discussion of the lexicon or semantics to be used when creating these strings.

- This is in SDP Toolkit and too much to bring it up in the HDF-EOS Standards.

10. The description of the standard should be completed so that all components of the metadata are well defined.

- Metadata is in SDP TOOLKIT with ample examples. It was left out to concentrate on Swath and Grid structures in the Draft Community Standard (ESE-RFC-008)

11. Additionally the Draft Community Standard (ESE-RFC-008) states in section 7.2.3 that SDP toolkit contains the tools for parsing the coremetadata strings. Thus, the HDF-EOS(5) format is based not only upon HDF(5) but also put the SDP toolkit library. In this way the claim that HDF-EOS(5) is based upon HDF(5) is incomplete - it is also based on SDP toolkit, or a library of similar functionality

- HDF-EOS Objects depend only on HDF5 library. Only ECS metadata is handled using Toolkit.


Rfc comments draft community standard ese rfc 0083

RFC CommentsDraft Community Standard (ESE-RFC-008)

12. Handing HDF-EOS in a high level language without HDF-EOS support would be difficult. This is because the standard relies on an obscure, obsolete syntax (Jet Propulsion Laboratory's ODL syntax) for its data serialization. Parsers for ODL are rare and not widely supported in different programming languages. The metadata stored with a dataset is effectively dumped into a metaphorical "black hole".

- XML implementation was abandoned because of high cost.

13. The API documentation describes input variables to functions as being either IN or OUT (or perhaps both). In the case of variables which are passed IN type parameters it has never been clear if the functions will modify the referent or not. Are IN type parameter referents constants?

- IN type parameters are not modified in functions (if that is the case, then it is explained in the Users Guide).

14. The primary failing of HDF-EOS as a useful product was made clear by an participant in the 2004 HDF/HDF-EOS meeting in Aurora, CO. The participate pointed out that HDF-EOS was not a standard but an implementation effectively "locked" to the particular programming languages which have been supported by the HDF-EOS(5) developers. This inhibits use of HDF-EOS(5) format data in other programming languages than C or Fortran.

- We can support any language HDF can, but it would be labor intensive to do so.


Rfc comments draft community standard ese rfc 0084

RFC CommentsDraft Community Standard (ESE-RFC-008)

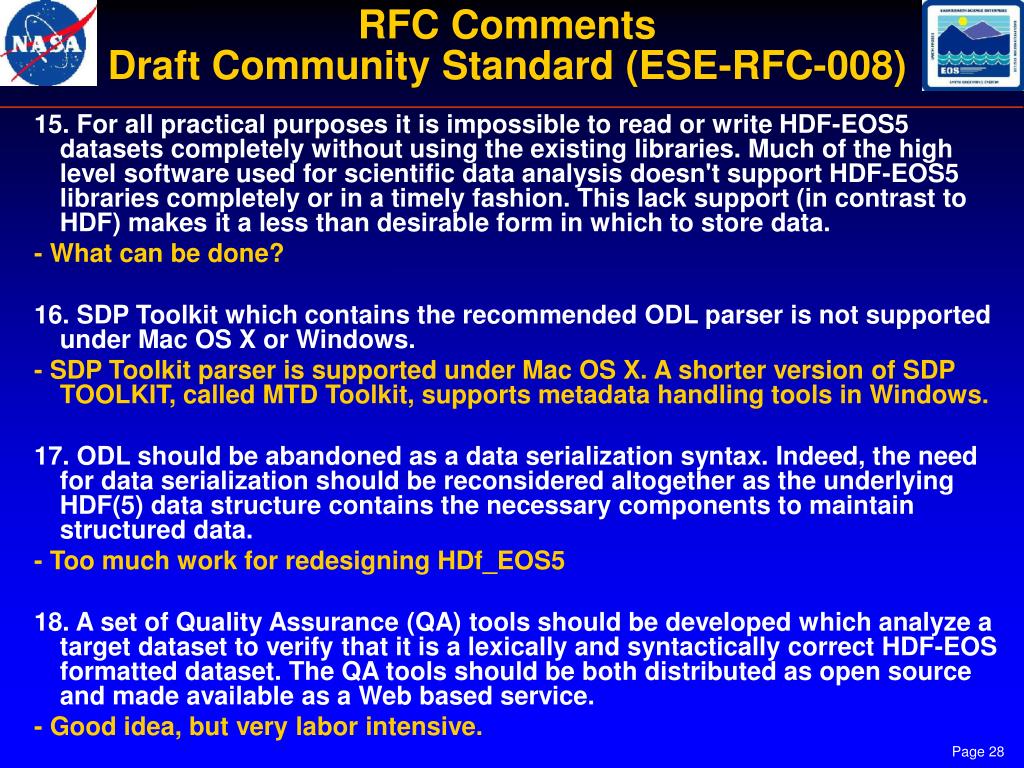

15. For all practical purposes it is impossible to read or write HDF-EOS5 datasets completely without using the existing libraries. Much of the high level software used for scientific data analysis doesn't support HDF-EOS5 libraries completely or in a timely fashion. This lack support (in contrast to HDF) makes it a less than desirable form in which to store data.

- What can be done?

16. SDP Toolkit which contains the recommended ODL parser is not supported under Mac OS X or Windows.

- SDP Toolkit parser is supported under Mac OS X. A shorter version of SDP TOOLKIT, called MTD Toolkit, supports metadata handling tools in Windows.

17. ODL should be abandoned as a data serialization syntax. Indeed, the need for data serialization should be reconsidered altogether as the underlying HDF(5) data structure contains the necessary components to maintain structured data.

- Too much work for redesigning HDf_EOS5

18. A set of Quality Assurance (QA) tools should be developed which analyze a target dataset to verify that it is a lexically and syntactically correct HDF-EOS formatted dataset. The QA tools should be both distributed as open source and made available as a Web based service.

- Good idea, but very labor intensive.


Rfc comments draft community standard ese rfc 0085

RFC CommentsDraft Community Standard (ESE-RFC-008)

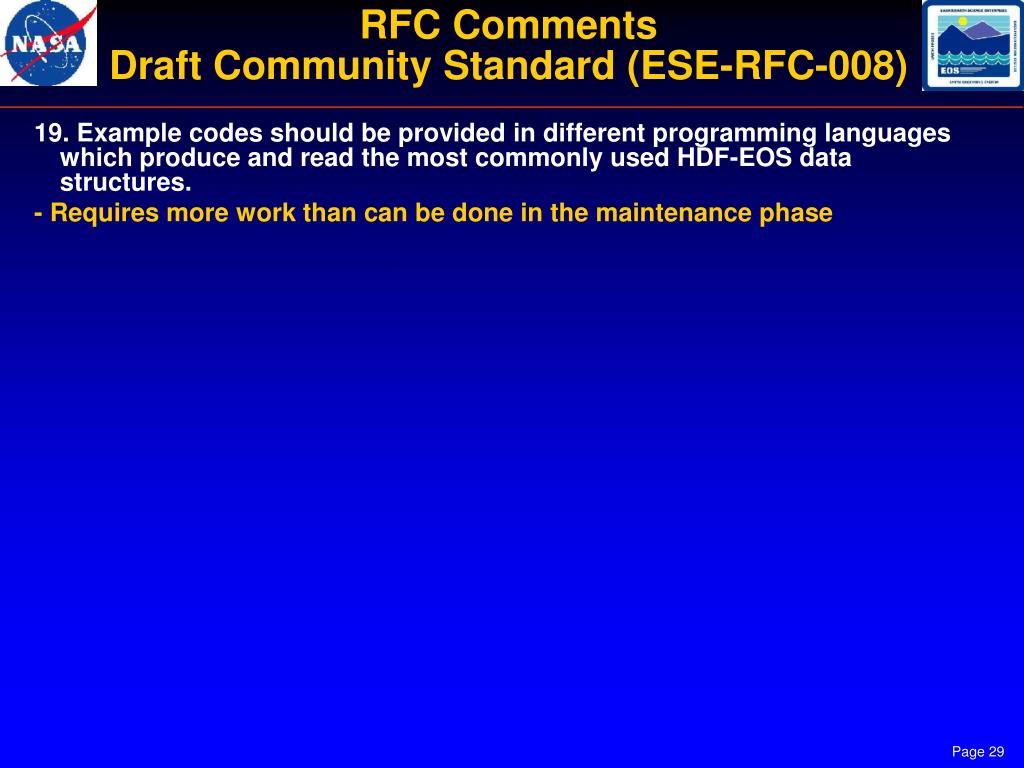

19. Example codes should be provided in different programming languages which produce and read the most commonly used HDF-EOS data structures.

- Requires more work than can be done in the maintenance phase


  • Login
