  1. Integrity Constraints

  2. Review Three things managed by a DBMS • Data organization • E/R Model • Relational Model • Data Retrieval • Relational Algebra • Relational Calculus • SQL • Data Integrity and Database Design • Integrity Constraints • Functional Dependencies • Normalization

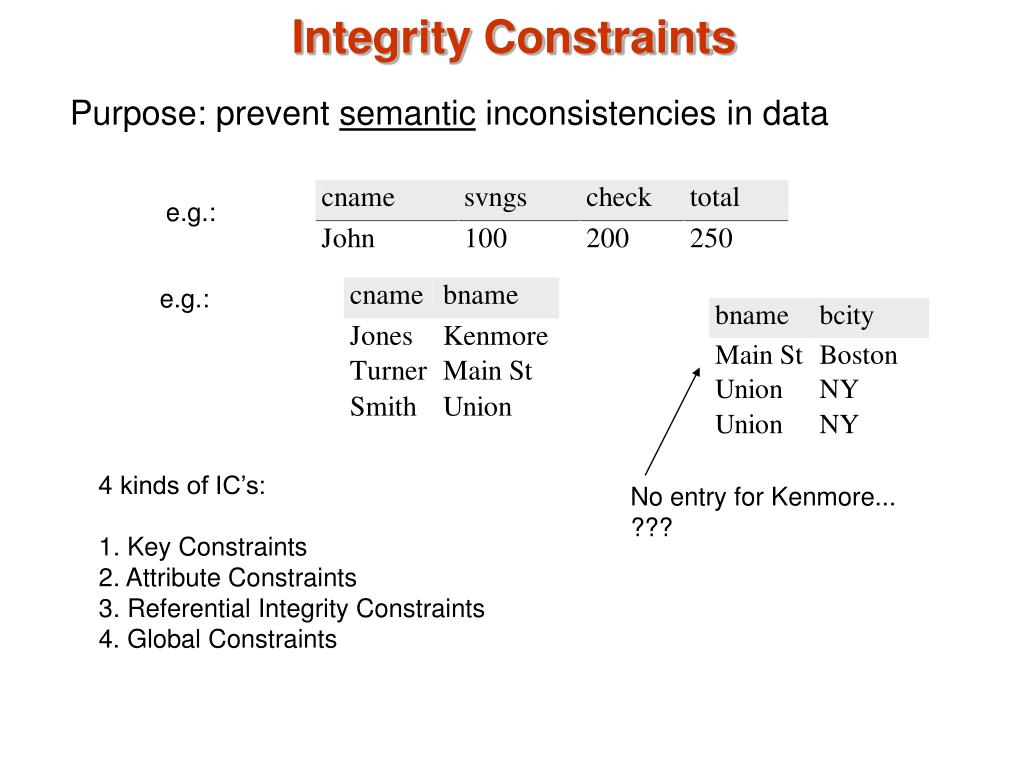

  3. Integrity Constraints Purpose: prevent semantic inconsistencies in data e.g.: e.g.: 4 kinds of IC’s: 1. Key Constraints 2. Attribute Constraints 3. Referential Integrity Constraints 4. Global Constraints No entry for Kenmore... ???

  4. IC’s What are they? • predicates on the database • must always be true (:, checked whenever db gets updated) There are the following 4 types of IC’s: Key constraints (1 table) e.g., 2 accts can’t share the same acct_no Attribute constraints (1 table) e.g., 2 accts must have nonnegative balance Referential Integrity constraints ( 2 tables) E.g. bnames associated w/ loans must be names of real branches

  5. Key Constraints SQL examples: 1. Primary Key: CREATE TABLE branch( bname CHAR(15) PRIMARY KEY, bcity CHAR(20), assets INT); or CREATE TABLE depositor( cname CHAR(15), acct_no CHAR(5), PRIMARY KEY(cname, acct_no)); 2. Candidate Keys: CREATE TABLE customer ( ssn CHAR(9) PRIMARY KEY, cname CHAR(15), address CHAR(30), city CHAR(10), UNIQUE (cname, address, city); Idea: specifies that a relation is a set, not a bag

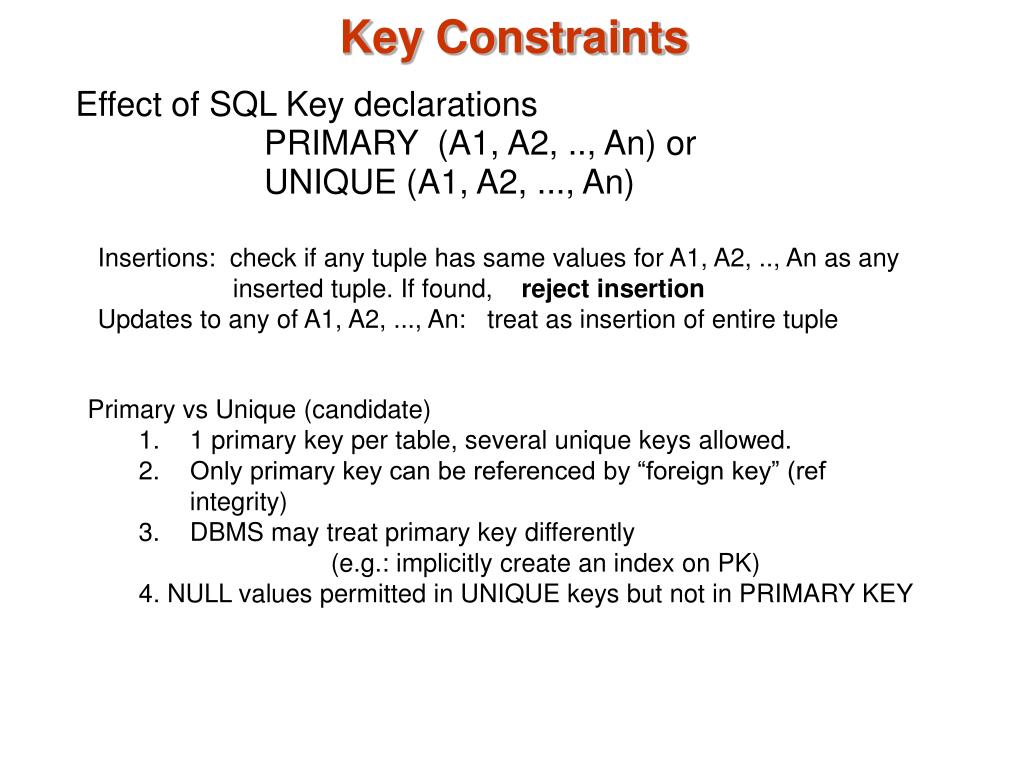

  6. Key Constraints Effect of SQL Key declarations PRIMARY (A1, A2, .., An) or UNIQUE (A1, A2, ..., An) Insertions: check if any tuple has same values for A1, A2, .., An as any inserted tuple. If found, reject insertion Updates to any of A1, A2, ..., An: treat as insertion of entire tuple • Primary vs Unique (candidate) • 1 primary key per table, several unique keys allowed. • Only primary key can be referenced by “foreign key” (ref integrity) • DBMS may treat primary key differently • (e.g.: implicitly create an index on PK) • 4. NULL values permitted in UNIQUE keys but not in PRIMARY KEY

  7. Attribute Constraints Idea: • Attach constraints to values of attributes • Enhances types system (e.g.: >= 0 rather than integer) In SQL: 1. NOT NULL e.g.: CREATE TABLE branch( bname CHAR(15) NOT NULL, .... ) Note: declaring bname as primary key also prevents null values 2. CHECK e.g.: CREATE TABLE depositor( .... balance int NOT NULL, CHECK( balance >= 0), .... ) affect insertions, update in affected columns

  8. CHECK constraint in Oracle CHECK cond where cond is: • Boolean expression evaluated using the values in the row being inserted or updated, and • Does not contain subqueries; sequences; the SQL functions SYSDATE, UID, USER, or USERENV; or the pseudocolumns LEVEL or ROWNUM Multiple CHECK constraints • No limit on the number of CHECK constraints you can define on a column CREATE TABLE credit_card( .... balance int NOT NULL, CHECK( balance >= 0), CHECK (balance < limit), .... )

  9. Referential Integrity Constraints Idea: prevent “dangling tuples” (e.g.: a loan with a bname of ‘Kenmore’ when no Kenmore tuple is not in branch table) Referencing Relation (e.g. loan) Referenced Relation (e.g. branch) “foreign key” bname primary key bname Ref Integrity: ensure that: foreign key value  primary key value (note: need not to ensure , i.e., not all branches have to have loans)

  10. Referential Integrity Constraints bname bname x Referencing Relation (e.g. loan) parent Referenced Relation (e.g. branch) x x child In SQL: CREATE TABLE branch( bname CHAR(15) PRIMARY KEY ....) CREATE TABLE loan ( ......... FOREIGN KEY bname REFERENCES branch); Affects: 1) Insertions, updates of referencing relation 2) Deletions, updates of referenced relation

  11. Referential Integrity Constraints c c ti x parent x tj x child what happens when we try to delete this tuple? A B • Ans: Oracle allows the following possibilities • No action • RESTRICT: reject deletion/ update • SET TO NULL: set ti [c], tj[c] = NULL • SET TO DEFAULT: set ti [c], tj[c] = default_val • CASCADE: propagate deletion/update • DELETE: delete ti, tj • UPDATE: set ti[c], tj[c] to updated values

  12. Referential Integrity Constraints c c ti x x tj x what happens when we try to delete this tuple? Emp Dept ALTER TABLE Dept ADD Primary Key (deptno); ALTER TABLE Emp ADD FOREIGN KEY (Deptno) REFERENCES Dept(Deptno) [ACTION]; Action: 1) ON DELETE NO ACTION left blank (deletion/update rejected) 2) ON DELETE SET NULL/ ON UPDATE SET NULL sets ti[c] = NULL, tj[c] = NULL 3) ON DELETE CASCADE deletes ti, tj ON UPDATE CASCADE sets ti[c], tj[c] to new key values

  13. Global Constraints Idea: two kinds 1) single relation (constraints spans multiple columns) E.g.: CHECK (total = svngs + check) declared in the CREATE TABLE Example: All Bkln branches must have assets > 5M CREATE TABLE branch ( .......... bcity CHAR(15), assets INT, CHECK (NOT(bcity = ‘Bkln’) OR assets > 5M)) Affects: insertions into branch updates of bcity or assets in branch 2) Multiple Relations: NOT supported in Oracle Need to be implemented as a Trigger

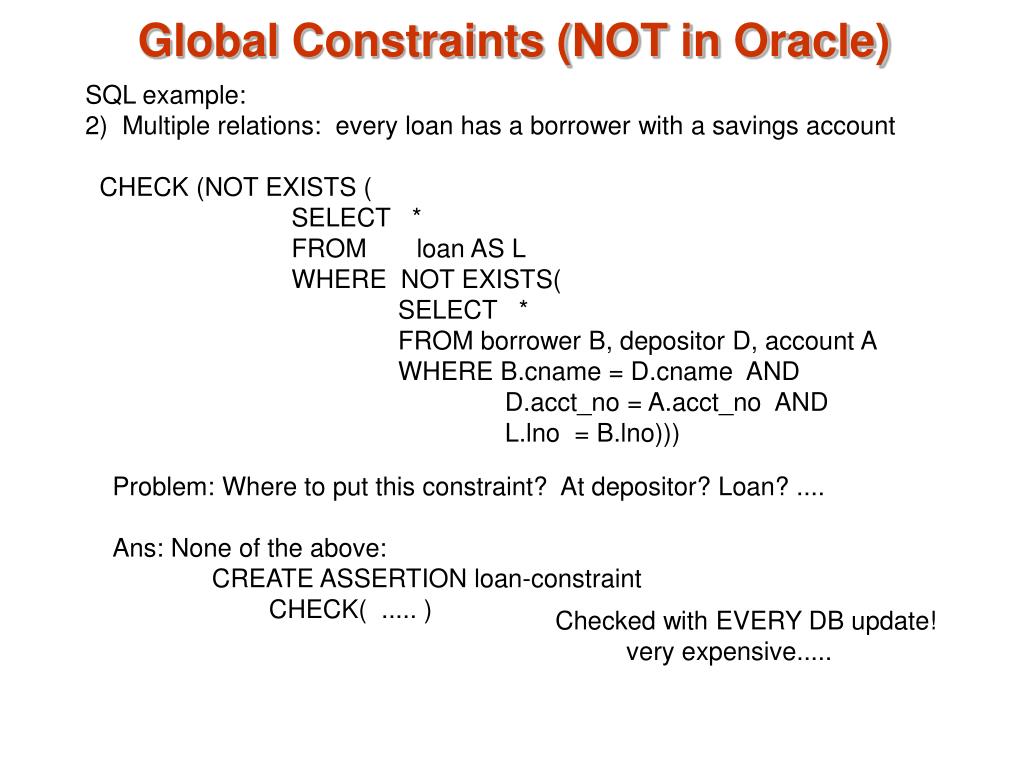

  14. Global Constraints (NOT in Oracle) SQL example: 2) Multiple relations: every loan has a borrower with a savings account CHECK (NOT EXISTS ( SELECT * FROM loan AS L WHERE NOT EXISTS( SELECT * FROM borrower B, depositor D, account A WHERE B.cname = D.cname AND D.acct_no = A.acct_no AND L.lno = B.lno))) Problem: Where to put this constraint? At depositor? Loan? .... Ans: None of the above: CREATE ASSERTION loan-constraint CHECK( ..... ) Checked with EVERY DB update! very expensive.....

  15. Global Constraints Issues: 1) How does one decide what global constraint to impose? 2) How does one minimize the cost of checking the global constraints? Ans: Functional dependencies. but before we go there

  16. Deferring the constraint checking • SET ALL CONSTRAINTS DEFERRED; • Defers all constraint checks till the end of the transaction • Especially useful in enforcing Referential integrity • Insert new rows into ‘Child’ table but referred key is not yet in Parent • Insert corresponding row in ‘Parent’ table • Constraint checking done at the end of the transaction • Can also defer individual constraint checking by specifying the constraint name • Finding the constraint information in Oracle • SELECT * FROM USER_CONSTRAINTS; • SELECT * FROM USER_CONS_COLS;

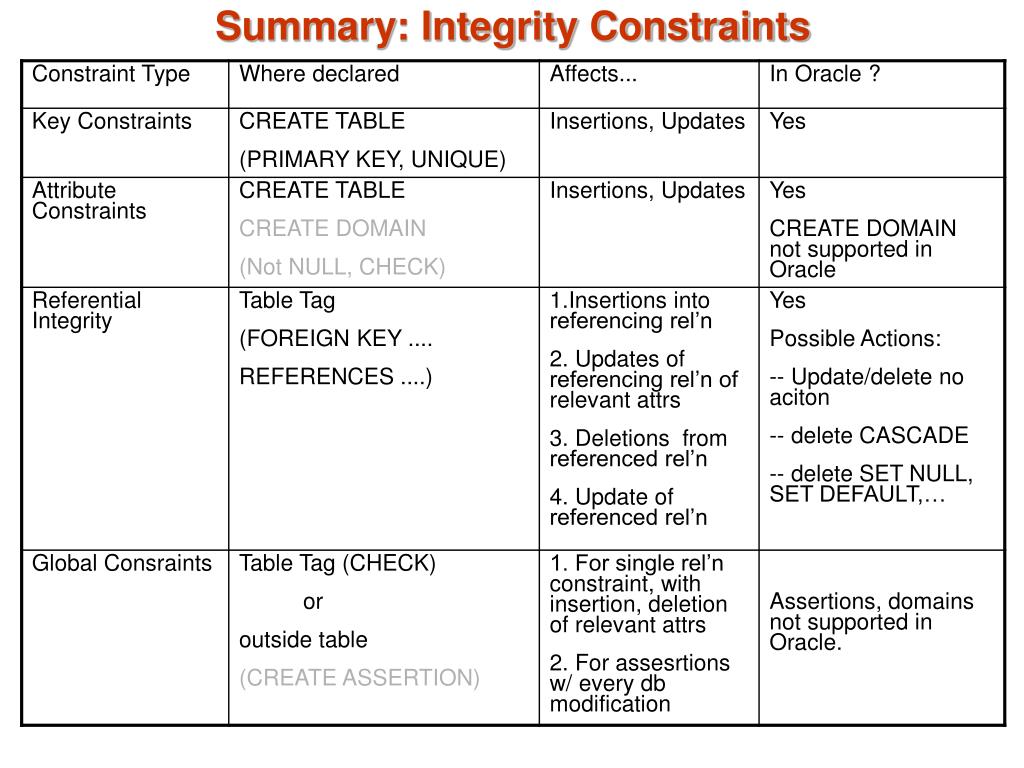

  17. Summary: Integrity Constraints

  18. Review Three things managed by a DBMS • Data organization • E/R Model • Relational Model • Data Retrieval • Relational Algebra • Relational Calculus • SQL • Data Integrity and Database Design • Integrity Constraints • Functional Dependencies • Constraints that hold for legal instance of the database • Example: Every customer should have a single credit card • Normalization

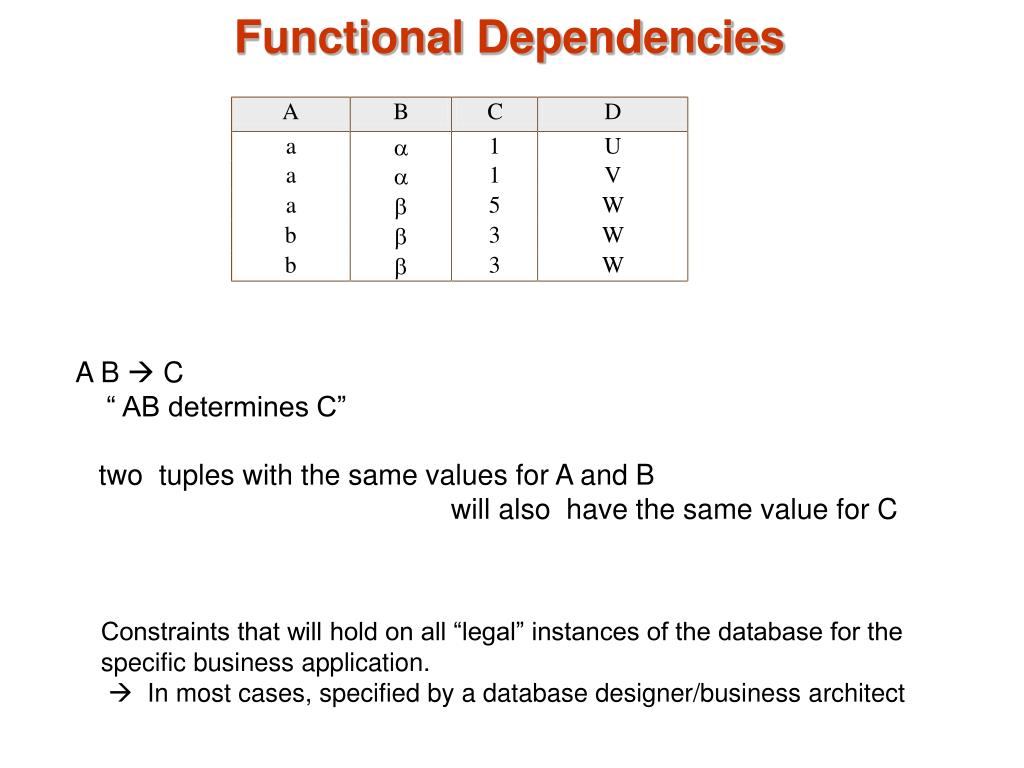

  19. Functional Dependencies A B  C “ AB determines C” two tuples with the same values for A and B will also have the same value for C Constraints that will hold on all “legal” instances of the database for the specific business application.  In most cases, specified by a database designer/business architect

  20. Functional Dependencies Shorthand: C  BD same as C  B C  D Be careful! AB  C not the same as AC BC Not true

  21. Functional Dependencies Example: suppose R = { A, B, C, D, E, H} and we determine that: F = { A  BC, B  CE, A  E, AC  H, D  B} Then we determine the ‘canonical cover’ of F: Fc = { A  BH, B  CE, D  B} ensuring that F and Fc are equivalent Note: F requires 5 assertions Fc requires 3 assertions Canonical cover (or minimal cover) algorithm: In the book (not covered here).

  22. Functional Dependencies Equivalence of FD sets: FD sets F and G are equivalent if the imply the same set of FD’s e.g. A B and B  C : implies A  C equivalence usually expressed in terms of closures Closures: For any FD set, F, F+ is the set of all FD’s implied by F. can calculate in 2 ways: (1) Attribute Closure (2) Armstrong’s axioms Both techniques tedious-- will do only for toy examples F equivalent to G iff F+ = G+

  23. Armstrong’s Axioms A. Fundamental Rules (W, X, Y, Z: sets of attributes) 1. Reflexivity If Y X then X  Y 2. Augmentation If X  Y then WX  WY 3. Transitivity If X Y and Y  Z then XZ B. Additional rules (can be proved from A) 4. UNION: If X  Y and X  Z then X  YZ 5. Decomposition: If X  YZ then X  Y, X Z 6. Pseudotransitivity: If X  Y and WY  Z then WX Z 2 3 Proving 4.(sketch): X Y => XXXY =>XXY XYYZ => X YZ For every step we used the rules from A.

  24. FD Closures Using Armstrong’s Axioms Given; F = { A  BC, (1) B  CE, (2) A  E, (3) AC  H, (4) D  B} (5) Exhaustively apply Armstrong’s axioms to generate F+ F+ = F 1. { A  B, A  C}: decomposition on (1) 2. { A  CE}: transitivity to 1.1 and (2) 3. { B  C, B  E}: decomp to (2) 4. { A  C, A  E} decomp to 2 5. { A  H} pseudotransitivity to 1.2 and (4)

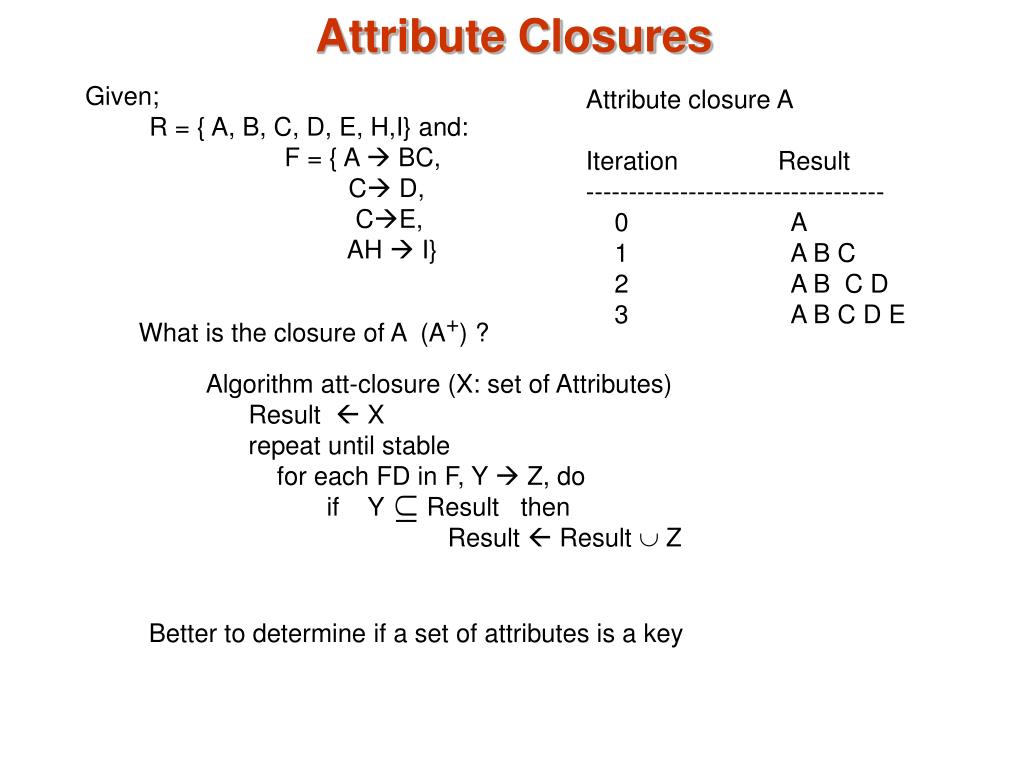

  25. Attribute Closures Given; R = { A, B, C, D, E, H,I} and: F = { A  BC, C D, CE, AH  I} Attribute closure A Iteration Result ----------------------------------- 0 A 1 A B C 2 A B C D 3 A B C D E What is the closure of A (A+) ? Algorithm att-closure (X: set of Attributes) Result  X repeat until stable for each FD in F, Y  Z, do if Y Result then Result  Result  Z Better to determine if a set of attributes is a key

  26. Functional dependencies Our goal: given a set of FD set, F, find an alternative FD set, G that is: smaller equivalent Bad news: Testing F=G (F+ = G+) is computationally expensive Good news: Canonical Cover algorithm: given a set of FD, F, finds minimal FD set equivalent to F Minimal: can’t find another equivalent FD set w/ fewer FD’s

  27. FD so far... • 1. Canonical Cover algorithm • result (Fc) guaranteed to be the minimal FD set equivalent to F • 2. Closure Algorithms • a. Armstrong’s Axioms: • more common use: test for extraneous attributes • in C.C. algorithm • b. Attribute closure: • more common use: test for superkeys • 3. Purposes • a. minimize the cost of global integrity constraints • so far: min gic’s = |Fc| In fact.... Min gic’s = 0 (FD’s for “normalization”)

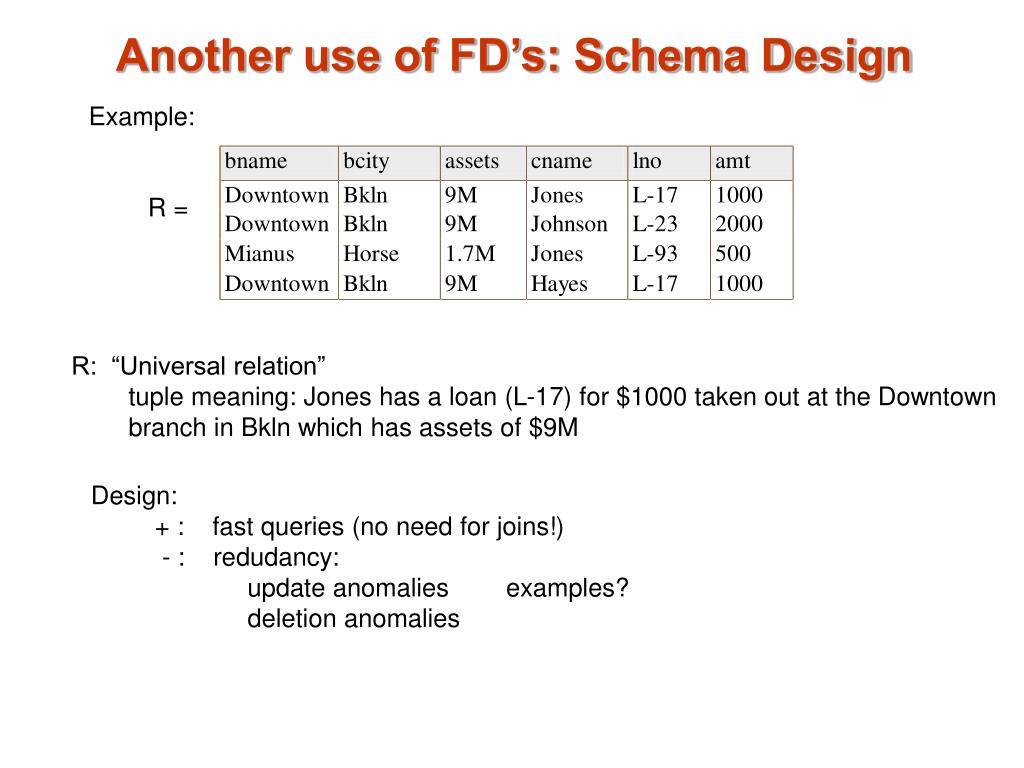

  28. Another use of FD’s: Schema Design Example: R = R: “Universal relation” tuple meaning: Jones has a loan (L-17) for $1000 taken out at the Downtown branch in Bkln which has assets of $9M Design: + : fast queries (no need for joins!) - : redudancy: update anomalies examples? deletion anomalies
