  1. SctRodDaq • Calibration mode • GUI improvements • Error reporting • New & improved tests • Information for offline • Physics mode Alan Barr, UCL

  2. Modify various parameterson-the-fly TIM module GUIview or modify registers New “DAQ crate view” Alan Barr, UCL

  3. To err is … inevitable • All data errors are reported by SctApi (SctApiCrateServerX.out file) • In case of a scan stall it is now much easier to find out what the cause of the problem is • Errors reported clearly in RawScanResult output • ROD-triggered scans and TIM-triggered scans • DSP code also does error-counting per link • not currently read out Alan Barr, UCL

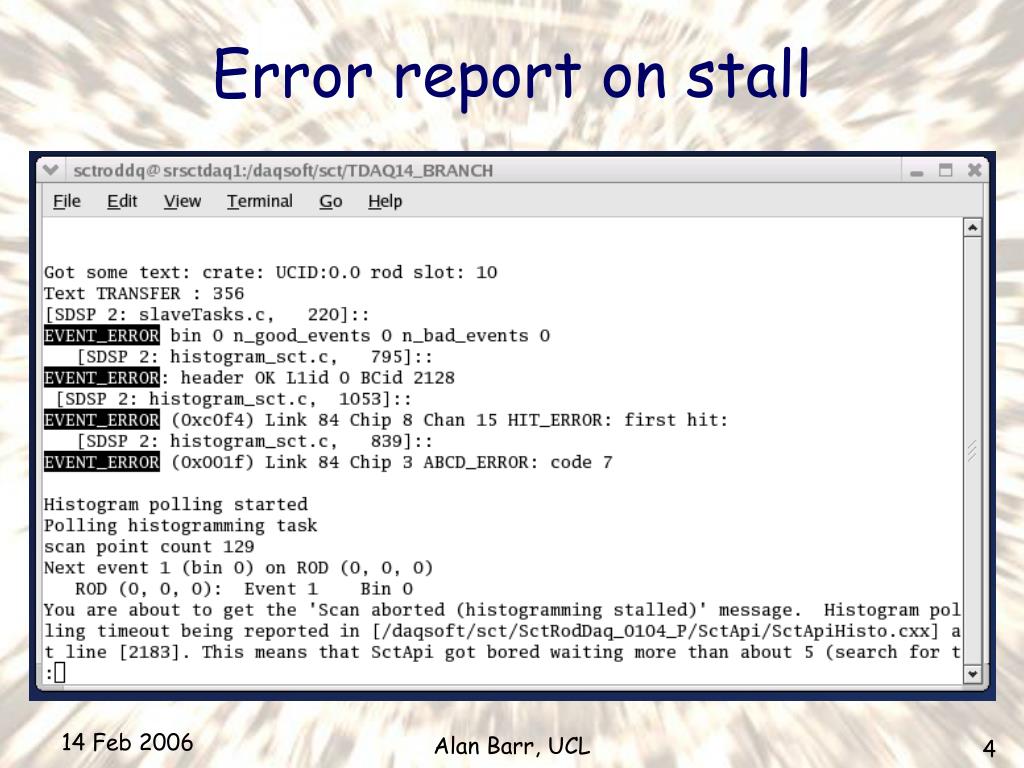

  4. Error report on stall Alan Barr, UCL

  5. Errors calculatedfrom “absent events” Alan Barr, UCL

  6. RxThreshold • Optical cross-talk • Config register modified (for the duration of this scan) so that adjacent fibres send different data • If optical cross-talk is present it should now be visible • Analysis • More robust analysis • Looks for valid headers (111010) rather than just ‘any combination of clean binary data’ • ‘Rise time’ of VCSEL amplitude calculated (number clocks between 25% and 75% max signal) • Long rise time ‘linked with infant mortality’ Alan Barr, UCL

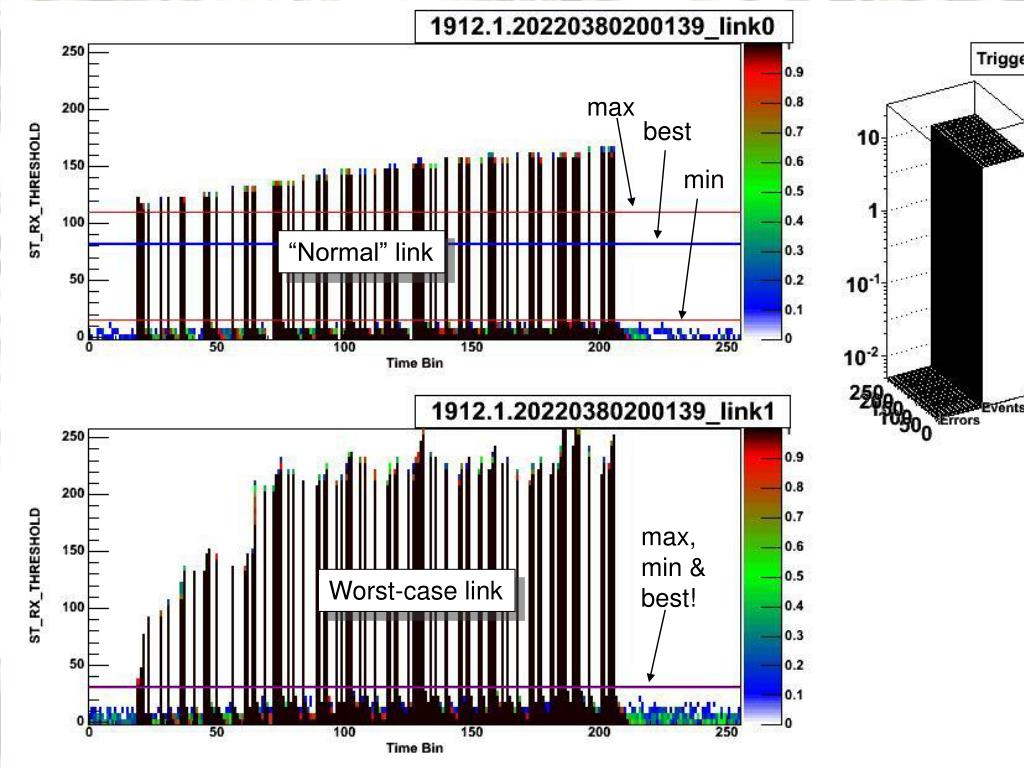

  7. max best min “Normal” link max,min &best! Worst-case link Alan Barr, UCL

  8. Tim Triggers • Fixed Frequency Trigger Veto in place • We cannot run synchronous calibration scans with FFT! • “SynchTriggerNoise” test now uses TIMs pseudo-randomised triggers • [For those in the know it’s the randomiser version 2] • Check is made for FFTV application • Warning message if FFTV has been applied during scan  statistics sent to MRS Alan Barr, UCL

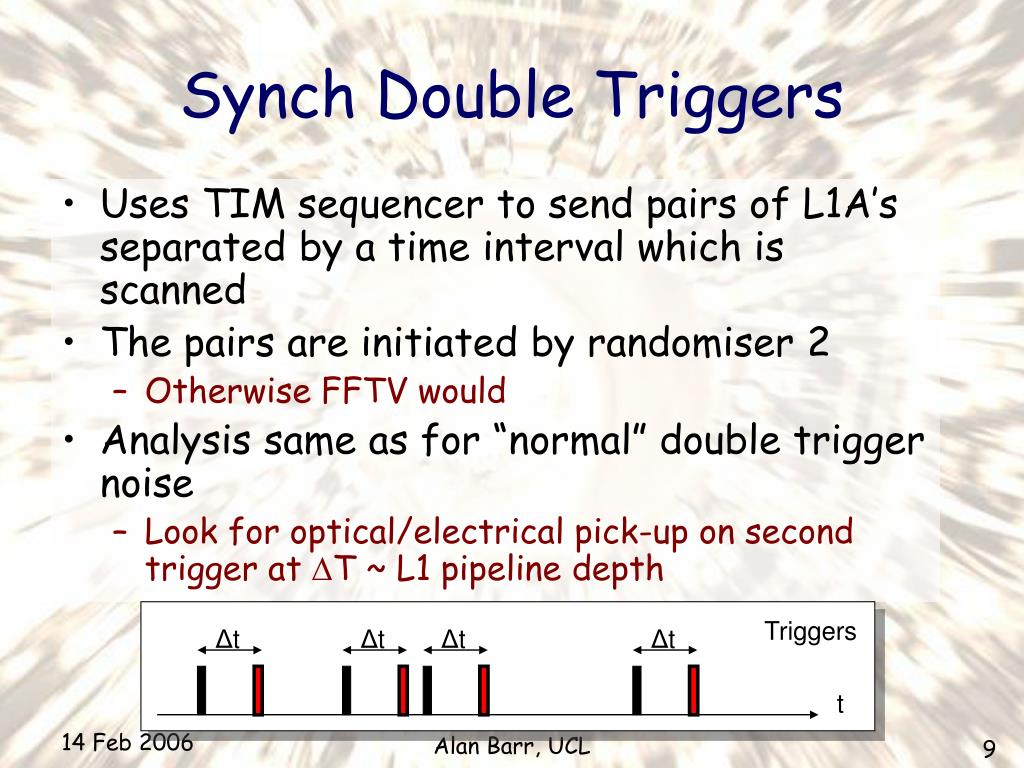

  9. Δt Δt Δt Δt Synch Double Triggers • Uses TIM sequencer to send pairs of L1A’s separated by a time interval which is scanned • The pairs are initiated by randomiser 2 • Otherwise FFTV would • Analysis same as for “normal” double trigger noise • Look for optical/electrical pick-up on second trigger at T ~ L1 pipeline depth Triggers t Alan Barr, UCL

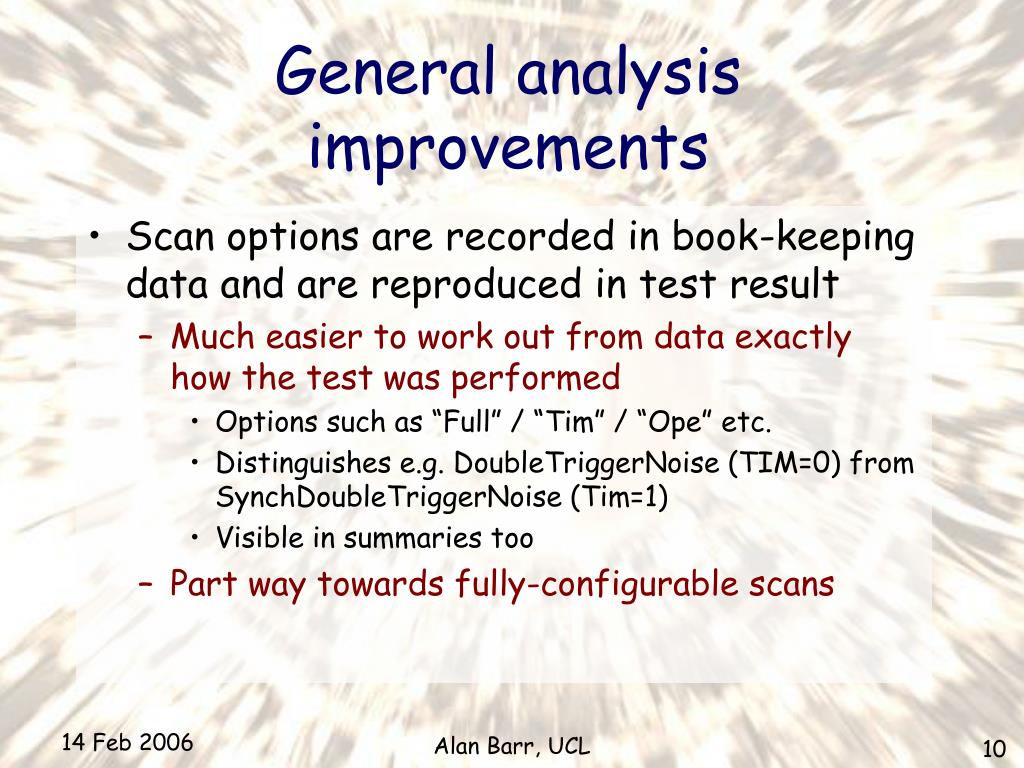

  10. General analysis improvements • Scan options are recorded in book-keeping data and are reproduced in test result • Much easier to work out from data exactly how the test was performed • Options such as “Full” / “Tim” / “Ope” etc. • Distinguishes e.g. DoubleTriggerNoise (TIM=0) from SynchDoubleTriggerNoise (Tim=1) • Visible in summaries too • Part way towards fully-configurable scans Alan Barr, UCL

  11. Tim external trigger • Trigger to TIM from LEMO • Tested with cosmics trigger from TRT • “Full mode” scan  all three time bins • Analysis & display understand how to interpret different time bins • Combine all information into single plot Alan Barr, UCL

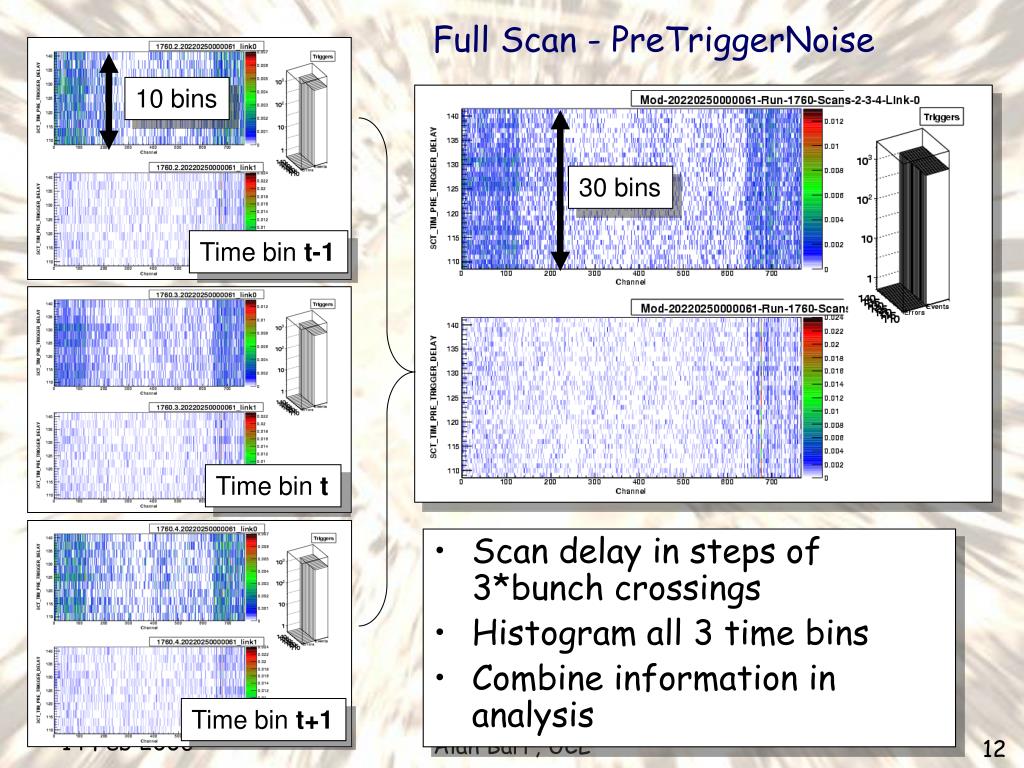

  12. Scan delay in steps of 3*bunch crossings Histogram all 3 time bins Combine information in analysis Full Scan - PreTriggerNoise 10 bins 30 bins Time bin t-1 Time bin t Time bin t+1 Alan Barr, UCL

  13. Calibration Information flow Displays Results of Scan &Tests produced by SctRodDaq (Raw, Fits, Analysed) Reads + interprets Text summaries(Assembly DB) Bad channels, Noise, Noise Occ to COOLvia CDI Archiving to file Replacement of text summaries by IS summaries in progress – should improve GUI performance Alan Barr, UCL

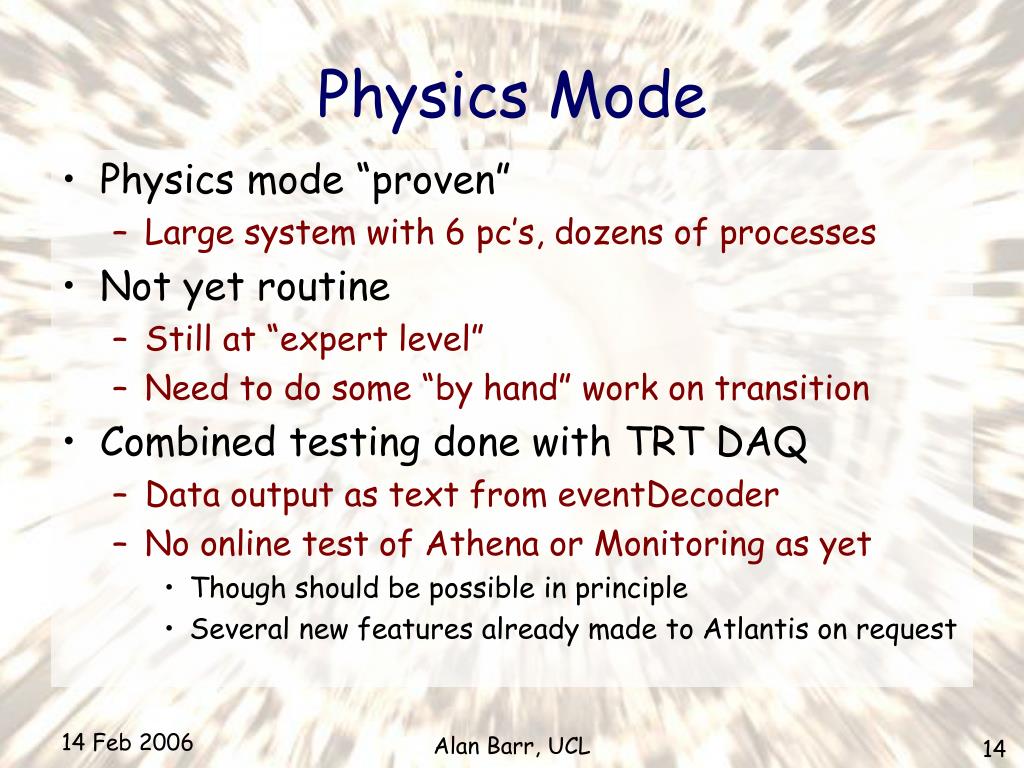

  14. Physics Mode • Physics mode “proven” • Large system with 6 pc’s, dozens of processes • Not yet routine • Still at “expert level” • Need to do some “by hand” work on transition • Combined testing done with TRT DAQ • Data output as text from eventDecoder • No online test of Athena or Monitoring as yet • Though should be possible in principle • Several new features already made to Atlantis on request Alan Barr, UCL

  15. Physics running TRT LTP SCT LTP To … Event display Monitoring ROS Events TIM Triggers ROD ROD ROD ROD histogrammingduring physics runningnot yet fully available Scintillators SBC Analysis PC,GUI Alan Barr, UCL

  16. Known shortcomings • Complete test with DIM (new DCS interface) still to be done • Transition between physics mode and calibration mode needs smoothing • Some details of ROD firmware still being investigated • XXX more here XXX Alan Barr, UCL

  17. Improvements on the cards • Sorting out previous shortcomings! • Fully configurable scans • Set scan points, options etc in advance via GUI • Increased speed for raw scans • Needs on-rod compression of histogram data • In binaries but not used in current release • Readout of DSP’s errorInfo scans • Full info about errors by link and by type • Dynamic removal of modules on error • Perhaps randomiser in DAQ scans? Alan Barr, UCL
