1. 21:00 stopping video after scattering, ~22:00 in actual delivery21:00 stopping video after scattering, ~22:00 in actual delivery
2. Outline technologies
large camera arrays
large projector arrays
camera–projector arrays optical effects
synthetic aperture photography
synthetic aperture illumination
synthetic confocal imaging 0:30, 1:15 for entire zoomin0:30, 1:15 for entire zoomin
3. Stanford Multi-Camera Array[Wilburn 2002] 640 × 480 pixels ×30fps × 128 cameras
synchronized timing
continuous video streaming
flexible physical arrangement 0:15
flexible physical arrangement
gives us a lot of mileage0:15
flexible physical arrangement
gives us a lot of mileage

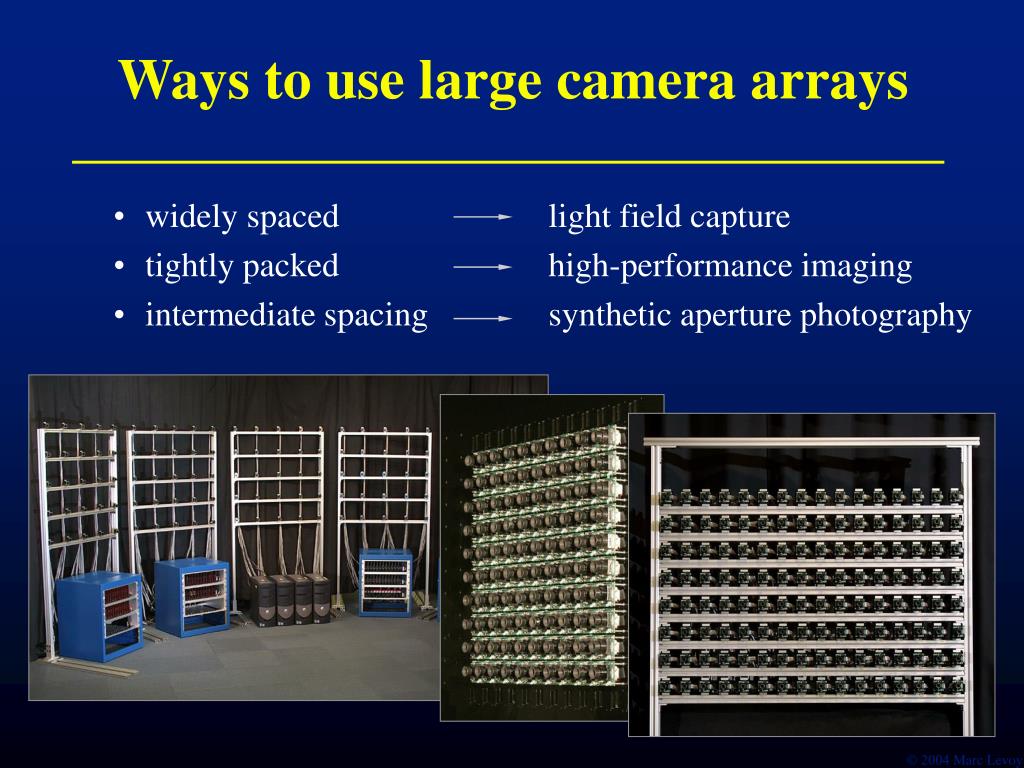

4. Ways to use large camera arrays widely spaced light field capture
tightly packed high-performance imaging
intermediate spacing synthetic aperture photography 0:30
if the cameras are tightly packed
relative to the distance to the scene
then we can think of the array as a single virtual camera of high performance
along one or more imaging dimensions, such as
resolution, speed, dynamic range, and so on
papers at CVPR
what I’ll be talking about today...intermediate spacing
where the cameras essentially sample a synthetic aperture0:30
if the cameras are tightly packed
relative to the distance to the scene
then we can think of the array as a single virtual camera of high performance
along one or more imaging dimensions, such as
resolution, speed, dynamic range, and so on
papers at CVPR
what I’ll be talking about today...intermediate spacing
where the cameras essentially sample a synthetic aperture
5. Synthetic aperture photography 2:00, 3:45 for SAP2:00, 3:45 for SAP
6. Synthetic aperture photography
7. Synthetic aperture photography Taken to the extreme
objects off the focal plane become so blurry that they effectively disappear
at least if they are smaller than the aperture
Leonardo noticed 500 years ago
a needle placed in front of his eye
because it was smaller than his pupil
did not occlude his vision
Taken to the extreme
objects off the focal plane become so blurry that they effectively disappear
at least if they are smaller than the aperture
Leonardo noticed 500 years ago
a needle placed in front of his eye
because it was smaller than his pupil
did not occlude his vision
8. Synthetic aperture photography
9. Synthetic aperture photography
10. Synthetic aperture photography Another way to think about synthetic aperture photography
take the images from all the cameras,
rectify them to a common plane
shift them by a certain amount,
and add them together
Objects that become aligned by the shifting process
will be sharply focused
objects in front of that plane...
objects in back of that plane...
Another way to think about synthetic aperture photography
take the images from all the cameras,
rectify them to a common plane
shift them by a certain amount,
and add them together
Objects that become aligned by the shifting process
will be sharply focused
objects in front of that plane...
objects in back of that plane...
11. Related work not like synthetic aperture radar (SAR)
more like X-ray tomosynthesis
[Levoy and Hanrahan, 1996]
[Isaksen, McMillan, Gortler, 2000] 0:300:30
12. Example using 45 cameras 0:300:30
13. Synthetic pull-focus
14. Crowd scene 0:150:15
15. Crowd scene
16. Synthetic aperture photographyusing an array of mirrors 11-megapixel camera
22 planar mirrors 0:300:30
17.
18.
19. Synthetic aperture illumation 0:45, 1:15 for SAI
if you replace cameras with projectors
many of the principles I’ve talked about still apply
in particular,
an array of projectors, suitably aligned, produces a real image in space
with such a shallow depth of field that
if you stick your hand astride the image, or a white angled screen in this case,
the image is focused only at one place on your hand,
it’s blurry in front of and behind that point
in this case
I’m using only a few projectors, so there’s some aliasing off the focal plane
if I had enough projectors, it would be a smooth blur0:45, 1:15 for SAI
if you replace cameras with projectors
many of the principles I’ve talked about still apply
in particular,
an array of projectors, suitably aligned, produces a real image in space
with such a shallow depth of field that
if you stick your hand astride the image, or a white angled screen in this case,
the image is focused only at one place on your hand,
it’s blurry in front of and behind that point
in this case
I’m using only a few projectors, so there’s some aliasing off the focal plane
if I had enough projectors, it would be a smooth blur
20. Synthetic aperture illumation technologies
array of projectors
array of microprojectors
single projector + array of mirrors
applications
bright display
autostereoscopic display [Matusik 2004]
confocal imaging [this paper] 0:30
single projector + array of mirrors
as we do in this paper
bright display
we wear sunglasses in our laboratory when looking at these images
autostereoscopic display
i.e. a light field display0:30
single projector + array of mirrors
as we do in this paper
bright display
we wear sunglasses in our laboratory when looking at these images
autostereoscopic display
i.e. a light field display
21. Confocal scanning microscopy 1:00, 5:15 up to and including patterns
at this point
I need to back up and tell you a bit about confocal microscopy
if you introduce a pinhole
only one point on the focal plane will be illuminated1:00, 5:15 up to and including patterns
at this point
I need to back up and tell you a bit about confocal microscopy
if you introduce a pinhole
only one point on the focal plane will be illuminated
22. Confocal scanning microscopy ...and a matching optical system,
hence the word confocal
this green dot
will be both strongly illuminated and sharply imaged
while this red dot
will have less light falling on it by the square of distance r,
because the light is spread over a disk
and it will also be more weakly imaged by the square of distance r,
because its image is blurred out over an disk on the pinhole mask, and only a little bit is permitted through
so the extent to which the red dot contributes to the final image
falls off as the fourth power of r, the distance from the focal plane...and a matching optical system,
hence the word confocal
this green dot
will be both strongly illuminated and sharply imaged
while this red dot
will have less light falling on it by the square of distance r,
because the light is spread over a disk
and it will also be more weakly imaged by the square of distance r,
because its image is blurred out over an disk on the pinhole mask, and only a little bit is permitted through
so the extent to which the red dot contributes to the final image
falls off as the fourth power of r, the distance from the focal plane
23. Confocal scanning microscopy of course, you’ve only imaged one point
so you need to move the pinholes
and scan across the focal planeof course, you’ve only imaged one point
so you need to move the pinholes
and scan across the focal plane
24. Confocal scanning microscopy
25. 0:15
the object in the lower-right image is actually spherical,
but portions of it that are off the focal plane are both blurry and dark,
effectively disappearing0:15
the object in the lower-right image is actually spherical,
but portions of it that are off the focal plane are both blurry and dark,
effectively disappearing
26. Synthetic confocal scanning 1:30
our goal
is to approximate this effect at the large scale
we can understand the photometry of this setup
using a simplified counting argument
if we had 5 cameras
then the ratio would be 25:1 instead of 5:11:30
our goal
is to approximate this effect at the large scale
we can understand the photometry of this setup
using a simplified counting argument
if we had 5 cameras
then the ratio would be 25:1 instead of 5:1
27. Synthetic confocal scanning 5:0 or 5:1
if we had 5 cameras as well as 5 projectors, then the ratio would be 25:0 or 25:15:0 or 5:1
if we had 5 cameras as well as 5 projectors, then the ratio would be 25:0 or 25:1
28. Synthetic confocal scanning works with any number of projectors = 2
discrimination degrades if point to left of
no discrimination for points to left of
slow!
poor light efficiency depth of field
a microscoper would call it the axial resolution
to make the depth of field shallower, spread out the projectors, i.e. a larger synthetic aperturedepth of field
a microscoper would call it the axial resolution
to make the depth of field shallower, spread out the projectors, i.e. a larger synthetic aperture

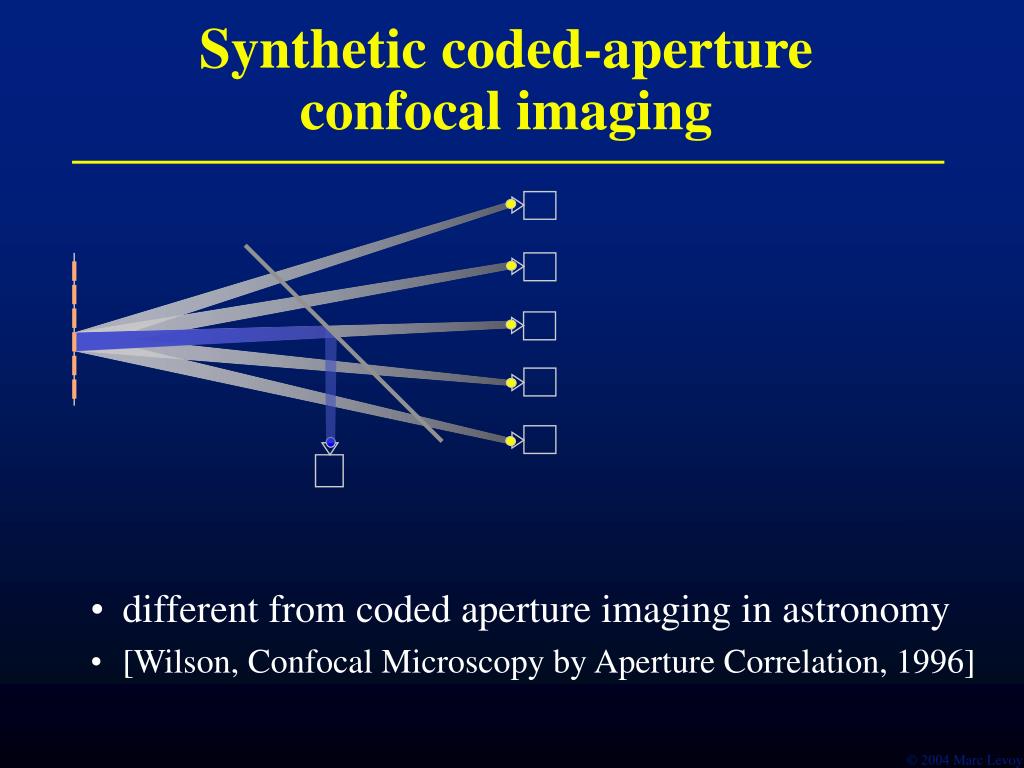

29. Synthetic coded-apertureconfocal imaging different from coded aperture imaging in astronomy
[Wilson, Confocal Microscopy by Aperture Correlation, 1996] 2:152:15
30. Synthetic coded-apertureconfocal imaging
31. Synthetic coded-apertureconfocal imaging
32. Synthetic coded-apertureconfocal imaging
33. Synthetic coded-apertureconfocal imaging
34. Synthetic coded-apertureconfocal imaging

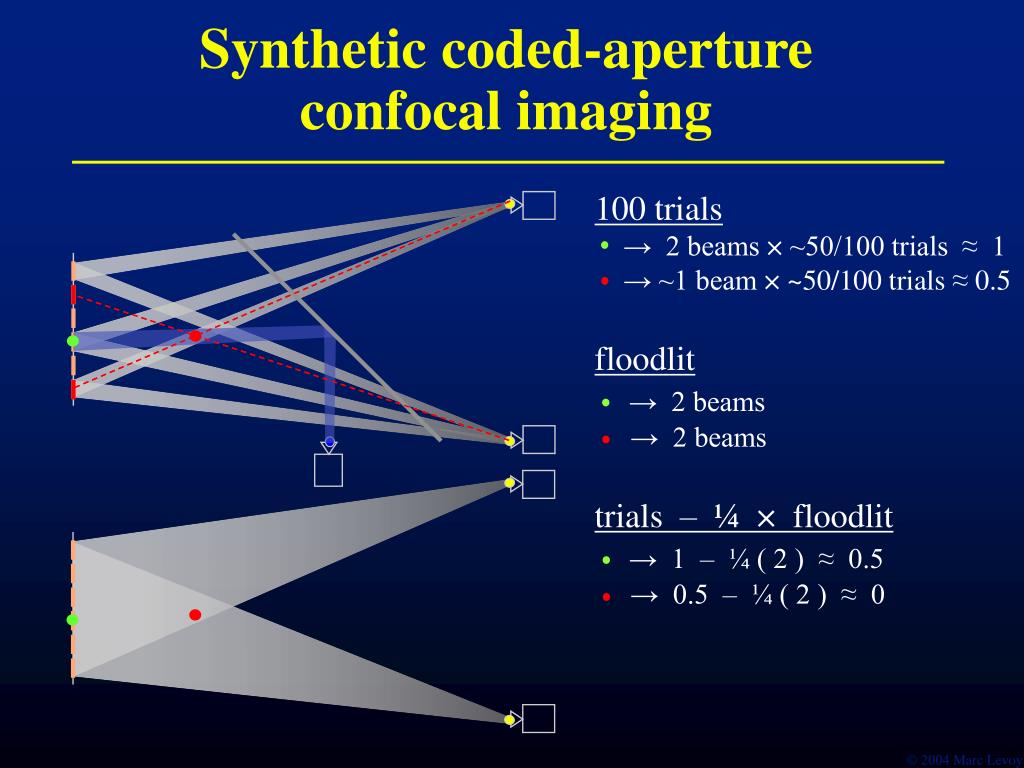

35. Synthetic coded-apertureconfocal imaging note all the tildas in the formulas
this algorithm is statistical in nature
for example, if we flip a coin to decide whether to illumninate a particular tile on a particular trial
the binomial theorem tells us how much variability we’ll get over a given number of trials
the effect of this variability
the image of our focal plane will be slightly non-uniform, and
objects off the focal plane won’t be entirely dark after the confocal subtraction
but for visual purposes
our technique works well with a modest number of trials, like 16
far fewer than would be required to scan out the focal plane, as in the usual confocal scanning algorithm
something else about this variability...note all the tildas in the formulas
this algorithm is statistical in nature
for example, if we flip a coin to decide whether to illumninate a particular tile on a particular trial
the binomial theorem tells us how much variability we’ll get over a given number of trials
the effect of this variability
the image of our focal plane will be slightly non-uniform, and
objects off the focal plane won’t be entirely dark after the confocal subtraction
but for visual purposes
our technique works well with a modest number of trials, like 16
far fewer than would be required to scan out the focal plane, as in the usual confocal scanning algorithm
something else about this variability...
36. Synthetic coded-apertureconfocal imaging let’s examine the red dot in isolation
if due to this variability it is not entirely dark
then we at least want the beams affecting its color, shown here with red dashed lines
to be uncorrelated with the beams affecting the color of adjacent points, like this orange one
so that objects like this off the focal plane don’t develop objectionable spatial patterns
for this to happen
we need patterns in which the illumination of different tiles are spatially uncorrelatedlet’s examine the red dot in isolation
if due to this variability it is not entirely dark
then we at least want the beams affecting its color, shown here with red dashed lines
to be uncorrelated with the beams affecting the color of adjacent points, like this orange one
so that objects like this off the focal plane don’t develop objectionable spatial patterns
for this to happen
we need patterns in which the illumination of different tiles are spatially uncorrelated
37. Example pattern 0:150:15
38. Patterns with less aliasing
39. Implementation using an array of mirrors 4:00 up to and including scattering media4:00 up to and including scattering media
40. 4:00 up to and including scattering media4:00 up to and including scattering media
41. Confocal imaging in scattering media small tank
too short for attenuation
lit by internal reflections 0:30, 1:30 for WHOI setup
I observed a confocal effect
but it was modest
theory said the effect should be stronger
indeed,
it is stronger
as I confirmed this summer...0:30, 1:30 for WHOI setup
I observed a confocal effect
but it was modest
theory said the effect should be stronger
indeed,
it is stronger
as I confirmed this summer...
42. Experiments in a large water tank 1:001:00
43. Experiments in a large water tank 4-foot viewing distance to target
surfaces blackened to kill reflections
titanium dioxide in filtered water
transmissometer to measure turbidity titanium dioxide
the stuff in white painttitanium dioxide
the stuff in white paint
44. Experiments in a large water tank stray light limits performance
one projector suffices if no occluders
45. Seeing through turbid water 0:45, 1:45 for WHOI results
this is very turbid water
the “attenuation length” (a technical term that roughly translates to “how far you can see clearly”) is about 8 inches
and I’m trying to see through 4 feet
if you contrast enhance these images,
you can see the improvement in signal-to-noise ratio0:45, 1:45 for WHOI results
this is very turbid water
the “attenuation length” (a technical term that roughly translates to “how far you can see clearly”) is about 8 inches
and I’m trying to see through 4 feet
if you contrast enhance these images,
you can see the improvement in signal-to-noise ratio

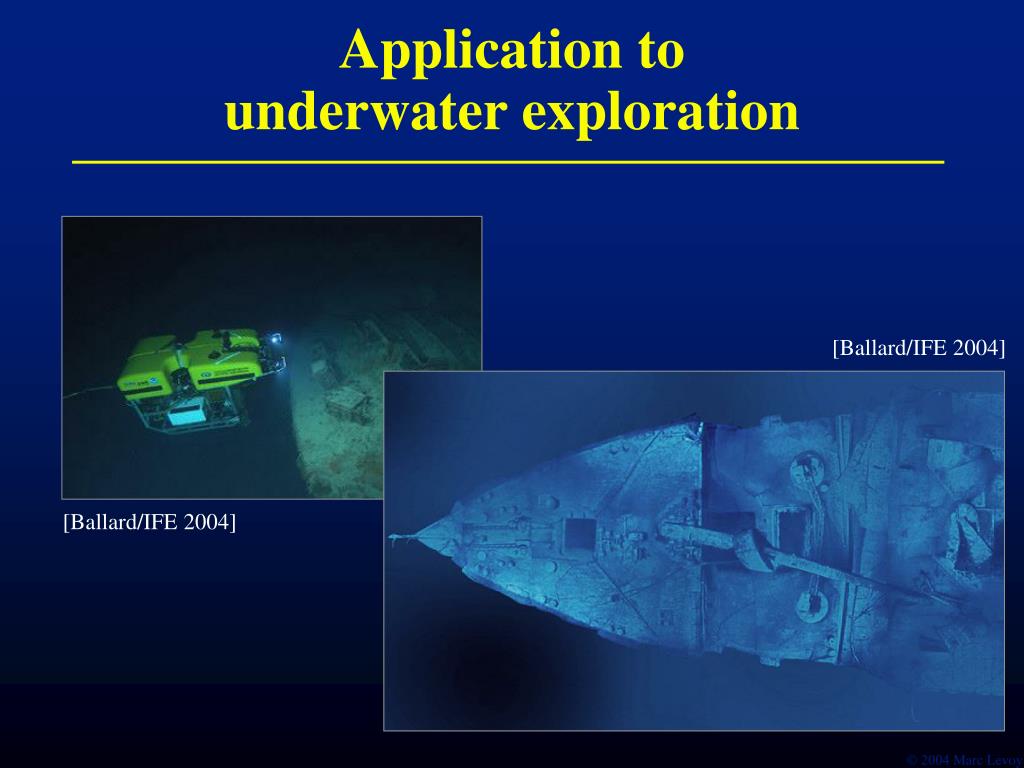

46. Application tounderwater exploration 0:30
so I think we can expect
video projectors being mounted on future underwater vehicles
this is the Hercules remotely operated vehicle
exploring the wreck of the Titanic two months ago in the North Atlantic
the question is
can you produce an overhead view like this, of the Titanic
in a single shot taken from far away using shaped illumination
rather than by mowing the lawn with the underwater vehicle
which is difficult, dangerous, time consuming, and produces a mosaic with parallax errors
0:30
so I think we can expect
video projectors being mounted on future underwater vehicles
this is the Hercules remotely operated vehicle
exploring the wreck of the Titanic two months ago in the North Atlantic
the question is
can you produce an overhead view like this, of the Titanic
in a single shot taken from far away using shaped illumination
rather than by mowing the lawn with the underwater vehicle
which is difficult, dangerous, time consuming, and produces a mosaic with parallax errors
47. Research challenges in SAP and SAI theory
aperture shapes and sampling patterns
illumination patterns for confocal imaging
optical design
How to arrange cameras, projectors,lenses, mirrors, and other optical elements?
How to compare the performance of different arrangements (in foliage, underwater,...)? 1:45, 2:45 until end
Where do we go from here?
sampling patterns
meaning – arrangements of cameras or projectors
There are many optical design problems here1:45, 2:45 until end
Where do we go from here?
sampling patterns
meaning – arrangements of cameras or projectors
There are many optical design problems here
48. Challenges (continued) systems design
multi-camera or multi-projector chips
communication in camera-projector networks
calibration in long-range or mobile settings
algorithms
tracking and stabilization of moving objects
compression of dense multi-view imagery
shape from light fields if you agree that
arrays of cameras and projectors are a good idea, then
How can we build them compactly and inexpensively?if you agree that
arrays of cameras and projectors are a good idea, then
How can we build them compactly and inexpensively?
49. Challenges (continued) applications of confocal imaging
remote sensing and surveillance
shape measurement
scientific imaging
applications of shaped illumination
shaped searchlights for surveillance
shaped headlamps for driving in bad weather
selective lighting of characters for stage and screen one of my favorites is
in the theater
perform confocal imaging of an actor on a stage, in real-time, using imperceptible structured light generated by an ultra-high-speed projector (such as my co-authors are exhibiting in etech)
to produce an moving matte for the actor, then
use that matte to throw a spotlight only on the actor,
without casting a shadow on the stage, and
without creating a pool of light on the ground!one of my favorites is
in the theater
perform confocal imaging of an actor on a stage, in real-time, using imperceptible structured light generated by an ultra-high-speed projector (such as my co-authors are exhibiting in etech)
to produce an moving matte for the actor, then
use that matte to throw a spotlight only on the actor,
without casting a shadow on the stage, and
without creating a pool of light on the ground!
50. Computational imagingin other fields medical imaging
rebinning
tomography
airborne sensing
multi-perspective panoramas
synthetic aperture radar
astronomy
coded-aperture imaging
multi-telescope imaging 0:30
let me end with this thought...
the techniques I’ve presented today
arose from a study of computational imaging in other scientific disciplines
I think we’ve only scratched the surface here
for example,
the original idea for light field rendering 10 years ago,
creating new perspective images by rebinning other images,
was inspired by a technique called rebinning in medical imaging
many of the ideas in the present paper
came out of studying synthetic aperture radar and coded-aperture imaging in astronomy0:30
let me end with this thought...
the techniques I’ve presented today
arose from a study of computational imaging in other scientific disciplines
I think we’ve only scratched the surface here
for example,
the original idea for light field rendering 10 years ago,
creating new perspective images by rebinning other images,
was inspired by a technique called rebinning in medical imaging
many of the ideas in the present paper
came out of studying synthetic aperture radar and coded-aperture imaging in astronomy
51. Computational imagingin other fields geophysics
accoustic array imaging
borehole tomography
biology
confocal microscopy
deconvolution microscopy
physics
optical tomography
inverse scattering there are many other fields
with interesting computational techniques
that might have application in computer graphics or computer visionthere are many other fields
with interesting computational techniques
that might have application in computer graphics or computer vision
52. The team staff
Mark Horowitz
Marc Levoy
Bennett Wilburn
students
Billy Chen
Vaibhav Vaish
Katherine Chou
Monica Goyal
Neel Joshi
Hsiao-Heng Kelin Lee
Georg Petschnigg
Guillaume Poncin
Michael Smulski
Augusto Roman collaborators
Mark Bolas
Ian McDowall
Guillermo Sapiro
funding
Intel
Sony
Interval Research
NSF
DARPA 0:300:30
53. Related papers The Light Field Video Camera
Bennett Wilburn, Michael Smulski, Hsiao-Heng Kelin Lee, and Mark Horowitz
Proc. Media Processors 2002, SPIE Electronic Imaging 2002
Using Plane + Parallax for Calibrating Dense Camera Arrays
Vaibhav Vaish, Bennett Wilburn, Neel Joshi,, Marc Levoy
Proc. CVPR 2004
High Speed Video Using a Dense Camera Array
Bennett Wilburn, Neel Joshi, Vaibhav Vaish, Marc Levoy, Mark Horowitz
Proc. CVPR 2004
Spatiotemporal Sampling and Interpolation for Dense Camera Arrays
Bennett Wilburn, Neel Joshi, Katherine Chou, Marc Levoy, Mark Horowitz
ACM Transactions on Graphics (conditionally accepted)
