  1. Modern Physics(PC301) Class #4 Moore - Chapter R5 – Proper time Chapter R6 – Coordinate Transformation

  2. Don’t forget: • Hand in homework Tomorrow by 10 am (8 am for webassign) and Sim2 on Friday • 1) Length Contraction • Trip to Alpha Centuri revisited. • 2) Drawing Two-Observer Spacetime Diagrams • time contraction • length contraction • Lorentz transformation equations • Review with some homework problems • Revisit length contraction with the diagram • 3) Revisit length contraction and simultaneity with the conveyor belt painters and the barn/pole problem.

  3. Homework Questions Problem Set #2 Due Wed by 8 am (Tomorrow!) Also Sim 2 due on Friday First test in two weeks

  4. The Twin Paradox "If we placed a living organism in a box…one could arrange that the organism, after an arbitrary lengthy flight, could be returned to its original spot in a scarcely altered condition, while corresponding organisms which had remained in their original positions had long since given way to new generations." (Einsteins original statement of paradox - 1911)

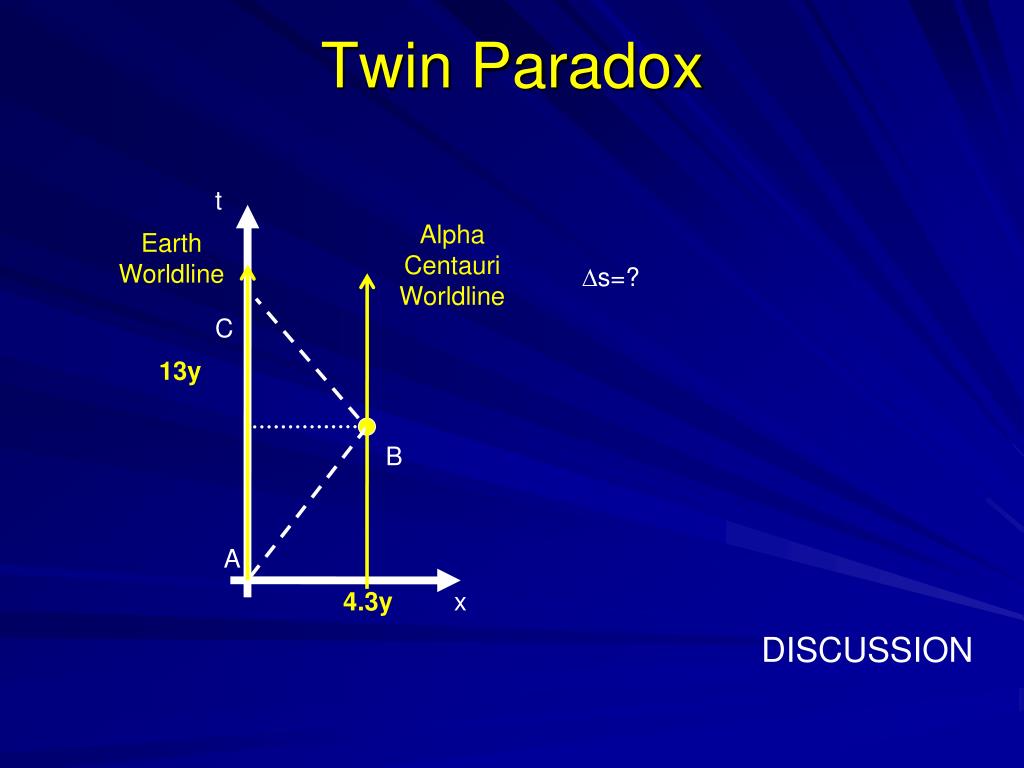

  5. Twin Paradox t Alpha Centauri Worldline Earth Worldline Ds=? C 13y B A 4.3y x DISCUSSION

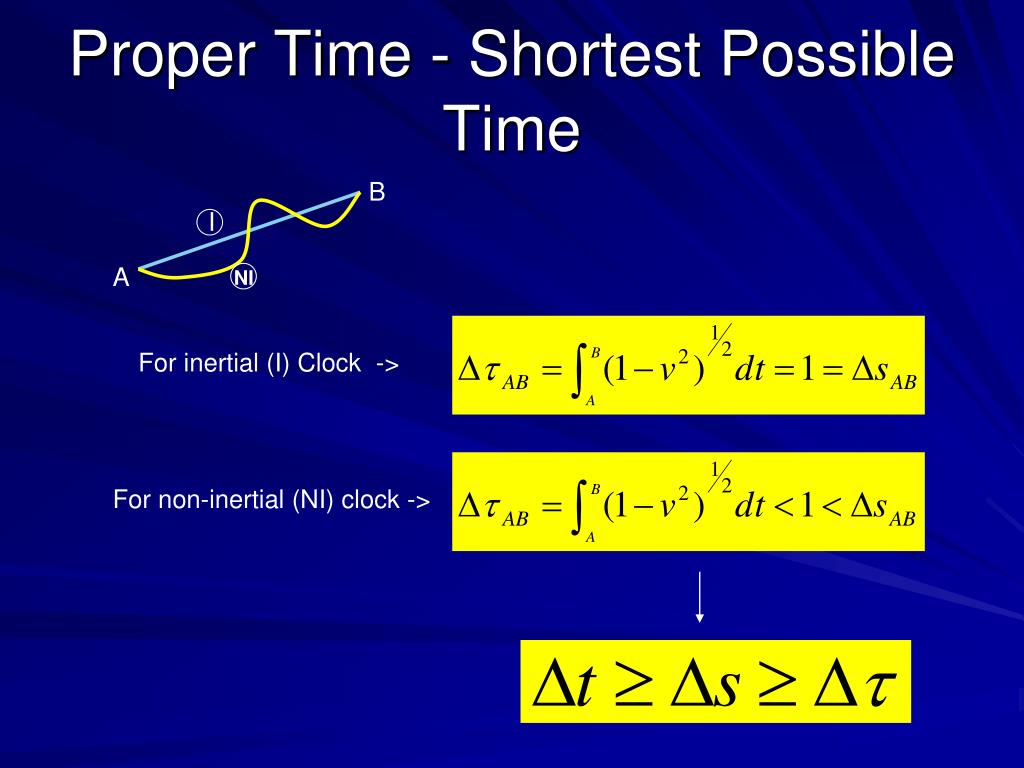

  6. B I A NI For inertial (I) Clock -> For non-inertial (NI) clock -> Proper Time - Shortest Possible Time

  7. Different Views: Read ThemThis is FUN Tipler: pages 50-53 Ohanian: pages 57-58 Epstein: 85-86 Feynman (6 ideas): 77-79

  8. Binomial Expansion

  9. Evidence Hafele & Keating (1971)

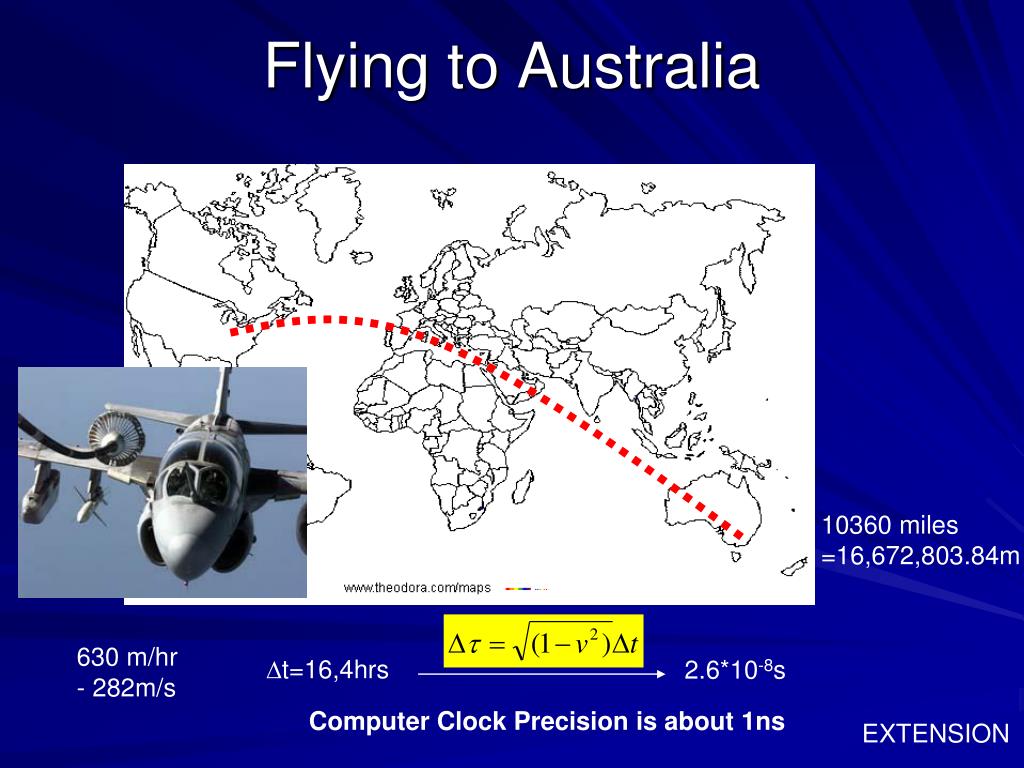

  10. Flying to Australia 10360 miles =16,672,803.84m 630 m/hr - 282m/s Dt=16,4hrs 2.6*10-8s Computer Clock Precision is about 1ns EXTENSION

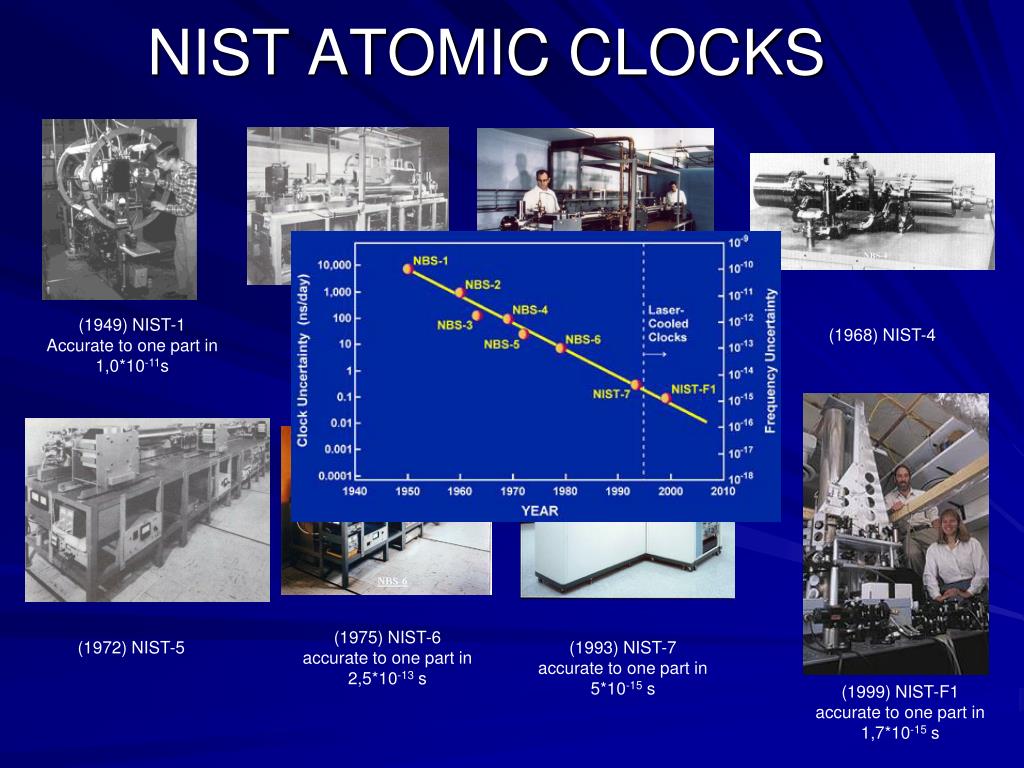

  11. NIST ATOMIC CLOCKS (1949) NIST-1 Accurate to one part in 1,0*10-11s (1960) NIST-2 (1963) NIST-3 (1968) NIST-4 (1975) NIST-6 accurate to one part in 2,5*10-13 s (1972) NIST-5 (1993) NIST-7 accurate to one part in 5*10-15 s (1999) NIST-F1 accurate to one part in 1,7*10-15 s

  12. Leptons The leptons are perhaps the simplest of the elementary particles. They appear to be pointlike and seem to be truly elementary. Thus far there has been no plausible suggestion they are formed from some more fundamental particles. There are only six leptons ( displayed in Table 14.3) , plus their six antiparticles. We have already discussed the electron and muon. Each of the charged particles has an associated neutrino, named after its charged partner (for example, muon neutrino). The electron and all the neutrinos are stable. The muon decays into an electron, and the tau can decay into an electron, a muon, or even hadrons (which is most probable). From p480-481 of Thornton and Rex http://www.youtube.com/watch?v=T3iryBLZCOQ

  13. Good reading for next two weeks • Essay be Isaac Asimov • Speed of Light Read and summarize (type please) Chapter 1. Read chapter 2 for greater understanding. Located on P drive or borrow the book from me.

  14. Length Definition "In an inertial frame, an objects length is defined as the distance between two simultaneous events that occur at its ends." Frame Dependent Quantity

  15. Visualizing Length Contraction

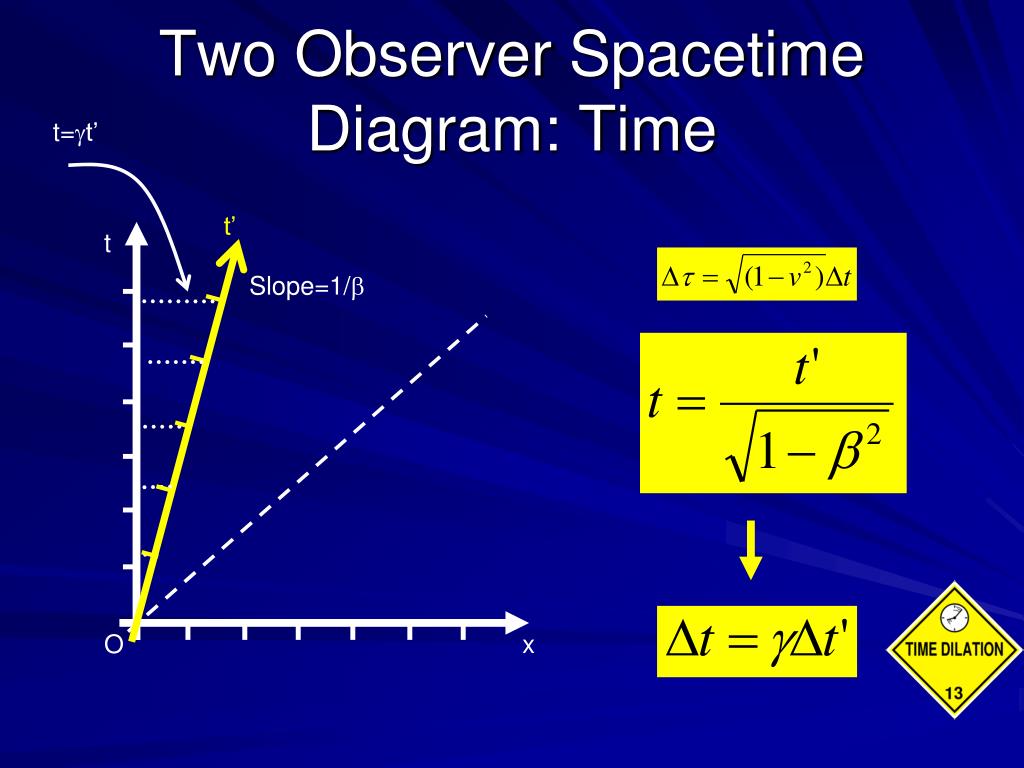

  16. t=t’ t’ t O x Two Observer Spacetime Diagram: Time Slope=1/b @ x’=0, t’=nd -> nd = t2 - x2 x=bt Moore confusing -> d = separation between marks on t & t’ axis

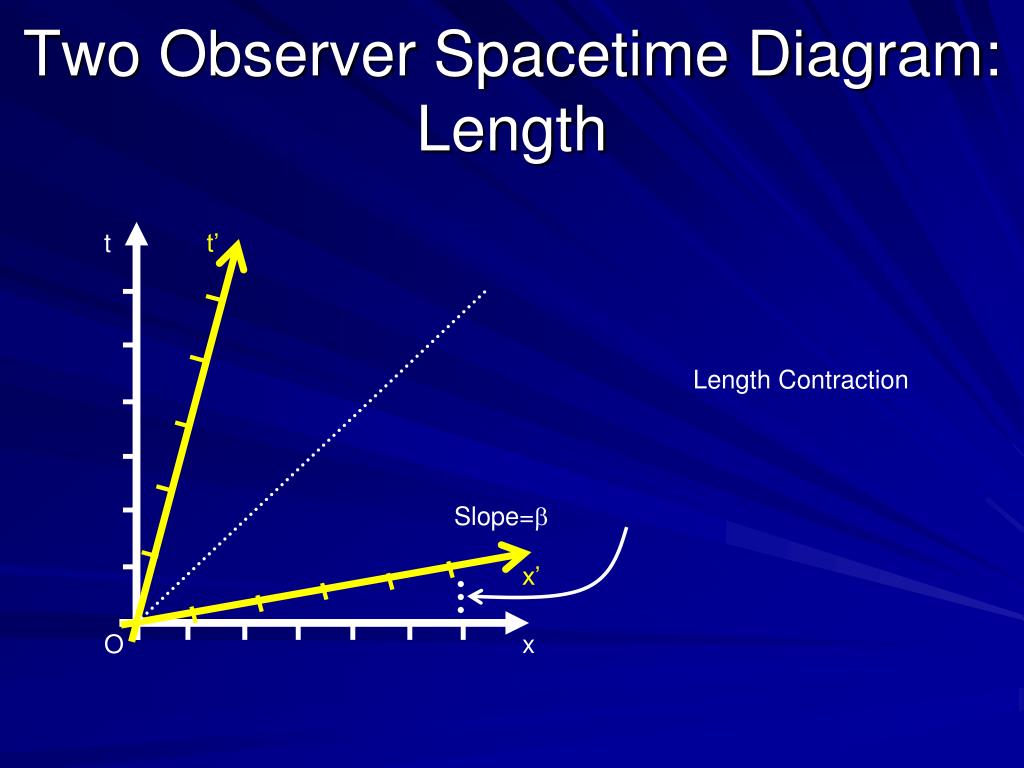

  17. t t’ x’ x Two Observer Spacetime Diagram: Length Length Contraction Slope=b O

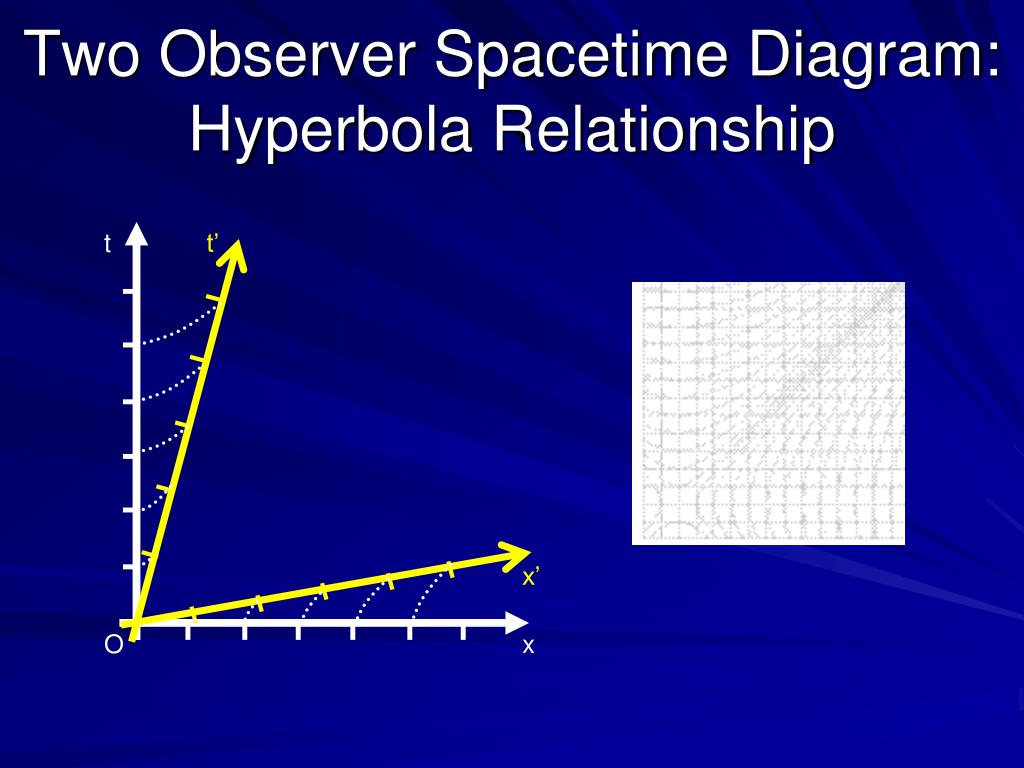

  18. t t’ x’ x Two Observer Spacetime Diagram: Hyperbola Relationship Dt2-Dx2=Ds2 O At ds=1, x-0 -> t varies depending on speed 1/x2

  19. From Moore p.108

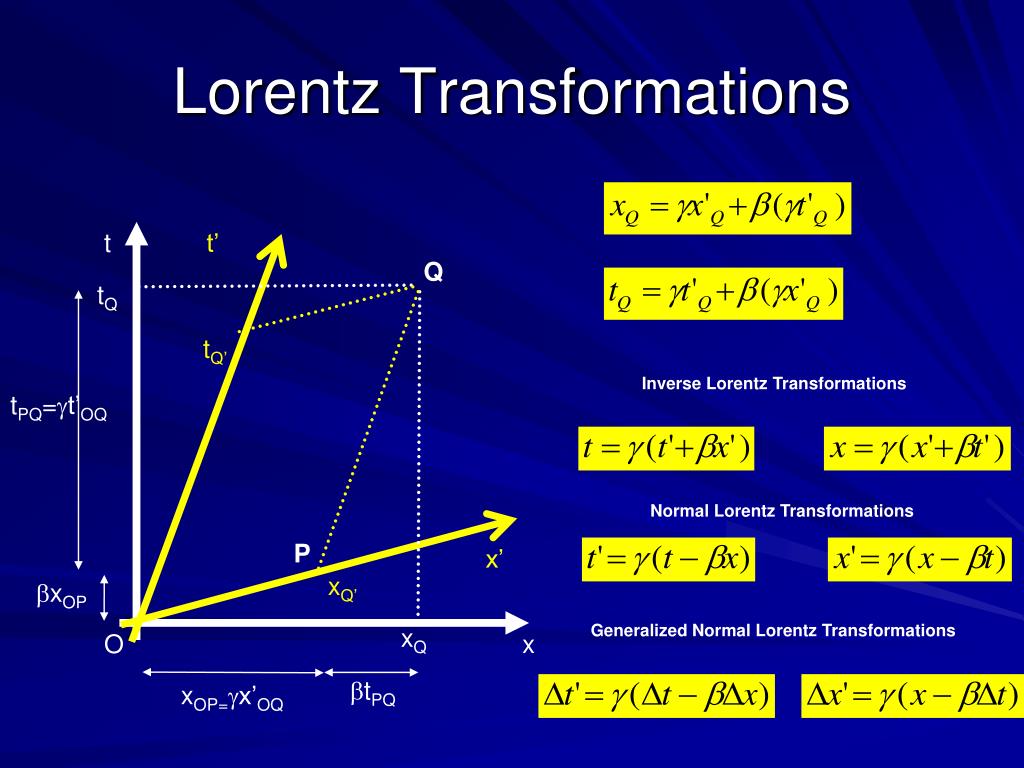

  20. Lorentz Transformations t t’ Q tQ tQ’ Inverse Lorentz Transformations tPQ=gt’OQ Normal Lorentz Transformations P x’ xQ’ bxOP Generalized Normal Lorentz Transformations xQ O x btPQ xOP=gx’OQ

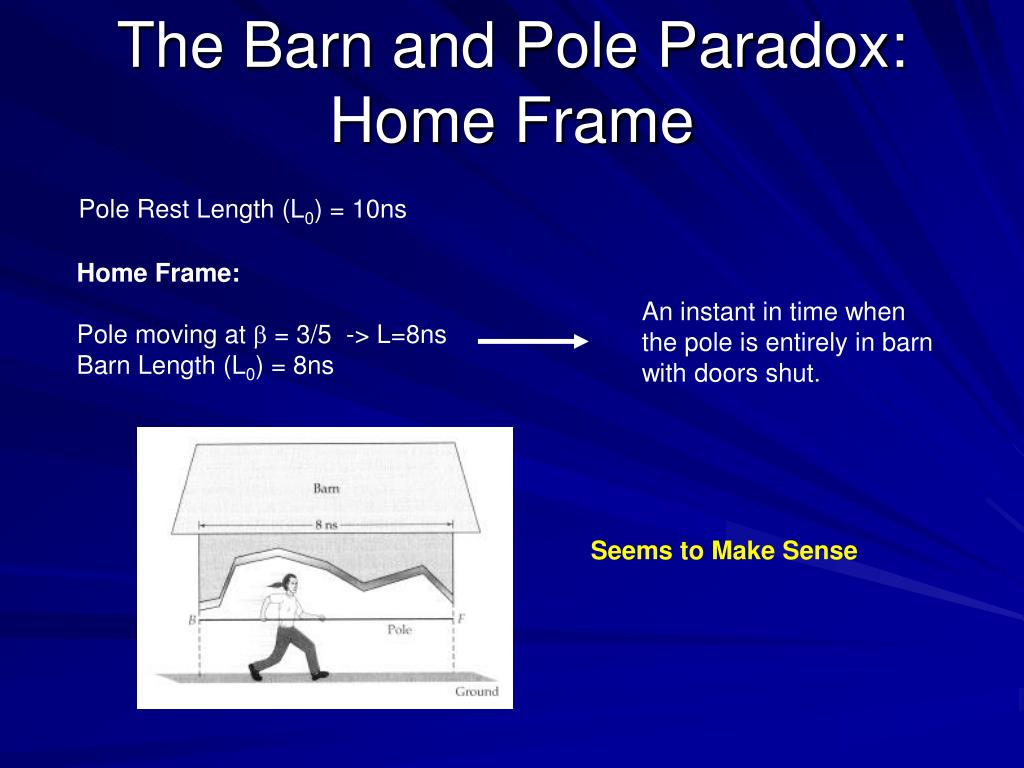

  21. The Barn and Pole Paradox: Home Frame Pole Rest Length (L0) = 10ns Home Frame: Pole moving at b = 3/5 -> L=8ns Barn Length (L0) = 8ns An instant in time when the pole is entirely in barn with doors shut. Seems to Make Sense

  22. The Barn and Pole Paradox:Other Frame Other Frame: Barn moving at b = -3/5 -> L=6.4ns Pole Length (L0) = 10ns How can the pole 10ns long fit into a 6.4ns barn? The runner with the pole does not observe that the pole is enclosed in the barn. Front of pole reaches end of barn @ -6ns End of pole reaches front of barn @ 0ns when pole has already left

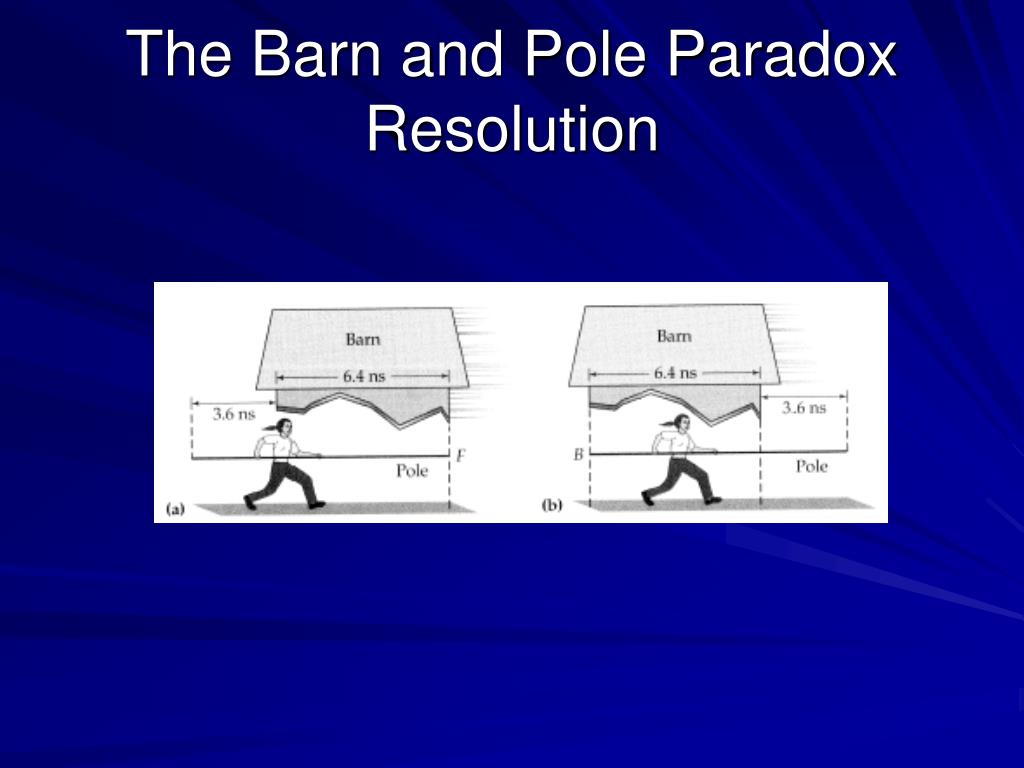

  23. t t’ Pole x’ O x The Barn and Pole Paradox Resolution
