CVG Generic Compact Seat

CVG Generic Compact Seat. Weight adjuster control (air and mechanical visually the same). Slide rails control. Recline control. Document storage compartment. Compact Seat. SIP height 200mm (60mm stroke version). 560mm. 286mm. 328mm. 617mm. 460mm.

kenyon-turner
Download Presentation

CVG Generic Compact Seat

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CVG Generic Compact Seat Weight adjuster control (air and mechanical visually the same) Slide rails control Recline control Document storage compartment

  2. Compact Seat SIP height 200mm (60mm stroke version) 560mm 286mm 328mm 617mm 460mm SEAT SHOWN AT MID RIDE

  3. Specifications • Construction performance - ISO 7096 • EM6 - excavator (compact machines without height adjustment) • EM7 - site dump truck • EM8 - compact wheeled loader • EM9 - skid steer loader • Construction seat belt - ISO 6683 / SAE J 386 15kN • Industrial truck performance - EN13490 • IT 1 • IT 2 • Industrial truck seat belt - EN1726

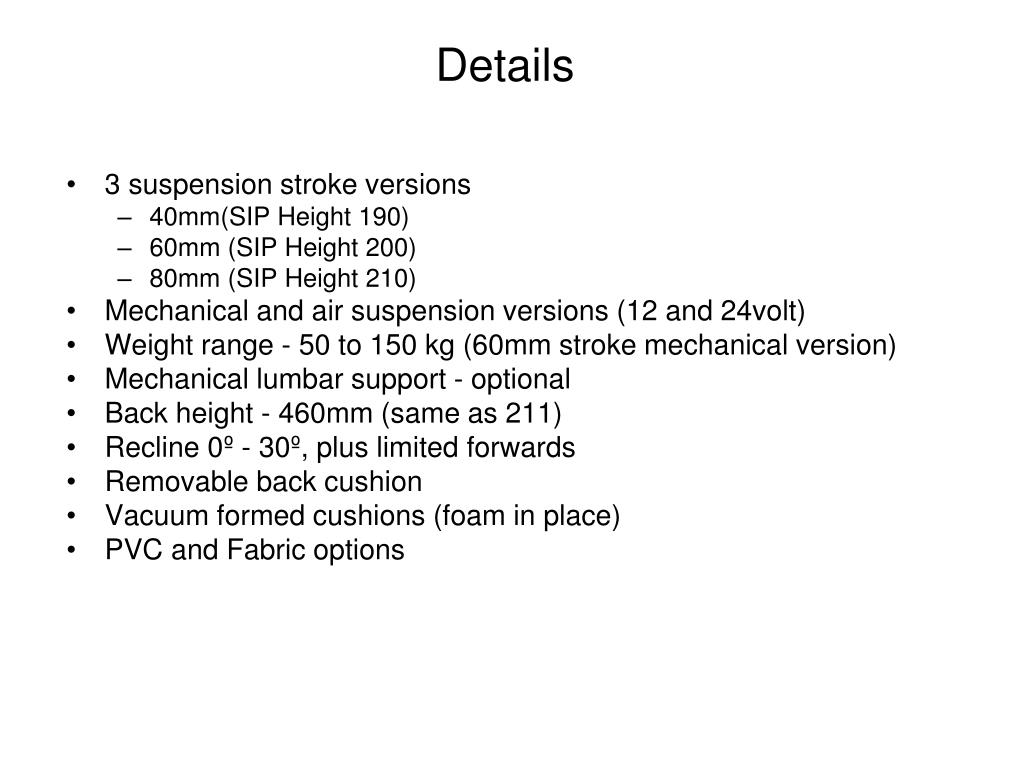

  4. Details • 3 suspension stroke versions • 40mm(SIP Height 190) • 60mm (SIP Height 200) • 80mm (SIP Height 210) • Mechanical and air suspension versions (12 and 24volt) • Weight range - 50 to 150 kg (60mm stroke mechanical version) • Mechanical lumbar support - optional • Back height - 460mm (same as 211) • Recline 0º - 30º, plus limited forwards • Removable back cushion • Vacuum formed cushions (foam in place) • PVC and Fabric options

  5. Compact Seat

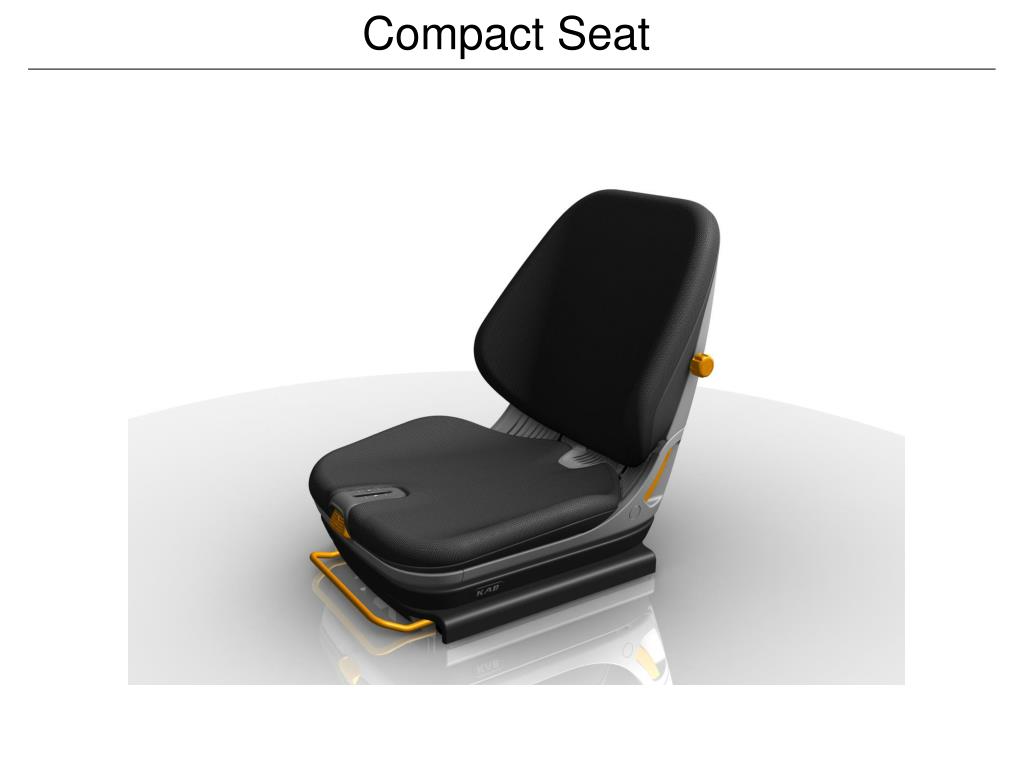

  6. Compact Seat

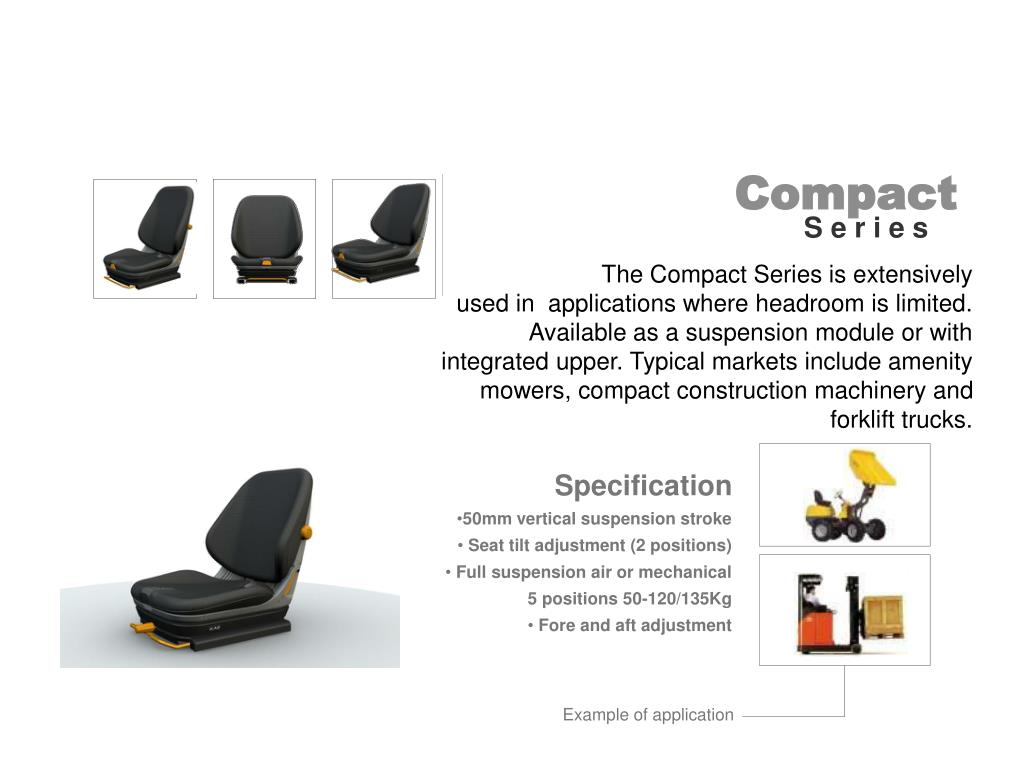

  7. Compact S e r i e s The Compact Series is extensively used in applications where headroom is limited. Available as a suspension module or with integrated upper. Typical markets include amenity mowers, compact construction machinery and forklift trucks. • Specification • 50mm vertical suspension stroke • Seat tilt adjustment (2 positions) • Full suspension air or mechanical • 5 positions 50-120/135Kg • Fore and aft adjustment Example of application
