PLM-TEAMCENTER. GATLA SAI RAM 206731. INRODUCTION HISTORY COMPONENTS AND PRODUCTS DATA MANAGEMENT IN TEAMCENTER - EXPORTS AND IMPORTS -MIGRATION -FACTORS -DESIGN OF APPROACH -REPORT BILL OF MATERIAL CUSTOMIZATION ADVANTAGES CONCLUSION. INTRODUCTION. TEAMCENTER. History

Download Presentation

PLM-TEAMCENTER

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Plm teamcenter

PLM-TEAMCENTER

GATLA SAI RAM

206731


Plm teamcenter

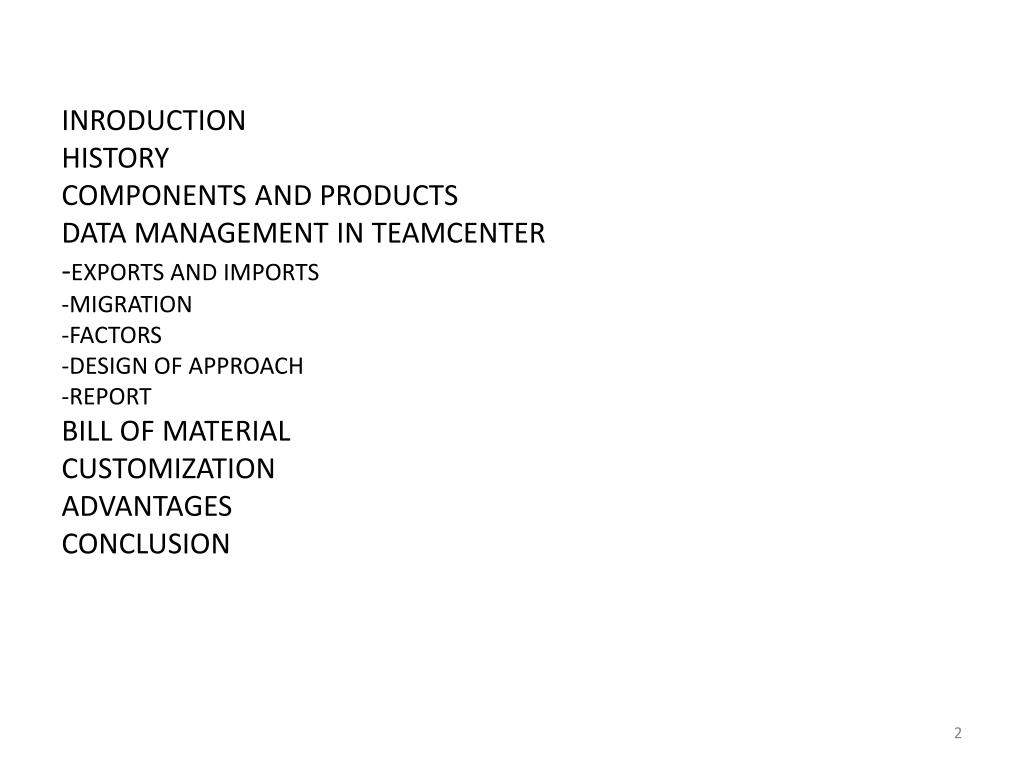

INRODUCTIONHISTORYCOMPONENTS AND PRODUCTSDATA MANAGEMENT IN TEAMCENTER-EXPORTS AND IMPORTS-MIGRATION-FACTORS-DESIGN OF APPROACH-REPORTBILL OF MATERIALCUSTOMIZATIONADVANTAGESCONCLUSION

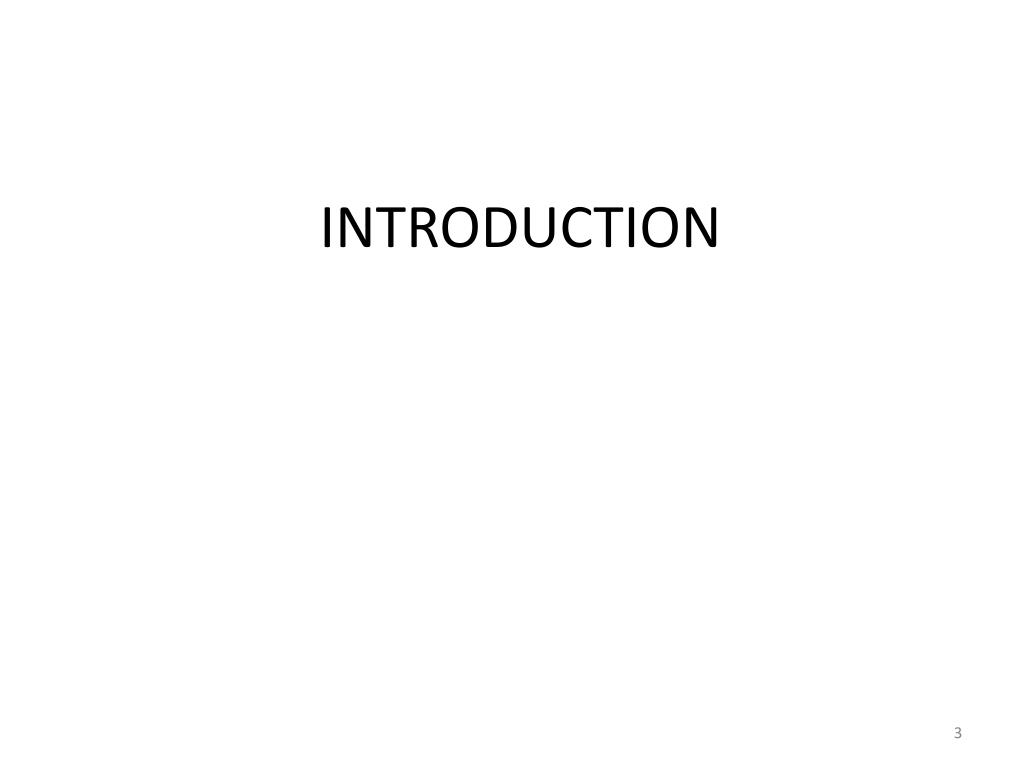

Introduction

INTRODUCTION


Teamcenter

TEAMCENTER

History

  • Siemens PLM system(UGS PLM System)

  • In mid 1980’s with technology and products from CDC, SDRC and UGS.

  • Teamcenter Enterprise & Teamcenter Engineering

    Its robust architecture is integrated with Microsoft windows

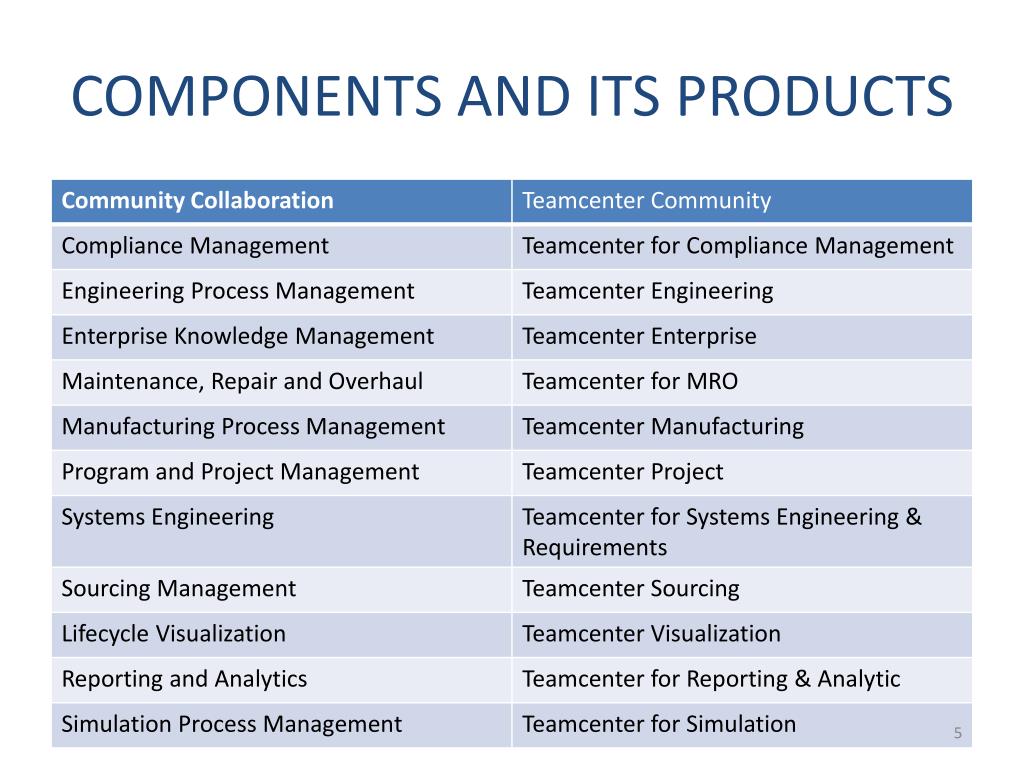

Components and its products

COMPONENTS AND ITS PRODUCTS

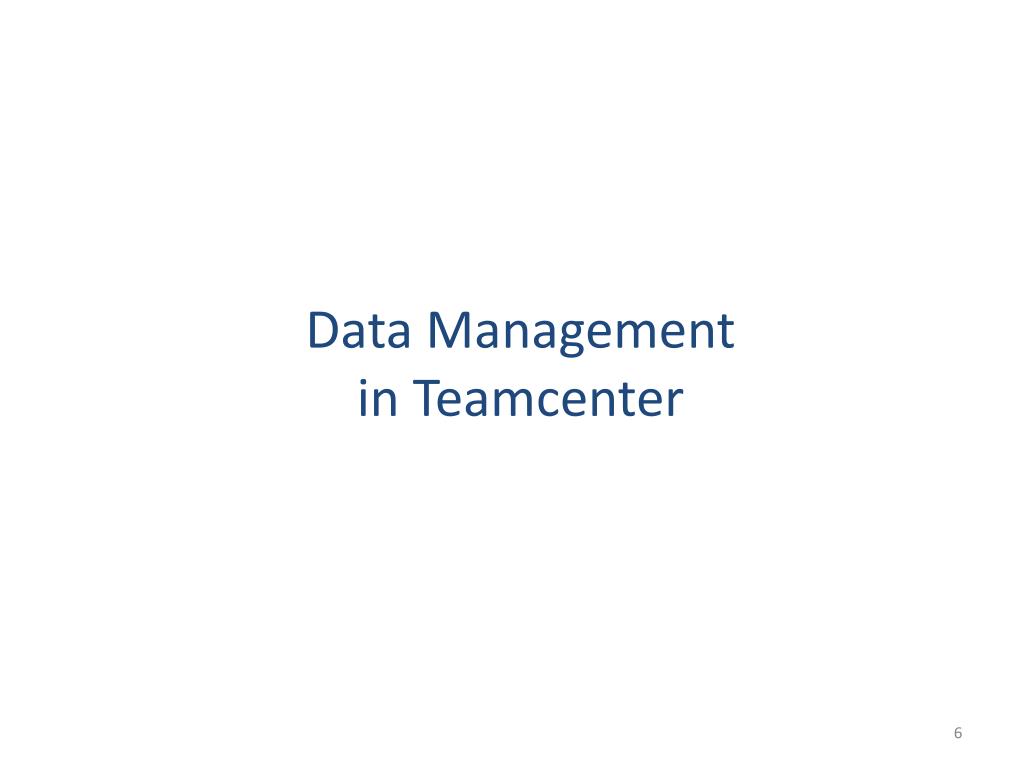

Data management in teamcenter

Data Managementin Teamcenter

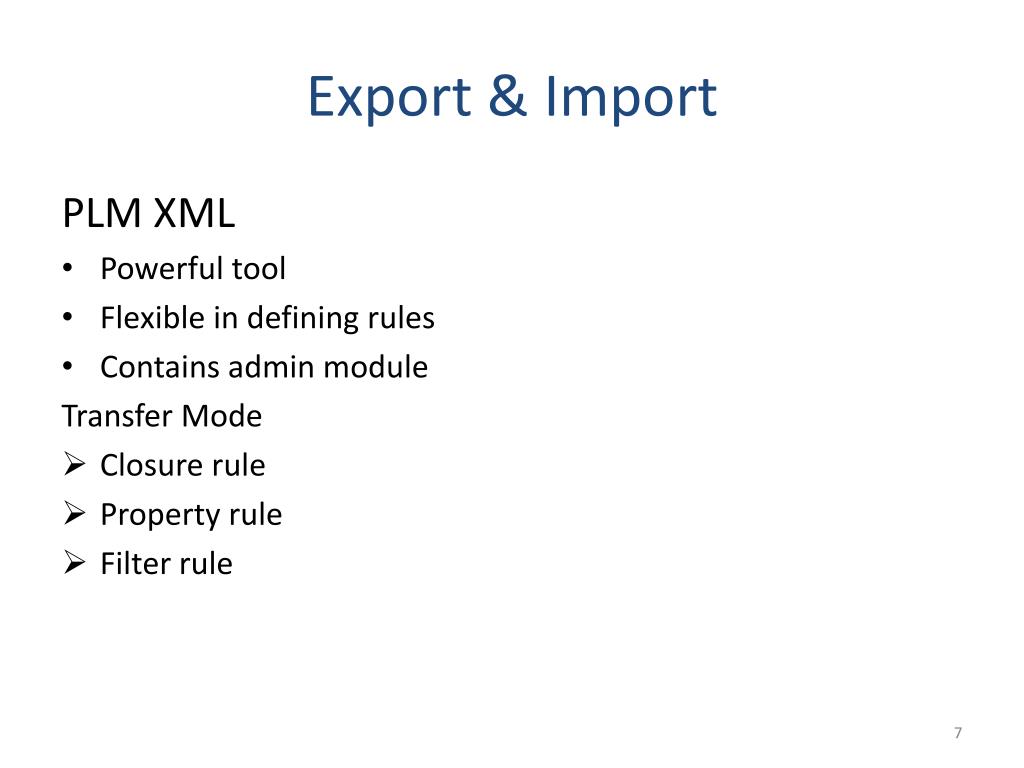

Export import

Export & Import

PLM XML

  • Powerful tool

  • Flexible in defining rules

  • Contains admin module

    Transfer Mode

  • Closure rule

  • Property rule

  • Filter rule


Transfer mode

TRANSFER MODE


Migration

MIGRATION

Aspects of data migration

  • Meta data

  • Document file

  • CAD data

    System migration

  • Single system

  • Multiple system

    a)multiple to single system

    b)multiple system to multiple system

    Preprocess migration


Plm teamcenter

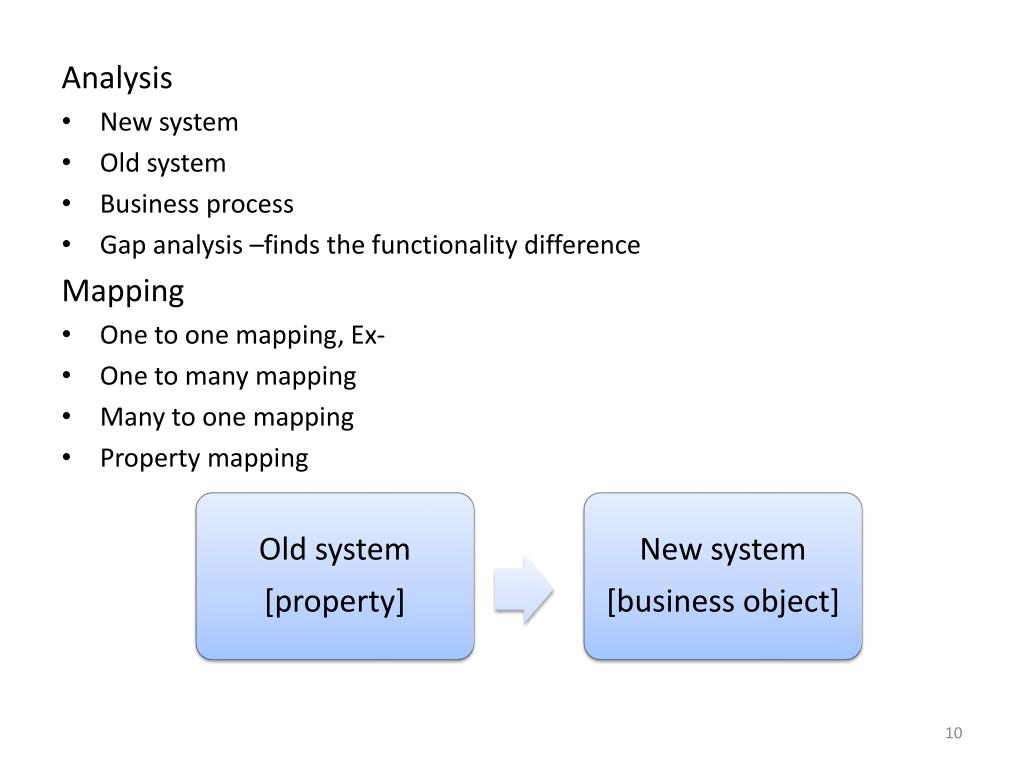

Analysis

  • New system

  • Old system

  • Business process

  • Gap analysis –finds the functionality difference

    Mapping

  • One to one mapping, Ex-

  • One to many mapping

  • Many to one mapping

  • Property mapping


Factors of migration

FACTORS OF MIGRATION

Migration

  • Bulk

  • Phase


Plm teamcenter

Bulk

  • Data migration at once

  • All users switch over

  • All the process move to new

  • Source system remain unaltered

    Phase

  • Group wise, project wise, workflow based etc.

  • Set of users switch over the time.

  • Co-existence of old and new system for some duration (From months to a year or so)


Design approach

DESIGN APPROACH


Plm teamcenter

CAD migration

  • Is done through third party migration tool

    (UG NX tool like ug_export/ug_import and ug_clone)


Report in teamcenter

Report in Teamcenter

Contain report builder module

Reports are based on query and PLMXML frame work

a)Get the object through query

b)Convert to xml output

c)Xsl style sheet is applied for layout


Bill of material

BILL OF MATERIAL

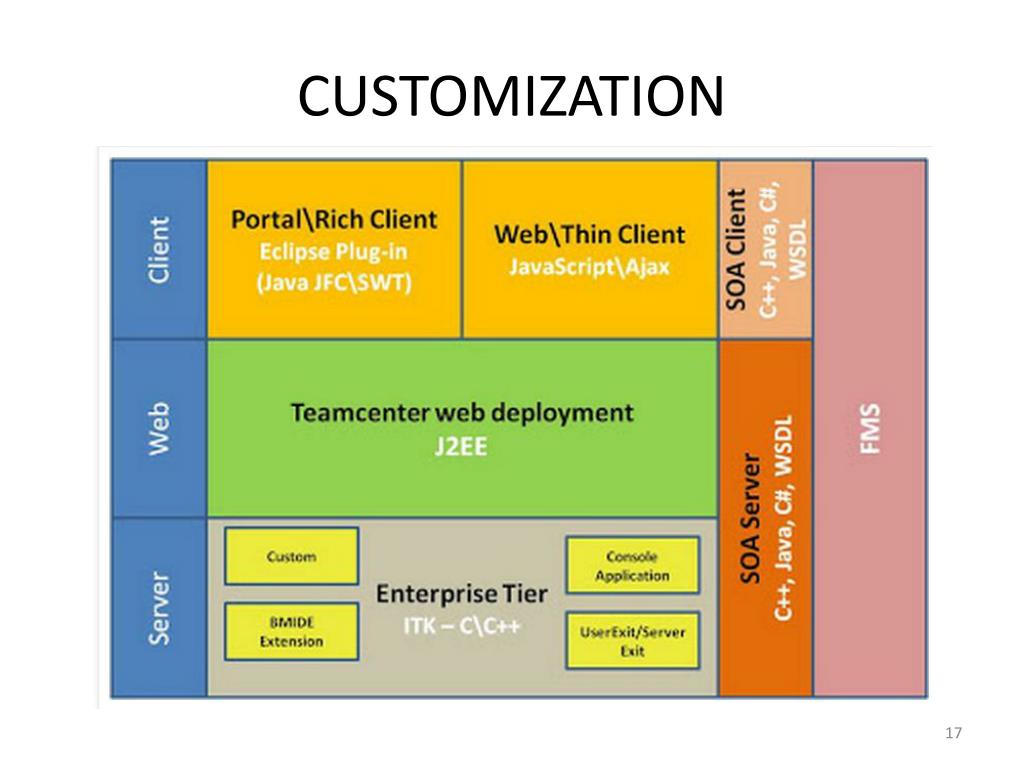

Customization

CUSTOMIZATION

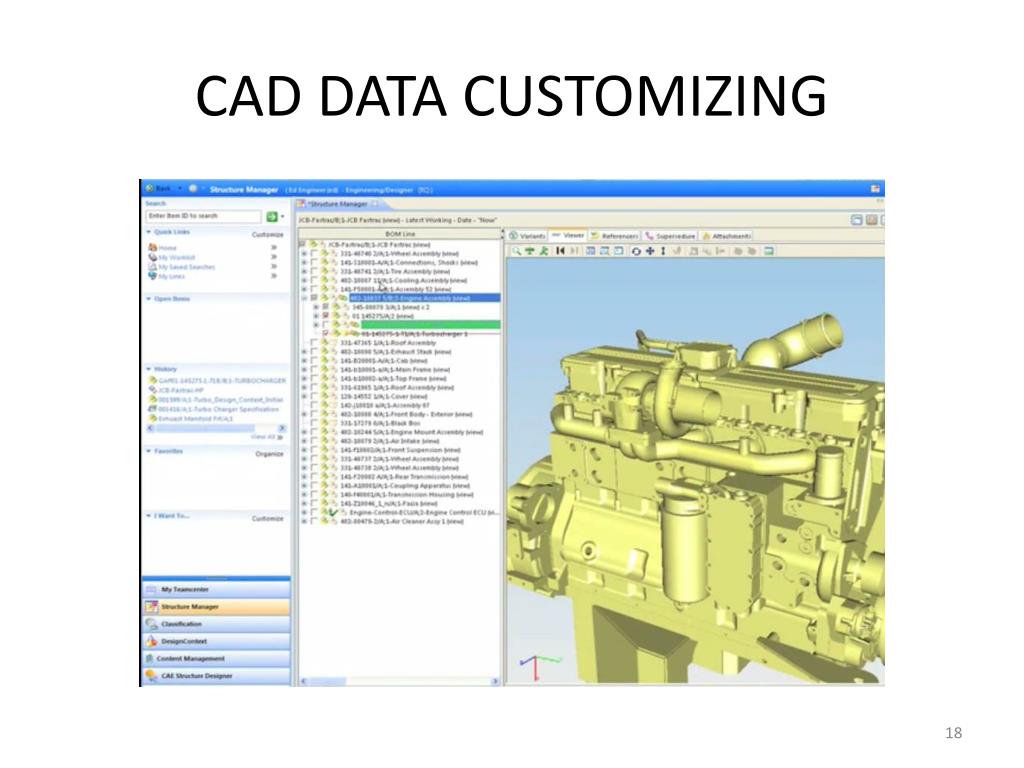

Cad data customizing

CAD DATA CUSTOMIZING


Advantage

ADVANTAGE

Secure

Fast

Simple customizing

Reliable

Reduce translation cost


Conclusion

CONCLUSION

Enables the team to actively participate

Long term business result

Smart decisions

Better product

Success

Source

ManojTiwari

http://teamcenterplm.blogspot.de/

http://en.wikipedia.org/wiki/Teamcenter


Plm teamcenter

THANK YOU
