  1. Joint Advanced Students School 2005 Replication and synchronization techniques in the context of mobile applications By Alexander Stage Software Engineering betrieblicher Informationssysteme (sebis)Ernst Denert-StiftungslehrstuhlLehrstuhl für Informatik 19 Institut für InformatikTU München wwwmatthes.in.tum.de JASS 05 Synchronization and Replication in the Context of Mobile Applications

  2. Agenda • Motivation • Mobile Computing • Synchronization Techniques • Replication Techniques in Databases • Oracle Lite 10g – A Mobile Database Solution • Peer to Peer Mobile Computing • Future Applications and Developments JASS 05 Synchronization and Replication in the Context of Mobile Applications

  3. Mobile Device Mobile Device Local DB synchronize Local DB replicate no communication link Mobile Device update Local DB Motivation – A Scenario • The disconnected sales-person problem: a typical day Company Central DB travelling path Customer A Customer B Customer C JASS 05 Synchronization and Replication in the Context of Mobile Applications

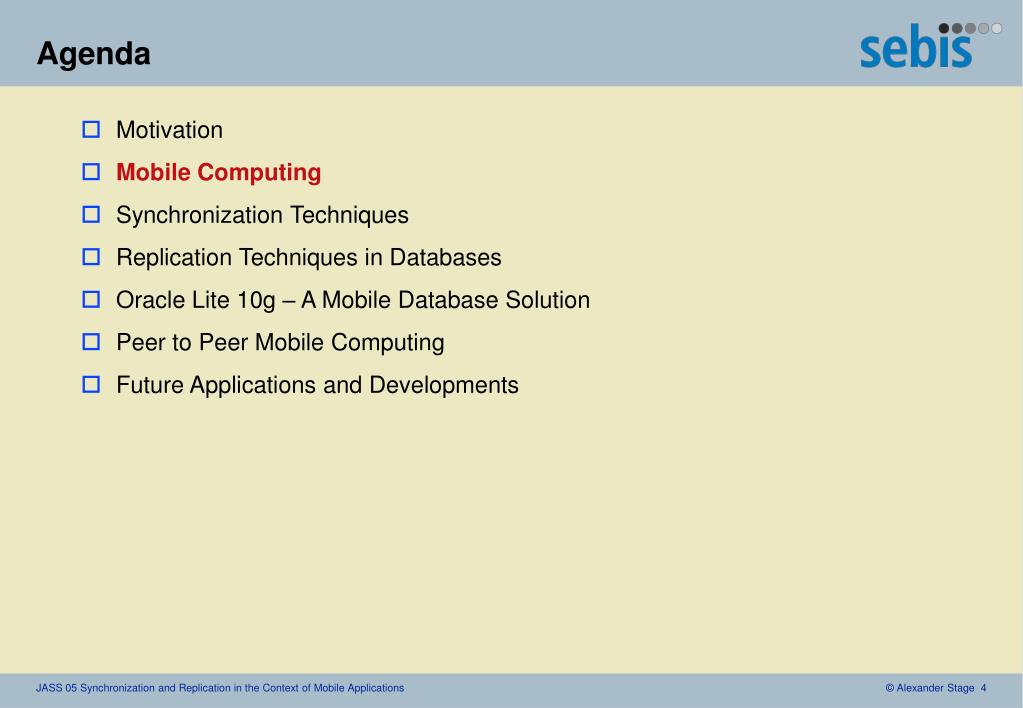

  4. Agenda • Motivation • Mobile Computing • Synchronization Techniques • Replication Techniques in Databases • Oracle Lite 10g – A Mobile Database Solution • Peer to Peer Mobile Computing • Future Applications and Developments JASS 05 Synchronization and Replication in the Context of Mobile Applications

  5. Mobile Computing - Characteristics • Mobile devices: • Laptops • Palmtops • Smart cell phones • Requirements: • Data access: • Anywhere • Anytime • Nomadic users • Constraints: • Limited ressources • Variable connectivty: • Performance • Reliability JASS 05 Synchronization and Replication in the Context of Mobile Applications

  6. Mobile Computing – Communication Models Client Server Model Peer to Peer Model Client Client Client/ Server Client/ Server Server Client/ Server Client/ Server Client Client JASS 05 Synchronization and Replication in the Context of Mobile Applications

  7. Two Types of Synchronization Process synchronization Data synchronization System A System B Process A Process B modification Process Process Time Data item 1 modification modification Synchronization Data Item 1 Data Item 1 Process A correspondance modification Data item 1 Time 1: 1 Synchronization 1: 1 Synchronization Main System Process B modification Data Item 1 Data item 1 JASS 05 Synchronization and Replication in the Context of Mobile Applications

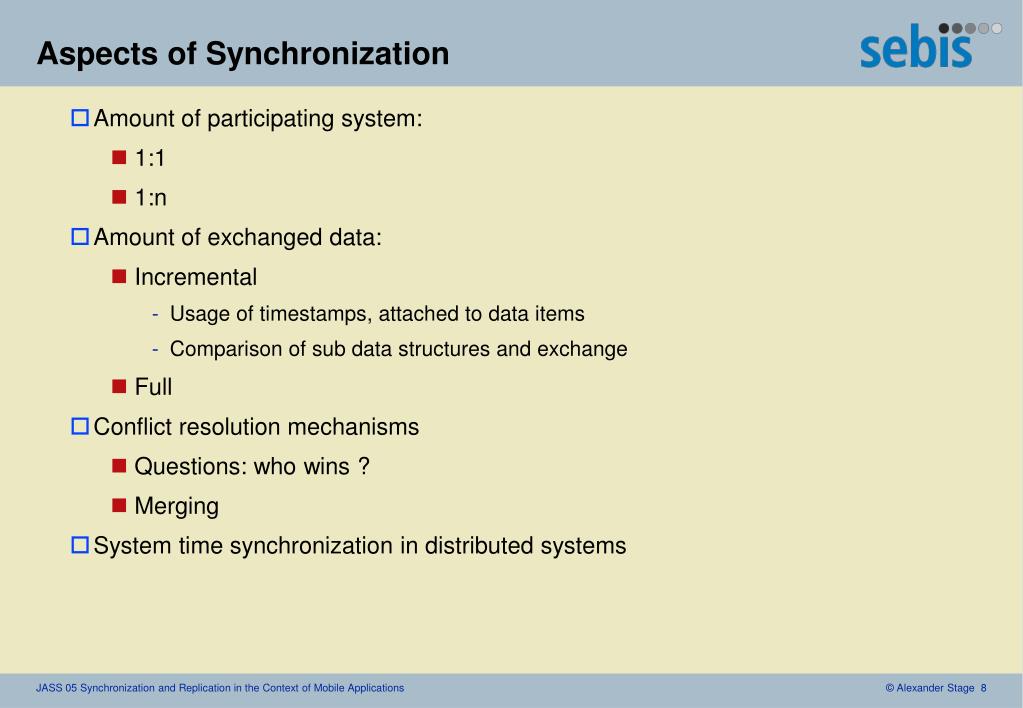

  8. Aspects of Synchronization • Amount of participating system: • 1:1 • 1:n • Amount of exchanged data: • Incremental • Usage of timestamps, attached to data items • Comparison of sub data structures and exchange • Full • Conflict resolution mechanisms • Questions: who wins ? • Merging • System time synchronization in distributed systems JASS 05 Synchronization and Replication in the Context of Mobile Applications

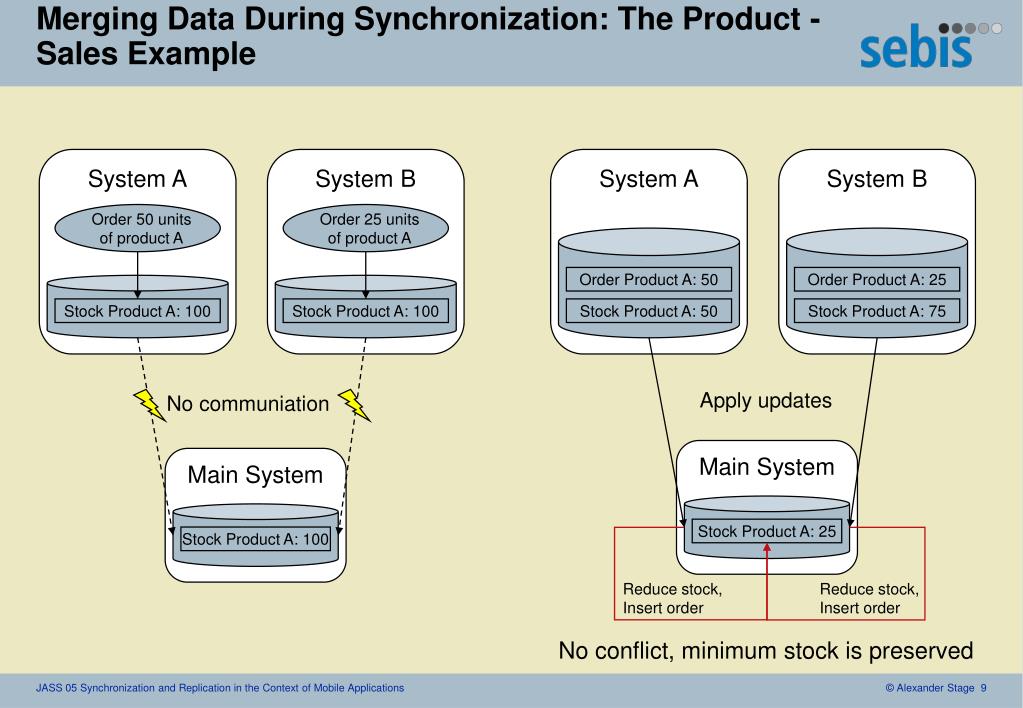

  9. Merging Data During Synchronization: The Product - Sales Example System A System B System A System B Order 50 units of product A Order 25 units of product A Order Product A: 50 Order Product A: 25 Stock Product A: 100 Stock Product A: 100 Stock Product A: 50 Stock Product A: 75 Apply updates No communiation Main System Main System Stock Product A: 25 Stock Product A: 100 Reduce stock, Insert order Reduce stock, Insert order No conflict, minimum stock is preserved JASS 05 Synchronization and Replication in the Context of Mobile Applications

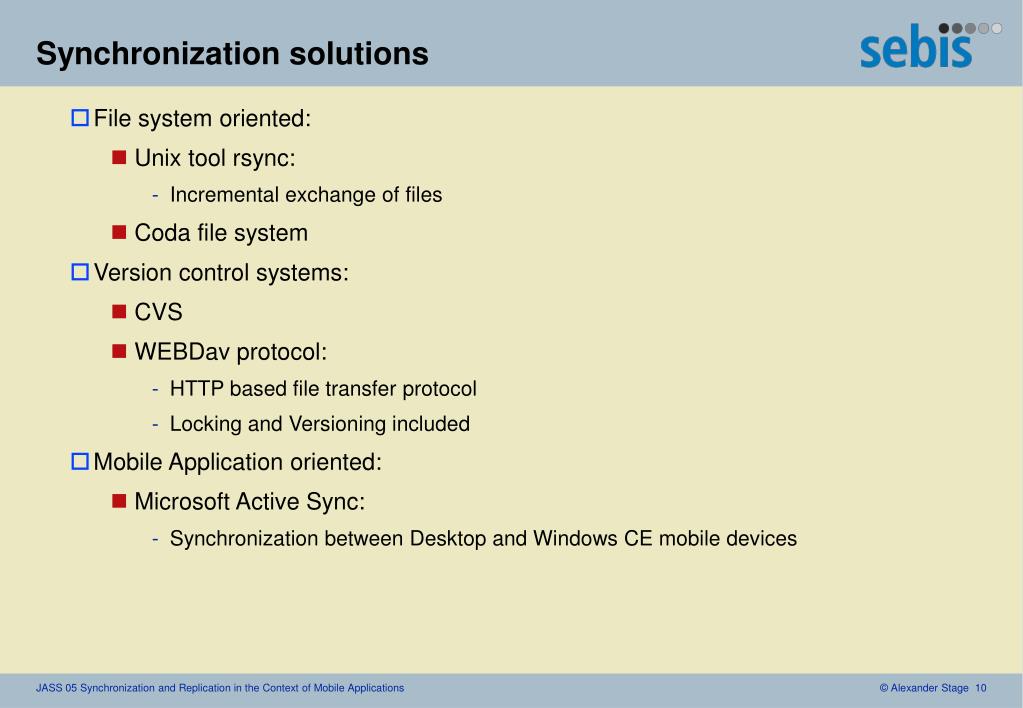

  10. Synchronization solutions • File system oriented: • Unix tool rsync: • Incremental exchange of files • Coda file system • Version control systems: • CVS • WEBDav protocol: • HTTP based file transfer protocol • Locking and Versioning included • Mobile Application oriented: • Microsoft Active Sync: • Synchronization between Desktop and Windows CE mobile devices JASS 05 Synchronization and Replication in the Context of Mobile Applications

  11. Standardization Efforts in Data Synchronization: SyncML • SyncML defines client server based protocol for synchronization • SyncML is XML based, main elements: • SyncMessage • Sync Commands: • Modification commands: add, copy, delete, put and replace • Query commands: read and search • Response commands: status and results • Execution specific commands: sequence and atomic • Synchronization models: • Two way sync • Slow sync • One way sync • Refresh sync • Server-alerted sync JASS 05 Synchronization and Replication in the Context of Mobile Applications

  12. SyncML Architecture Source: SyncML Representation Protocol, version 1.0.1, http://www.syncml.org/docs/syncml_represent_v101_20010615.pdf JASS 05 Synchronization and Replication in the Context of Mobile Applications

  13. Agenda • Motivation • Mobile Computing • Synchronization Techniques • Replication Techniques in Databases • Oracle Lite 10g – A Mobile Database Solution • Peer to Peer Mobile Computing • Future Applications and Developments JASS 05 Synchronization and Replication in the Context of Mobile Applications

  14. Replicated Server Only Replicated Ressource and Server ........ ........ Server 1 Server n Server 1 Server n Ressource Ressource 1 Ressource n ........ What is Replication ? • Usage of multiple copies of server system (replicas) • Goals: • Higher availability • Better performance • Areas of usage: Distributed Systems and Databases JASS 05 Synchronization and Replication in the Context of Mobile Applications

  15. Replication in Databases • Replication of the resource replicating the database • Elimination of single point of failure • Single server behaviour • Correctness criterion: one-copy serializability • Synchronization in databases: replication • Constant trade-off between consistency and efficiency • Update anywhere, anytime, any way replication scheme • Simple case: • Only a few replica nodes • Low transaction rates • Small amount of deadlocks and reconciliation • System scale up: • Problem complexity grows drastically at cubic rates • Inconsistent replicas and system delusion (no way to repair the inconsistencies) JASS 05 Synchronization and Replication in the Context of Mobile Applications

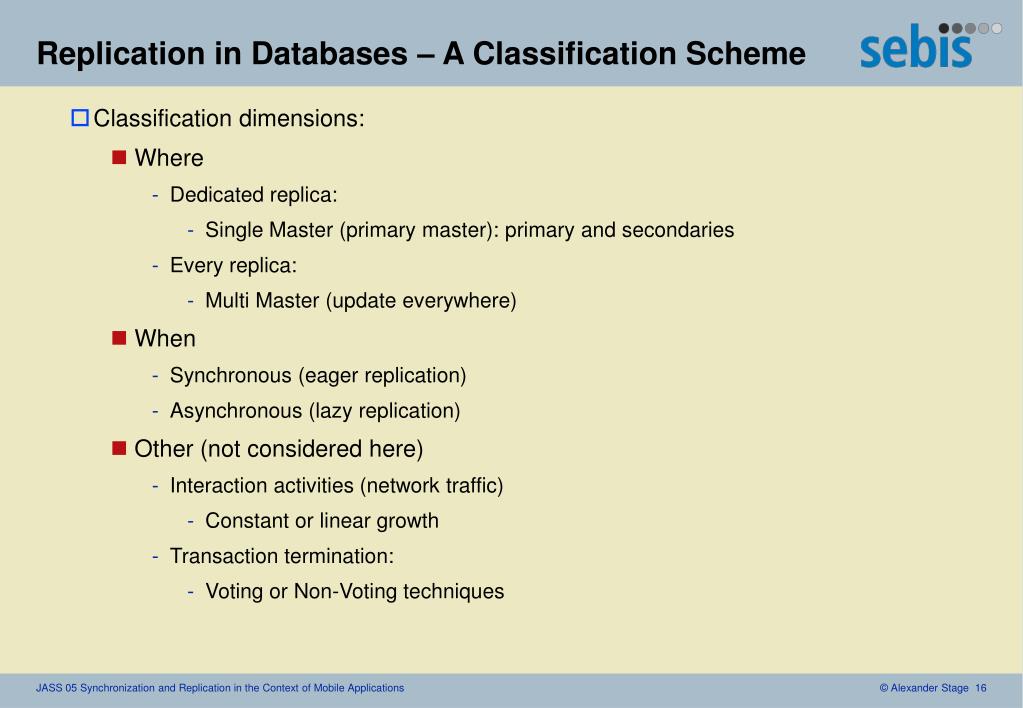

  16. Replication in Databases – A Classification Scheme • Classification dimensions: • Where • Dedicated replica: • Single Master (primary master): primary and secondaries • Every replica: • Multi Master (update everywhere) • When • Synchronous (eager replication) • Asynchronous (lazy replication) • Other (not considered here) • Interaction activities (network traffic) • Constant or linear growth • Transaction termination: • Voting or Non-Voting techniques JASS 05 Synchronization and Replication in the Context of Mobile Applications

  17. Abstract Functional Replication Model • Distinction between different replication solutions: • Phase ordering • Phase skipping Request Phase: Client sends a request to one or all replicas Server Coordination Phase: Replicas coordinate their work with each other (ordering of Execution steps) Execution Phase: Replicas execute operation Agreement Coordination Phase: Replicas ensure that they all have done the same thing (2pc) Client Response Phase: Client receives a response JASS 05 Synchronization and Replication in the Context of Mobile Applications

  18. Synchronous Single Master Replication I • Characteristics • Keeps all replicas synchronous in consistent state • No update anomalies • Reduces performance • Increase response times • Possible solution • Trigger on selected tables • Updates remotely all replicas • Fails if one replica fails • Usage of 2pc • Implication: • No control over when replication should take place • Only databases with 2pc support JASS 05 Synchronization and Replication in the Context of Mobile Applications

  19. Synchronous Single Master Replication II (primary) (secondary) (secondary) Source: Wiesmann, Pedone, Schiper, Kemme, Alonso: Understanding Replication in Databases and Distributed Systems, Proceedings of 20th International Conference on Distributed Computing Systems (ICDCS'2000) JASS 05 Synchronization and Replication in the Context of Mobile Applications

  20. Asynchronous Single Master Replication I • Characteristics • Response after primary processed request: • Primary takes care about transaction ordering • Drawback: stale data items versions • Performance is main goal • Possible solutions • Database system log based propagation: • Committed updates only • Restriction: Wait for current transactions • Further improvement: only send data fields • Log table: • Trigger records update and insert actions • Periodically recreate log table • Send log table to replicas (preserving oder) JASS 05 Synchronization and Replication in the Context of Mobile Applications

  21. Asynchronous Single Master Replication II (primary) (secondary) (secondary) Source: Wiesmann, Pedone, Schiper, Kemme, Alonso: Understanding Replication in Databases and Distributed Systems, Proceedings of 20th International Conference on Distributed Computing Systems (ICDCS'2000) JASS 05 Synchronization and Replication in the Context of Mobile Applications

  22. Handling Failures • Two types of failure: • Replica fails: • Secondary • System not affected • Secondary catch up • Primary • Re-election of primary • Most up-to-date replica: common system state • Possible data loss • Network partition • Problem: Which partition is allowed to process further requests ? • Majority consensus algorithms • Quorum consensus algorithms • Danger: Dramatic system performance loss JASS 05 Synchronization and Replication in the Context of Mobile Applications

  23. Synchronous Multi Master Replication I • Similar to single master synchronous replication • Updates allowed at every replica JASS 05 Synchronization and Replication in the Context of Mobile Applications

  24. Synchronous Multi Master Replication II Source: Wiesmann, Pedone, Schiper, Kemme, Alonso: Understanding Replication in Databases and Distributed Systems, Proceedings of 20th International Conference on Distributed Computing Systems (ICDCS'2000) JASS 05 Synchronization and Replication in the Context of Mobile Applications

  25. Asynchronous Multi Master Replication I • Characteristics • Multi version concurrency control mechanisms • Conflicts • Reconciliation • Automatic • Manually • Possible solution • Unique timestamps • Concatenation of local replica system clock to replica identifier • Thomas Write Rule: • Update applied if timestamp numerical greater than local timestamp • Also known as optimistic replication JASS 05 Synchronization and Replication in the Context of Mobile Applications

  26. Asynchronous Multi Master Replication II (primary) (primary) (primary) Source: Wiesmann, Pedone, Schiper, Kemme, Alonso: Understanding Replication in Databases and Distributed Systems, Proceedings of 20th International Conference on Distributed Computing Systems (ICDCS'2000) JASS 05 Synchronization and Replication in the Context of Mobile Applications

  27. Replication Requirements in Mobile Context • Disconnected operations require • Asynchronous Multi Master Replication • More frequent reconciliation because of • Lazy replication • Message delays JASS 05 Synchronization and Replication in the Context of Mobile Applications

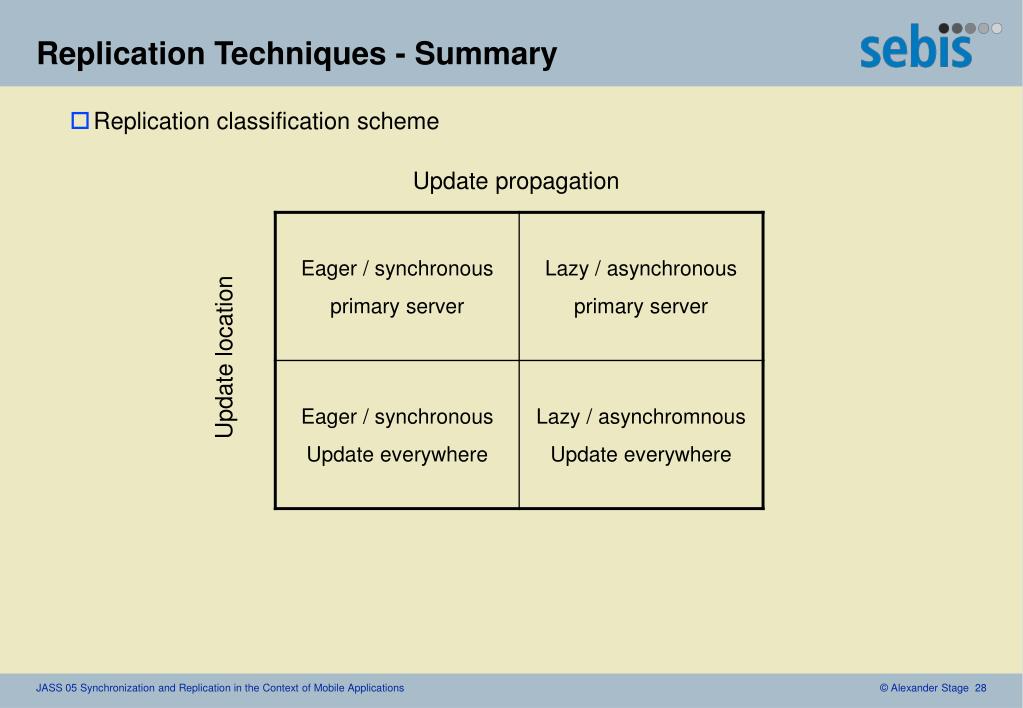

  28. Replication Techniques - Summary • Replication classification scheme Update propagation Update location JASS 05 Synchronization and Replication in the Context of Mobile Applications

  29. Agenda • Motivation • Mobile Computing • Synchronization techniques • Replication techniques in databases • Oracle Lite 10g – A Mobile Database Solution • Peer to Peer Mobile Computing • Future Applications and Developments JASS 05 Synchronization and Replication in the Context of Mobile Applications

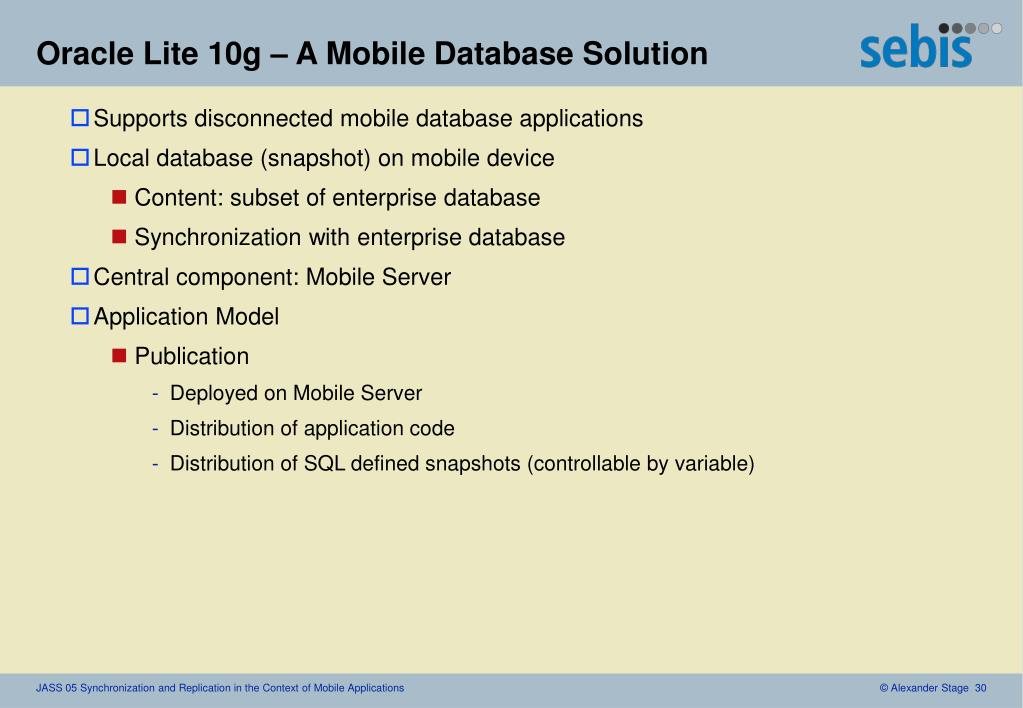

  30. Oracle Lite 10g – A Mobile Database Solution • Supports disconnected mobile database applications • Local database (snapshot) on mobile device • Content: subset of enterprise database • Synchronization with enterprise database • Central component: Mobile Server • Application Model • Publication • Deployed on Mobile Server • Distribution of application code • Distribution of SQL defined snapshots (controllable by variable) JASS 05 Synchronization and Replication in the Context of Mobile Applications

  31. Oracle Lite 10g Architecture Source: Oracle® Database Lite Developer's Guide 10g (10.0.0) Part No. B13788-0 JASS 05 Synchronization and Replication in the Context of Mobile Applications

  32. Oracle Lite 10g Synchronization Process I • Snapshot • Keeps track of local modifications • Three types of publication items (application depended) • Complete refresh • All data items • Fast refresh • Incremental (updates and inserts) • Queue based refresh • No refresh (e.g. data collection: newly created data items) • Asynchronous synchronization • Central component Mobile Server • Via „In queues“ and „Out queues“ JASS 05 Synchronization and Replication in the Context of Mobile Applications

  33. Oracle Lite 10g Synchronization Process II Source: Oracle® Database Lite Developer's Guide 10g (10.0.0) Part No. B13788-0 JASS 05 Synchronization and Replication in the Context of Mobile Applications

  34. Oracle Lite 10g Evaluation • Well suited for „build from scratch“ • Enterprise database directly accessible from Mobile Server • „Mobile only“ or „Designed for mobility“ applications • Existing data access layers not supported (EJB, CORBA, other) • Duplication of mission-critical data access logic • Possible code portation efforts • Maintenance efforts increase • Benefits reduced or outweighted JASS 05 Synchronization and Replication in the Context of Mobile Applications

  35. Agenda • Motivation • Mobile Computing • Synchronization techniques • Replication techniques in databases • Oracle Lite 10g – A Mobile Database Solution • Peer to Peer Mobile Computing • Future Applications and Developments JASS 05 Synchronization and Replication in the Context of Mobile Applications

  36. Peer to Peer Mobile Computing • Shortcommings of client server model • No true mobility • No communication between mobile devices • Requirements • Any to any communication • All devices equal • Large replication factors • Careful data replication JASS 05 Synchronization and Replication in the Context of Mobile Applications

  37. The Ward Model I Ward 2 Ward 3 Ward member Ward 1 Ward master Overlapped ward member JASS 05 Synchronization and Replication in the Context of Mobile Applications

  38. The Ward Model II • Dynamically reconfigurable synchronization topology • All units equal mobile peers: • Intra ward mobility • Inter ward mobility • Ward changing (heavyweight) • Ward overlapping (lightweight) • Ward master: • Re-electable • Knows ward members • No storage of ward member data • Manages data import / export for ward JASS 05 Synchronization and Replication in the Context of Mobile Applications

  39. The Ward Model III • Second, top-level ward: all ward master • Ward set: data of all ward members within one ward • Changes over time • Optimistically replicated within ward • Selective replication: intra- and inter-ward JASS 05 Synchronization and Replication in the Context of Mobile Applications

  40. Two Tier Replication • Characteristics • Comparable with ward model • Static backbone of stationary replicated database servers • Mobile replicas connect eventually at all stationary replicas • Benefit • Compromise between efficiency and true mobility • Possible improvement: • Combination with ward model (selective replication) JASS 05 Synchronization and Replication in the Context of Mobile Applications

  41. Agenda • Motivation • Mobile Computing • Synchronization techniques • Replication techniques in databases • Oracle Lite 10g – A Mobile Database Solution • Peer to Peer Mobile Computing • Future Applications and Developments JASS 05 Synchronization and Replication in the Context of Mobile Applications

  42. Future Applications and Developments • Car to car communication (http://www.car-to-car.org) • Mobile network of communicating cars • Security services • Development of replication schemes, based on ward model ? • Moving wards • Multi level ward hierachy JASS 05 Synchronization and Replication in the Context of Mobile Applications

  43. Thanks for your attention ! JASS 05 Synchronization and Replication in the Context of Mobile Applications

  44. Discussion • Try to describe other real world usage scenarios of mobile applications, where synchronization and replication techniques need to be used • Which technologies could be helpful for application level data replication and integration. Think of technologies in the field of Enterprise Application Integration (EAI). Which advantages and disadvantages can be identified with respect to requirements in mobile applications JASS 05 Synchronization and Replication in the Context of Mobile Applications

  45. Appendix I: SyncML Example Source: SyncML Representation Protocol, version 1.0.1, http://www.syncml.org/docs/syncml_represent_v101_20010615.pdf JASS 05 Synchronization and Replication in the Context of Mobile Applications

  46. Appendix II: Majority Consensus Algorithm I Secondary 1 Secondary 1 Secondary 2 Network Partition Secondary 2 Primary Primary Secondary 3 Secondary 4 Secondary 4 Secondary 3 JASS 05 Synchronization and Replication in the Context of Mobile Applications

  47. Appendix II: Majority Consensus Algorithm II Secondary 2 Secondary 1 2,5 < 2 3 Inactive Partition Working partition Old Primary New Primary Secondary 4 JASS 05 Synchronization and Replication in the Context of Mobile Applications

  48. Appendix III: Quorum Consensus Algorithm I Weight: 1 Secondary 1 Weight: 1 Weight: 2 Secondary 1 Primary Primary Weight: 2 JASS 05 Synchronization and Replication in the Context of Mobile Applications

  49. Appendix III: Quorum Consensus Algorithm II > Partition weight = 2 Partition weight = 1 Working partition Weight: 2 Inactive partition Weight: 1 Primary Secondary 1 JASS 05 Synchronization and Replication in the Context of Mobile Applications
