  1. CAP6938Neuroevolution and Developmental EncodingNeural Network Weight Optimization Dr. Kenneth Stanley September 6, 2006

  2. Review • Remember, the values of the weights and the topology determine the functionality • Given a topology, how are weights optimized? • Weights are just parameters on a structure ? ? ? ? ? ? ? ? ?

  3. Two Cases • Output targets are known • Output targets are not known out1 out2 H1 H2 w11 w21 w12 X1 X2

  4. Decision Boundaries • OR is linearly separable • Linearly separable problems do not require hidden nodes (nonlinearities) OR function: + + Input Output 1 1 1 1 -1 1 -1 1 1 -1 -1 -1 - + Bias

  5. Decision Boundaries • XOR is not linearly separable • Requires at least one hidden node XOR function: + - Input Output 1 1 -1 1 -1 1 -1 1 1 -1 -1 -1 - + Bias

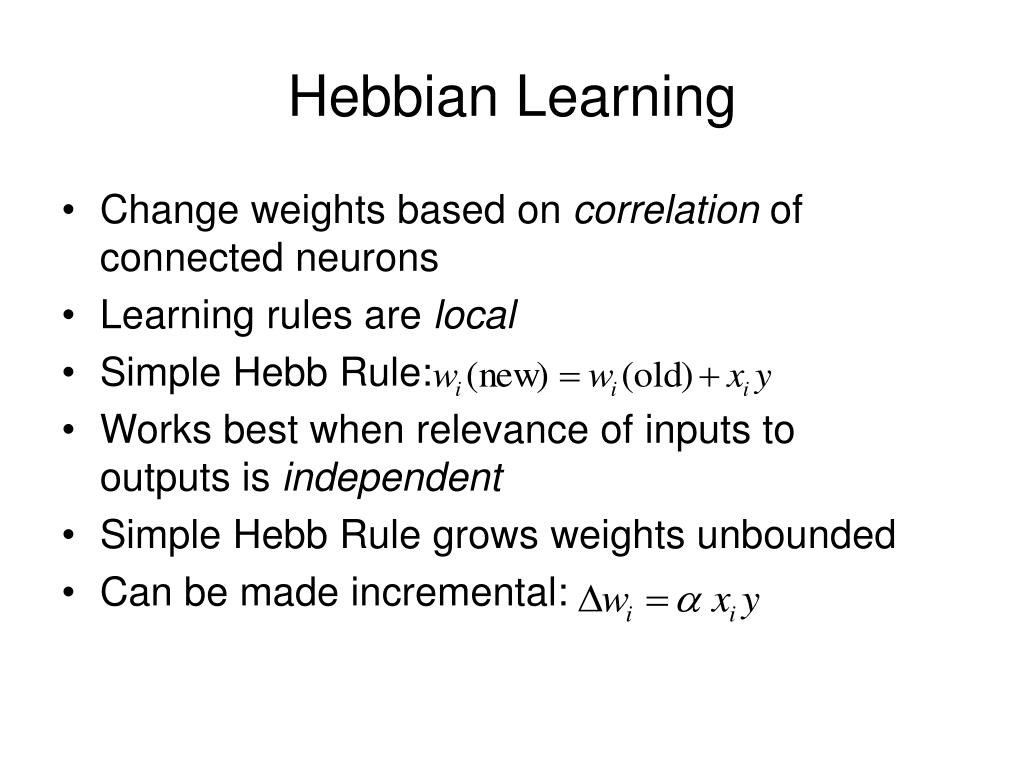

  6. Hebbian Learning • Change weights based on correlation of connected neurons • Learning rules are local • Simple Hebb Rule: • Works best when relevance of inputs to outputs is independent • Simple Hebb Rule grows weights unbounded • Can be made incremental:

  7. More Complex Local Learning Rules • Hebbian Learning with a maximum magnitude: • Excitatory: • Inhibitory: • Second terms are decay terms: forgetting • Happens when presynaptic node does not affect postsynaptic node • Other rules are possible • Videos: watch the connections change

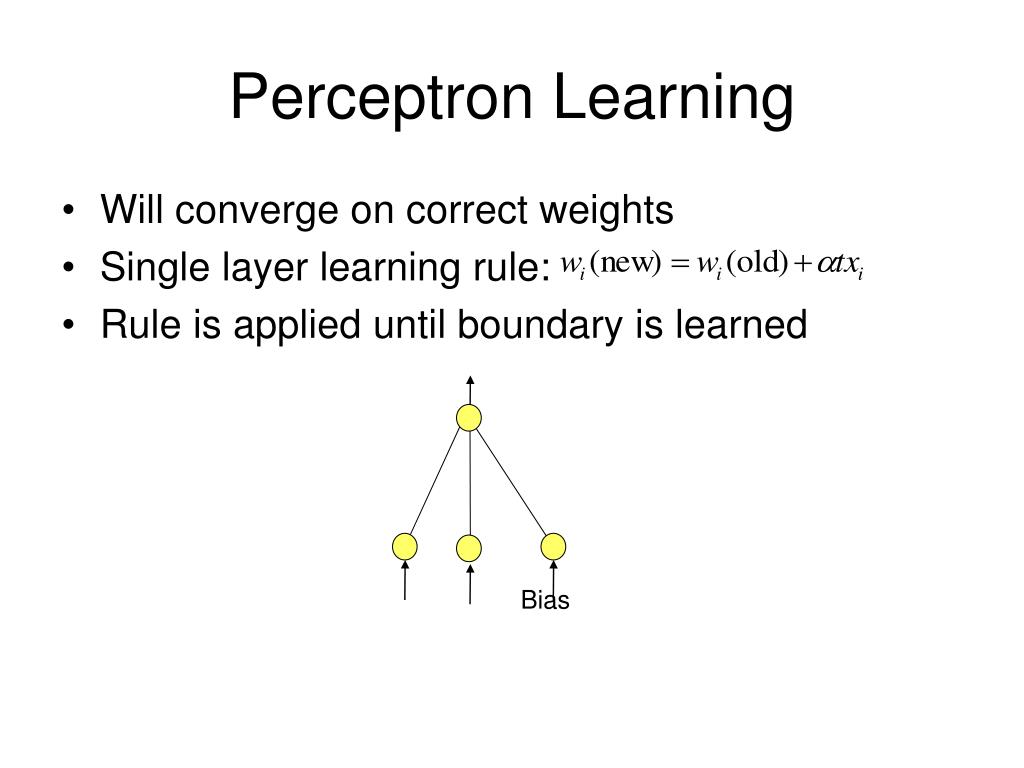

  8. Bias Perceptron Learning • Will converge on correct weights • Single layer learning rule: • Rule is applied until boundary is learned

  9. Backpropagation • Designed for at least one hidden layer • First, activation propagates to outputs • Then, errors are computed and assigned • Finally, weights are updated • Sigmoid is a common activation function t1 t2 x’s are inputs z’s are hidden units y’s are outputs t’s are targets v’s are layer 1 weights w’s are layer 2 weights y1 y2 w21 w11 w22 w12 z1 z2 v11 v22 v21 v12 X1 X2

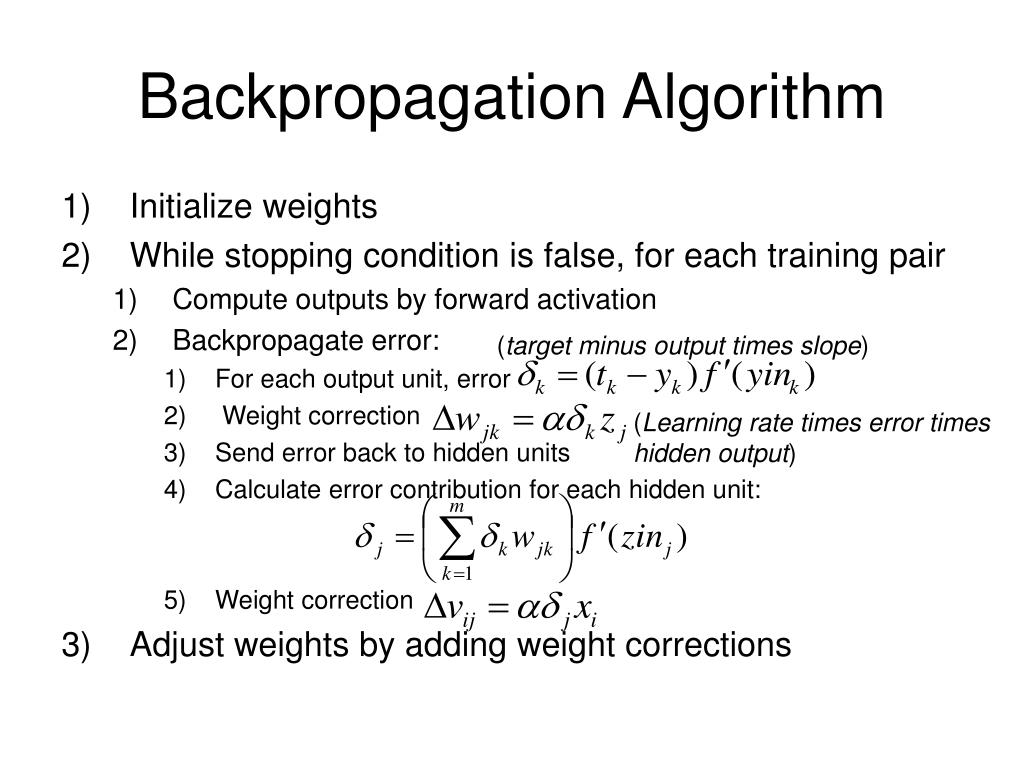

  10. Backpropagation Algorithm • Initialize weights • While stopping condition is false, for each training pair • Compute outputs by forward activation • Backpropagate error: • For each output unit, error • Weight correction • Send error back to hidden units • Calculate error contribution for each hidden unit: • Weight correction • Adjust weights by adding weight corrections (target minus output times slope) (Learning rate times error times hidden output)

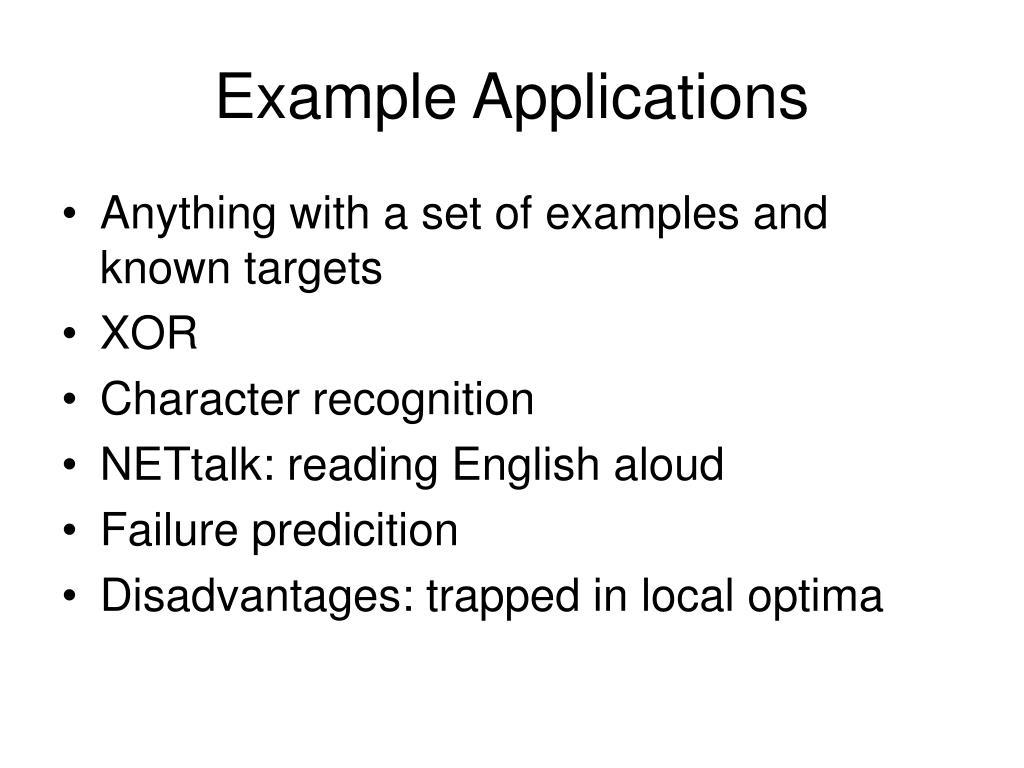

  11. Example Applications • Anything with a set of examples and known targets • XOR • Character recognition • NETtalk: reading English aloud • Failure predicition • Disadvantages: trapped in local optima

  12. Output Targets Often Not Available (Stone, Sutton, and Kuhlmann 2005)

  13. One Approach: Value Function Reinforcement Learning • Divide the world into states and actions • Assign values to states • Gradually learn the most promising states and actions Goal 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Start

  14. Learning to Navigate T=56 T=1 Goal Goal 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.5 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Start Start T=703 T=350 Goal Goal 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0.9 1 1 1 1 1 1 1 1 1 Start Start

  15. How to Update State/Action Values • Q learning rule: • Exploration increases Q-values’ accuracy • The best actions to take in different states become known • Works only in Markovian domains

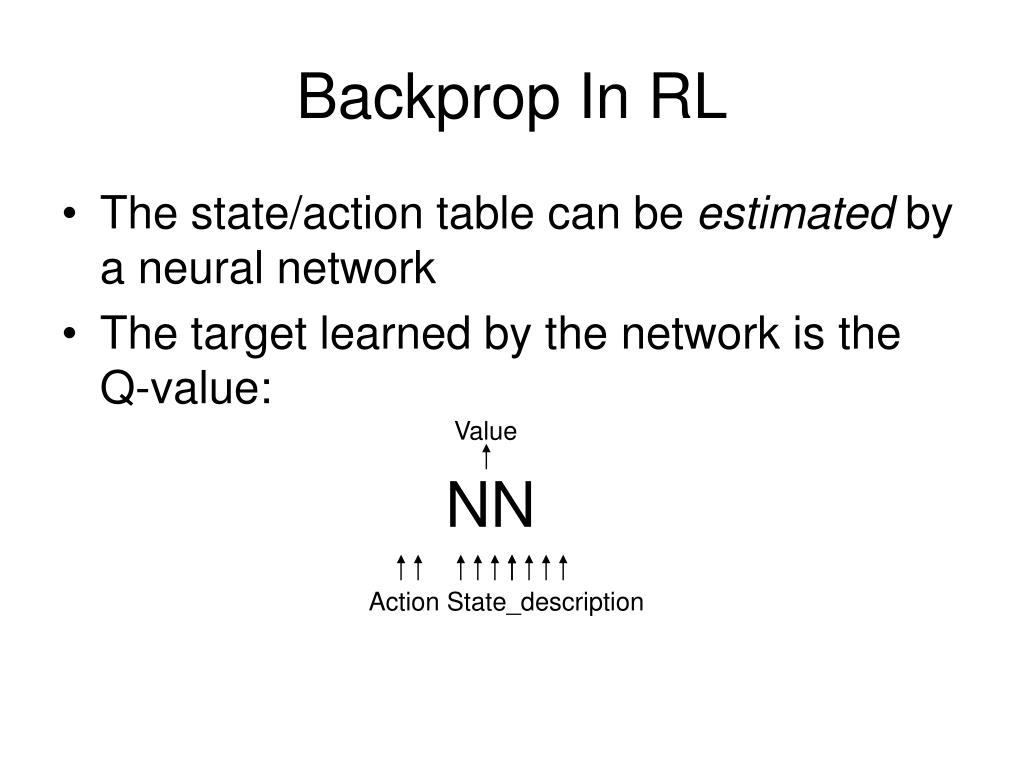

  16. Backprop In RL • The state/action table can be estimated by a neural network • The target learned by the network is the Q-value: Value NN Action State_description

  17. Next Week: Evolutionary Computation • EC does not require targets • EC can be a kind of RL • EC is policy search • EC is more than RL For 9/11: Mitchell ch.1 (pp. 1-31) and ch.2 (pp. 35-80) Note Section 2.3 is "Evolving Neural Networks"
