R-UIM SSD

VLR_A SSD ESN1. R-UIM SSD. MT1 ESN1. MT2 ESN2. MSCA. HLR ESN1. AC SSD. R-UIM is detached from MT1. R-UIM is attached to MT2. Omit (AUTH=1, RAND). RAND, ESN2. AUTHR. Register (RANDC, AUTHR, ESN2). AUTHREQ [RAND, AUTHR, ESN2]. Because of ESN unmatch, access is denied.

kennan
Download Presentation

R-UIM SSD

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

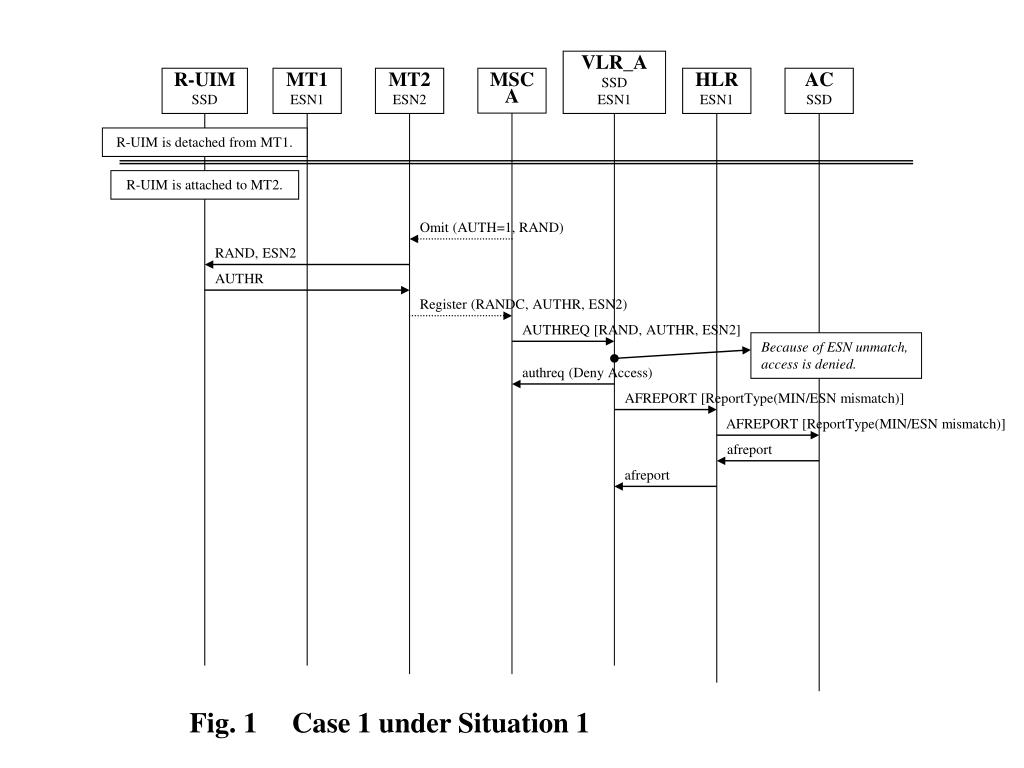

  1. VLR_A SSD ESN1 R-UIM SSD MT1 ESN1 MT2 ESN2 MSCA HLR ESN1 AC SSD R-UIM is detached from MT1. R-UIM is attached to MT2. Omit (AUTH=1, RAND) RAND, ESN2 AUTHR Register (RANDC, AUTHR, ESN2) AUTHREQ [RAND, AUTHR, ESN2] Because of ESN unmatch, access is denied. authreq (Deny Access) AFREPORT [ReportType(MIN/ESN mismatch)] AFREPORT [ReportType(MIN/ESN mismatch)] afreport afreport Fig. 1 Case 1 under Situation 1

  2. VLR_A SSD ESN1 R-UIM SSD MT1 ESN1 MT2 ESN2 MSCA HLR ESN1 AC SSD MSCB VLR_B R-UIM is detached from MT1. Deregister (IMSI, ESN1) Deregistration procedure is failed. As a result, subscriber profile still remains. R-UIM is attached to MT2. VLR_A SSD ESN1 HLR ESN1 Omit (AUTH=1, RAND) RAND, ESN2 AUTHR Register (RANDC, AUTHR, ESN2) AUTHREQ [RAND, AUTHR, ESN2] Because of ESN unmatch, access is denied. authreq (Deny Access) AFREPORT [ReportType(MIN/ESN mismatch), ESN2] AFREPORT [ReportType(MIN/ESN mismatch), ESN2] AUTHDIR [RANDU, AUTHU] AUTHDIR [RANDU, AUTHU] RETURN ERROR [Unrecognized ESN] Fig. 2 Restriction (a)

  3. VLR_A SSD ESN1 R-UIM SSD MT1 ESN1 MT2 ESN2 MSCA HLR ESN1 AC SSD MSCB VLR_B R-UIM is detached from MT1. Deregister (IMSI, ESN1) Deregistration procedure is failed. As a result, subscriber profile still remains. R-UIM is attached to MT2. VLR_A SSD ESN1 HLR ESN1 Omit (AUTH=1, RAND) RAND, ESN2 AUTHR Register (RANDC, AUTHR, ESN2) AUTHREQ [RAND, AUTHR, ESN2] Because of ESN unmatch, access is denied. authreq (Deny Access) AFREPORT [ReportType(MIN/ESN mismatch), ESN2] REGCANC [CANTYP, ESN1] REGCANC [CANTYP, ESN1] regcanc regcanc AFREPORT [ReportType(MIN/ESN mismatch), ESN2] Fig. 3 Restriction (b) 1/2

  4. MSCA MSCB R-UIM MT1 MT2 VLR_A HLR AC VLR_B afreport afreport AUTHDIR [RANDU, AUTHU] AUTHDIR [RANDU, AUTHU] RETURN ERROR [Unrecognized MIN] Fig. 3 Restriction (b) 2/2

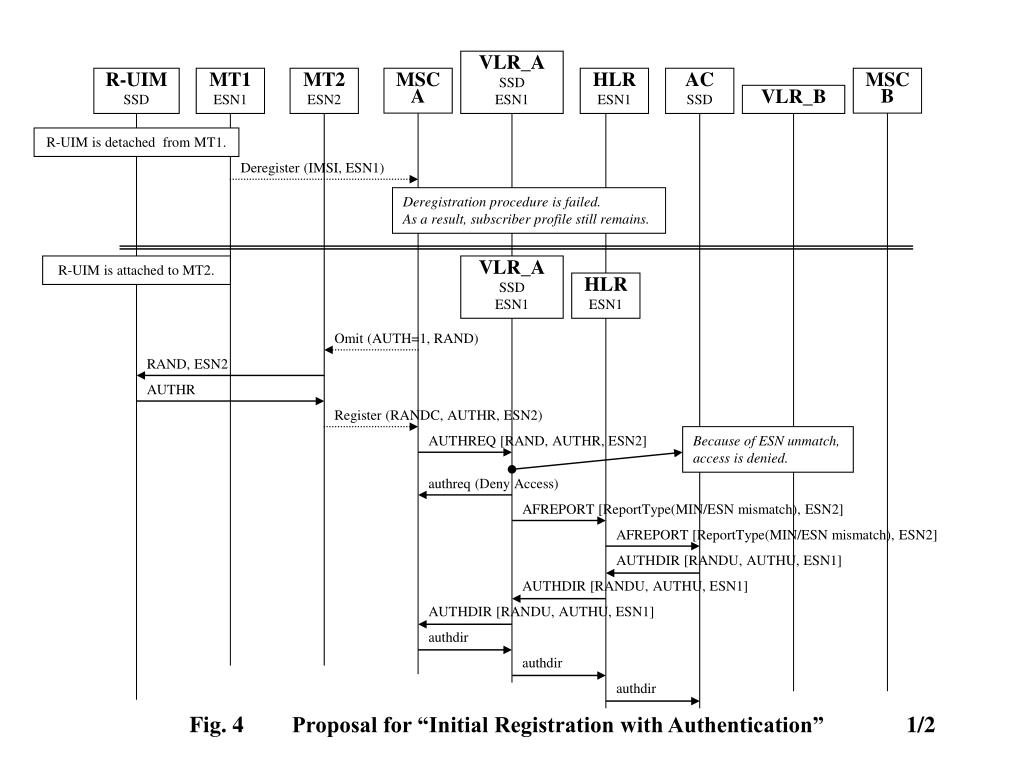

  5. VLR_A SSD ESN1 R-UIM SSD MT1 ESN1 MT2 ESN2 MSCA HLR ESN1 AC SSD MSCB VLR_B R-UIM is detached from MT1. Deregister (IMSI, ESN1) Deregistration procedure is failed. As a result, subscriber profile still remains. R-UIM is attached to MT2. VLR_A SSD ESN1 HLR ESN1 Omit (AUTH=1, RAND) RAND, ESN2 AUTHR Register (RANDC, AUTHR, ESN2) AUTHREQ [RAND, AUTHR, ESN2] Because of ESN unmatch, access is denied. authreq (Deny Access) AFREPORT [ReportType(MIN/ESN mismatch), ESN2] AFREPORT [ReportType(MIN/ESN mismatch), ESN2] AUTHDIR [RANDU, AUTHU, ESN1] AUTHDIR [RANDU, AUTHU, ESN1] AUTHDIR [RANDU, AUTHU, ESN1] authdir authdir authdir Fig. 4 Proposal for “Initial Registration with Authentication” 1/2

  6. MSCA MSCB R-UIM MT1 MT2 VLR_A HLR AC VLR_B unique challenge (RANDU) RANDU, ESN2 AUTHU challenge response (AUTHU) ASREPORT [UCHALRPT] ASREPORT [UCHALRPT] ASREPORT [UCHALRPT] asreport asreport asreport afreport afreport REGCANC [CANTYP, ESN1] This process should be initiated a few times. REGCANC [CANTYP, ESN1] regcanc regcanc Registration with Authentication using ESN2 Fig. 4 Proposal for “Initial Registration with Authentication” 2/2
