Presentation Transcript

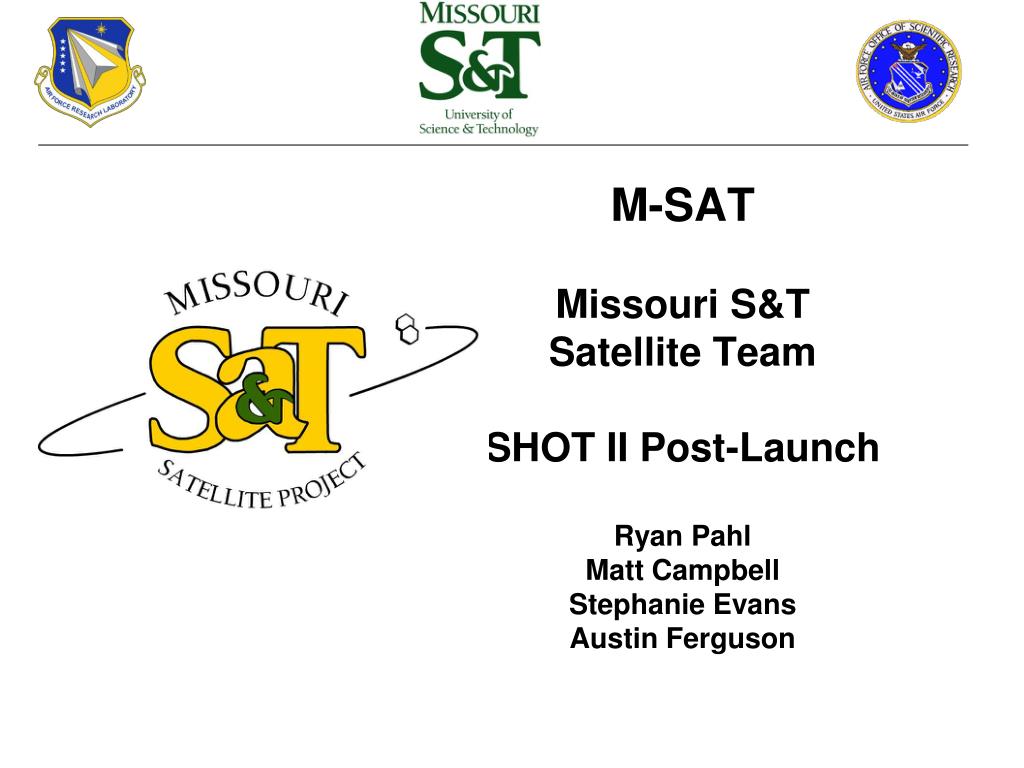

M-SATMissouri S&T Satellite TeamSHOT II Post-LaunchRyan PahlMatt CampbellStephanie EvansAustin Ferguson


Expected results
Expected Results

  • The two payloads should be able to communicate throughout the mission

    • The transmitting box sat will send a string of characters in a repeating pattern to the receiving box sat

    • The transmitting box will record the number of characters sent and the receiving box will store the actual characters for later comparison

  • A ground range test was performed and the boxes functioned to a distance of 155 m


Results

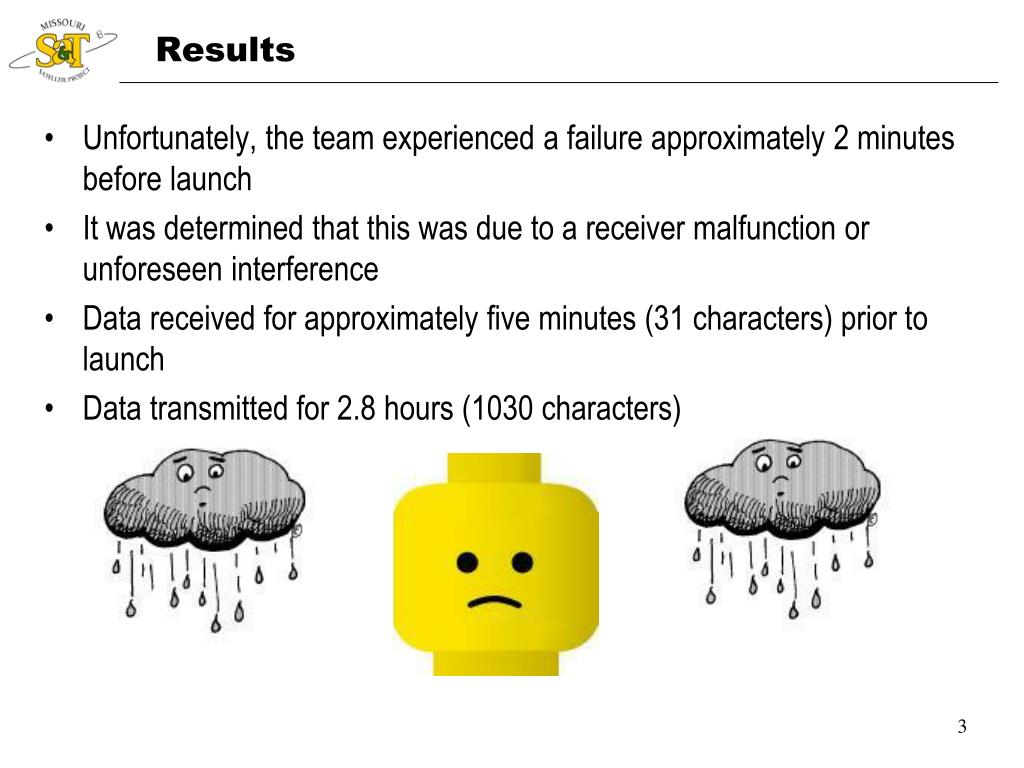

Results

  • Unfortunately, the team experienced a failure approximately 2 minutes before launch

  • It was determined that this was due to a receiver malfunction or unforeseen interference

  • Data received for approximately five minutes (31 characters) prior to launch

  • Data transmitted for 2.8 hours (1030 characters)


Conclusions and actions

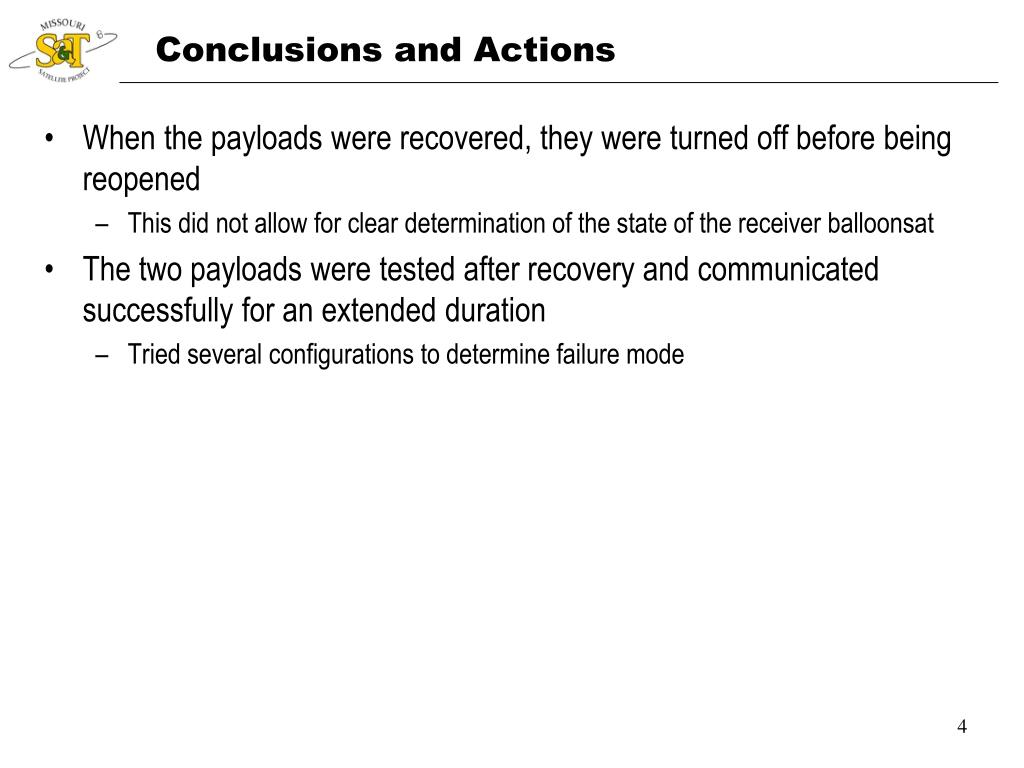

Conclusions and Actions

  • When the payloads were recovered, they were turned off before being reopened

    • This did not allow for clear determination of the state of the receiver balloonsat

  • The two payloads were tested after recovery and communicated successfully for an extended duration

    • Tried several configurations to determine failure mode
