  1. Concurrency Control

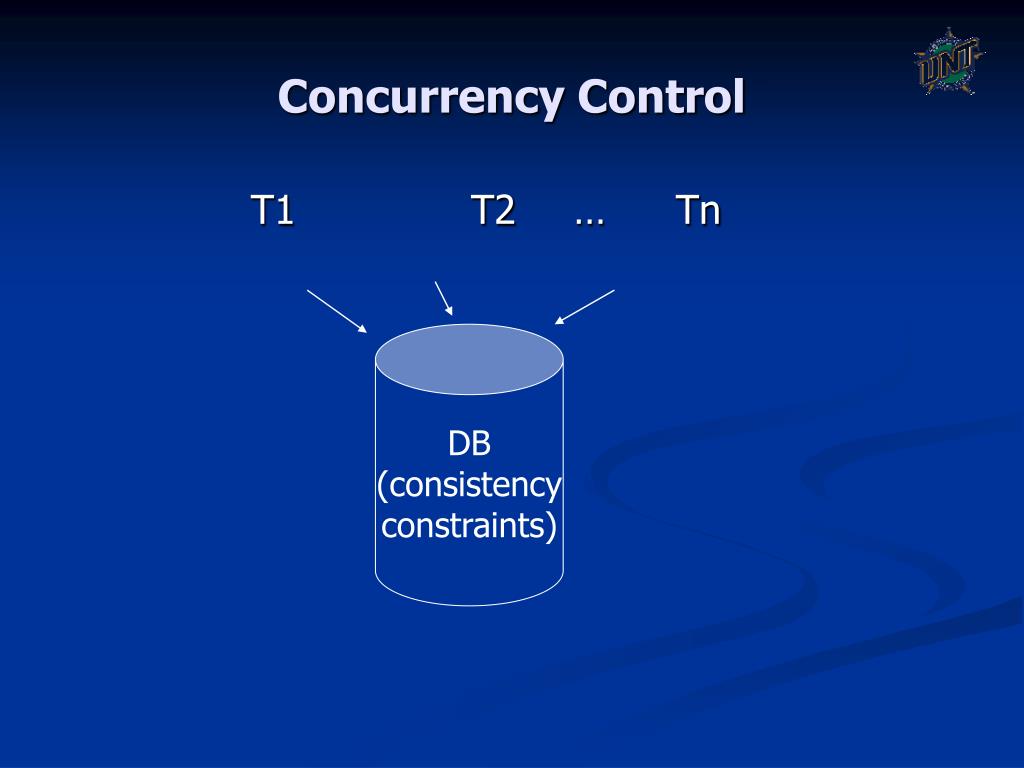

  2. Concurrency Control T1 T2 … Tn DB (consistency constraints)

  3. Enforce Conflict Serializable Schedules Prevent cycles in precedence graph from occurring T1 T2 ….. Tn Scheduler DB

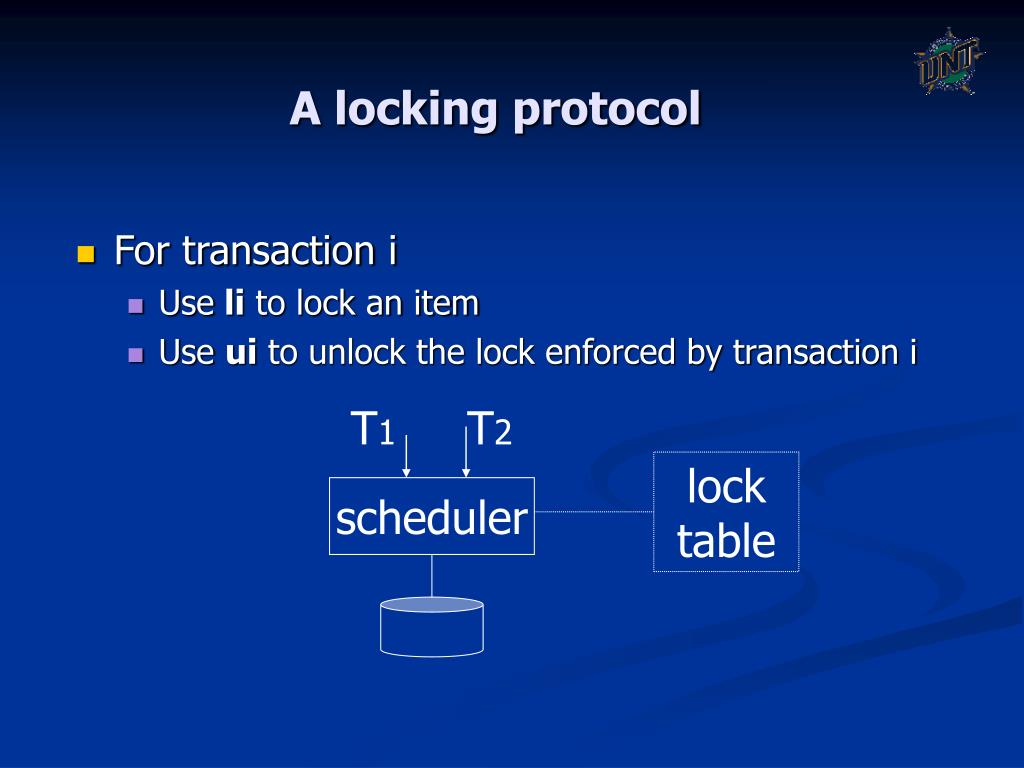

  4. A locking protocol • For transaction i • Use li to lock an item • Use ui to unlock the lock enforced by transaction i T1 T2 lock table scheduler

  5. Well behaved transactions Ti: … li(A) … pi(A) … ui(A) ...

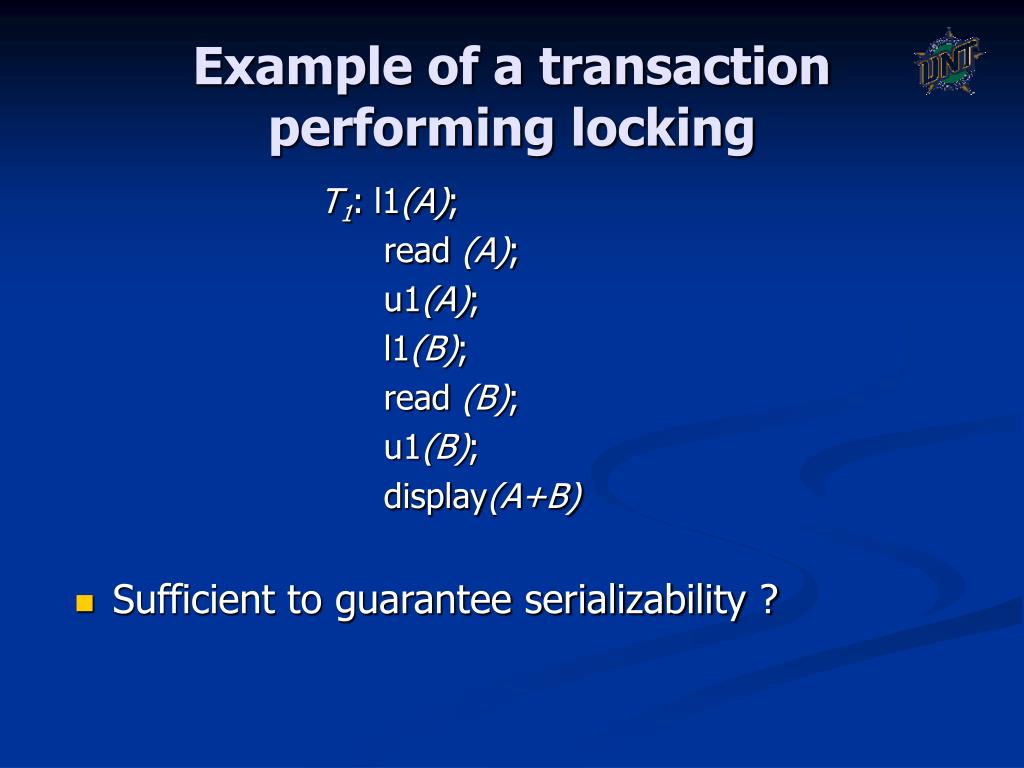

  6. T1:l1(A); read (A); u1(A); l1(B); read (B); u1(B); display(A+B) Sufficient to guarantee serializability ? Example of a transaction performing locking

  7. Example: T2: Read(A) T3: Read(A) A  A+100 A  A2 Write(A) Write(A) Read(B) Read(B) B  B+100 B B2 Write(B) Write(B) Constraint: A=B

  8. Schedule A A B T2 T3 25 25 l1(A);Read(A) A A+100;Write(A);u1(A) 125 l2(A);Read(A) A Ax2;Write(A);u2(A) 250 l2(B);Read(B) B Bx2;Write(B);u2(B) 50 l1(B);Read(B) B B+100;Write(B);u1(B) 150 250 150

  9. Phase 1: Growing Phase transaction may obtain locks transaction may not release locks Phase 2: Shrinking Phase transaction may release locks transaction may not obtain locks Two-Phase Locking Protocol

  10. Ti = ……. li(A) ………... ui(A) ……... no unlocks no locks

  11. # locks held by Ti Time Growing Shrinking Phase Phase

  12. What happens to a transaction which tries to lock an item but failed?

  13. Schedule B T2 T3 l1(A);Read(A) A A+100;Write(A) l1(B); u1(A) l2(A);Read(A) A Ax2;Write(A); l2(B) Read(B);B B+100 Write(B); u1(B) l2(B); u2(A);Read(B) B Bx2;Write(B);u2(B); delayed

  14. 2PL  conflict-serializable schedules? To help in proof: Definition Shrink(Ti) = SH(Ti) = first unlock action of Ti

  15. First: Ti  Tj in S  SH(Ti) <S SH(Tj) Proof: Ti  Tj means that S = … pi(A) … ui(A) … lj(A) ... qj(A) …

  16. Then: (1) Assume P(S) has cycle T1 T2 …. Tn T1 (2) By lemma: SH(T1) <SH(T2) < ... <SH(T1) (3) Impossible, so P(S) acyclic (4)  S is conflict serializable

  17. To handle a deadlock one of T4 or T5 must be rolled back and its locks released. Deadlock T4 T5 l3(B) read(B) write(B) l4(A) read(A) l4(B) l3(A)

  18. A transaction does not get its turn for a long time Example: A transaction may be waiting for a lock on an item, while a sequence of other transactions request and are granted an lock on the same item. The same transaction is repeatedly rolled back due to deadlocks. Concurrency control manager can be designed to prevent starvation. Starvation

  19. Are schedules from 2PL transactions deadlock free? 2PL and Deadlock

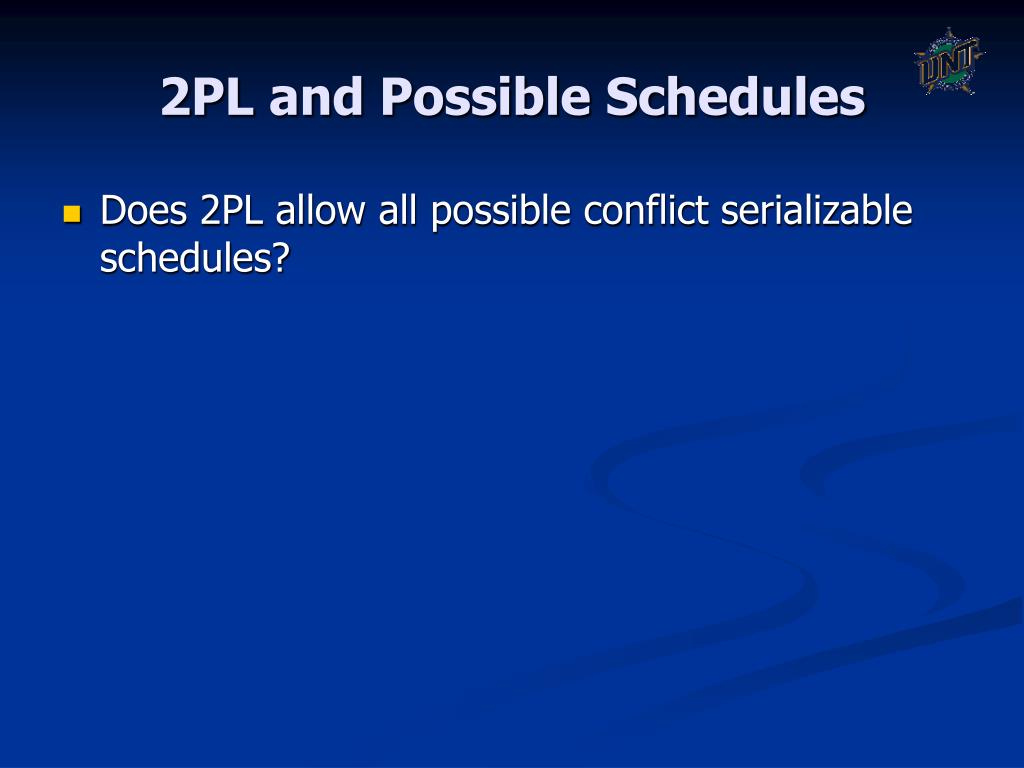

  20. 2PL and Possible Schedules • Does 2PL allow all possible conflict serializable schedules?

  21. Beyond this simple 2PL protocol, it is all a matter of improving performance and allowing more concurrency…. • Shared locks • Multiple granularity • Inserts, deletes and phantoms • Other types of C.C. mechanisms
