Java Operator API New Functionality InfoSphere Streams Version 3.0

1. Dan Debrunner and Howard Nasgaard SPL Java Operator API Java Operator APINew FunctionalityInfoSphere Streams Version 3.0

2. Important Disclaimer THE INFORMATION CONTAINED IN THIS PRESENTATION IS PROVIDED FOR INFORMATIONAL PURPOSES ONLY. WHILE EFFORTS WERE MADE TO VERIFY THE COMPLETENESS AND ACCURACY OF THE INFORMATION CONTAINED IN THIS PRESENTATION, IT IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. IN ADDITION, THIS INFORMATION IS BASED ON IBM’S CURRENT PRODUCT PLANS AND STRATEGY, WHICH ARE SUBJECT TO CHANGE BY IBM WITHOUT NOTICE. IBM SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES ARISING OUT OF THE USE OF, OR OTHERWISE RELATED TO, THIS PRESENTATION OR ANY OTHER DOCUMENTATION. NOTHING CONTAINED IN THIS PRESENTATION IS INTENDED TO, OR SHALL HAVE THE EFFECT OF: • CREATING ANY WARRANTY OR REPRESENTATION FROM IBM (OR ITS AFFILIATES OR ITS OR THEIR SUPPLIERS AND/OR LICENSORS); OR • ALTERING THE TERMS AND CONDITIONS OF THE APPLICABLE LICENSE AGREEMENT GOVERNING THE USE OF IBM SOFTWARE. The information on the new product is intended to outline our general product direction and it should not be relied on in making a purchasing decision. The information on the new product is for informational purposes only and may not be incorporated into any contract. The information on the new product is not a commitment, promise, or legal obligation to deliver any material, code or functionality. The development, release, and timing of any features or functionality described for our products remains at our sole discretion. THIS INFORMATION IS BASED ON IBM’S CURRENT PRODUCT PLANS AND STRATEGY, WHICH ARE SUBJECT TO CHANGE BY IBM WITHOUT NOTICE. IBM SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES ARISING OUT OF THE USE OF, OR OTHERWISE RELATED TO, THIS PRESENTATION OR ANY OTHER DOCUMENTATION.

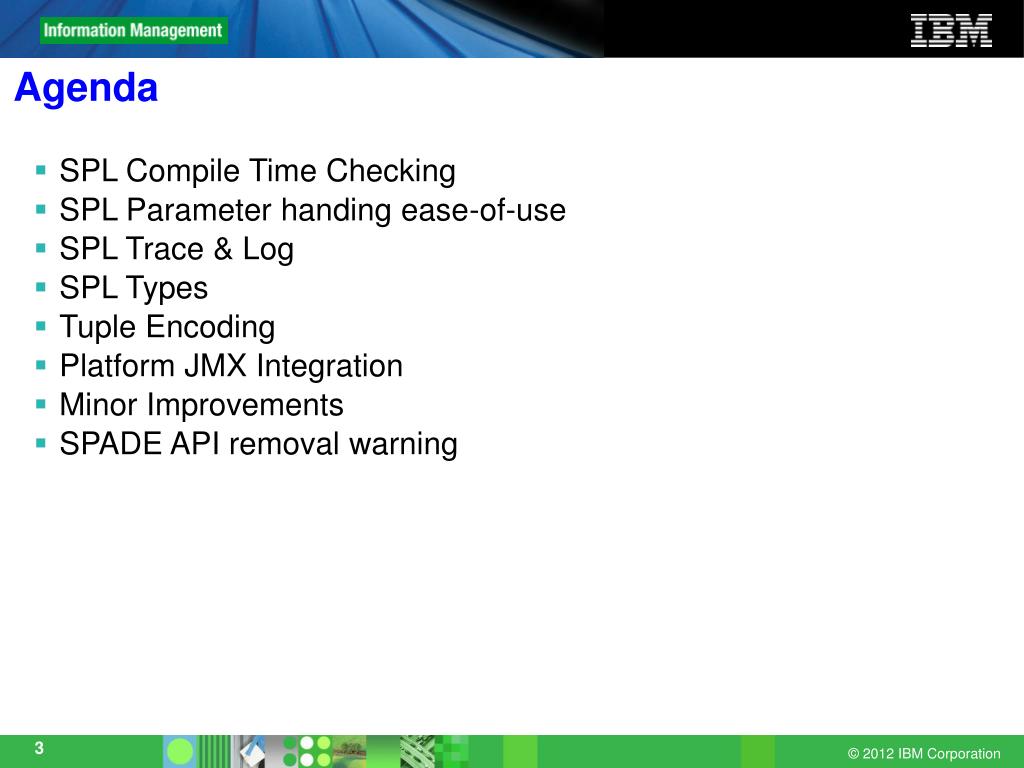

3. Agenda • SPL Compile Time Checking • SPL Parameter handing ease-of-use • SPL Trace & Log • SPL Types • Tuple Encoding • Platform JMX Integration • Minor Improvements • SPADE API removal warning

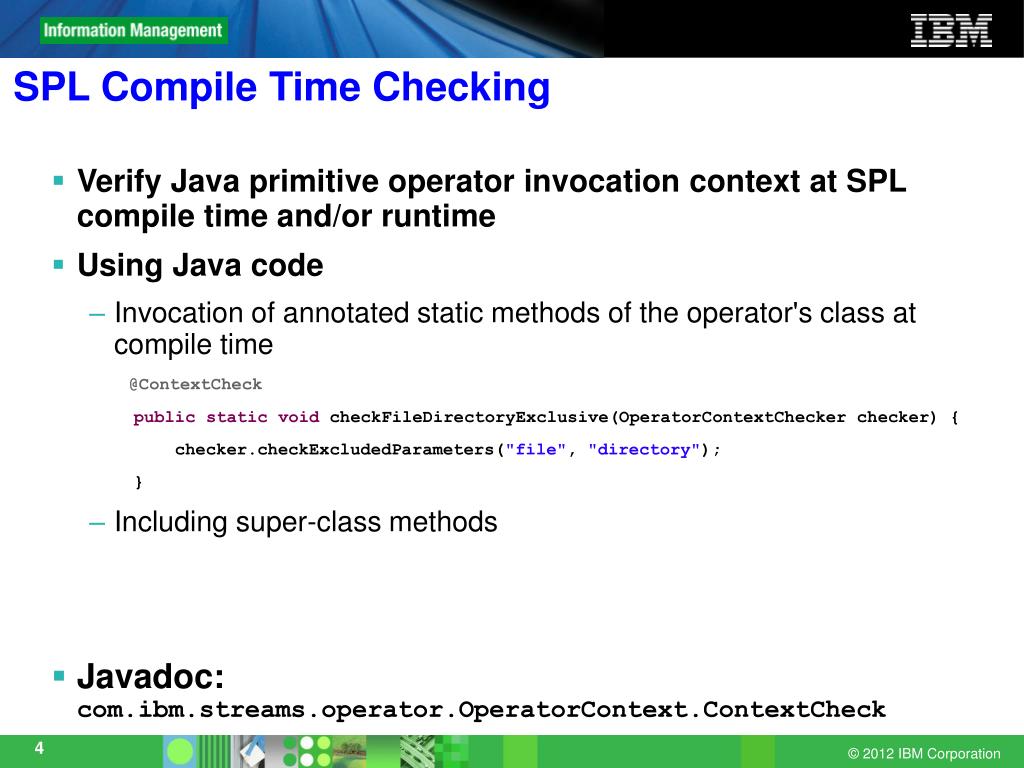

4. SPL Compile Time Checking • Verify Java primitive operator invocation context at SPL compile time and/or runtime • Using Java code • Invocation of annotated static methods of the operator's class at compile time @ContextCheck publicstaticvoid checkFileDirectoryExclusive(OperatorContextChecker checker) { checker.checkExcludedParameters("file", "directory"); } • Including super-class methods • Javadoc: com.ibm.streams.operator.OperatorContext.ContextCheck

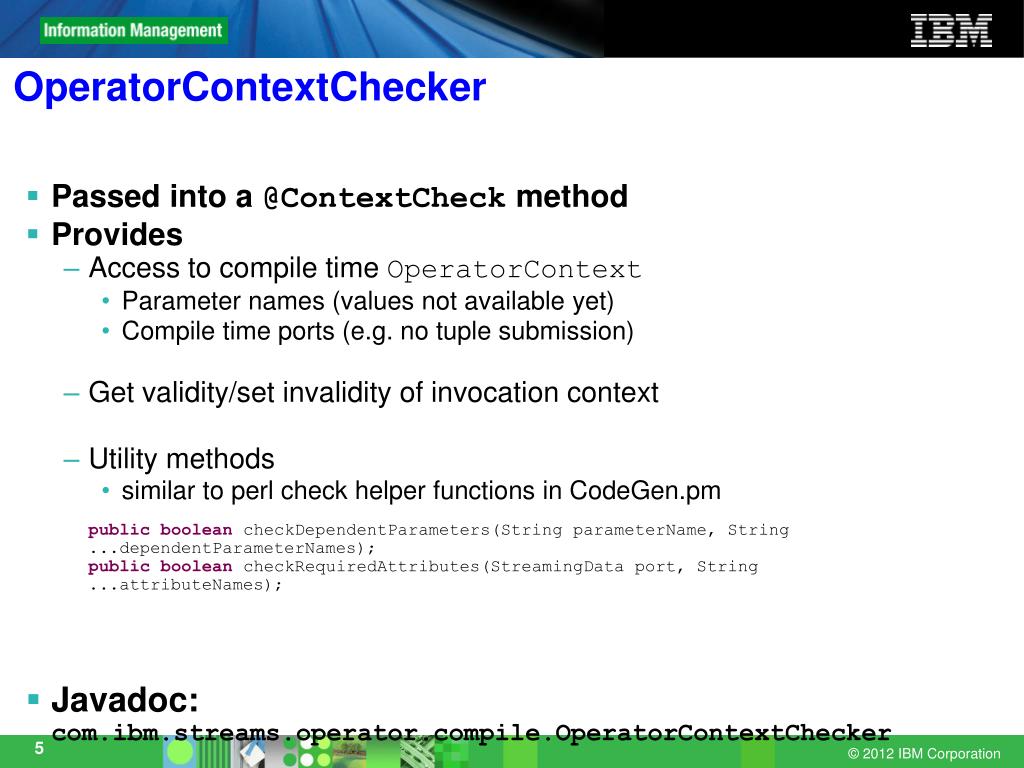

5. OperatorContextChecker • Passed into a @ContextCheck method • Provides • Access to compile time OperatorContext • Parameter names (values not available yet) • Compile time ports (e.g. no tuple submission) • Get validity/set invalidity of invocation context • Utility methods • similar to perl check helper functions in CodeGen.pm publicboolean checkDependentParameters(String parameterName, String ...dependentParameterNames);publicboolean checkRequiredAttributes(StreamingData port, String ...attributeNames); • Javadoc: com.ibm.streams.operator.compile.OperatorContextChecker

6. How to cause SPL Compile Errors • Use OperatorContextChecker utility methods • If context invalid error SPL error automatically raised • Call OperatorContextChecker.setInvalidContext() • Typically with useful error message • Log an error or warn message • Error level causes an SPL compiler error • Warn level causes an SPL compiler warning • Throw an descriptive exception • Flexibility allows the Java primitive to raise multiple errors during compilation

7. Getting SPL Parameter values (Streams Version 2.0) publicclass MyOp extends AbstractOperator { privateintthreshold; publicvoid setThreshold(int threshold) { this.threshold = threshold; } publicint getThreshold() { returnthreshold; } @Override publicvoid initialize(OperatorContext context) throws Exception { super.initialize(context); setThreshold(Integer.valueOf( context.getParameterValues("threshold").get(0))); } } Getting the value of a parameter is awkward: - need to pull value out of List - need to covert to specific type from String Example is just an int, array values are harder List<String> values = context.getParameterValues("rates"); double[] rates = newdouble[values.size()]; for (int i = 0; i < rates.length; i++) rates[i] = Double.valueOf(values.get(i)); setRates(rates);

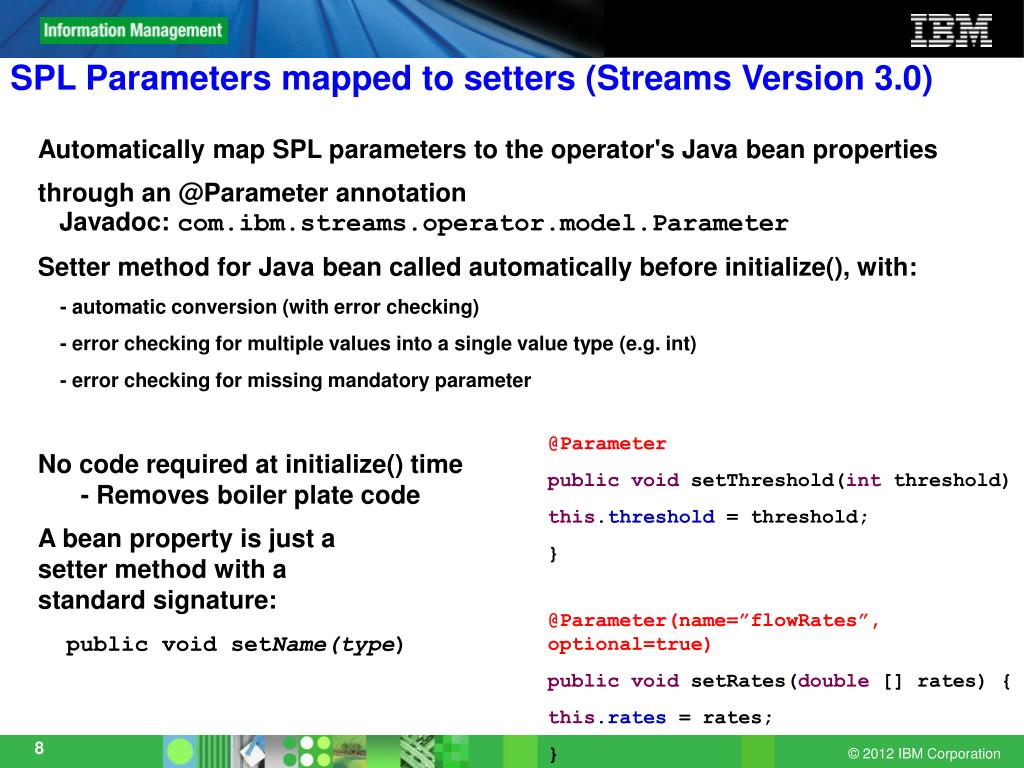

8. SPL Parameters mapped to setters (Streams Version 3.0) Automatically map SPL parameters to the operator's Java bean properties through an @Parameter annotation Javadoc: com.ibm.streams.operator.model.Parameter Setter method for Java bean called automatically before initialize(), with: - automatic conversion (with error checking) - error checking for multiple values into a single value type (e.g. int) - error checking for missing mandatory parameter No code required at initialize() time - Removes boiler plate code A bean property is just asetter method with astandard signature: public void setName(type) @Parameter publicvoid setThreshold(int threshold) { this.threshold = threshold; } @Parameter(name=”flowRates”, optional=true) publicvoid setRates(double [] rates) { this.rates = rates; }

9. SPL Trace & Log • Support SPL trace & log enhancements • Integration with: • Java platform java.util.logging • Apache Log4j • Existing traceLogging api deprecated • Loggers • Root (“”) map to SPL trace facility • Thus arbitrary application loggers map to SPL trace • com.ibm.streams.operator.log • map to SPL log facility • Create a child logger for application messages to SPL log • Javadoc (package): • com.ibm.streams.operator.logging • com.ibm.streams.operator.log4j

10. Improved Trace/Log functionality • Can use all functionality of standard/log4j logging • Child loggers • Localization (message bundles) • Trace/log to additional locations • Log levels • Multiple logging methods • SPL trace/log aspects supported by associating aspects with named loggers • Constants for SPL trace & log levels supplied • That map to native logger levels

11. LoggerUseExample (sample) publicclass LoggerUseExample extends AbstractOperator { privatestaticfinal String CLASS_NAME = LoggerUseExample.class.getName(); /** Create a {@code Logger} specific to this class that will write * to the SPL trace facility as a child of the root {@code Logger}. */ privatefinal Logger trace = Logger.getLogger(CLASS_NAME); /** Create a {@code Logger} specific to this class that will write * to the SPL log facility as a child of the {@link LoggerNames#LOG_FACILITY} * {@code Logger}. * The {@code Logger} uses a resource bundle.*/ privatefinal Logger log = Logger.getLogger(LoggerNames.LOG_FACILITY + "." + CLASS_NAME, "com.ibm.streams.operator.samples.operators.messages"); /** * Sample uses of log and trace. */ @Override publicvoid initialize(OperatorContext context) throws Exception { super.initialize(context); // Note setLoggerAspects() must be called after super.initialize(context) // as it requires the context. // Associate the aspects exampleTrace and testTrace with trace // messages from the SPL trace logger setLoggerAspects(trace.getName(), "exampleTrace", "testTrace"); // Associate the aspect exampleLog with messages from the SPL log logger. setLoggerAspects(log.getName(), "exampleLog"); // Example use of trace to dump all parameters. The level uses // the Java Operator API specific class {@link TraceLevel} // that has constants for the SPL log levels. for (String parameterName : context.getParameterNames()) { for (String value : context.getParameterValues(parameterName)) { trace.log(TraceLevel.INFO, "Parameter {0} has value {1}", new Object[] {parameterName, value}); } }

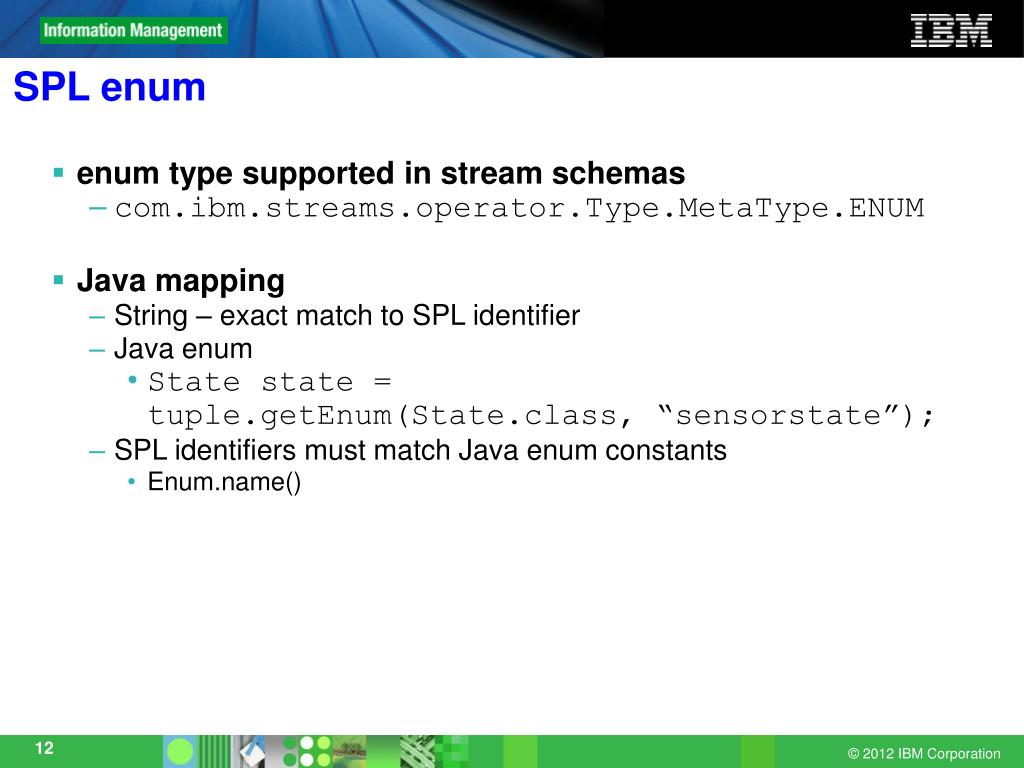

12. SPL enum • enum type supported in stream schemas • com.ibm.streams.operator.Type.MetaType.ENUM • Java mapping • String – exact match to SPL identifier • Java enum • State state =tuple.getEnum(State.class, “sensorstate”); • SPL identifiers must match Java enum constants • Enum.name()

13. SPL XML • xml type supported in stream schemas • com.ibm.streams.operator.Type.MetaType.XML • Java mapping • com.ibm.streams.operator.types.XML • Integrate with full Java XML support through • javax.xml.transform.stream.StreamSource • Indication if value is default SPL value (“empty”) • ValueFactory.newXML() to create values • Integrate with full Java XML support through • javax.xml.transform.Source • javax.xml.transform.Transformer • XML processing through standard Java apis • DOM, JAXB, SAX, StAX

14. Tuple Encoding • Serialize tuples to and from • Java serialization (Streams Version 2.0) • SPL native binary encoding • Compatible with C++ NativeByteBuffer • Encode tuples to • JSON (JavaScript Object Notation) • Including collections & nested tuples • Excluding blob, complex32, complex64 • Javadoc (package): • com.ibm.streams.operator.encoding

15. JMX Integration - Life-cycle Notifications • JMX • Java Management & Monitoring API • Rich set of functionality • MXBeans registered in platform MBeanServer • OperatorContextMXBean, ProcessingElementMXBean • Supports operator life-cycle notifications • allPortsReady,shutdown,customMetricCreated • Allows code to be shared across multiple operator classes and manage its own life-cycle • E.g. Jetty webserver started by Operator.initialize() but watches allPortsReady & shutdown notifications to avoid requiring each operator class to code explicit notifications • Javadoc (package): • com.ibm.streams.operator.management

16. JMX Integration - Metrics • Ability to register a MetricMXBean for operator custom and port metrics • Allows integration of the JMX monitoring functionality provided by Java • javax.management.monitoring • CounterMonitorMBean • Alert when threshold reached • GaugeMonitorMBean • Alerts when high and low threshold crossed

17. Input Port QueueJMX GaugeMonitorMBean Example InputPortMetric.nTuplesQueued InputPortMetric.queueSize Low threshold High threshold T2 T1 T0 Notification when queue drops to 2 tuples after a high threshold notification Notification when queue firstcontains 8 tuples. No furthernotification until low thresholdis crossed Allows an operator to change itsbehaviour based upon queue stateusing a hysteresis mechanism MetricMXBean GaugeMonitorMBean

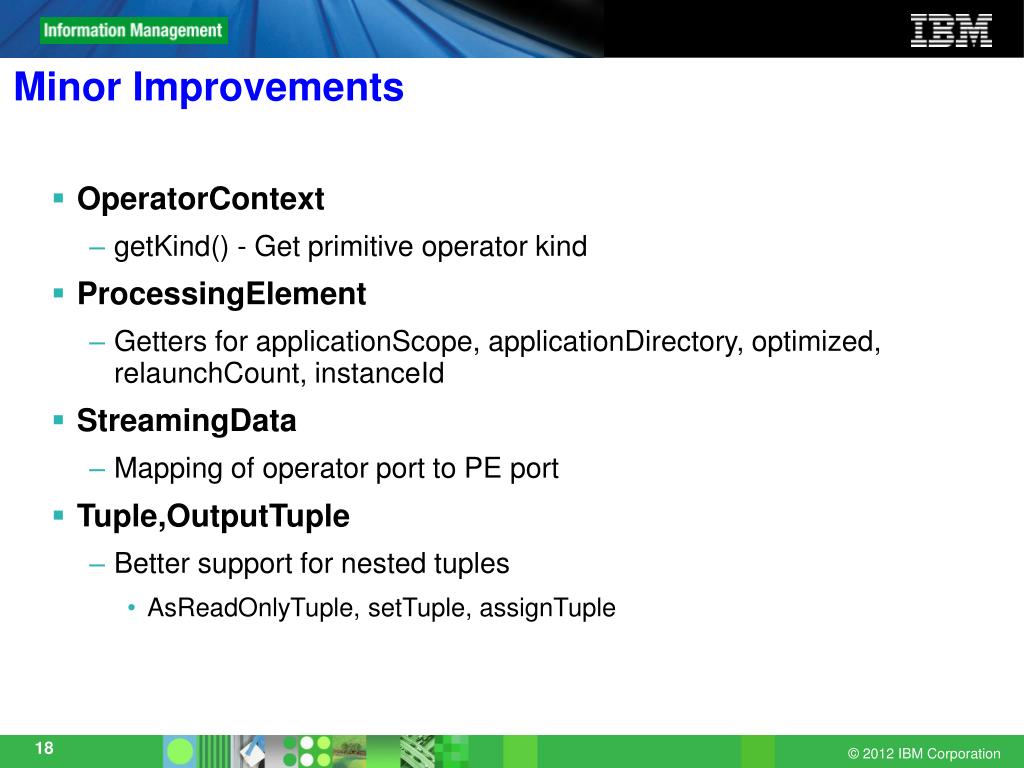

18. Minor Improvements • OperatorContext • getKind() - Get primitive operator kind • ProcessingElement • Getters for applicationScope, applicationDirectory, optimized, relaunchCount, instanceId • StreamingData • Mapping of operator port to PE port • Tuple,OutputTuple • Better support for nested tuples • AsReadOnlyTuple, setTuple, assignTuple

19. SPADE API Removal WARNING • com.ibm.streams.operator • Streams Version 2.0+ operator API • All new functionality extends this api only • com.ibm.streams.spade • Streams Version 1.x operator API • Deprecated in Streams Version 2.0 • Supported in Versions 2.0 & 3.0 • TO BE REMOVED IN NEXT RELEASE • Removal warnings added in Streams Version 3.0
