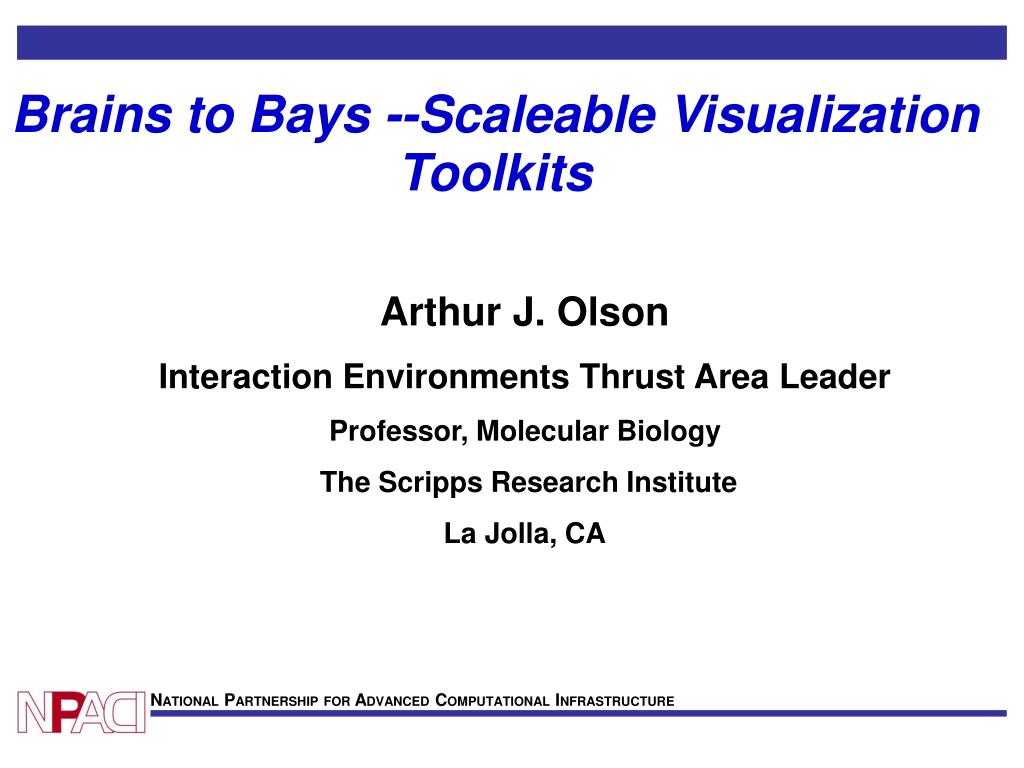

  1. Brains to Bays --Scaleable Visualization Toolkits Arthur J. Olson Interaction Environments Thrust Area Leader Professor, Molecular Biology The Scripps Research Institute La Jolla, CA

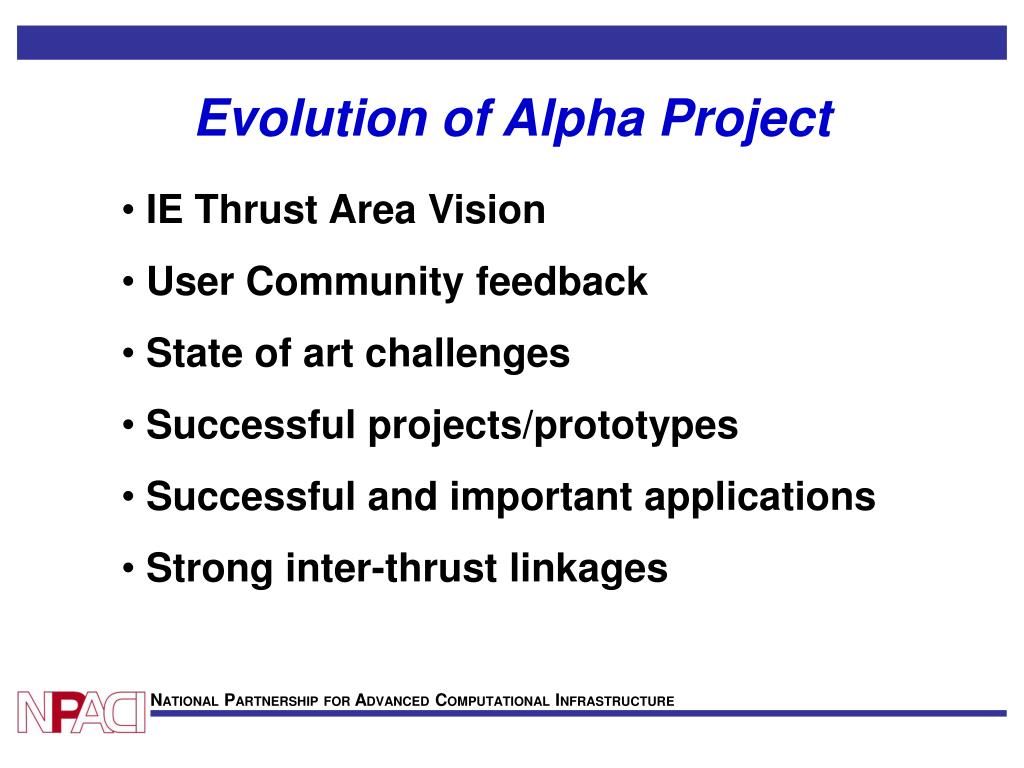

  2. Evolution of Alpha Project • IE Thrust Area Vision • User Community feedback • State of art challenges • Successful projects/prototypes • Successful and important applications • Strong inter-thrust linkages

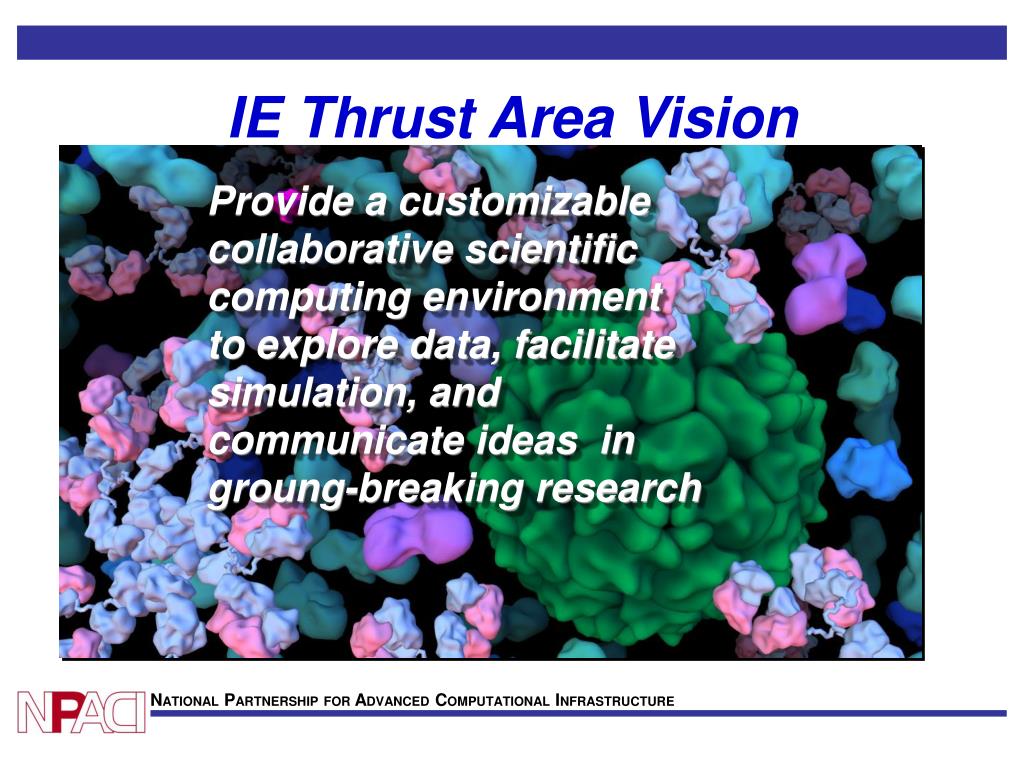

  3. IE Thrust Area Vision Provide a customizable collaborative scientific computing environment to explore data, facilitate simulation, and communicate ideas in groung-breaking research

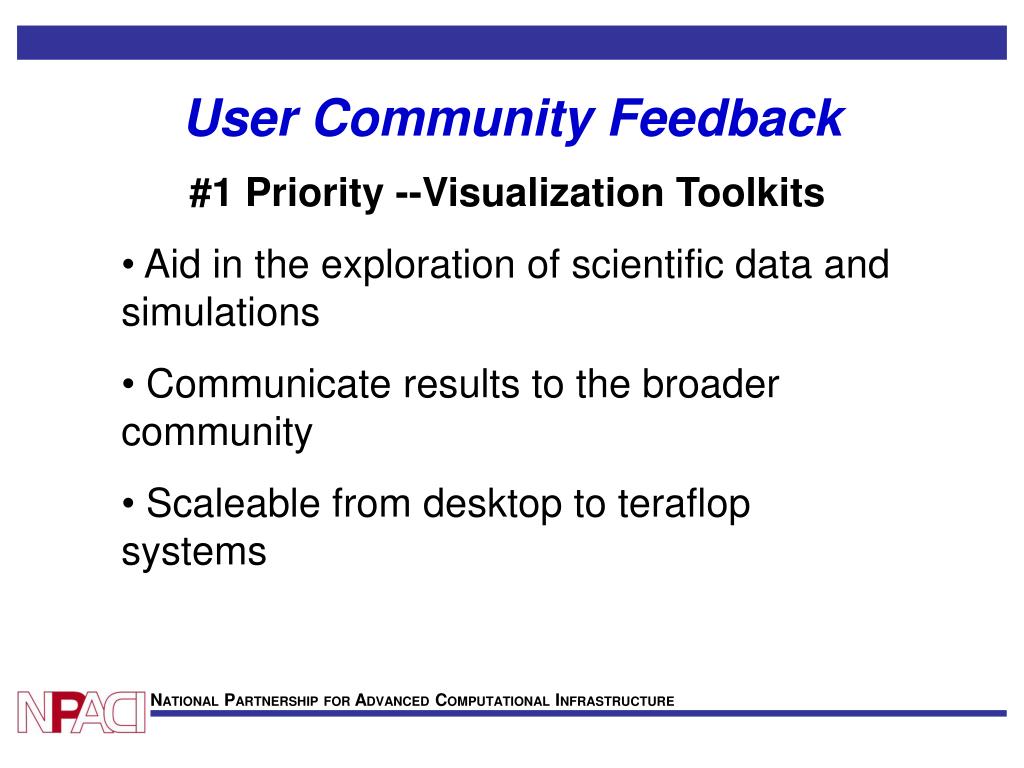

  4. User Community Feedback • #1 Priority --Visualization Toolkits • Aid in the exploration of scientific data and simulations • Communicate results to the broader community • Scaleable from desktop to teraflop systems

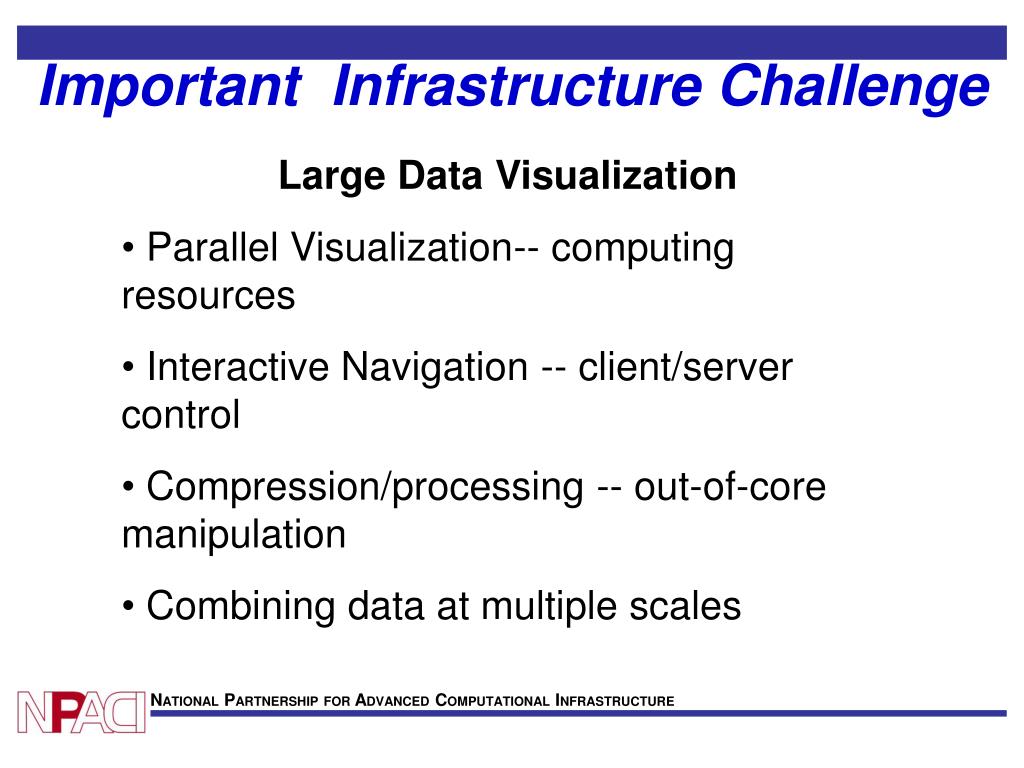

  5. Important Infrastructure Challenge • Large DataVisualization • Parallel Visualization-- computing resources • Interactive Navigation -- client/server control • Compression/processing -- out-of-core manipulation • Combining data at multiple scales

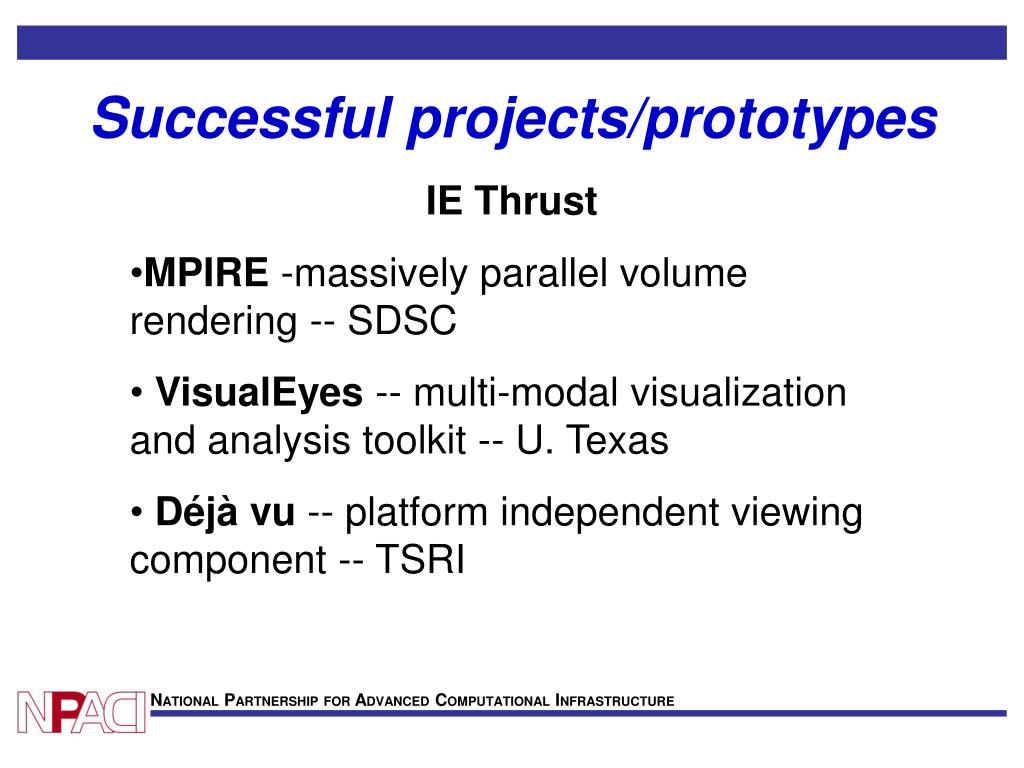

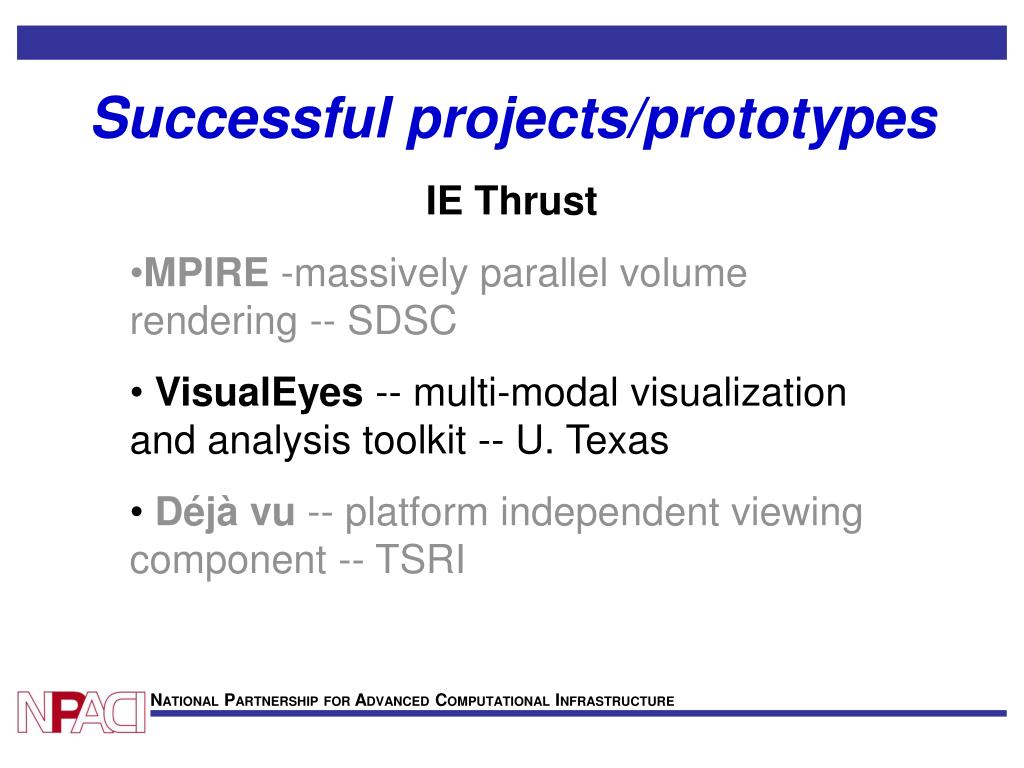

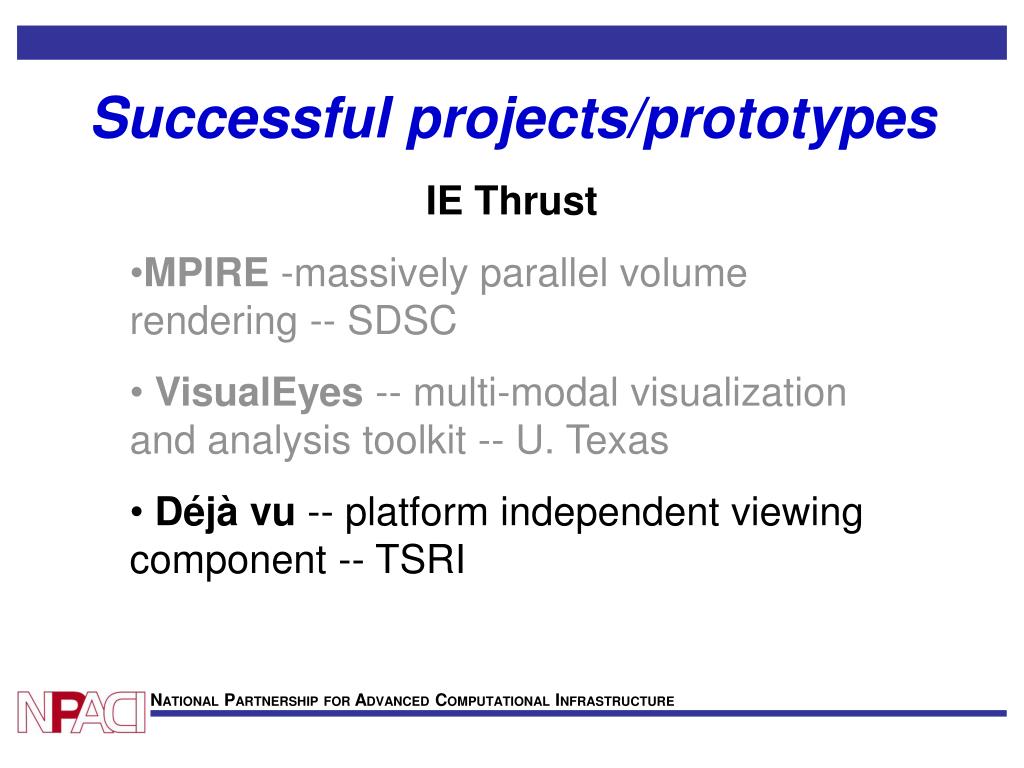

  6. Successful projects/prototypes • IE Thrust • MPIRE -massively parallel volume rendering -- SDSC • VisualEyes -- multi-modal visualization and analysis toolkit -- U. Texas • Déjà vu -- platform independent viewing component -- TSRI

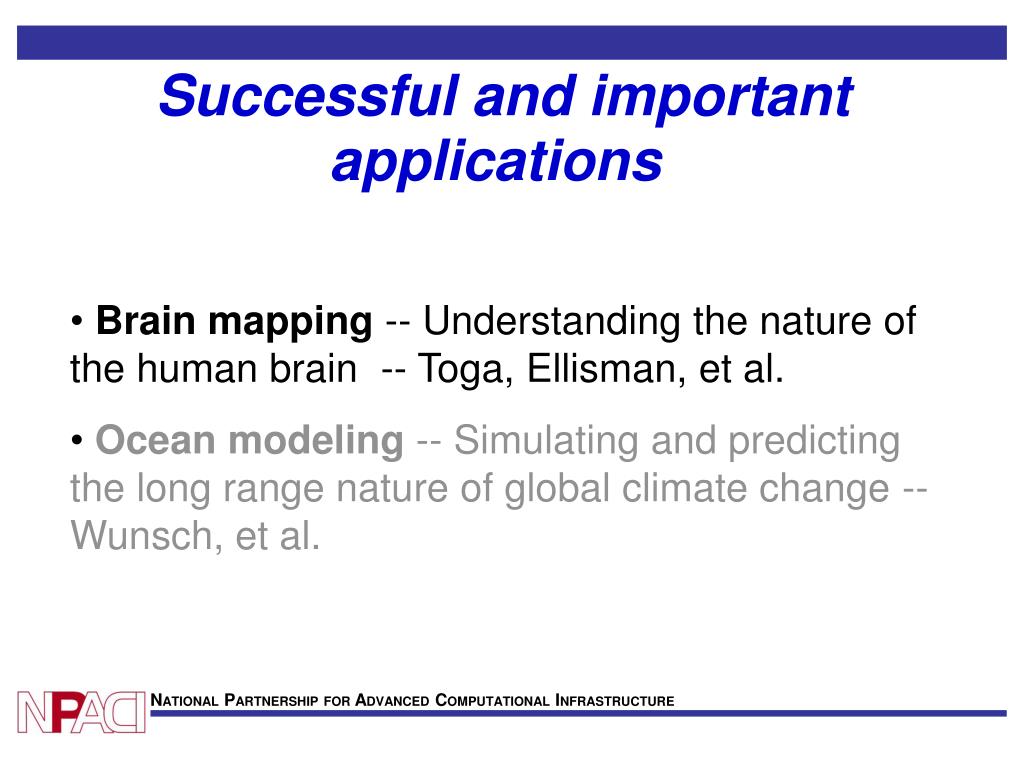

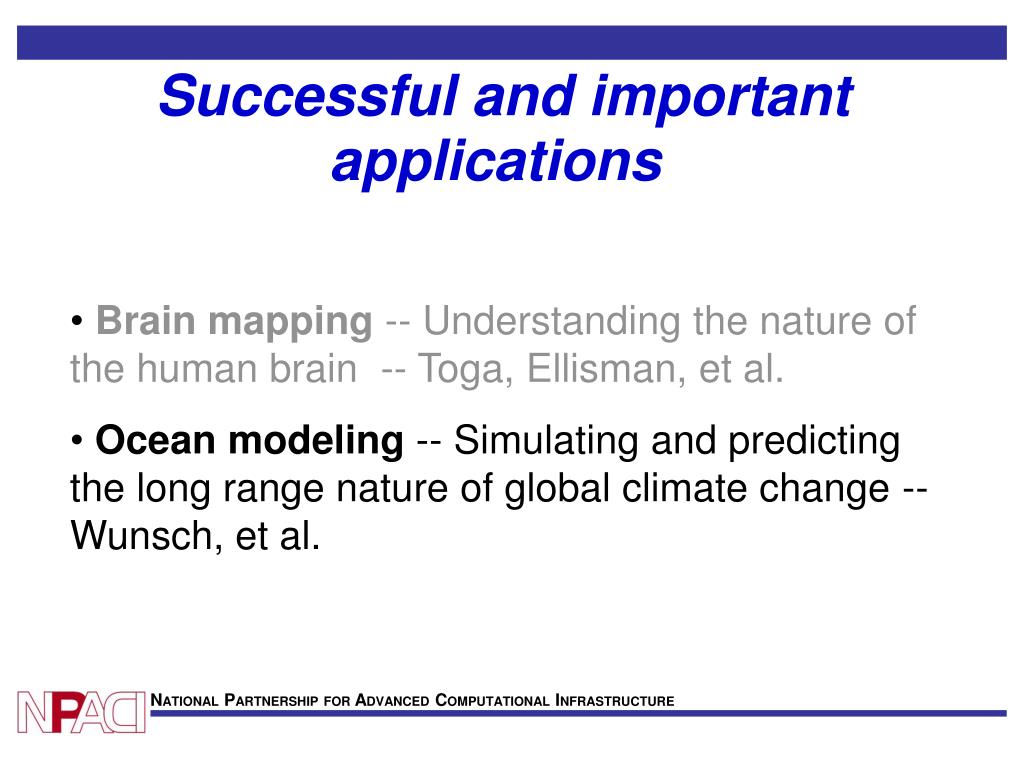

  7. Successful and important applications • Brain mapping -- Understanding the nature of the human brain -- Toga, Ellisman, et al. • Ocean modeling -- Simulating and predicting the long range nature of global climate change -- Wunsch, et al.

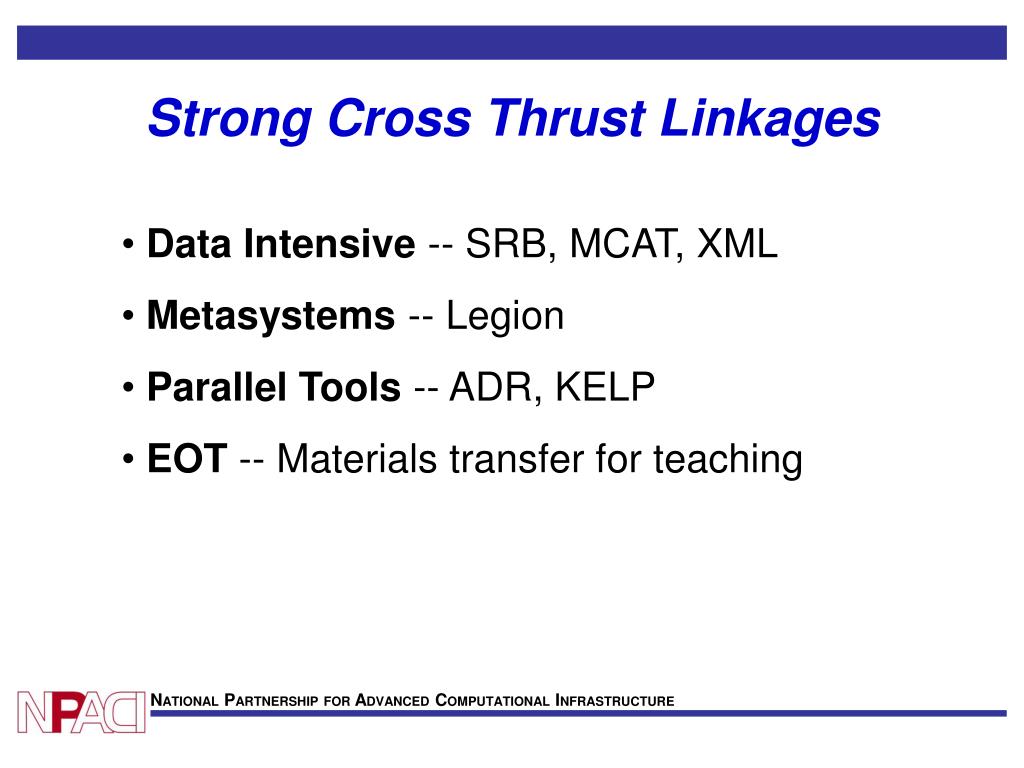

  8. Strong Cross Thrust Linkages • Data Intensive -- SRB, MCAT, XML • Metasystems -- Legion • Parallel Tools -- ADR, KELP • EOT -- Materials transfer for teaching

  9. Successful projects/prototypes • IE Thrust • MPIRE -massively parallel volume rendering -- SDSC • VisualEyes -- multi-modal visualization and analysis toolkit -- U. Texas • Déjà vu -- platform independent viewing component -- TSRI

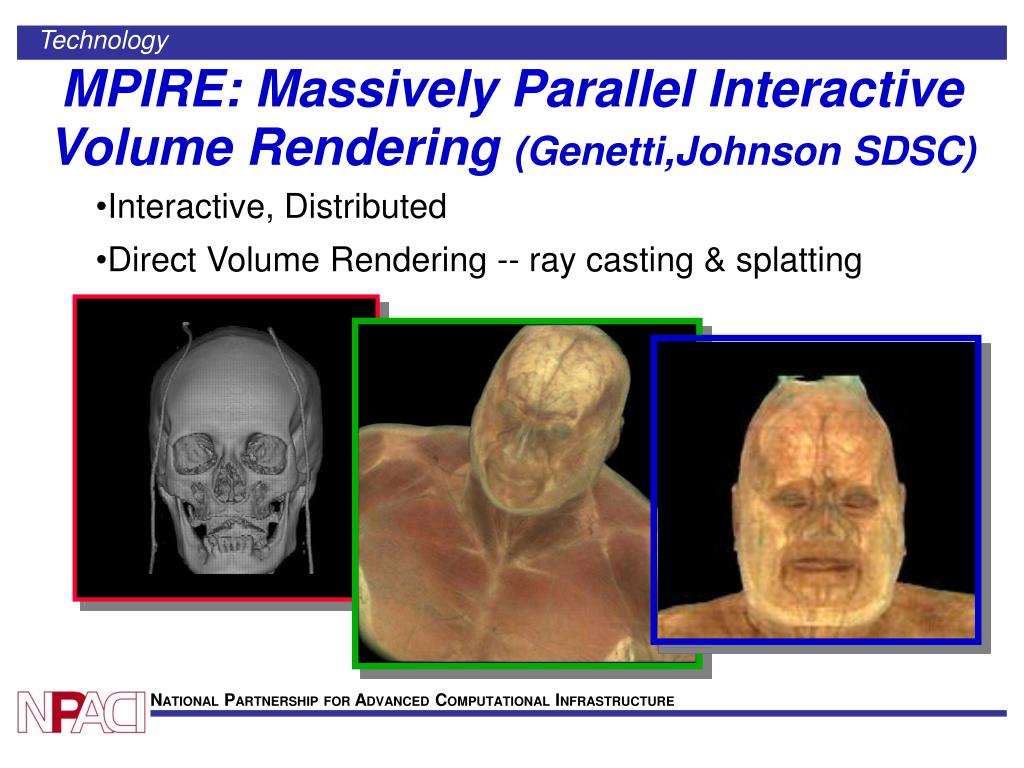

  10. Technology MPIRE: Massively Parallel Interactive Volume Rendering (Genetti,Johnson SDSC) • Interactive, Distributed • Direct Volume Rendering -- ray casting & splatting

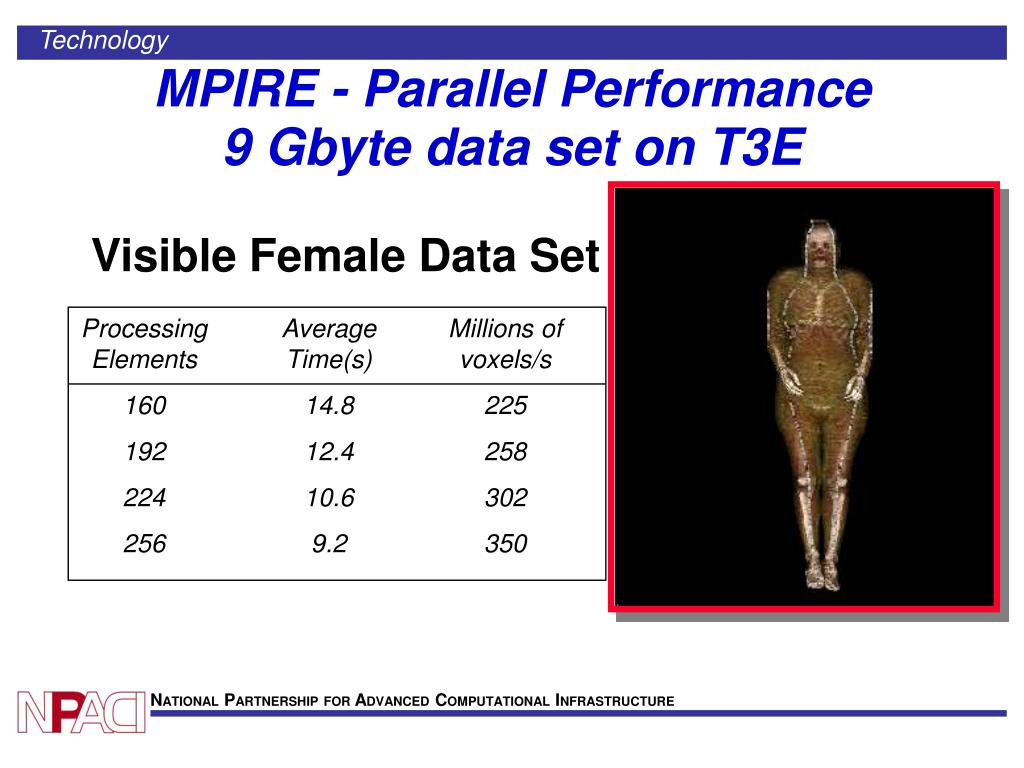

  11. Processing Elements 160 192 224 256 Average Time(s) 14.8 12.4 10.6 9.2 Millions of voxels/s 225 258 302 350 Technology MPIRE - Parallel Performance9 Gbyte data set on T3E Visible Female Data Set

  12. Successful projects/prototypes • IE Thrust • MPIRE -massively parallel volume rendering -- SDSC • VisualEyes -- multi-modal visualization and analysis toolkit -- U. Texas • Déjà vu -- platform independent viewing component -- TSRI

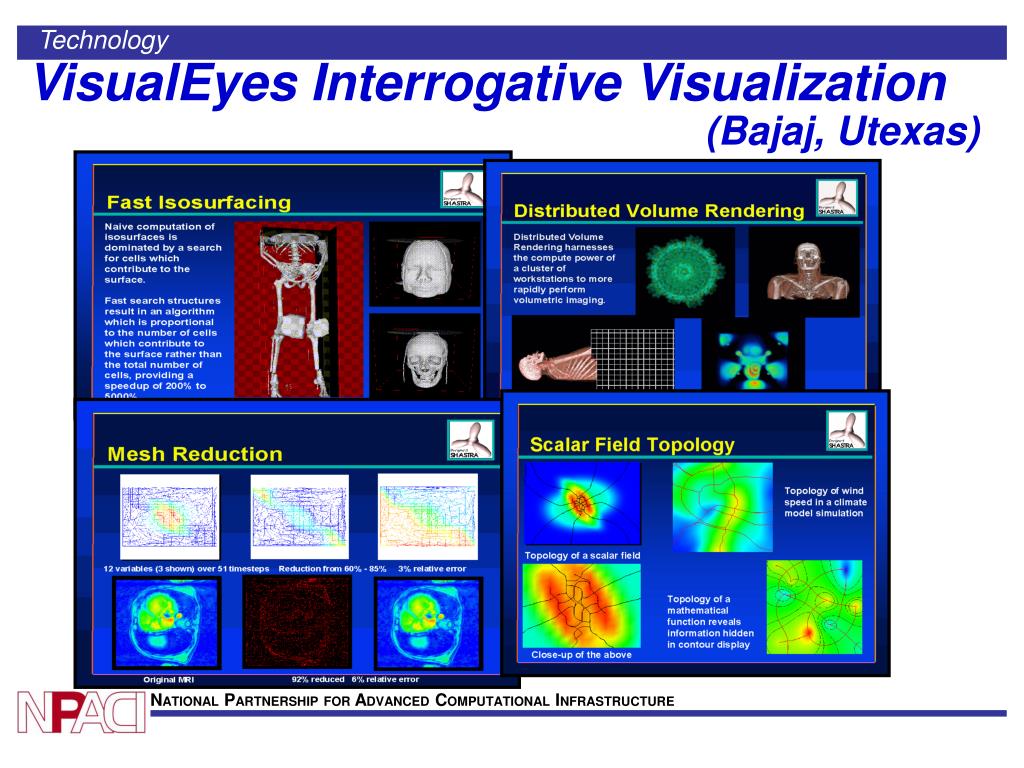

  13. Technology VisualEyes Interrogative Visualization (Bajaj, Utexas)

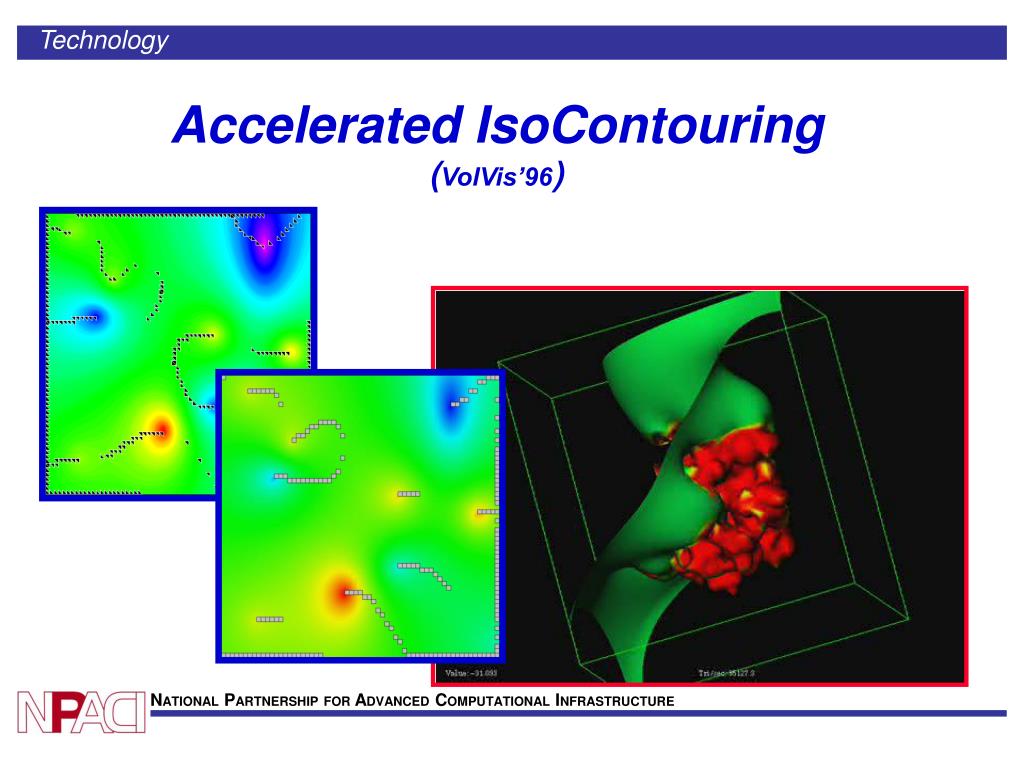

  14. Technology Accelerated IsoContouring(VolVis’96)

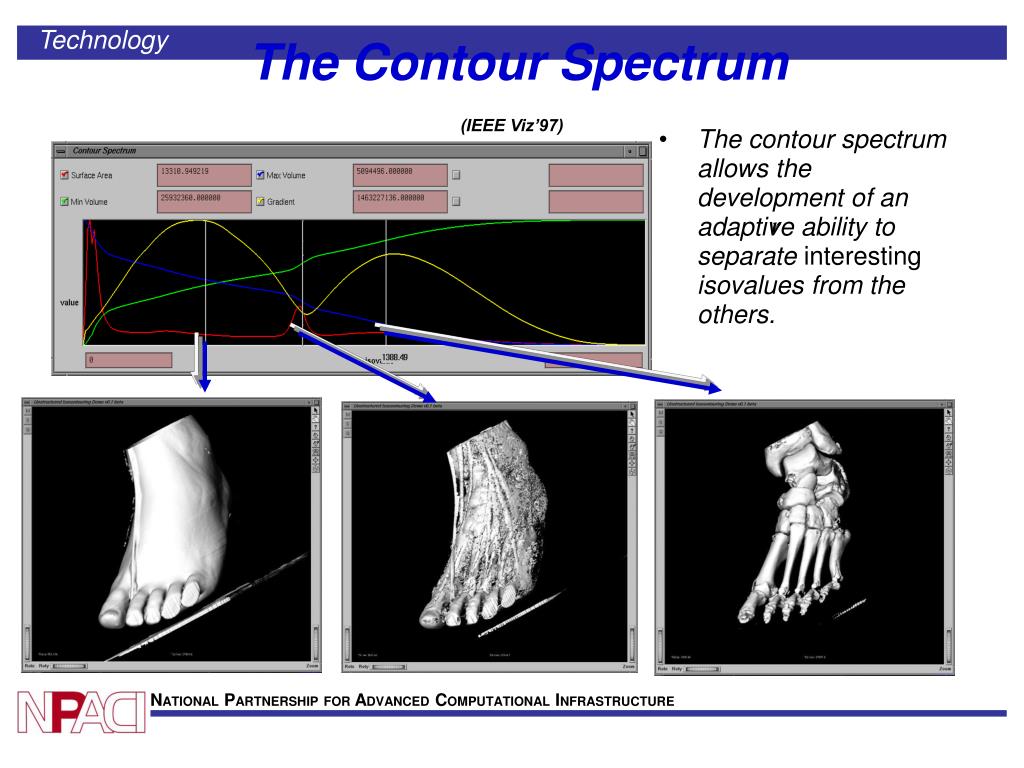

  15. Technology The Contour Spectrum(IEEE Viz’97) • The contour spectrum allows the development of an adaptive ability to separate interesting isovalues from the others. r

  16. Successful projects/prototypes • IE Thrust • MPIRE -massively parallel volume rendering -- SDSC • VisualEyes -- multi-modal visualization and analysis toolkit -- U. Texas • Déjà vu -- platform independent viewing component -- TSRI

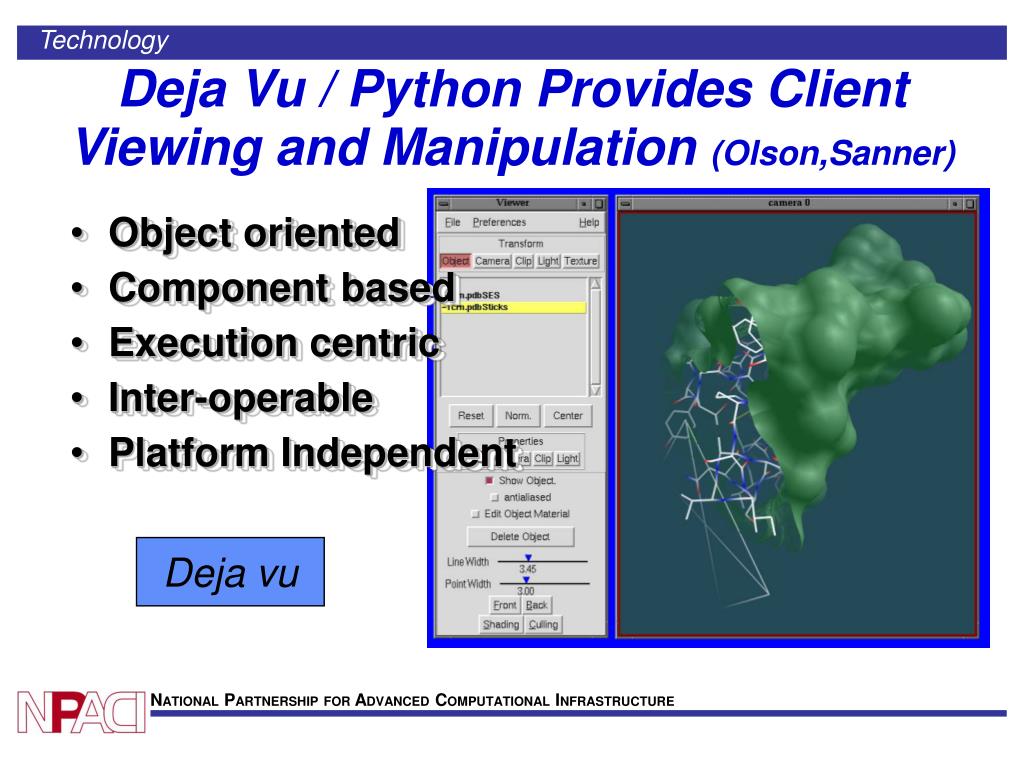

  17. Technology Deja Vu / Python Provides Client Viewing and Manipulation (Olson,Sanner) • Object oriented • Component based • Execution centric • Inter-operable • Platform Independent Deja vu

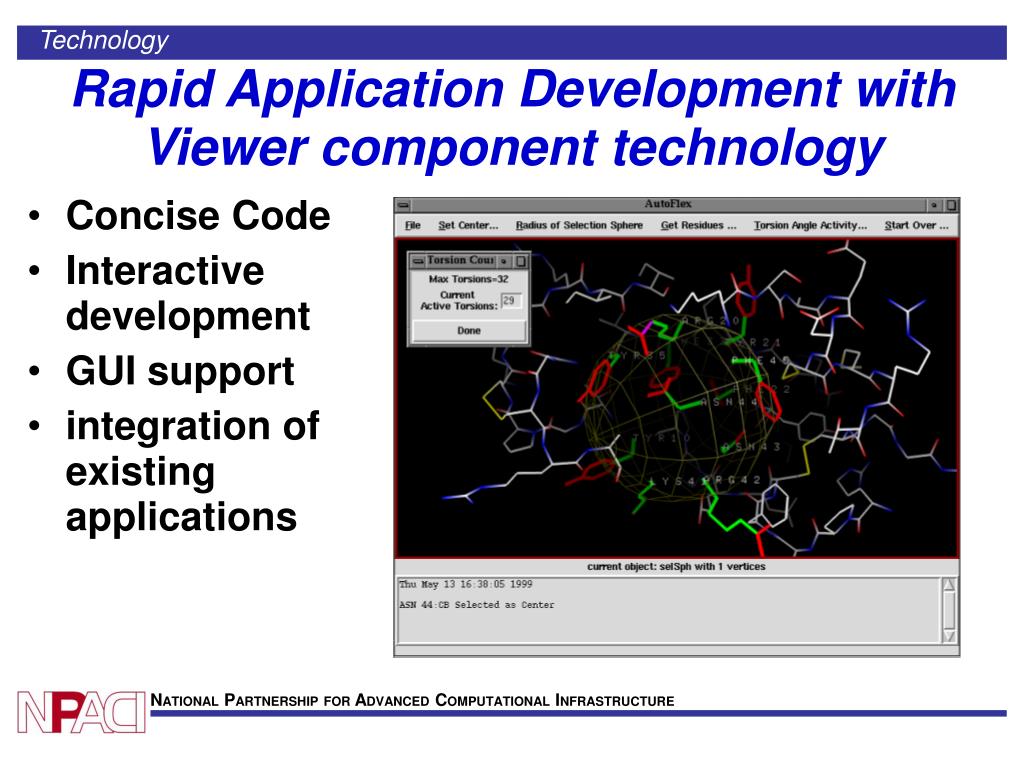

  18. Technology Rapid Application Development withViewer component technology • Concise Code • Interactive development • GUI support • integration of existing applications

  19. Successful and important applications • Brain mapping -- Understanding the nature of the human brain -- Toga, Ellisman, et al. • Ocean modeling -- Simulating and predicting the long range nature of global climate change -- Wunsch, et al.

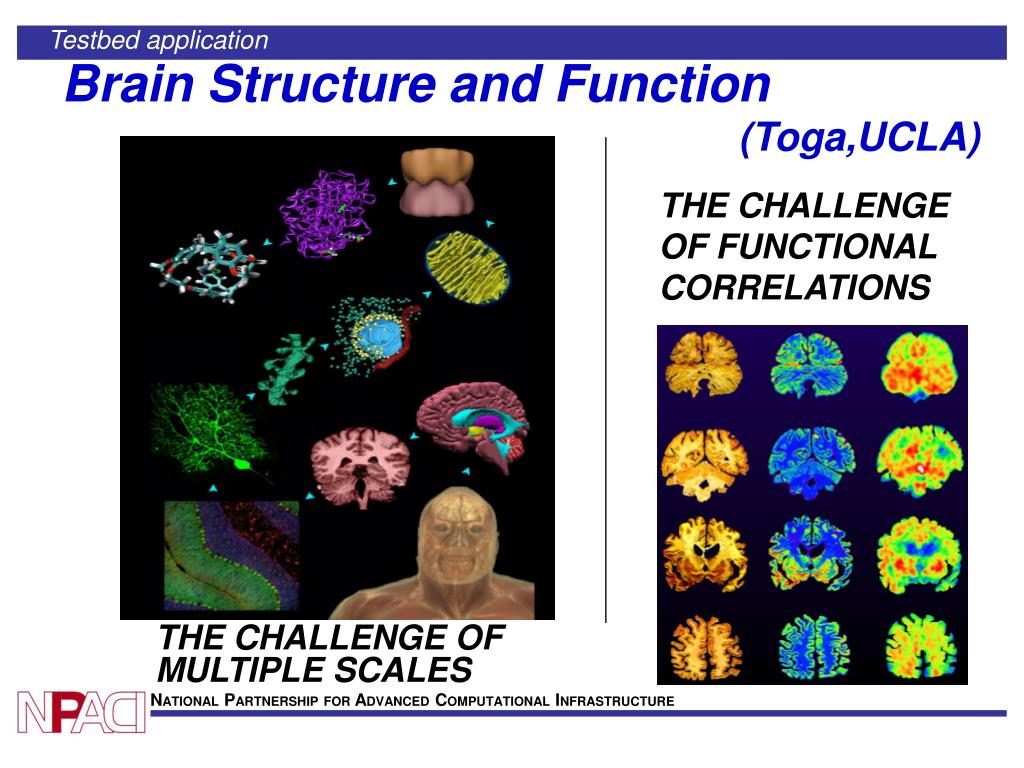

  20. Testbed application Brain Structure and Function (Toga,UCLA) THE CHALLENGE OF FUNCTIONAL CORRELATIONS THE CHALLENGE OF MULTIPLE SCALES

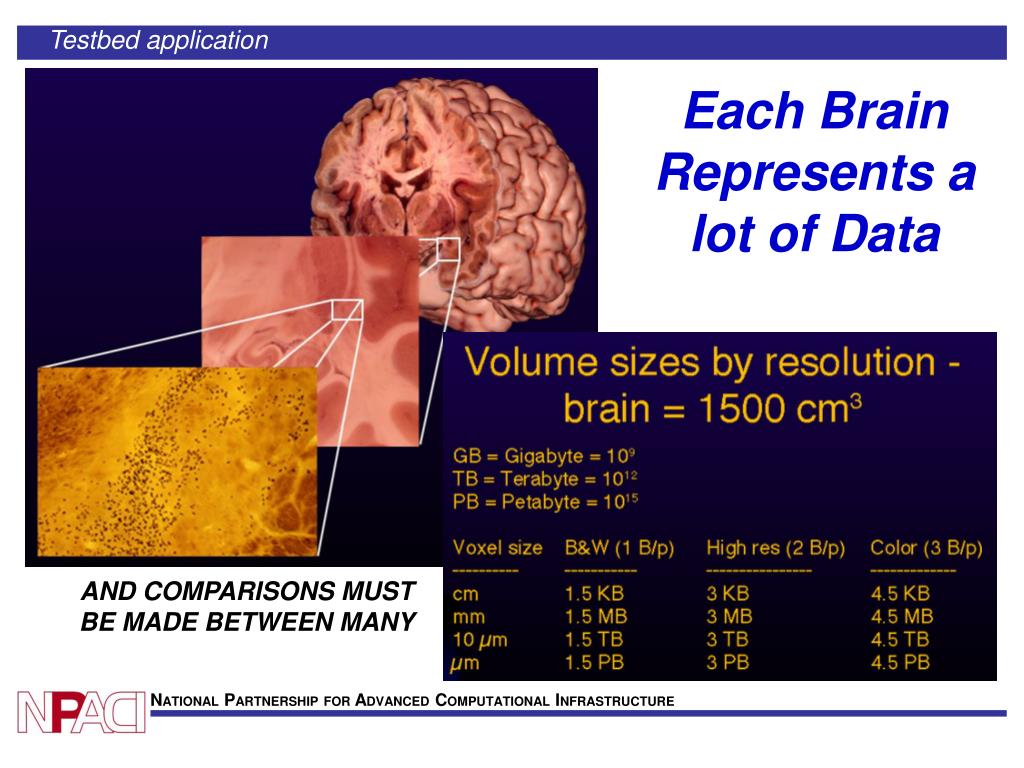

  21. Testbed application Each Brain Represents a lot of Data AND COMPARISONS MUST BE MADE BETWEEN MANY

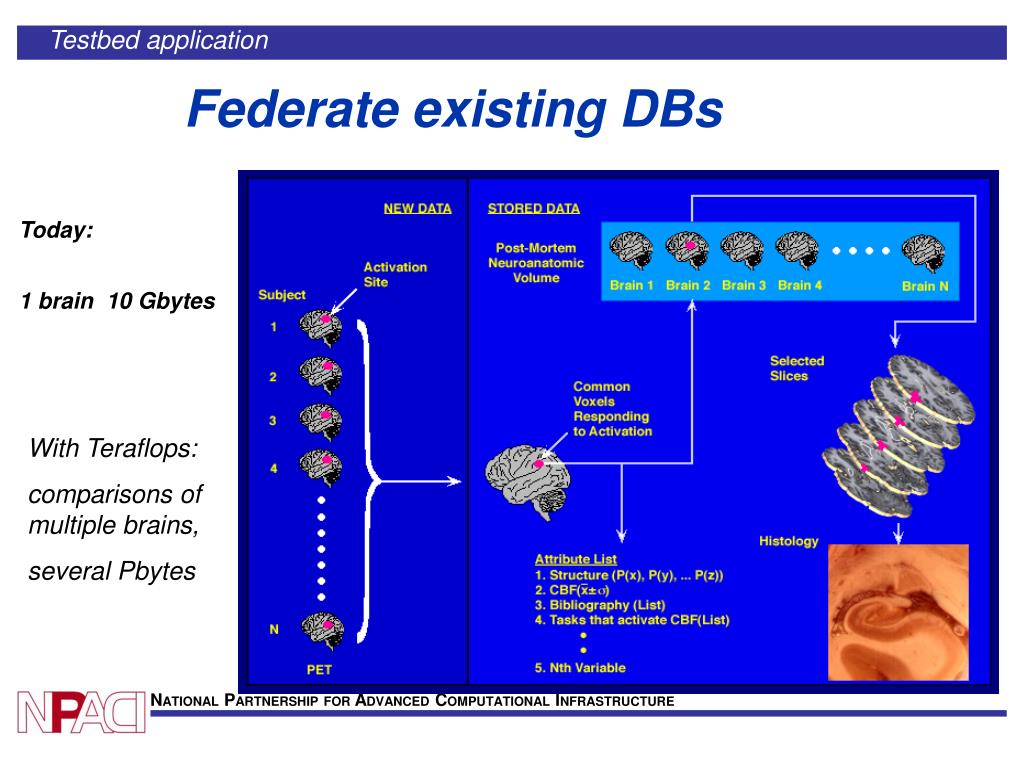

  22. Testbed application Federate existing DBs Today: 1 brain 10 Gbytes With Teraflops: comparisons of multiple brains, several Pbytes

  23. Successful and important applications • Brain mapping -- Understanding the nature of the human brain -- Toga, Ellisman, et al. • Ocean modeling -- Simulating and predicting the long range nature of global climate change -- Wunsch, et al.

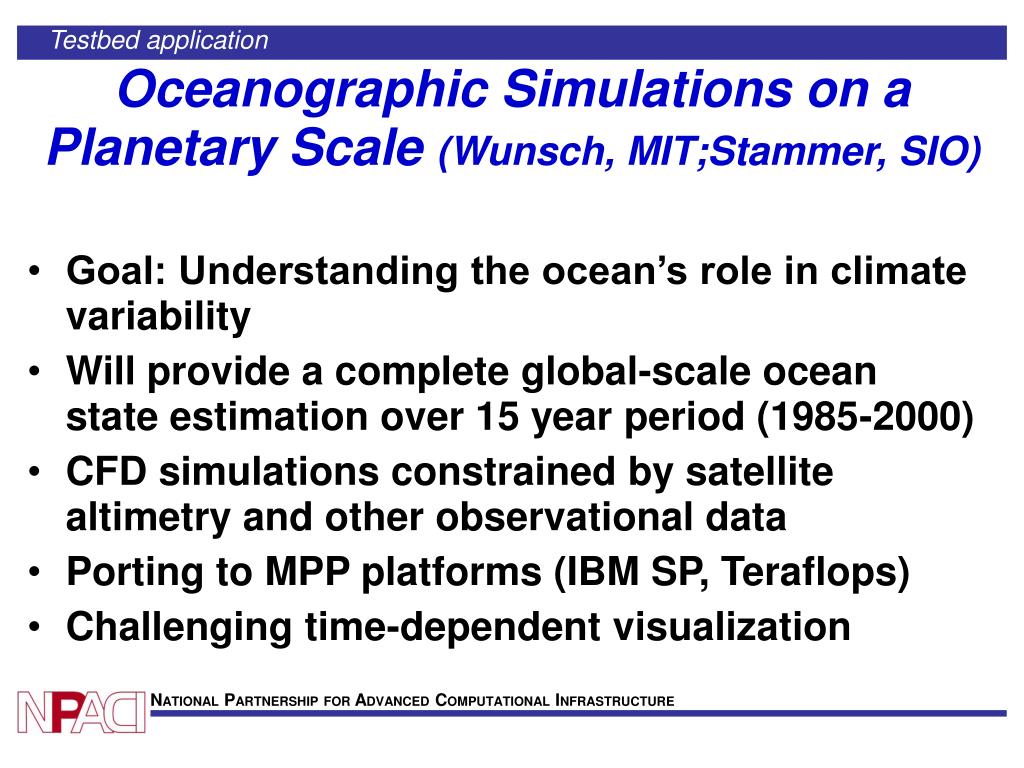

  24. Testbed application Oceanographic Simulations on a Planetary Scale (Wunsch, MIT;Stammer, SIO) • Goal: Understanding the ocean’s role in climate variability • Will provide a complete global-scale ocean state estimation over 15 year period (1985-2000) • CFD simulations constrained by satellite altimetry and other observational data • Porting to MPP platforms (IBM SP, Teraflops) • Challenging time-dependent visualization

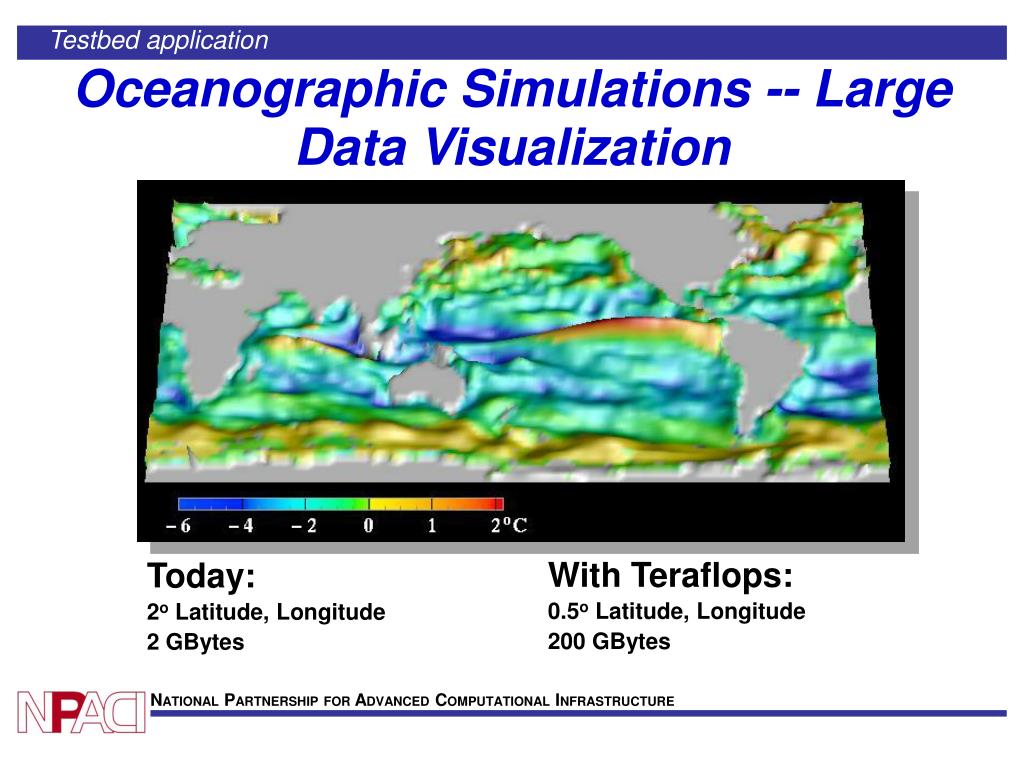

  25. Testbed application Oceanographic Simulations -- Large Data Visualization With Teraflops: 0.5o Latitude, Longitude 200 GBytes Today: 2o Latitude, Longitude 2 GBytes

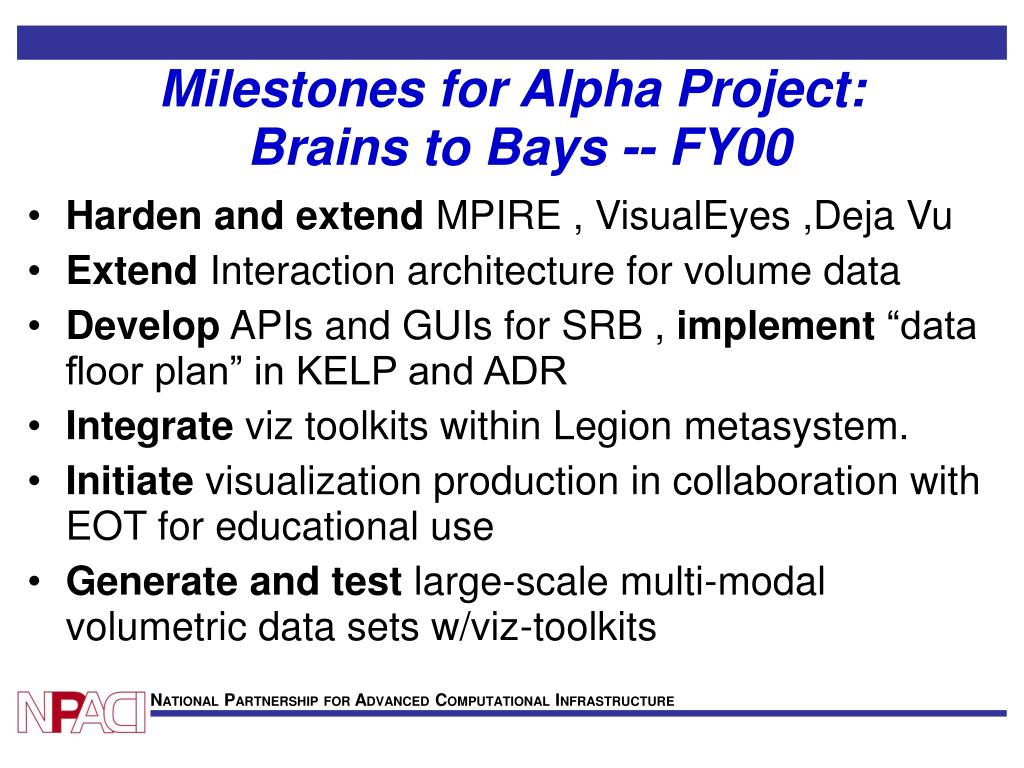

  26. Milestones for Alpha Project: Brains to Bays -- FY00 • Harden and extend MPIRE , VisualEyes ,Deja Vu • Extend Interaction architecture for volume data • Develop APIs and GUIs for SRB , implement “data floor plan” in KELP and ADR • Integrate viz toolkits within Legion metasystem. • Initiate visualization production in collaboration with EOT for educational use • Generateandtest large-scale multi-modal volumetric data sets w/viz-toolkits

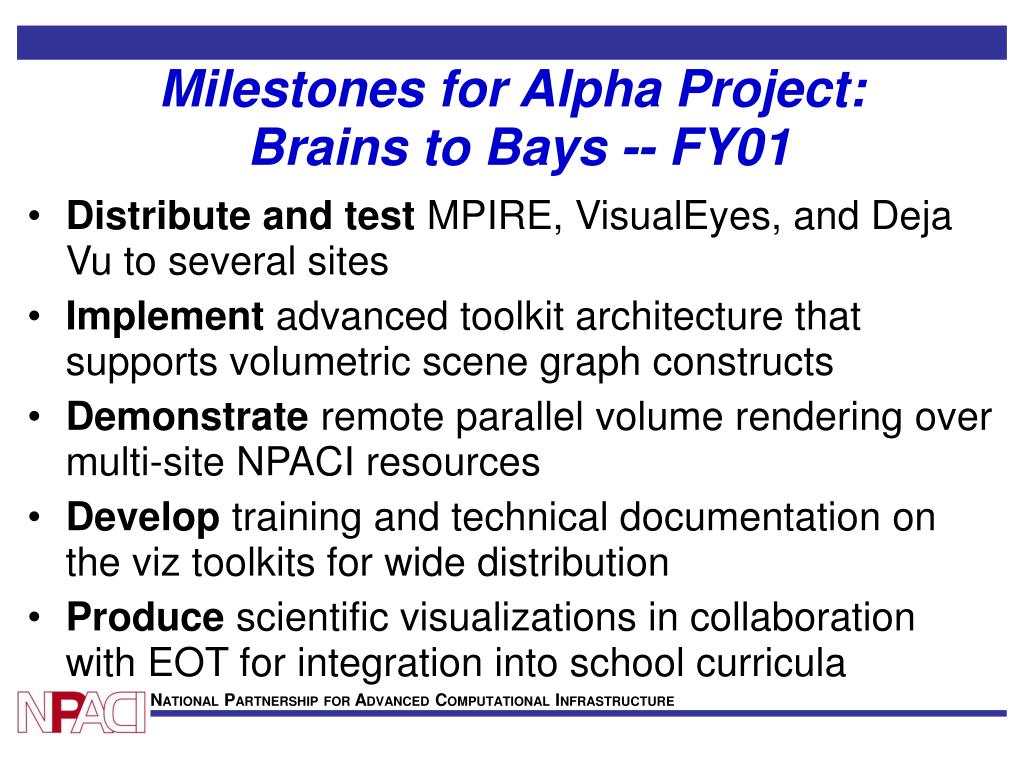

  27. Milestones for Alpha Project: Brains to Bays -- FY01 • Distribute and test MPIRE, VisualEyes, and Deja Vu to several sites • Implement advanced toolkit architecture that supports volumetric scene graph constructs • Demonstrate remote parallel volume rendering over multi-site NPACI resources • Develop training and technical documentation on the viz toolkits for wide distribution • Produce scientific visualizations in collaboration with EOT for integration into school curricula

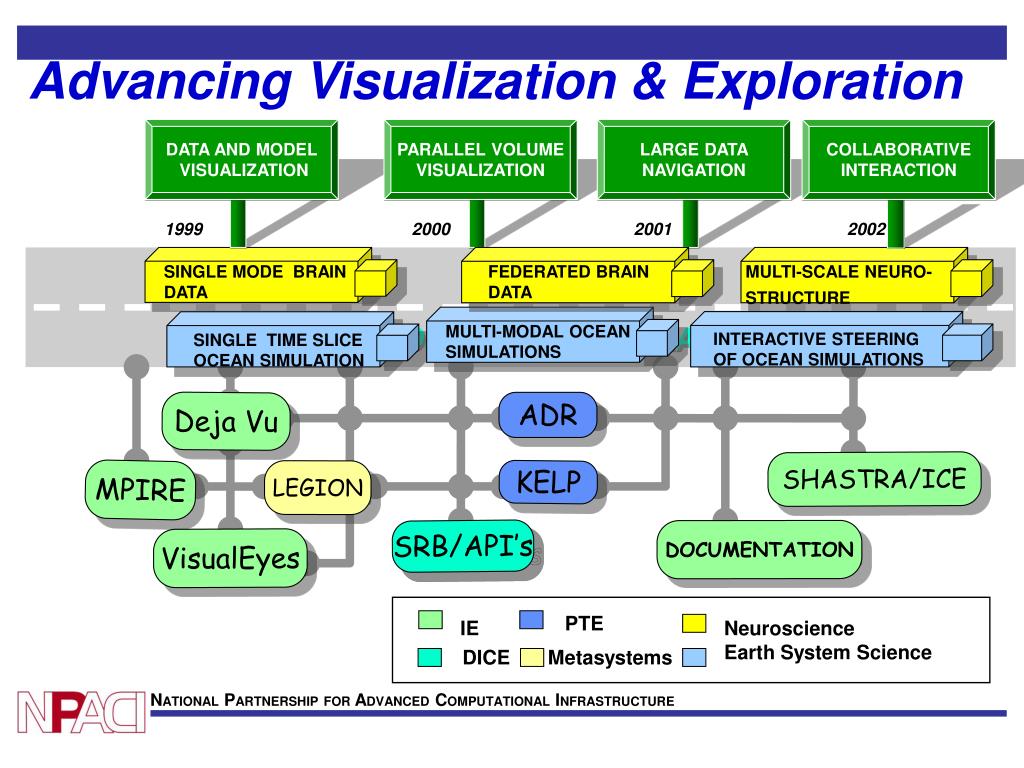

  28. DATA AND MODEL VISUALIZATION PARALLEL VOLUME VISUALIZATION LARGE DATA NAVIGATION COLLABORATIVE INTERACTION FEDERATED BRAIN DATA MULTI-SCALE NEURO-STRUCTURE SINGLE MODE BRAIN DATA MULTI-MODAL OCEAN SIMULATIONS INTERACTIVE STEERING OF OCEAN SIMULATIONS EDUCATION/ OUTREACH/ TRAINING SINGLE TIME SLICE OCEAN SIMULATION Advancing Visualization & Exploration 1999 2000 2001 2002 ADR Deja Vu SHASTRA/ICE MPIRE LEGION KELP SRB/API’s DOCUMENTATION VisualEyes PTE IE Neuroscience Earth System Science DICE Metasystems
