Sip vs h323 over wireless networks

SIP vs H323 Over Wireless networks

Presented by

Srikar Reddy Yeruva


Chin Chin Chang

Voice over internet protocol

Voice Over Internet Protocol

VOIP protocols:


SIP (session initiation protocol)

MEGACO (circuit switched to packet switched)

MGCP(media gateway control protocol)

TWO Famous Protocols:



H 323

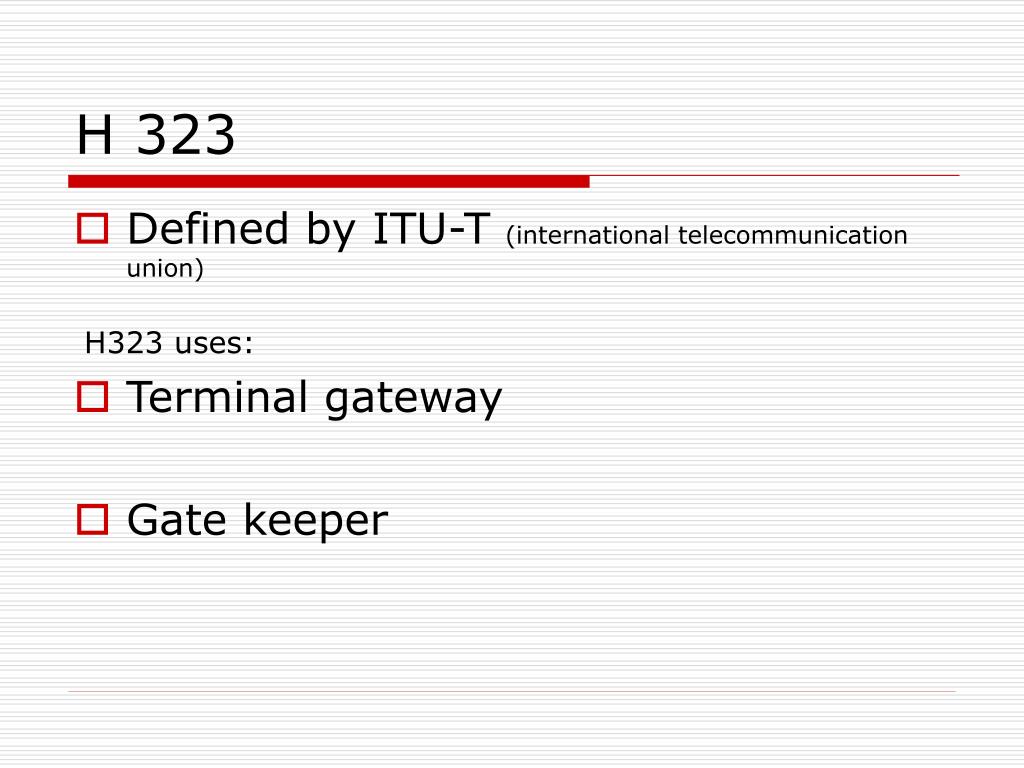

H 323

  • Defined by ITU-T (international telecommunication union)

    H323 uses:

  • Terminal gateway

  • Gate keeper

Sip vs h323 over wireless networks

H 323 basic architecture

There are different features

There are different features:

Local features: II type features:III type features

Repeat a call with gate keeper Signaling

Call list call admission call transfer

local address book Authorization call completion

Speed dialing call detail recording call forwarding

Mute …..etc number suppression call hold

H323 vs sip


  • H.323 is the more mature of the two, but problems may arise due to lack of flexibility.

  • SIP is currently being defined in a robust way and has greater scalability which could ease internet application integration.

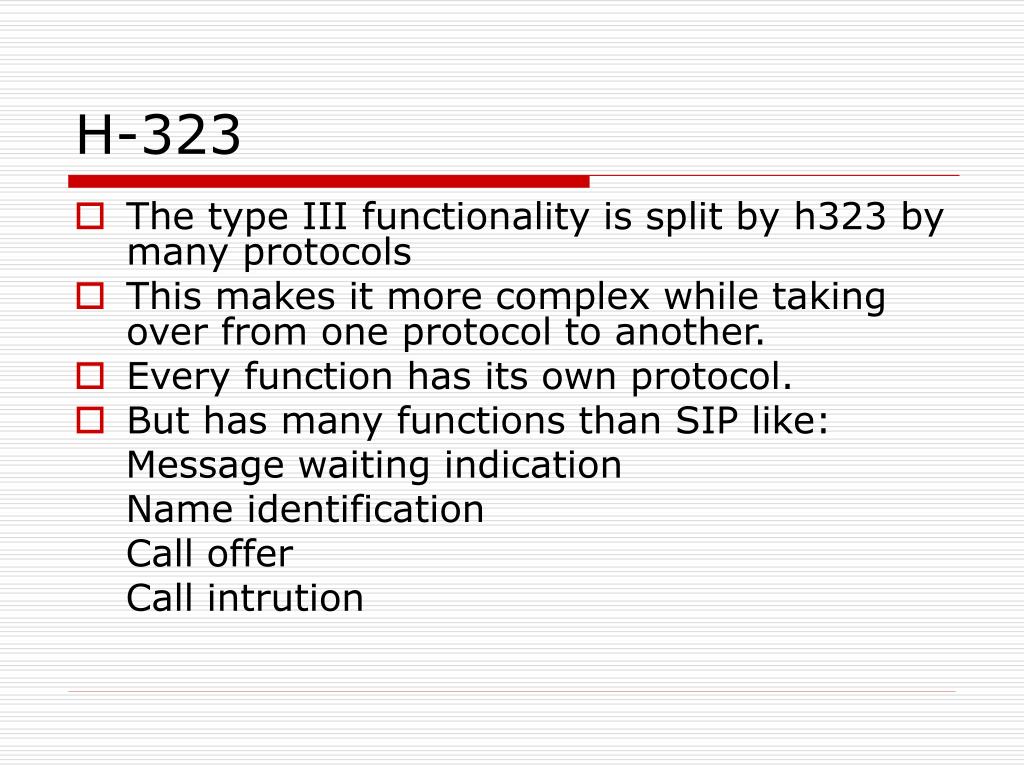

H 3231


  • The type III functionality is split by h323 by many protocols

  • This makes it more complex while taking over from one protocol to another.

  • Every function has its own protocol.

  • But has many functions than SIP like:

    Message waiting indication

    Name identification

    Call offer

    Call intrution

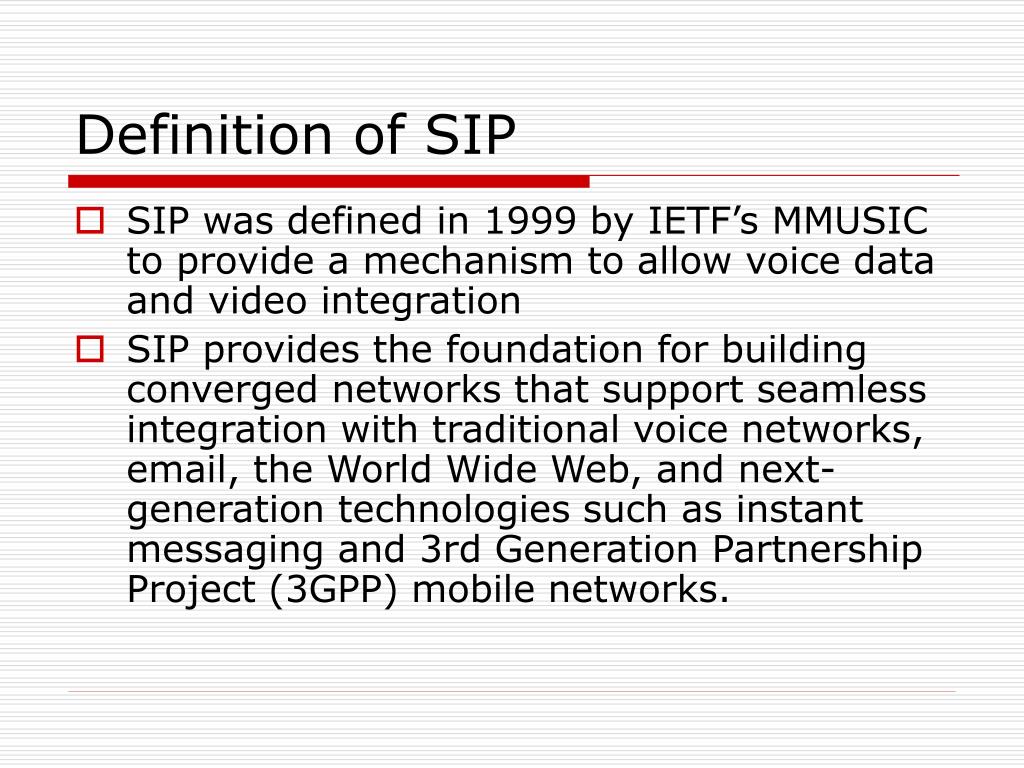

Definition of sip

Definition of SIP

  • SIP was defined in 1999 by IETF’s MMUSIC to provide a mechanism to allow voice data and video integration

  • SIP provides the foundation for building converged networks that support seamless integration with traditional voice networks, email, the World Wide Web, and next-generation technologies such as instant messaging and 3rd Generation Partnership Project (3GPP) mobile networks.

Sip components

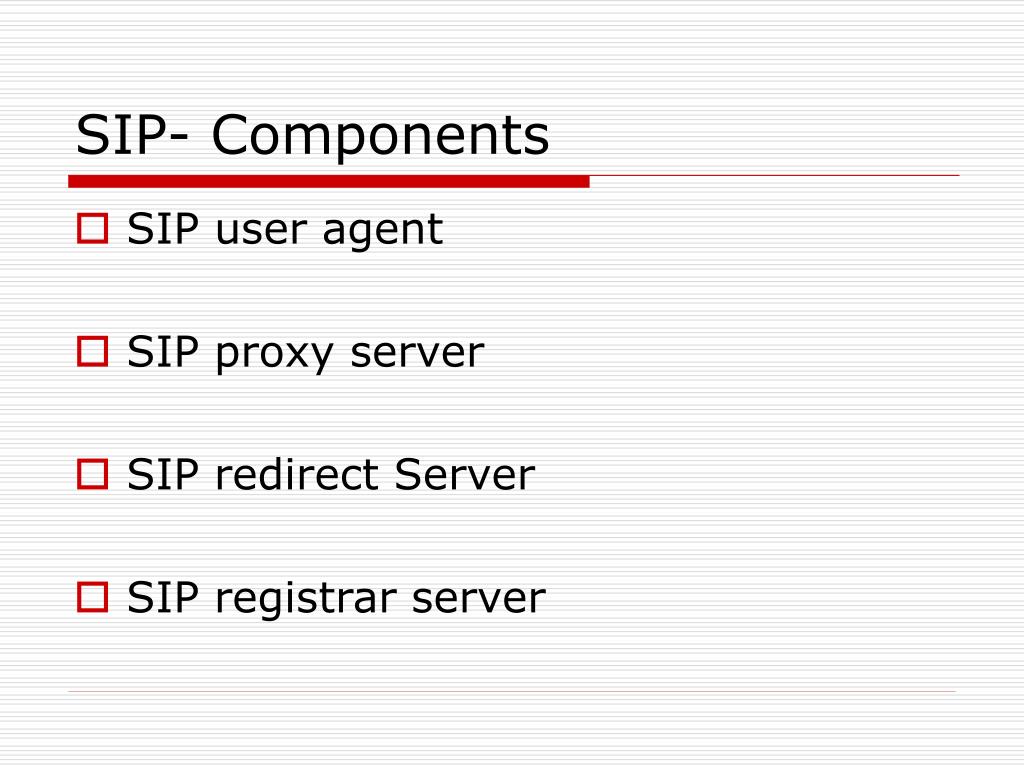

SIP- Components

  • SIP user agent

  • SIP proxy server

  • SIP redirect Server

  • SIP registrar server

Sip vs h323 over wireless networks

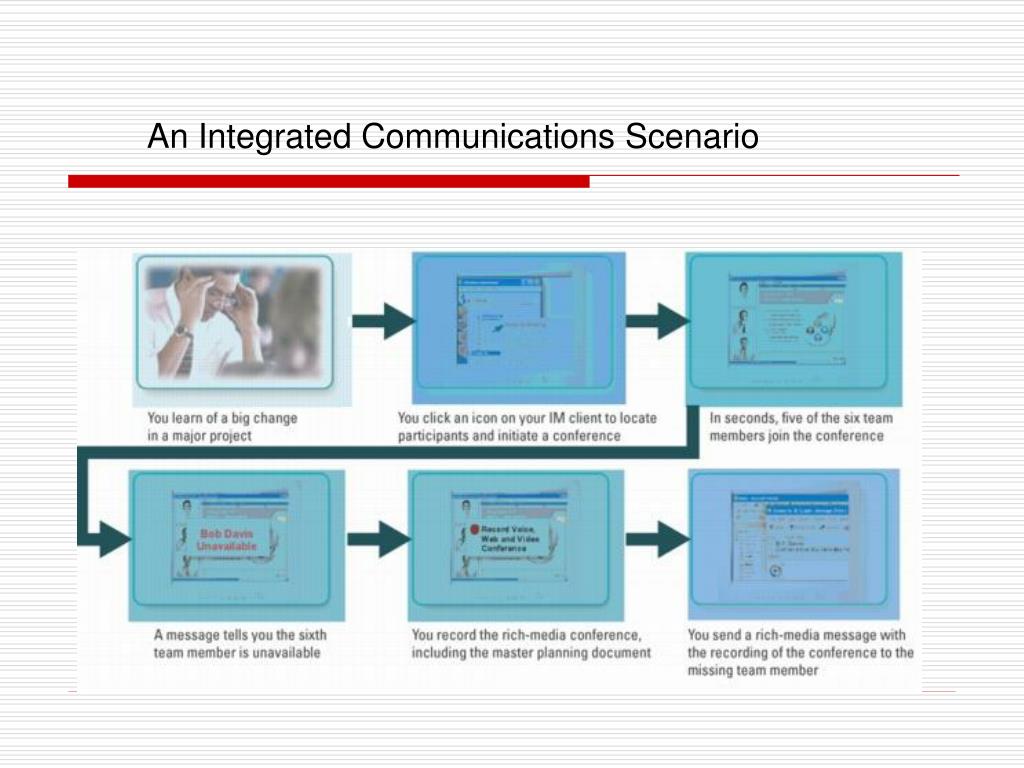

An Integrated Communications Scenario

Sip session initiation protocol

SIP (session initiation protocol)

Build a network

Build a network

Sip vs h323 over wireless networks

  • Sip global distance call includes many technologies

  • includes H.323, sip,ss7 etc….

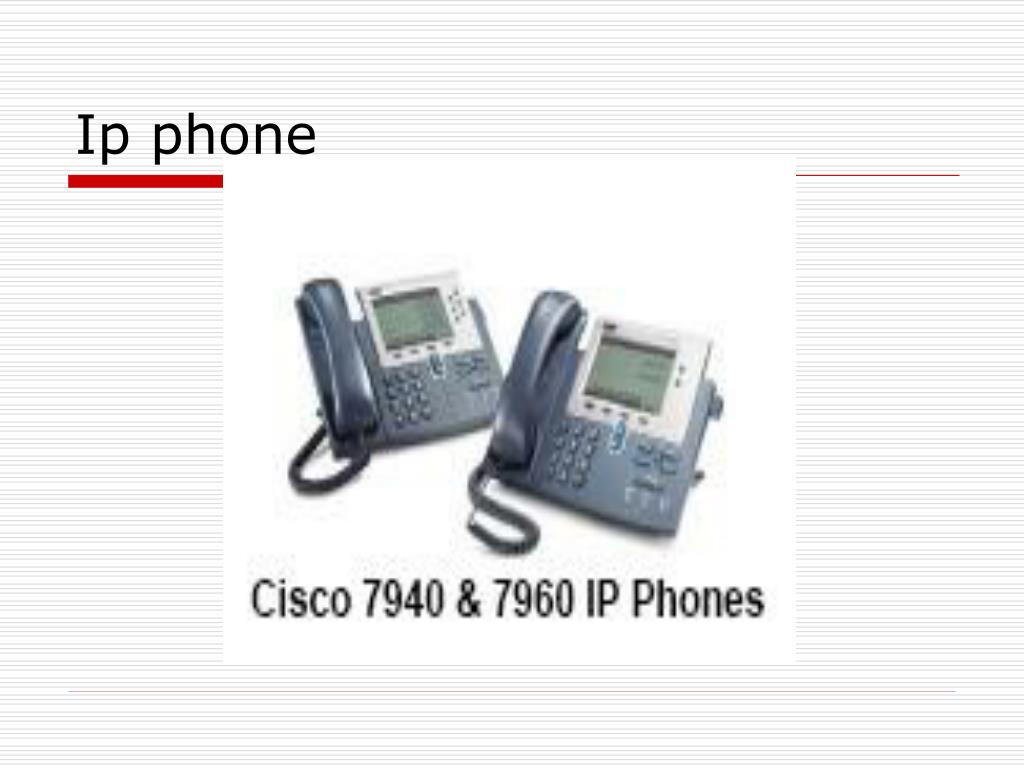

Ip phone

Ip phone

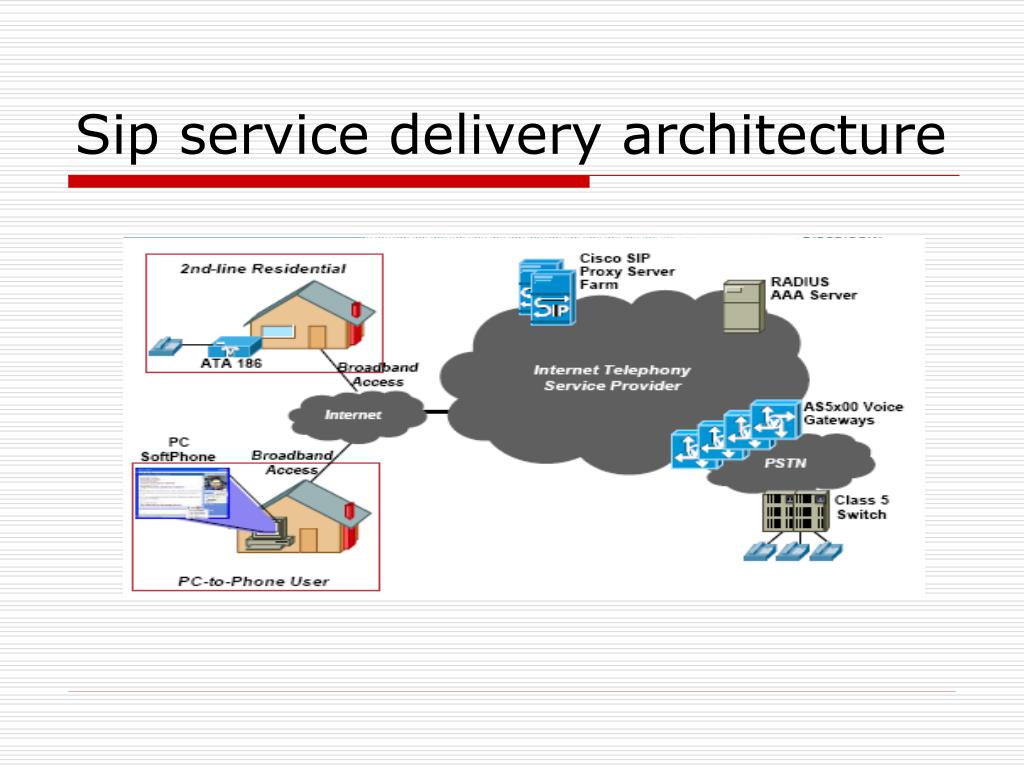

Sip service delivery architecture

Sip service delivery architecture

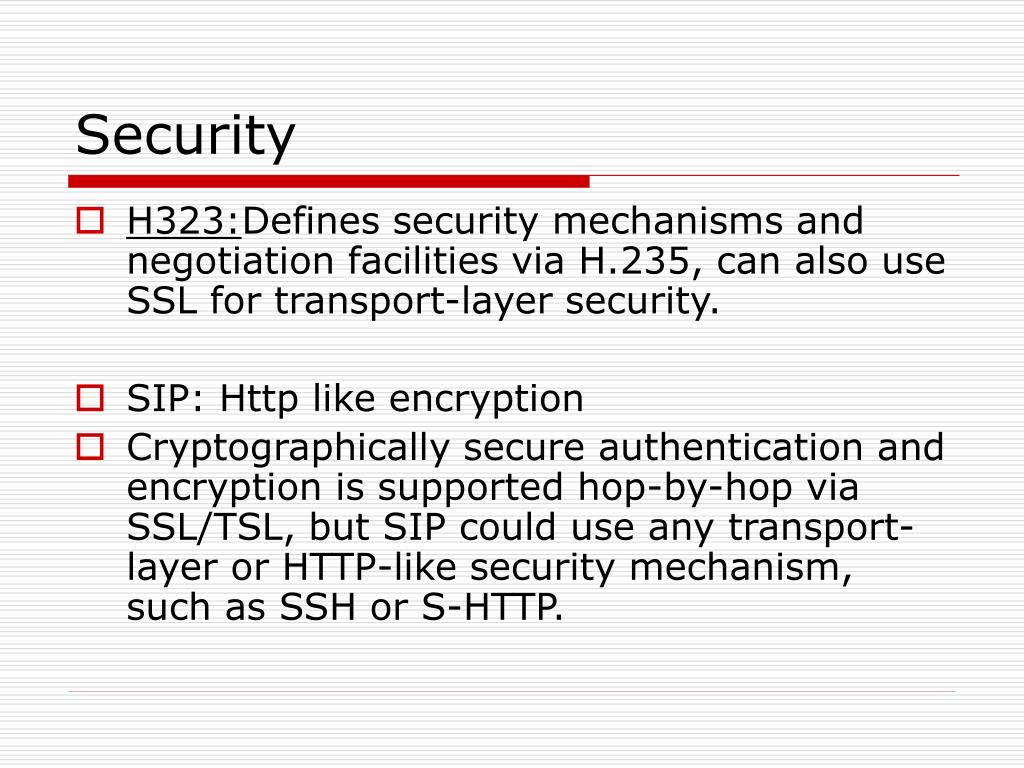

  • H323:Defines security mechanisms and negotiation facilities via H.235, can also use SSL for transport-layer security.

  • SIP: Http like encryption

  • Cryptographically secure authentication and encryption is supported hop-by-hop via SSL/TSL, but SIP could use any transport-layer or HTTP-like security mechanism, such as SSH or S-HTTP.

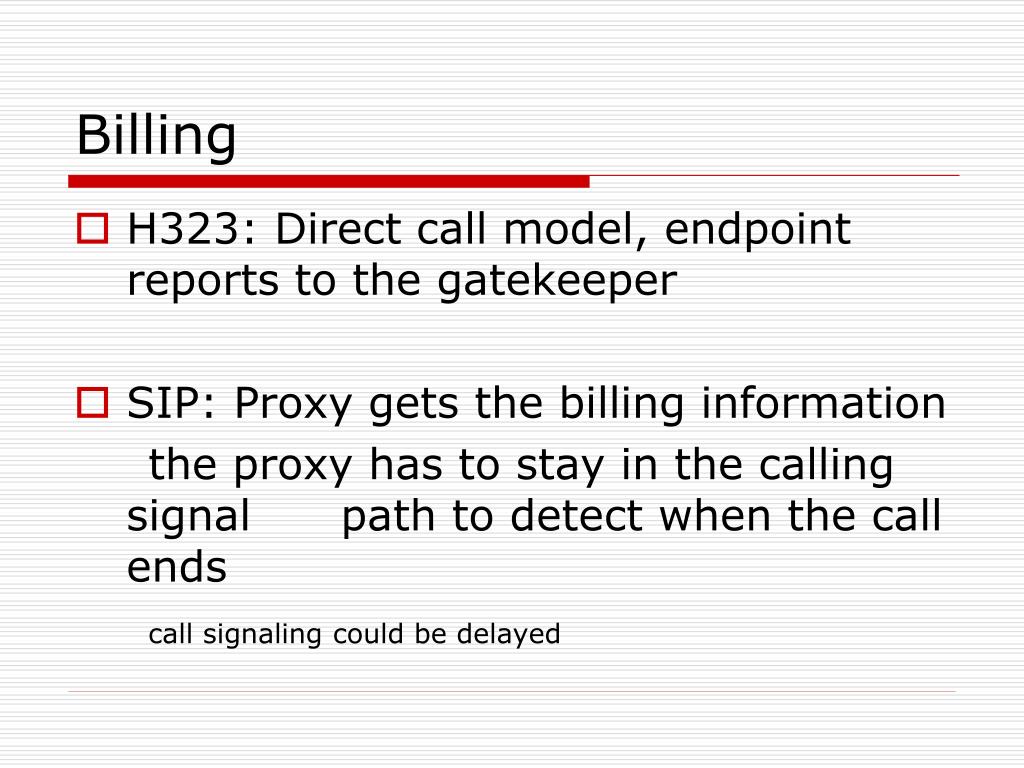

  • H323: Direct call model, endpoint reports to the gatekeeper

  • SIP: Proxy gets the billing information

    the proxy has to stay in the calling signal path to detect when the call ends

    call signaling could be delayed



  • H323:

    Flexible addressing mechanisms, including URLs and E.164 numbers.

  • SIP:

    SIP only understands URL-style addresses

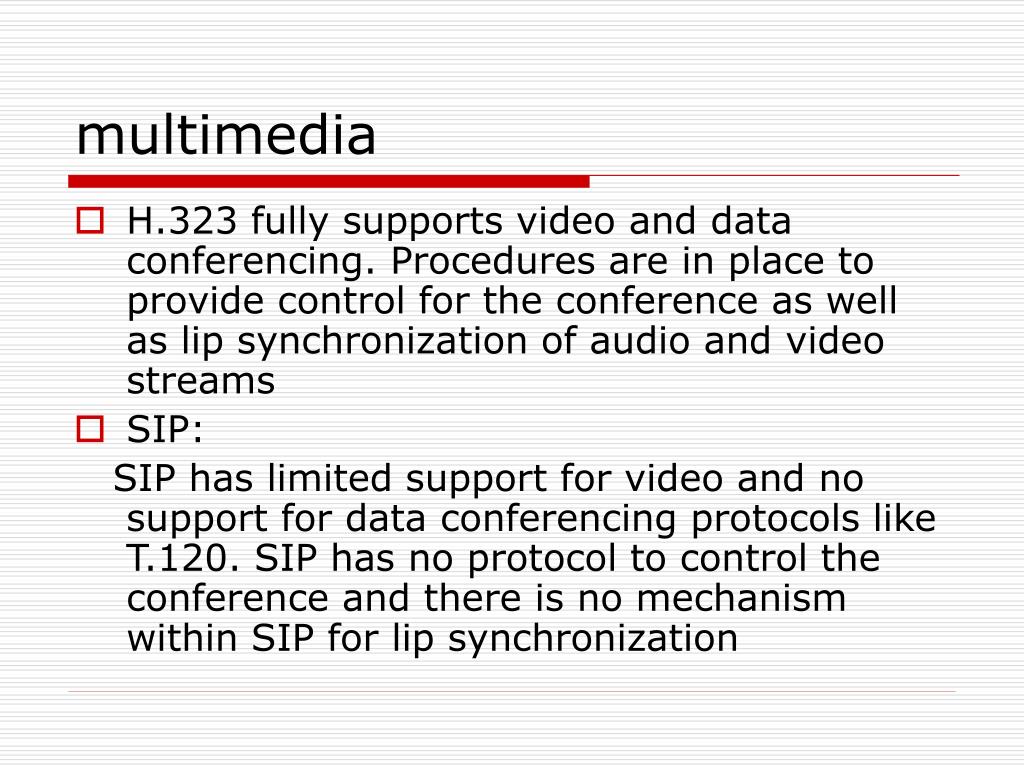

  • H.323 fully supports video and data conferencing. Procedures are in place to provide control for the conference as well as lip synchronization of audio and video streams

  • SIP:

    SIP has limited support for video and no support for data conferencing protocols like T.120. SIP has no protocol to control the conference and there is no mechanism within SIP for lip synchronization



  • Microtronix systems ltd

  • Tmcnet


  • Cisco corporations



  • ??????
