Gene interaction networks for functional analysis and prognostication

Gene interaction networks for functional analysis and prognostication

AndreyAlexeyenko


Gene interaction networks for functional analysis and prognostication

“Data is not information,

information is not knowledge,

knowledge is not wisdom,

wisdom is not truth,”

—Robert Royar (1994)


Gene interaction networks for functional analysis and prognostication

Biological data production

http://www.hdpaperz.com

…and analysis


Gene interaction networks for functional analysis and prognostication

Amouse

?

Human

High-throughput evidence

Rat

Find orthologs*

Bmouse

Fly

Yeast

FunCoup is a data integration framework to discover functional coupling in eukaryotic proteomes with data from model organisms

Andrey Alexeyenkoand Erik L.L. Sonnhammer (2009) Global networks of functional coupling in eukaryotes from comprehensive data integration.Genome Research.


Funcoup

FunCoup

  • Each piece of data isevaluated

  • Data FROM many eukaryotes (7)

  • Practical maximum of data sources (>50)

  • Predicted networks FOR a number of eukaryotes (10…)

  • Organism-specific efficient and robust Bayesian frameworks

  • Orthology-based information transfer and phylogenetic profiling

  • Networks predicted for different types of functional coupling (metabolic, signaling etc.)

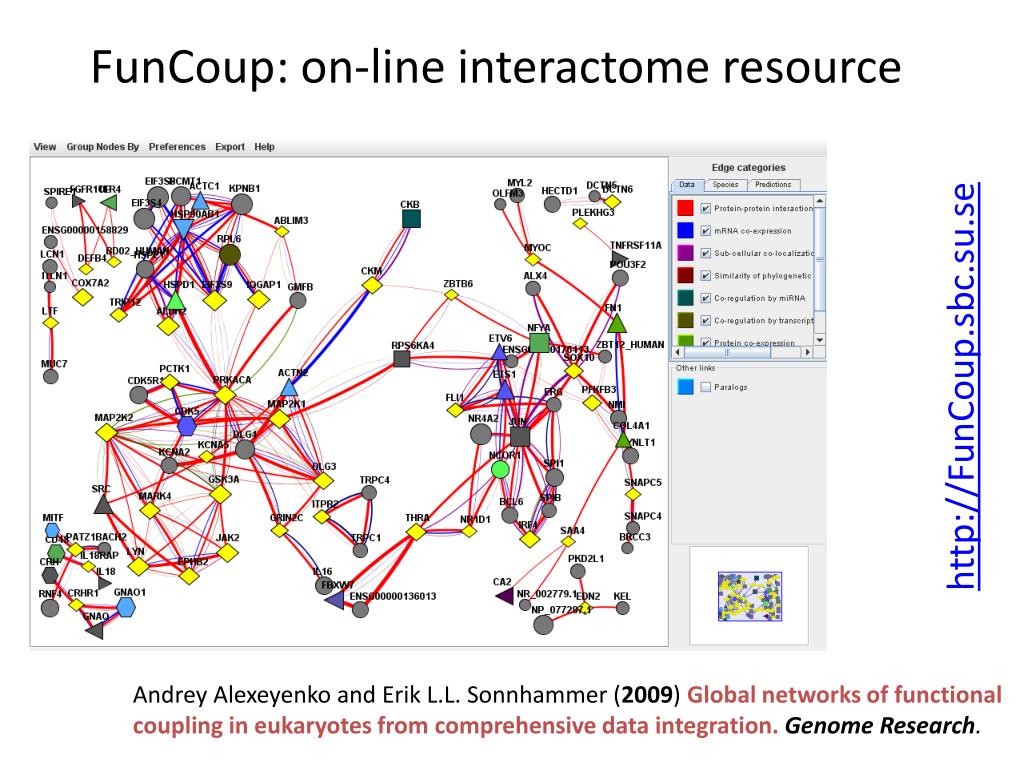

Funcoup on line interactome resource

FunCoup: on-line interactome resource

http://FunCoup.sbc.su.se

Andrey Alexeyenkoand Erik L.L. Sonnhammer (2009) Global networks of functional coupling in eukaryotes from comprehensive data integration.Genome Research.


Do gene networks tell any story

State-of-the-art method to beat:

Frequency analysis of somatic mutations

Do gene networks tell any story?

  • Yellow diamonds: somatic mutations in prostate cancer

  • Pink crosses: also mutated in glioblastome (TCGA)


Network enrichment analysis

Network enrichment analysis:

Question: How to find something in common between many altered genes?

Altered genes (green) from one individual lung cancer are enriched in network connections to members of ErbB (HER2) pathway (yellow) and GO term “apoptosis” (blue).


Gene interaction networks for functional analysis and prognostication

Apophenia: the human propensity to see meaningful patterns in random data

(Brugger 2001; Fyfe et al. 2008)


Gene interaction networks for functional analysis and prognostication

Confidence of biological observations:

Looks “interesting”…

Statistically significant (individually)

Statistically significant

(adjusted for multiple testing)

Functionally relevant: THE CORE


Gene interaction networks for functional analysis and prognostication

PLoS Med 2005 2(8):e124

  • Dimensionality curse: many variables and few observations, while causative events are rare.

  • Tradition not to publish negative results.

  • Acceptance of a common p-value threshold without adjustment for multiple testing (a hundred papers with single experiment in each is multiple testing!..).


Remarkable failures of biological research

Remarkable failures of biological research


Gene interaction networks for functional analysis and prognostication

Even a cohort of 250.000 individuals with 2.800.000 SNPs could only explain less than 4% of variability of the body mass index

(the total heritability had been estimated as 40-70%).

The authors extrapolate that 730.000 individuals would explain around 5% of the observed variance).

From Speliotes et al. 2010:

Genome-wide association results for the body mass index, meta-analysis

(a) Manhattan plot showing the significance of association between all SNPs and BMI in the stage 1 meta-analysis, highlighting SNPs previously reported to show genome-wide significant association with BMI (blue), weight or waist circumference (green), and the 18 new regions described here (red). The 19 SNPs that reached genome-wide significance at Stage 1 (13 previously reported and 6 new) are listed in Table 1). (b) Quantile-quantile (Q-Q) plot of SNPs in stage 1 meta-analysis (black) and after removing any SNPs within 1 Mb of the 10 previously reported genome-wide significant hits for BMI (blue), after additionally excluding SNPs from the four loci for waist/weight (green) and after excluding SNPs from all 32 confirmed loci (red). The plot was abridged at the Y-axis (at P < 10−20) to better visualise the excess of small P-values after excluding the 32 confirmed loci (Supplementary Fig. 3 shows full-scale Q-Q plot). The shaded region is the 95% concentration band. (c) Plot of effect size (in inverse normally transformed units (invBMI)) versus effect allele frequency of newly identified and previously identified BMI variants after stage 1 + stage 2 analysis; including the 10 previously identified BMI loci (blue), the four previously identified waist and weight loci (green) and the 18 newly identified BMI loci (blue). The dotted lines represent the minimum effect sizes that could be identified for a given effect-allele frequency with 80% (upper line), 50% (middle line), and 10% (lower line) power, assuming a sample size of 123,000 individuals and a α-level of 5×10−8.


Gene interaction networks for functional analysis and prognostication

Yuri Lazebnik, 2002

…………………………………………………………………………………………………………………………

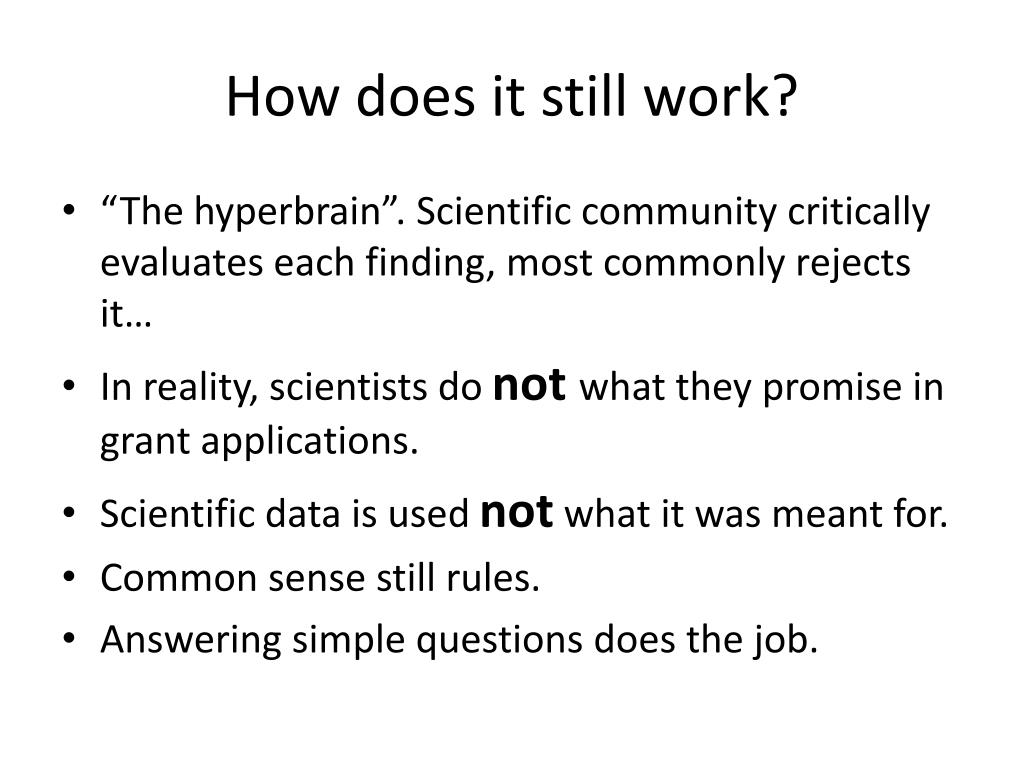

How does it still work

How does it still work?

  • “The hyperbrain”. Scientific community critically evaluates each finding, most commonly rejects it…

  • In reality, scientists do notwhat they promise in grant applications.

  • Scientific data is used not what it was meant for.

  • Common sense still rules.

  • Answering simple questions does the job.


Network enrichment analysis1

Network enrichment analysis:

Question: How to find something in common between many altered genes?

Altered genes (green) from one individual lung cancer are enriched in network connections to members of ErbB (HER2) pathway (yellow) and GO term “apoptosis” (blue).

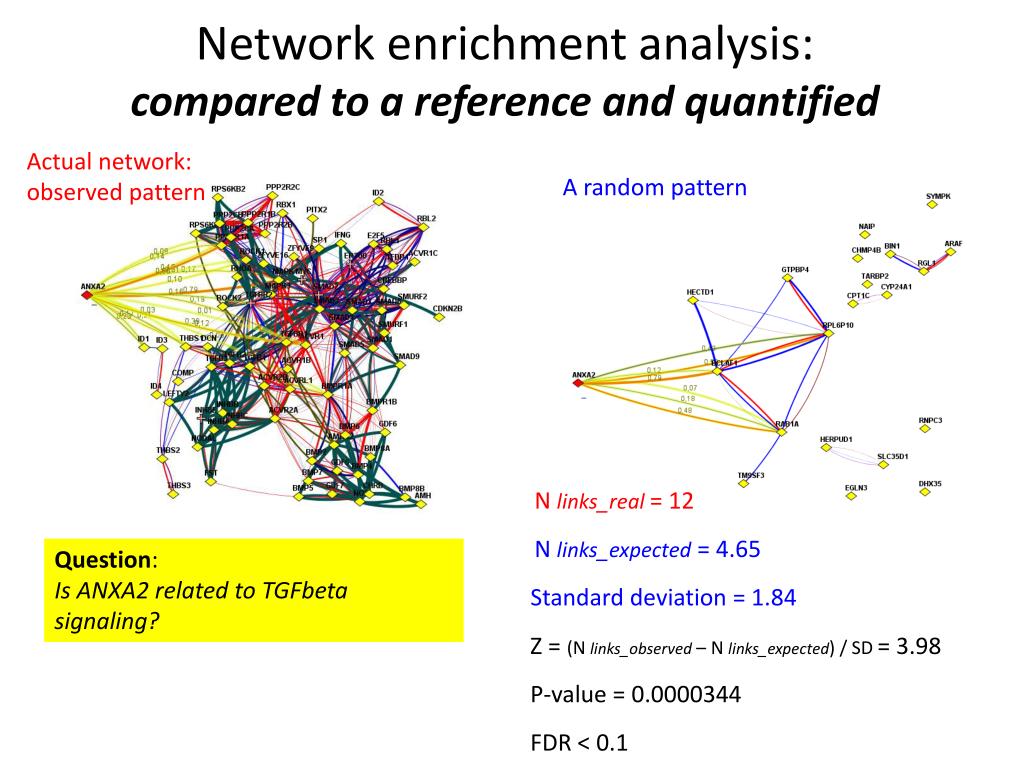

Network enrichment analysis compared to a reference and quantified

Network enrichment analysis: compared to a reference and quantified

Actual network:

observed pattern

A random pattern

N links_real= 12

N links_expected = 4.65

Question:

Is ANXA2 related to TGFbeta signaling?

Standard deviation = 1.84

Z = (N links_observed – N links_expected) / SD = 3.98

P-value = 0.0000344

FDR < 0.1


Gene interaction networks for functional analysis and prognostication

How informative is a global gene network?

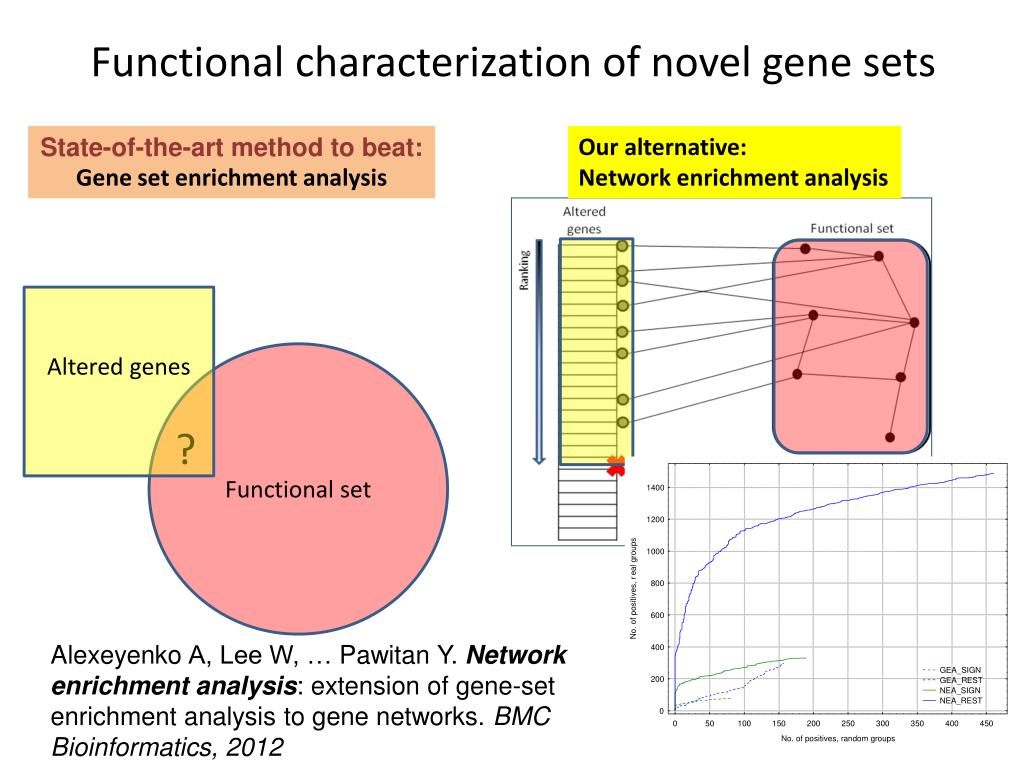

Functional characterization of novel gene sets

Functional characterization of novel gene sets

State-of-the-art method to beat:

Gene set enrichment analysis

Our alternative:

Network enrichment analysis

Altered genes

Functional set

?

Alexeyenko A, Lee W, … PawitanY. Network enrichment analysis: extension of gene-set enrichment analysis to gene networks. BMC Bioinformatics, 2012


Gene interaction networks for functional analysis and prognostication

Pathway analysis: why needed, what it is?

Primary molecular

processes

Response, recorded

with high-throughput

paltforms

Known biological units:

processes, pathways

Protein abundance

N.

Phosphorylation

N.

Methylation

N.

mRNA expression

N.

ChipSeq

N.

Mutation profile

N.

Metabolites

N.

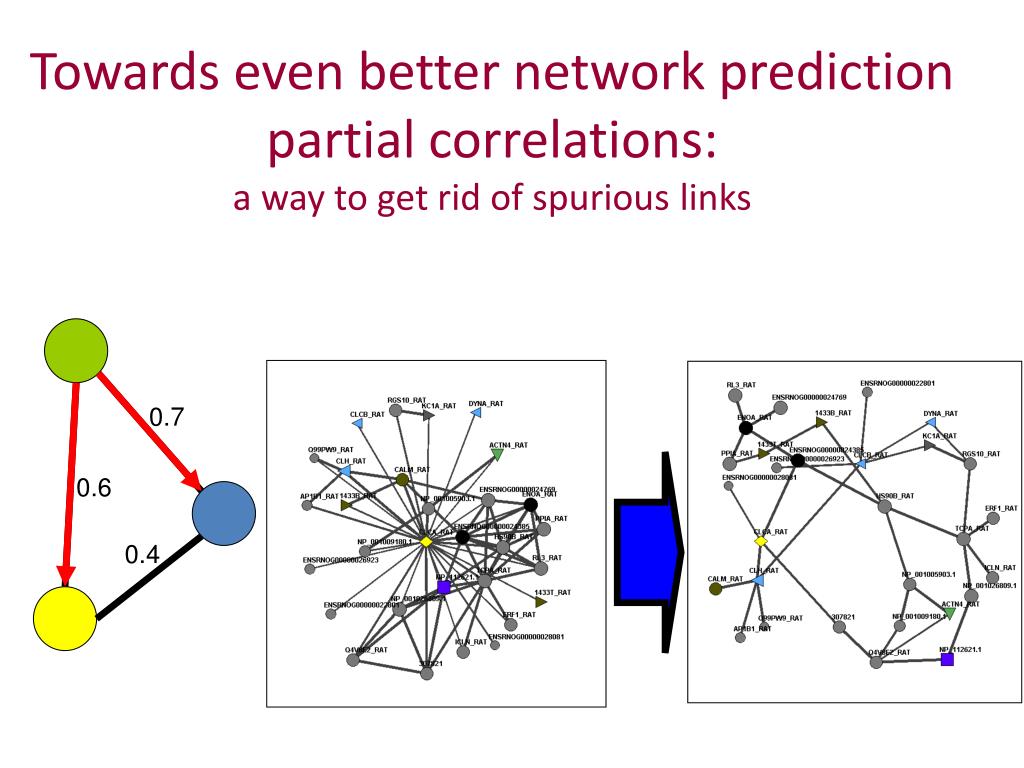

Towards even better network prediction partial correlations a way to get rid of spurious links

Towards even better network predictionpartial correlations:a way to get rid of spurious links

0.7

0.6

0.4


Cancer specific networks links inferred from expression methylation mutations

Cancer-specific networks:links inferred from expression, methylation, mutations

Functional coupling

transcription  transcription

transcription  methylation

methylation  methylation

mutation  methylation

mutation  transcription

mutation  mutation

+ mutated gene

State-of-the-art method to beat:

Reverse engeneeringfroma single source (usually transcriptome)


Now answer biological questions

Now: answer biological questions


Molecular phenotypes in network space lung cancer data from chemores consortium

Molecular phenotypes in network space(lung cancer, data from ChemoRes consortium)

P53 signaling

Apoptosis

Question: How to distinguish between different molecular subtypes of cancer?

Cell cycle

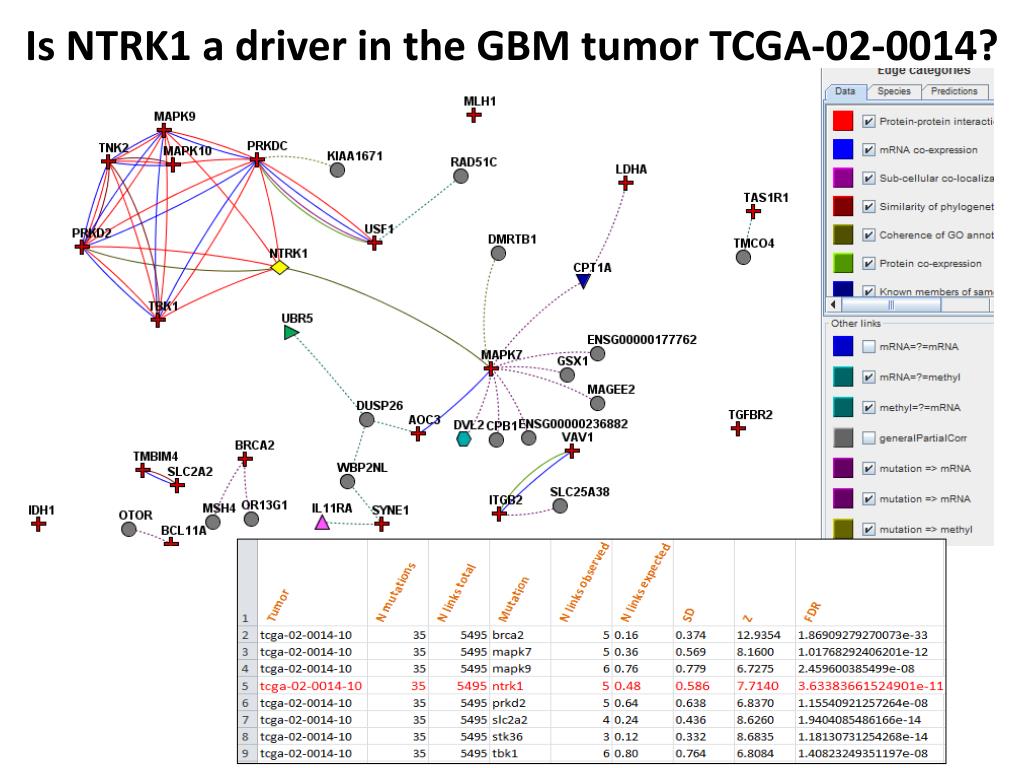

Is ntrk1 a driver in the gbm tumor tcga 02 0014

Is NTRK1 a driver in the GBM tumor TCGA-02-0014?


Somatic mutations drivers vs passengers data from the cancer genome atlas

Somatic mutations: drivers vs. passengersdata from The Cancer Genome Atlas


Driver copy number changes

Driver copy number changes

Confidence

Copy number

Gains and losses on chromosome 7, in 142 glioblastomamultiforme genomes, TCGA


Validation of candidate disease genes work with jonathan prince meb ki

Validation of candidate disease genes(work with Jonathan Prince, MEB, KI)

Genetic association of sequence variants near AGER/NOTCH4 and dementia.

Bennet AM, Reynolds CA, Eriksson UK, Hong MG, Blennow K, Gatz M, Alexeyenko A, Pedersen NL, Prince JA.

J Alzheimers Dis. 2011;24(3):475-84.

Genome-wide pathway analysis implicates intracellular transmembrane protein transport in Alzheimer disease.

Hong MG, Alexeyenko A, Lambert JC, Amouyel P, Prince JA.

J Hum Genet. 2010 Oct;55(10):707-9. Epub 2010 Jul 29.

Analysis of lipid pathway genes indicates association of sequence variation near SREBF1/TOM1L2/ATPAF2 with dementia risk.

Reynolds CA, Hong MG, Eriksson UK, Blennow K, Wiklund F, Johansson B, Malmberg B, Berg S, Alexeyenko A, Grönberg H, Gatz M, Pedersen NL, Prince JA.

Hum Mol Genet. 2010 May 15;19(10):2068-78. Epub 2010 Feb 18.

Question: Is there extra evidence for GWAS-candidates to be involved?

Answer: Yes, for some…


R esistance to vinorelbine in lung cancer

Resistance to vinorelbine in lung cancer

Question: What predicts tumor resistance to chemotherapy?

Answer: Depletion of differential transcriptome towards few specific genes


Resistance to vinorelbine in lung cancer

Resistance to vinorelbine in lung cancer

Functionally coherent genes associated with vinorelbine resistance.

A. Network representation of the group. Magenta: genes associated with resistance in NEA and likely producing a protein complex (ranked 1, 3, 5, 6, 11, and 18) plus one more gene CLPTM1L (beyond the ranking but also significantly associated, was previously reported as related to cisplatin resistance); yellow: non-commonly expressed genes linked with the NEA genes and less represented in the susceptible tumors, hence most contributing to the association (see Results for more explanation).

B. Box-plots of NEA scores for the genes colored magenta in A.


Resistance to vinorelbine in lung cancer pathways

Resistance to vinorelbine in lung cancer: pathways


Procedure for gene x phenotype signatures

Clinical data, e.g.:

Estrogen receptor status: +/ –

Lymph. node status: 0,1,2,3

Relapse : yes/no and time (days)

×

Expression:

~20000 genes

Procedure for gene X phenotype signatures

RELAPSE = γ0P+ γ1g1+ γ2g2 + γ3g3 + … + γNgN


Overlap between gene signatures of relapse

Overlap between gene signatures of relapse

  • Usually the overlap between signatures is negligible. Because e.g.:

  • Different sub-types of patient population,

  • Different microarray platforms!

From Roepman et al., 2007

However the main reason is:

Dimensionality curse!

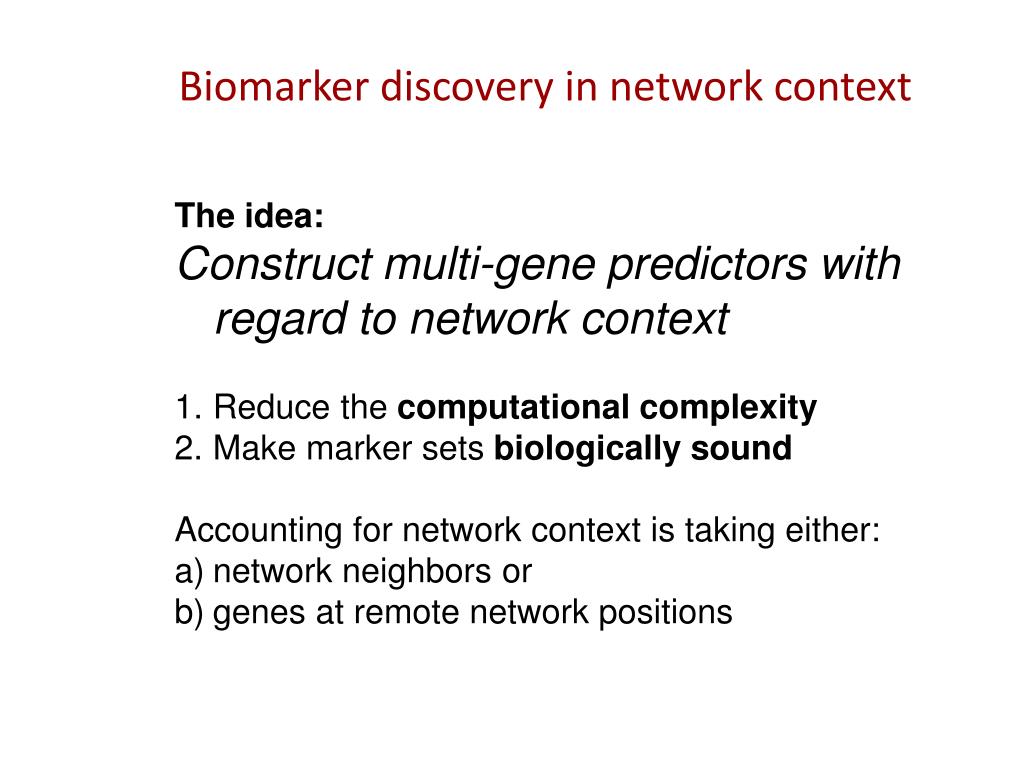

Biomarker discovery in network context

Biomarker discovery in network context

  • The idea:

  • Construct multi-gene predictors with regard to network context

  • Reduce the computational complexity

  • Make marker sets biologically sound

  • Accounting for network context is taking either:

  • network neighbors or

  • genes at remote network positions

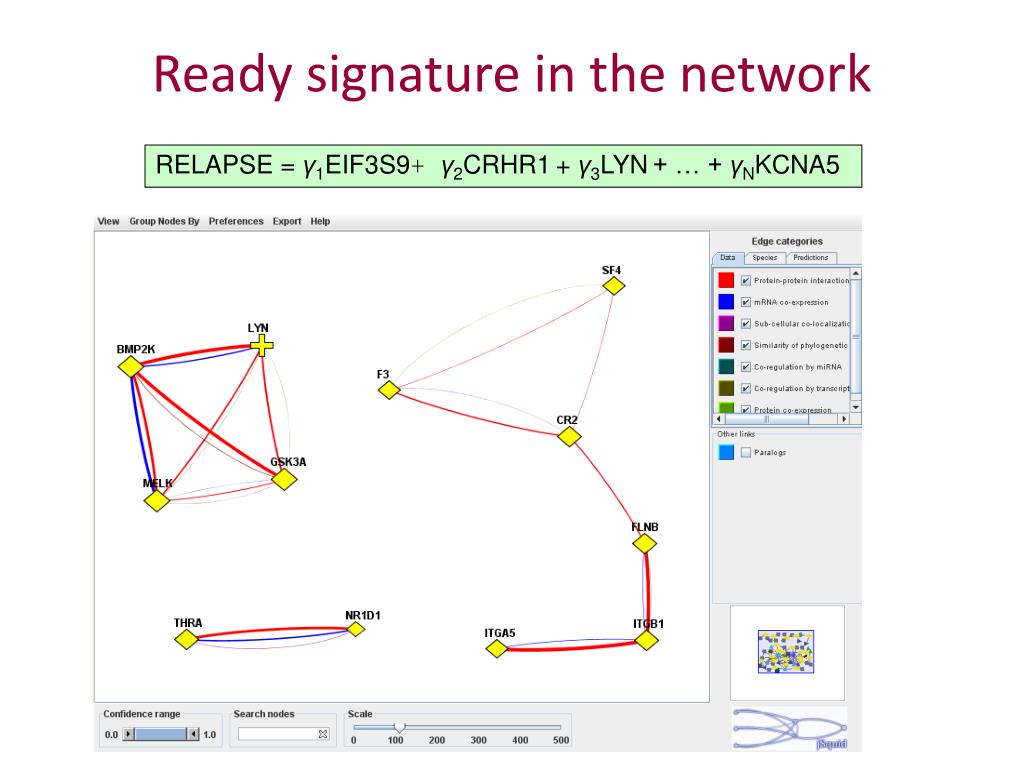

Ready signature in the network

Ready signature in the network

RELAPSE = γ1EIF3S9+ γ2CRHR1+ γ3LYN+ … + γNKCNA5


Chemotoxicity in lung cancer treatment work with j hasmats h green j lundeberg

Chemotoxicity in lung cancer treatment(work with J. Hasmats, H. Green, J. Lundeberg)

High toxicity

Low toxicity

1240 1254 1424 1536 287 664 801 812 1066 1197 1214 172 237 264 400 732 Z-score

FAM13A 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 -2.61

HEPACAM 0 0 0 1 0 0 1 0 1 1 1 1 1 1 1 1 -2.32

OR8J1 0 1 0 0 0 0 1 0 1 1 1 1 1 1 1 1 -2.32

ARGFX 0 1 0 0 0 0 1 0 0 1 1 1 1 1 1 1 -2.26

DZIP1 1 0 0 0 0 0 0 0 1 1 0 1 1 1 0 1 -2.26

GABRR2 0 0 0 0 1 1 0 0 1 1 1 0 1 1 1 1 -2.26

LIPC 0 0 0 0 0 0 0 1 1 1 1 0 1 1 1 0 -2.26

MADD 0 0 0 0 1 0 0 0 1 0 1 1 1 1 0 1 -2.26

MMP27 0 1 1 0 0 0 0 0 1 0 1 1 1 1 1 1 -2.26

MMP8 0 0 0 1 0 0 1 0 1 1 0 1 1 1 1 1 -2.26

PI3 0 0 1 0 0 0 1 0 1 1 1 1 1 1 1 0 -2.26

SCGB1D2 0 0 0 0 0 0 0 1 1 0 1 1 1 1 1 0 -2.26

SCLY 0 1 1 1 1 1 1 1 0 1 0 0 0 0 0 1 2.26

SCN11A 0 1 0 0 0 0 0 0 1 1 1 0 0 1 1 1 -2.26

VPS13B 0 0 0 1 0 0 0 0 1 1 1 1 1 0 0 1 -2.26

APOC4 0 0 1 0 1 0 1 0 1 1 1 1 1 1 1 1 -2.01

DNAH3 0 1 1 1 0 0 0 0 1 1 1 1 1 1 1 1 -2.01

NID1 0 0 0 0 0 0 0 0 0 1 1 1 1 0 1 0 -2.01

OR10P1 1 1 1 1 1 1 1 1 1 0 0 1 0 0 1 0 2.01

OR4D11 0 0 0 0 0 0 0 0 0 1 1 0 0 1 1 1 -2.01

PAPPA 1 0 0 1 1 0 0 0 1 1 1 1 1 1 1 1 -2.01

PGM3 0 0 0 0 0 0 0 0 1 0 0 1 1 1 0 1 -2.01

SLC22A4 0 1 1 0 0 0 0 1 1 1 1 1 1 1 1 1 -2.01

WDR52 0 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 -2.01

ZNF445 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 0 -2.01

ACTL8 1 1 1 0 1 0 1 1 0 0 0 0 1 0 1 0 1.90

ADAMDEC1 0 1 0 0 1 0 0 1 1 0 1 1 1 1 1 1 -1.90

BAT2L2 0 0 0 0 1 0 0 0 0 0 1 1 1 1 0 1 -1.90

BRCA1 0 0 1 1 0 0 0 0 1 1 1 1 1 0 1 0 -1.90

Question: Are there any high-order interactions between toxicity-associated variants?

Answer: …

With the set of 16 patients, there was not enough statistical power to detect toxicity-associated alleles individually (only 1 gene had a p-value <0.01)


Intra connectivity of set best32 top 320 z 1 5

Intra-connectivity of setbest32.top_320.z_1.5


Enrichment of intra connectivity of sets of genes with contrast variants over low high

Enrichment of intra-connectivity of sets of genes with contrast variants over “Low/High”

Neg:

variant prevalent in “Low”;

Pos:

variant prevalent in “High”;

Top:

Union of Pos & Neg;

Rnd:

Same size of gene set a s in Top, but test z-score of sign ignored

NULL:

Same size of gene set as in Pos, Neg, Top, Rnd, but genes are replaced with random network genes


Mutations accumulated in somatic genomes of cancer cell lines pelin akan et al genome medicine 2012

Mutations accumulated in somatic genomes of cancer cell lines(Pelin Akan et al., Genome Medicine 2012)

Question: Do mutations within a cancer genome behave like a quasi-pathway?

Answer: Yes.

Question: How similar are mutation patterns in different cancers?

Answer: A lot, but only for drivers and at the pathway level.


Experimental perturbations of syndecan 1 in cancer cells t szatmari et al plos one 2012

Experimental perturbations of syndecan-1 in cancer cells(T. Szatmari et al., PLoS One, 2012)

Question: Second-order downstream targets of syndecan modulation?

Answer: Segments of cell cycle etc.

Lines:

Red: depletion

Blue: enrichment

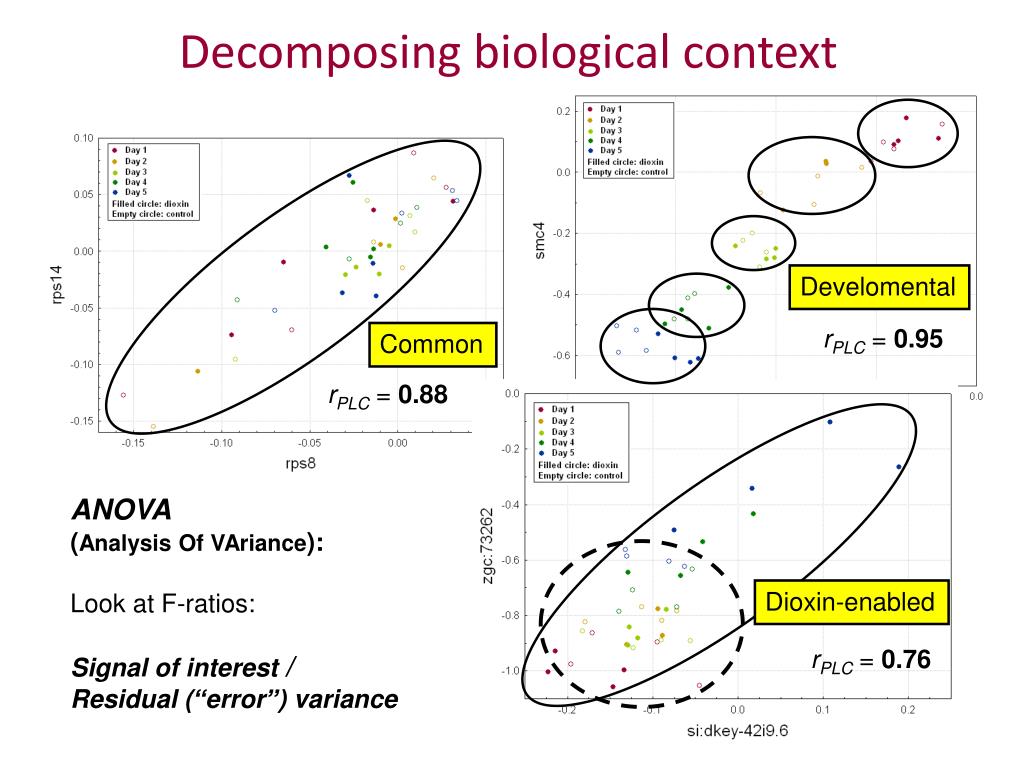

Decomposing biological context

Decomposing biological context

Develomental

rPLC = 0.95

Common

rPLC = 0.88

ANOVA

(Analysis Of VAriance):

Look at F-ratios:

Signal of interest /

Residual (“error”) variance

Dioxin-enabled

rPLC = 0.76

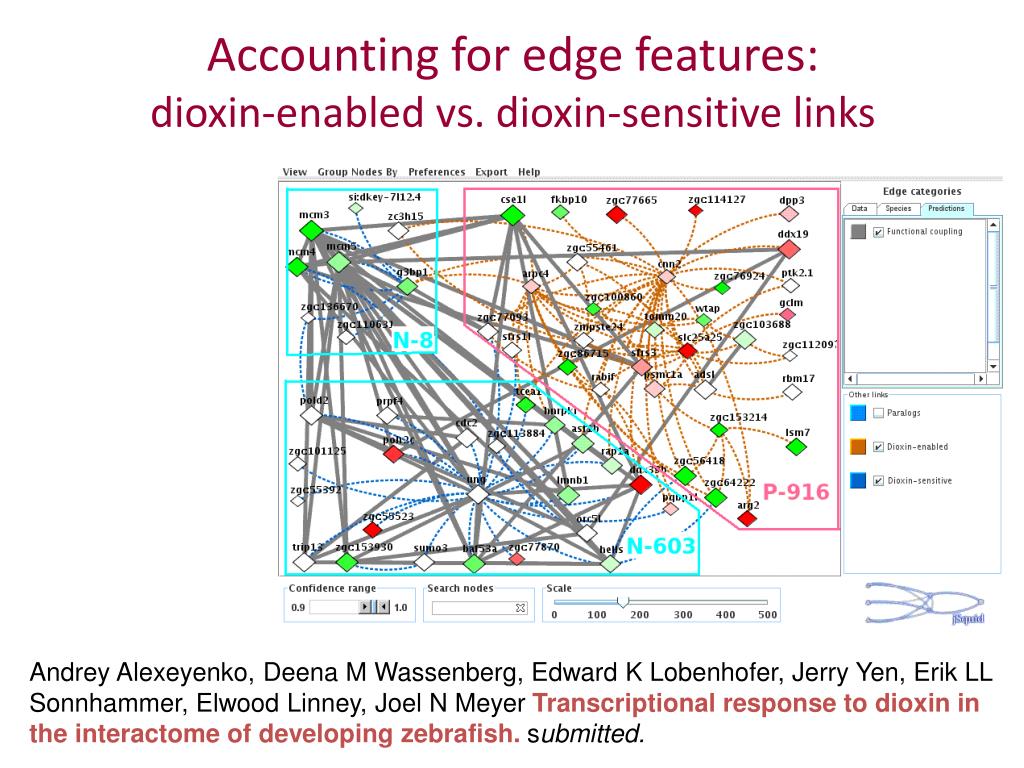

Accounting for edge features dioxin enabled vs dioxin sensitive links

Accounting for edge features:dioxin-enabled vs. dioxin-sensitive links

Andrey Alexeyenko, Deena M Wassenberg, Edward K Lobenhofer, Jerry Yen, Erik LL Sonnhammer, Elwood Linney, Joel N Meyer Transcriptional response to dioxin in the interactome of developing zebrafish. submitted.


Gene interaction networks for functional analysis and prognostication

FunCoup, inhibitory

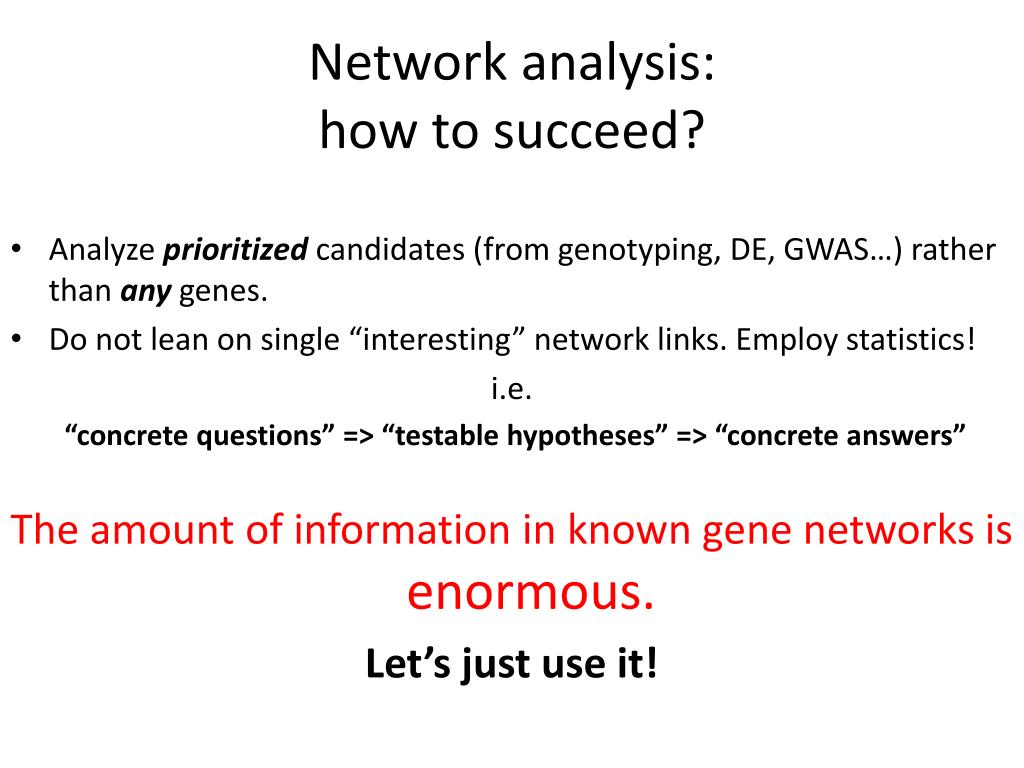

Network analysis how to succeed

Network analysis:how to succeed?

  • Analyze prioritized candidates (from genotyping, DE, GWAS…) rather than any genes.

  • Do not lean on single “interesting” network links. Employ statistics!

    i.e.

    “concrete questions” => “testable hypotheses” => “concrete answers”

    The amount of information in known gene networks is enormous.

    Let’s just use it!


Acknowledgements

Acknowledgements

  • Simon Merid

  • AshwiniJeggari

  • Darya Goranskaya

  • Pan Lu

  • Erik Sonnhammer

    • Martin Klammer

    • SanjitRoopra

    • Ted McCormack

    • Oliver Frings

  • Jonathan Prince

  • YudiPawitan

    • SetiaPramana

    • WooJoo Lee

  • Joakim Lundeberg

  • Pelin Akan

  • IngemarErnberg

  • Per Kraulis

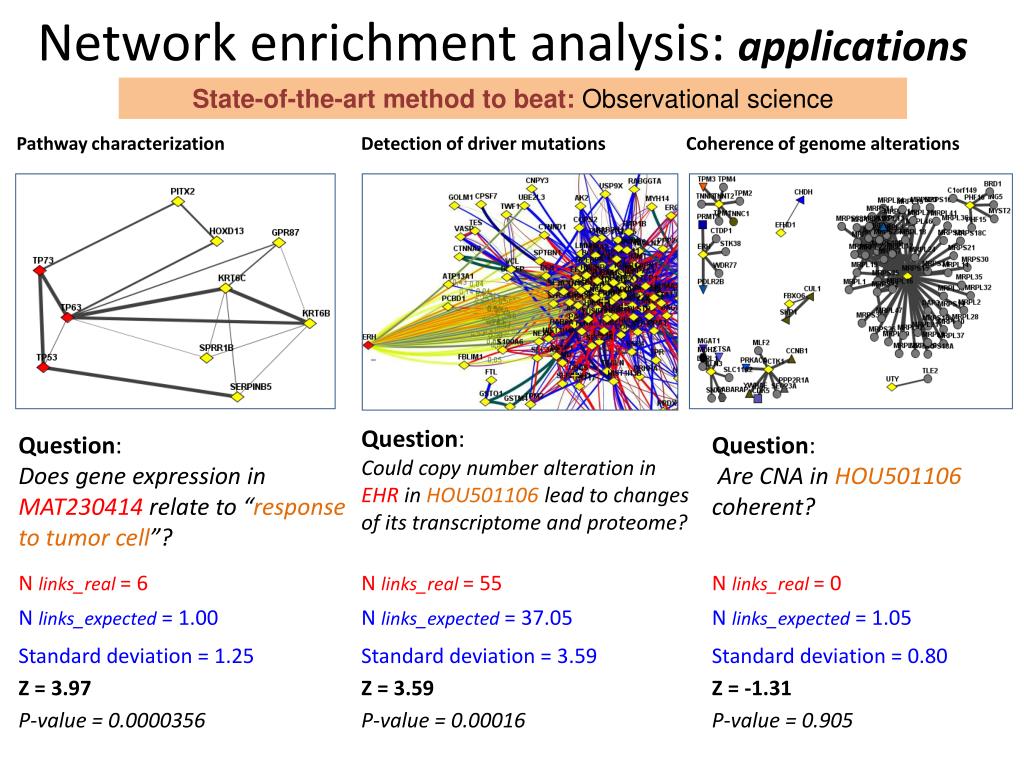

Network enrichment analysis applications

Network enrichment analysis: applications

State-of-the-art method to beat: Observational science

Pathway characterization

Detection of driver mutations

Coherence of genome alterations

Question:

Could copy number alteration in EHR in HOU501106 lead to changes of its transcriptome and proteome?

Question:

Does gene expression in MAT230414 relate to “response to tumor cell”?

Question:

Are CNA in HOU501106 coherent?

N links_real= 6

N links_real= 55

N links_real= 0

N links_expected = 1.00

N links_expected = 37.05

N links_expected = 1.05

Standard deviation = 1.25

Standard deviation = 3.59

Standard deviation = 0.80

Z = 3.97

Z = 3.59

Z = -1.31

P-value = 0.0000356

P-value = 0.00016

P-value = 0.905


Pathway view on the set of toxicity associated alleles

Pathway view on the set of toxicity-associated alleles

Red node: list of top 50 genes with most contrast allele patterns

Grey node: negative control list

Yellow: enriched/depleted pathways

Edge width: no. of gene-gene links in the network

Edge opacity: confidence

Green edges: enrichment

Red edges: depletion

Edges produced by less than 3 list genes are not shown0

The analysis detected more significantly enriched pathways than for the negative control gene sets of the same size (215 vs. 139; p0 < 0.001; FDR<0.05). More specifically, many thus found pathways were associated with cancer, apoptosis, cell division etc.


Network enrichment analysis what to use

Network enrichment analysis: what to use?

  • R package NEA: Alexeyenko A, Lee W, … Pawitan P (2012). Network enrichment analysis: extension of gene-set enrichment analysis to gene networks. BMC Bioinformatics

  • Perl software : Simon Merid et al., to be published.

  • C++, the “crosstalk” tool : Ted McCormack et al., to be published

  • Last but not least: http://FunCoup.sbc.su.se


Decomposing biological context1

Decomposing biological context

Develomental

rPLC = 0.95

Common

rPLC = 0.88

ANOVA

(Analysis Of VAriance):

Look at F-ratios:

Signal of interest /

Residual (“error”) variance

Dioxin-enabled

rPLC = 0.76


Accounting for edge features dioxin enabled vs dioxin sensitive links1

Accounting for edge features:dioxin-enabled vs. dioxin-sensitive links

Andrey Alexeyenko, Deena M Wassenberg, Edward K Lobenhofer, Jerry Yen, Erik LL Sonnhammer, Elwood Linney, Joel N Meyer Transcriptional response to dioxin in the interactome of developing zebrafish. submitted.


Hyperset the network enrichment analysis online resource since 2013 at http scilifelab se

HyperSet: the network enrichment analysis online resourcesince 2013 at http://scilifelab.se


  • Login
