Presentation Transcript

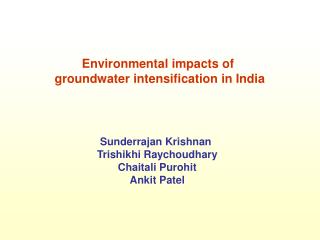

Slide1 l.jpg

Environmental impacts of

groundwater intensification in India

Sunderrajan Krishnan

Trishikhi Raychoudhary

Chaitali Purohit

Ankit Patel


Slide2 l.jpg

Definition of problem

Any disturbance from the natural regime of

groundwater flows or geochemistry caused by

intensification of groundwater use that results in

significant impact on environment and on humans

Challenges:

To define natural regime

To isolate role of GW use on the impact,

eg. coastal salinity


Slide3 l.jpg

Which issues are being studied

  • Fall in water tables and rise in water tables regionally

  • Highly fluctuating water table

  • Quality problems emanating from exploitation eg. salinity in coastal areas, increasing mineralization of deeper aquifers, release of geogenic heavy metals associated with exploitation

  • Quality problems due to use of poor quality water for irrigation

  • Related surface water issues eg. tanks that recharge aquifers, being in disuse , partly due to gw use


Slide4 l.jpg

Building blocks of study

Region based (4 regions)

Nation-wide analysis

(at district level)

Issue

Based

(2 issues)


Slide5 l.jpg

Building blocks of study

Region based (4 regions)

Nation-wide analysis

(at district level)

Issue

Based

(2 issues)


Slide6 l.jpg

Nation-wide analysis at district level

  • Objectives:

  • To delineate zones of GW vulnerabilty using different criterion:

  • Volumetric information: GW recharge, GW use for various purposes; Proportion GW used for irrigation

  • b) Depth to Groundwater Table: Median depth to water table; Median fluctuation of water table

  • c) Impact of well interference: well density and hydrogeology together impacting well interference

Overlap these zones to mark regions of varying vulnerablity


Slide7 l.jpg

Building blocks of study

Region based (4 regions)

Nation-wide analysis

(at district level)

Issue

Based

(2 issues)


Slide8 l.jpg

Studies in four regions

  • - Bist-Doab of Punjab: overexploitation and agro-pollution; groundwater balance and trend analysis

  • North Gujarat: overexploitation, Fluoride, Salinity, urban exploitation and pollution

  • Coastal West Bengal and Orissa: saline water intrusion and urban subsidence of land

  • Central Tamil Nadu: Noyyal sub-basin of Cauvery: overexploitation, pollution, demand from urban areas


Slide9 l.jpg

Studies in four regions

Bist-Doab

North Gujarat

Coastal WB, N. Orissa

Noyyal sub-basin of Cauvery


Slide10 l.jpg

Studies in four regions

Objectives:

Detailed characterization of environmental impacts of groundwater use in the region

Extrapolation to parts of the country that are similar to this region

Eg. North Gujarat: overexploitation of aquifers; Fluoride contamination; Urban demand of groundwater from Ahmedabad area; Coastal and inland salinity of groundwater

Can be extrapolated to parts of Rajasthan


Slide11 l.jpg

Studies in four regions

  • Fresh studies:

  • - Collecting long-term groundwater hydrographs from

  • Bist-Doab for better hold on groundwater balance

  • Collaborative work with WTC, Coimbatore on groundwater exploitation in Noyyal basin


Slide12 l.jpg

Building blocks of study

Region based (4 regions)

Nation-wide analysis

(at district level)

Issue

Based

(2 issues)


Slide13 l.jpg

Issue 1: Coastal salinity of groundwater


Slide14 l.jpg

Issue 1: Coastal salinity of groundwater

Compiling the conceptual picture of

coastal salinity across the coast

Information on: Geomorphology, Hydrogeology, Tidal patterns, Observed salinity data

Important regions:

Gujarat (Kutch, Saurashtra, South Gujarat)

Tamil Nadu (North)

Central Andhra Pradesh

Orissa (Central to North)

West Bengal


Slide15 l.jpg

In summary

Combining analysis of 4 regions with

A nation-wide district level analysis and 2 issues

To arrive at constraints for groundwater intensification

And limits to expansion of area irrigated by naturally recharged groundwater


Slide16 l.jpg

100

% dep

On GW

0

1lakh – 1 Million

Million +

Issue 2: Urban groundwater exploitation

  • Patterns of groundwater use in urban areas:

  • Major growth of urban areas is happening in

  • 1,00,000 – 1 million population

  • Most of these cities are highly dependant on groundwater ;

  • much more than million+ cities

  • The locus of future GW demand in urban areas will be these towns

  • Main data: proportion dependence of urban area on GW
