Presentation Transcript


Refusing to go quietly gamma ray bursts and their progenitors

Refusing to Go Quietly:Gamma-Ray Bursts and Their Progenitors

  • Andy Fruchter

  • STScI

  • Hubble Science Briefing

  • 5 Dec. 2013


What are we doing here

What Are We Doing Here?

  • An introduction to Gamma-Ray Bursts (GRBs)

  • Massive stars and the long bursts

  • Short bursts and merging neutron star binaries

  • A new view on the universe

2


The vela satellites protecting the free world from illicit grbs

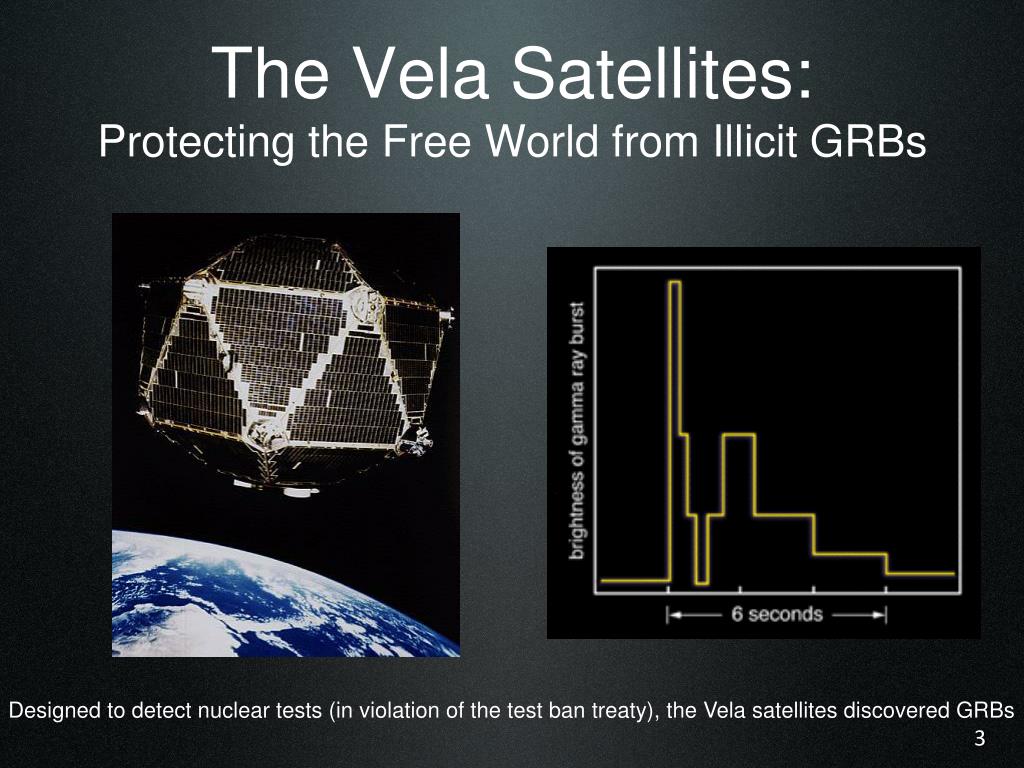

The Vela Satellites:Protecting the Free World from Illicit GRBs

Designed to detect nuclear tests (in violation of the test ban treaty), the Vela satellites discovered GRBs

3


Compton gamma ray observatory

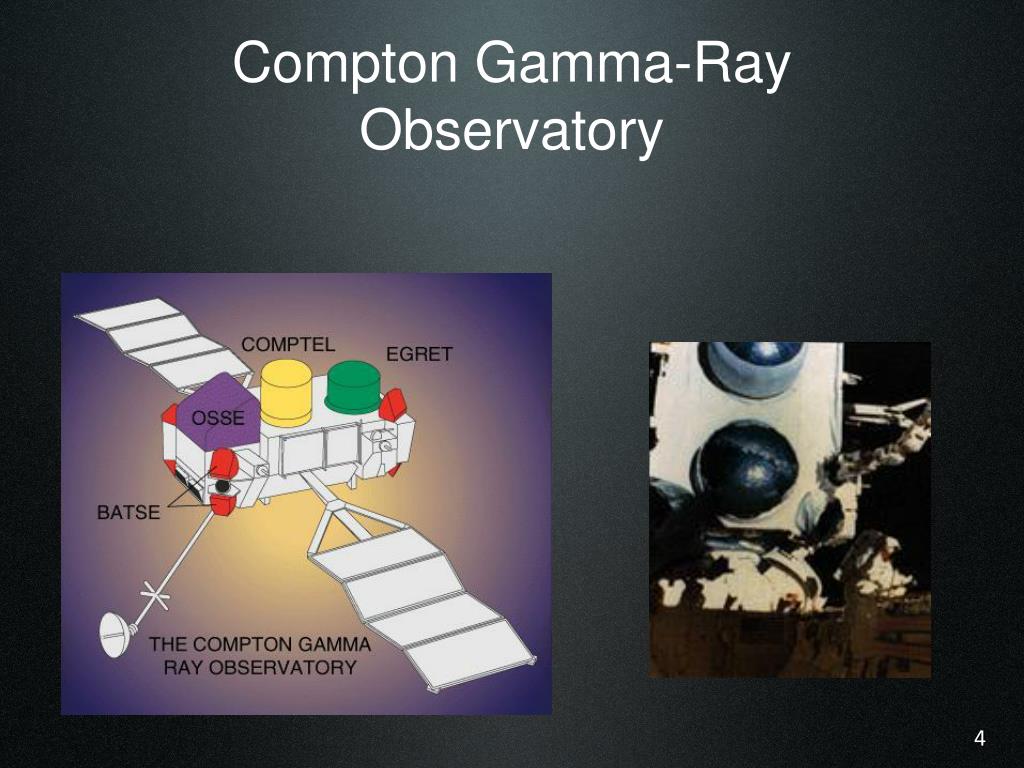

Compton Gamma-Ray Observatory

4

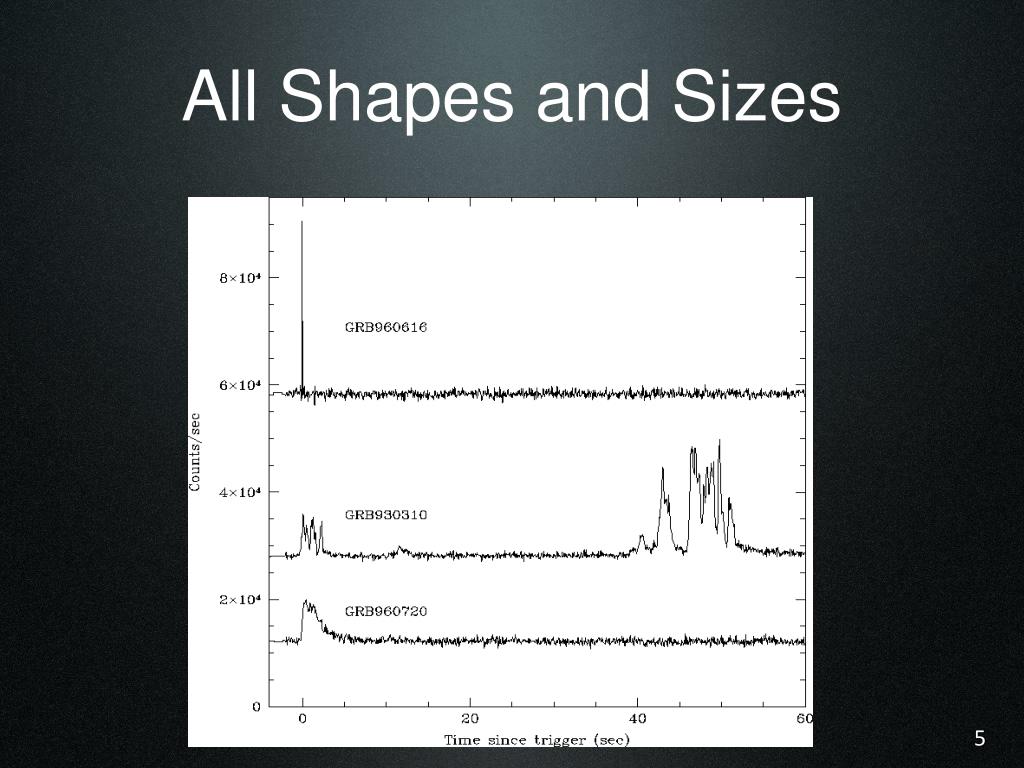

All shapes and sizes

All Shapes and Sizes

5


Refusing to go quietly gamma ray bursts and their progenitors

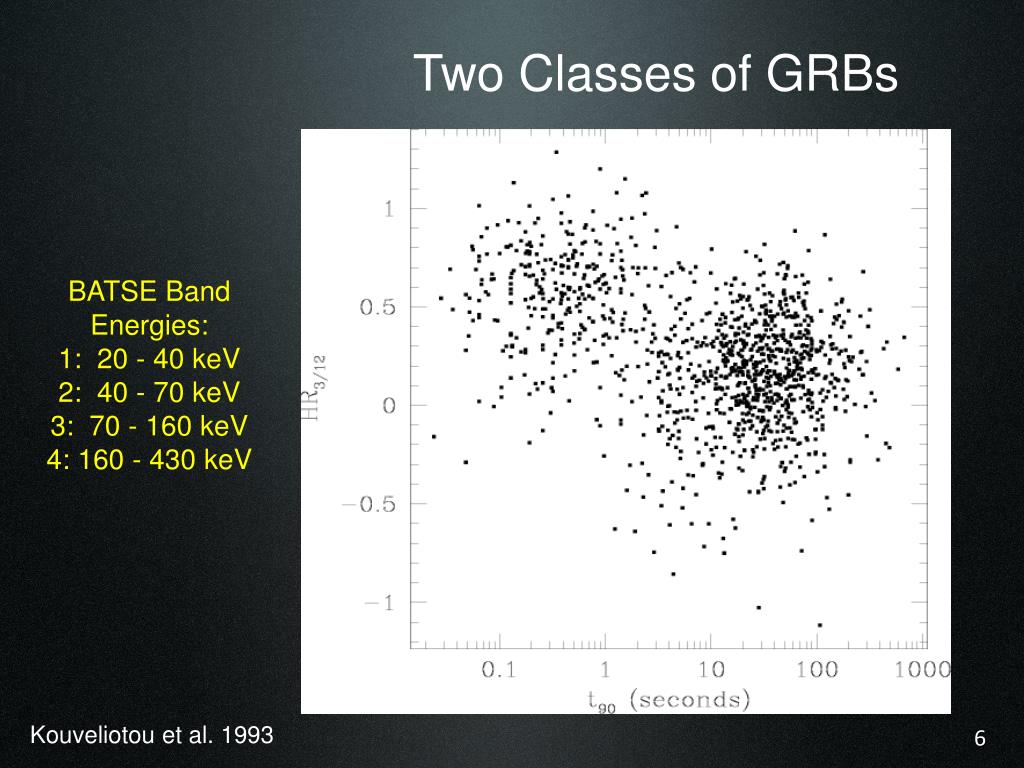

Two Classes of GRBs

BATSE Band Energies:

1: 20 - 40 keV

2: 40 - 70 keV

3: 70 - 160 keV

4: 160 - 430 keV

Kouveliotou et al. 1993

6


Refusing to go quietly gamma ray bursts and their progenitors

Two Classes of GRBs

BATSE Band Energies:

1: 20 - 40 keV

2: 40 - 70 keV

3: 70 - 160 keV

4: 160 - 430 keV

Kouveliotou et al. 1993

7


Refusing to go quietly gamma ray bursts and their progenitors

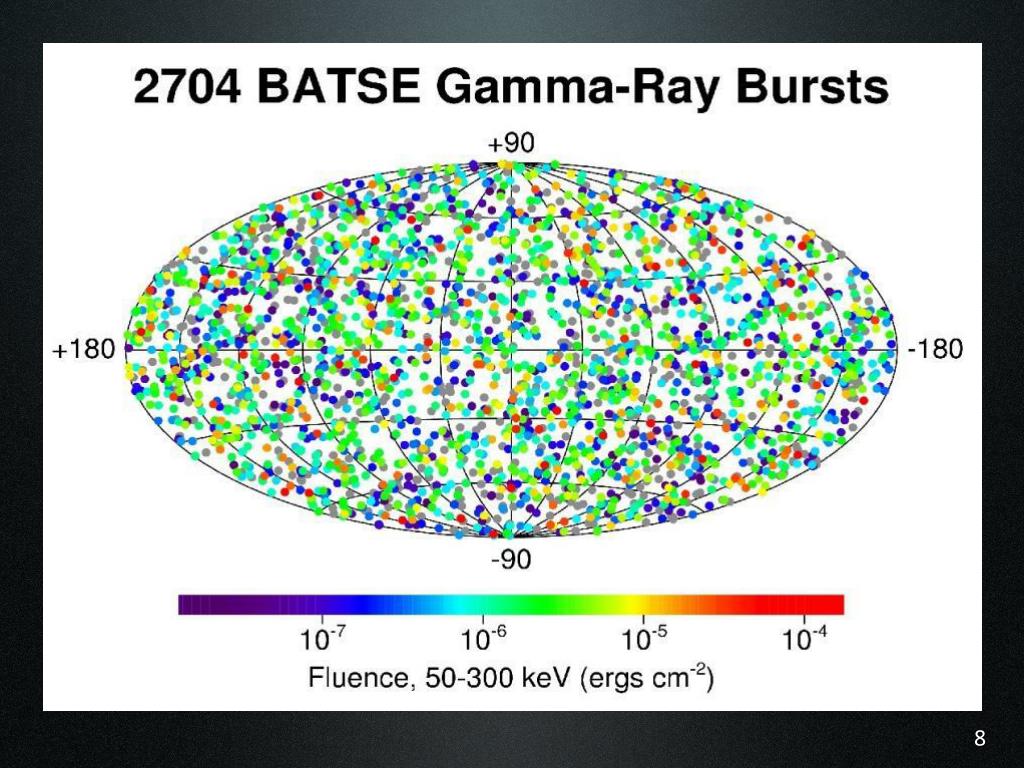

8


The milky way according to cobe

The Milky Way According to COBE

9


Refusing to go quietly gamma ray bursts and their progenitors

So...

  • GRBs must be very close -- the Solar System

  • GRBs must be very far (distant galaxies)

10


Refusing to go quietly gamma ray bursts and their progenitors

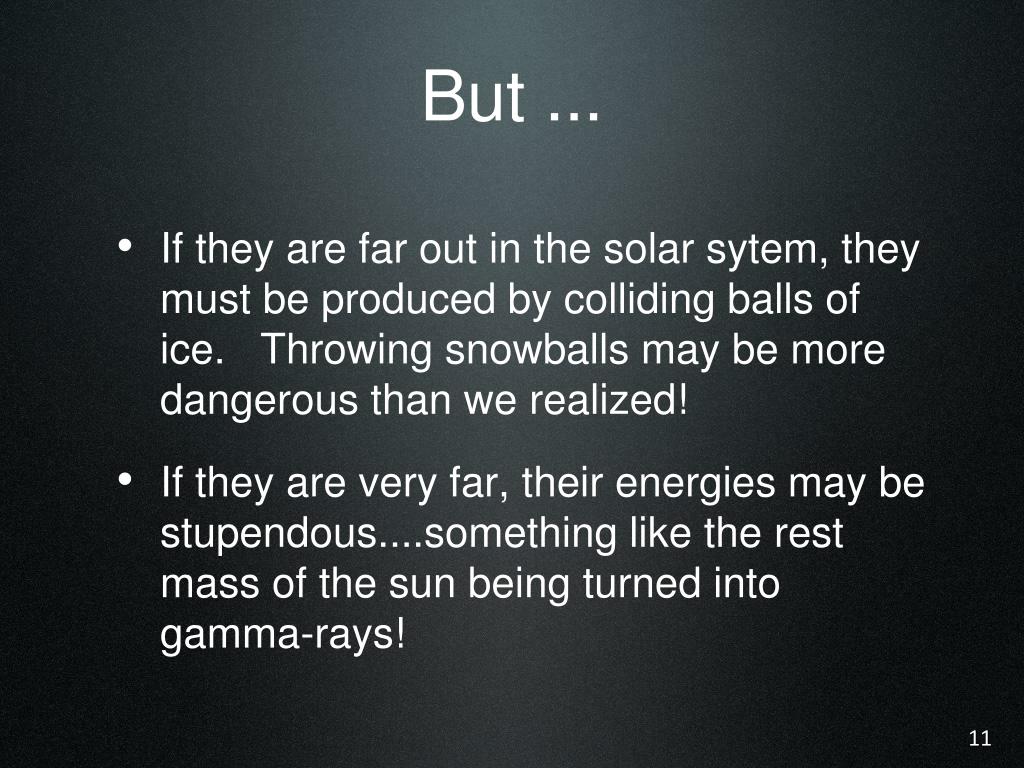

But ...

  • If they are far out in the solar sytem, they must be produced by colliding balls of ice. Throwing snowballs may be more dangerous than we realized!

  • If they are very far, their energies may be stupendous....something like the rest mass of the sun being turned into gamma-rays!

11

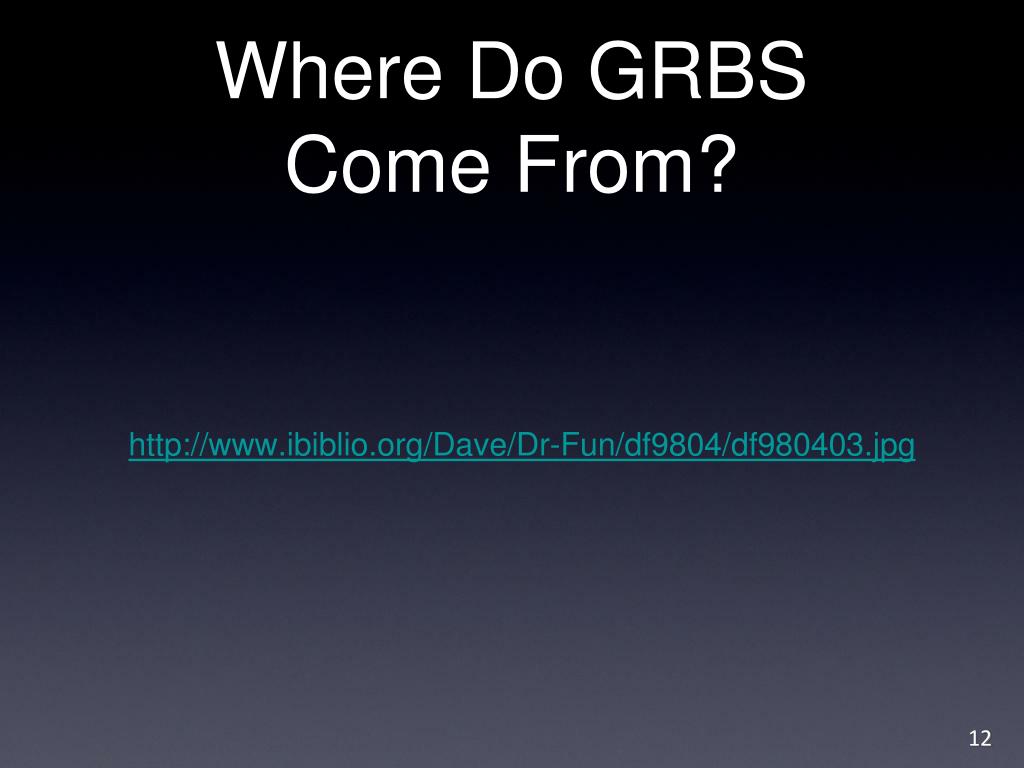

Where do grbs come from

Where Do GRBS Come From?

http://www.ibiblio.org/Dave/Dr-Fun/df9804/df980403.jpg

12


Refusing to go quietly gamma ray bursts and their progenitors

13


Grb 990123

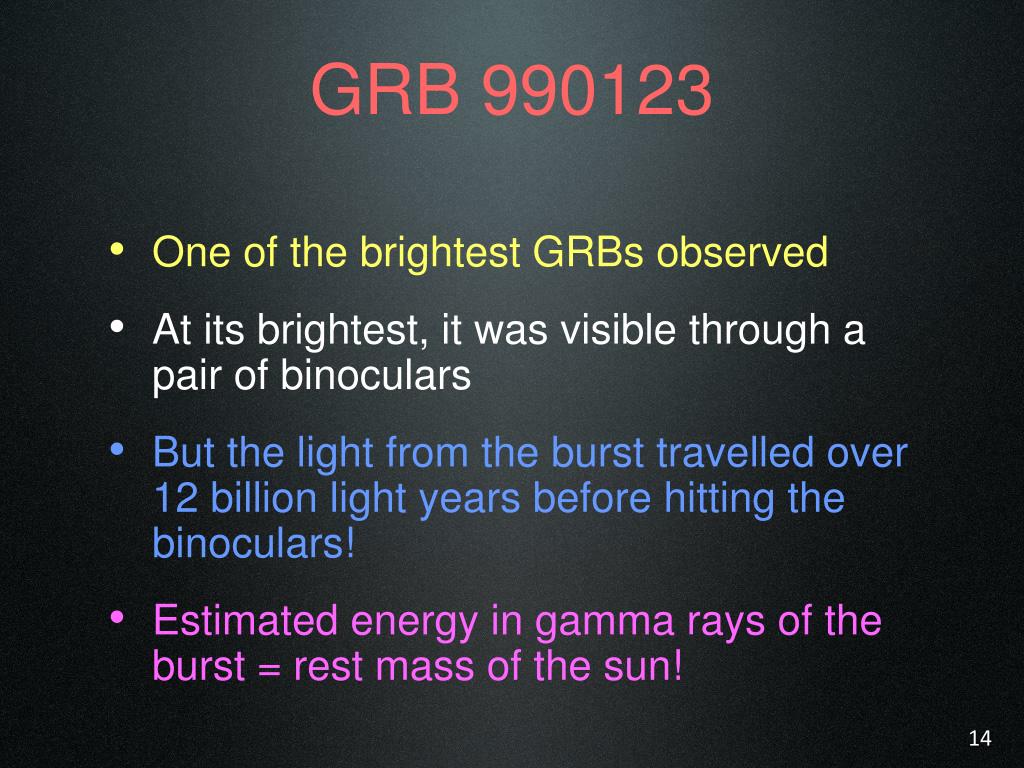

GRB 990123

  • One of the brightest GRBs observed

  • At its brightest, it was visible through a pair of binoculars

  • But the light from the burst travelled over 12 billion light years before hitting the binoculars!

  • Estimated energy in gamma rays of the burst = rest mass of the sun!

14


Grb 9901231

GRB 990123

Fruchter et al.

1999

Now You See It

The transient has

faded by a factor

of two million since

peak in this first

HST image

15


Grb 9901232

GRB 990123

Fruchter et al.

1999

Now You Don’t

16


A side view of a grb

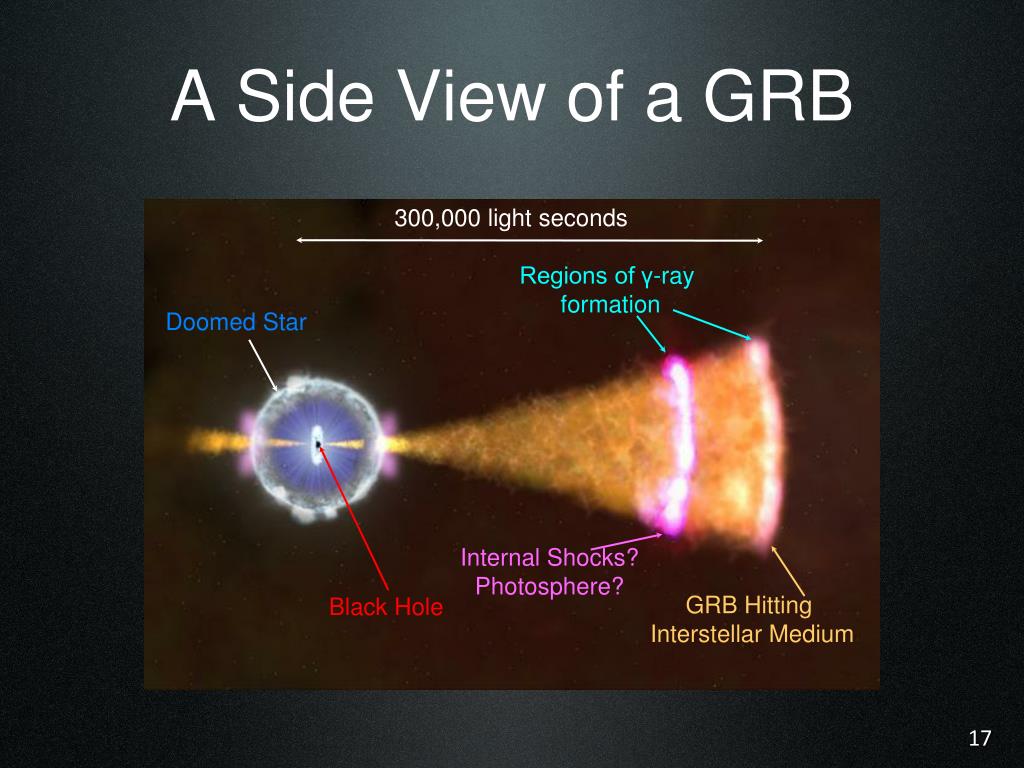

A Side View of a GRB

300,000 light seconds

Regions of γ-ray

formation

Doomed Star

Internal Shocks?

Photosphere?

GRB Hitting

Interstellar Medium

Black Hole

17

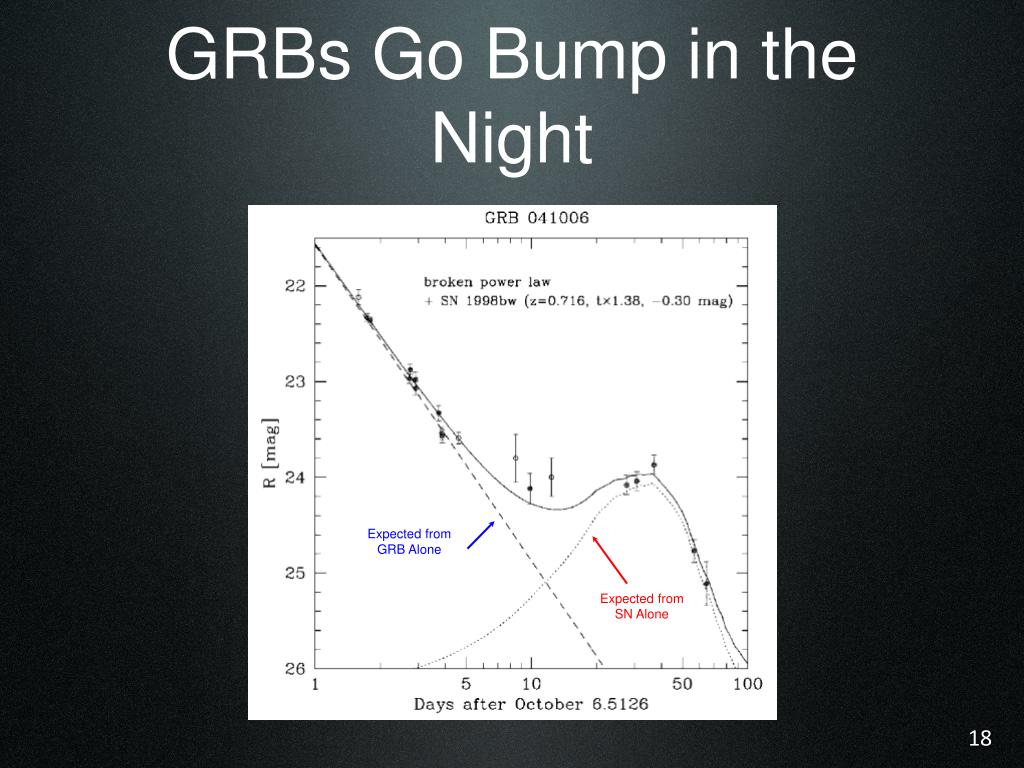

Grbs go bump in the night

GRBs Go Bump in the Night

Expected from

GRB Alone

Expected from

SN Alone

18


The star underneath

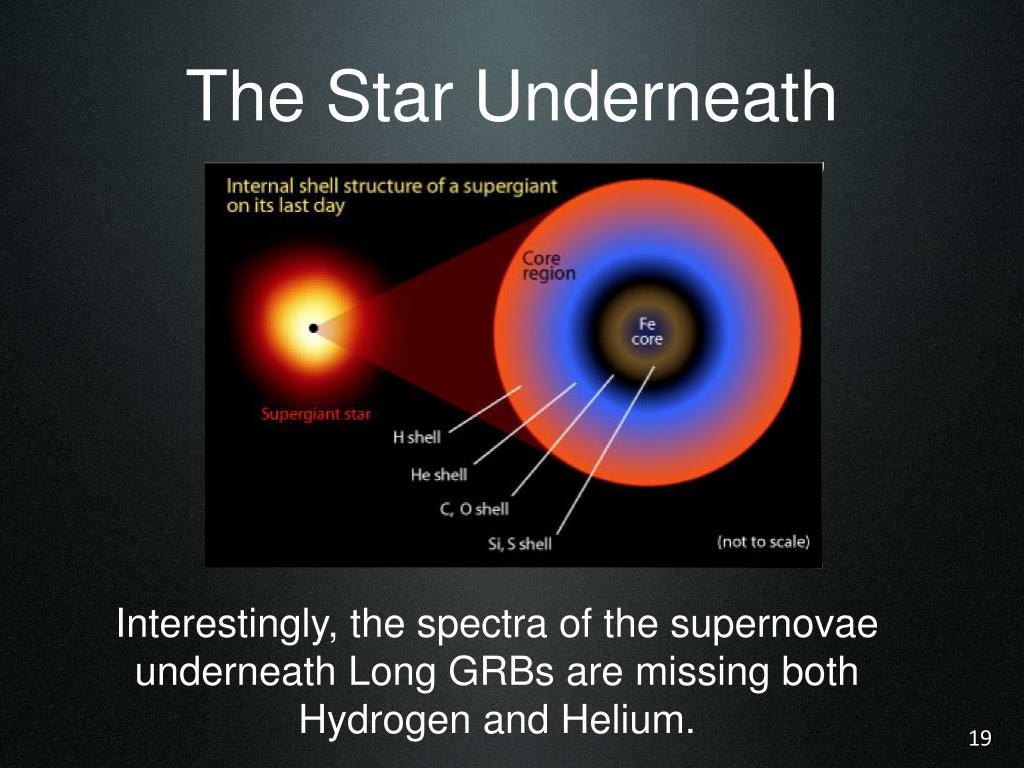

The Star Underneath

Interestingly, the spectra of the supernovae

underneath Long GRBs are missing both

Hydrogen and Helium.

19


Refusing to go quietly gamma ray bursts and their progenitors

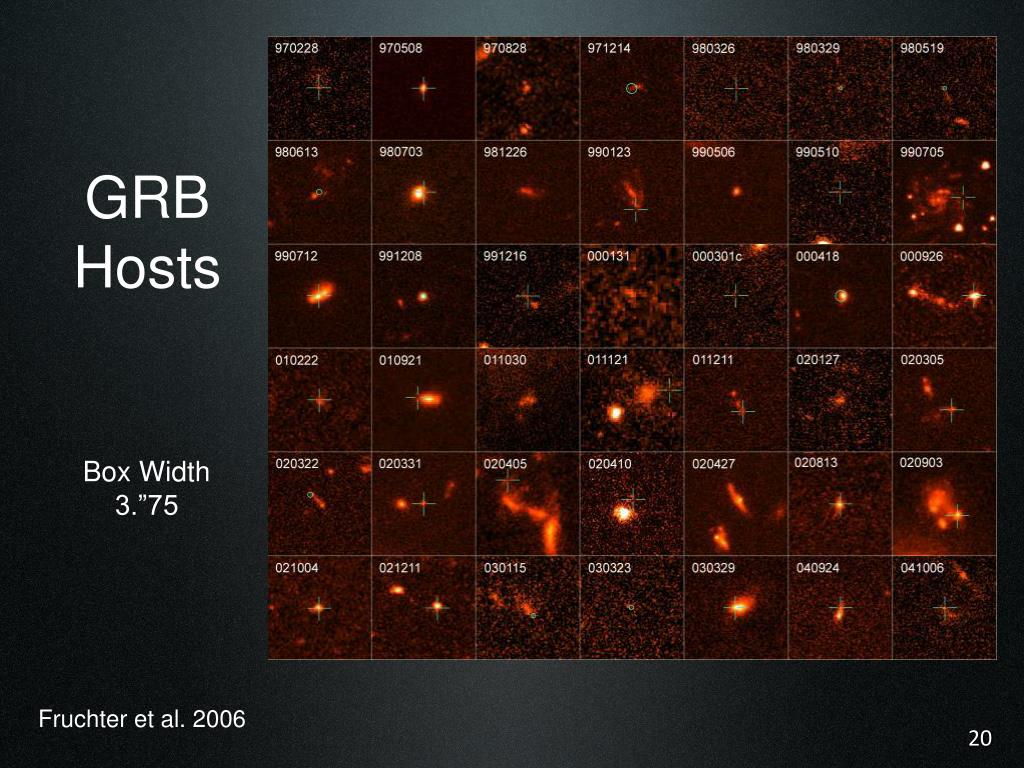

GRB

Hosts

Box Width

3.”75

Fruchter et al. 2006

20


Goods cc sne hosts

GOODS cc SNe Hosts

Box Width

7.”5

Fruchter et al. 2006

21


Long grbs are not just like other supernovae

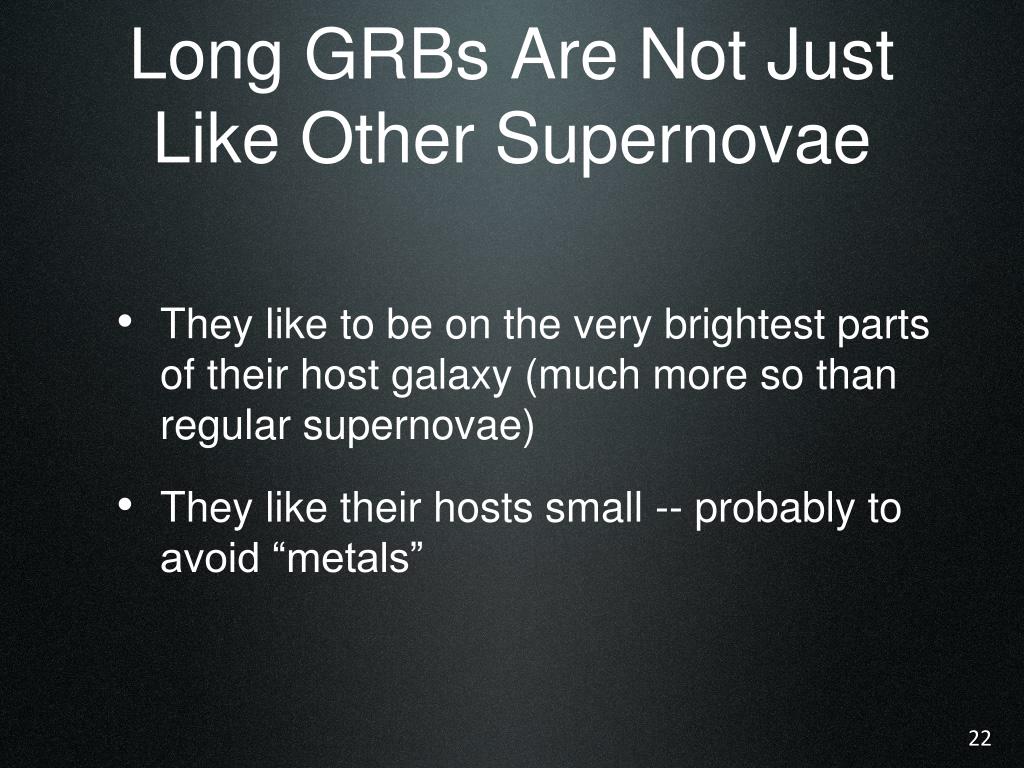

Long GRBs Are Not Just Like Other Supernovae

  • They like to be on the very brightest parts of their host galaxy (much more so than regular supernovae)

  • They like their hosts small -- probably to avoid “metals”

22


Artist s conception of grb environment

Artist’s Conception of GRB Environment

23


Refusing to go quietly gamma ray bursts and their progenitors

You Are Here

Long GRBs like this

Not this

24


Just when you thought you were safe

Just When You Thought You Were Safe.....

25


Refusing to go quietly gamma ray bursts and their progenitors

A Short-Burst Host Mosaic

Images on the left were taken in the blue, on the right in the infrared

Short Bursts like all types of galaxies -- small to large, young to old.

26


So what causes short bursts

So What Causes Short Bursts?

  • Deep searches show no sign of supernovae, and Short GRBs do not greatly favor star-forming hosts, so massive stars are probably out.

  • Neutron star binaries can merge anywhere between 10 million years and a Hubble time, and are found in all types of galaxies.

  • But is there an observation that would be a “smoking gun”?

27

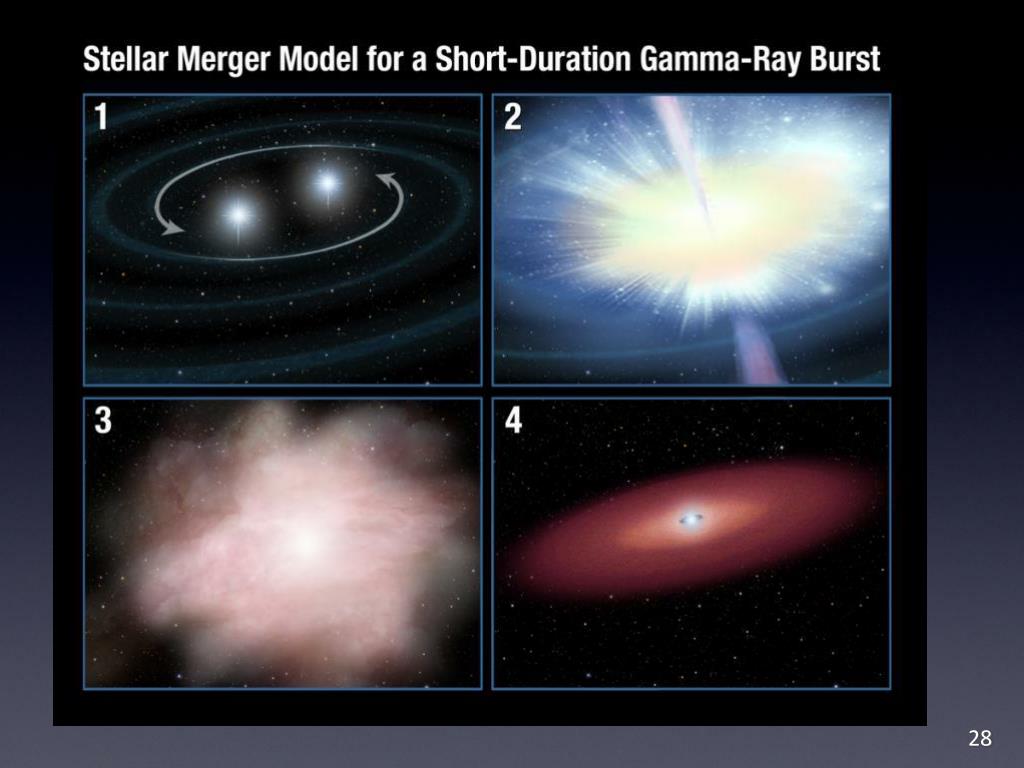

Refusing to go quietly gamma ray bursts and their progenitors

28

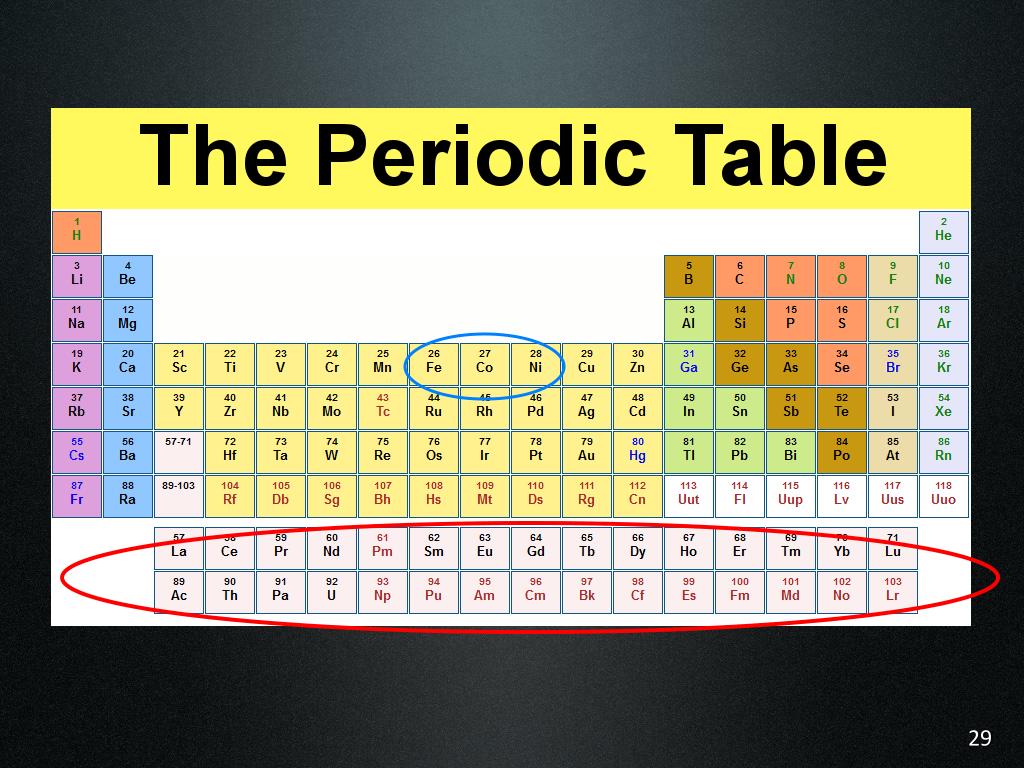

Refusing to go quietly gamma ray bursts and their progenitors

29


Environment of grb 130603b

Environment of GRB 130603B

30


Sgrb 130603b in black and white

SGRB 130603B in Black and White

0.6 µm = visible light

1.6 µm = infrared light

31


What have we found

What Have We Found?

http://www.sciencecartoonsplus.com/gallery/astronomy/astron51_pretty-good-nova.gif

32


If confirmed

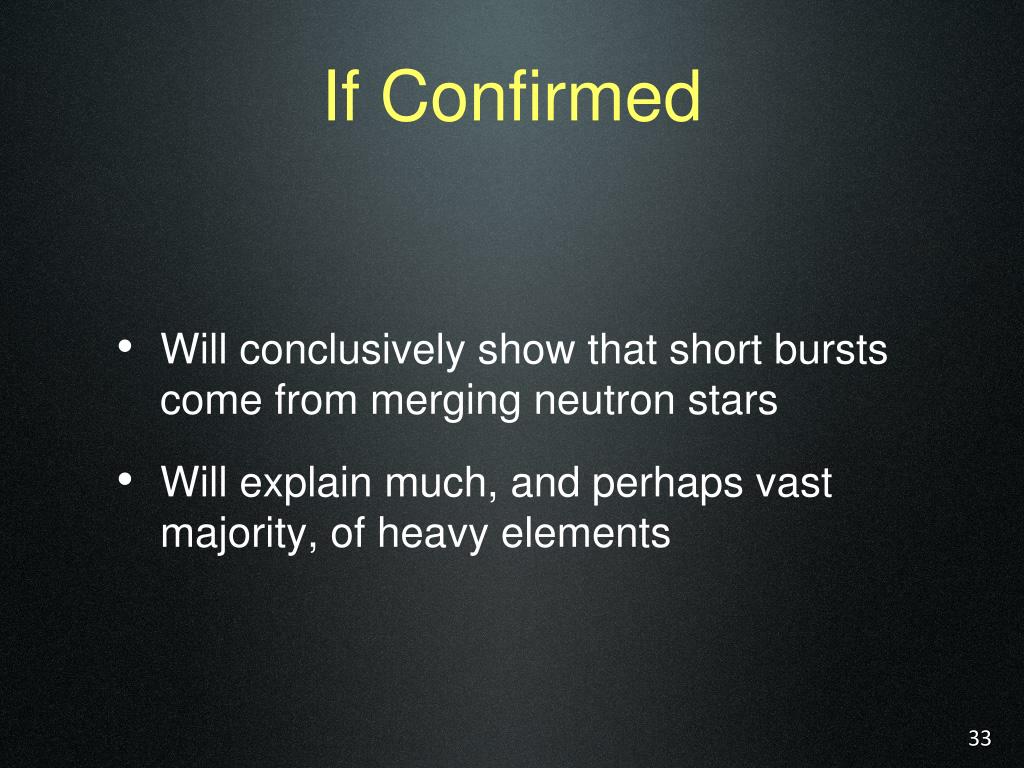

If Confirmed

  • Will conclusively show that short bursts come from merging neutron stars

  • Will explain much, and perhaps vast majority, of heavy elements

33


Refusing to go quietly gamma ray bursts and their progenitors

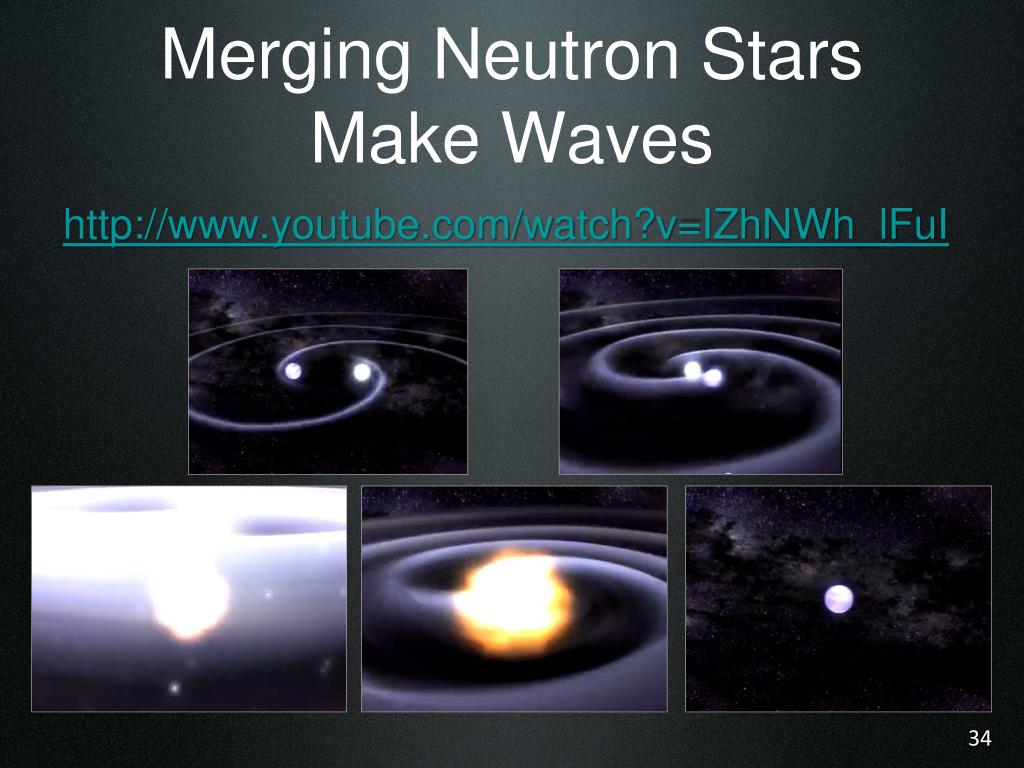

Merging Neutron Stars Make Waves

http://www.youtube.com/watch?v=IZhNWh_lFuI

34


A future astronomical observatory

A Future AstronomicalObservatory

Advanced LIGO will be able to detect gravitational waves that

stretch the length of the arms by a fraction of the size of a proton

35

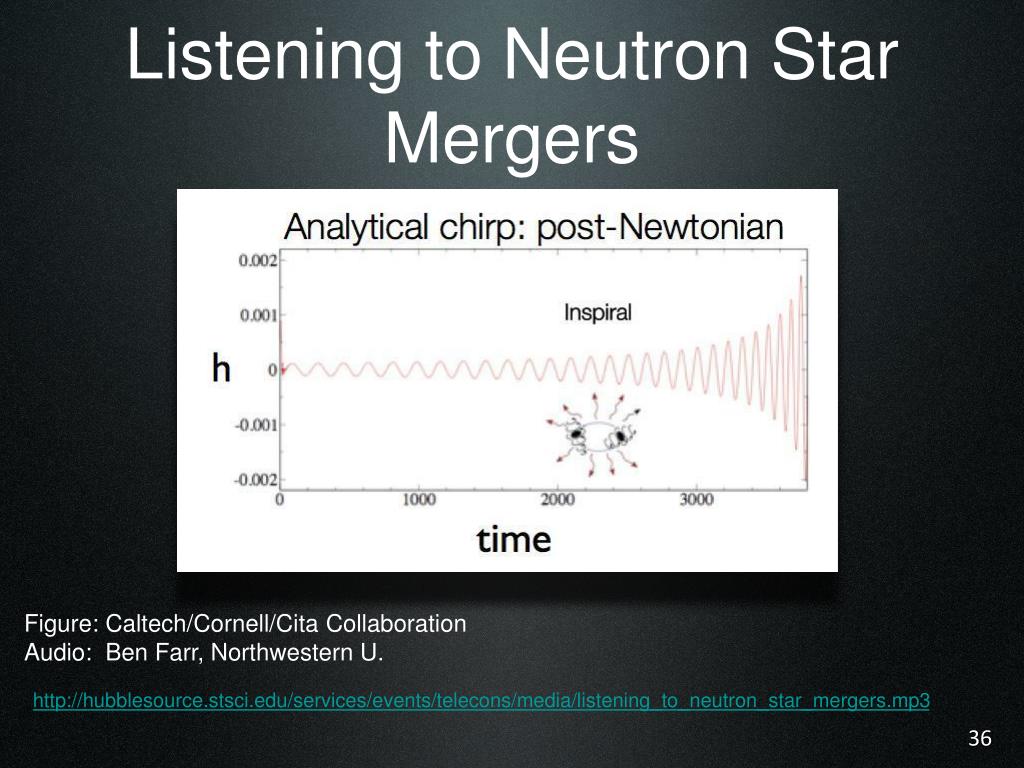

Listening to neutron star mergers

Listening to Neutron Star Mergers

Figure: Caltech/Cornell/Cita Collaboration

Audio: Ben Farr, Northwestern U.

http://hubblesource.stsci.edu/services/events/telecons/media/listening_to_neutron_star_mergers.mp3

36


The nearest sgrb

The Nearest(?) SGRB

GRB 080905a 1.5 Billion light years away

37


We might not need a grb

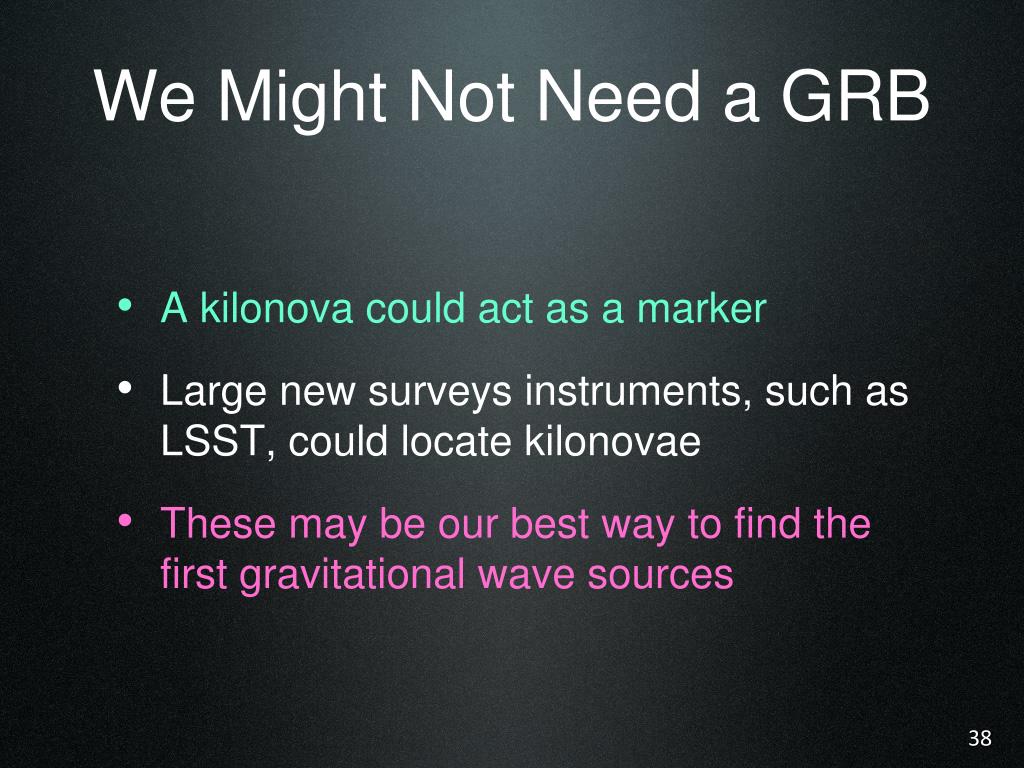

We Might Not Need a GRB

  • A kilonova could act as a marker

  • Large new surveys instruments, such as LSST, could locate kilonovae

  • These may be our best way to find the first gravitational wave sources

38

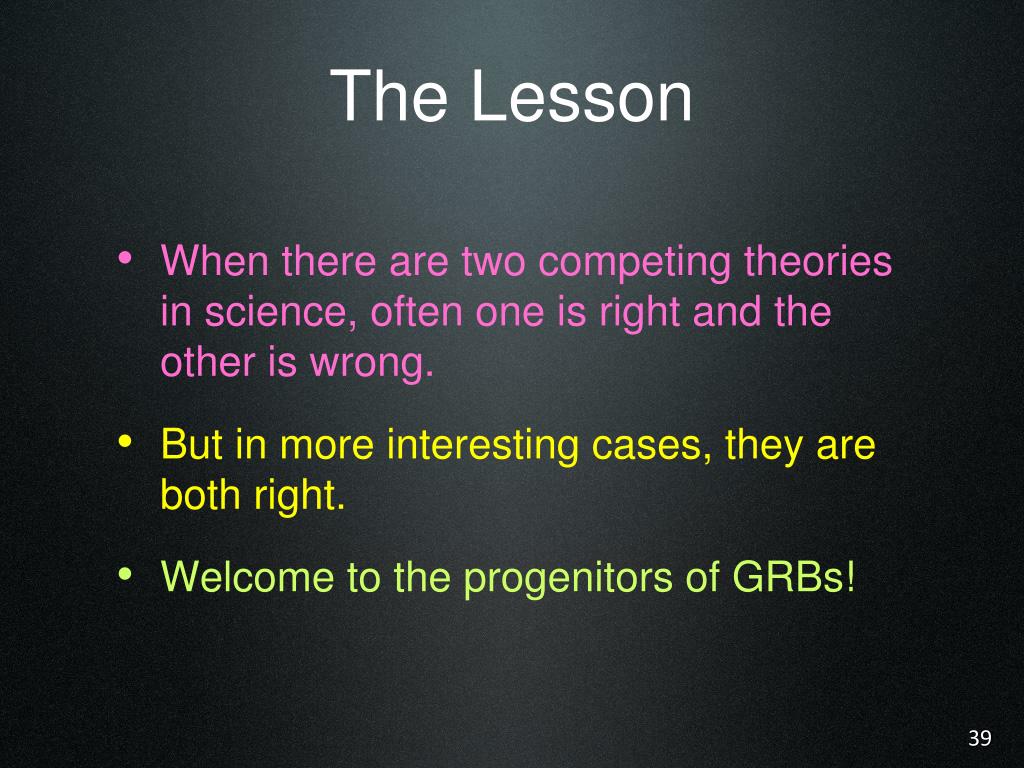

The lesson

The Lesson

  • When there are two competing theories in science, often one is right and the other is wrong.

  • But in more interesting cases, they are both right.

  • Welcome to the progenitors of GRBs!

39
