Presentation Transcript


Biological activity of soil under roundup ready soybean production l.jpg

BIOLOGICAL ACTIVITY OF SOIL UNDER ROUNDUP® READY SOYBEAN PRODUCTION

Nathan Means

Research Assistant – Graduate Student

Environmental Soil Science Program

University of Missouri


Slide2 l.jpg

WHAT IS GLYPHOSATE?

O O

OH– C– CH2– NH2–CH2–P–O¯

OH

amine

+

carboxylate

phosphonate

  • Glyphosate N-(phosphonomethyl)glycine active ingredient in Round-Up®, best selling herbicide world-wide

  • Round-Up® is a nonselective systemic herbicide

  • In 2002, 75% of the soybeans in the United States were genetically modified for glyphosate resistance (ISAAA, 2002)

Round-UP®


Glyphosate is a competitive inhibitor 5 epsp synthase l.jpg

COO–

COO–

O

H

H

OH

H

CH2

OH

O

P

O

C— C OO–

P

H

H

OH

H

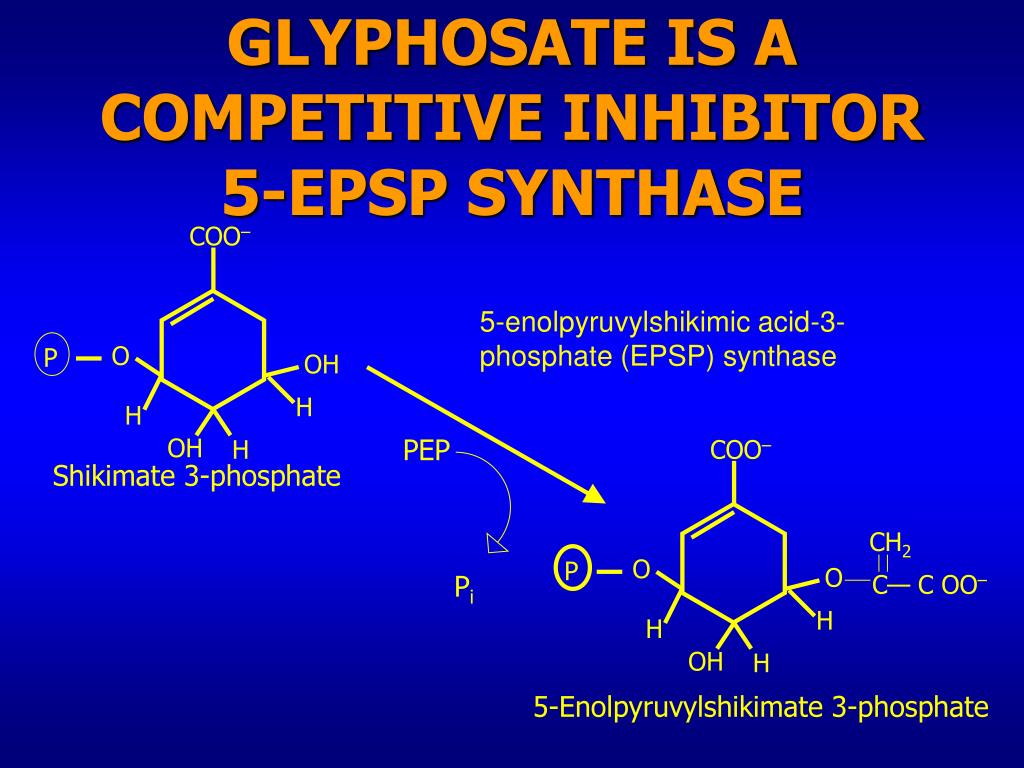

GLYPHOSATE IS A COMPETITIVE INHIBITOR 5-EPSP SYNTHASE

5-enolpyruvylshikimic acid-3-phosphate (EPSP) synthase

PEP

Shikimate 3-phosphate

Pi

5-Enolpyruvylshikimate 3-phosphate


Aromatic amino acid production is stopped l.jpg

COO-

COO-

COO-

H3N+– C – H

H3N+– C – H

H3N+– C – H

C=CH

CH2

CH2

CH2

NH

Phenylalanie

Tryptophan

OH

Tyrosine

AROMATIC AMINO ACID PRODUCTION IS STOPPED

  • Phytoalexins Antimicrobial, low-molecular-weight secondary metabolites capable of stopping pathogen development (Hammerschmidt 1999)

  • Infection by a pathogen induces accumulation of phytoalexins in plants at the infection site (Hammerschmidt 1999)


Glyphosate is systemic l.jpg

GLYPHOSATE IS SYSTEMIC

  • Glyphosate is translocated in the symplast and accumulates in roots and meristematic regions (Duke, 1988, Hernandez et al., 1999)


Glyphosate in the rhizosphere l.jpg

GLYPHOSATE IN THE RHIZOSPHERE

  • Low levels of glyphosate in the rhizosphere of treated plants(Coupland and Caseley 1979 and Rodrigues et al., 1982)

Figure from Neumann and Romheld, 2002 in Waisel et al. (eds.) Plant Roots

The Hidden Half. Marcel-Dekker.


Slide7 l.jpg

GLYPHOSATE IN SOIL

  • Low levels of glyphosate appear in the rhizosphere of treated plants (Coupland and Caseley 1979, and Rodrigues et al., 1982)

  • Glyphosate is rapidly and tightly adsorbed to soil and has shown little potential for runoff and mobility (Vencill 2002)

  • Inorganic soil materials (clay minerals and metallic cations) impact bioactivity of glyphosate (Weber et al., 1993 and Eberback 1998)


Slide8 l.jpg

O O

OH—C—CH2—NH—CH2—P—OH

OH

FOOD OR POISON FOR THE MICROBES?

  • Nutrient source 3:1:1 (Haney et al., 2000, Busse et al., 2001, and Vencill 2002)

  • Glyphosate has been shown to be toxic to bacteria and fungi (Hendricks and Rhodes 1992, Moorman et al., 1992, Wardel et al., 1992, Kawate et al., 1992, Lévesque and Rahe, 1992)

Glyphosate


Slide9 l.jpg

SOIL MICROORGANISMS, WHO CARES?

  • Rhizosphere microorganisms include bacteria, fungi, protozoa, etc….

  • These organisms influence

    • plant-available nutrients and transformations

    • incorporation of nutrients into biomass

    • soil structure, reducing leaching and erosion while improving water flow

    • nitrogen fixation

    • decompose complex carbon compounds and certain types of pollutants (Myrold 1998)

  • A healthy soil microbial community is paramount to soil quality


Slide10 l.jpg

IMPACTS OF GLYPHOSATE

  • Shift in rhizosphere microbial community

    • nutrient cycling

    • disease incidence

    • plant growth and crop yield

  • Reductions in nodulation, leghemoglobin, chlorophyll in soybean under stress (King & Purcell 1998; Reddy et al. 2000)

  • Increased severity of “take-all” disease in winter wheat crop following Roundup Ready soybean (Indiana) - caused by soilborne fungal pathogen -(Hickman et al. 2002. Abstr. Weed Sci. Soc. Am., p.7)


Roundup ready soybean western illinois 2001 l.jpg

ROUNDUP READY SOYBEAN, WESTERN ILLINOIS, 2001


Foliar amendments l.jpg

FOLIAR AMENDMENTS

  • Used in both horticultural and field crop production

  • Claim to enhance crop growth and yield by reducing plant stress and increasing nutrient availability (Kinnersley 1993)

  • Effects on plant growth are thought to be achieved through

    • inoculation of soil with selected microorganisms

    • activation of soil microbial activity

    • promotion or augmentation of the activities of critical soil enzymes, chelating substances, plant growth hormones, or supplementation of micronutrients (Kinnersley 1993)


Remediation of effects l.jpg

REMEDIATION OF EFFECTS?

  • Foliar Amendments

    • PT-21® - 21% Nitrogen in Urea form

    • Grozyme® - Boron, Cobalt, Copper, Iron, Manganese, Molybdenum, Zinc and “enzyme systems”

  • PT-21® and Grozyme® have been shown to improve soybean growth and production by affecting soil microbial activity(Chen et al. 2003)


Slide14 l.jpg

OBJECTIVES

  • Determine effects of glyphosate on root colonization and soil populations of Fusarium spp. and rhizosphere microbial activity on RR soybean.

  • Determine if foliar amendments can offset the impact of glyphosate on Fusarium spp. populations and microbial activity in the rhizosphere of soybean.

  • Determine effects of foliar amendments on microbial activity in the rhizosphere of RR soybean with and with out glyphosate application.


Hypotheses l.jpg

HYPOTHESES

  • Glyphosate applied to soybean has no effect on rhizosphere microorganisms.

  • There is no interaction between foliar amendments and glyphosate on soybean rhizosphere microorganisms.

  • Glyphosate and foliar amendments do not effect Fusarium spp. populations in the rhizosphere of soybean.


Field experiment l.jpg

FIELD EXPERIMENT

  • DeKalb DKB38-52 (RR®) planted in 76 cm rows on a Mexico silt loam (fine, montmorillonitic, mesic Mollic Endoaqualf) prepared by light tillage with a disk harrow, fertilized and managed consistent to practices common in Missouri.

  • Experimental design - randomized complete block with a split-block arrangement for herbicide application and four replications.


Treatments l.jpg

TREATMENTS

Split Block Treatments

  • Roundup Ultra Max® (0.84 kg a.e.·ha rate-1)

  • Reflex 2LC® (0.42 kg·ha -1) + Select 2EC® (0.175 kg·ha-1) with 1.101 L crop oil concentrate

    Treatments

  • PT-21® - 21% N in Urea form (9.2 kg·ha-1)

  • Grozyme® (Gro) - enzymes, micronutrients (33.5 mL·ha-1)

  • PT-21® (9.2 kg·ha-1) + Grozyme® (33.5 mL·ha-1)

  • Control


Sampling l.jpg

SAMPLING

  • Plant roots and attached soil were collected. Loosely adhering soil on the roots was used for enzyme assays and soil fungi counts. Roots were used for determination of colonization of Fusarium spp.

  • Three samples (roots + soil) per plot were taken 0, 5, 10, 15, 20 and 25 days after glyphosate application and mixed to generate a composite sample.


Analyses l.jpg

ANALYSES

  • Soil dehydrogenase activity - activity of viable microorganisms (Bauer et al. 1991, Casida et al. 1964, and Tabatabai 1994)

  • Soil β-Glucosaminidase - enzymatic indicator of soil enzyme activity, C and N cycling (Parham and Deng 2000)

  • Fusarium spp. rhizosphere and root populations were estimated using Komada medium (Mekwatanakarn, P. and K. Sivasithamparam 1987)

  • Rhizosphere fungal populations were estimated using Martin’s Rose Bengal Agar

  • Soil Respiration - substrate induced CO2 production


Slide20 l.jpg

WEATHER DATA AND RESULTS


Soil fusarium 2002 l.jpg

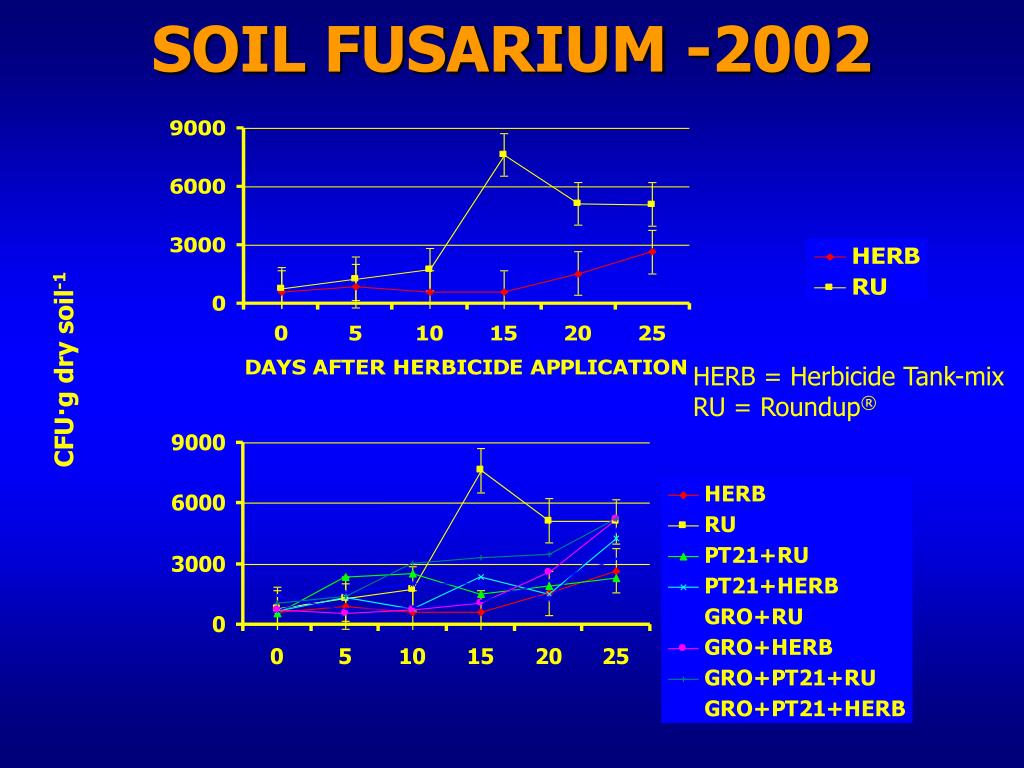

SOIL FUSARIUM -2002

CFU·g dry soil-1

HERB = Herbicide Tank-mix

RU = Roundup®


Root fusarium 2002 l.jpg

ROOT FUSARIUM - 2002

CFU·100cm root -1

Herb = Herbicide Tank-mix

RU = Roundup®


Fusarium colonization on roots day 25 2003 l.jpg

FUSARIUM COLONIZATION ON ROOTS DAY 25 2003

RoundUp®

Tank-mix Herbicide


Slide24 l.jpg

TOTAL SOIL FUNGI - 2002

Herb = Herbicide Tank-mix

RU = Roundup®

CFU·g dry soil -1


Slide25 l.jpg

SOIL FUNGI DAY 25 2003

PT-21® RU®

PT-21® Tank-mix Herbicide


Dehydrogenase activity l.jpg

DEHYDROGENASE ACTIVITY

Herb = Herbicide Tank-mix

RU = Roundup®

TPF · g dry soil -1


Glucosaminidase l.jpg

ß-GLUCOSAMINIDASE

Ρ-nitrophenol·g dry soil-1

Herb = Herbicide Tank-Mix

RU = Roundup®


Slide28 l.jpg

SUBSTRATE INDUCED RESPIRATION

RU=Roundup®

Herb=Herbicide Tank-mix

Carbon Dioxide (ppm)


Preliminary conclusions l.jpg

PRELIMINARY CONCLUSIONS

  • Roundup® application increased soil Fusarium spp. populations and root colonization.

  • PT-21® and Grozyme® reduced Fusarium spp. populations and root colonization associated with Roundup® application.

  • Roundup® application affects enzymatic soil microbial activity.


Future work l.jpg

FUTURE WORK

  • Similar trials with Roundup Ready® corn

  • Greenhouse study focusing on soil moisture interactions with Roundup® application and soil microorganisms


Acknowledgements l.jpg

ACKNOWLEDGEMENTS

  • Dr. Robert Kremer

  • Ag Spectrum

  • USDA Special Grant - SCN

  • Soil Microbiology Lab at the University of Missouri - Heidi, Atim, Michael, Sara

  • Tim Reinbott and Staff at Bradford Farm
