  1. itec 400User AdministrationUnix System Directories George Vaughan Franklin University

  2. Topics • User Administration • The password file • The shadow password file • The group file • Adding Users • Disabling Users • Removing Users • Unix/Linux System Directories

  3. User Administration • The Pieces: • /etc/passwd • /etc/shadow • /etc/group • The Function: • Username Policy • Password Policy • Group Membership Policy • User related commands

  4. The Password file • Located in /etc/passwd. • Serves as the user database for the system. • Information in /etc/passwd is useful for applications. Readable by all. • Historically, /etc/passwd contained user’s password in encrypted form. • Today, encrypted passwords readable by all is too dangerous. • Today, passwords are stored in /etc/shadow. Readable only by root.

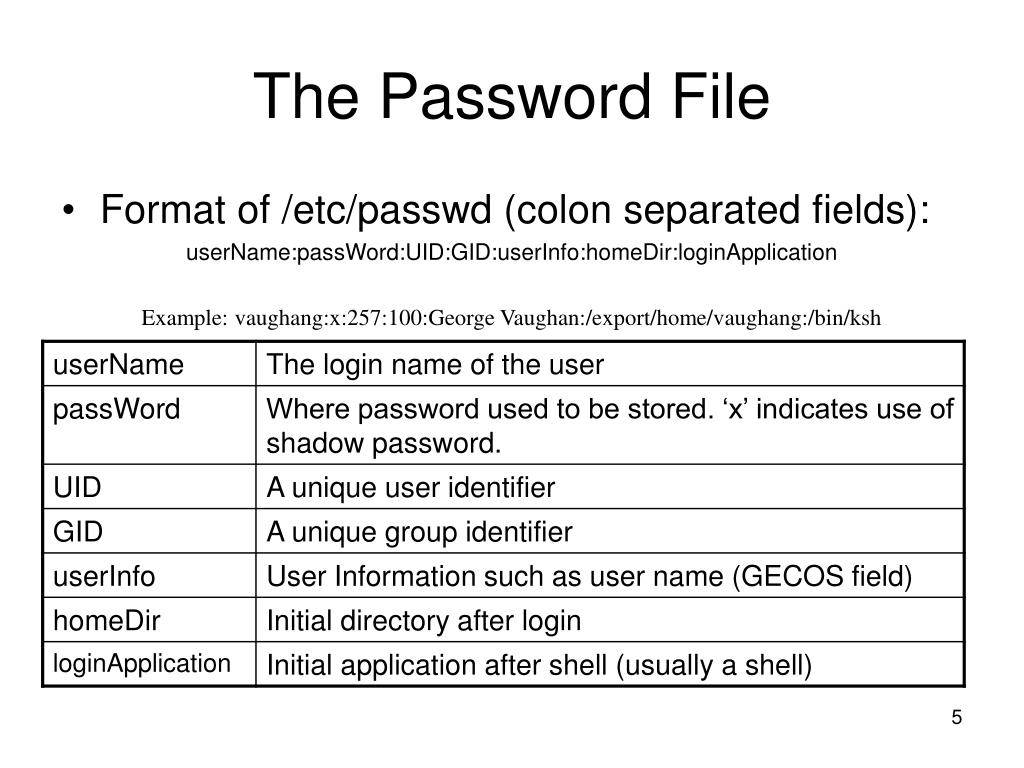

  5. The Password File • Format of /etc/passwd (colon separated fields): userName:passWord:UID:GID:userInfo:homeDir:loginApplication Example: vaughang:x:257:100:George Vaughan:/export/home/vaughang:/bin/ksh

  6. The Password File • User Name: • Often generated by a script • Often limited to 8 characters • RedHat: 32 char – any char except newline and colon • Password: • ‘x’ indicates use of /etc/shadow • ‘*’ indicates account is disabled. • Standard limit, 8 chars, unencrypted • Redhat limit, arbitrary length, unencrypted • Never leave this field empty. • UID • A unique user identifier • unsigned 32 bit Integer • root has UID 0 • Most systems: UID < 100: system accounts, UID >= 100: user accounts • Redhat: UID < 500: system accounts, UID >= 500: user accounts

  7. The Password File • GID • A unique group identifier • unsigned 32 bit Integer • 0 for group root, 1 for bin, 2 for daemon • Most systems: UID < 100: system groups, UID >= 100: user groups • Redhat: UID < 500: system groups, UID >= 500: user groups • User Info: • usually user name • can support up to 5 comma-separated subfields used by “finger” command. • GECOS field. Originally used at Bell Labs to store user info for rje to a GE mainframe • Home Directory • Initial directory after login • Login Application • Usually a shell. • /etc/shells contains a list of valid shells on system - user cannot change shell to something not in /etc/shells. • Can be any application - does not have to be in /etc/shells.

  8. The Password File • A simple ASCII file. • Can be edited with standard editor • ‘vipw’ (vi the password file) • allows only one editing session at a time • minimizes corruption due to pilot error or abnormal terminations.

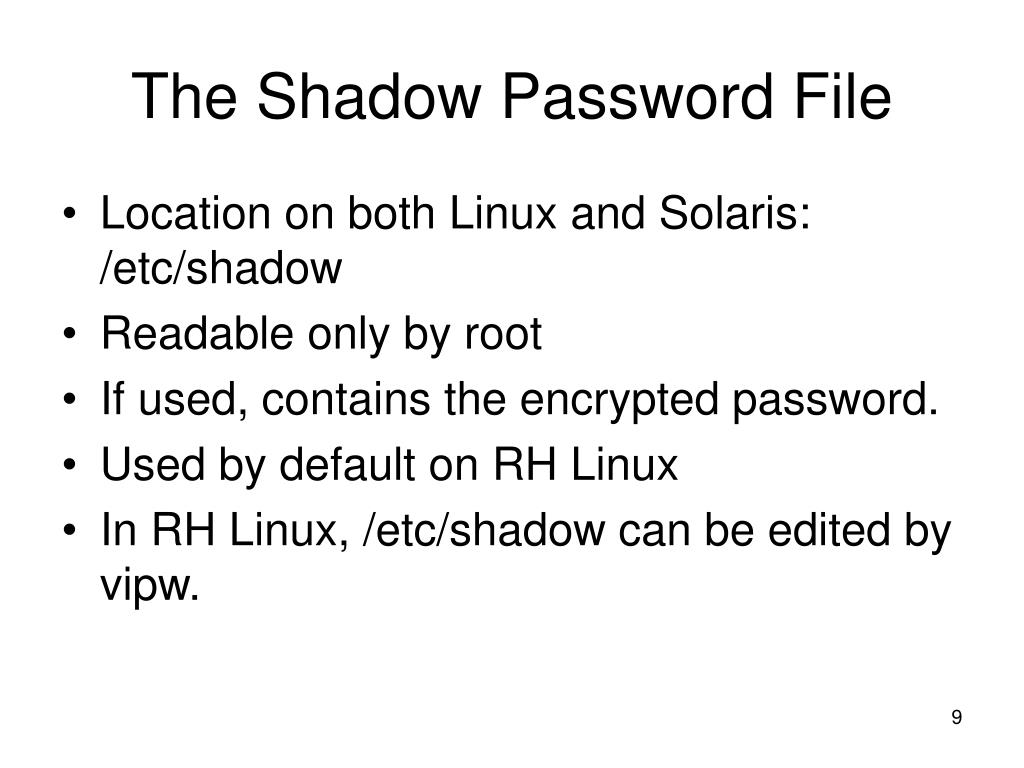

  9. The Shadow Password File • Location on both Linux and Solaris: /etc/shadow • Readable only by root • If used, contains the encrypted password. • Used by default on RH Linux • In RH Linux, /etc/shadow can be edited by vipw.

  10. The Shadow Password File • Format of /etc/shadow (colon separated fields): userName:passWord:changedDate:minLife:maxLife:warn:disable:expireDate:unused example: gvaughan:$1$ItpbrZB2$2g/qNx0DhRmnoXbpA1EQJ/:12198:0:99999:7:::

  11. Encrypted Passwords • Encrypted Passwords: • DES (13 characters in encrypted form) • MD5 (34 characters in encrypted form) • Most Linux distributions support MD5. • MD5 is the default in Redhat • MD5 passwords always begin with “$1$”

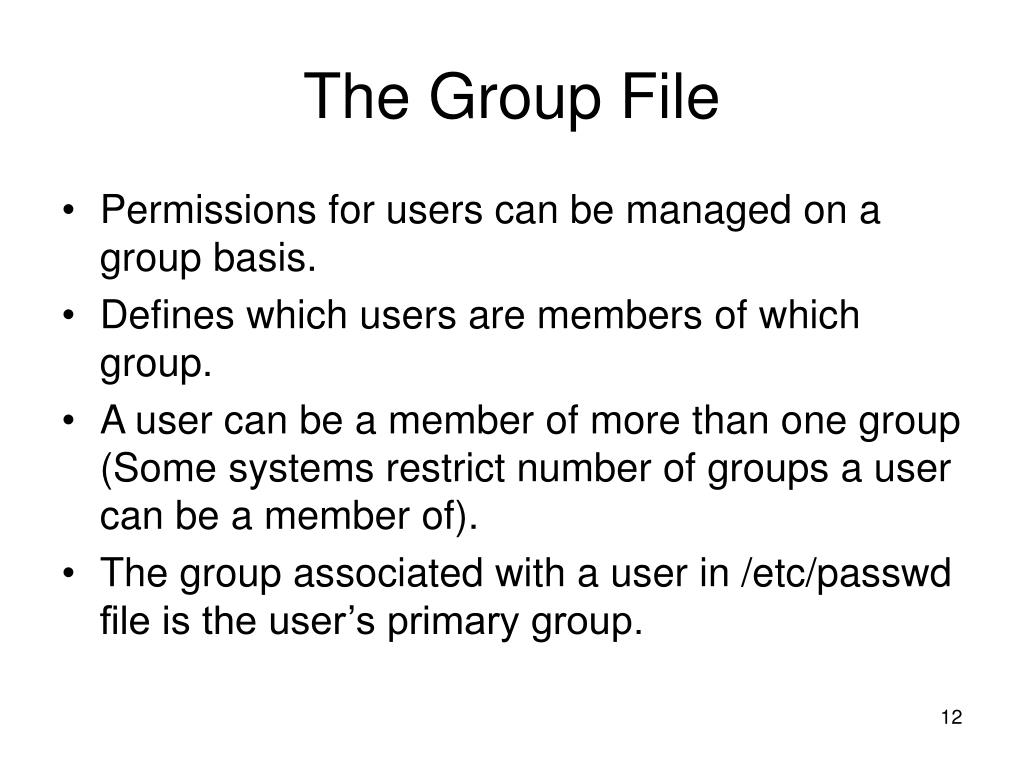

  12. The Group File • Permissions for users can be managed on a group basis. • Defines which users are members of which group. • A user can be a member of more than one group (Some systems restrict number of groups a user can be a member of). • The group associated with a user in /etc/passwd file is the user’s primary group.

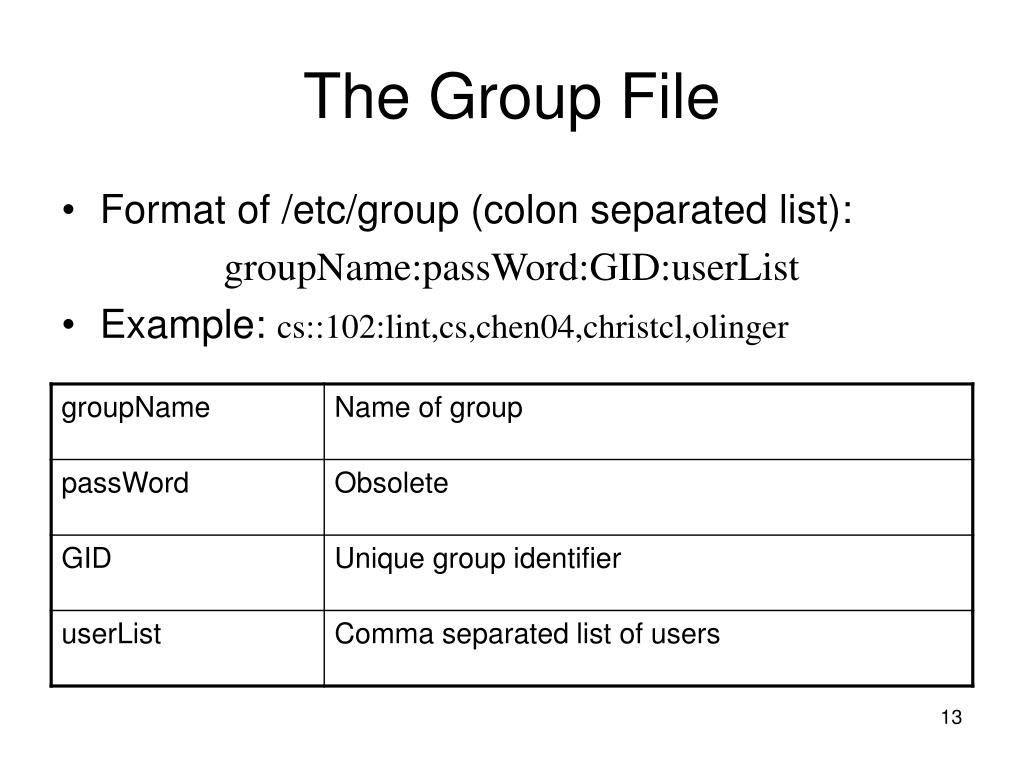

  13. The Group File • Format of /etc/group (colon separated list): groupName:passWord:GID:userList • Example: cs::102:lint,cs,chen04,christcl,olinger

  14. The Group File • Group Name: on many systems, restricted to 8 char. • Password: • Obsolete, still used in Linux. • Often contains an ‘x’ or nothing. • If field has ‘*’, means group is disabled. • GID • A unique group identifier • unsigned 32 bit Integer • 0 for group root, 1 for bin, 2 for daemon • Most systems: UID < 100: system groups, UID >= 100: user groups • Redhat: UID < 500: system groups, UID >= 500: user groups • User List: comma separated, no spaces

  15. The Group File • If a user is defined as a member of a group in /etc/passwd but not in /etc/group, the file /etc/passwd takes precedence. • On Linux, the file /etc/group can be edited with vigr • Linux supports a shadow group file. • Its location is /etc/gshadow • It is used to store group passwords.

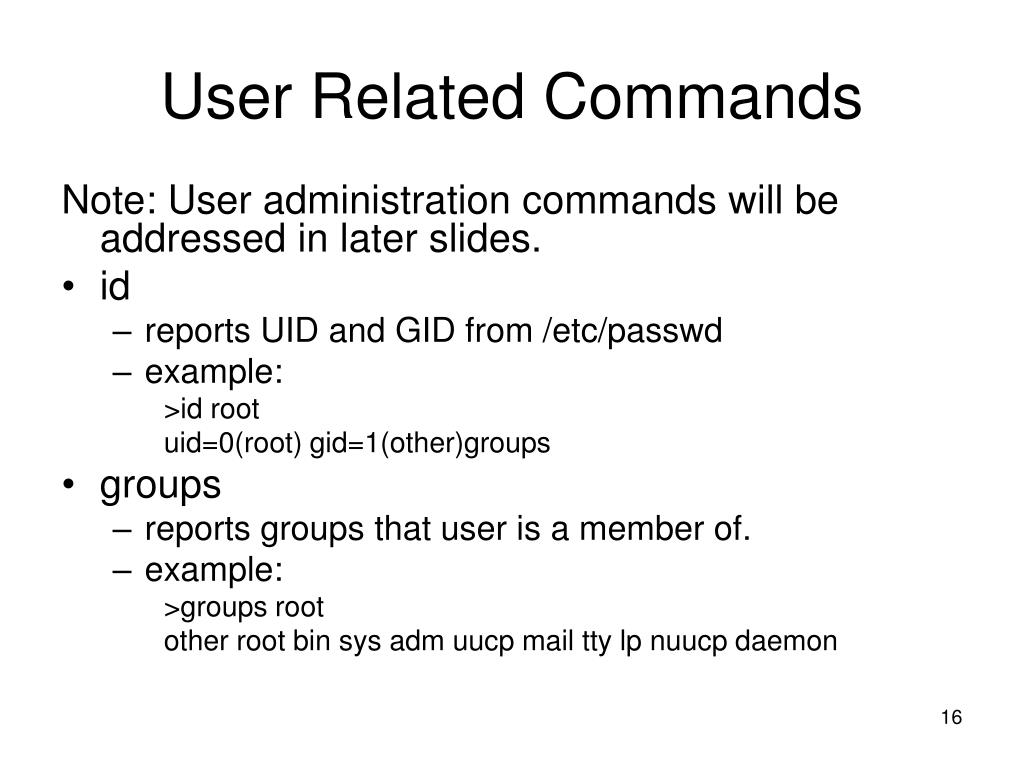

  16. User Related Commands Note: User administration commands will be addressed in later slides. • id • reports UID and GID from /etc/passwd • example: >id root uid=0(root) gid=1(other)groups • groups • reports groups that user is a member of. • example: >groups root other root bin sys adm uucp mail tty lp nuucp daemon

  17. User Related Commands • newgrp • Logs user into new group (that user is a member of) • Example: >groups faculty wheel >touch trash1 >newgrp wheel >touch trash2 >ls –l -rw-rw-r-- 1 vaughang faculty … trash1 -rw-rw-r-- 1 vaughang wheel … trash2

  18. User Related Commands • finger • displays information about a user • example: >finger vaughang Login name: vaughang In real life: George Vaughan Directory: /export/home/vaughang Shell: /bin/ksh On since Feb 17 15:48:34 on pts/7 from dhcp9544228.inet.com 13 seconds Idle Time

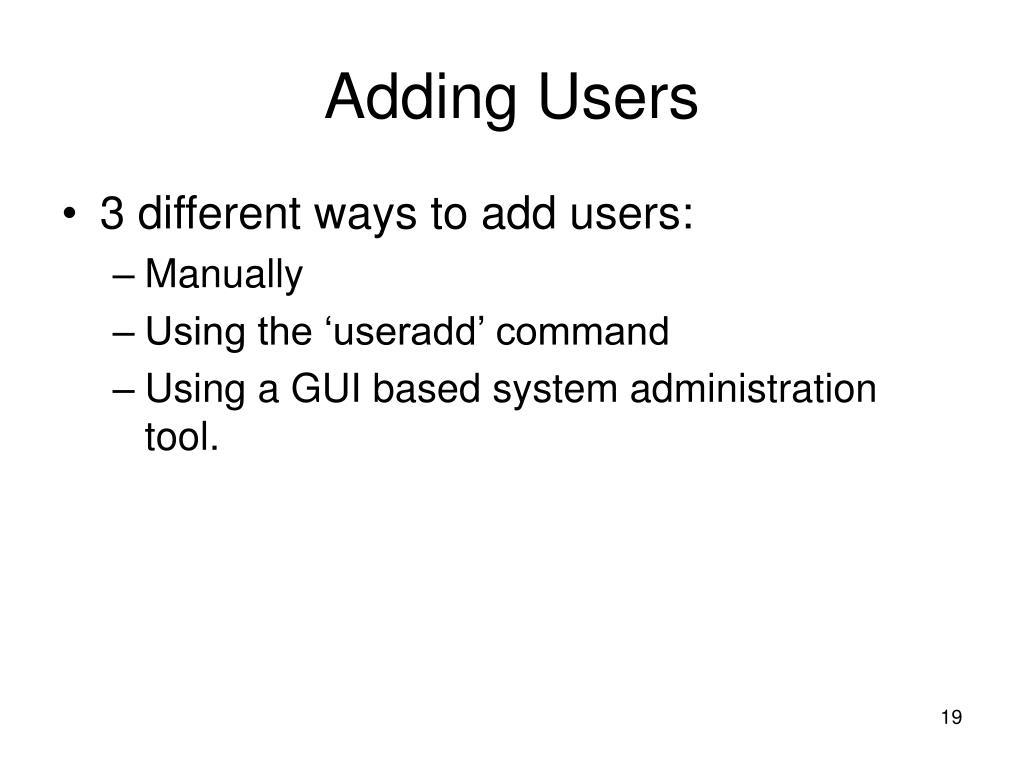

  19. Adding Users • 3 different ways to add users: • Manually • Using the ‘useradd’ command • Using a GUI based system administration tool.

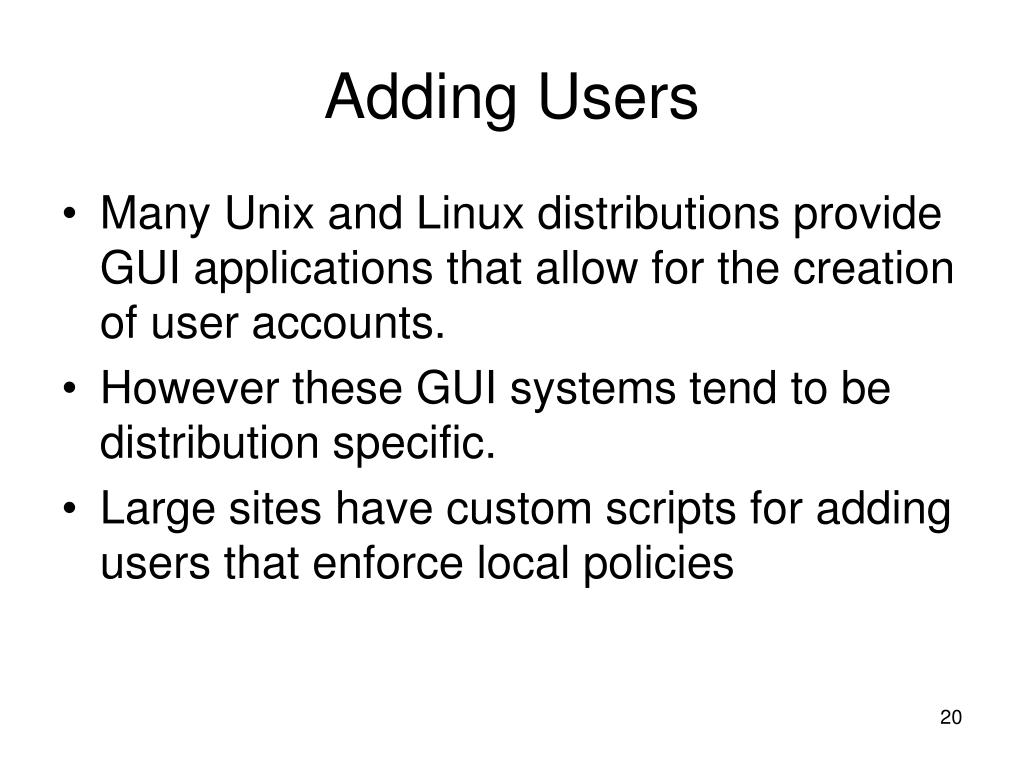

  20. Adding Users • Many Unix and Linux distributions provide GUI applications that allow for the creation of user accounts. • However these GUI systems tend to be distribution specific. • Large sites have custom scripts for adding users that enforce local policies

  21. Adding Users • It is good to know how to add users manually: • Useful if problems occur with GUI apps • Useful for writing scripts with site specific policies. • Useful for understanding how user management works at the O.S. level. • Lecture will focus on adding users manually. • Book has good description of GUI apps for adding users.

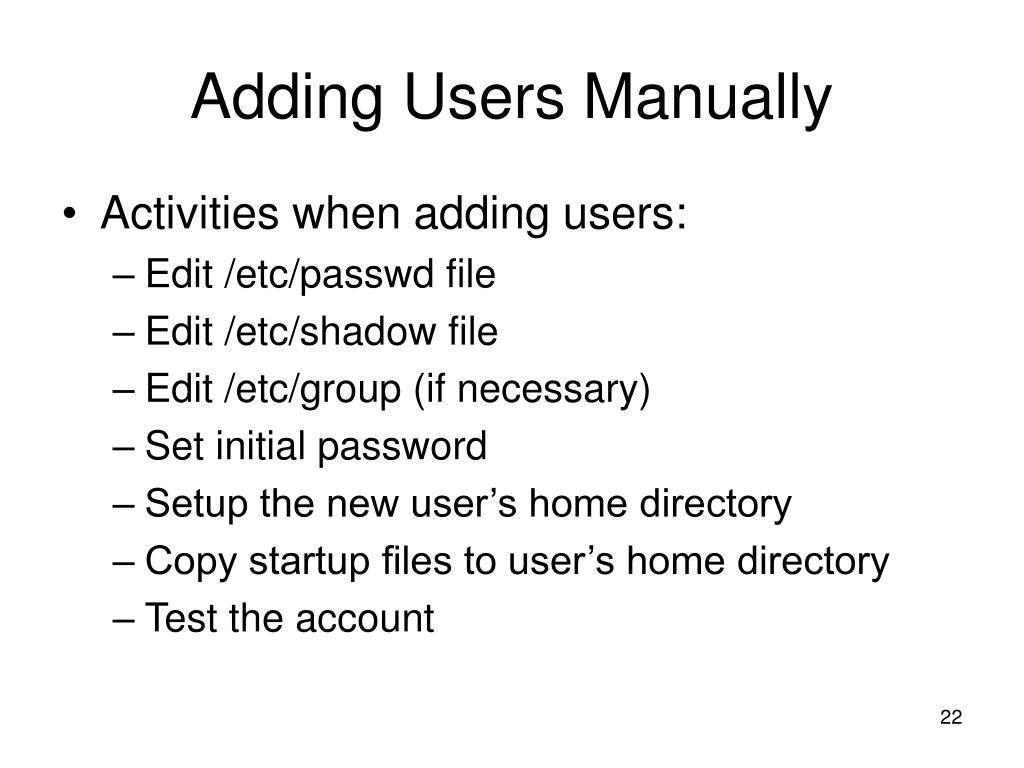

  22. Adding Users Manually • Activities when adding users: • Edit /etc/passwd file • Edit /etc/shadow file • Edit /etc/group (if necessary) • Set initial password • Setup the new user’s home directory • Copy startup files to user’s home directory • Test the account

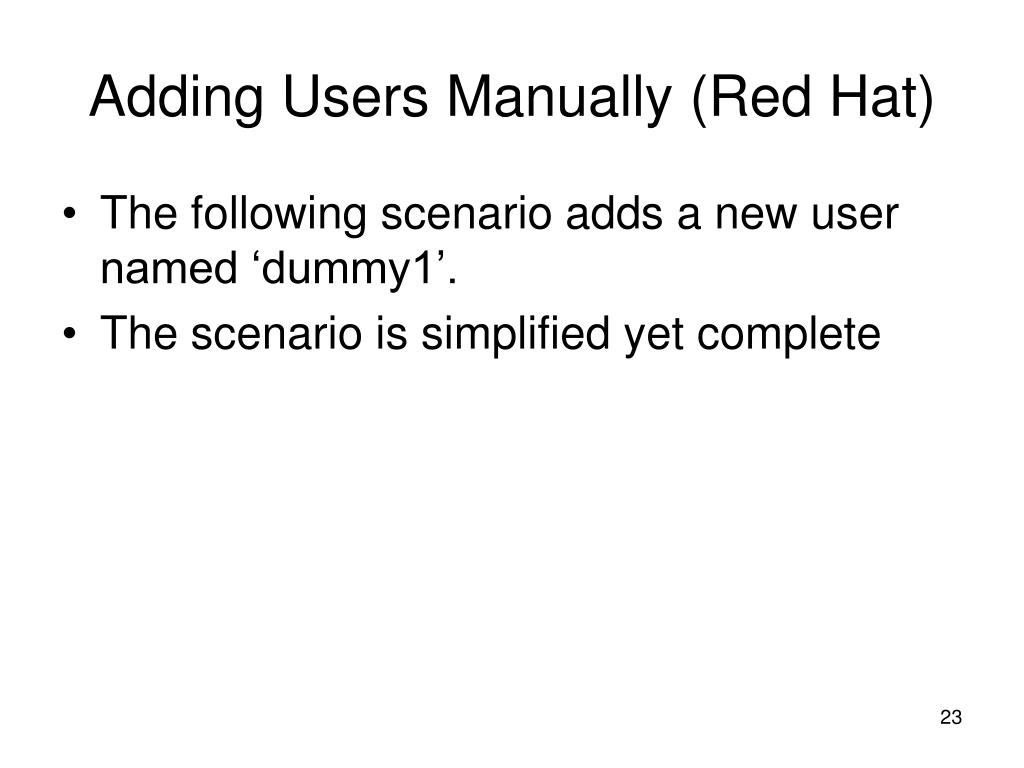

  23. Adding Users Manually (Red Hat) • The following scenario adds a new user named ‘dummy1’. • The scenario is simplified yet complete

  24. Adding Users Manually (Red Hat) • Edit /etc/passwd • Use ‘vipw’ for safety dummy1:x:502:502:Mr. Dummy:/home/dummy1:/bin/bash • Edit /etc/shadow • Continue using ‘vipw’ Would you like to edit /etc/shadow now [y/n]? y dummy1:*:0:0:30:7:::

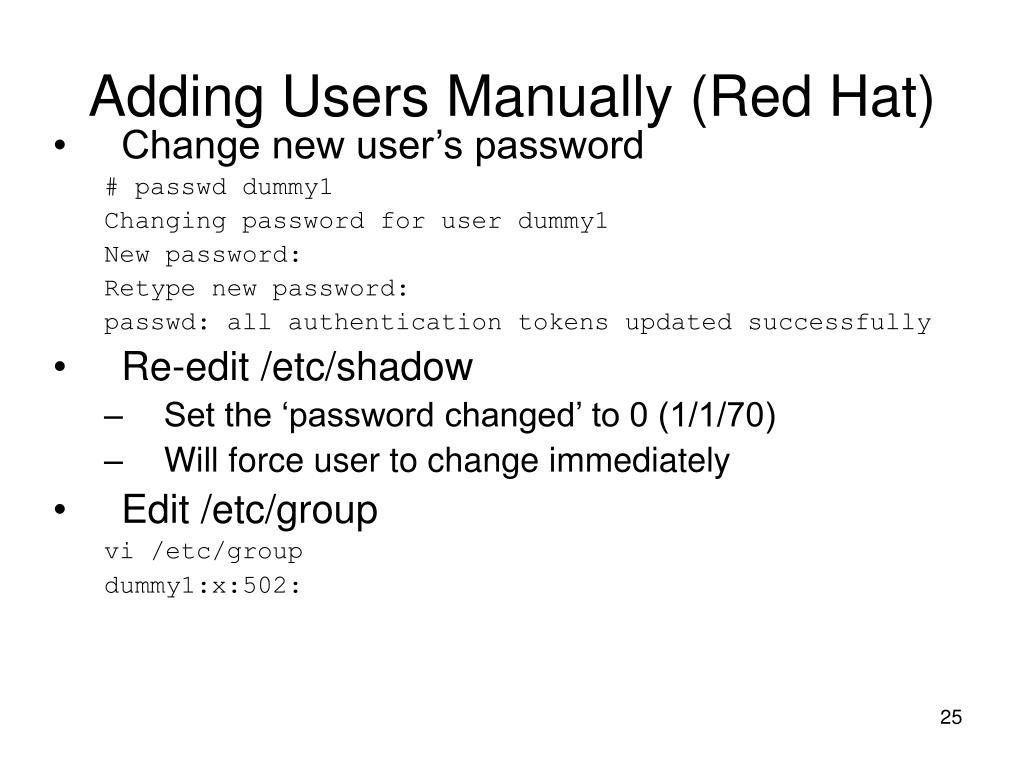

  25. Adding Users Manually (Red Hat) • Change new user’s password # passwd dummy1 Changing password for user dummy1 New password: Retype new password: passwd: all authentication tokens updated successfully • Re-edit /etc/shadow • Set the ‘password changed’ to 0 (1/1/70) • Will force user to change immediately • Edit /etc/group vi /etc/group dummy1:x:502:

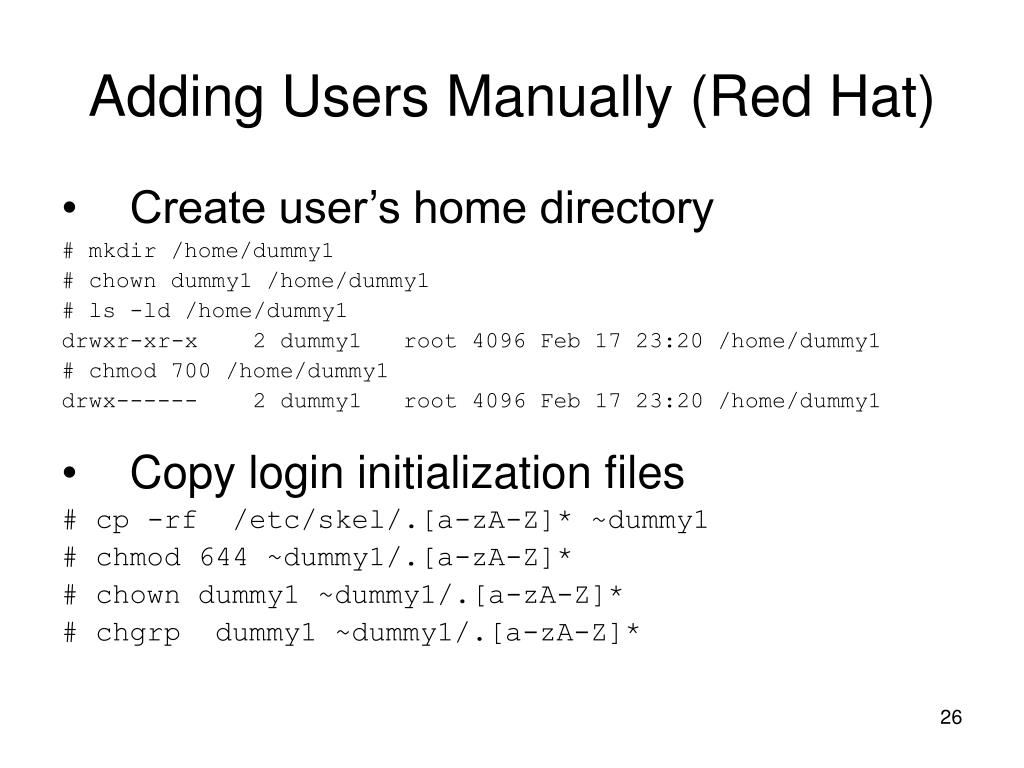

  26. Adding Users Manually (Red Hat) • Create user’s home directory # mkdir /home/dummy1 # chown dummy1 /home/dummy1 # ls -ld /home/dummy1 drwxr-xr-x 2 dummy1 root 4096 Feb 17 23:20 /home/dummy1 # chmod 700 /home/dummy1 drwx------ 2 dummy1 root 4096 Feb 17 23:20 /home/dummy1 • Copy login initialization files # cp -rf /etc/skel/.[a-zA-Z]* ~dummy1 # chmod 644 ~dummy1/.[a-zA-Z]* # chown dummy1 ~dummy1/.[a-zA-Z]* # chgrp dummy1 ~dummy1/.[a-zA-Z]*

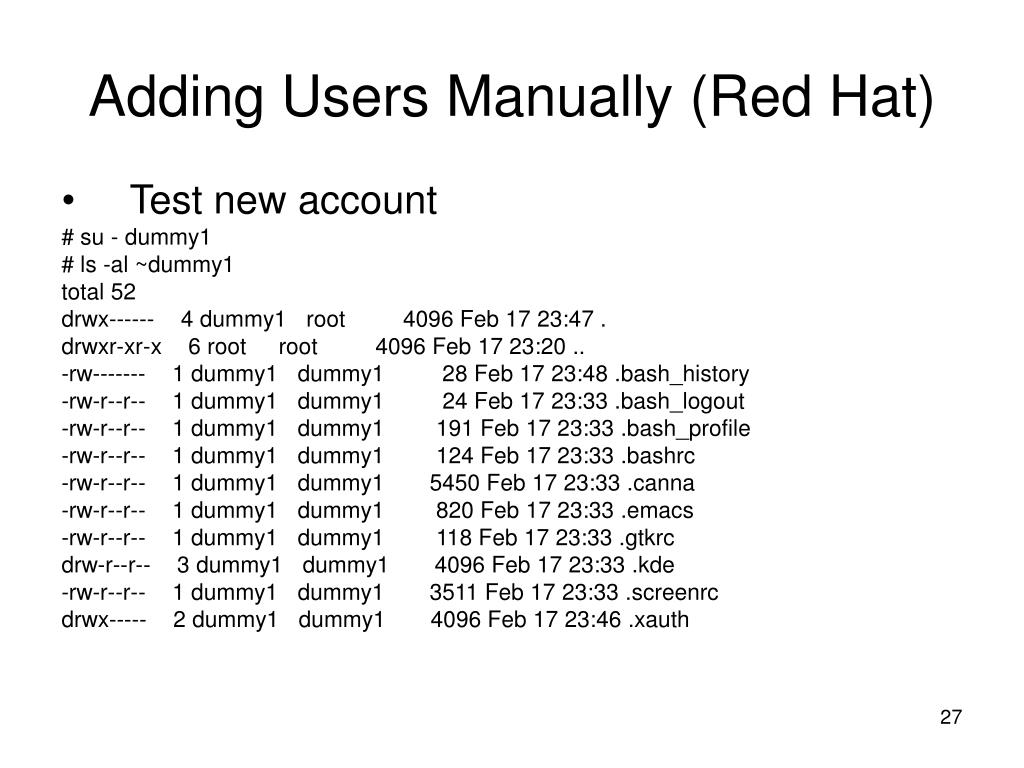

  27. Adding Users Manually (Red Hat) • Test new account # su - dummy1 # ls -al ~dummy1 total 52 drwx------ 4 dummy1 root 4096 Feb 17 23:47 . drwxr-xr-x 6 root root 4096 Feb 17 23:20 .. -rw------- 1 dummy1 dummy1 28 Feb 17 23:48 .bash_history -rw-r--r-- 1 dummy1 dummy1 24 Feb 17 23:33 .bash_logout -rw-r--r-- 1 dummy1 dummy1 191 Feb 17 23:33 .bash_profile -rw-r--r-- 1 dummy1 dummy1 124 Feb 17 23:33 .bashrc -rw-r--r-- 1 dummy1 dummy1 5450 Feb 17 23:33 .canna -rw-r--r-- 1 dummy1 dummy1 820 Feb 17 23:33 .emacs -rw-r--r-- 1 dummy1 dummy1 118 Feb 17 23:33 .gtkrc drw-r--r-- 3 dummy1 dummy1 4096 Feb 17 23:33 .kde -rw-r--r-- 1 dummy1 dummy1 3511 Feb 17 23:33 .screenrc drwx----- 2 dummy1 dummy1 4096 Feb 17 23:46 .xauth

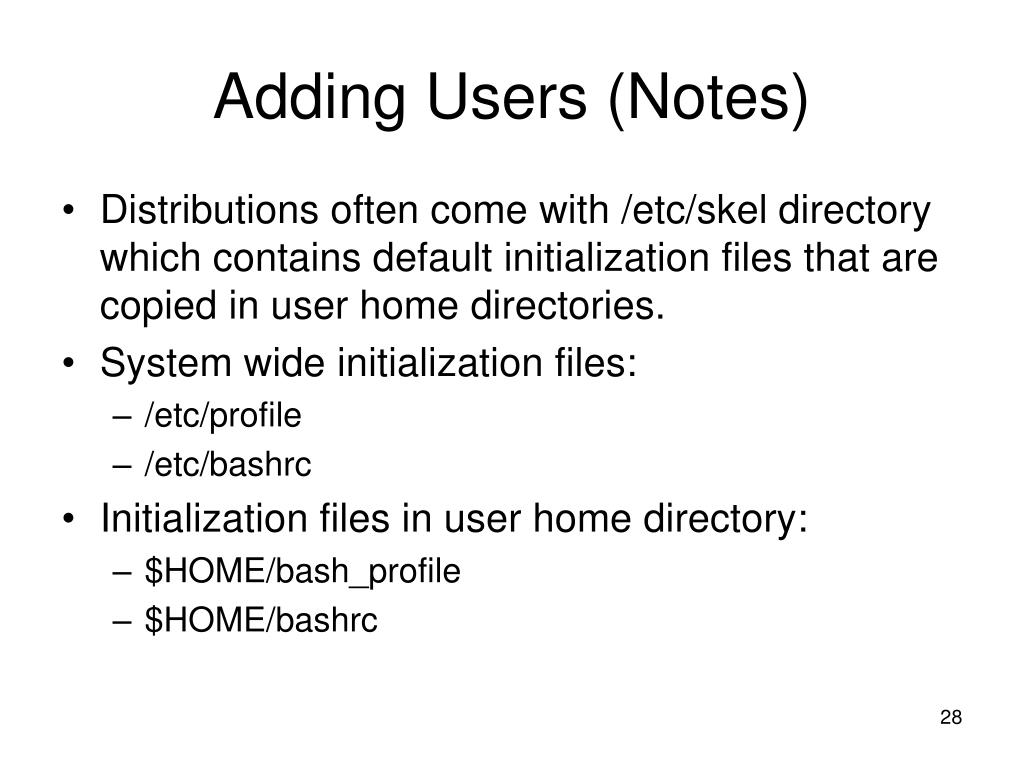

  28. Adding Users (Notes) • Distributions often come with /etc/skel directory which contains default initialization files that are copied in user home directories. • System wide initialization files: • /etc/profile • /etc/bashrc • Initialization files in user home directory: • $HOME/bash_profile • $HOME/bashrc

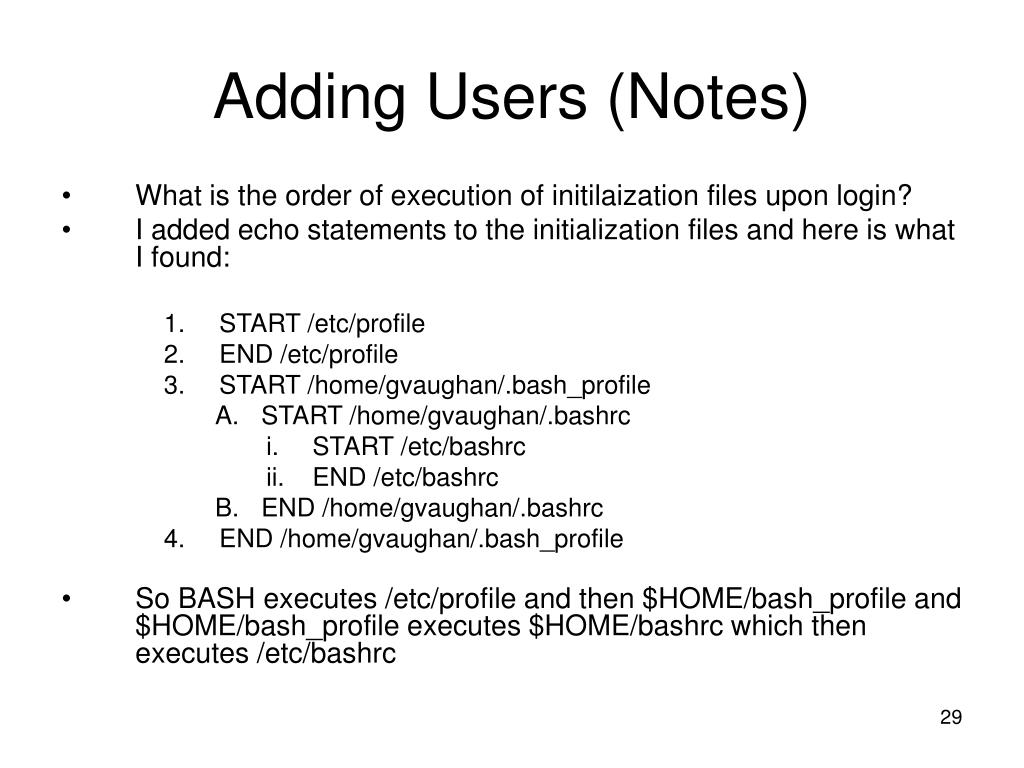

  29. Adding Users (Notes) • What is the order of execution of initilaization files upon login? • I added echo statements to the initialization files and here is what I found: • START /etc/profile • END /etc/profile • START /home/gvaughan/.bash_profile • START /home/gvaughan/.bashrc • START /etc/bashrc • END /etc/bashrc • END /home/gvaughan/.bashrc • END /home/gvaughan/.bash_profile • So BASH executes /etc/profile and then $HOME/bash_profile and $HOME/bash_profile executes $HOME/bashrc which then executes /etc/bashrc

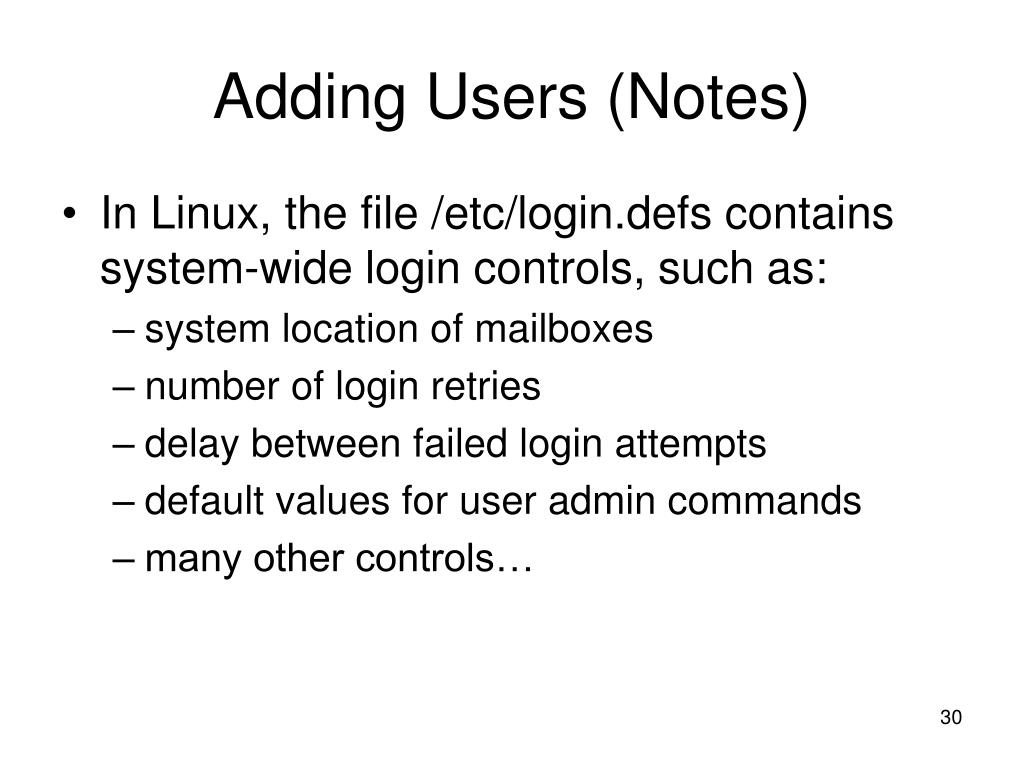

  30. Adding Users (Notes) • In Linux, the file /etc/login.defs contains system-wide login controls, such as: • system location of mailboxes • number of login retries • delay between failed login attempts • default values for user admin commands • many other controls…

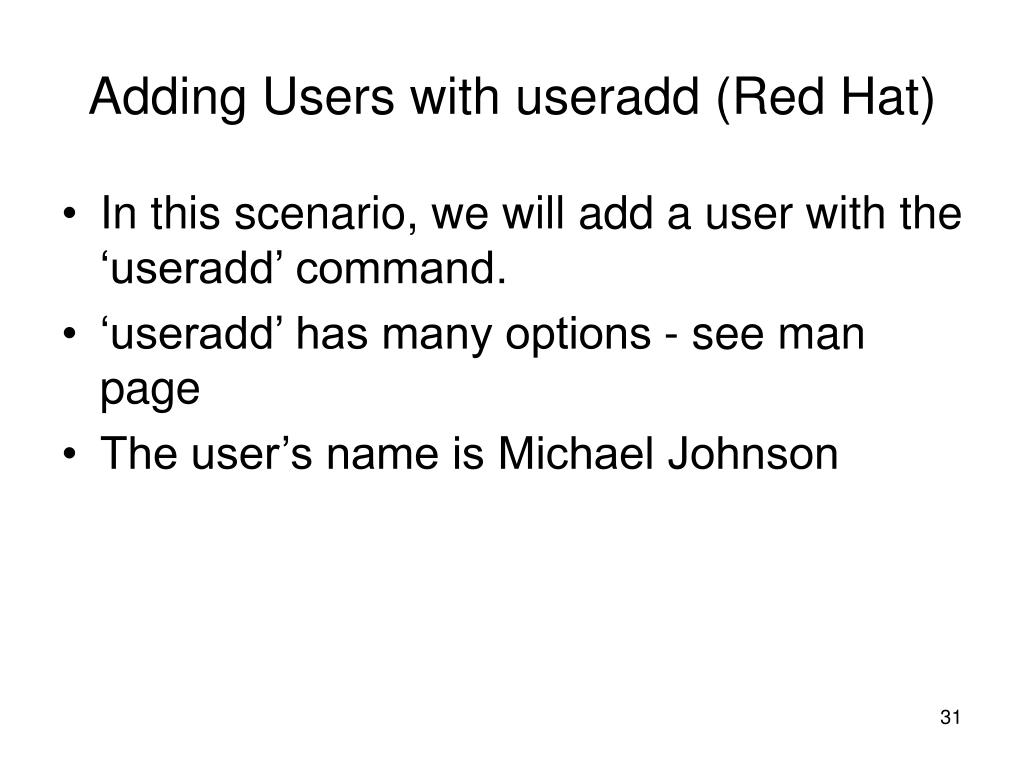

  31. Adding Users with useradd (Red Hat) • In this scenario, we will add a user with the ‘useradd’ command. • ‘useradd’ has many options - see man page • The user’s name is Michael Johnson

  32. Adding Users with useradd (Red Hat) • Find out the default settings for useradd useradd -DGROUP=100HOME=/homeINACTIVE=-1EXPIRE=SHELL=/bin/bashSKEL=/etc/skel

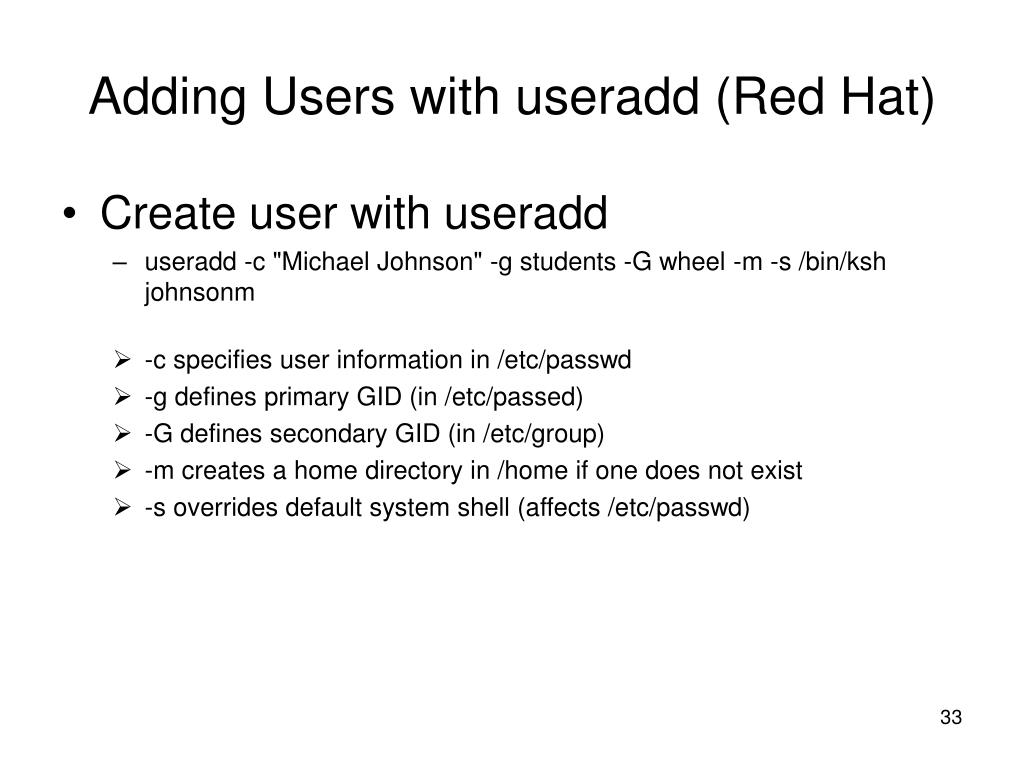

  33. Adding Users with useradd (Red Hat) • Create user with useradd • useradd -c "Michael Johnson" -g students -G wheel -m -s /bin/ksh johnsonm • -c specifies user information in /etc/passwd • -g defines primary GID (in /etc/passed) • -G defines secondary GID (in /etc/group) • -m creates a home directory in /home if one does not exist • -s overrides default system shell (affects /etc/passwd)

  34. Adding Users with useradd (Red Hat) • Check contents of /etc/passwd, /etc/shadow and /etc/group: # tail /etc/passwdjohnsonm:x:503:200:Michael Johnson:/home/johnsonm:/bin/ksh • Notice in /etc/passwd: • useradd uses next available UID • primary GID is students (see /etc/group below) • home directory is /home/johnsonm • default shell is ksh

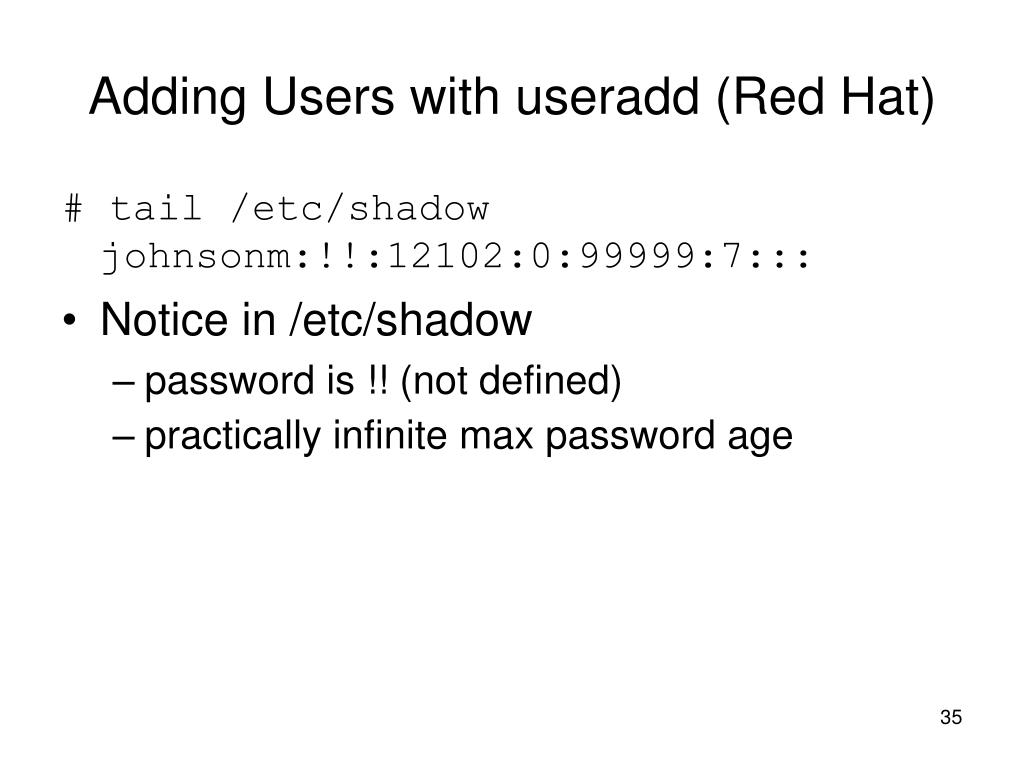

  35. Adding Users with useradd (Red Hat) # tail /etc/shadowjohnsonm:!!:12102:0:99999:7::: • Notice in /etc/shadow • password is !! (not defined) • practically infinite max password age

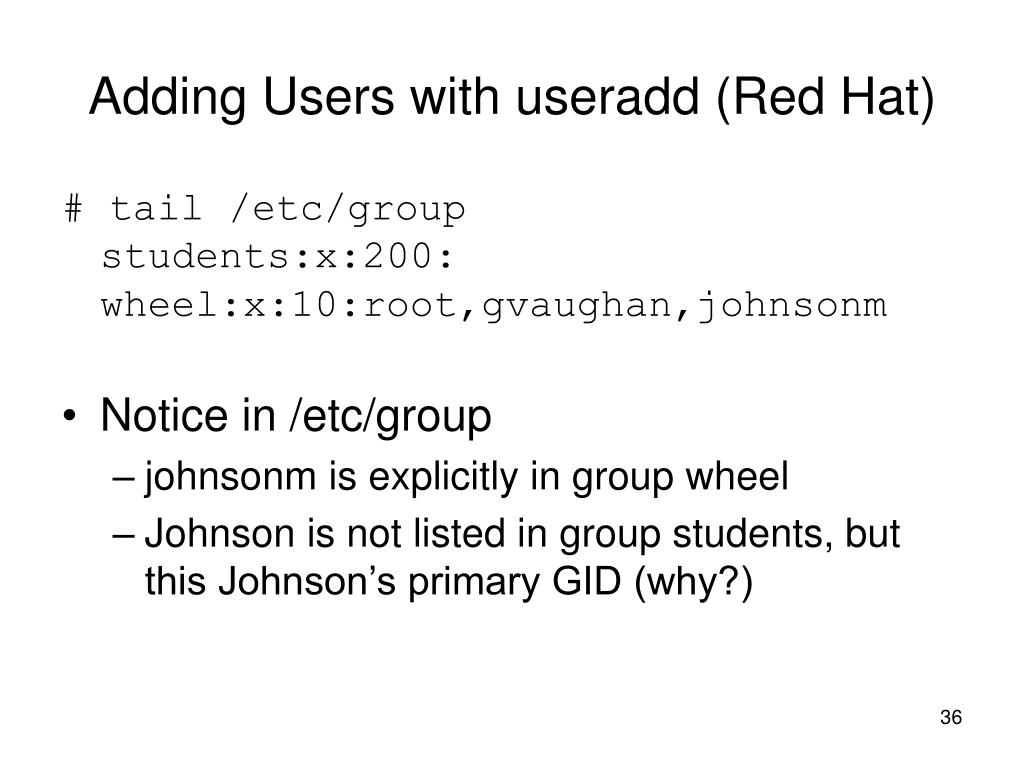

  36. Adding Users with useradd (Red Hat) # tail /etc/groupstudents:x:200:wheel:x:10:root,gvaughan,johnsonm • Notice in /etc/group • johnsonm is explicitly in group wheel • Johnson is not listed in group students, but this Johnson’s primary GID (why?)

  37. Adding Users with useradd (Red Hat) • Change password on johnsonm: # passwd johnsonmChanging password for user johnsonmNew password:Retype new password:passwd: all authentication tokens updated successfully • Test user account: # su - johnsonm$ pwd/home/johnsonm$ ls -altotal 48drwx------ 4 johnsonm students 4096 Feb 18 23:02 .drwxr-xr-x 7 root root 4096 Feb 18 22:58 ..-rw-r--r-- 1 johnsonm students 24 Feb 18 22:58 .bash_logout

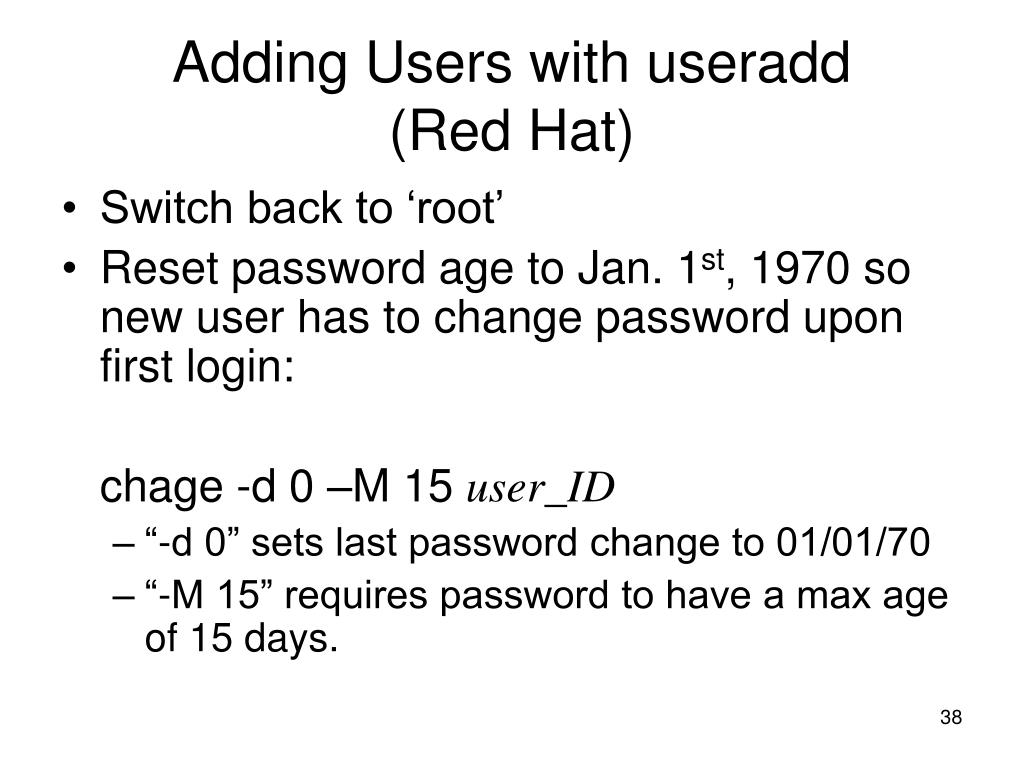

  38. Adding Users with useradd (Red Hat) • Switch back to ‘root’ • Reset password age to Jan. 1st, 1970 so new user has to change password upon first login: chage -d 0 –M 15 user_ID • “-d 0” sets last password change to 01/01/70 • “-M 15” requires password to have a max age of 15 days.

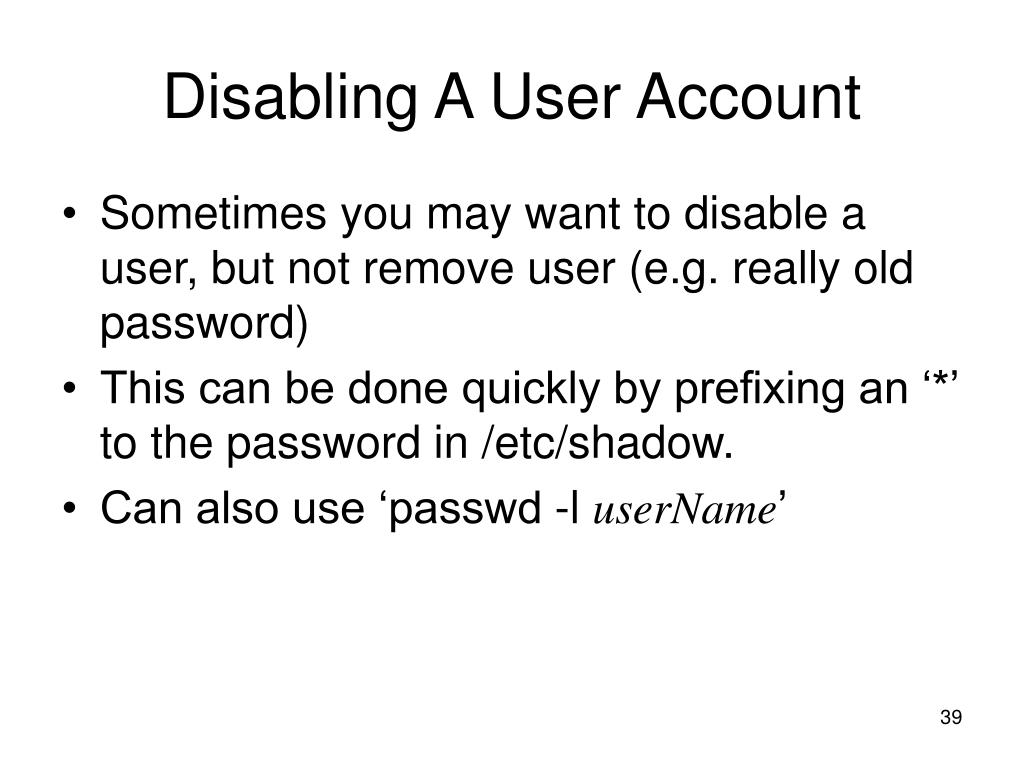

  39. Disabling A User Account • Sometimes you may want to disable a user, but not remove user (e.g. really old password) • This can be done quickly by prefixing an ‘*’ to the password in /etc/shadow. • Can also use ‘passwd -l userName’

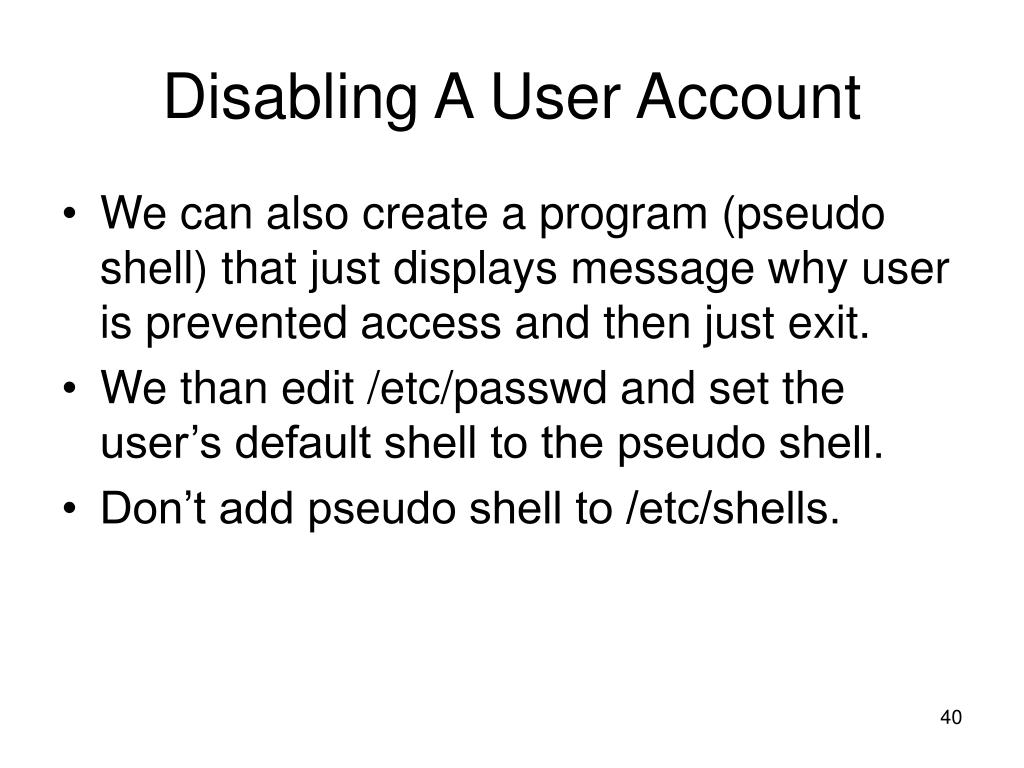

  40. Disabling A User Account • We can also create a program (pseudo shell) that just displays message why user is prevented access and then just exit. • We than edit /etc/passwd and set the user’s default shell to the pseudo shell. • Don’t add pseudo shell to /etc/shells.

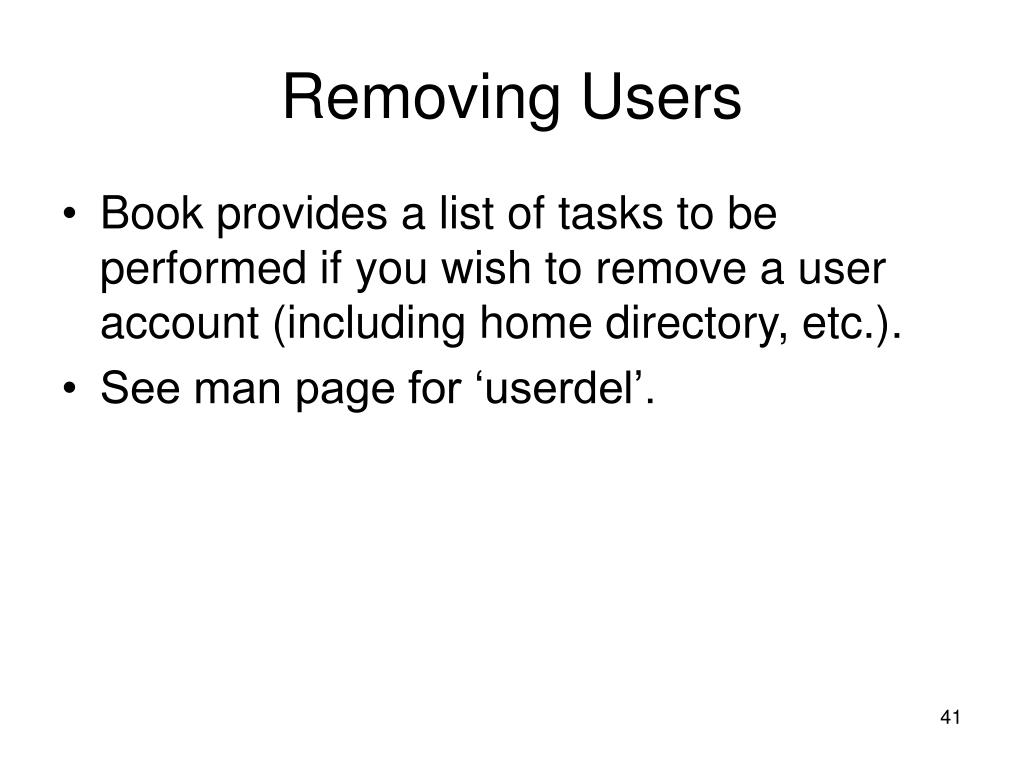

  41. Removing Users • Book provides a list of tasks to be performed if you wish to remove a user account (including home directory, etc.). • See man page for ‘userdel’.

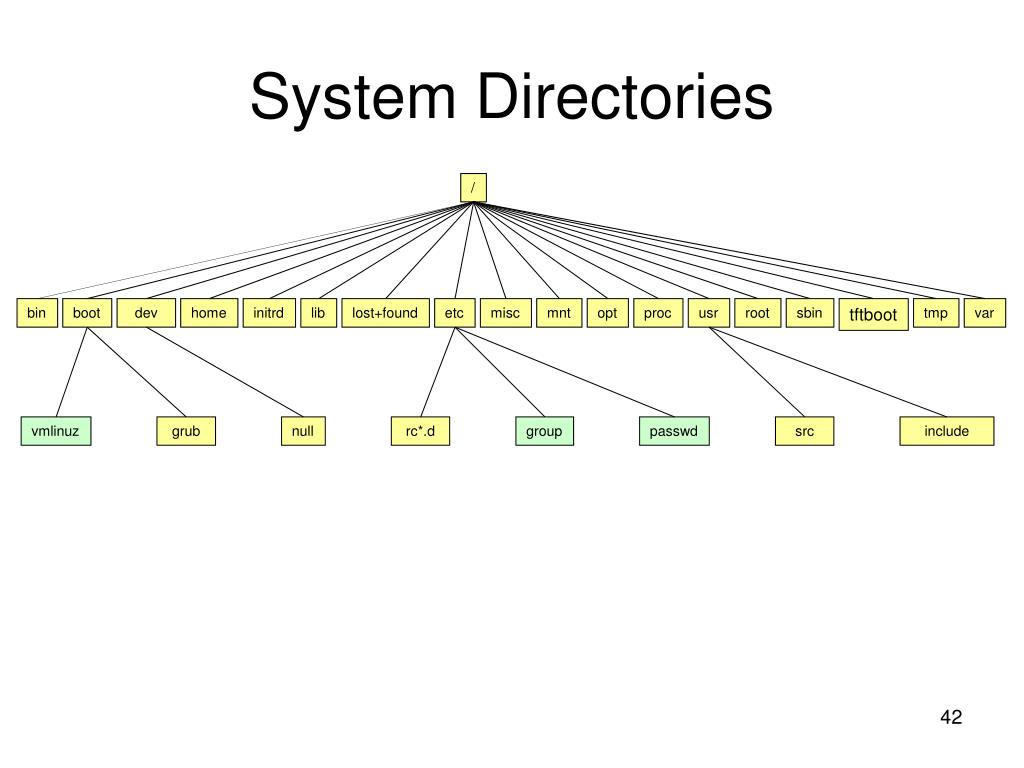

  42. System Directories / bin boot dev home initrd lib lost+found etc misc mnt opt proc usr root sbin tftboot tmp var vmlinuz grub null rc*.d group passwd src include

  43. /bin • Contains executables for basic commands • Examples of commands in /bin: awk, bash, cat, chmod, cp, date, echo, grep, kill, ls, ps, pwd, … • If you create a useful shell or perl script that others would find useful, this is a good location for the script • Don’t replace or change existing system commands in this directory – unless upgrading O.S.

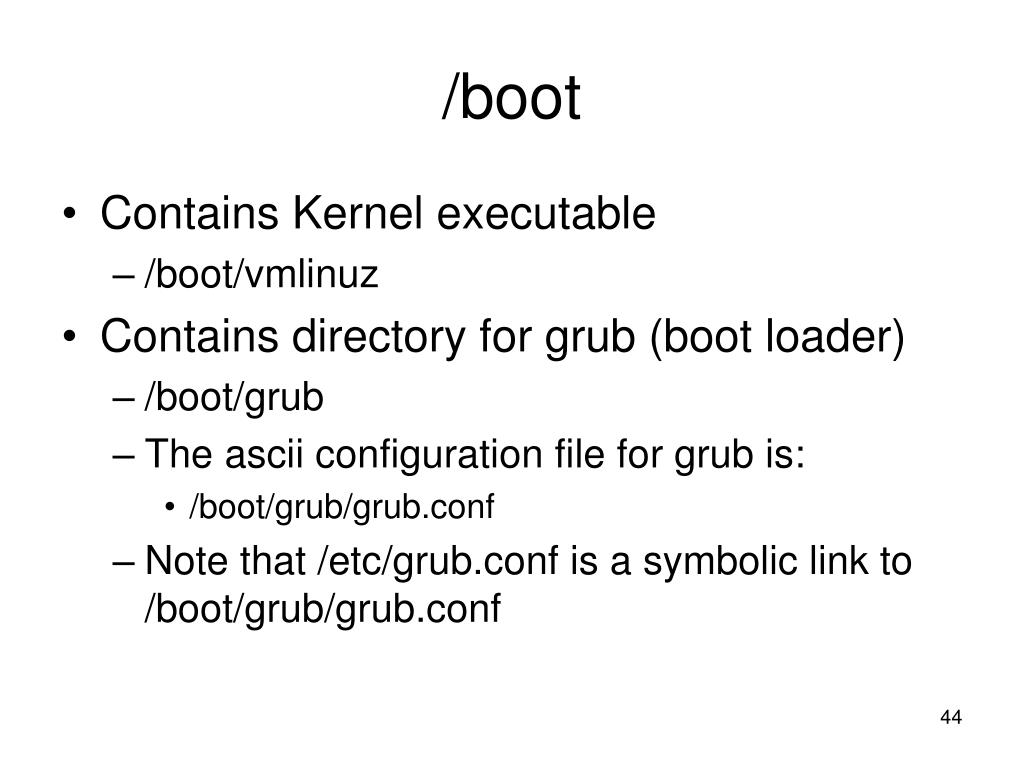

  44. /boot • Contains Kernel executable • /boot/vmlinuz • Contains directory for grub (boot loader) • /boot/grub • The ascii configuration file for grub is: • /boot/grub/grub.conf • Note that /etc/grub.conf is a symbolic link to /boot/grub/grub.conf

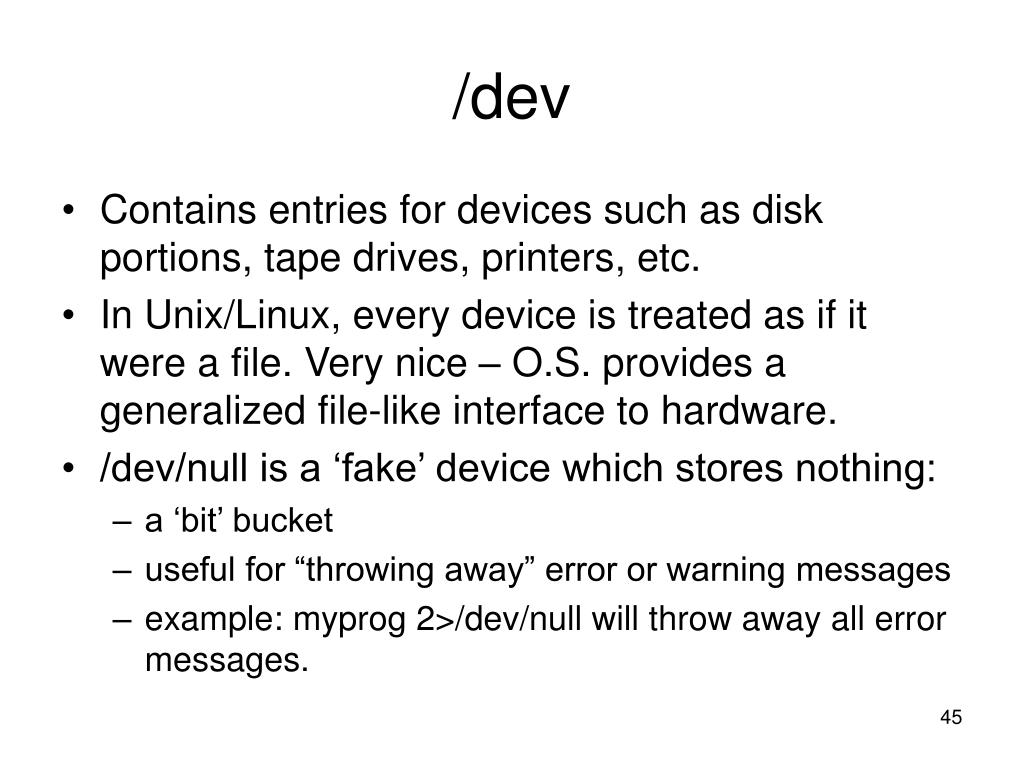

  45. /dev • Contains entries for devices such as disk portions, tape drives, printers, etc. • In Unix/Linux, every device is treated as if it were a file. Very nice – O.S. provides a generalized file-like interface to hardware. • /dev/null is a ‘fake’ device which stores nothing: • a ‘bit’ bucket • useful for “throwing away” error or warning messages • example: myprog 2>/dev/null will throw away all error messages.

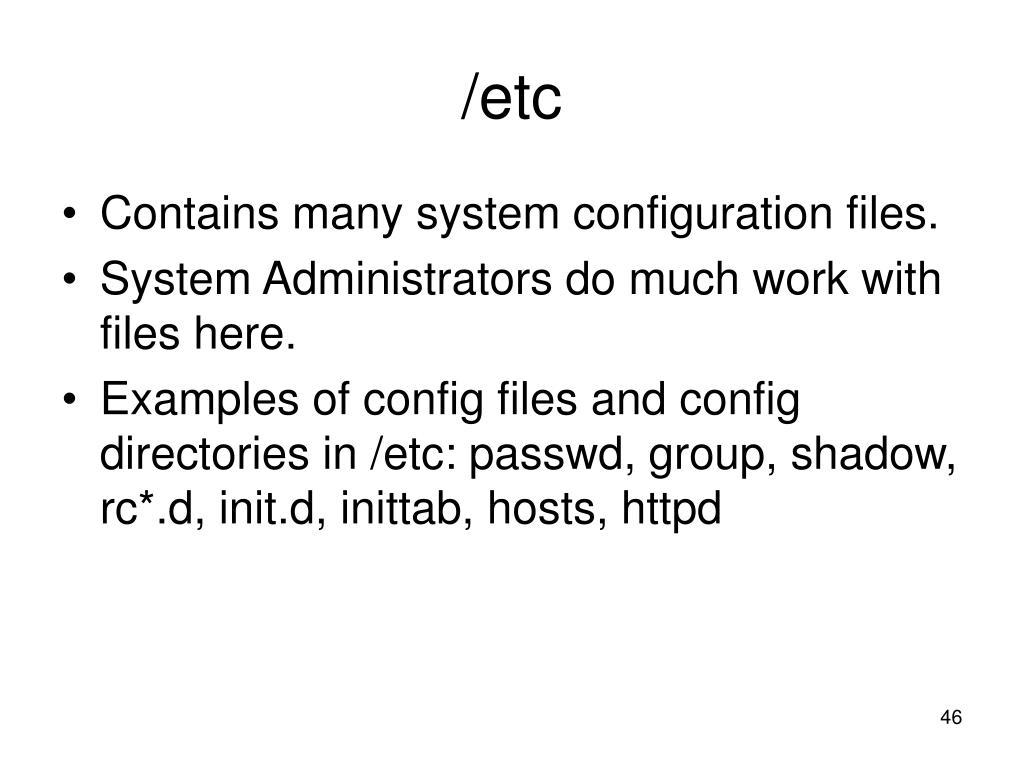

  46. /etc • Contains many system configuration files. • System Administrators do much work with files here. • Examples of config files and config directories in /etc: passwd, group, shadow, rc*.d, init.d, inittab, hosts, httpd

  47. /home • Usual location for user home directories (other directories may be used for home directories)

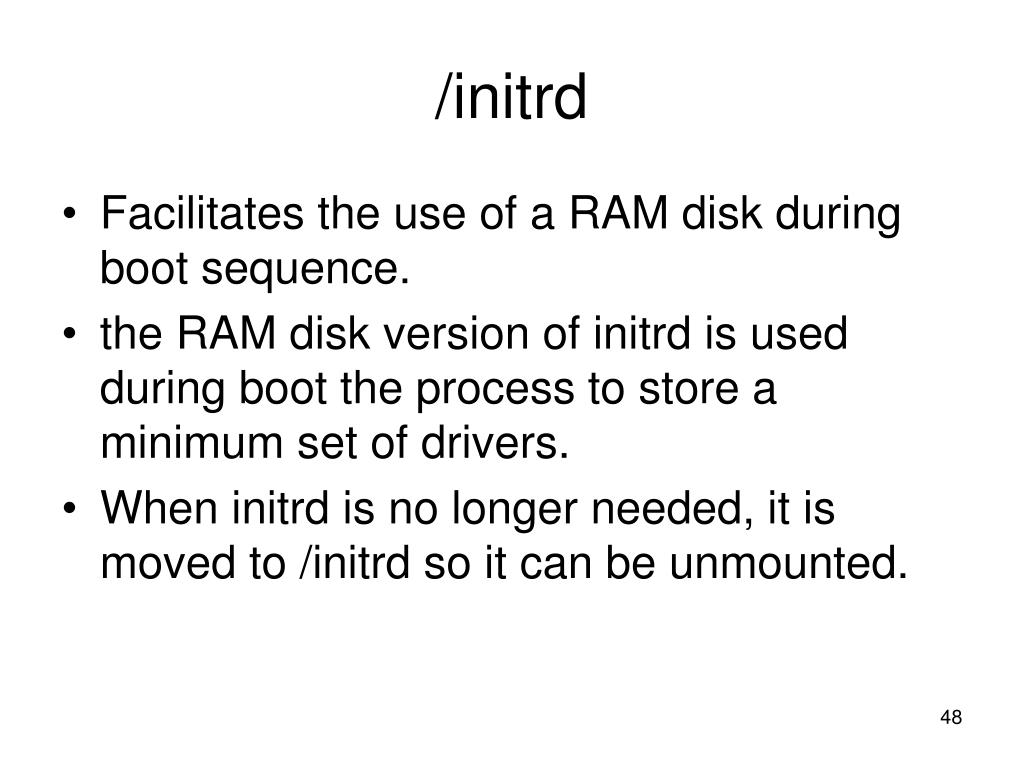

  48. /initrd • Facilitates the use of a RAM disk during boot sequence. • the RAM disk version of initrd is used during boot the process to store a minimum set of drivers. • When initrd is no longer needed, it is moved to /initrd so it can be unmounted.

  49. /lost+found • fschk (File System Check) is a utility that is run during the boot process to check the integrity of file systems. • fschk can also be run after the boot process on unmounted files systems. • If fschk finds corrupted files, the corrupted files are placed in /lost+found directory

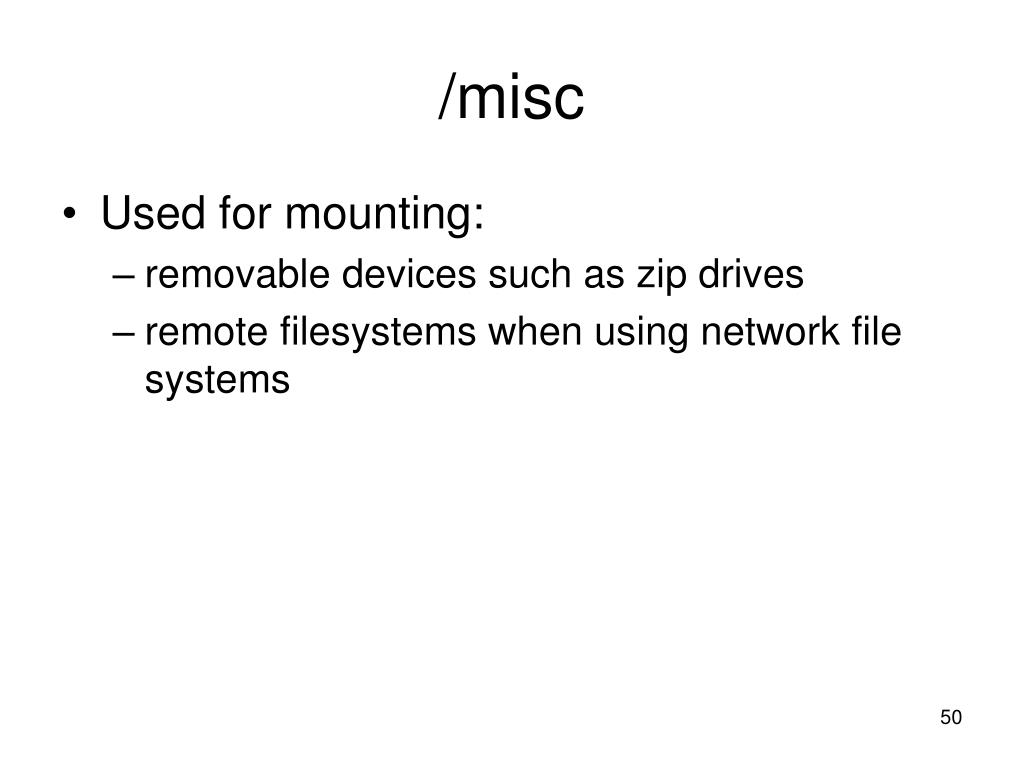

  50. /misc • Used for mounting: • removable devices such as zip drives • remote filesystems when using network file systems
