Hl7 roadshow 2009 connected healthcare

HL7 Roadshow 2009Connected Healthcare

Jose Sueiras, March 2009

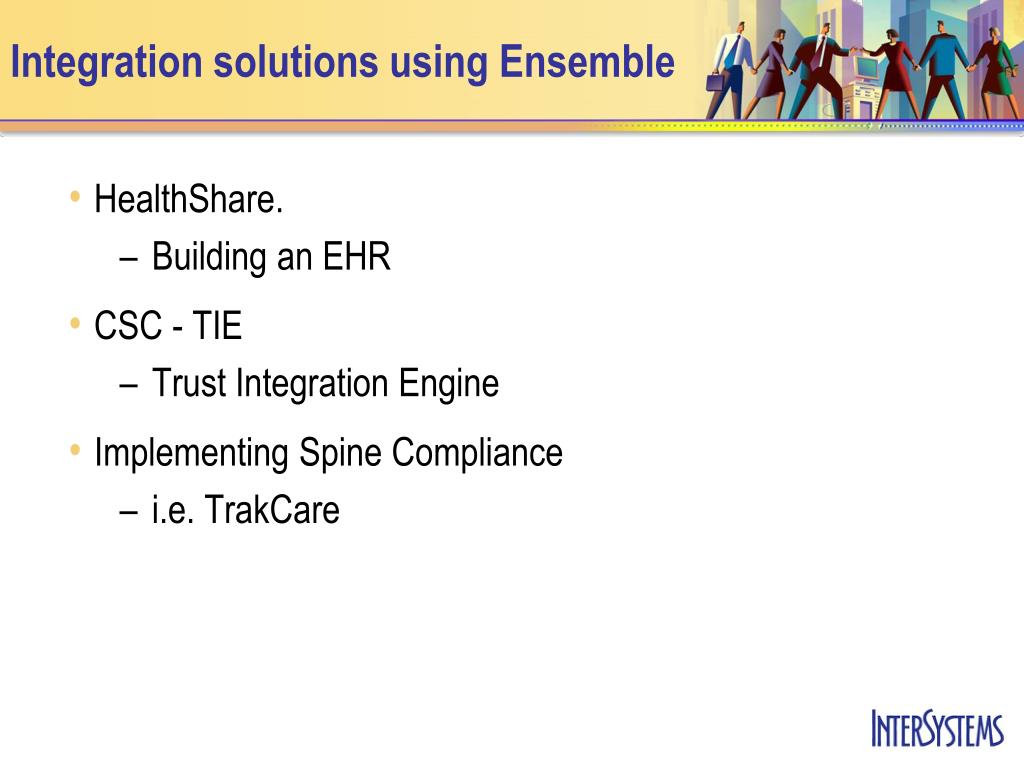

Integration solutions using ensemble

Integration solutions using Ensemble

HealthShare.

Building an EHR

CSC - TIE

Trust Integration Engine

Implementing Spine Compliance

i.e. TrakCare


Intersystems integration technology

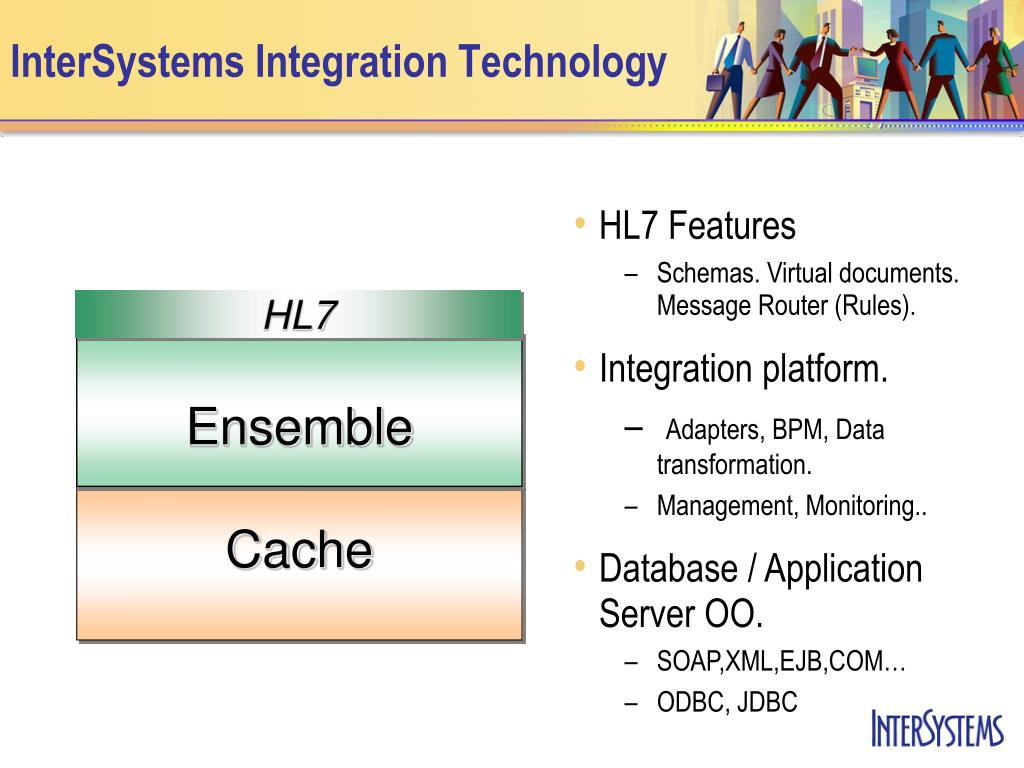

InterSystems Integration Technology

  • HL7 Features

    • Schemas. Virtual documents. Message Router (Rules).

  • Integration platform.

    • Adapters, BPM, Data transformation.

    • Management, Monitoring..

  • Database / Application Server OO.

    • SOAP,XML,EJB,COM…

    • ODBC, JDBC

HL7

Ensemble

Cache


Hl7 roadshow 2009 connected healthcare

Healthshare

Gateway

Healthshare

Gateway

Healthshare

Gateway

ECR

ECR

ECR

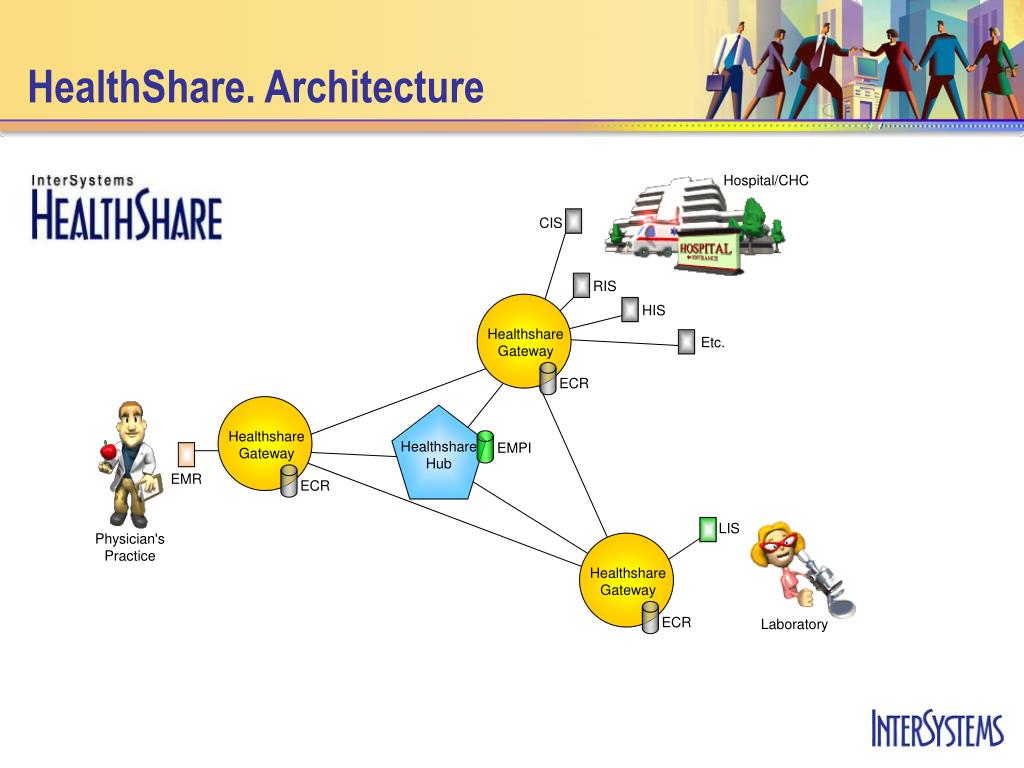

HealthShare. Architecture

Hospital/CHC

CIS

RIS

HIS

Etc.

Healthshare

Hub

EMPI

EMR

LIS

Physician's

Practice

Laboratory


Regional national ehr

Regional & National EHR

GP 1

Viewer

RAD

EMPI

Point of Care

LAB

GP 2

EMPI HUB

Hospital

PAS

Edge Gateway

GP 3

Gateway

OPR

Edge Gateway

Clinic

A & E

Repository

I C U

Edge Gateway

Edge Gateway

Clinical Repository


Healthshare the components

HealthShare – The Components

  • One shared resource for the exchange.

  • Primarily responsible for managing identifiers (EMPI)

Many distributed resources across the exchange

Provider portal for querying the exchange and viewing results

Hub

  • Many distributed resources across the exchange

  • Primarily responsible for managing data collection & caching

Edge Gateway

Access Gateway


Main features

Main Features

  • Patient Identity Management

    • Identity Hub as clinical record locator

    • Identity Policy and Service most commonly centralised. Fuzzy logic algorithms.

    • Use of (existing) national numbers (Social Security Number / NHS number)

  • User Provisioning & Consent

    • User Access and Consent policy and service is typically centralised

    • Access/Consent policy not typically defined / controlled by those who need to use the systems

    • Clinicians may perform different roles at different times in different facilities.

    • Time-based nature of “legitimate user relationship” & “consent”

    • Integration of Smartcards and biometrics

    • Requirement for tamper-proof audit and governance databases / message archives

  • Data aggregation / normalization

    • Variable quality of data source systems

      • Data Capture – push/pull

      • Structured & Unstructured data

    • Coded / Non-Coded data – differing coding regimes & purposes

    • Numerous (converging) Standards for Normalisation

      • CCR, CDA, CCD


Intersystems ensemble trust integration engine tie

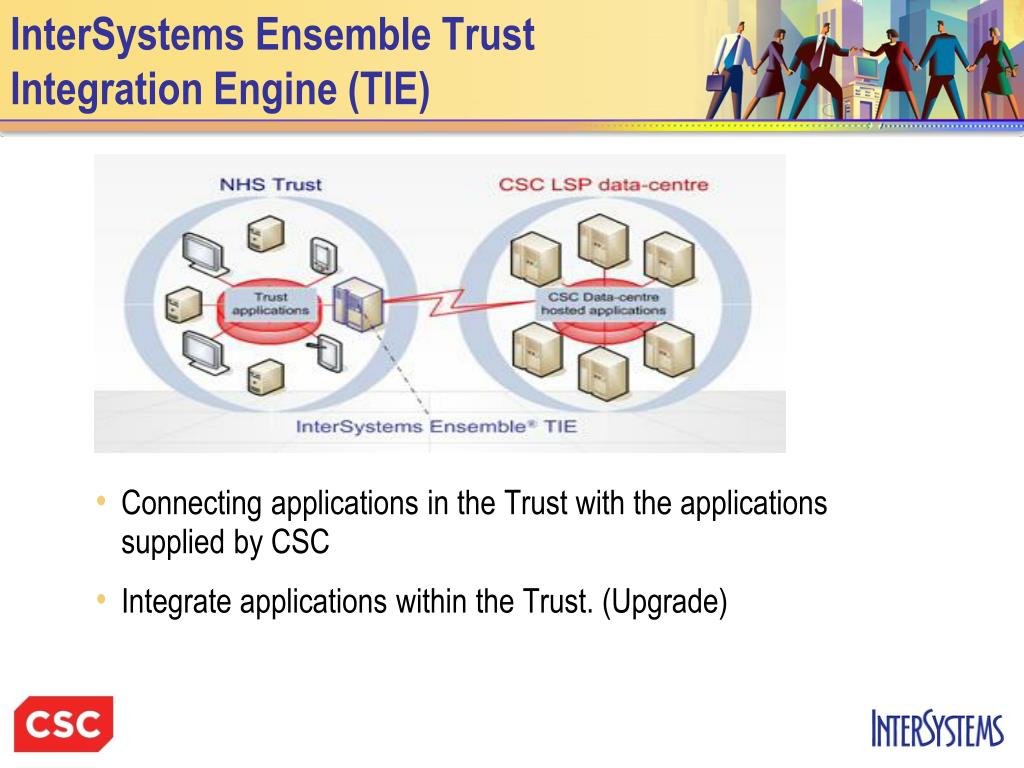

InterSystems Ensemble Trust Integration Engine (TIE)

  • Connecting applications in the Trust with the applications supplied by CSC

  • Integrate applications within the Trust. (Upgrade)


Csc data message architecture

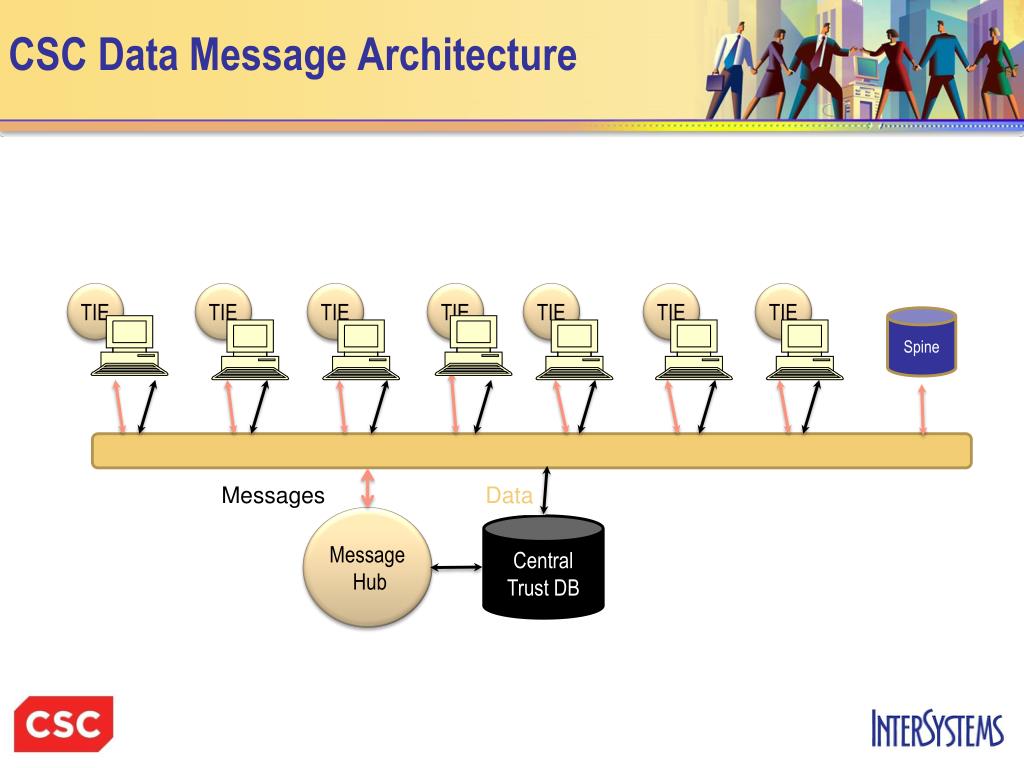

CSC Data Message Architecture

TIE

TIE

TIE

TIE

TIE

TIE

TIE

Spine

Messages

Data

Message

Hub

Central

Trust DB


Csc data message architecture1

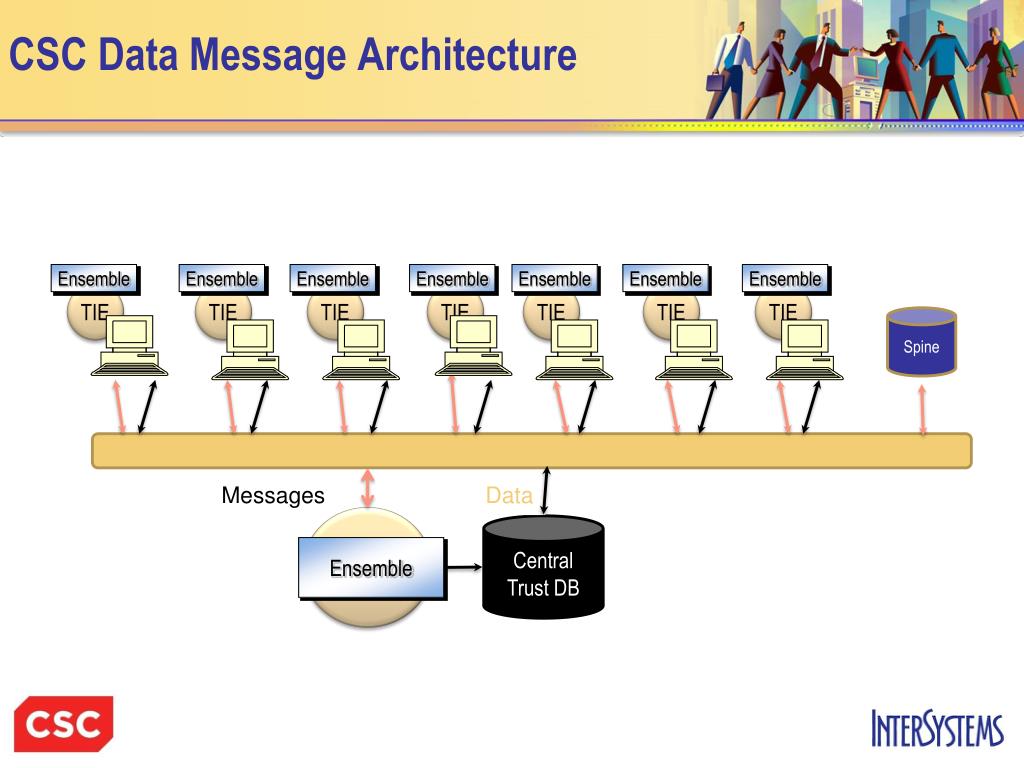

CSC Data Message Architecture

Ensemble

Ensemble

Ensemble

Ensemble

Ensemble

Ensemble

Ensemble

TIE

TIE

TIE

TIE

TIE

TIE

TIE

Spine

Messages

Data

Message

Hub

Central

Trust DB

Ensemble


Tie ensemble production

TIE. Ensemble Production

Client Applications

HL7

Business

Operations

HL7 Outbound Adapter

External Applications

HL7 Inbound Adapter

HL7

Business

Services

HL7

Business

Processes

HL7

Message


Hl7 roadshow 2009 connected healthcare

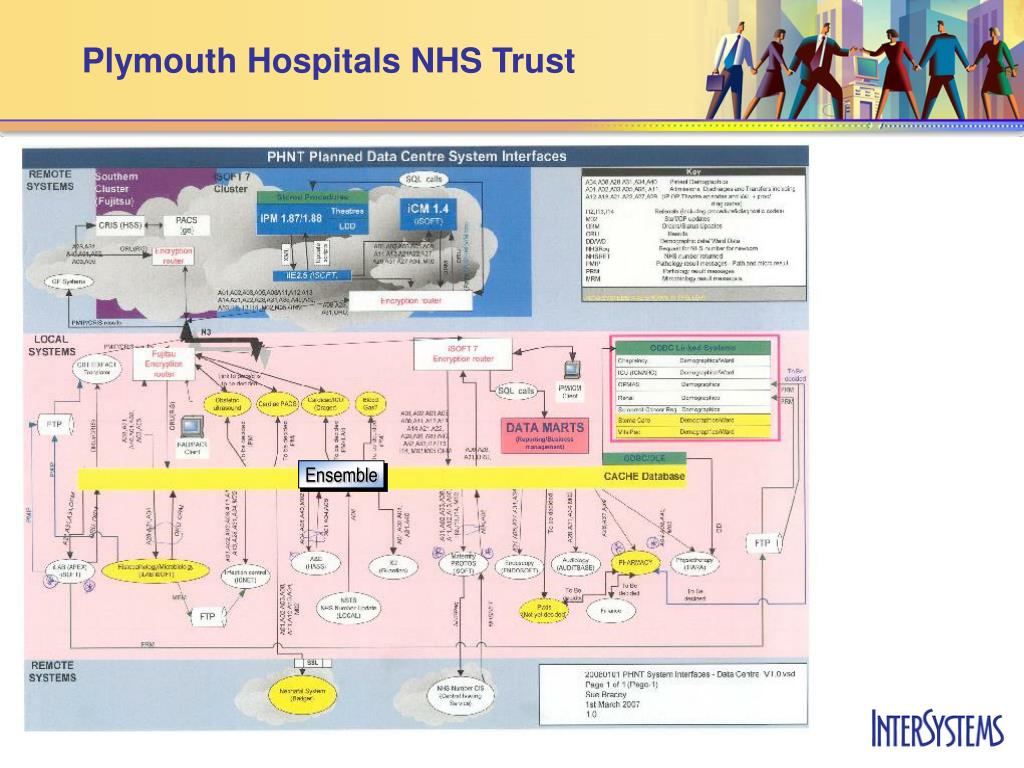

Plymouth Hospitals NHS Trust

Ensemble


Spine compliant cfh definition

“Spine Compliant”. CFH Definition

Patient Demographics Service (PDS)

Access/Update

“PDS Compliance”

patient demographics

NHS Number

Access Control Framework (SDS, SSB)

“IG Compliance”

Authentication. Authorization

EBXML/HL7V3/MIM

Transaction Messaging (TMS)

Basic Connectivity (N3)

NPfIT services. Firewalls/routers


Spine compliant cfh definition1

“Spine Compliant” CFH Definition.

NHS Acute/

Community/

Mental Health or

ISTC

EPR/PAS

Community

Pharmacy

Urgent Care

Choose and

Book (CAB)

NPFIT-FNT-TO-TIN-1032

Electronic

Prescriptions

NPFIT-FNT-TO-TIN-1050

Summary

Record

NPFIT-FNT-TO-TIN-0830

GP System

Summary

Record

NPFIT-FNT-TO-TIN-0830

GP2GP

Transfer

NPFIT-FNT-TO-TIN-0402

Electronic

Prescriptions

NPFIT-FNT-TO-TIN-1050

Choose and

Book (CAB)

NPFIT-FNT-TO-TIN-1032

PDS/IG Compliance

(PDS = NPFIT-FNT-TO-TIN-1023, IG = NPFIT-FNT-TO-TIN-1031)


Spine compliant cfh facts

“Spine Compliant”. CFH facts

  • It takes about 9 – 12 months to “become compliant” from scratch

  • “Compliance” is specific to a functionality, spine version and supplier software version – not a general status

  • Spine Compliance must be maintained – it is not static


Ensemble spine fw

Ensemble. Spine FW

  • Web services and ebXML toolkit.

  • XML – Object mapping

  • BPM capabilities

    • Message patterns

    • Alert generation. Error handling workflow

  • Data transformation.

    • HL7 2.x schemas. Hl7 v3

  • Storage

    • Guarantee message delivery.

    • SDS Cache

  • Monitoring. Management


Ensemble based solution for trakcare

Ensemble based solution for TrakCare

PDS and C&B compliance.

Authentication and authorization process integrated in a single sign on architecture.

Smart cards

TrakCare is easily configurable to interact with other systems using HL7 v2.x messages

Use Ensemble to implement a MHS that will talk to TRAK using HL7 v2.4


Ensemble based solution for trakcare1

Ensemble based solution for TrakCare

Spine

Ensemble. MHS

Routing

DTL

ebXML

W.S.

TCP

TRAKCare

BPM

WF Errors

HL72.4

HL7 Version 3

SDS Cache


Spine iteration example

Spine. Iteration example

Intermediary MHS

Ensemble MHS

TRAK

Request Available Slots

PRSC_IN080000UK07 / ebXML

Persist

MCCI_IN010000UK13 / ebXML ACK

2.4 SQM_S25 / TCP

2.4 SQR_S25 / TCP

Persist

Respond Available Slots

PRSC_IN090000UK09/ ebXML

Persist

MCCI_IN010000UK13 / ebXML ACK

Message Processing


Conclusions

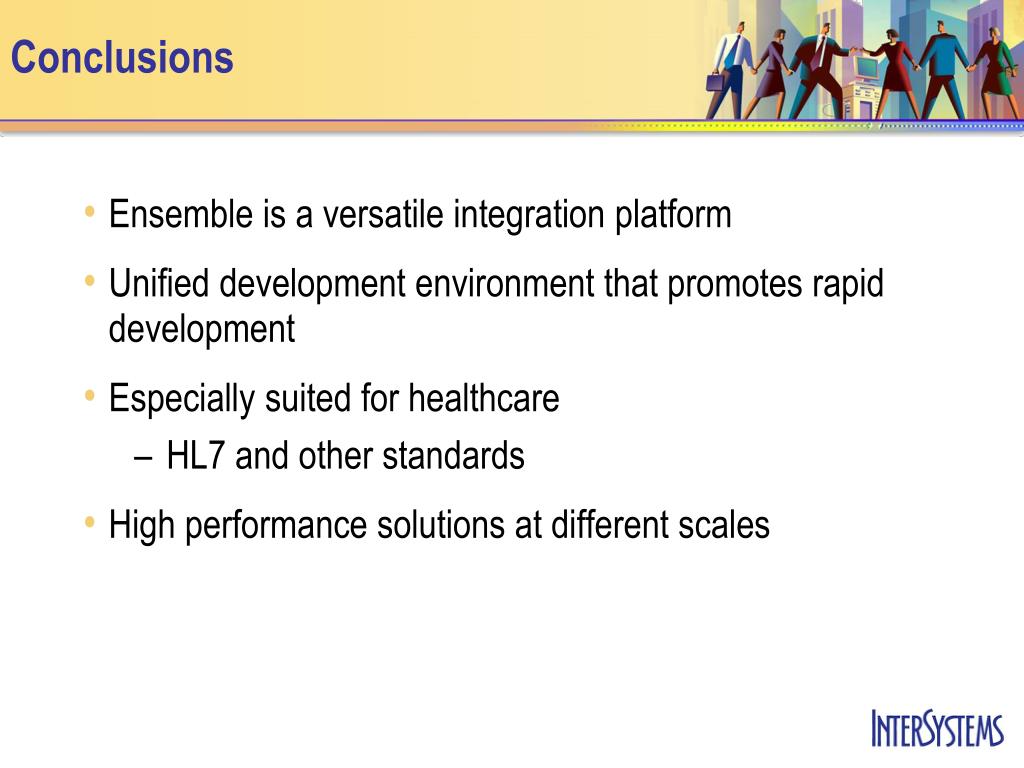

Conclusions

  • Ensemble is a versatile integration platform

  • Unified development environment that promotes rapid development

  • Especially suited for healthcare

    • HL7 and other standards

  • High performance solutions at different scales


Questions

Questions?

Questions??

  • [email protected]

  • www.intersystems.co.uk/TIE
