  1. E E 2315 Lecture 05 -Mesh Current Analysis

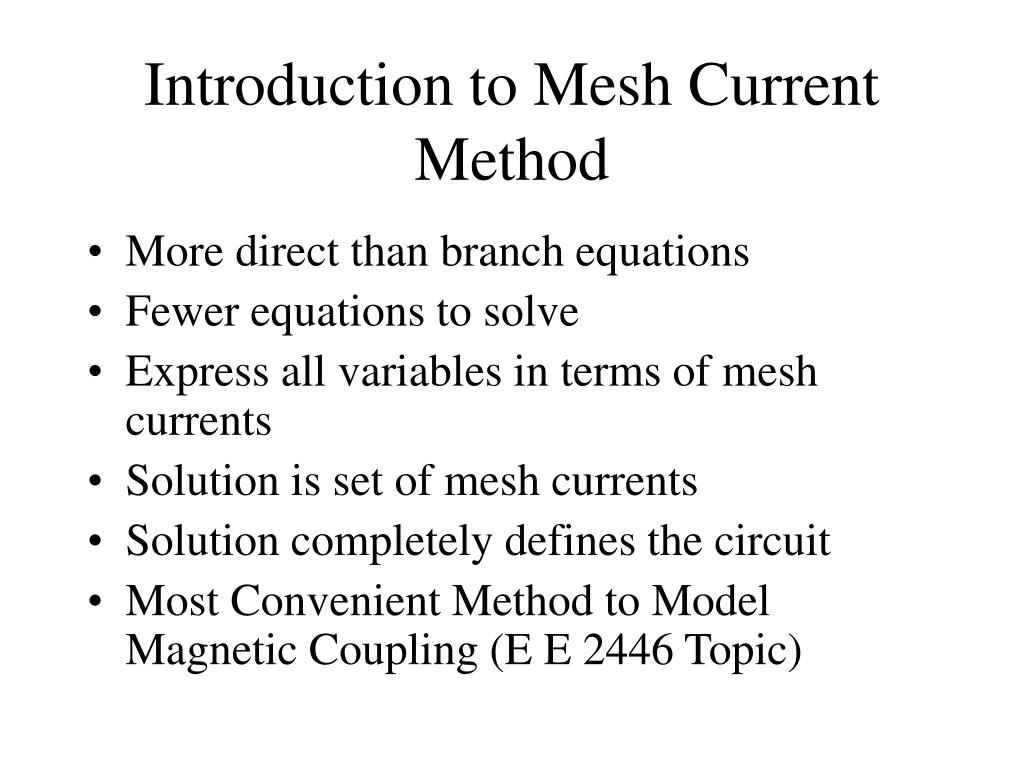

  2. Introduction to Mesh Current Method • More direct than branch equations • Fewer equations to solve • Express all variables in terms of mesh currents • Solution is set of mesh currents • Solution completely defines the circuit • Most Convenient Method to Model Magnetic Coupling (E E 2446 Topic)

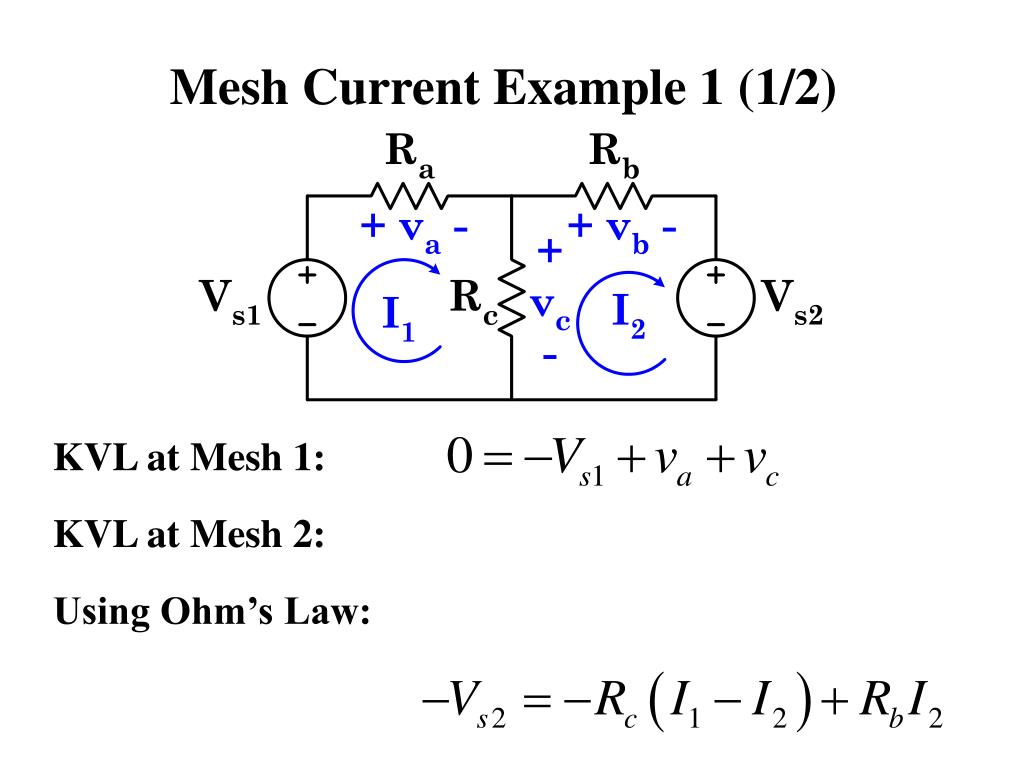

  3. Mesh Current Example 1 (1/2) KVL at Mesh 1: KVL at Mesh 2: Using Ohm’s Law:

  4. Mesh Current Example 1 (2/2) Above linear equations can be solved for mesh currents I1 and I2.

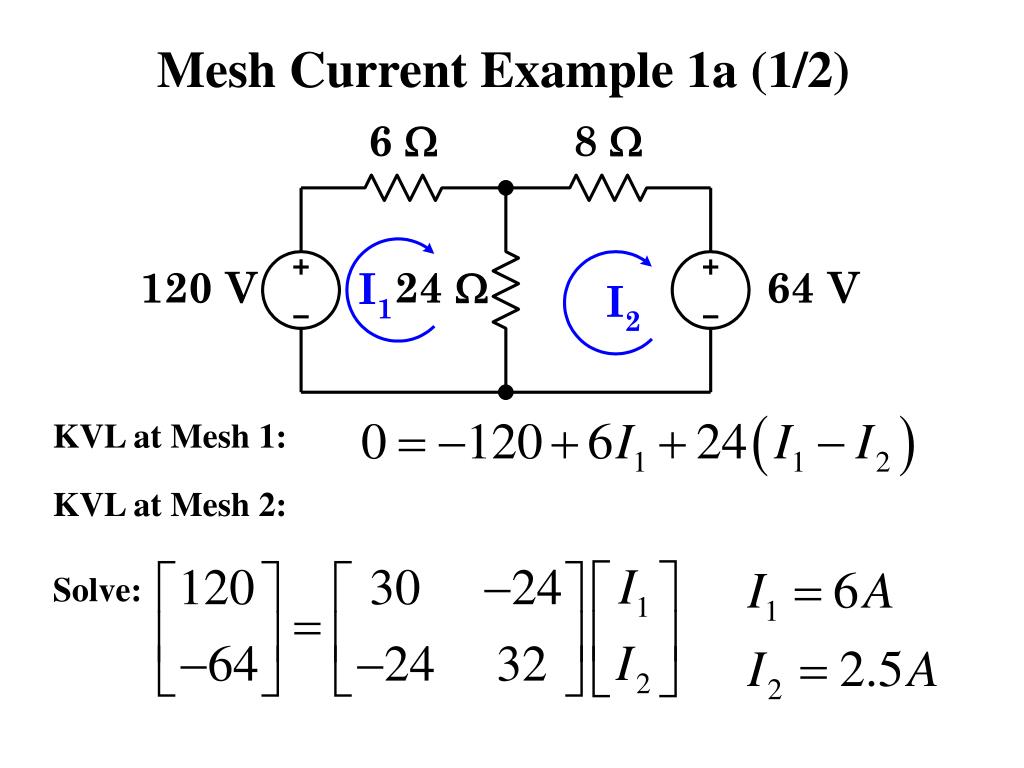

  5. Mesh Current Example 1a (1/2) KVL at Mesh 1: KVL at Mesh 2: Solve:

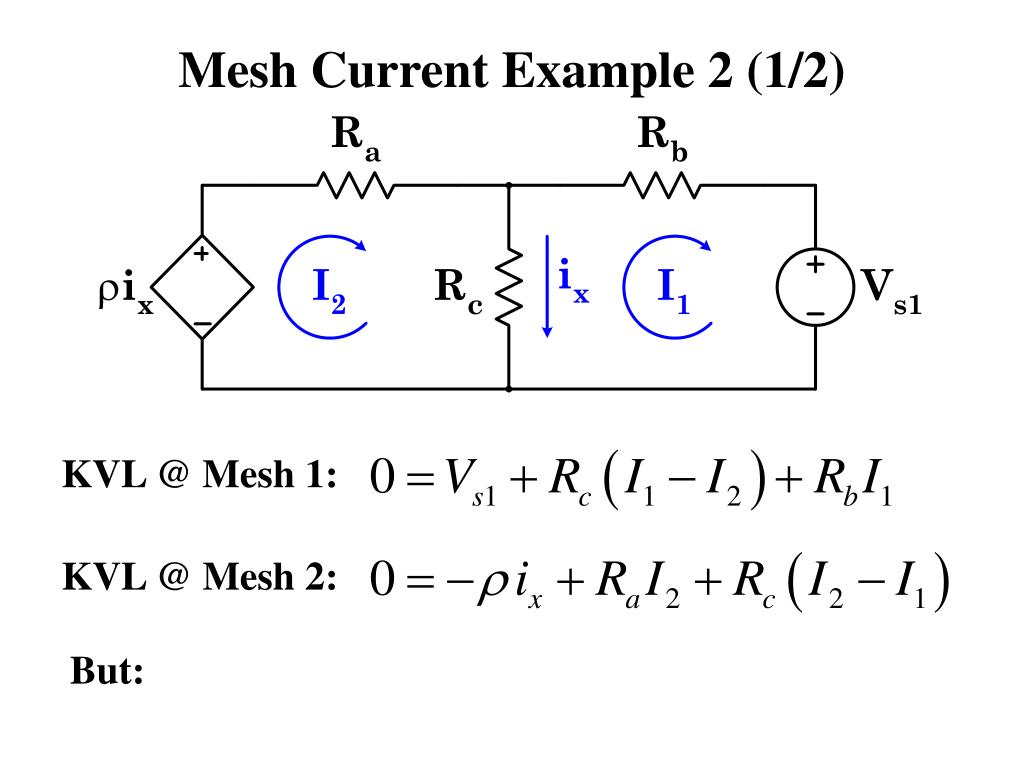

  6. Mesh Current Example 2 (1/2) KVL @ Mesh 1: KVL @ Mesh 2: But:

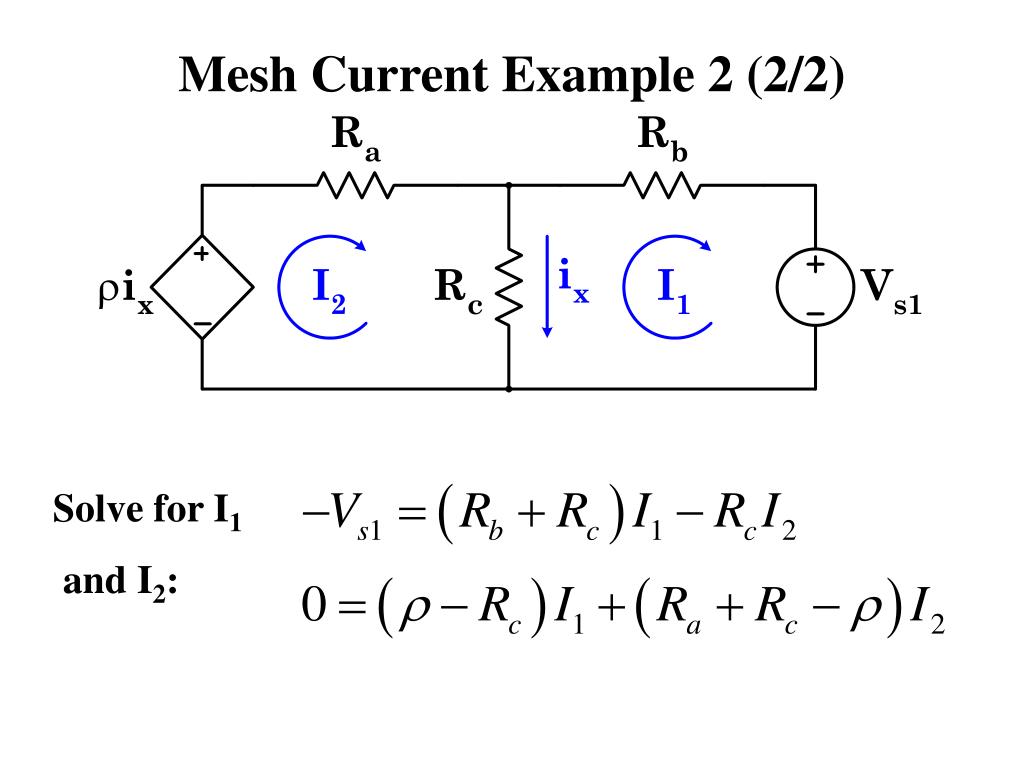

  7. Mesh Current Example 2 (2/2) Solve for I1 and I2:

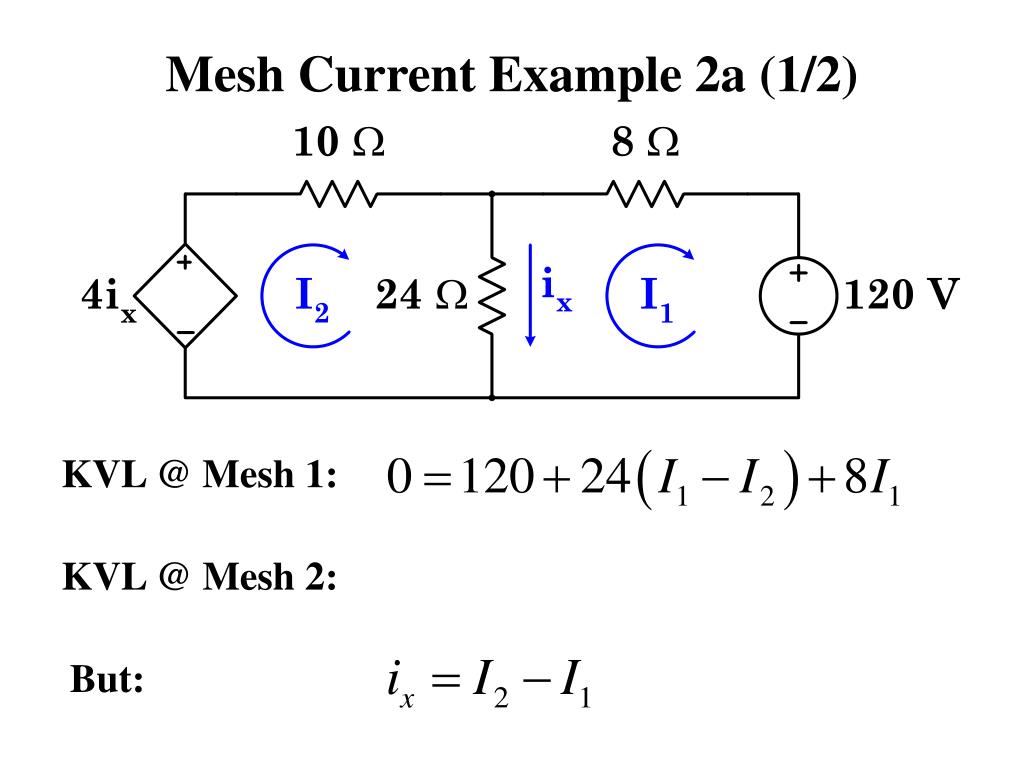

  8. Mesh Current Example 2a (1/2) KVL @ Mesh 1: KVL @ Mesh 2: But:

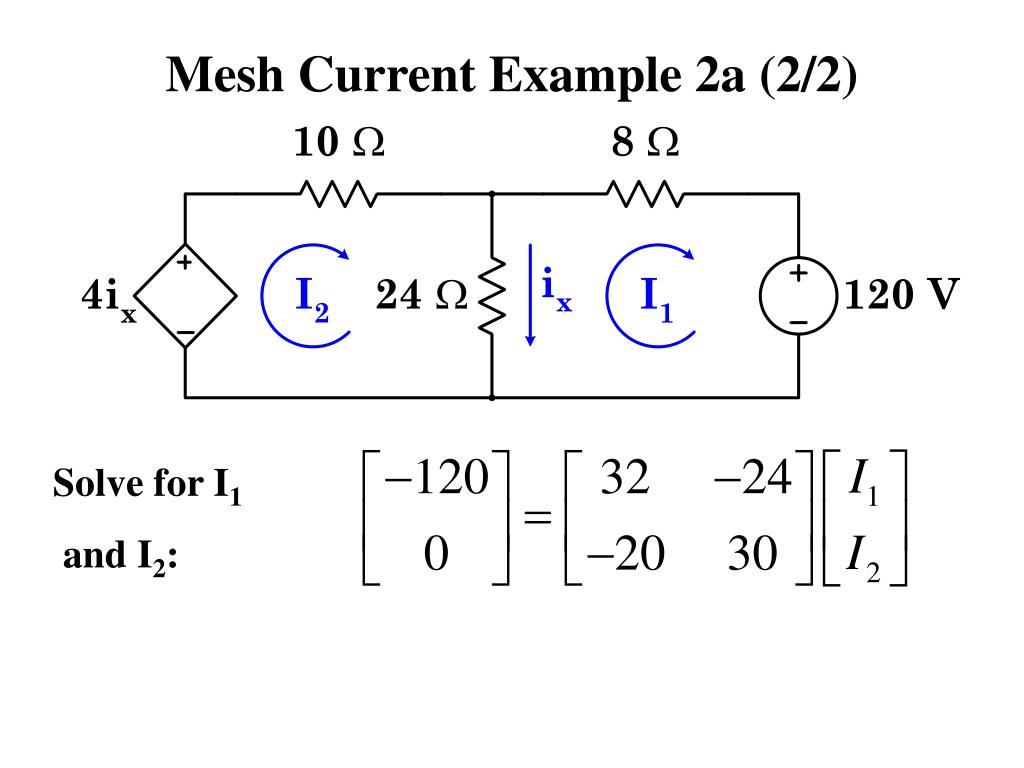

  9. Mesh Current Example 2a (2/2) Solve for I1 and I2:

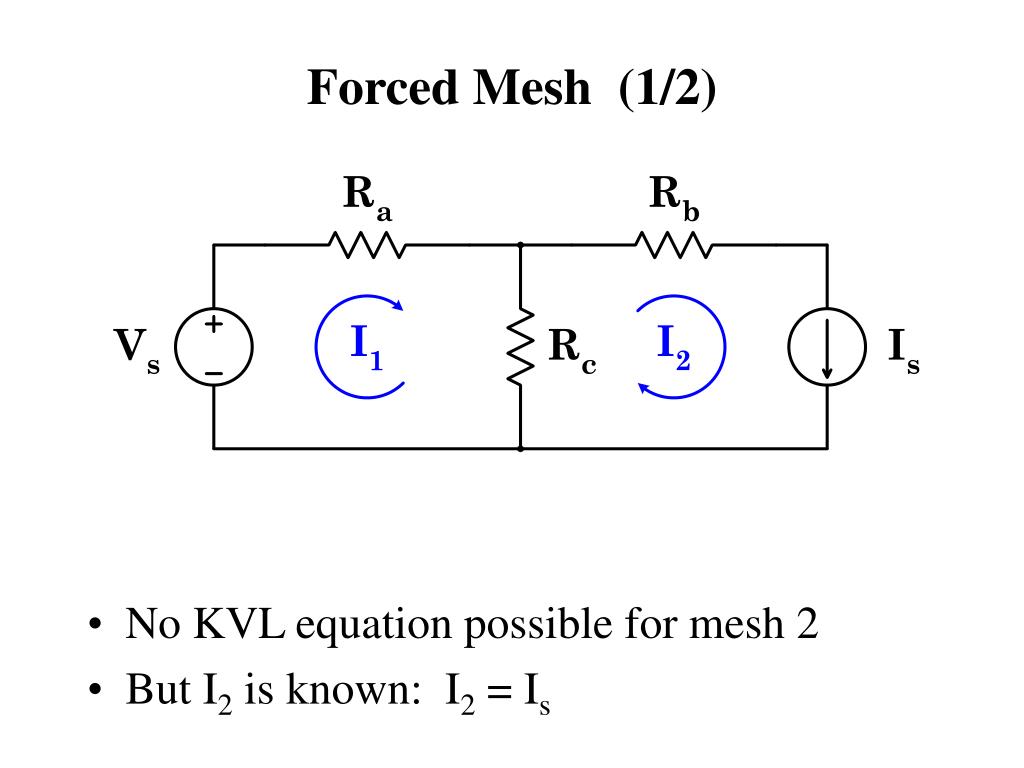

  10. Forced Mesh (1/2) • No KVL equation possible for mesh 2 • But I2 is known: I2 = Is

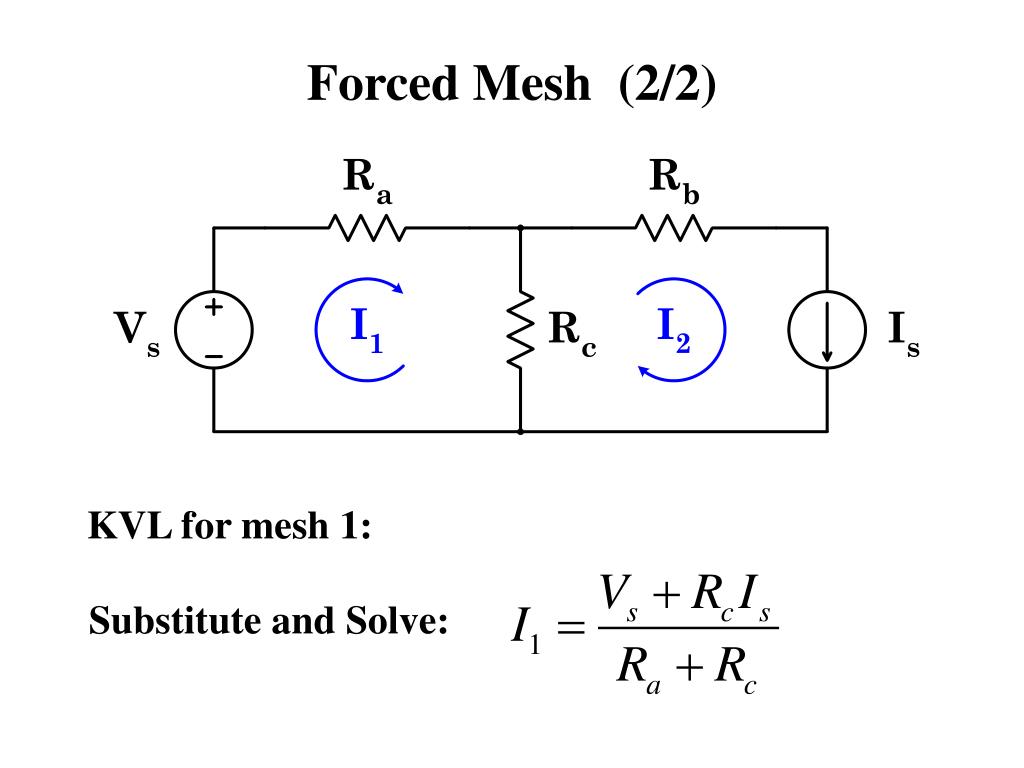

  11. Forced Mesh (2/2) KVL for mesh 1: Substitute and Solve:

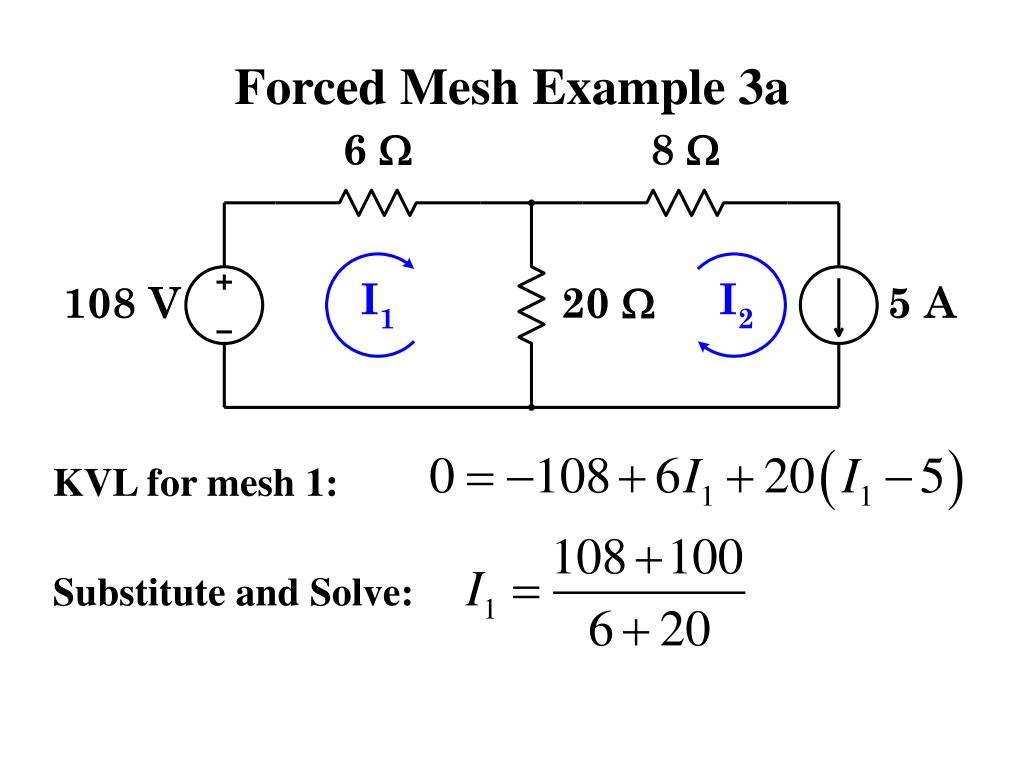

  12. Forced Mesh Example 3a KVL for mesh 1: Substitute and Solve:

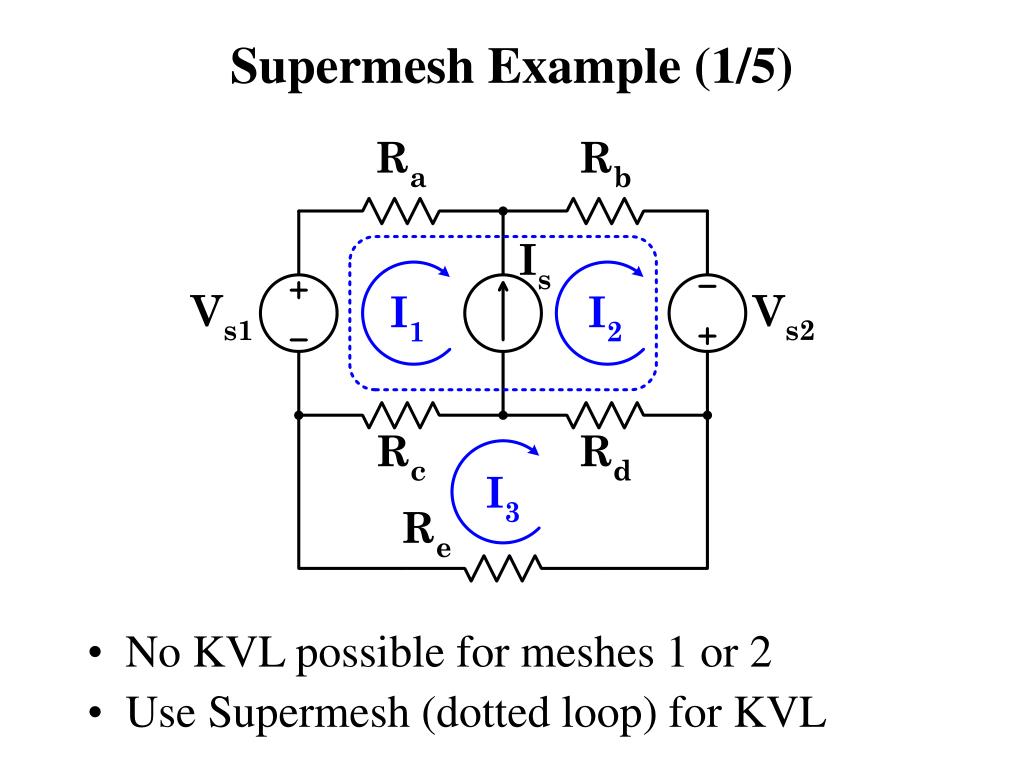

  13. Supermesh Example (1/5) • No KVL possible for meshes 1 or 2 • Use Supermesh (dotted loop) for KVL

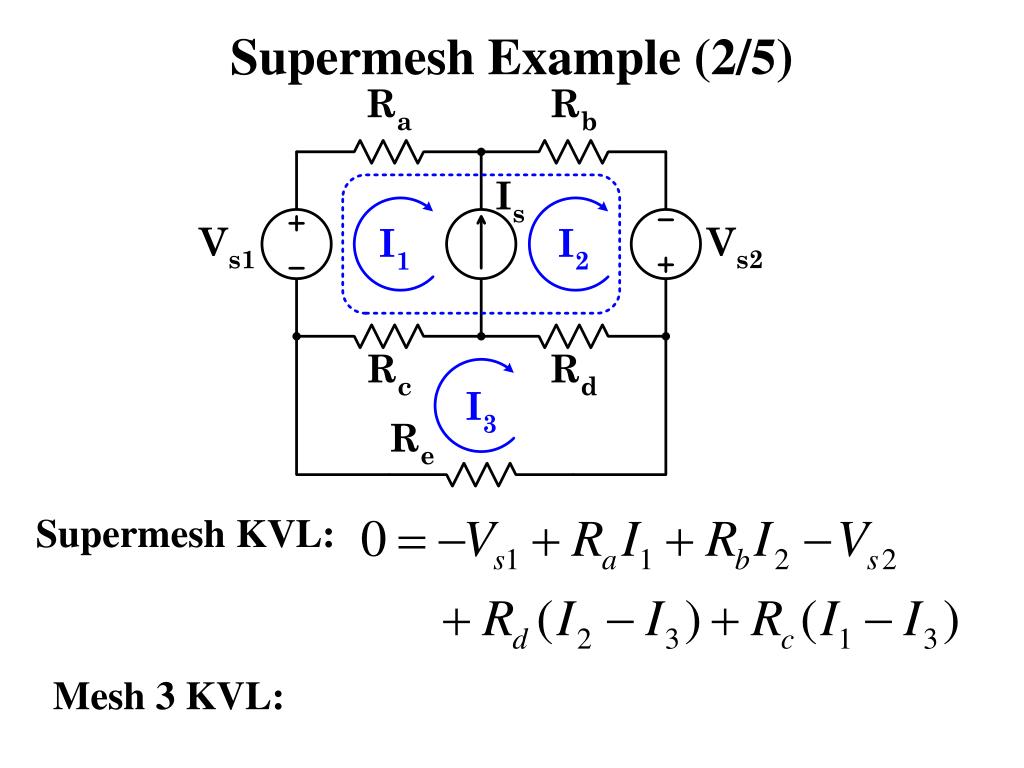

  14. Supermesh Example (2/5) Supermesh KVL: Mesh 3 KVL:

  15. Supermesh Example (3/5) Also: Subst for I2:

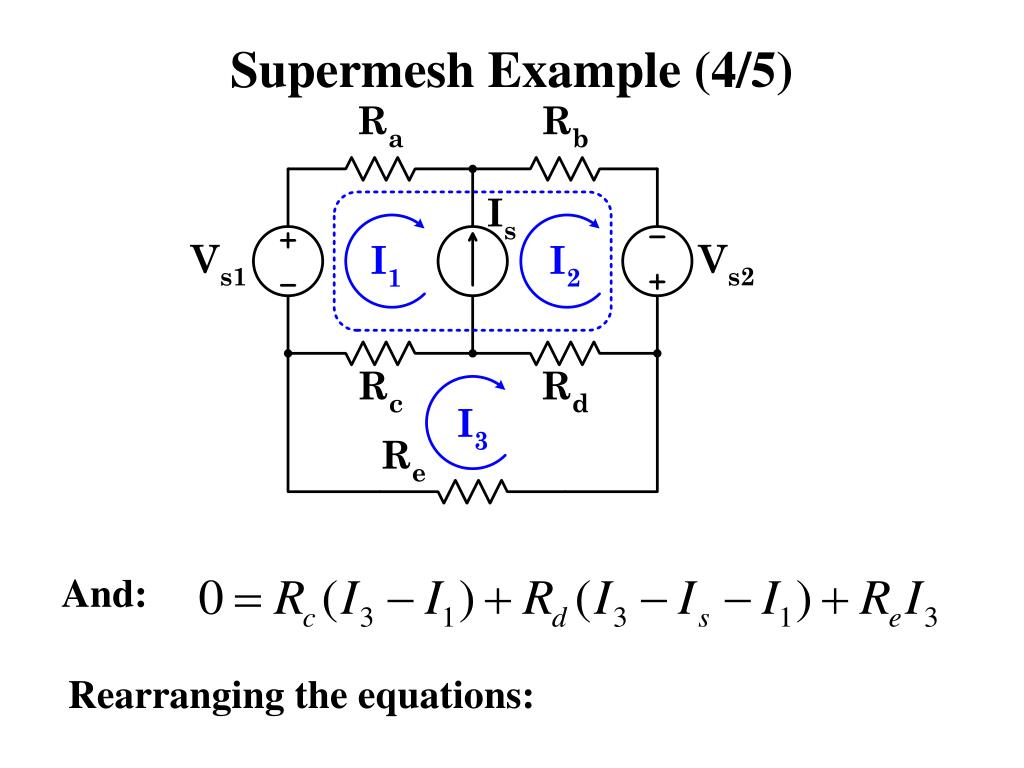

  16. Supermesh Example (4/5) And: Rearranging the equations:

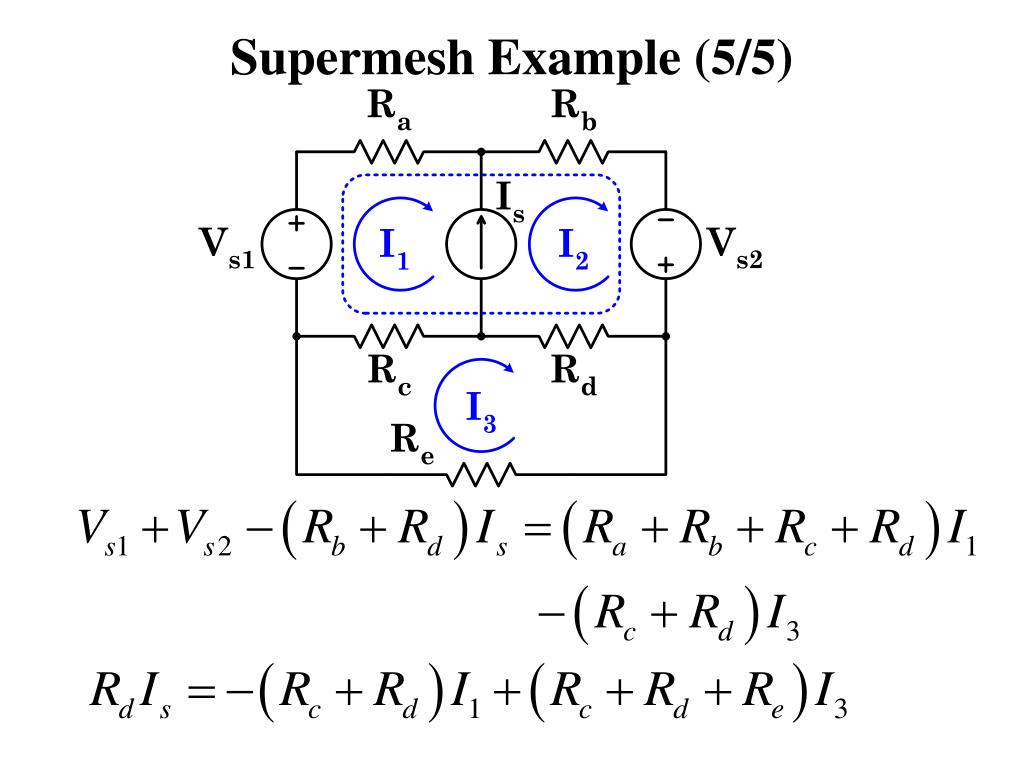

  17. Supermesh Example (5/5)

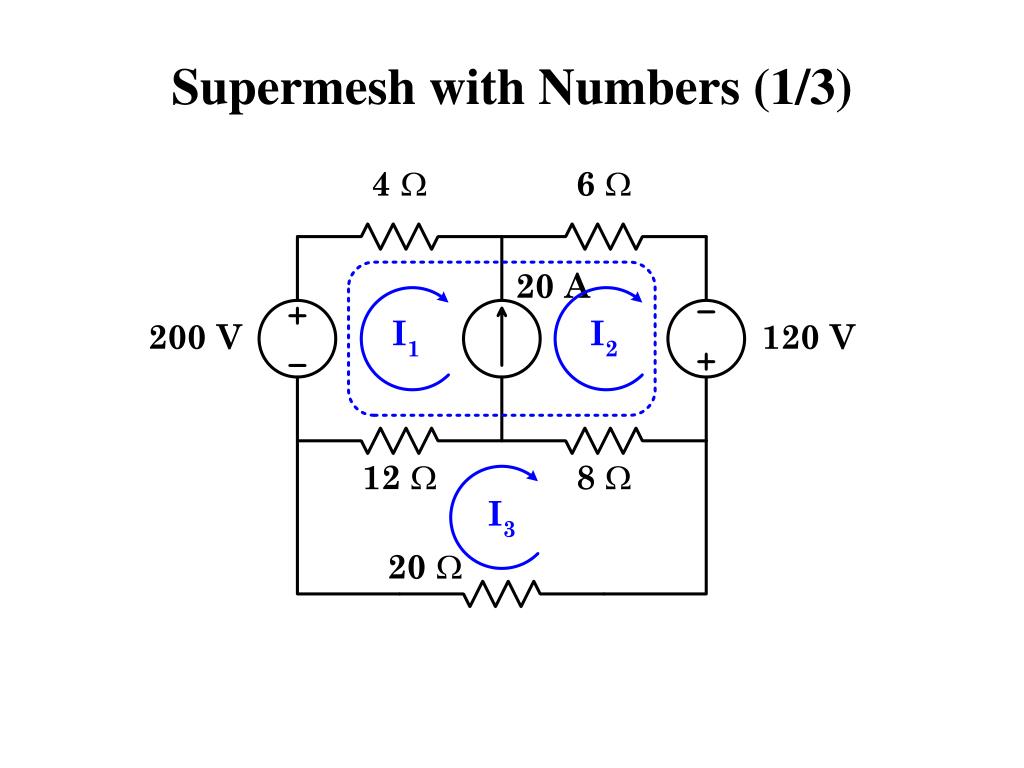

  18. Supermesh with Numbers (1/3)

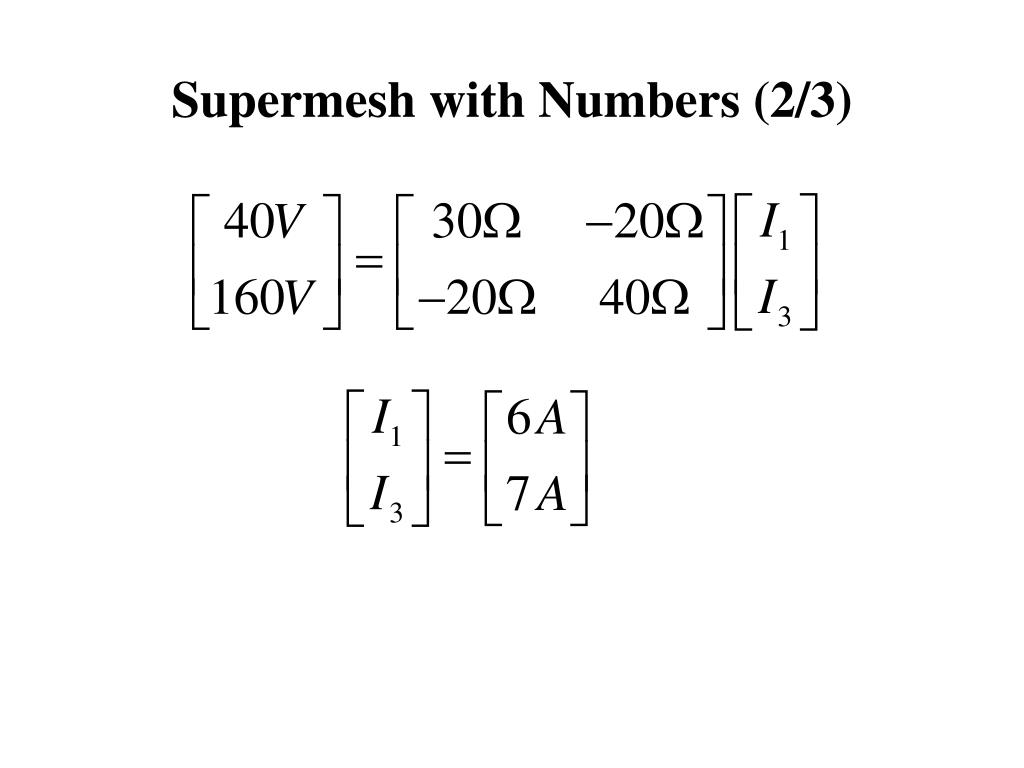

  19. Supermesh with Numbers (2/3)

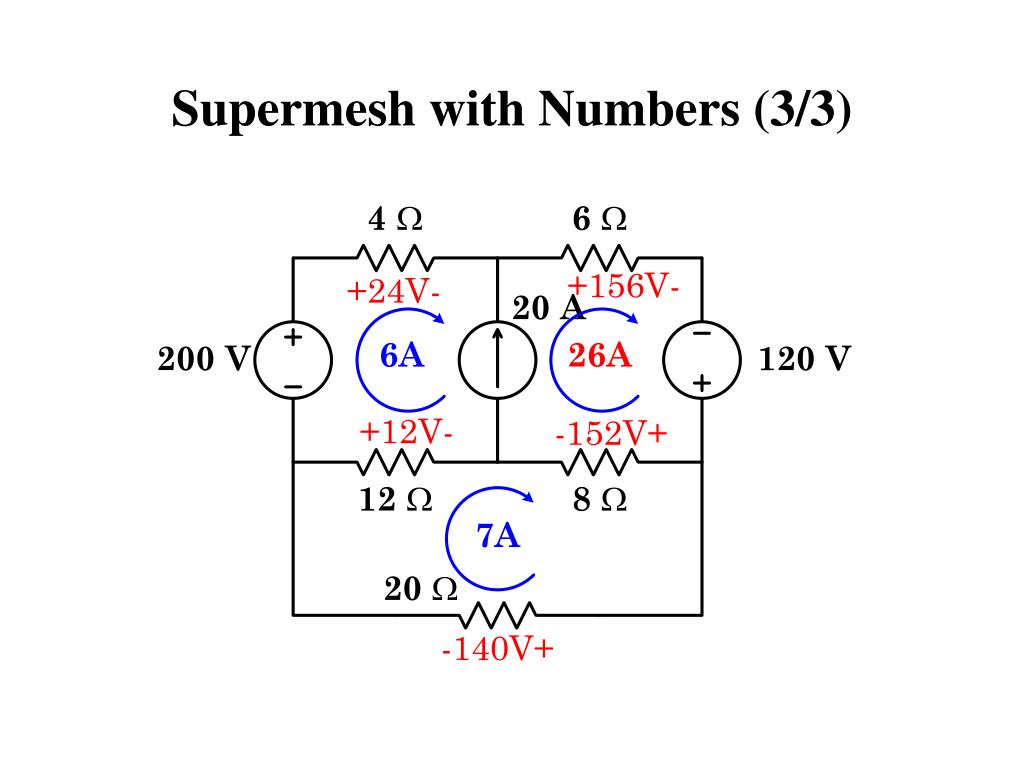

  20. Supermesh with Numbers (3/3)
