  1. Don’t have to be “dev” to script my work Peter Zdovc, SRC.SI MCSE Messaging Ljubljana, marec 2006

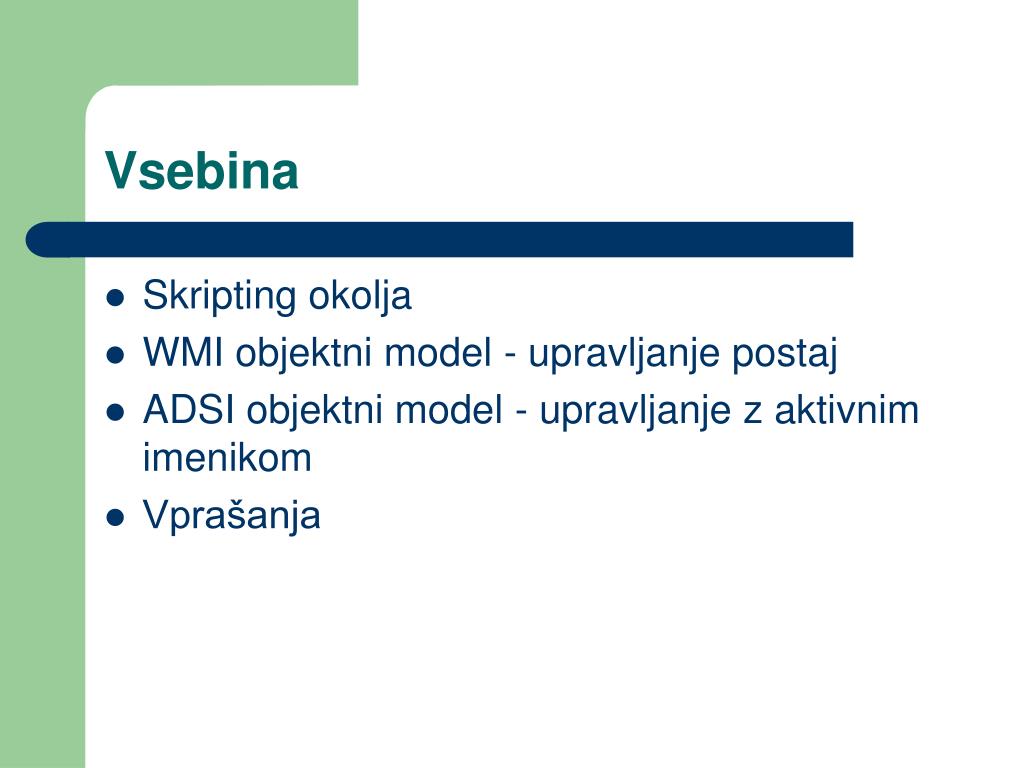

  2. Vsebina • Skripting okolja • WMI objektni model - upravljanje postaj • ADSI objektni model - upravljanje z aktivnim imenikom • Vprašanja

  3. Okolja za izvajanje skript • ukazna vrstica • WSH • KIKS32 • ...

  4. Windows Scripting Hosthttp://msdn.microsoft.com/library/default.asp?url=/library/en-us/dnwsh/html/msdn_wsh_wp.asp • namenjen za • izvajanje administrativnih opravil • izvajanje “command-line” orodij • komponente so • skriptne datoteke (*.vbs, *.js,...) • skriptni gostitelji • izvajalci skriptnih jezikov • COM objekti

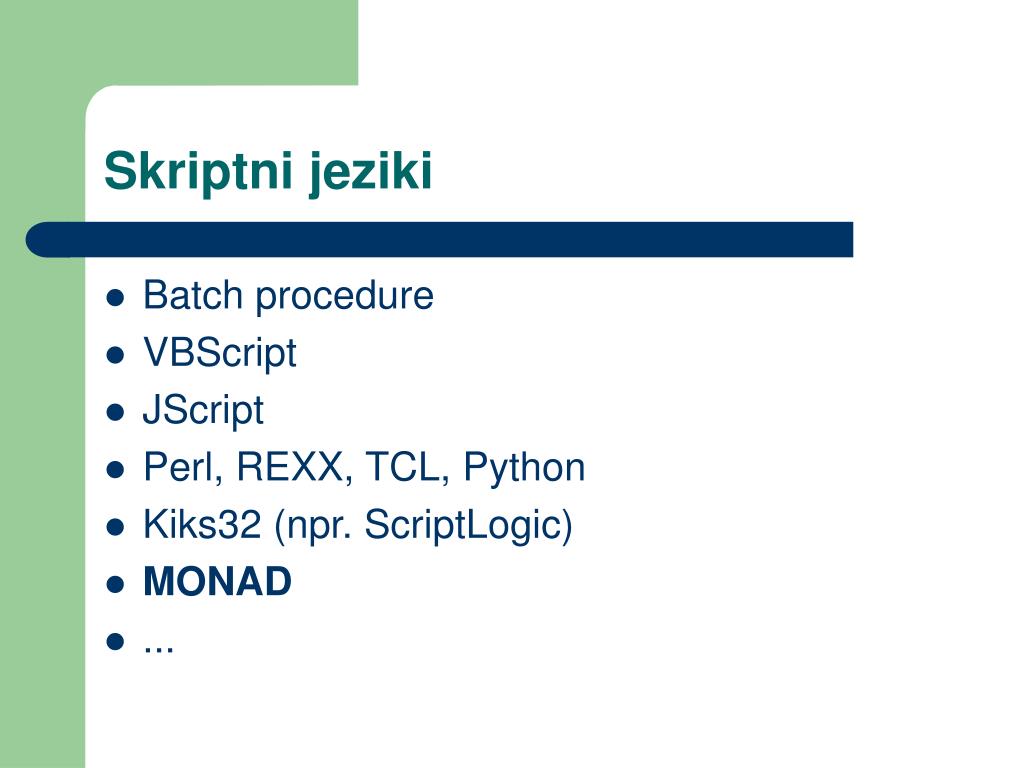

  5. Skriptni jeziki • Batch procedure • VBScript • JScript • Perl, REXX, TCL, Python • Kiks32 (npr. ScriptLogic) • MONAD • ...

  6. VBS vs. VBA http://www.thirdm.com/scripting/vbscript.htm http://msdn.microsoft.com/library/default.asp?url=/library/en-us/script56/html/f65b4a7c-eb8c-47f1-ba36-16ad8793026d.asp

  7. Ponudniki • ADSI – LDAP://, GC:// • WMI – winmgmts:// • Windows NT directory – WinNT://

  8. Orodja • WMI Administrative Tools • Scriptomatic • Windows Administrative Tools • ADUC • ADSIEdit • LDP • ...

  9. Kaj je WMI • Windows Management Instrumentation • Tehnologija za (daljinsko) upravljanje WinOS • Temelji na standardni shemi objektov za upravljanje – CIM • MS izvedba WBEM (Web-Based Enterprise Management) • WBEM usklajuje skupina za distribuirano upravljanje (DMTF)http://www.dmtf.org/home

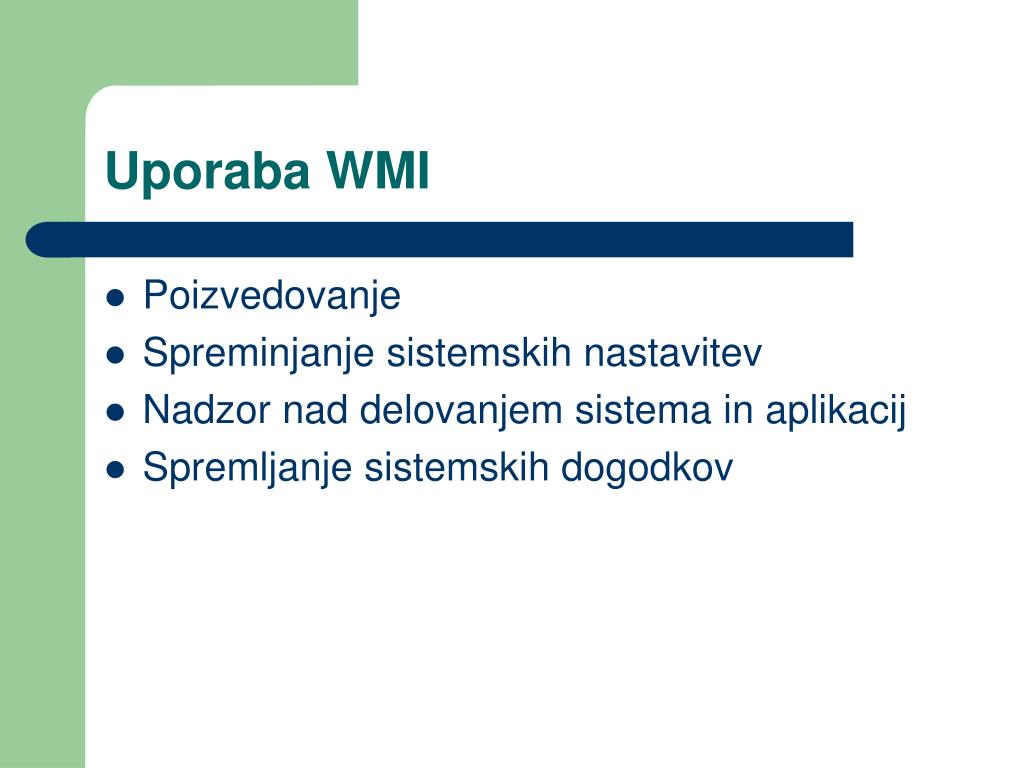

  10. Uporaba WMI • Poizvedovanje • Spreminjanje sistemskih nastavitev • Nadzor nad delovanjem sistema in aplikacij • Spremljanje sistemskih dogodkov

  11. Arhitektura WMI

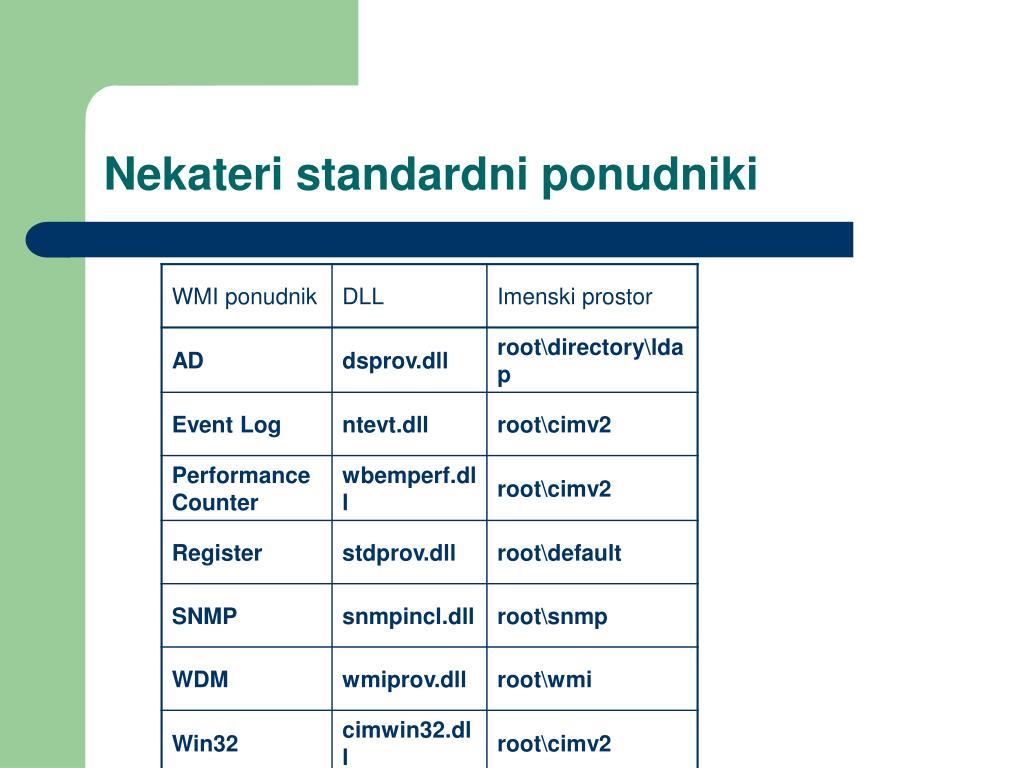

  12. Nekateri standardni ponudniki

  13. Povezava na WMI – 1 (auth) Set objLocator = CreateObject("WbemScripting.SWbemLocator") Set objWMIService = objLocator.ConnectServer(strComputer,"root/cimv2", strUserName, strPassword) objWMIService.Security_.ImpersonationLevel = 3 Set colItems = objWMIService.ExecQuery(strWQL,,48)

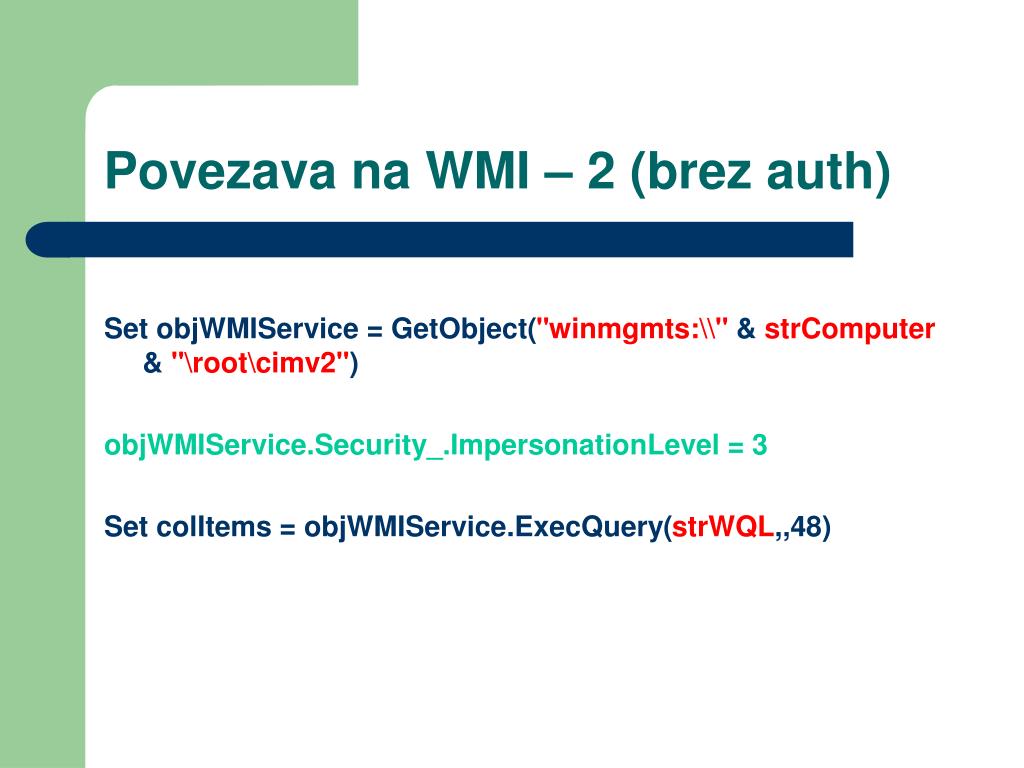

  14. Povezava na WMI – 2 (brez auth) Set objWMIService = GetObject("winmgmts:\\" & strComputer & "\root\cimv2") objWMIService.Security_.ImpersonationLevel = 3 Set colItems = objWMIService.ExecQuery(strWQL,,48)

  15. Demo - WMI • Uporaba Scriptomatic • Uporaba VBA

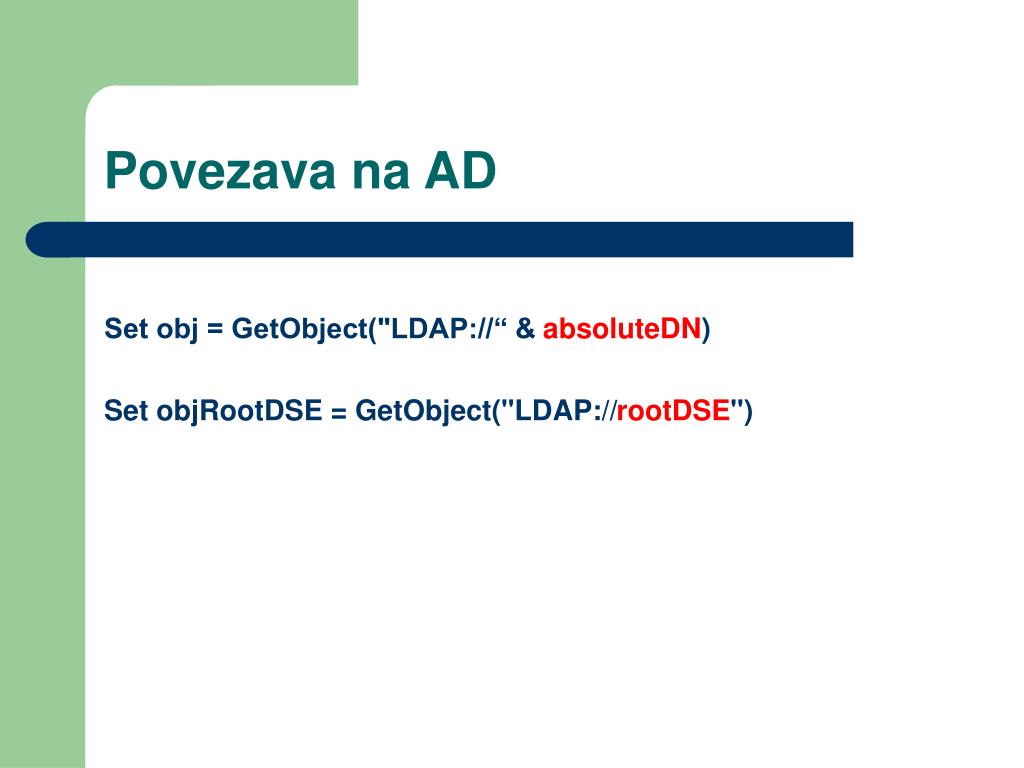

  16. Povezava na AD Set obj = GetObject("LDAP://“ & absoluteDN) Set objRootDSE = GetObject("LDAP://rootDSE")

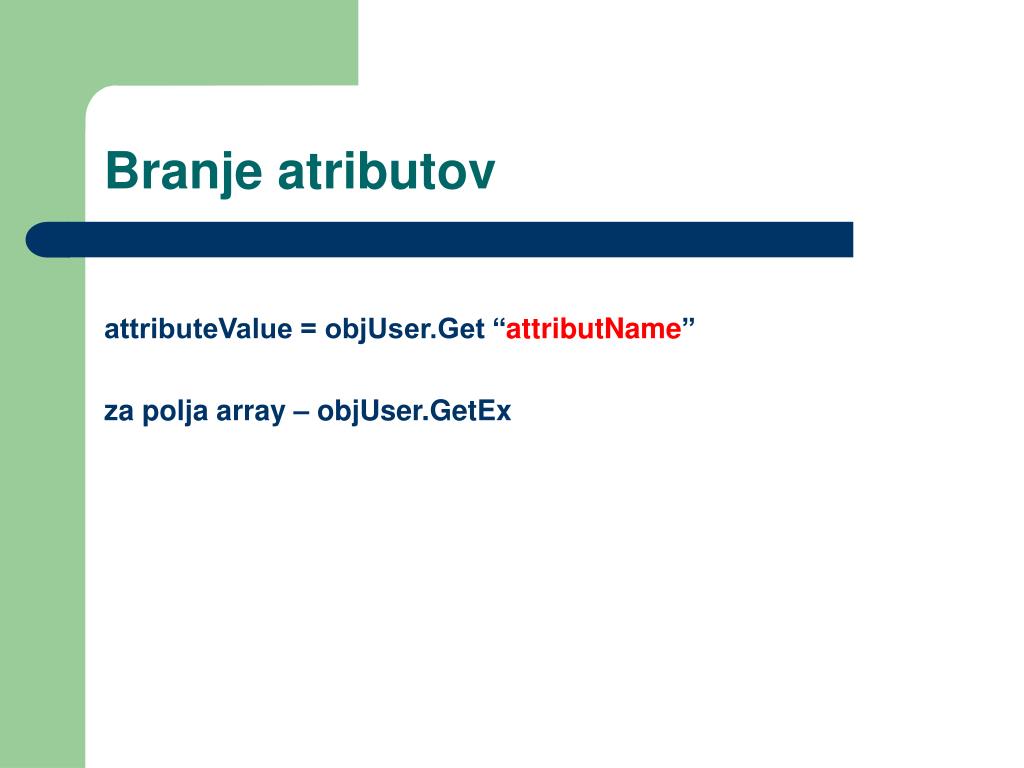

  17. Branje atributov attributeValue = objUser.Get “attributName” za polja array – objUser.GetEx

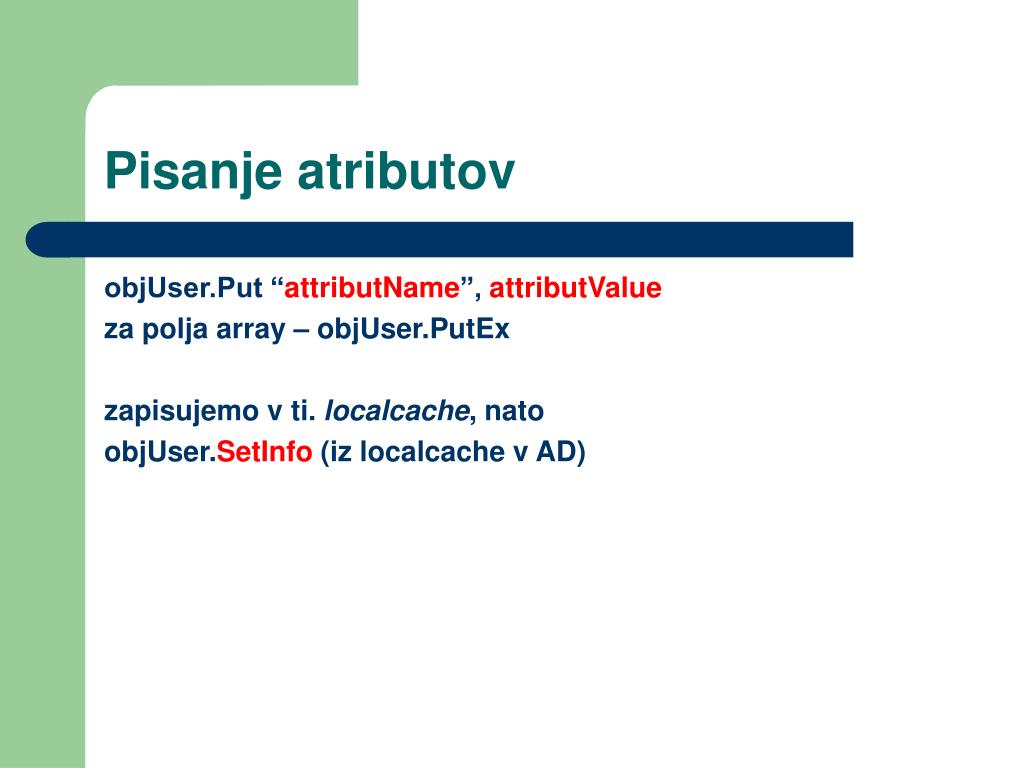

  18. Pisanje atributov objUser.Put “attributName”, attributValue za polja array – objUser.PutEx zapisujemo v ti. localcache, nato objUser.SetInfo (iz localcache v AD)

  19. Kreiranje objektov Set objOU= GetObject("LDAP://“ & absoluteDN) ojbOU.Create(“objectClass”, objectName)

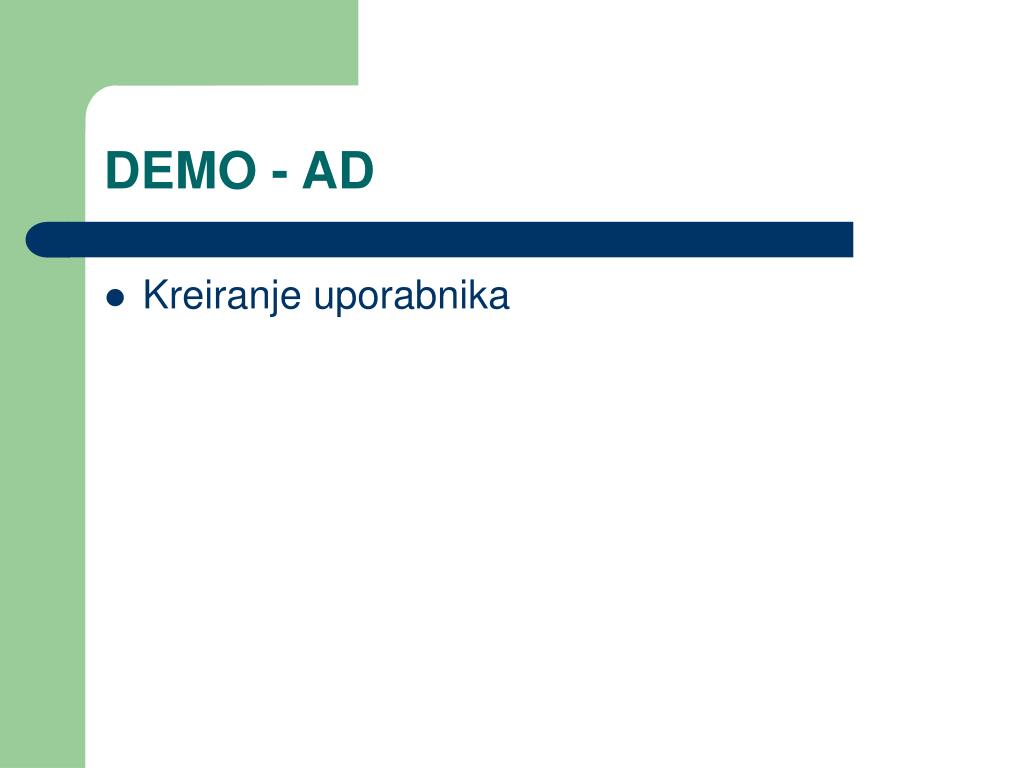

  20. DEMO - AD • Kreiranje uporabnika

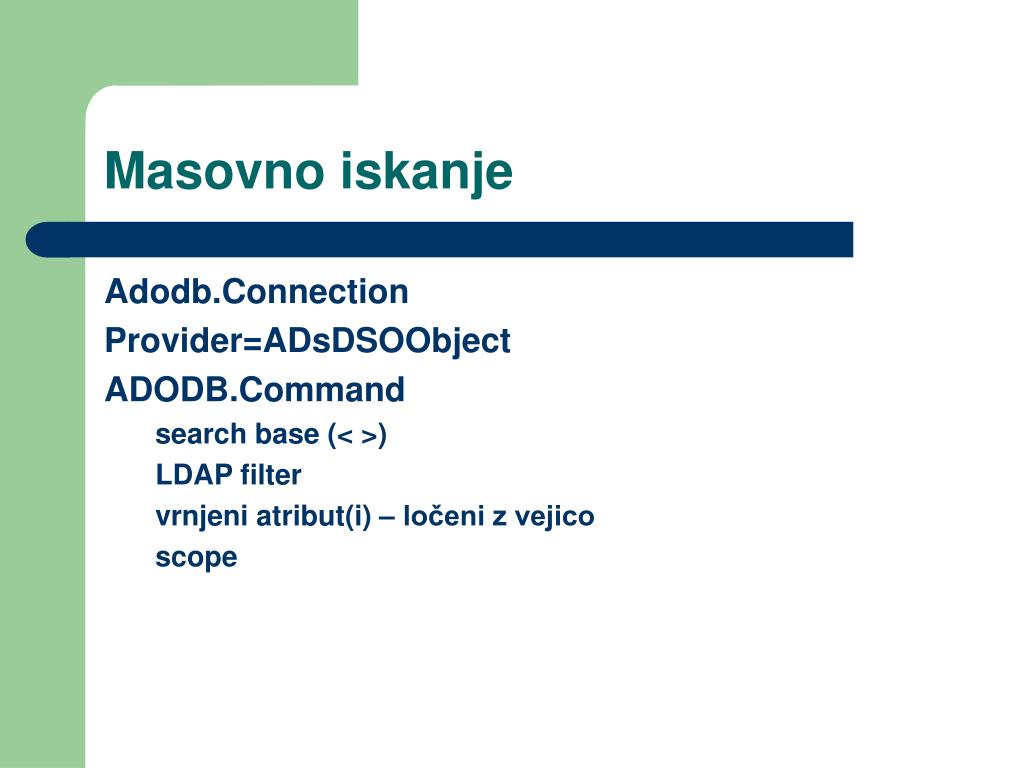

  21. Masovno iskanje Adodb.Connection Provider=ADsDSOObject ADODB.Command search base (< >) LDAP filter vrnjeni atribut(i) – ločeni z vejico scope

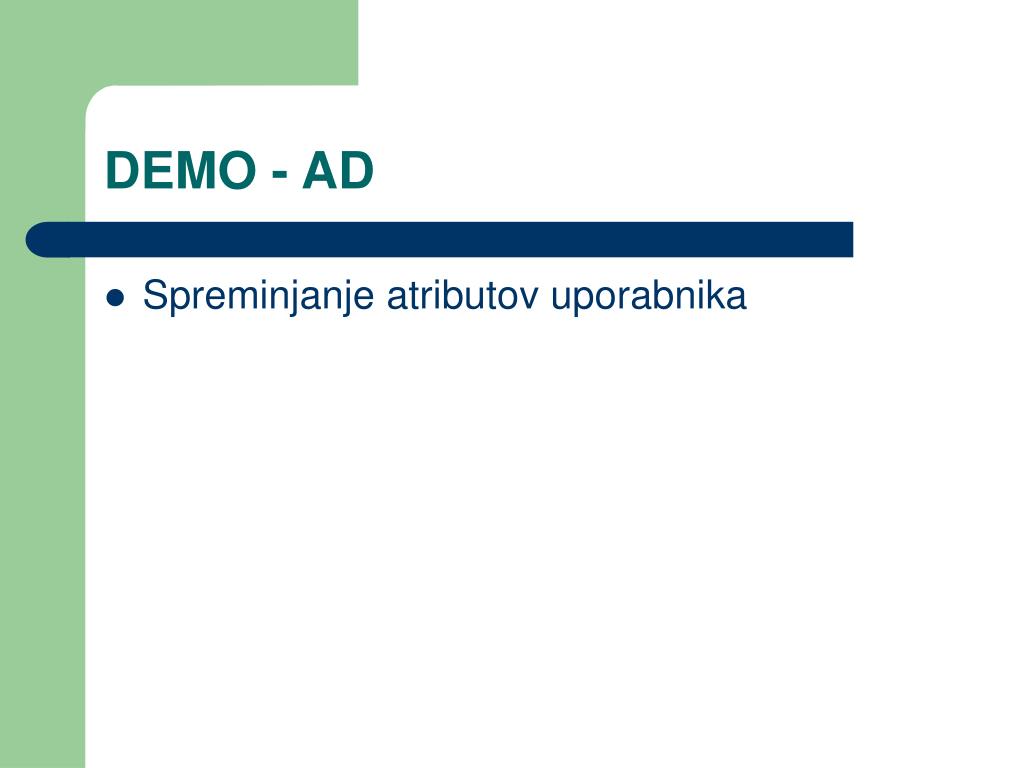

  22. DEMO - AD • Spreminjanje atributov uporabnika

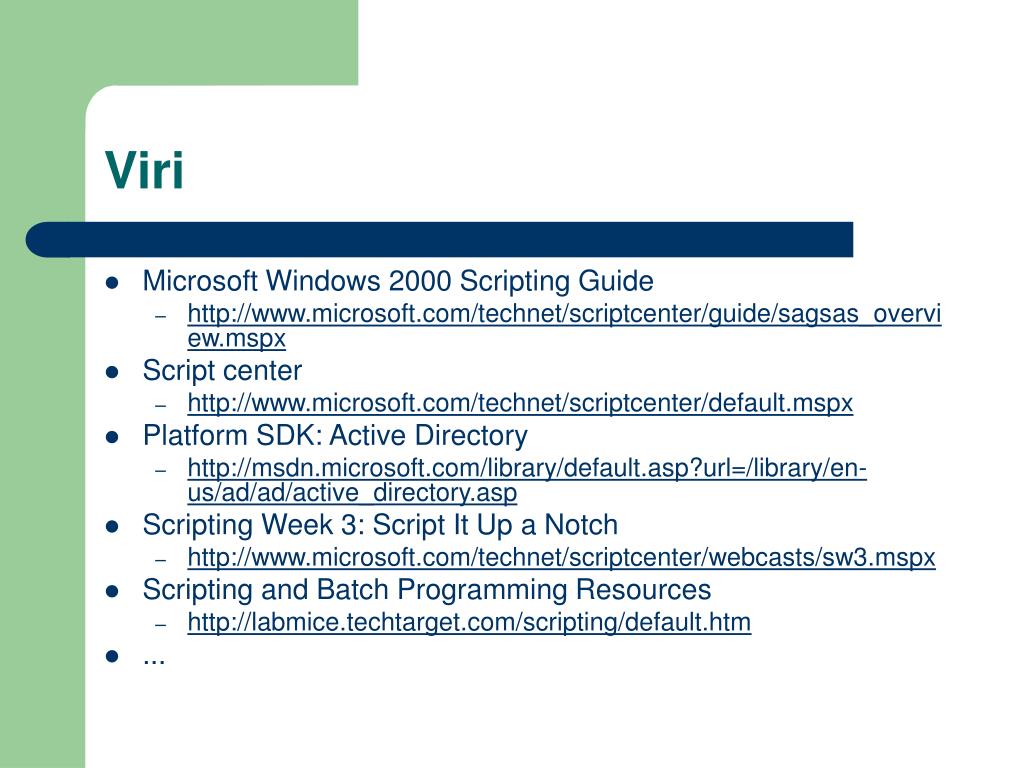

  23. Viri • Microsoft Windows 2000 Scripting Guide • http://www.microsoft.com/technet/scriptcenter/guide/sagsas_overview.mspx • Script center • http://www.microsoft.com/technet/scriptcenter/default.mspx • Platform SDK: Active Directory • http://msdn.microsoft.com/library/default.asp?url=/library/en-us/ad/ad/active_directory.asp • Scripting Week 3: Script It Up a Notch • http://www.microsoft.com/technet/scriptcenter/webcasts/sw3.mspx • Scripting and Batch Programming Resources • http://labmice.techtarget.com/scripting/default.htm • ...
