M10MAE Computer Aided Engineering. Shell Meshing Example Using Hypermesh. Introduction. The aim of this tutorial is to present the features necessary to generate an adequate crash mesh Start HyperMesh using the Optistruct template Input the Iges file longit.igs

keene
Download Presentation

M10MAE Computer Aided Engineering

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. M10MAE Computer Aided Engineering Shell Meshing Example Using Hypermesh

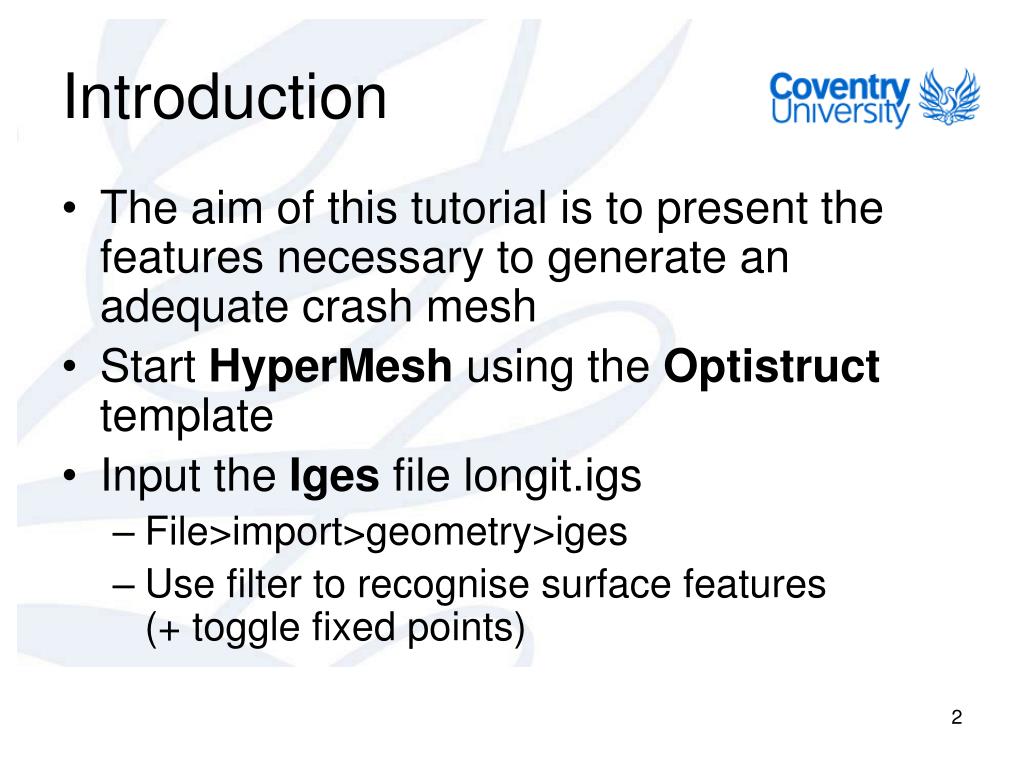

  2. Introduction • The aim of this tutorial is to present the features necessary to generate an adequate crash mesh • Start HyperMesh using the Optistruct template • Input the Iges file longit.igs • File>import>geometry>iges • Use filter to recognise surface features (+ toggle fixed points)

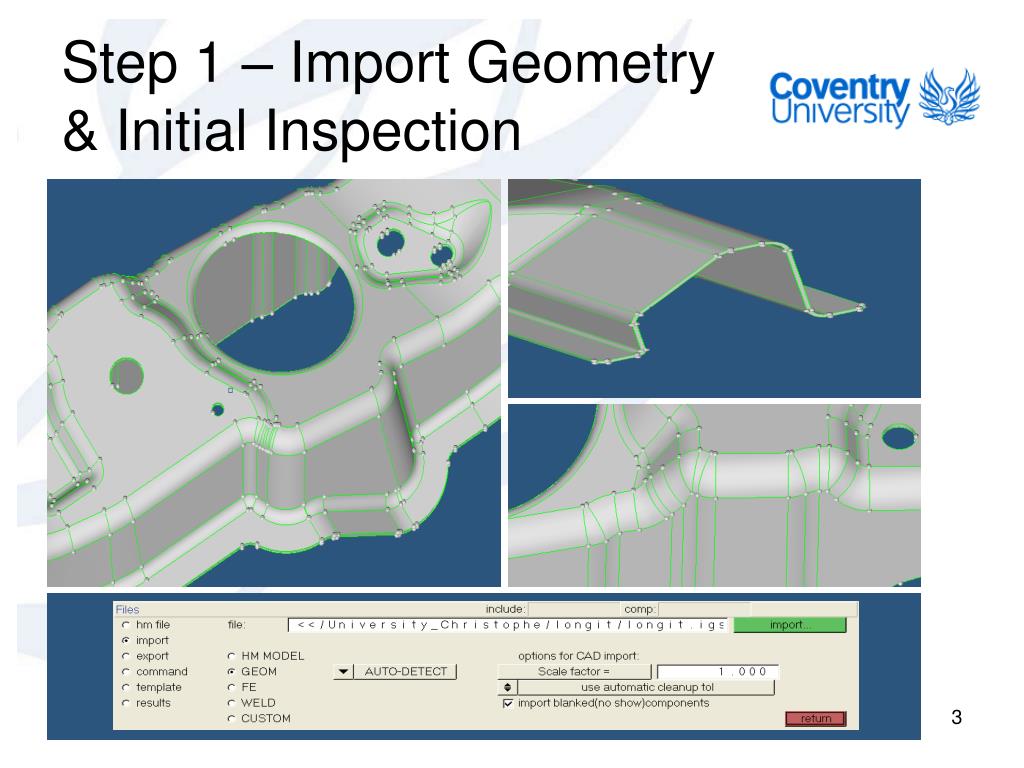

  3. Step 1 – Import Geometry & Initial Inspection

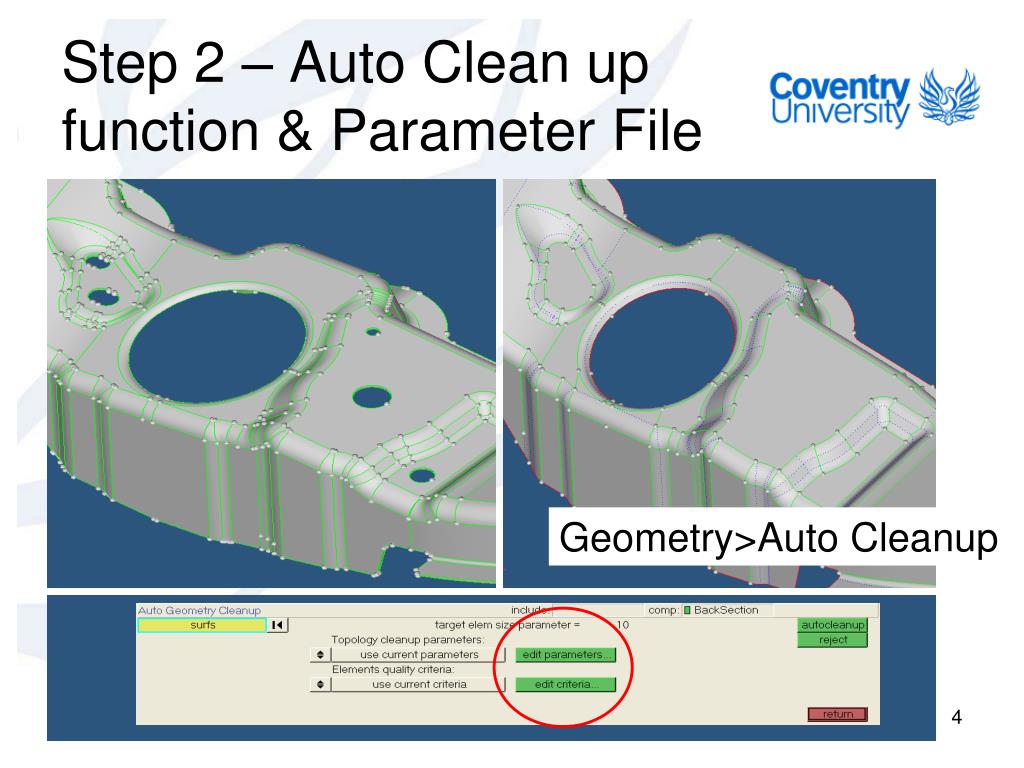

  4. Step 2 – Auto Clean up function & Parameter File Geometry>Auto Cleanup

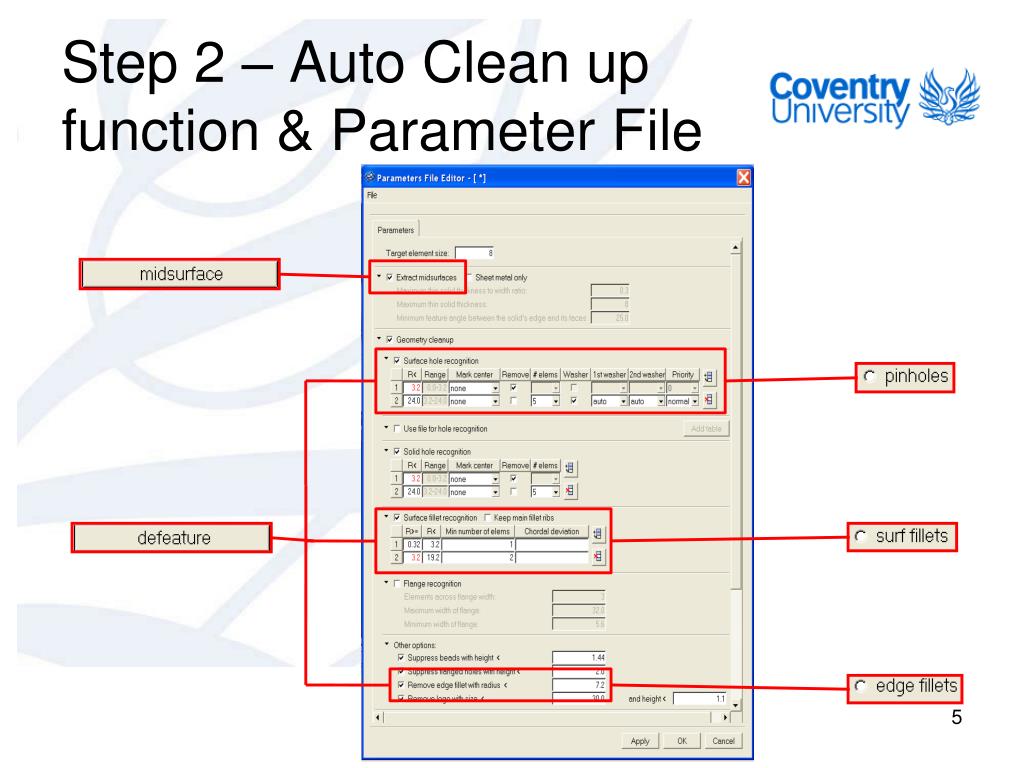

  5. Step 2 – Auto Clean up function & Parameter File

  6. Step 3 – Manual Geometry Clean Up General Quick Geometry Edit (F11)

  7. Step 3 – Manual Geometry Clean Up General • A point will force the mesh to lock on it, which can distort the mesh • Removing points give better control • Use the Point Edit menu> Multipoints > Delete to delete all the redundant points on the surface

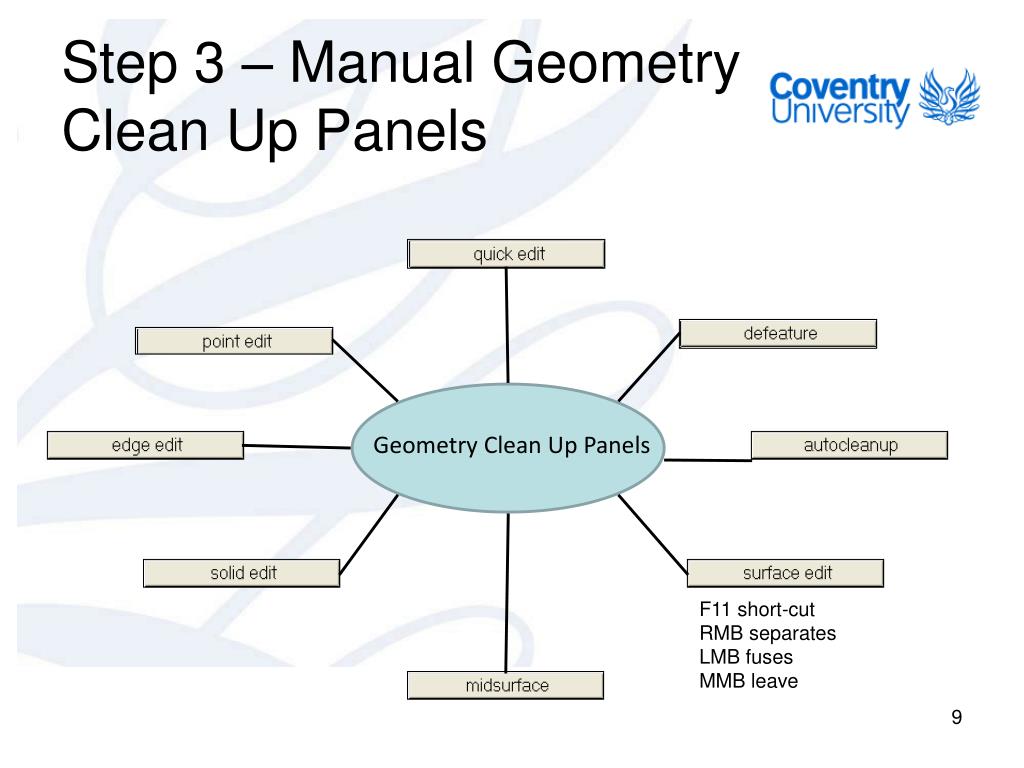

  8. Step 3 – Manual Geometry Clean Up Panels Geometry Clean Up Panels

  9. Step 3 – Manual Geometry Clean Up Panels Geometry Clean Up Panels F11 short-cut RMB separates LMB fuses MMB leave

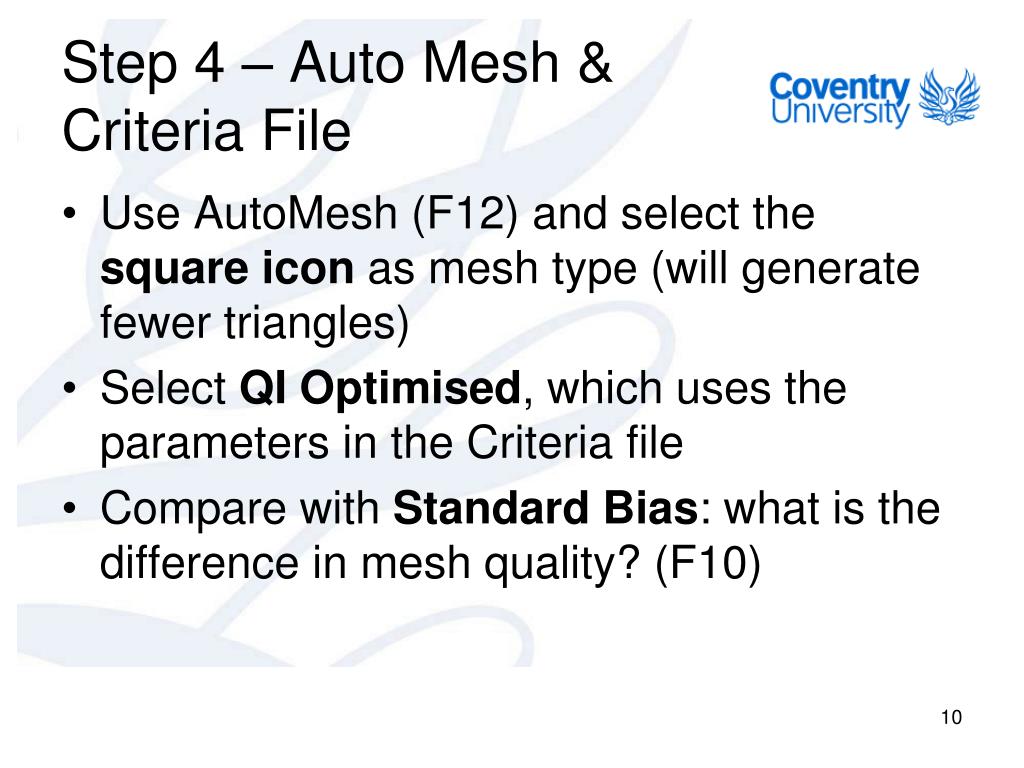

  10. Step 4 – Auto Mesh & Criteria File • Use AutoMesh (F12) and select the square icon as mesh type (will generate fewer triangles) • Select QI Optimised, which uses the parameters in the Criteria file • Compare with Standard Bias: what is the difference in mesh quality? (F10)

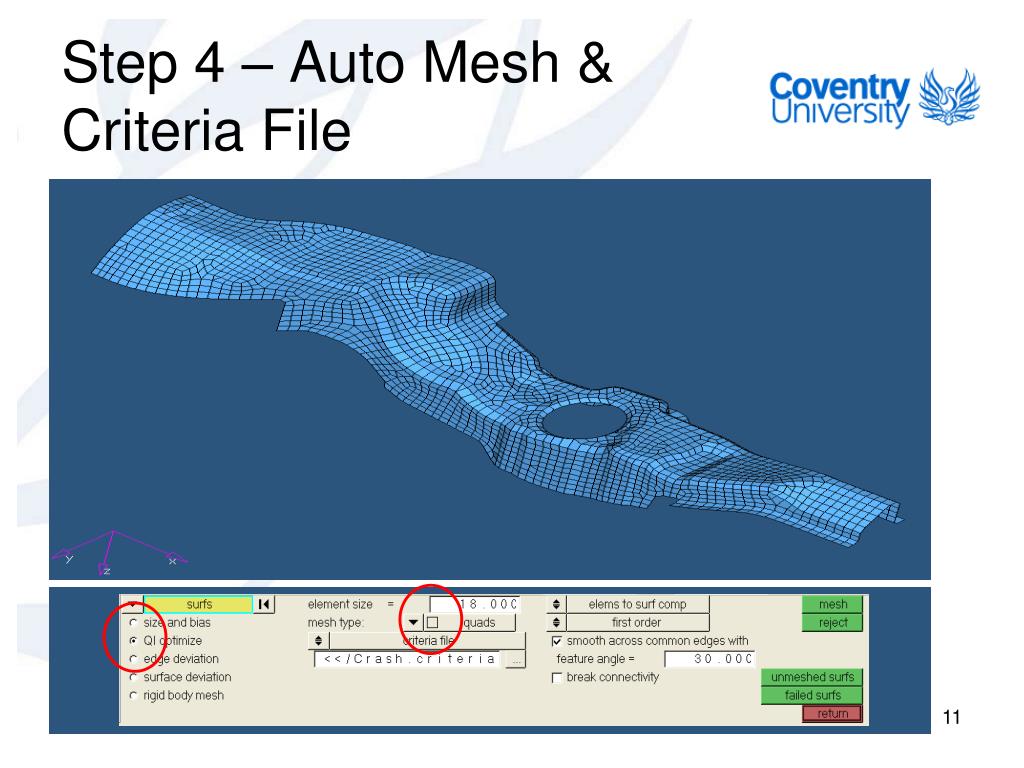

  11. Step 4 – Auto Mesh & Criteria File

  12. Time Step Calculations Mesh Requirements Step 4 – Auto Mesh & Criteria File

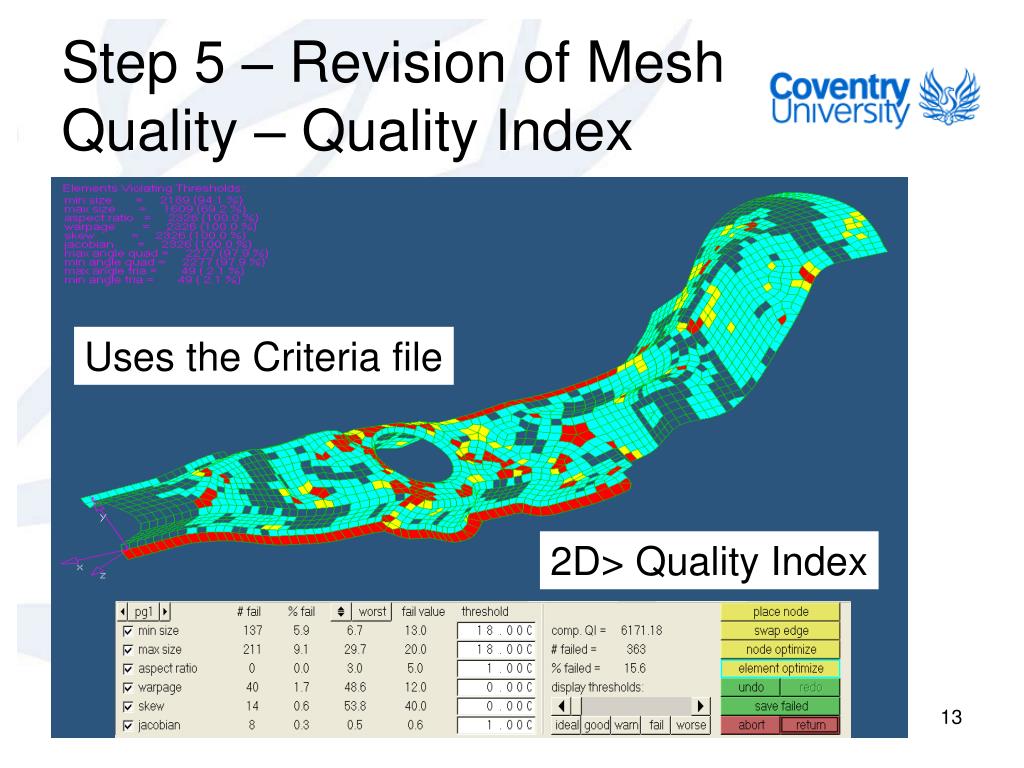

  13. Step 5 – Revision of Mesh Quality – Quality Index Uses the Criteria file 2D> Quality Index

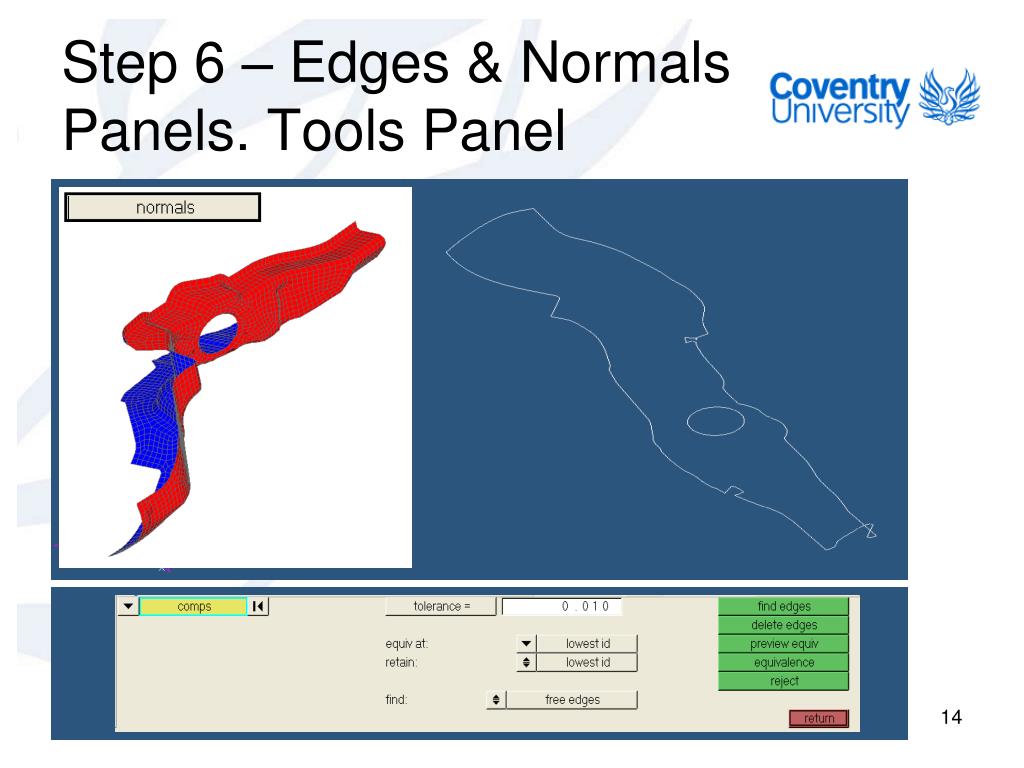

  14. Step 6 – Edges & Normals Panels. Tools Panel

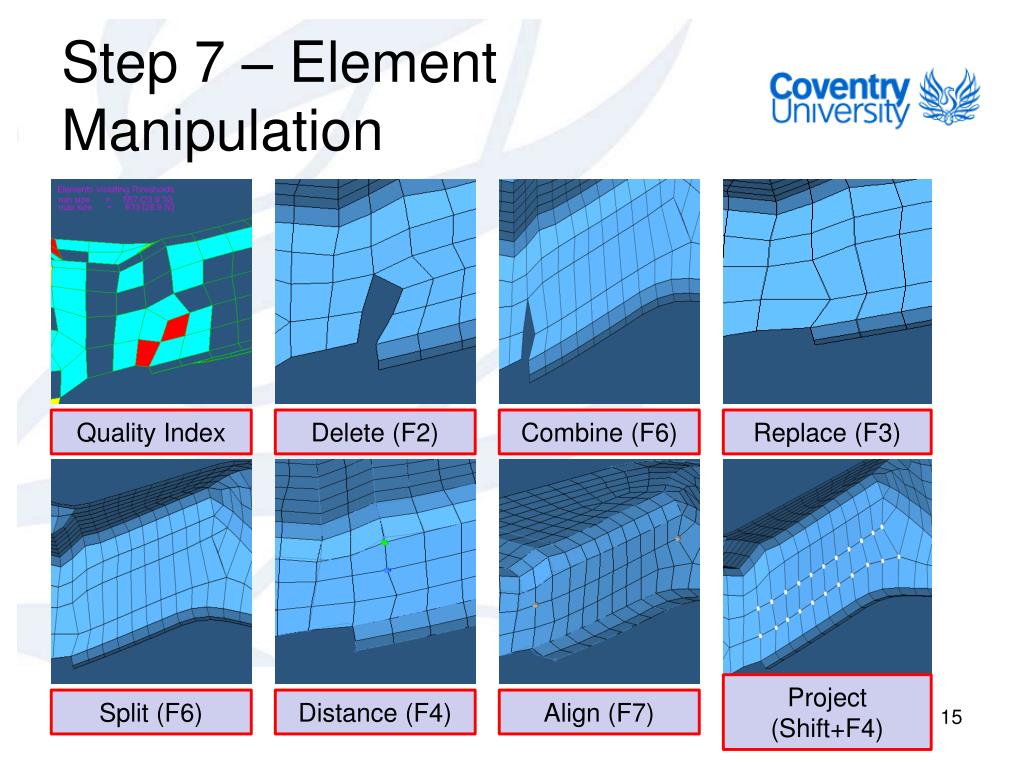

  15. Step 7 – Element Manipulation Quality Index Delete (F2) Combine (F6) Replace (F3) Project (Shift+F4) Split (F6) Distance (F4) Align (F7)

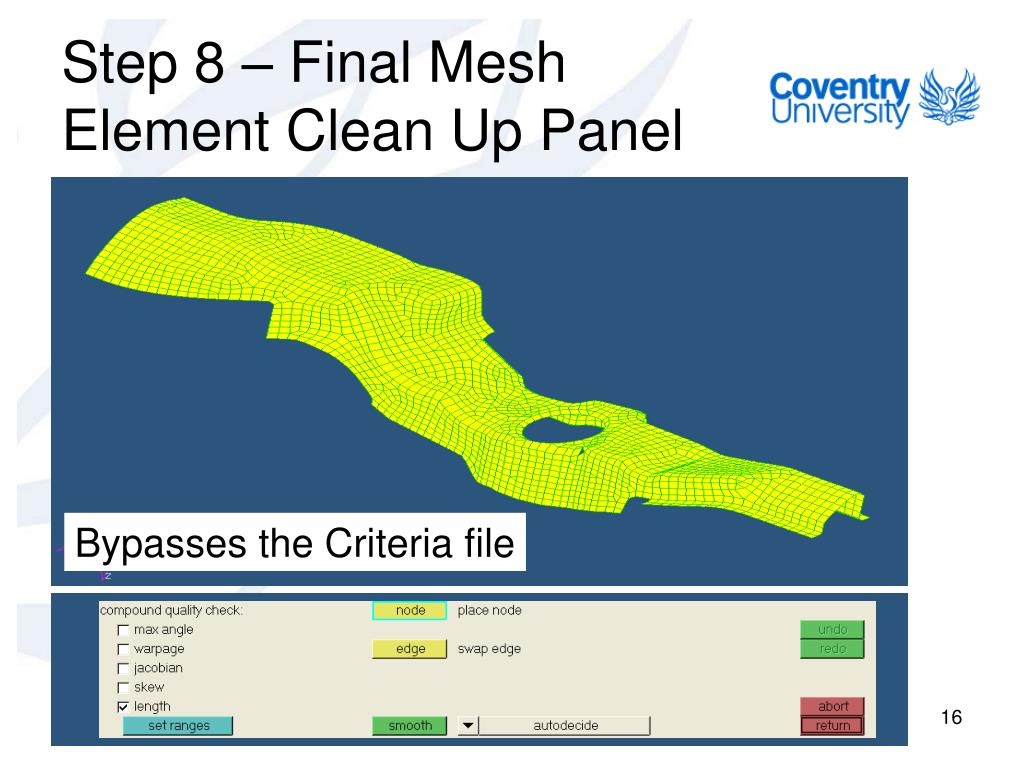

  16. Step 8 – Final Mesh Element Clean Up Panel Bypasses the Criteria file
