1. Variational Bayesian Approach for Nonlinear Identification and Control Matti Tornio and Tapani Raiko October 9, 2006 Helsinki University of TechnologyAdaptive Informatics Research CentreFinland

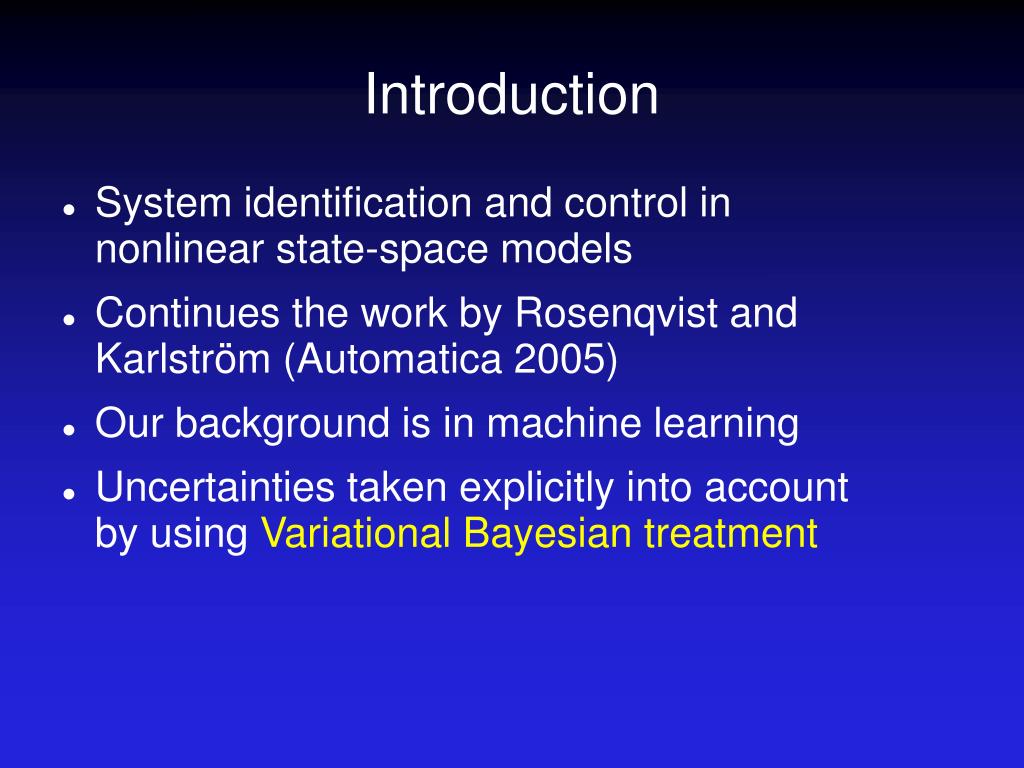

2. Introduction • System identification and control in nonlinear state-space models • Continues the work by Rosenqvist and Karlström (Automatica 2005) • Our background is in machine learning • Uncertainties taken explicitly into accountby using Variational Bayesian treatment

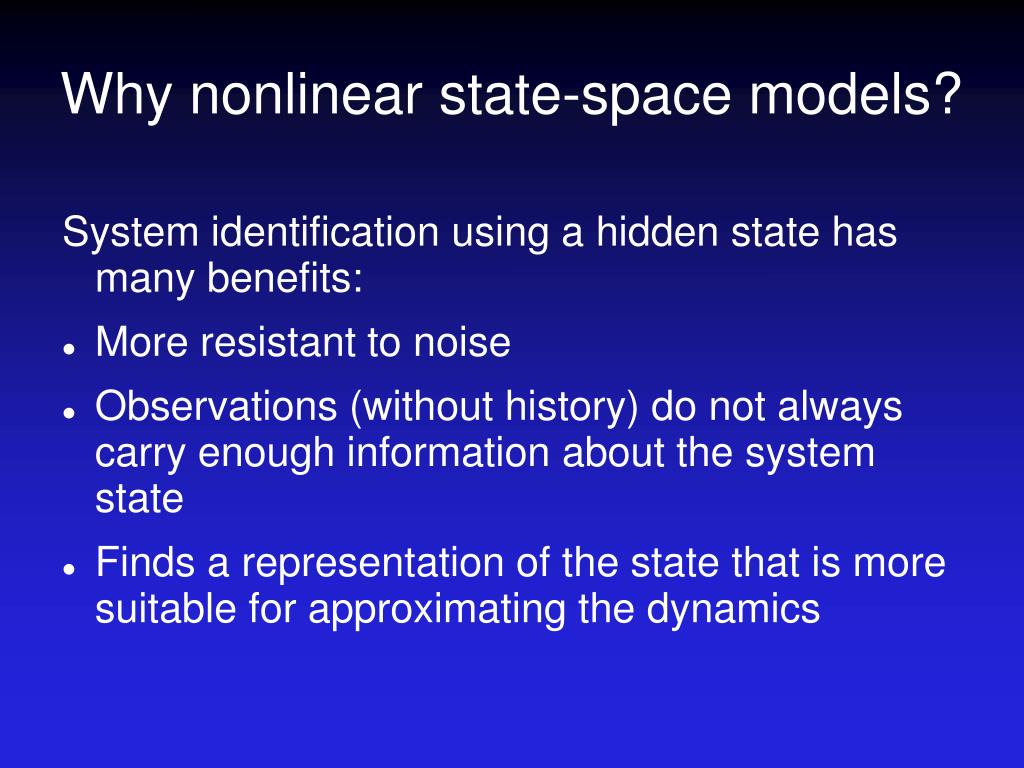

3. Why nonlinear state-space models? System identification using a hidden state has many benefits: • More resistant to noise • Observations (without history) do not always carry enough information about the system state • Finds a representation of the state that is more suitable for approximating the dynamics

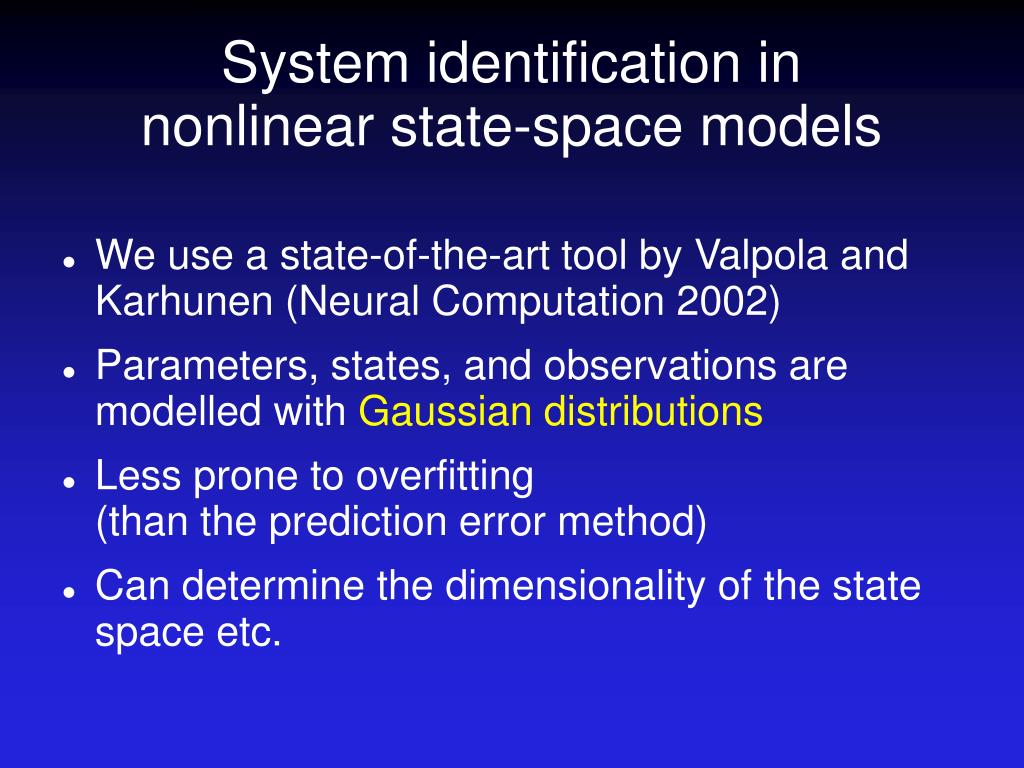

4. System identification in nonlinear state-space models • We use a state-of-the-art tool by Valpola and Karhunen (Neural Computation 2002) • Parameters, states, and observations are modelled with Gaussian distributions • Less prone to overfitting (than the prediction error method) • Can determine the dimensionality of the state space etc.

5. Properties of the method • The model scales well to higher dimensions • Can model very complex dynamics • Natural conjugate gradient algorithm is used for fast system identification

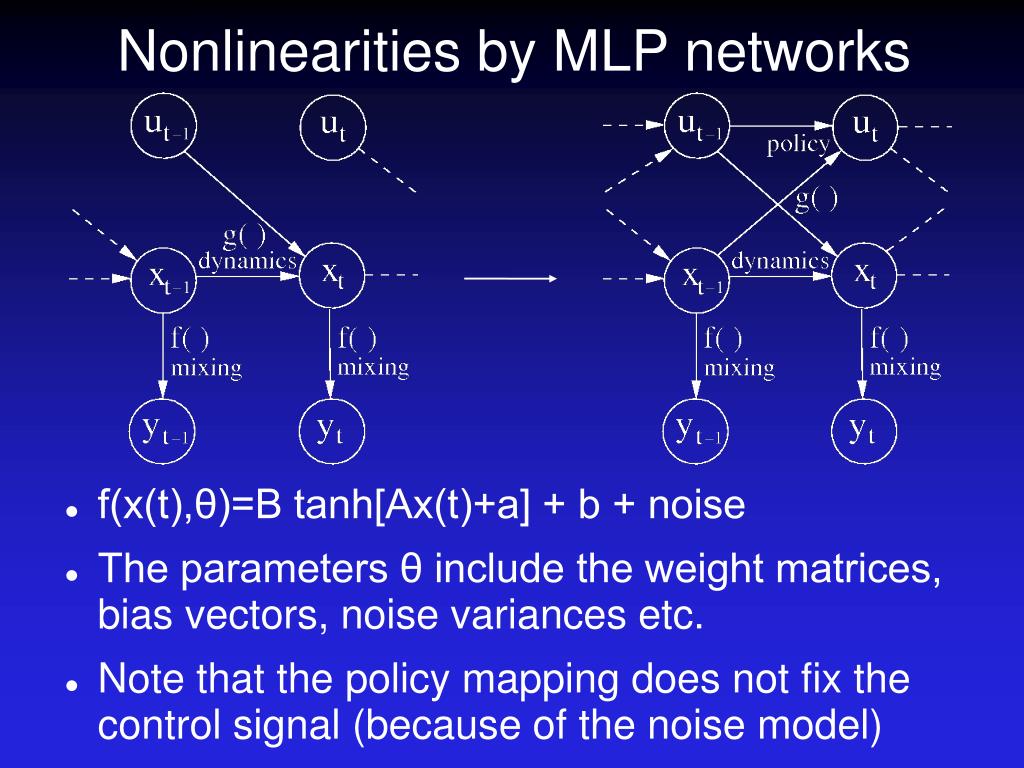

6. Nonlinearities by MLP networks • f(x(t),θ)=B tanh[Ax(t)+a] + b + noise • The parameters θ include the weight matrices, bias vectors, noise variances etc. • Note that the policy mapping does not fix the control signal (because of the noise model)

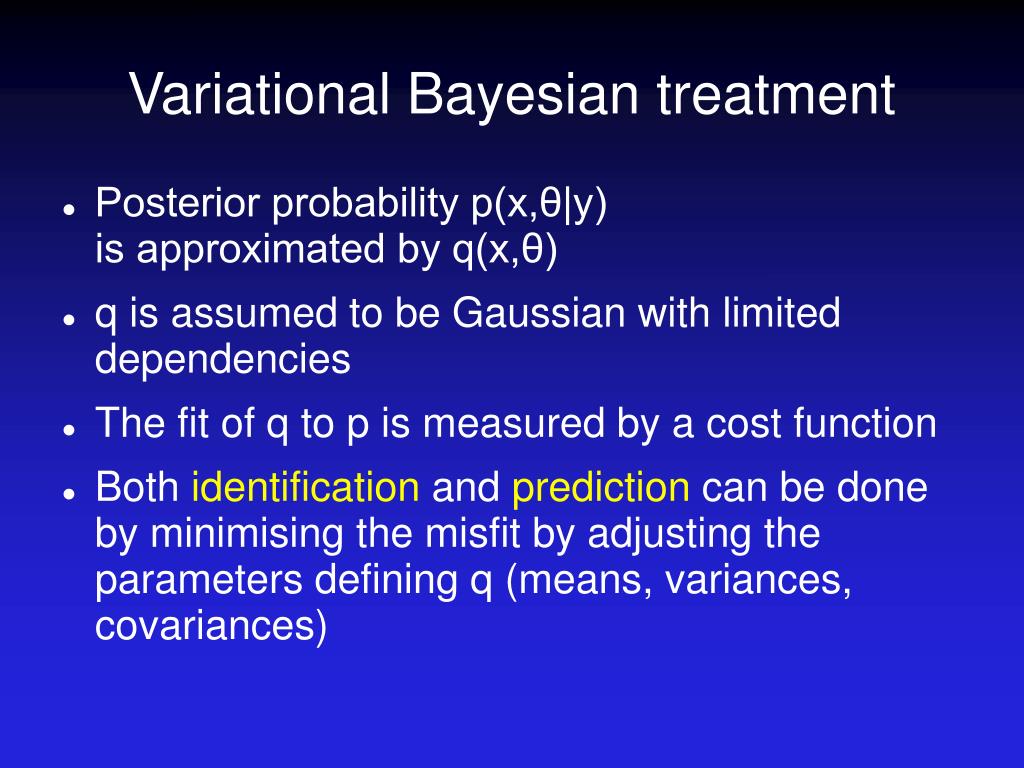

7. Variational Bayesian treatment • Posterior probability p(x,θ|y) is approximated by q(x,θ) • q is assumed to be Gaussian with limited dependencies • The fit of q to p is measured by a cost function • Both identification and prediction can be done by minimising the misfit by adjusting the parameters defining q (means, variances, covariances)

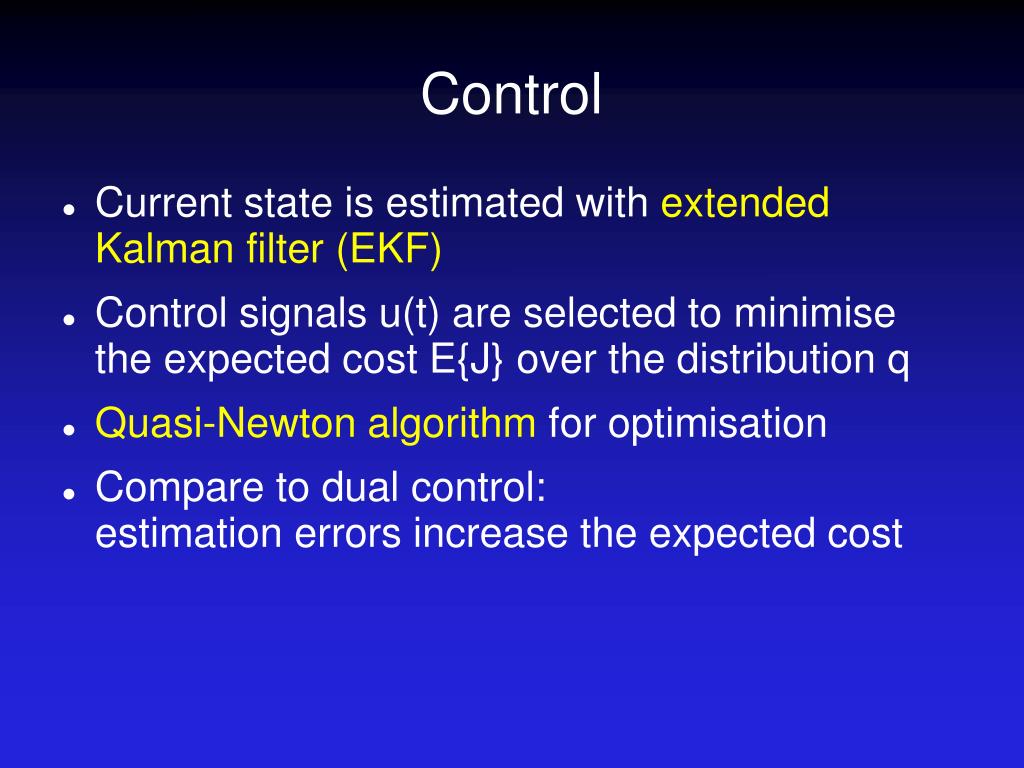

8. Control • Current state is estimated with extended Kalman filter (EKF) • Control signals u(t) are selected to minimise the expected cost E{J} over the distribution q • Quasi-Newton algorithm for optimisation • Compare to dual control:estimation errors increase the expected cost

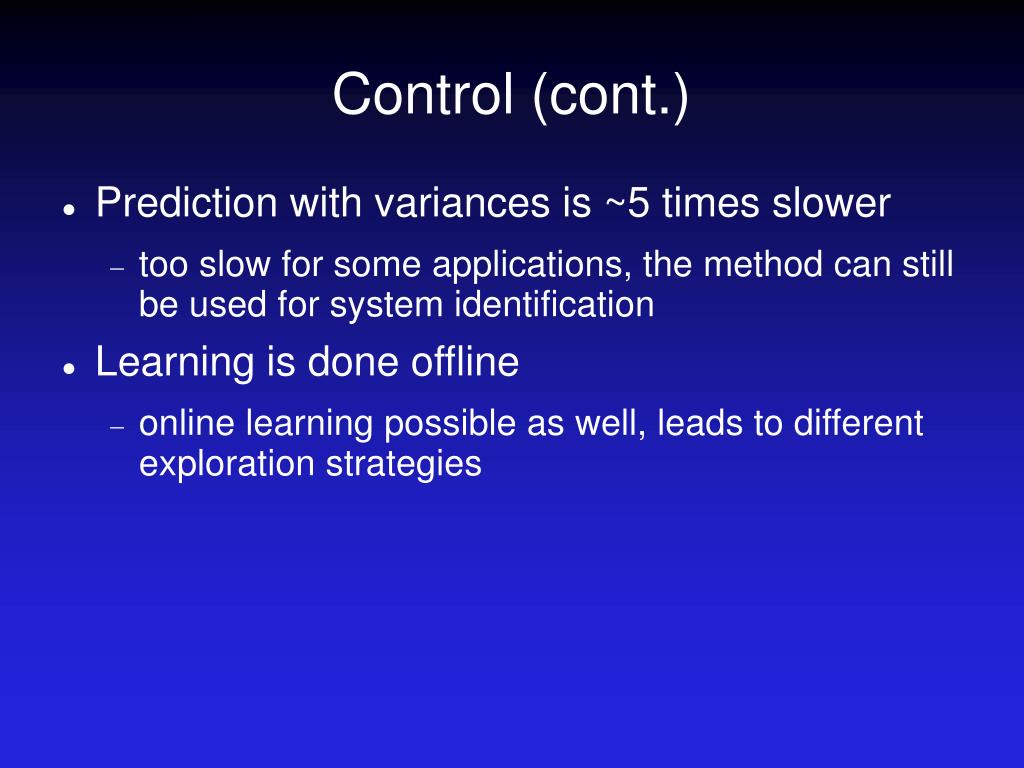

9. Control (cont.) • Prediction with variances is ~5 times slower • too slow for some applications, the method can still be used for system identification • Learning is done offline • online learning possible as well, leads to different exploration strategies

10. Optimistic inference control • Alternative control scheme • Observations at some point in the future are fixed and the states leading to this desired future are inferred • Allows the direct use of inference algorithms • Conceptually very simple, but not as versatile as NMPC • constraints hard to model

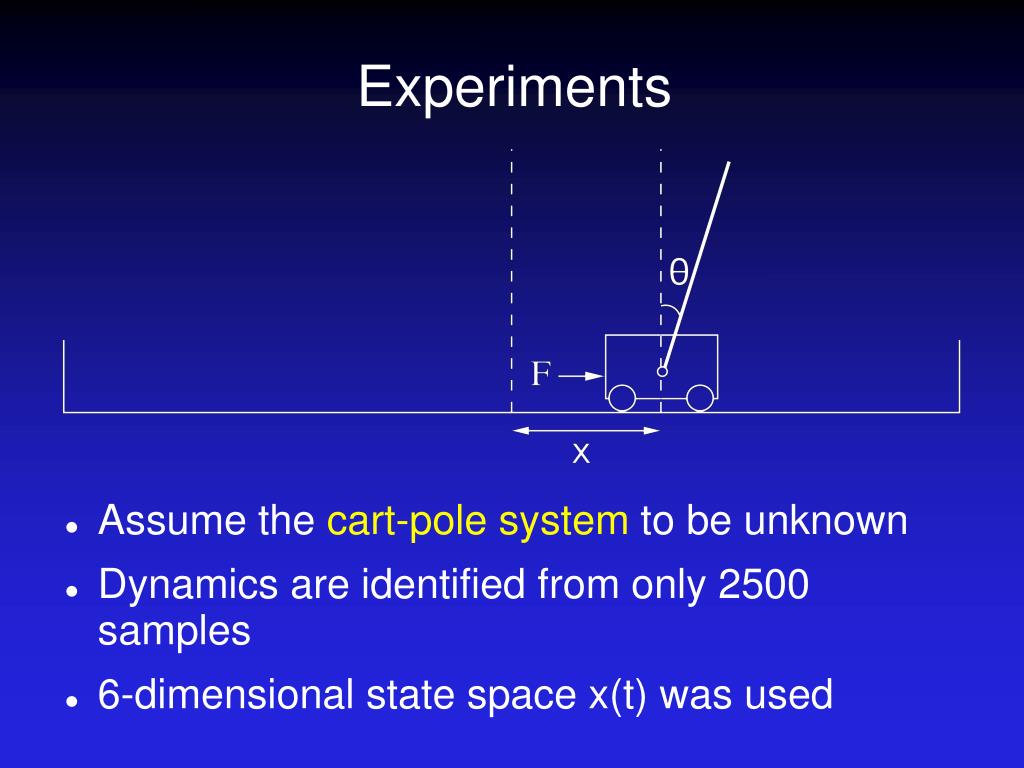

11. Experiments • Assume the cart-pole system to be unknown • Dynamics are identified from only 2500 samples • 6-dimensional state space x(t) was used

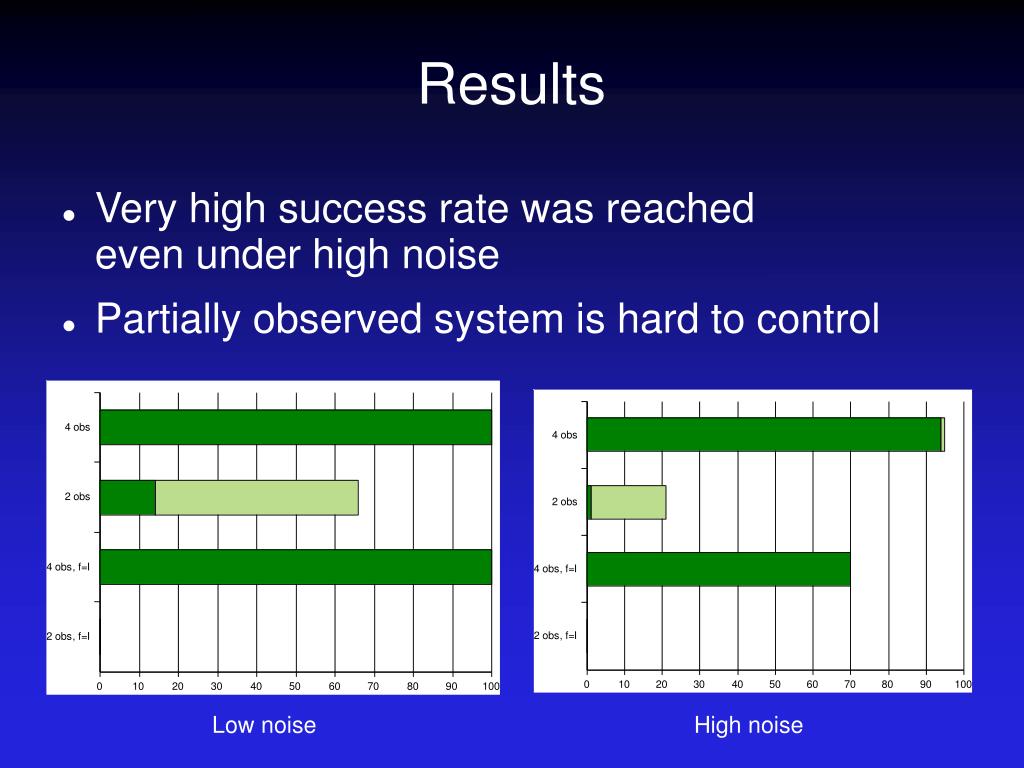

14. Results • Very high success rate was reached even under high noise • Partially observed system is hard to control Low noise High noise

15. Results (initialisation) • Good initialisations are important • Local minima are the biggest problem • Internal forward model can provide reasonable initialisations without significant extra computation

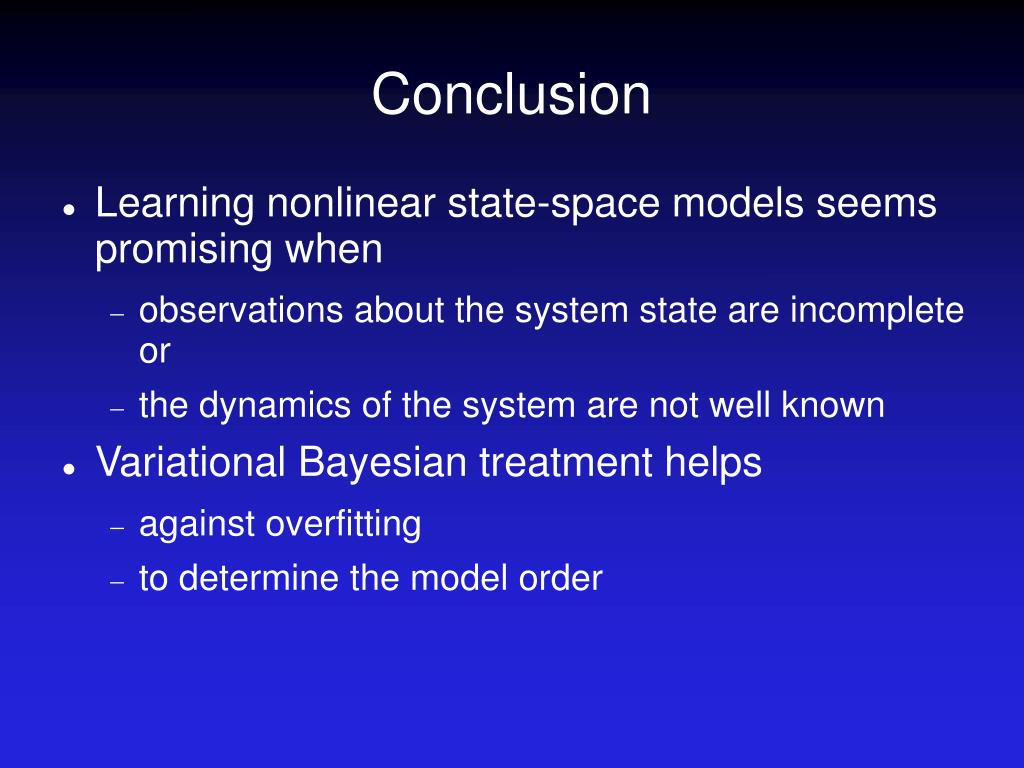

16. Conclusion • Learning nonlinear state-space models seems promising when • observations about the system state are incompleteor • the dynamics of the system are not well known • Variational Bayesian treatment helps • against overfitting • to determine the model order
