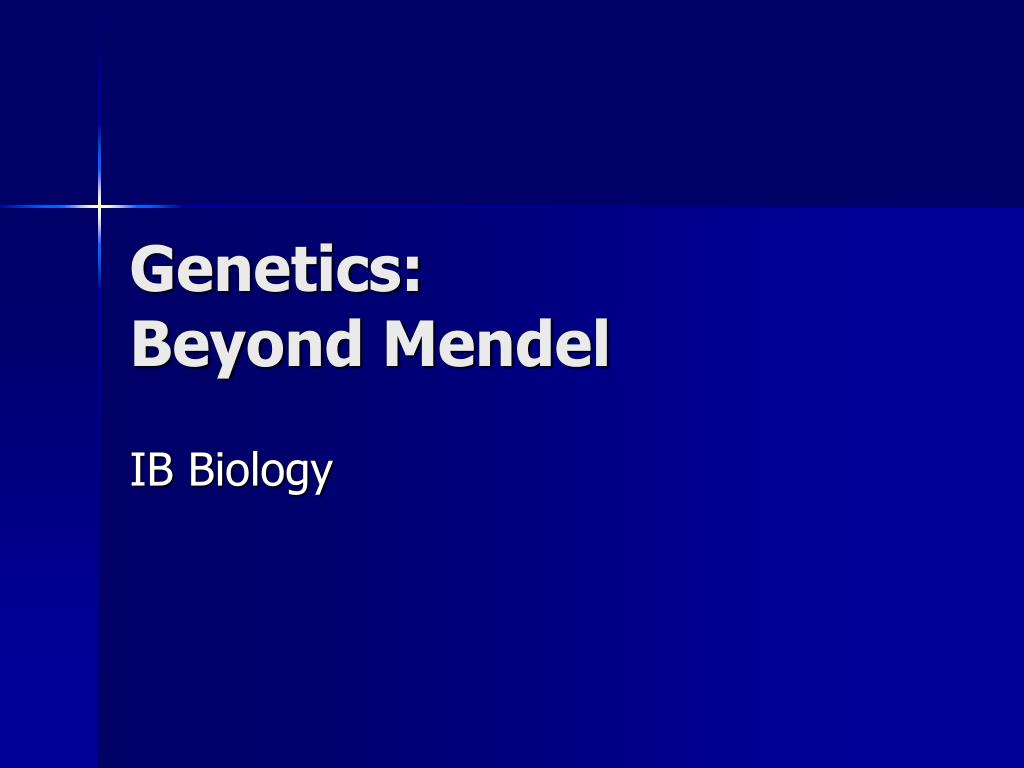

Genetics beyond mendel

Genetics:Beyond Mendel

IB Biology

Mendelian genetics

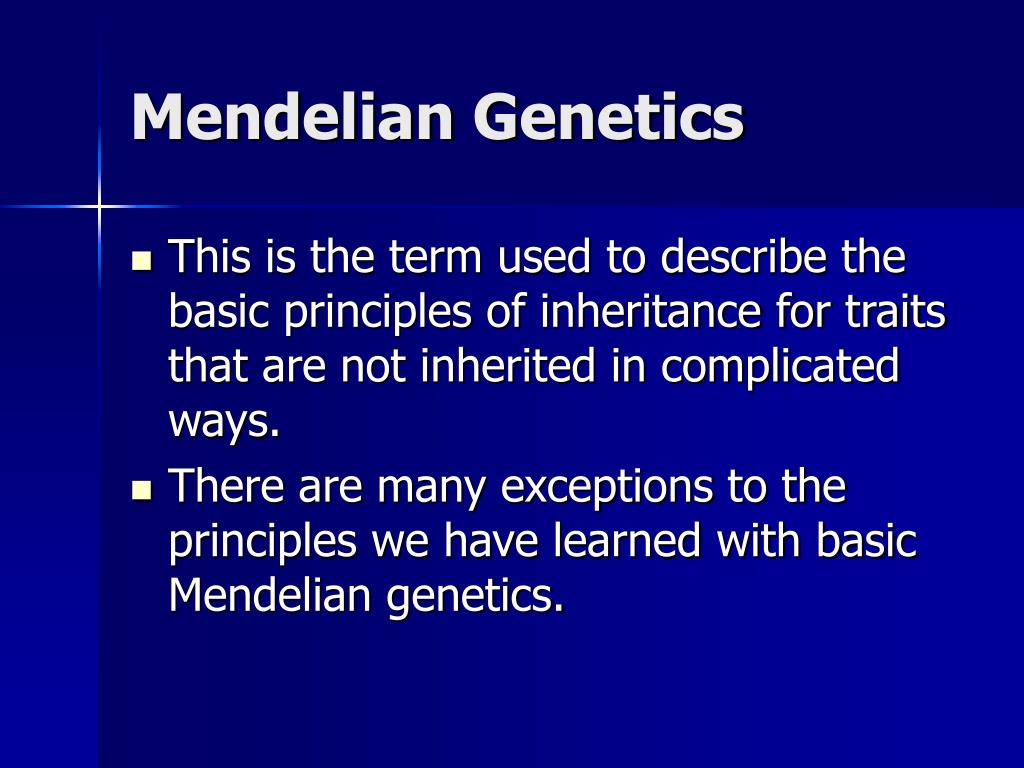

Mendelian Genetics

  • This is the term used to describe the basic principles of inheritance for traits that are not inherited in complicated ways.

  • There are many exceptions to the principles we have learned with basic Mendelian genetics.

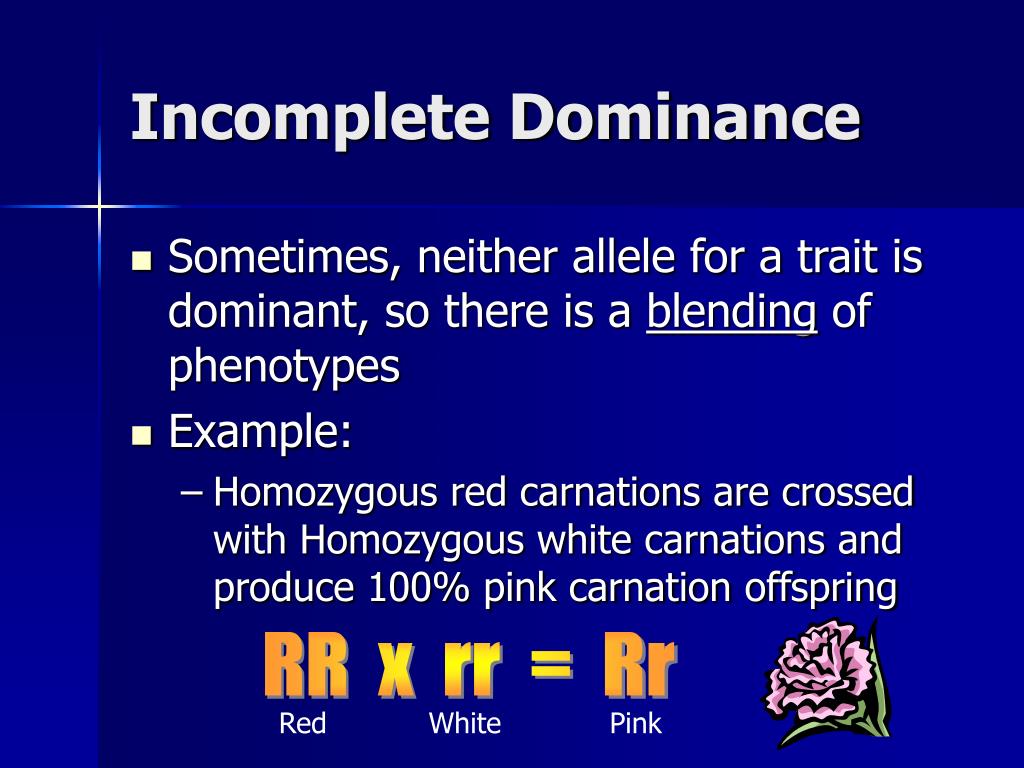

Incomplete dominance

Incomplete Dominance

  • Sometimes, neither allele for a trait is dominant, so there is a blending of phenotypes

  • Example:

    • Homozygous red carnations are crossed with Homozygous white carnations and produce 100% pink carnation offspring

RR x rr = Rr

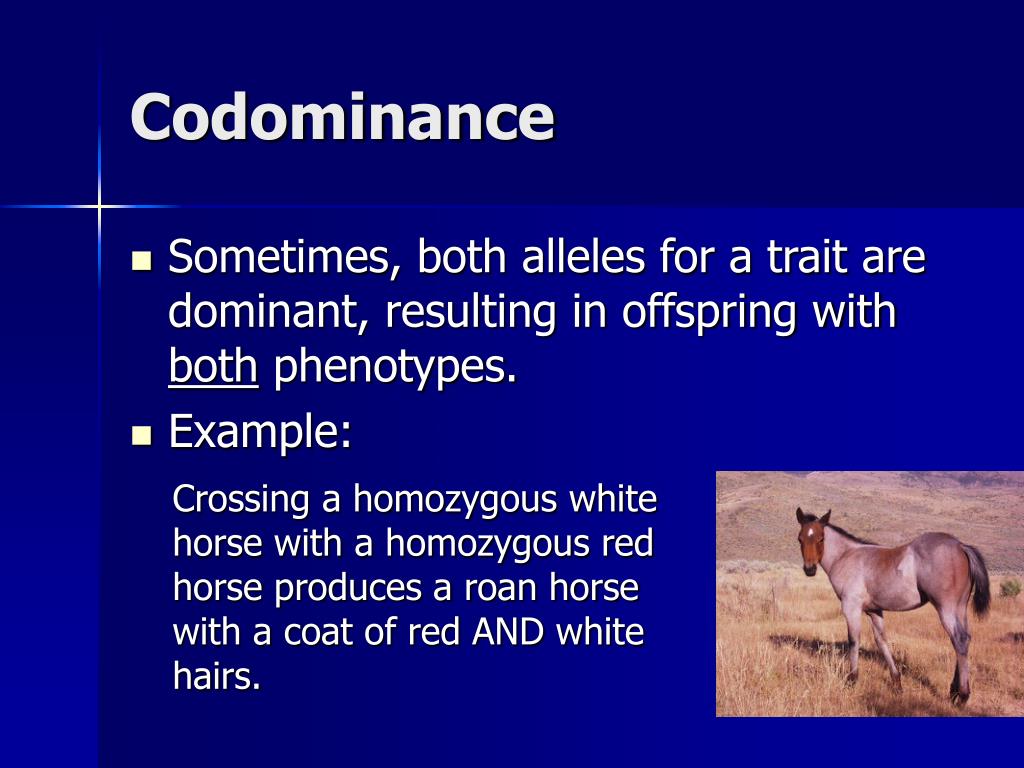

  • Sometimes, both alleles for a trait are dominant, resulting in offspring with both phenotypes.

  • Example:

Crossing a homozygous white horse with a homozygous red horse produces a roan horse with a coat of red AND white hairs.

Multiple alleles

Multiple Alleles

  • This term describes traits for which there are more than 2 alleles

  • Example

    • There are three alleles for blood type: A (IA), B (IB) (codominant), and O (i) (recessive), allowing for 6 possible genotypes:

    • IA IA, IAi (type A phenotype)

    • IBIB, IBi (type B phenotype)

    • IA IB (type AB phenotype)

    • ii (type O phenotype)

Blood types

Blood Types

  • Type A blood produces the A type glycoprotein on blood cell membranes (Type B produces B glycoprotein, type O produces a carbohydrate with no effect)

  • Giving someone with type A blood a type B transfusion will cause their immune system to recognize the type A glycoproteins as foreign antigens, attack them, and cause clotting and usually death for the patient

Blood types1

Blood Types

  • Those with type AB blood produce both glycoproteins (codominant), so they can receive A or B transfusions without an immune response

  • Those with type O blood are universal donors because the carbohydrate on their cell surfaces do not trigger an immune response, however, those with type O cannot receive any other form of blood



  • This occurs when one gene affects the phenotypic expression of a second gene.

  • Frequently occurs in the expression of pigmentation

    • One gene turns on (or off) the production of pigment, while a second gene controls either the amount of pigment produced, or the color of the pigment

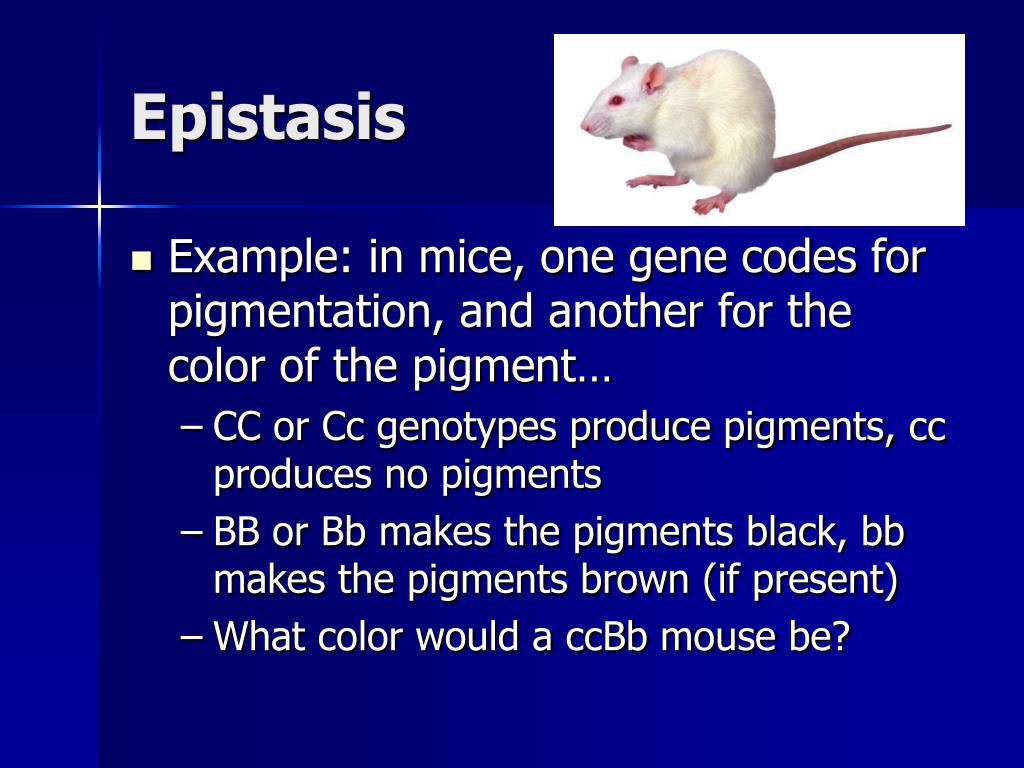

  • Example: in mice, one gene codes for pigmentation, and another for the color of the pigment…

    • CC or Cc genotypes produce pigments, cc produces no pigments

    • BB or Bb makes the pigments black, bb makes the pigments brown (if present)

    • What color would a ccBb mouse be?



  • This occurs when a single gene has more than one phenotypic expression

  • Example:

    • The gene in pea plants that expresses the round or wrinkled texture of seeds also influences the phenotypic expressions of starch metabolism and water absorption

    • This is like killing 2 (or more) birds with one stone

Pleiotropy example

Pleiotropy Example

  • Sickle-cell anemia is an example of a pleiotropic human blood disease.

  • It is caused by an allele that incorrectly codes for hemoglobin, causing normally round red blood cells to become sickle-shaped – leading to a painful death when homozygous recessive with that allele

  • Heterozygous individuals with that allele are more resistant to the mosquito-born pathogen malaria

Polygenic inheritance

Polygenic Inheritance

  • Many traits are not expressed in just 2 or 3 varieties, such as yellow and green pea seeds or A, B, O blood types

  • Your height, for example, is usually not just short or tall, but can be one of a nearly infinite continuum of possibilities within a certain range

  • Many genes are required to shape single complex phenotypes like height.

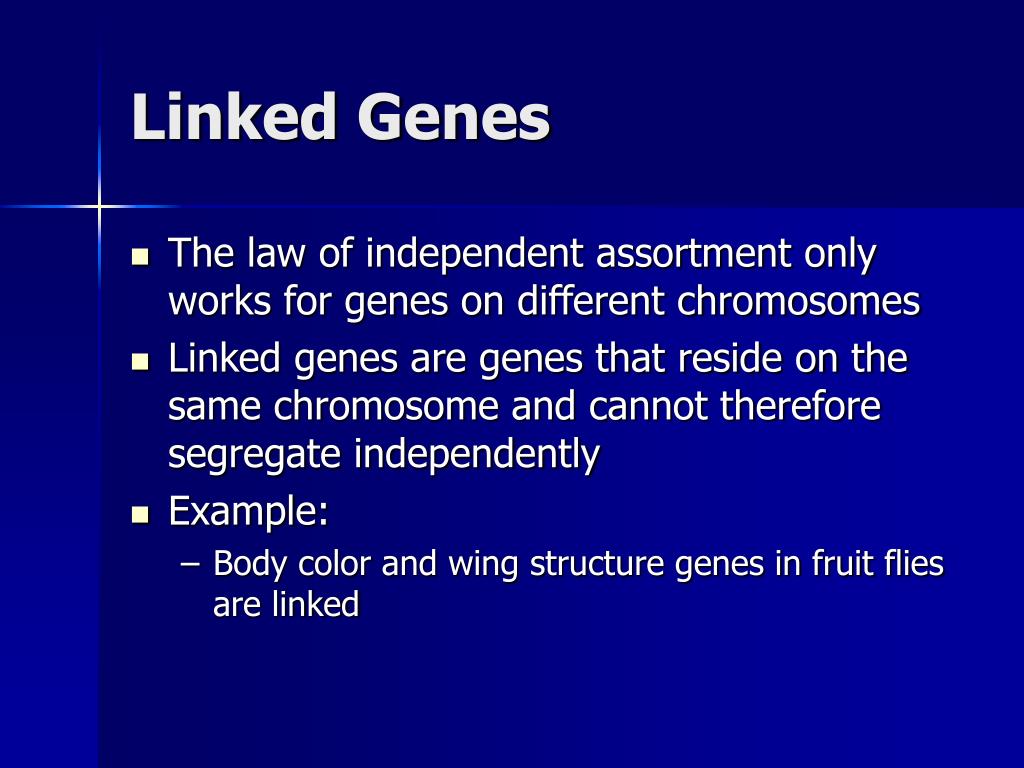

Linked genes

Linked Genes

  • The law of independent assortment only works for genes on different chromosomes

  • Linked genes are genes that reside on the same chromosome and cannot therefore segregate independently

  • Example:

    • Body color and wing structure genes in fruit flies are linked

Linked genes1

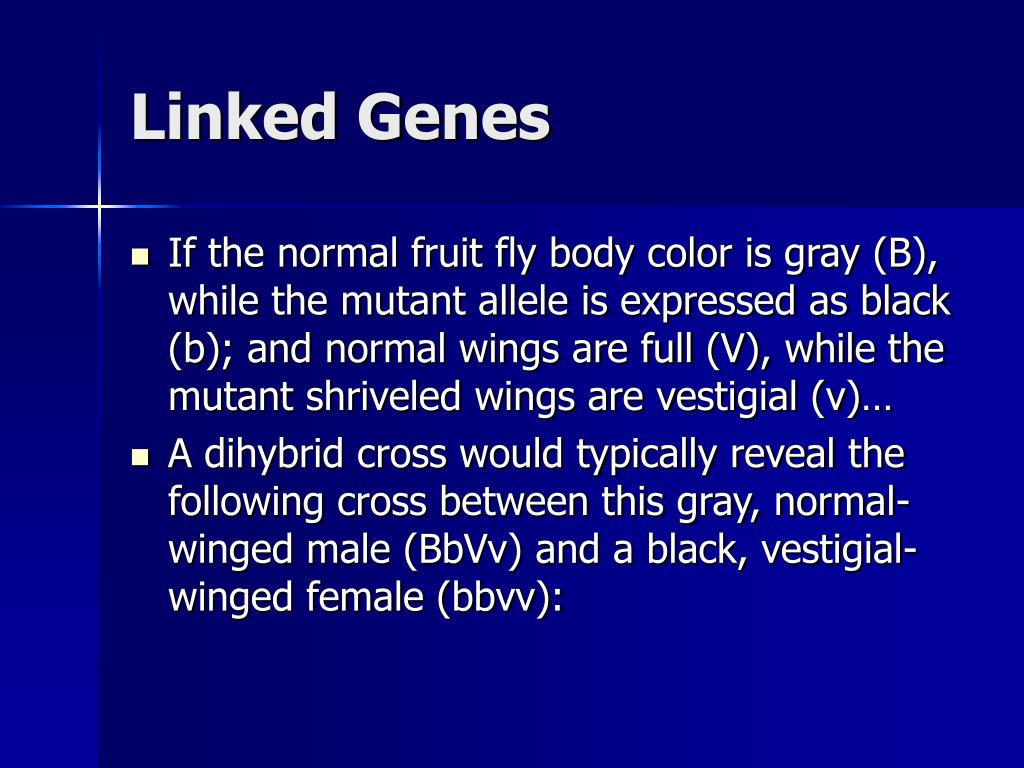

Linked Genes

  • If the normal fruit fly body color is gray (B), while the mutant allele is expressed as black (b); and normal wings are full (V), while the mutant shriveled wings are vestigial (v)…

  • A dihybrid cross would typically reveal the following cross between this gray, normal-winged male (BbVv) and a black, vestigial-winged female (bbvv):

Genetics beyond mendel

Normally: B’s and V’s sort independently

Probabilities: ¼ BbVv, ¼ Bbvv, ¼ bbVv, and ¼ bbvv

Linked: B’s and V’s do not sort so if B is on the same chromosome as V, they do not mix with b or v

Probabilities: ½ BbVv, ½ bbvv

Genetics beyond mendel

Experimental Probabilities: 41/100 BbVv, 41/100 bbvv, 9/100 Bbvv, 9/100 bbVv

(41:41:9:9 ratio) . . . How?

Crossing Over:

Since genes cross over homologous chromosomes in prophase I of meiosis, in this case, about 18% of the time, we do see some of the unexpected combinations above (9% for each = 18% crossover rate). 82% of the time, normal linked combinations are revealed (41% for each expected result = 82%).

Linked genes2

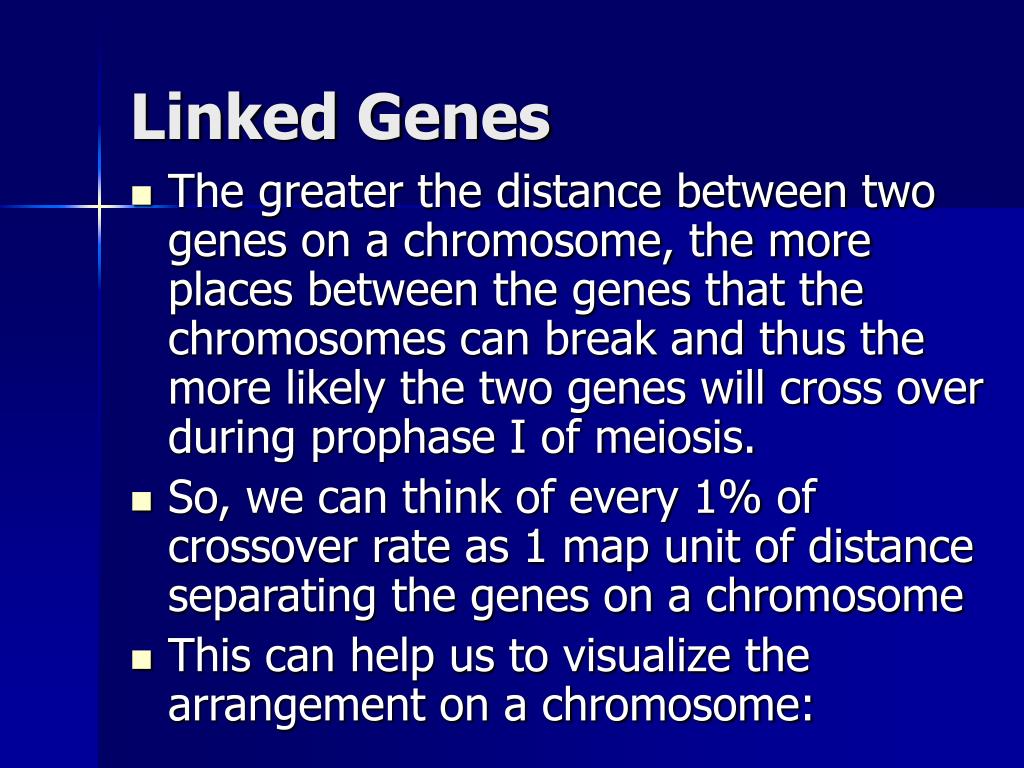

Linked Genes

  • The greater the distance between two genes on a chromosome, the more places between the genes that the chromosomes can break and thus the more likely the two genes will cross over during prophase I of meiosis.

  • So, we can think of every 1% of crossover rate as 1 map unit of distance separating the genes on a chromosome

  • This can help us to visualize the arrangement on a chromosome:

Linked genes3

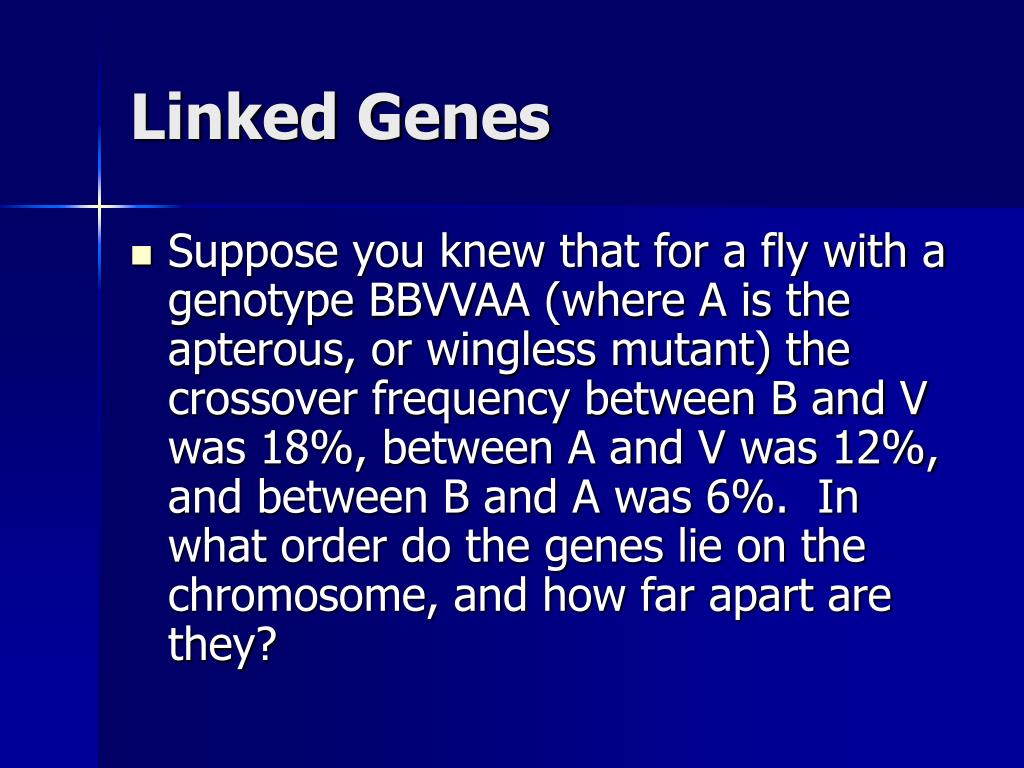

Linked Genes

  • Suppose you knew that for a fly with a genotype BBVVAA (where A is the apterous, or wingless mutant) the crossover frequency between B and V was 18%, between A and V was 12%, and between B and A was 6%. In what order do the genes lie on the chromosome, and how far apart are they?

Linked genes4

Linked Genes

  • Hint: think of the 18% crossover rate between B and V as 18 map units apart (making these two the farthest apart from each other)

  • Draw out a possible solution:

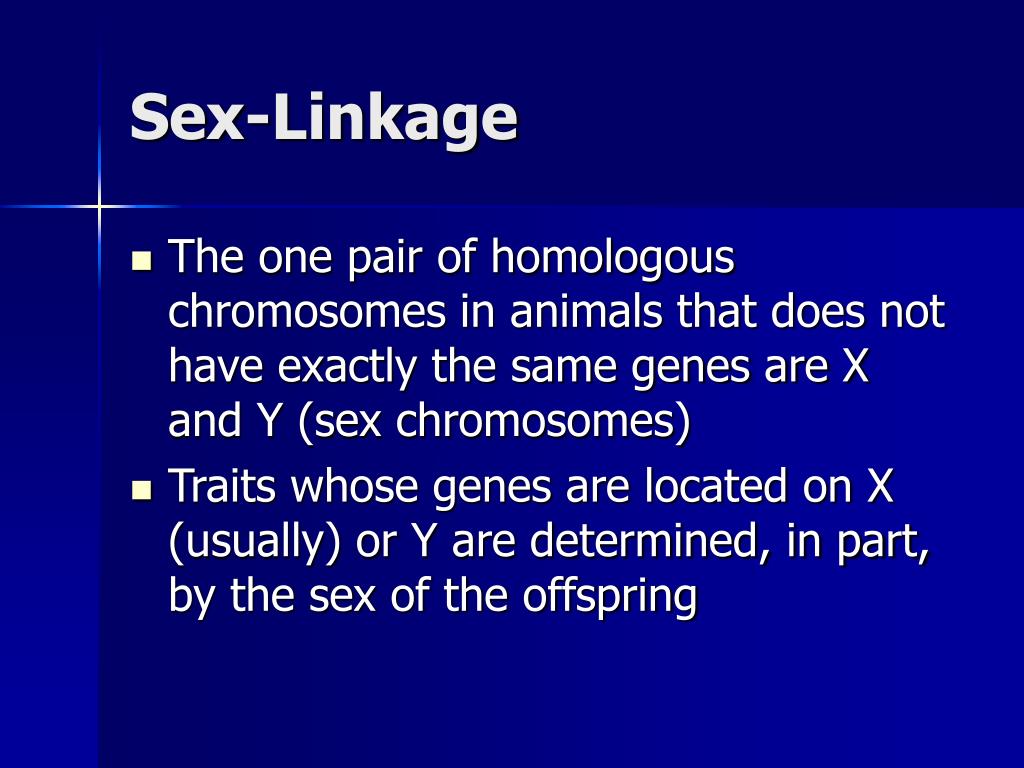

Sex linkage


  • The one pair of homologous chromosomes in animals that does not have exactly the same genes are X and Y (sex chromosomes)

  • Traits whose genes are located on X (usually) or Y are determined, in part, by the sex of the offspring

Sex linkage1


  • Example: red-green colorblindness (bb) is due to a gene on the X chromosome, normal sight will be represented by (BB or Bb):

Normal Female

Normal Male

Carrier Female (normal)

Colorblind Male

Because their Y doesn’t have the colorblindness gene at all, males only need one copy to have the recessive phenotype (disorder); so they are much more likely to inherit sex-linked traits.

Genetics beyond mendel

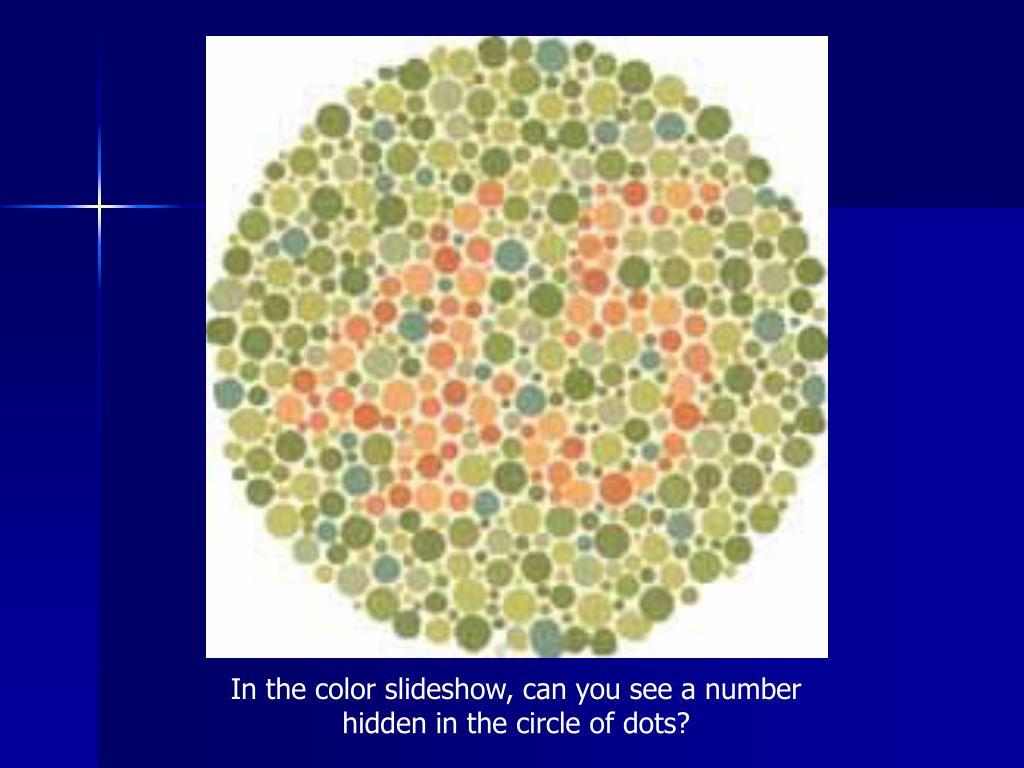

In the color slideshow, can you see a number hidden in the circle of dots?

X inactivation

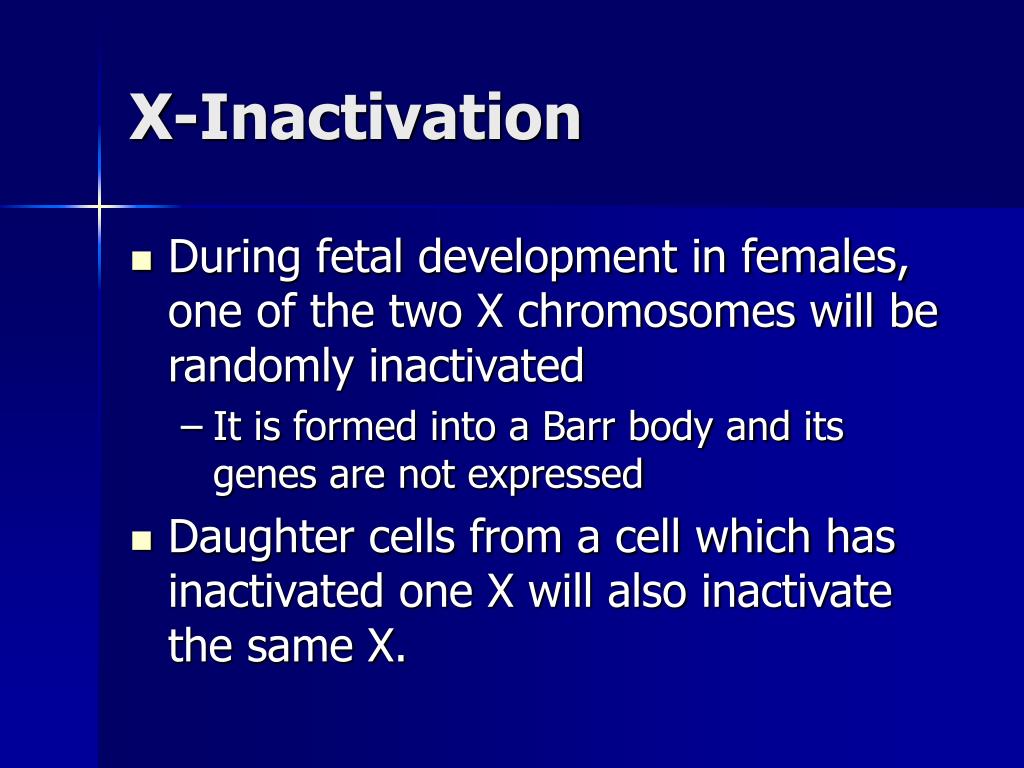

  • During fetal development in females, one of the two X chromosomes will be randomly inactivated

    • It is formed into a Barr body and its genes are not expressed

  • Daughter cells from a cell which has inactivated one X will also inactivate the same X.

X inactivation1


  • When X-inactivation begins, some cells will inactivate one X, and others will inactive the other X

  • It is unlikely that the same X will be inactivated in all initial embryo cells, but if it happens, then females can be subject to sex-linked disorders like hemophilia with only one copy of the mutated gene (like men)



  • If chromosomes do not separate correctly in meiosis, a parent can donate too many or too few chromosomes to their offspring:



  • Examples:

    • Down Syndrome: caused by an extra 21st chromosome (trisomy 21). Causes mental retardation, heart defects, respiratory problems, deformities, etc…

    • Turner Syndrome: caused by a missing X chromosome (X0). Results in a female with some physical abnormalities and sterility
