Chapter 1-4 (Measure and Classify Angles)

Chapter 1-4 (Measure and Classify Angles). What is an angle?. Two different rays with the same endpoint. Rays are the sides , endpoint is the vertex . Named with 3 points or by the vertex. sides. vertex. Chapter 1-4 (Measure and Classify Angles). Example.

keelia
Download Presentation

Chapter 1-4 (Measure and Classify Angles)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 1-4 (Measure and Classify Angles) • What is an angle? • Two different rays with the same endpoint. • Rays are the sides, endpoint is the vertex. • Named with 3 points or by the vertex. sides vertex

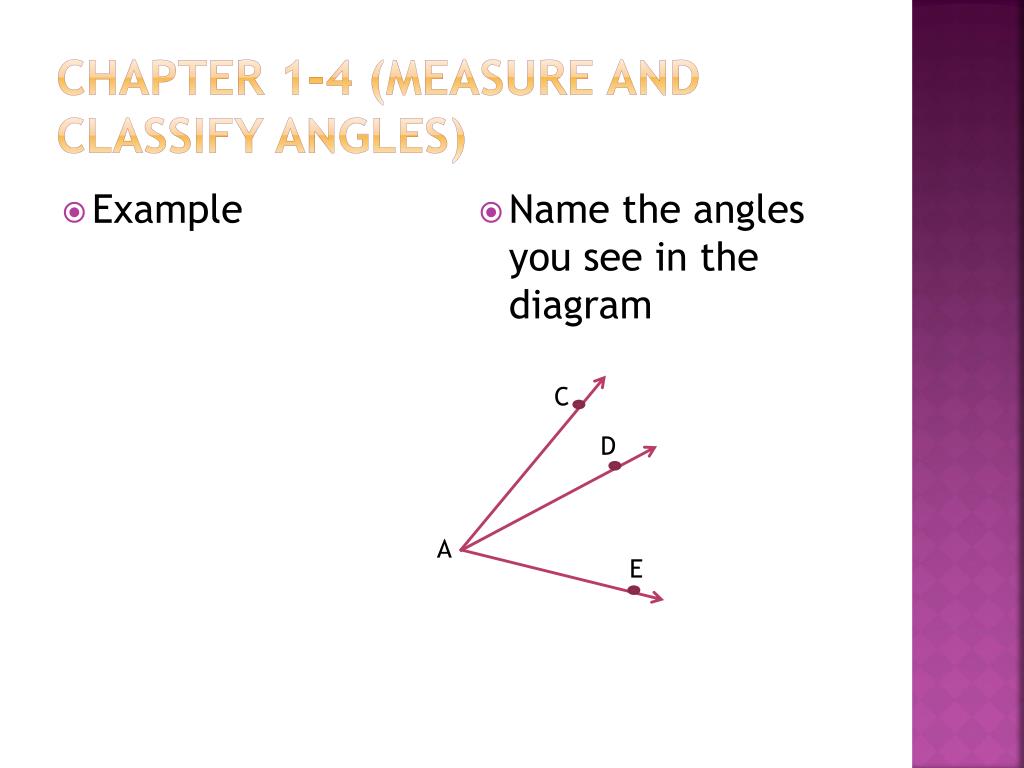

  2. Chapter 1-4 (Measure and Classify Angles) • Example • Name the angles you see in the diagram C D A E

  3. Chapter 1-4 (Measure and Classify Angles) • Measuring angles with a protractor • Different types of angles: • Write either <ABC is 32º or m<ABC=32º • Acute (less than 90º) • Obtuse (more than 90º • Right angle (exactly 90º) • Straight (180º)

  4. Chapter 1-4 (Measure and Classify Angles) • Example • Postulate 4: Angle Addition • Page 25 in textbook • If P is in the interior of <RST, then the measure of <RST is equal to the sum of the measures of <RSP and <PST

  5. Chapter 1-4 (Measure and Classify Angles) • Example • Given the m<GFJ=155º, find m<GFH and m<HFJ

  6. Chapter 1-4 (Measure and Classify Angles) • Example • Given that <VRS is a right angle, find m<VRT and m<TRS

  7. Chapter 1-4 (Measure and Classify Angles) • Congruent angles • 2 angles are congruent if they have the same measure (curved line) • <A <B A B

  8. Chapter 1-4 (Measure and Classify Angles) • Example • Identify all pairs of congruent angles • If m<P=120º, what is m<N?

  9. Chapter 1-4 (Measure and Classify Angles) • Angle Bisector • A ray that divides an angle into 2 angles that are congruent. • WY bisects <XWZ

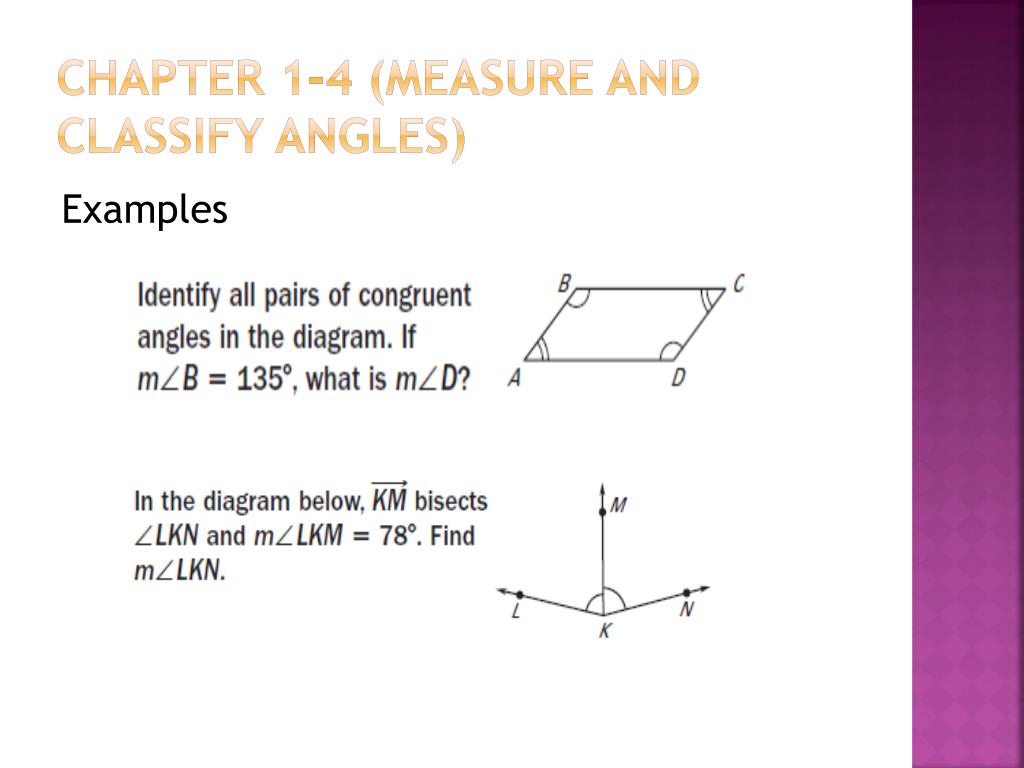

  10. Chapter 1-4 (Measure and Classify Angles) Examples
