Presentation Transcript


Dna

DNA

DeoxyriboNucleic Acid


The structure of dna deoxyribose nucleic acid

The Structure of DNA (DEOXYRIBOSE NUCLEIC ACID)

  • A. DNA is a macromolecules called NUCLEIC ACIDS. The other type of molecule in this category is RNA.

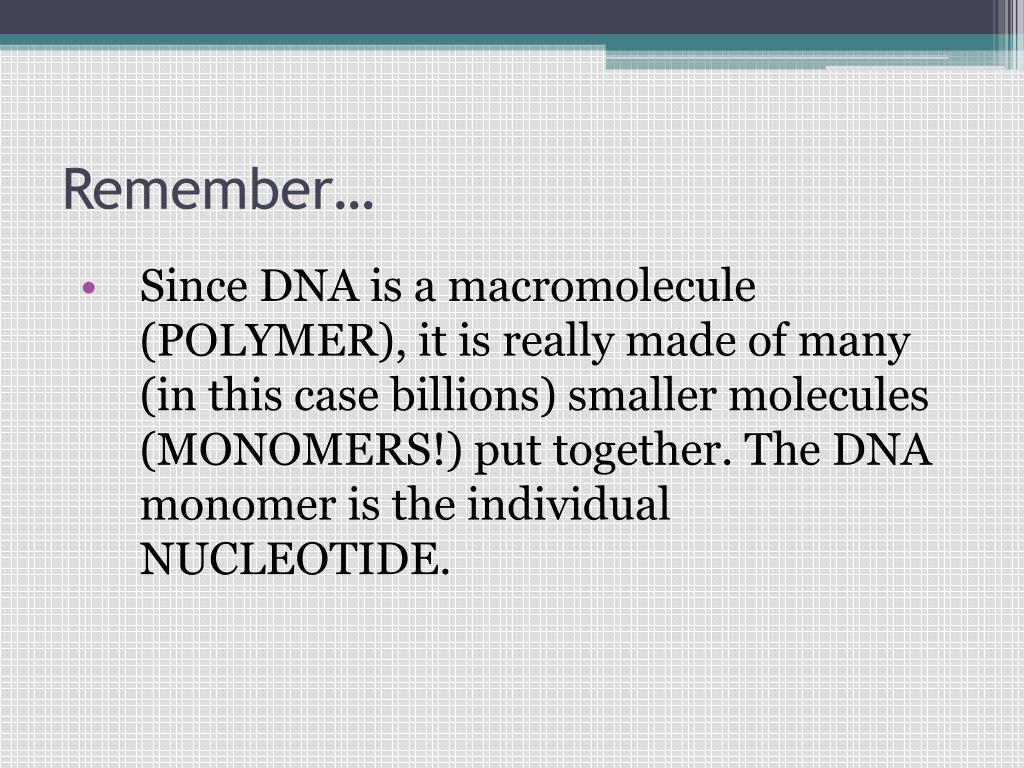

Remember

Remember…

  • Since DNA is a macromolecule (POLYMER), it is really made of many (in this case billions) smaller molecules (MONOMERS!) put together. The DNA monomer is the individual NUCLEOTIDE.

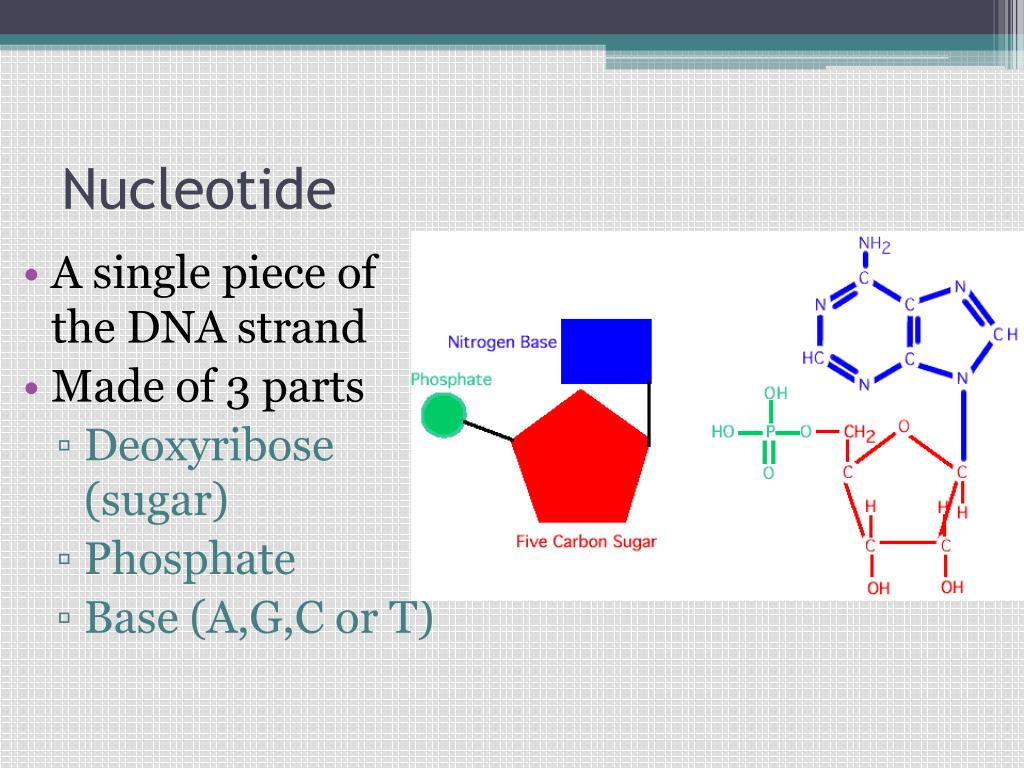

Nucleotide

Nucleotide

  • A single piece of the DNA strand

  • Made of 3 parts

    • Deoxyribose (sugar)

    • Phosphate

    • Base (A,G,C or T)


Dna nucleotides

 DNA Nucleotides

Purines

Pyrimidines

Adenine

Guanine

Cytosine

Thymine

Deoxyribose

Phosphate group

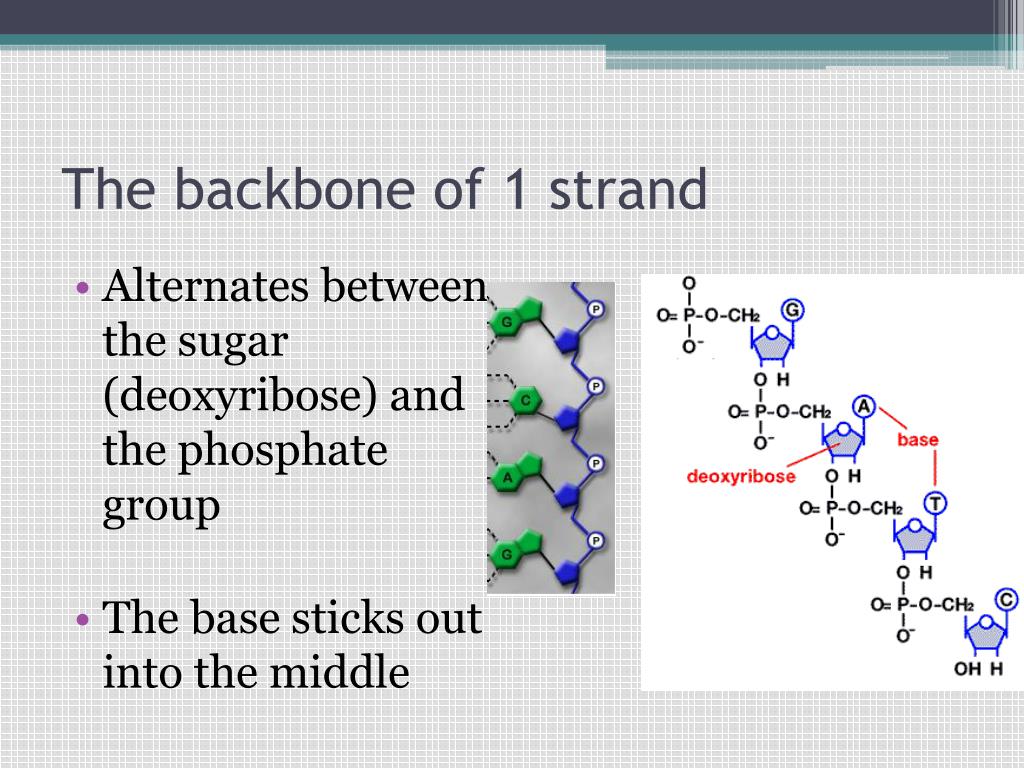

The backbone of 1 strand

The backbone of 1 strand

  • Alternates between the sugar (deoxyribose) and the phosphate group

  • The base sticks out into the middle


Double stranded

Double-Stranded

  • The bases hydrogen bond with each other to hold the strands together

  • The base from one strand bonds with the base from the other forming a complementary base pair

    a. ADENINE bonds with THYMINE

    b. GUANINE bonds with CYTOSINE

  • They coil into a double-helix

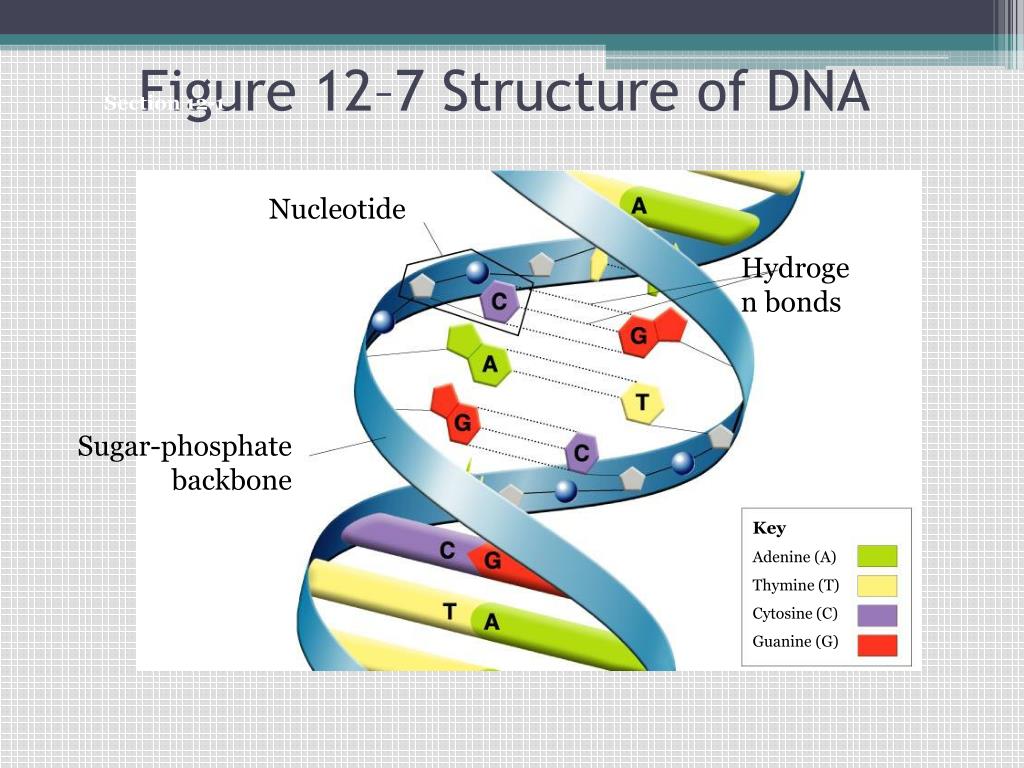

Figure 12 7 structure of dna

Section 12-1

Figure 12–7 Structure of DNA

Nucleotide

Hydrogen bonds

Sugar-phosphate backbone

Key

Adenine (A)

Thymine (T)

Cytosine (C)

Guanine (G)

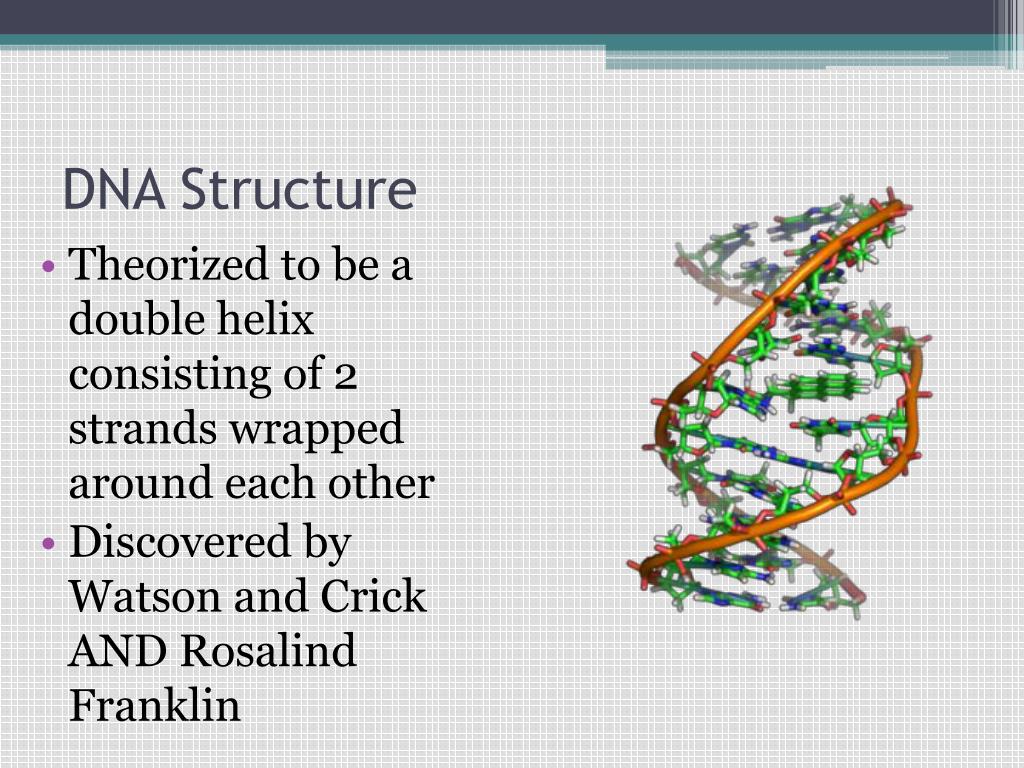

Dna structure

DNA Structure

  • Theorized to be a double helix consisting of 2 strands wrapped around each other

  • Discovered by Watson and Crick AND Rosalind Franklin


Rosalind franklin

Rosalind Franklin

  • Provided the scientific evidence that allowed Watson and Crick to suggest the double helix

  • But often does not receive credit and since she had died – couldn’t share in the Nobel prize

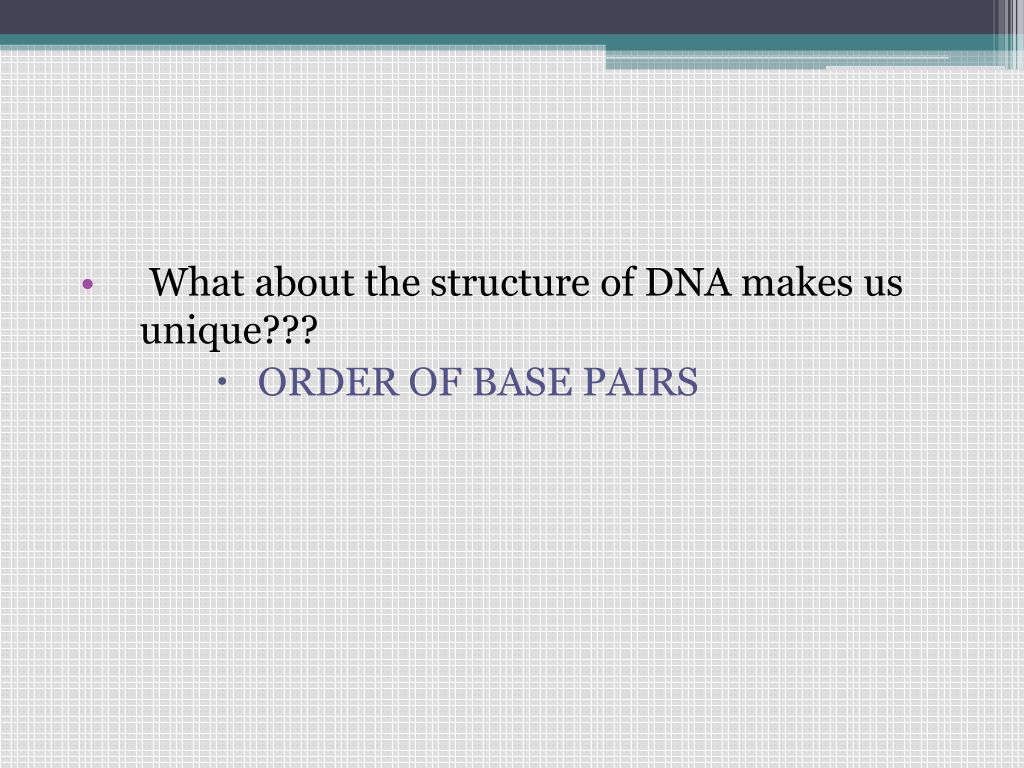

Dna

  • What about the structure of DNA makes us unique???

    • ORDER OF BASE PAIRS

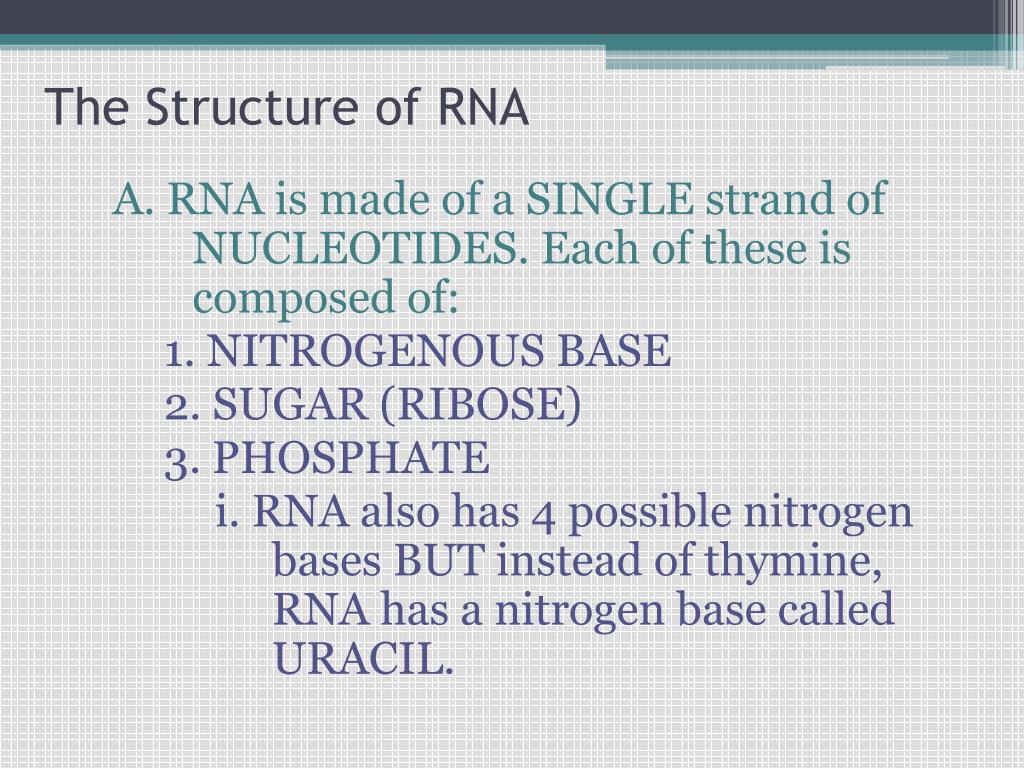

The structure of rna

The Structure of RNA

A. RNA is made of a SINGLE strand of NUCLEOTIDES. Each of these is composed of:

1. NITROGENOUS BASE

2. SUGAR (RIBOSE)

3. PHOSPHATE

i. RNA also has 4 possible nitrogen bases BUT instead of thymine, RNA has a nitrogen base called URACIL.


What you should know about dna structure

What You Should Know about DNA structure

  • The basic structure of a nucleotide

  • The basic structure of DNA

  • How DNA and RNA differ

  • Base-pair rules

  • How the structure suggests a replication method


Genetic disorder projects

Genetic disorder projects

  • Find 4 people to work with then find a computer and log on.

  • Once you have your disease start researching it.

  • Before you leave: Divvy up the work AND SHARE EMAIL & phone numbers so you can contact each other.

  • Next class you have time to work on the project. Your HW is prepare for this time together as it is the ONLY class time you will be given. Have your portion COMPLETE!!!

  • The final project MUST BE EMAILED TO ME by:

  • A day- 2/24 9:30 pm

  • B day- 2/25 9:30 pm


2 21 2 24

2/21-2/24

  • DNA Jewelry (~45 minutes)

  • Genetic presentation project (~40 minutes)

  • HW: final presentation due to my email

    • A day- 2/24 9:30 pm

    • B day- 2/25 9:30 pm
