Lower leg injuries

Lower Leg Injuries

Thomas M. Howard, MD, FACSM

Sports Medicine


Differential

Differential

  • MTSS

  • Stress Fracture

  • ECS

  • Strain

    • Tennis Leg

  • Achilles


Lower leg injuries

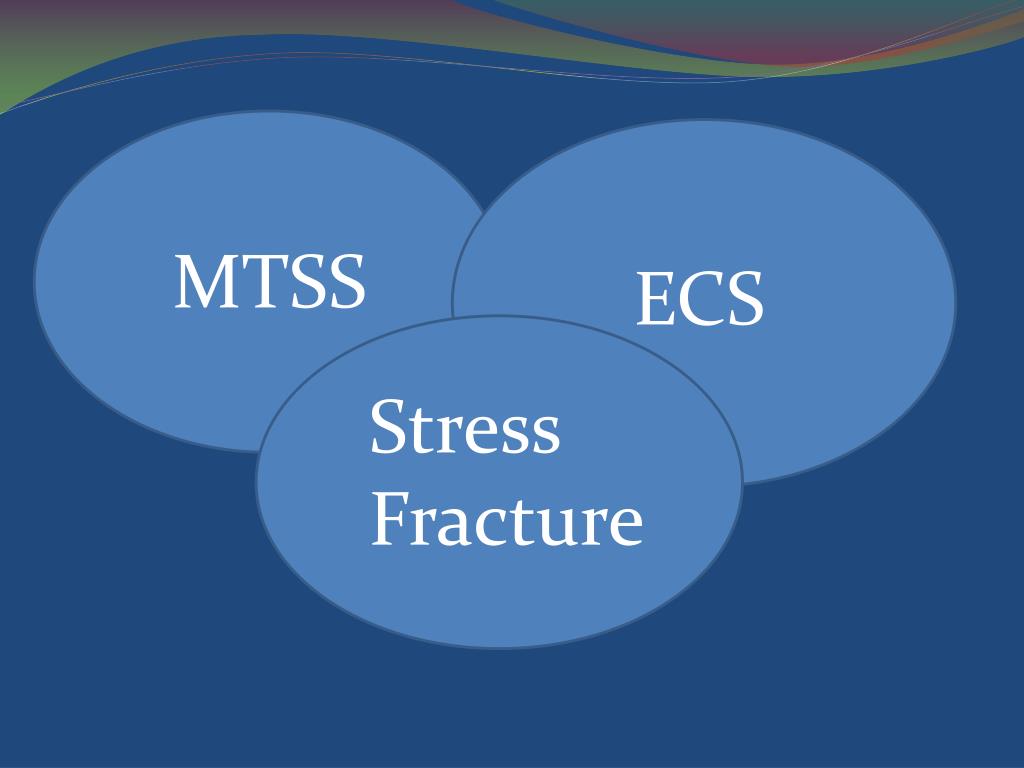

MTSS

ECS

Stress Fracture


Lower leg injuries

MTSS

  • Medial Tibial Stress Syndrome

  • AKA Shin Splint

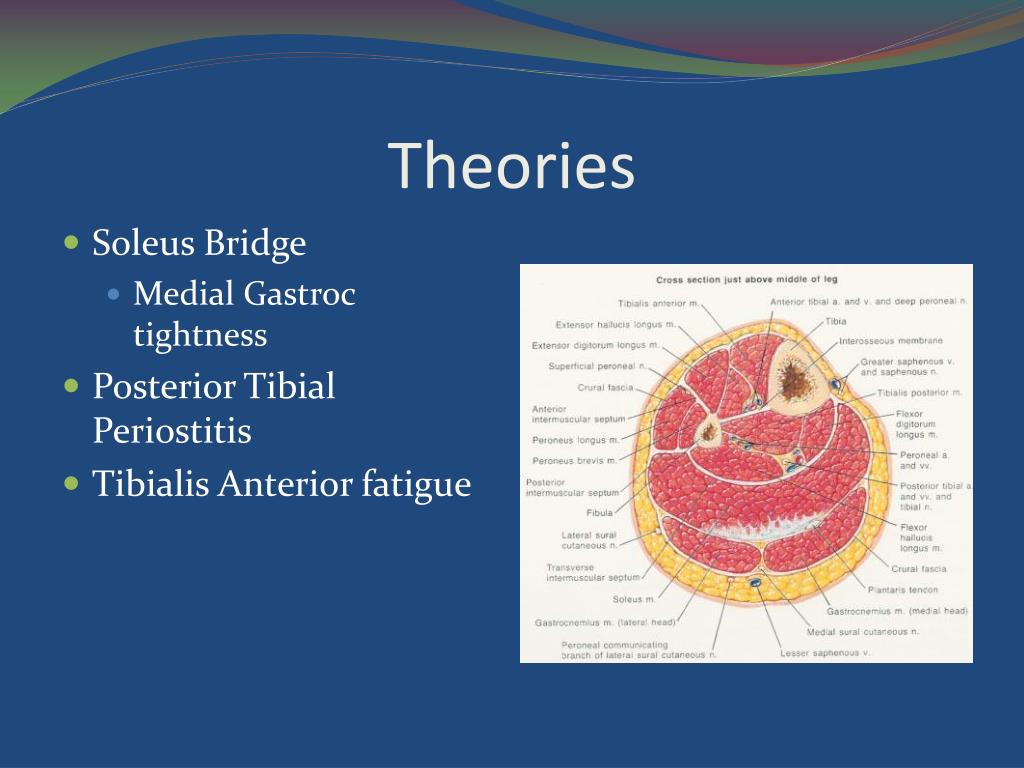

Theories

Theories

  • Soleus Bridge

    • Medial Gastroc tightness

  • Posterior TibialPeriostitis

  • Tibialis Anterior fatigue

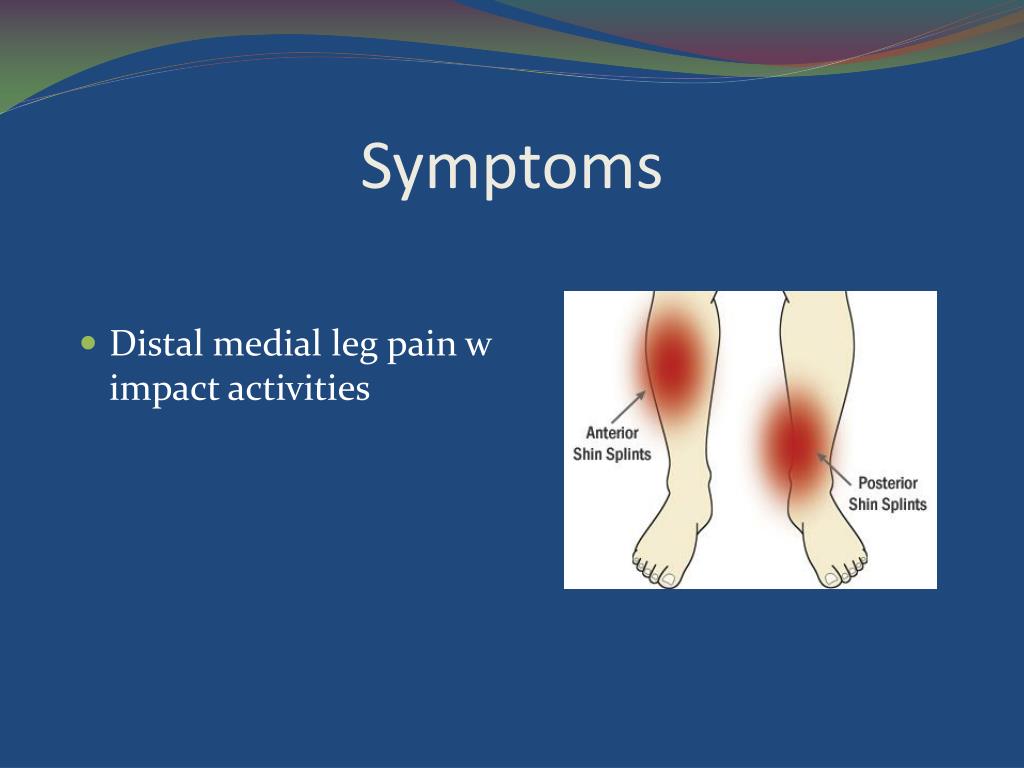

Symptoms

Symptoms

  • Distal medial leg pain w impact activities


Risk factors

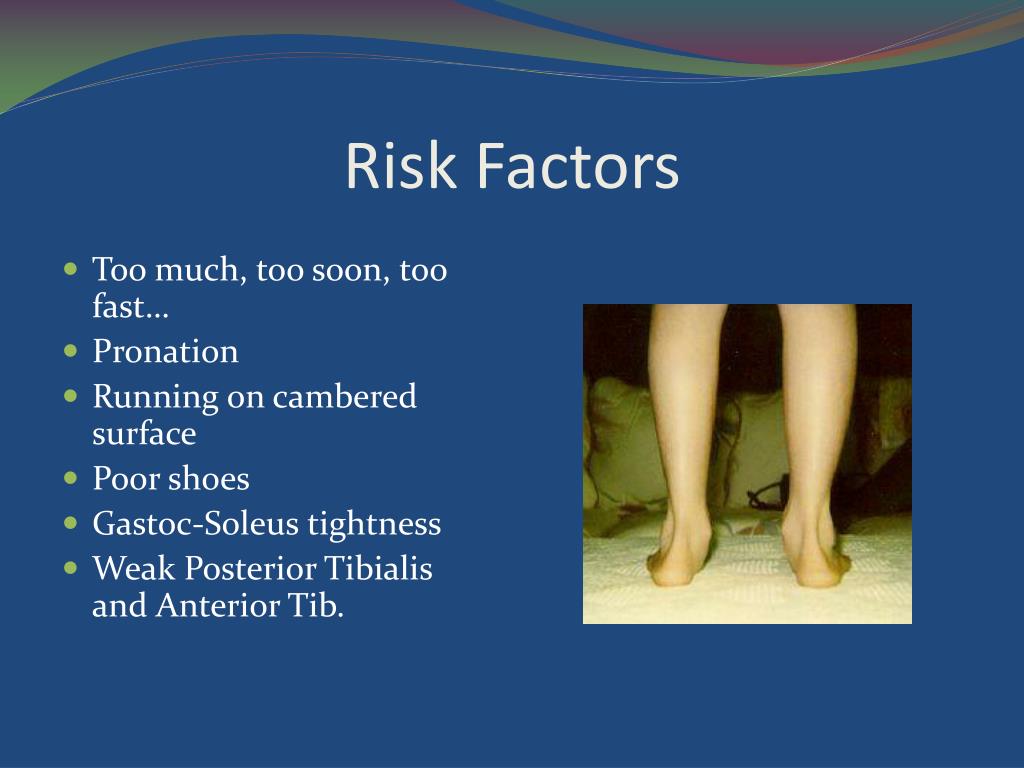

Risk Factors

  • Too much, too soon, too fast…

  • Pronation

  • Running on cambered surface

  • Poor shoes

  • Gastoc-Soleus tightness

  • Weak Posterior Tibialisand Anterior Tib.


Lower leg injuries

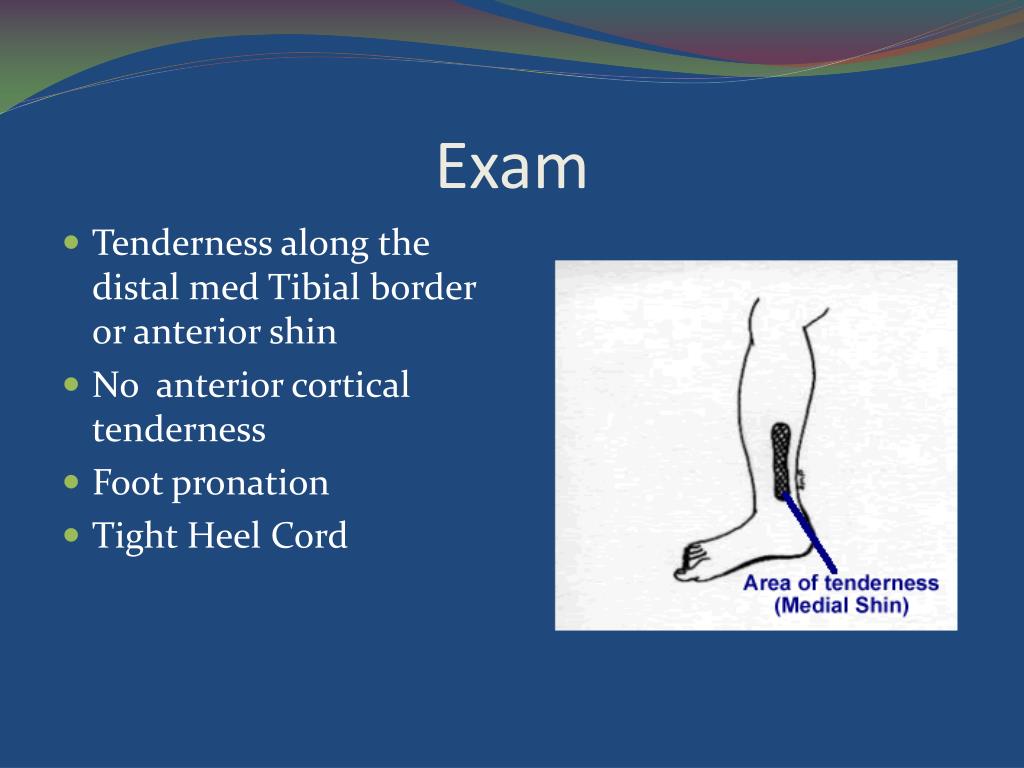

Exam

  • Tenderness along the distal med Tibial border or anterior shin

  • No anterior cortical tenderness

  • Foot pronation

  • Tight Heel Cord


Management

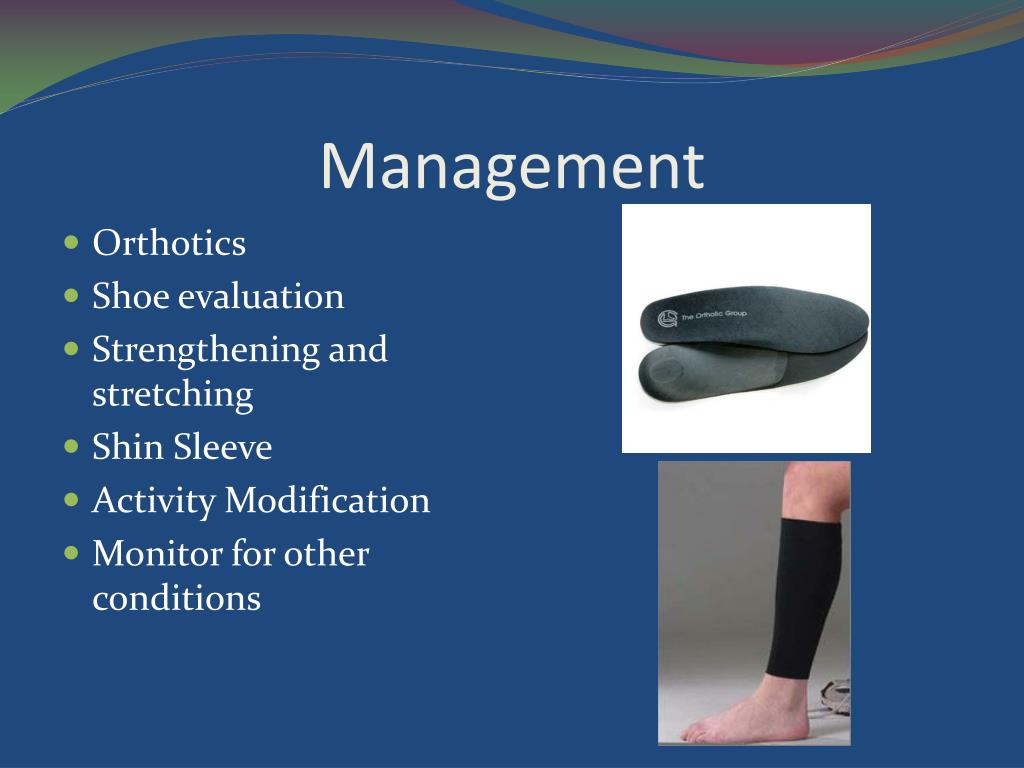

Management

  • Orthotics

  • Shoe evaluation

  • Strengthening and stretching

  • Shin Sleeve

  • Activity Modification

  • Monitor for other conditions

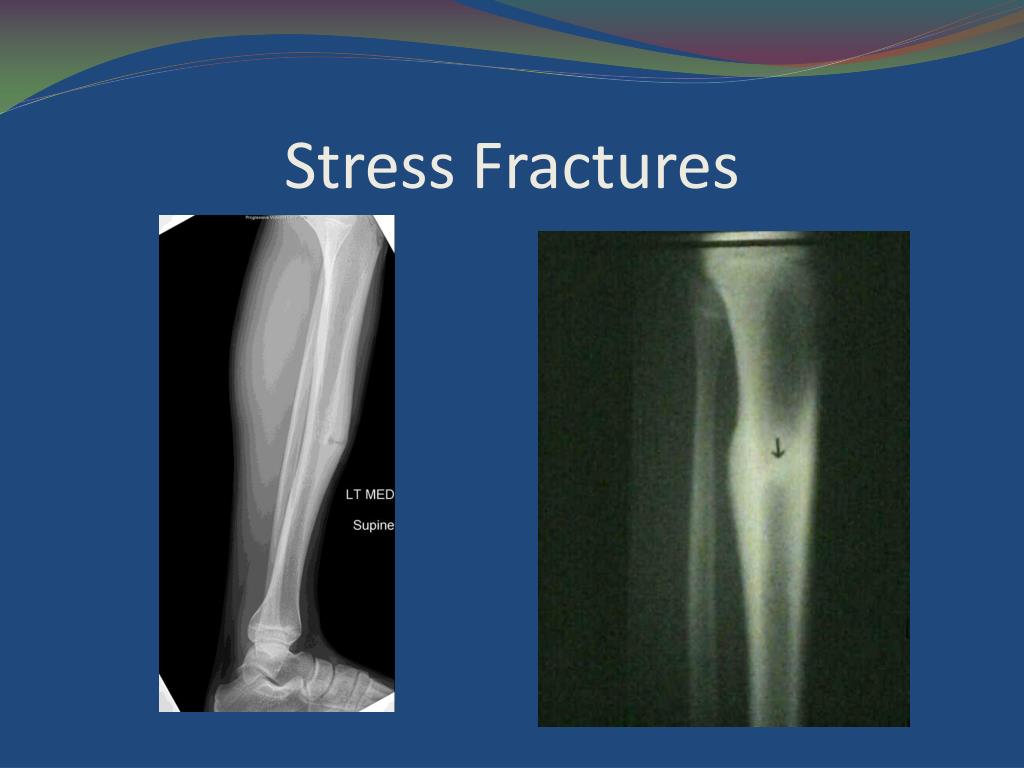

Stress fractures

Stress Fractures


Epidemiology

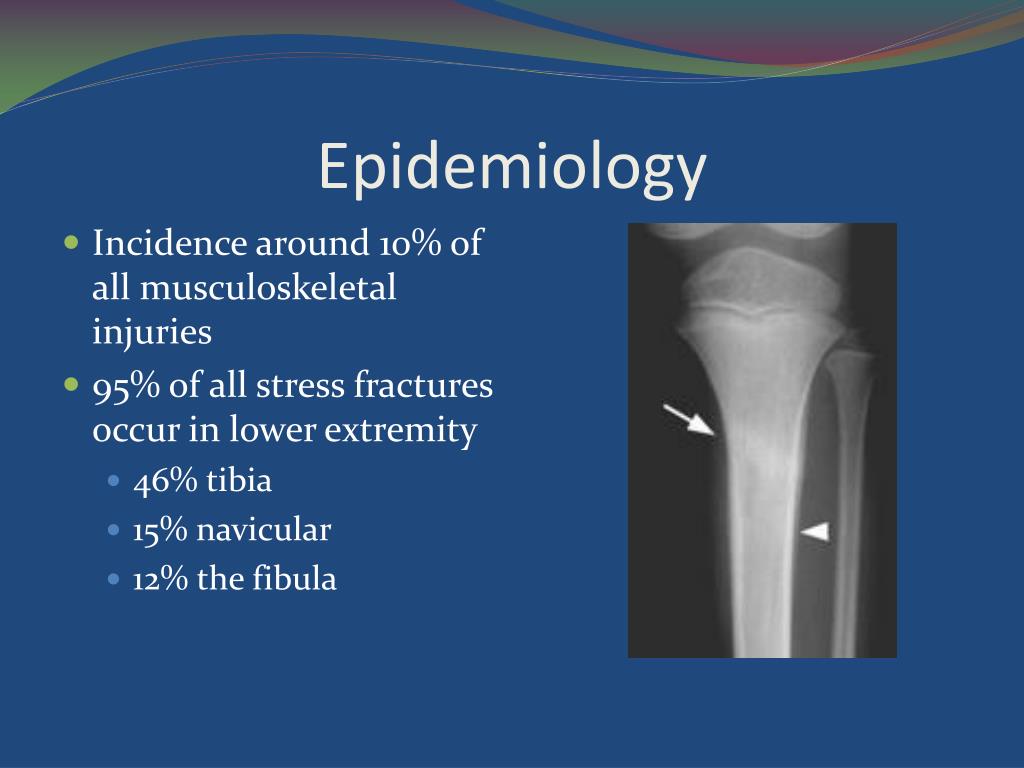

Epidemiology

  • Incidence around 10% of all musculoskeletal injuries

  • 95% of all stress fractures occur in lower extremity

    • 46% tibia

    • 15% navicular

    • 12% the fibula


Pathophysiology

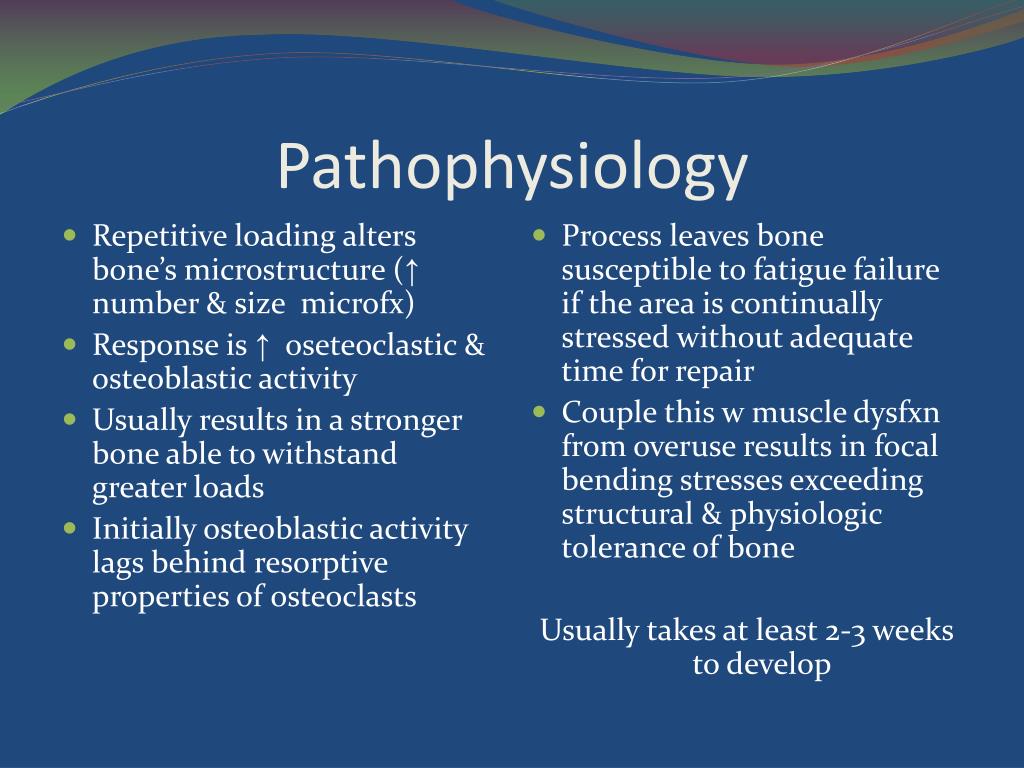

Pathophysiology

  • Repetitive loading alters bone’s microstructure (↑ number & size microfx)

  • Response is ↑ oseteoclastic & osteoblastic activity

  • Usually results in a stronger bone able to withstand greater loads

  • Initially osteoblastic activity lags behind resorptive properties of osteoclasts

  • Process leaves bone susceptible to fatigue failure if the area is continually stressed without adequate time for repair

  • Couple this w muscle dysfxn from overuse results in focal bending stresses exceeding structural & physiologic tolerance of bone

    Usually takes at least 2-3 weeks to develop

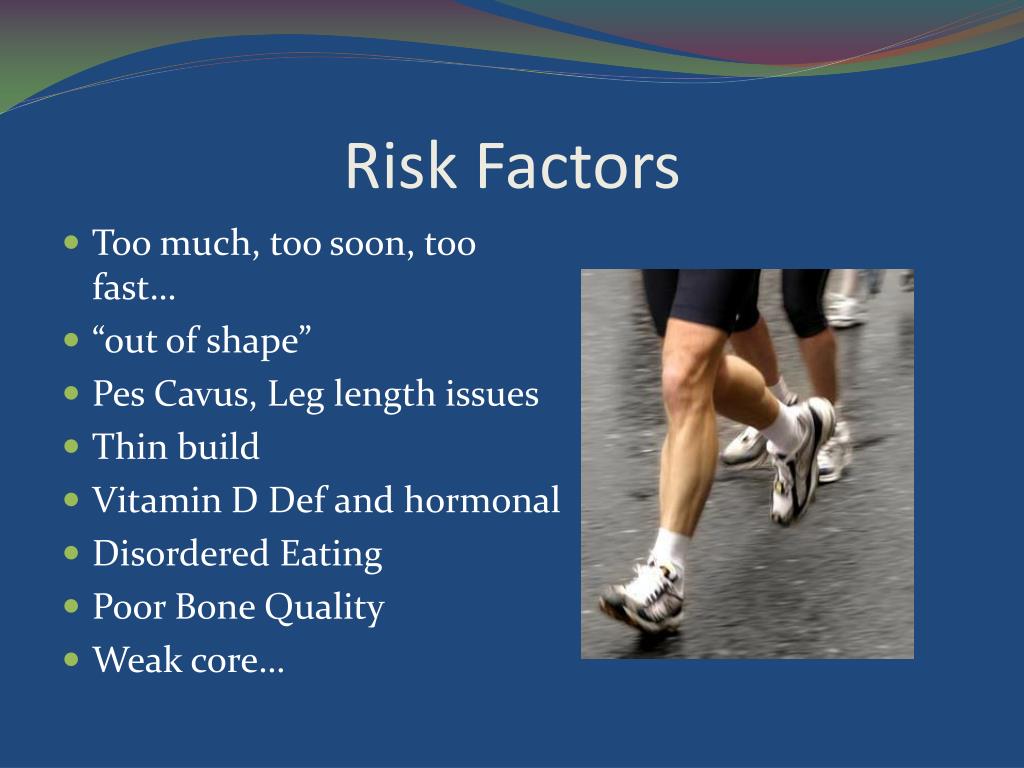

Risk factors1

Risk Factors

  • Too much, too soon, too fast…

  • “out of shape”

  • PesCavus, Leg length issues

  • Thin build

  • Vitamin D Def and hormonal

  • Disordered Eating

  • Poor Bone Quality

  • Weak core…


Lower leg injuries

Exam

  • Swelling and/or percussion tenderness

    • Tibial or Fibular

  • Fulcrum Test

  • Single leg hop


Imaging

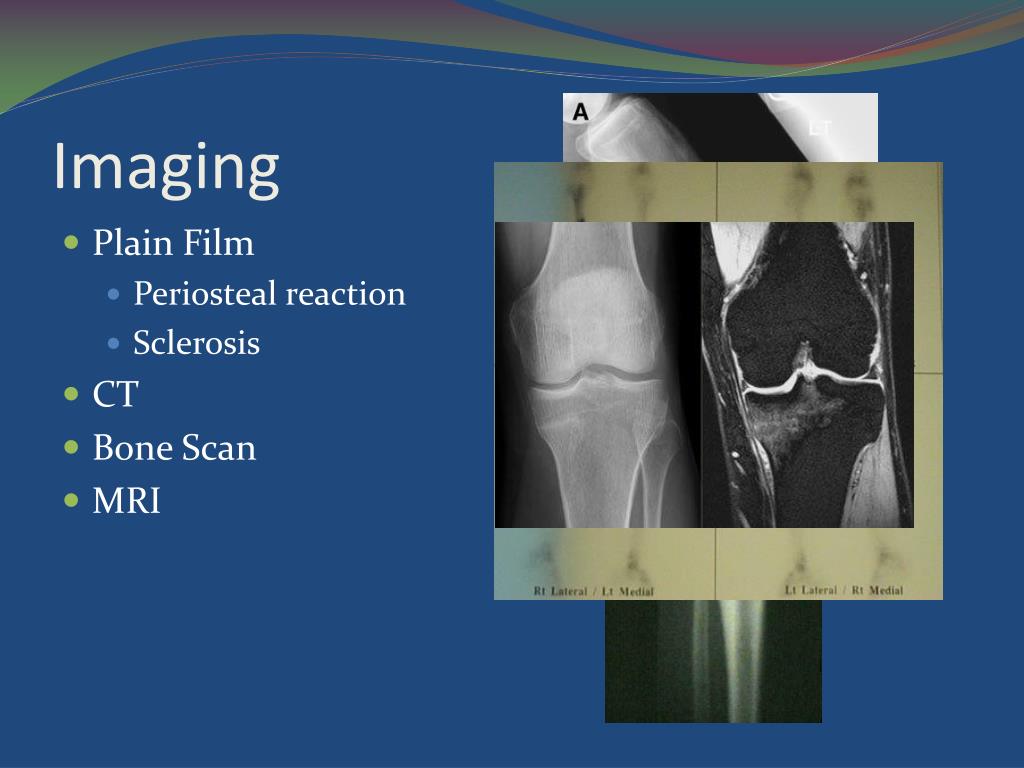

Imaging

  • Plain Film

    • Periosteal reaction

    • Sclerosis

  • CT

  • Bone Scan

  • MRI


The dreaded black line

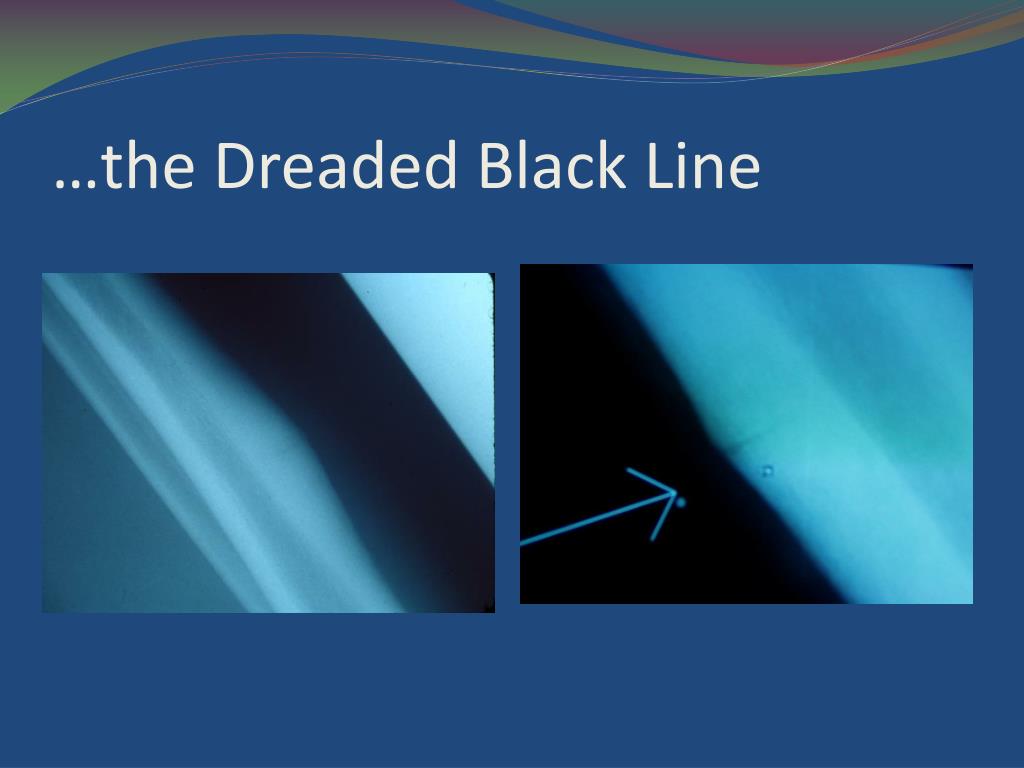

…the Dreaded Black Line


Management1

Management

  • Relative Rest

    • 6-12 weeks

  • Flexibility

  • Core Strengthening

  • Calcium

  • ? BMD

  • Fix intrinsic issues

    • Orthotics

    • Shoes

  • Splinting?

  • Bone stimulator

  • Bone graft


Exertional compartment syndrome

Exertional Compartment Syndrome

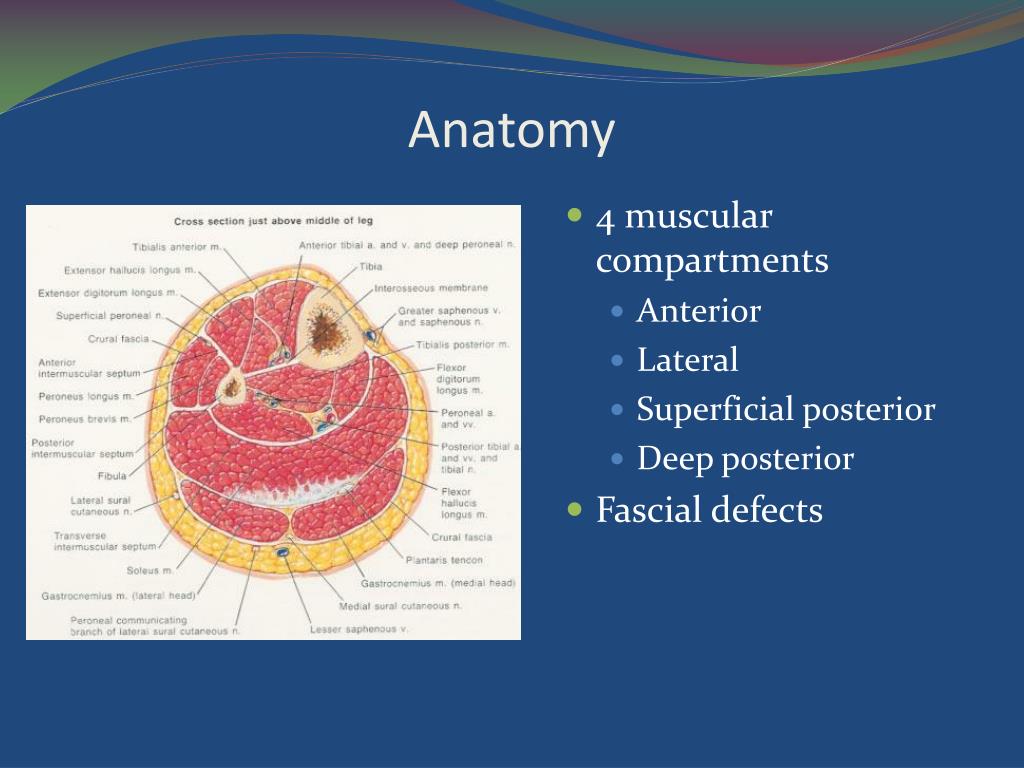

Anatomy

Anatomy

  • 4 muscular compartments

    • Anterior

    • Lateral

    • Superficial posterior

    • Deep posterior

  • Fascial defects


Anterior compartment

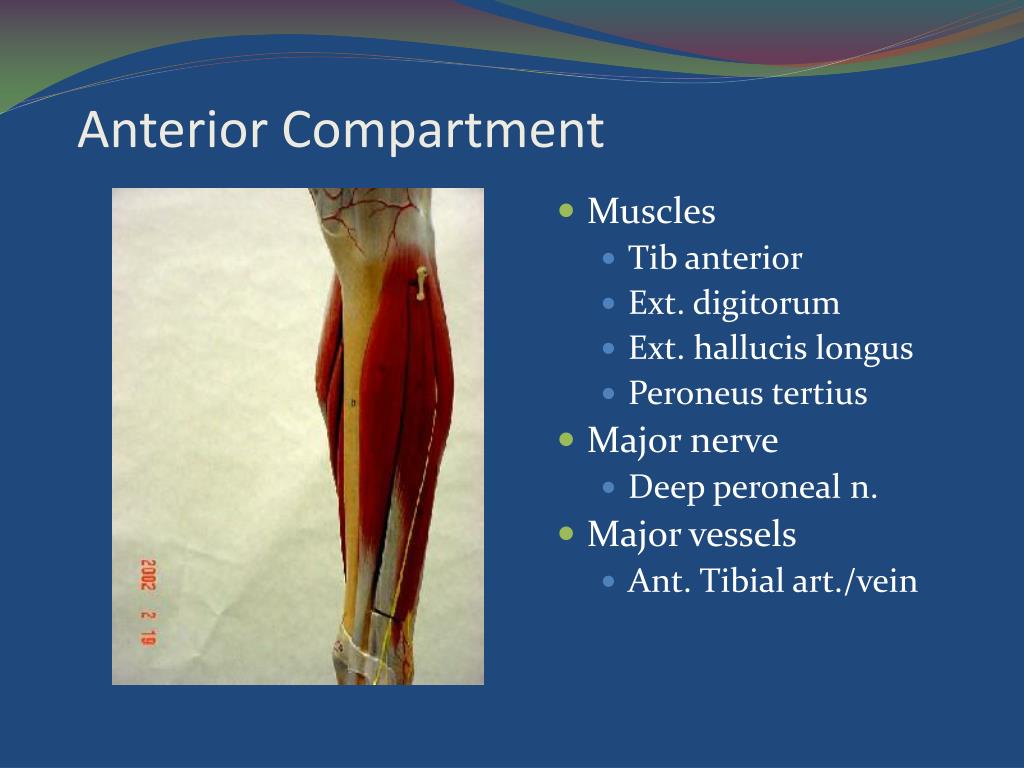

Anterior Compartment

  • Muscles

    • Tib anterior

    • Ext. digitorum

    • Ext. hallucislongus

    • Peroneus tertius

  • Major nerve

    • Deep peroneal n.

  • Major vessels

    • Ant. Tibial art./vein

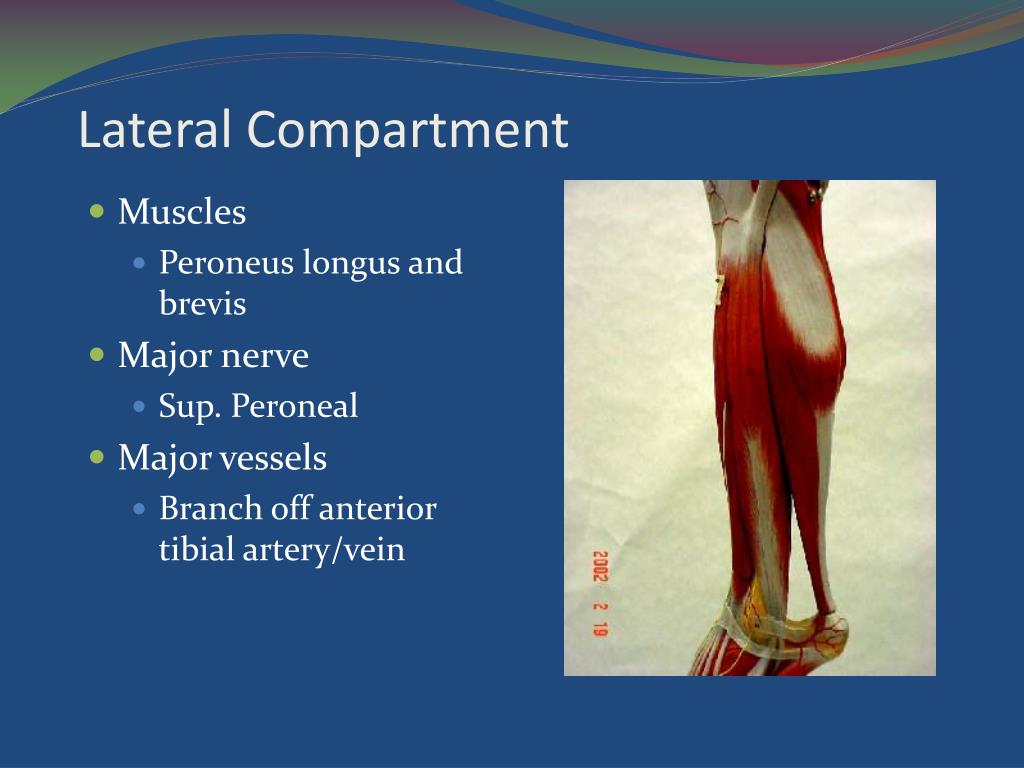

Lateral compartment

Lateral Compartment

  • Muscles

    • Peroneus longus and brevis

  • Major nerve

    • Sup. Peroneal

  • Major vessels

    • Branch off anterior tibial artery/vein


Deep posterior

Deep Posterior

  • Muscles

    • Flex. Digit. longus

    • Flex. Hallucislongus

    • Popliteus

    • Tib. Posterior

  • Major Nerve

    • Tibial n.

  • Major vessels

    • Post tibial art./vein


Superficial posterior

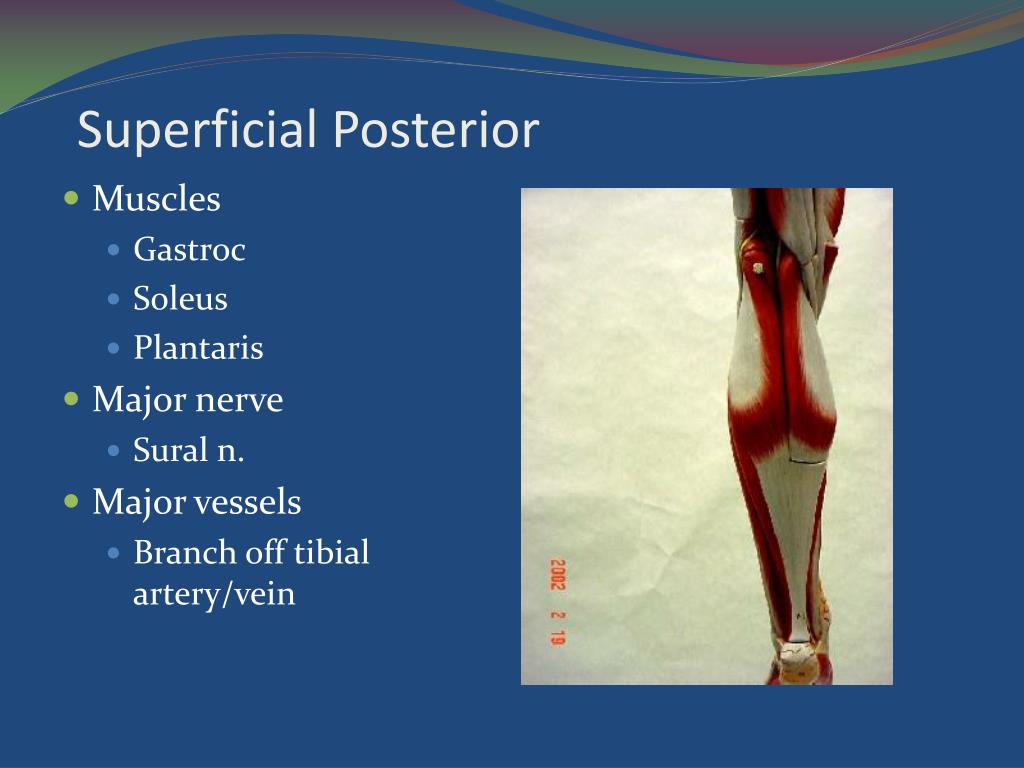

Superficial Posterior

  • Muscles

    • Gastroc

    • Soleus

    • Plantaris

  • Major nerve

    • Sural n.

  • Major vessels

    • Branch off tibial artery/vein


Pathophysiology1

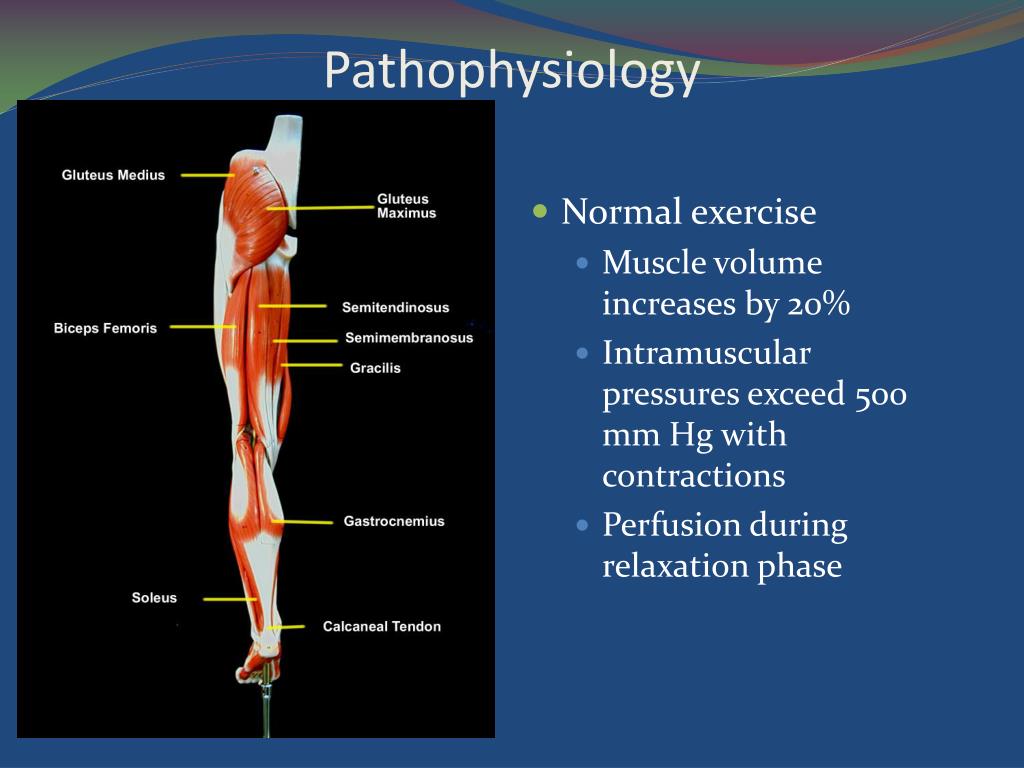

Pathophysiology

  • Normal exercise

    • Muscle volume increases by 20%

    • Intramuscular pressures exceed 500 mm Hg with contractions

    • Perfusion during relaxation phase

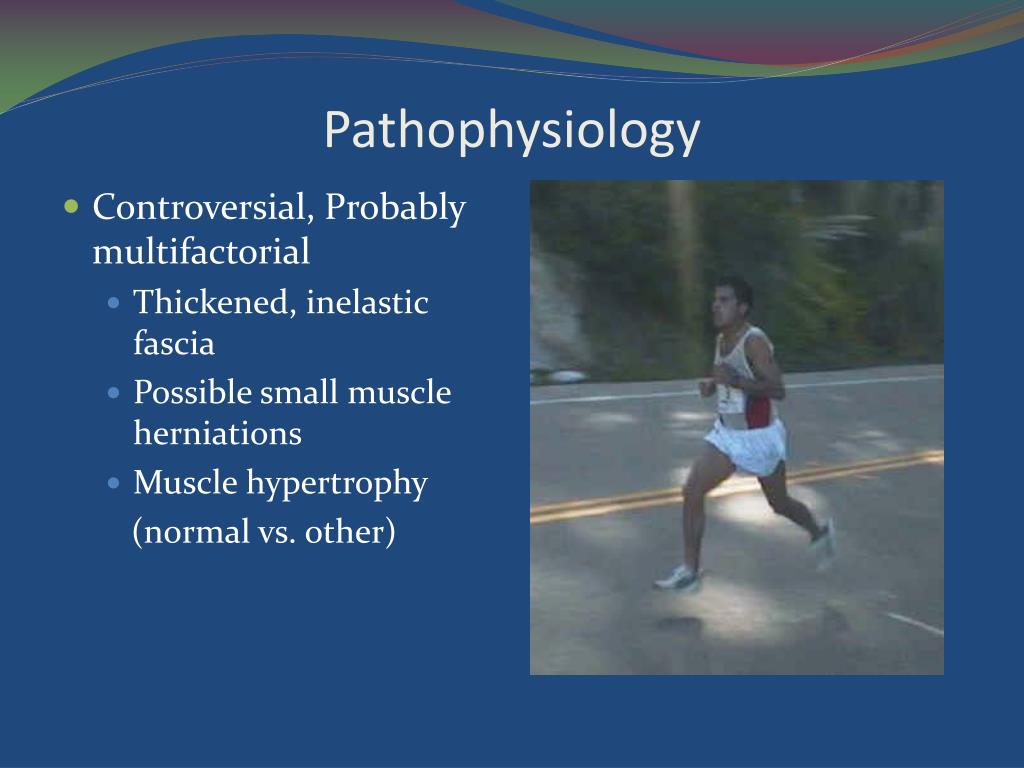

Pathophysiology2

Pathophysiology

  • Controversial, Probably multifactorial

    • Thickened, inelastic fascia

    • Possible small muscle herniations

    • Muscle hypertrophy

      (normal vs. other)


Clinical presentation

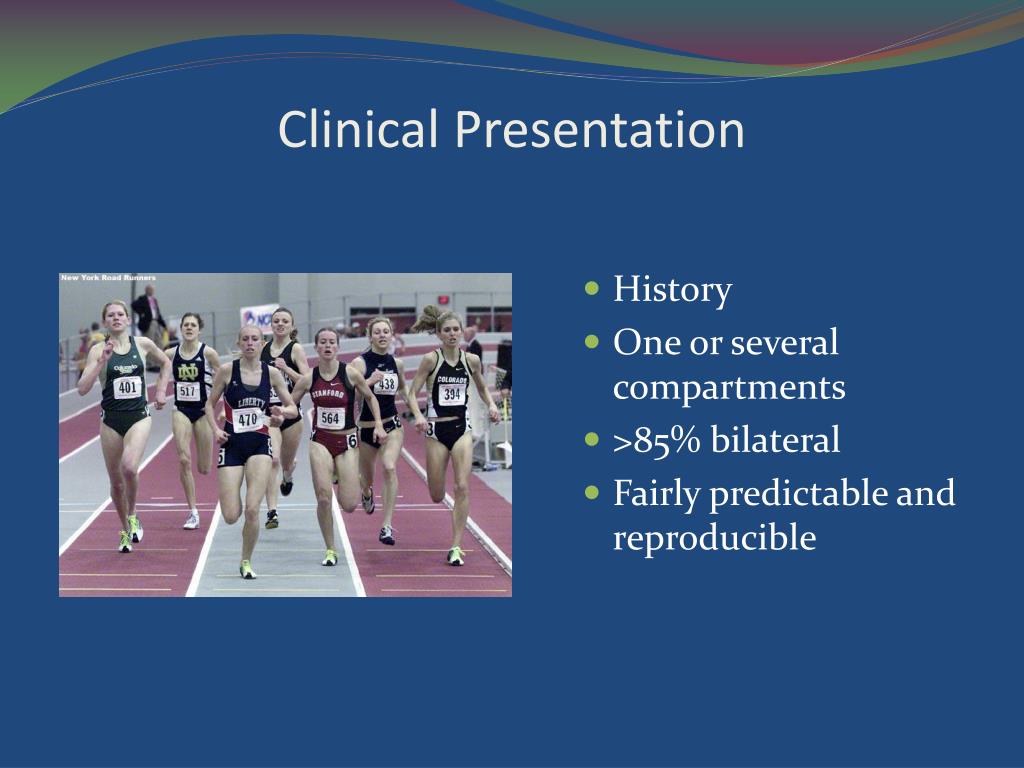

Clinical Presentation

  • History

  • One or several compartments

  • >85% bilateral

  • Fairly predictable and reproducible

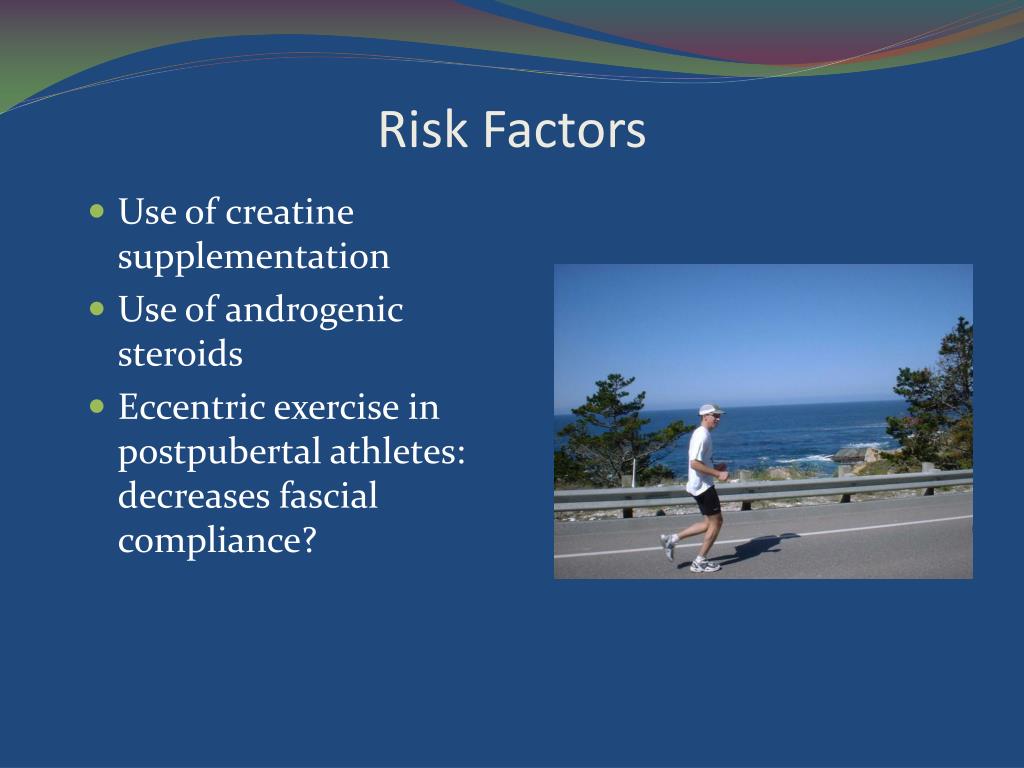

Risk factors2

Risk Factors

  • Use of creatine supplementation

  • Use of androgenic steroids

  • Eccentric exercise in postpubertal athletes: decreases fascial compliance?

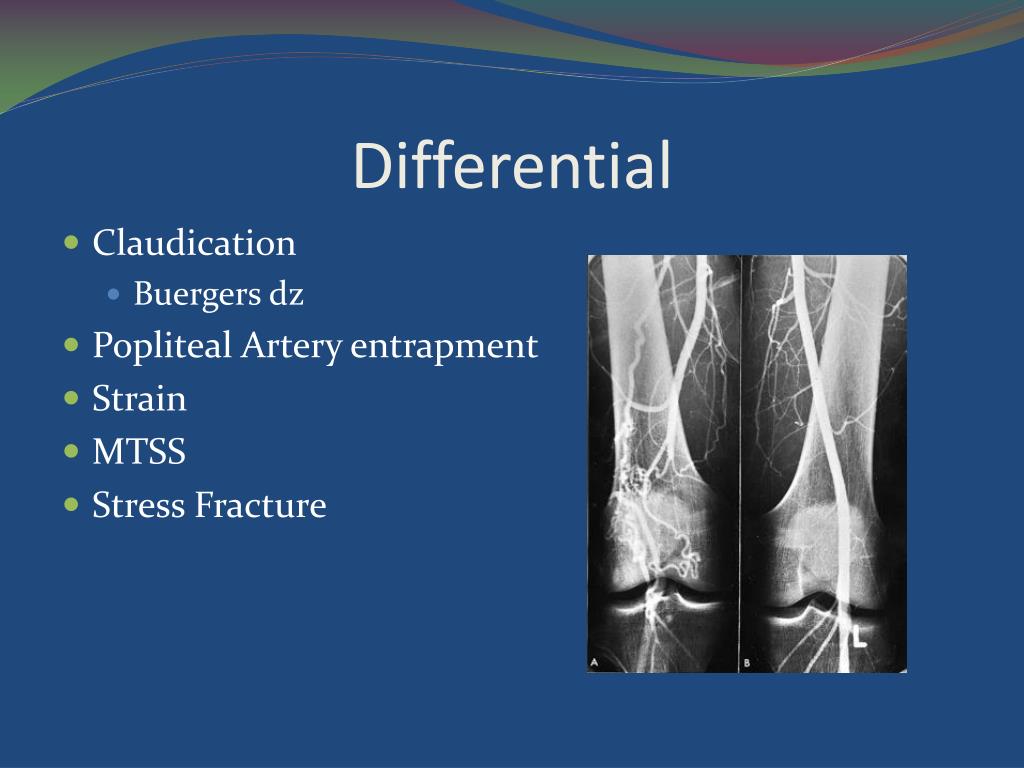

Differential1

Differential

  • Claudication

    • Buergersdz

  • Popliteal Artery entrapment

  • Strain

  • MTSS

  • Stress Fracture

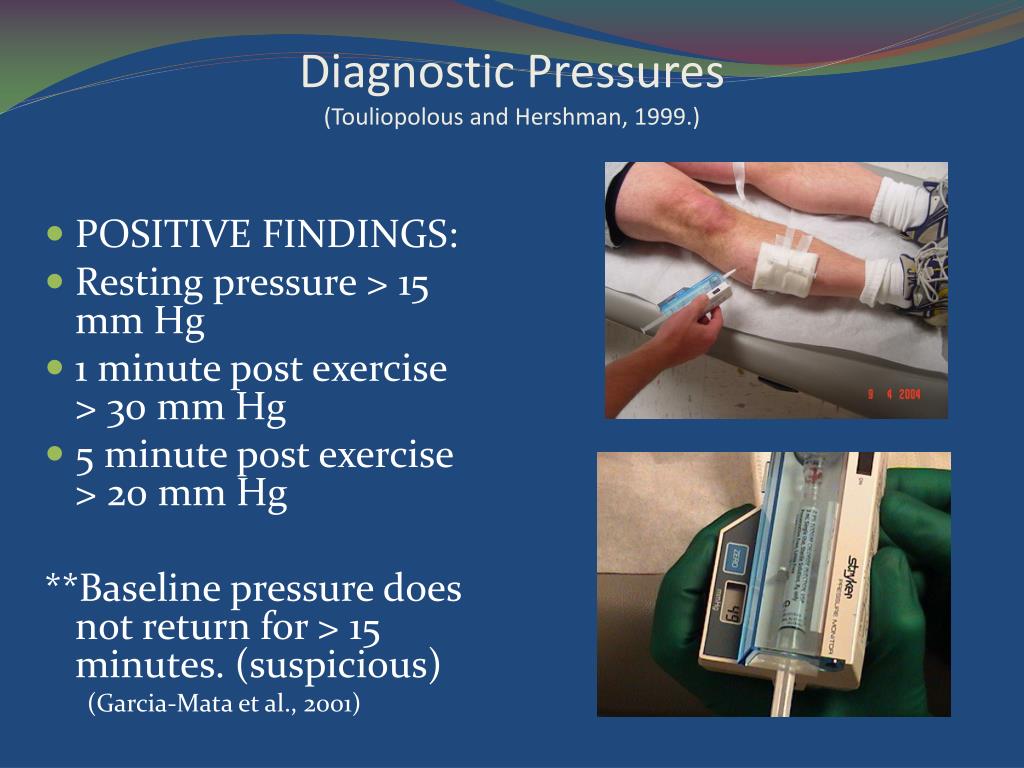

Diagnostic pressures touliopolous and hershman 1999

Diagnostic Pressures(Touliopolous and Hershman, 1999.)

  • POSITIVE FINDINGS:

  • Resting pressure > 15 mm Hg

  • 1 minute post exercise > 30 mm Hg

  • 5 minute post exercise > 20 mm Hg

    **Baseline pressure does not return for > 15 minutes. (suspicious)

    (Garcia-Mata et al., 2001)

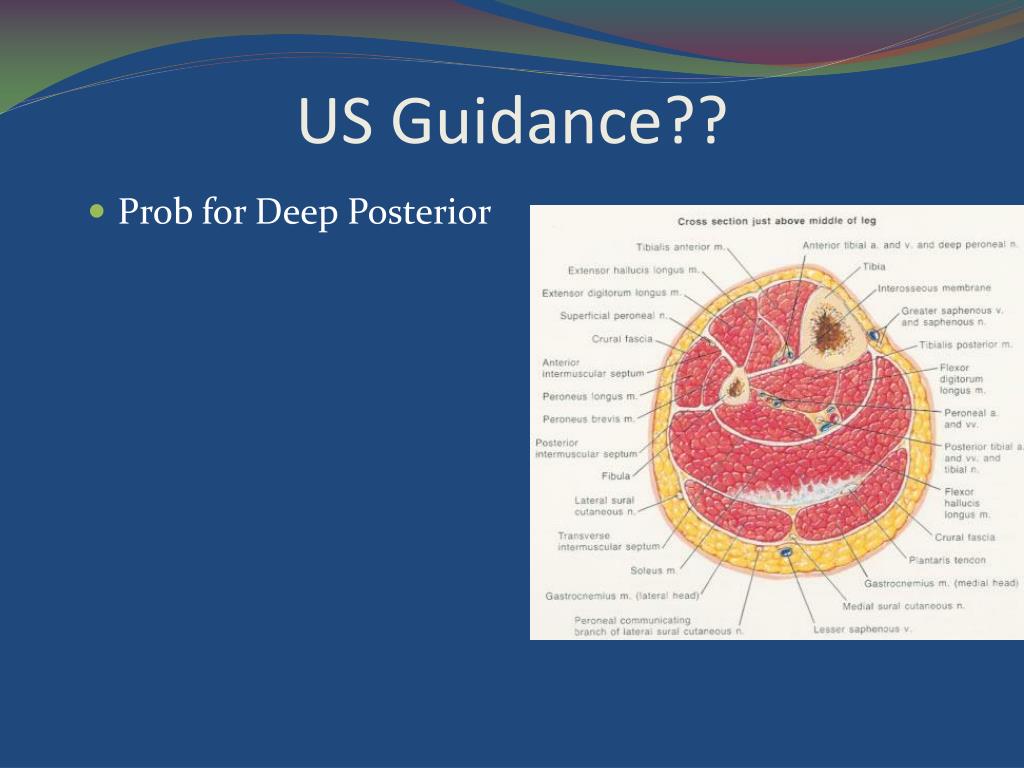

Us guidance

US Guidance??

  • Prob for Deep Posterior


Treatment options

Treatment Options

  • Activity modification for symptom relief

  • Correct biomechanical problems

  • Gait retraining: Pose technique (forefoot)

  • ? Deep Tissue Massage

  • Surgery?


Popliteal artery entrapment syndrome

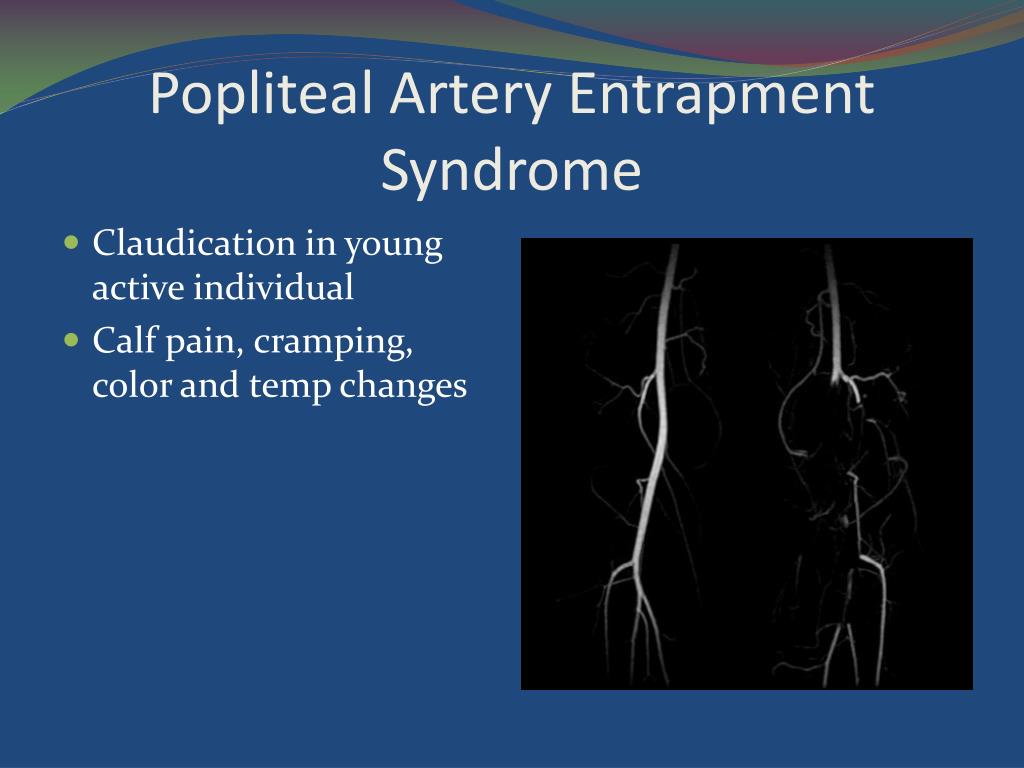

Popliteal Artery Entrapment Syndrome

  • Claudication in young active individual

  • Calf pain, cramping, color and temp changes


Etiology

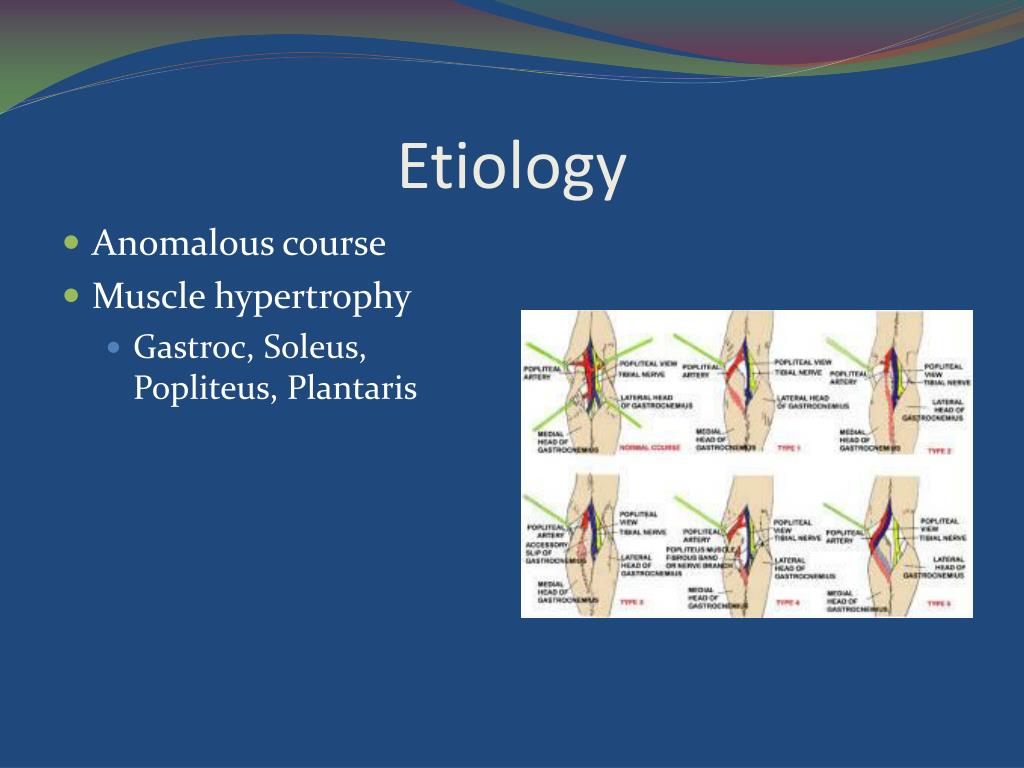

Etiology

  • Anomalous course

  • Muscle hypertrophy

    • Gastroc, Soleus, Popliteus, Plantaris


Diagnosis

Diagnosis

  • US

  • Angiography

  • MRA

  • CTA

  • Dynamic maneuvers


Treatment

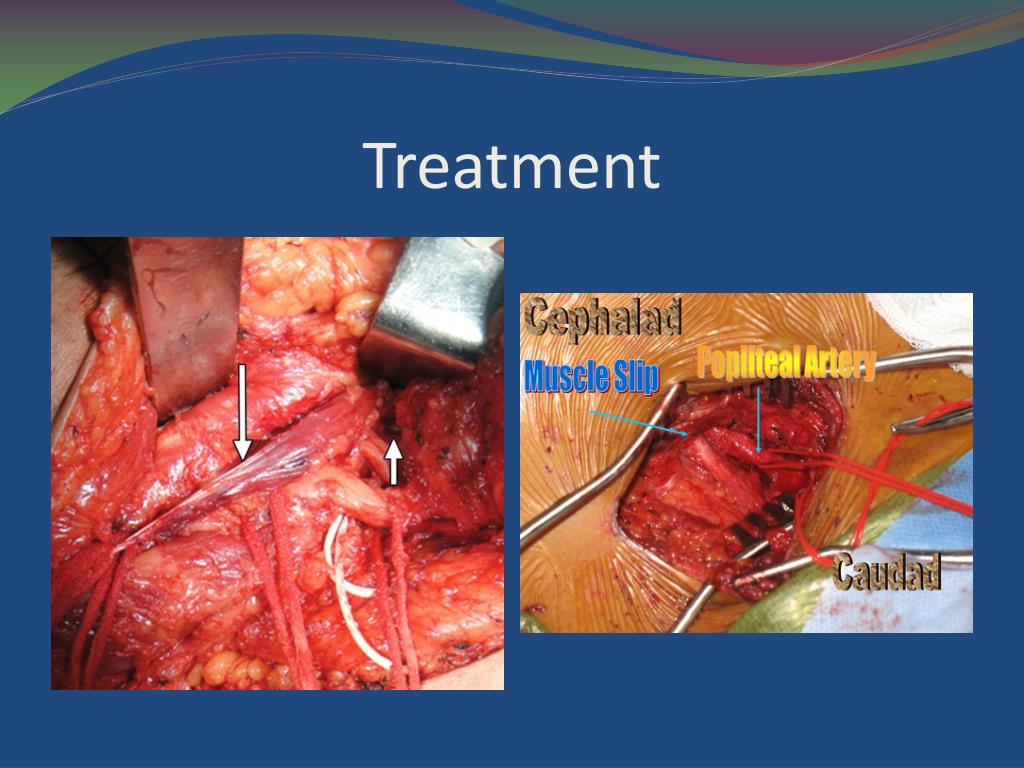

Treatment


Tennis leg

Tennis Leg

  • Strain of Medial Gastroc


Tennis leg1

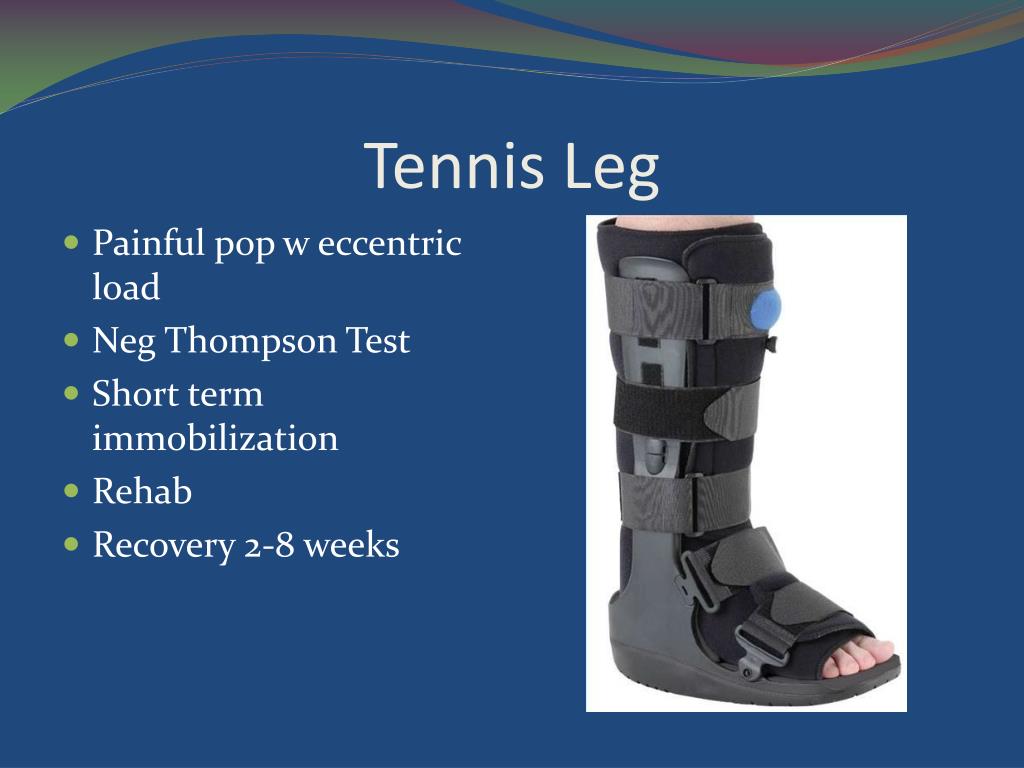

Tennis Leg

  • Painful pop w eccentric load

  • Neg Thompson Test

  • Short term immobilization

  • Rehab

  • Recovery 2-8 weeks

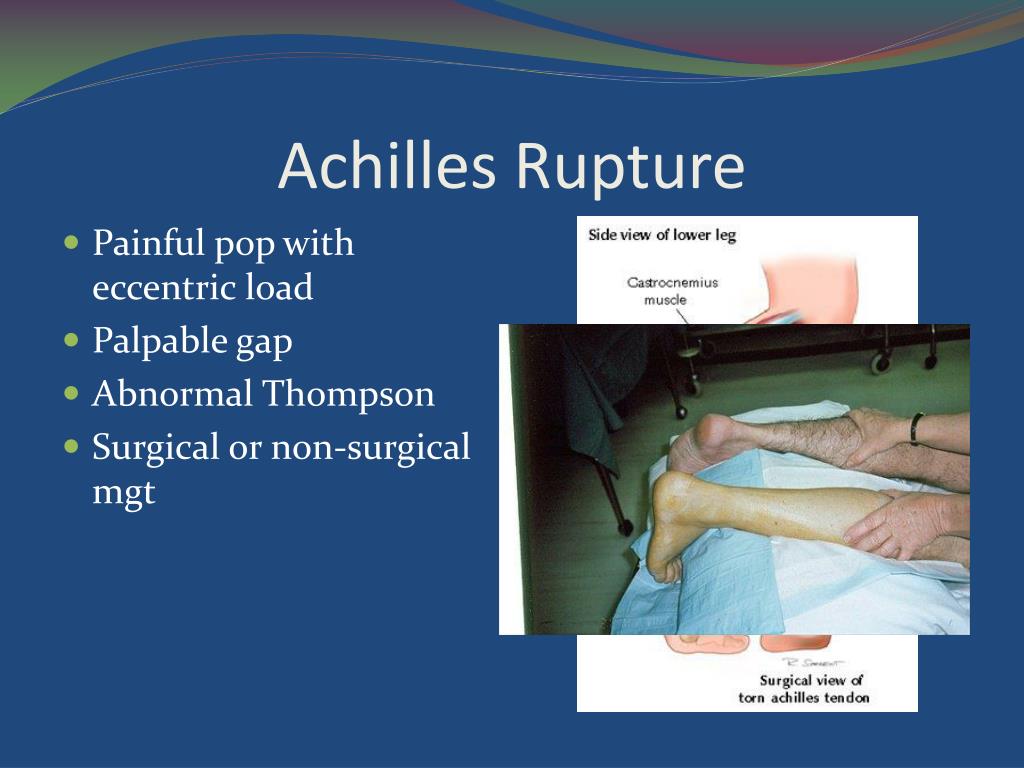

Achilles rupture

Achilles Rupture

  • Painful pop with eccentric load

  • Palpable gap

  • Abnormal Thompson

  • Surgical or non-surgical mgt

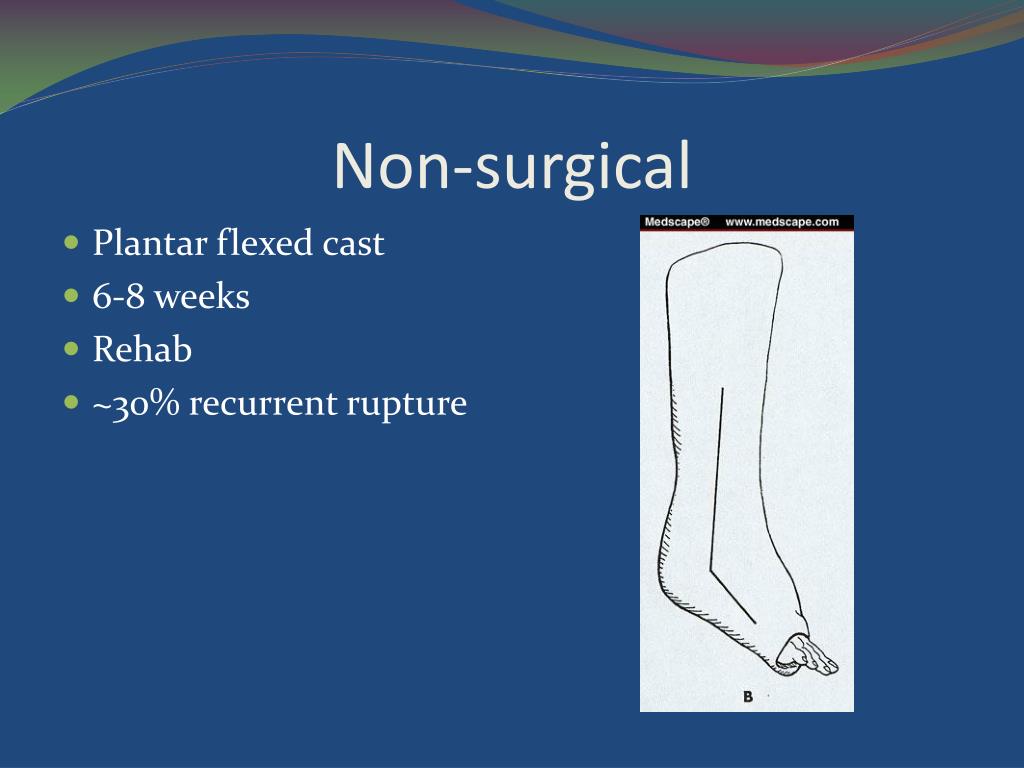

Non surgical

Non-surgical

  • Plantar flexed cast

  • 6-8 weeks

  • Rehab

  • ~30% recurrent rupture


Surgical

Surgical

  • Open or percutaneous

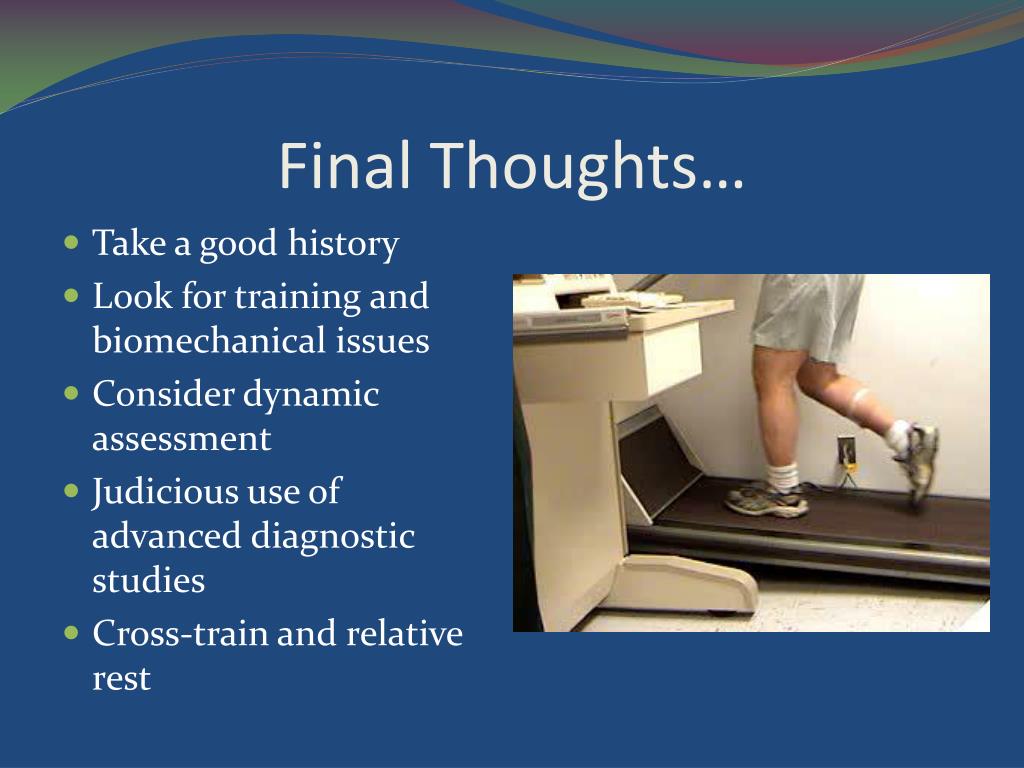

Final thoughts

Final Thoughts…

  • Take a good history

  • Look for training and biomechanical issues

  • Consider dynamic assessment

  • Judicious use of advanced diagnostic studies

  • Cross-train and relative rest
