Presentation Transcript


Uml 2 component model rt feedback of ait wooddes project to the u2 proposal

UML 2: Component model & RTfeedback of AIT-WOODDES projectto the U2 proposal

Workshop SIVOES-MONA – UML’2002, Dresden

Pr. Francois Terrier & Dr. Sébastien Gérard

CEA – LIST / L-LSP

(Francois.Terrier, Sebastien.Gerard)@cea.fr

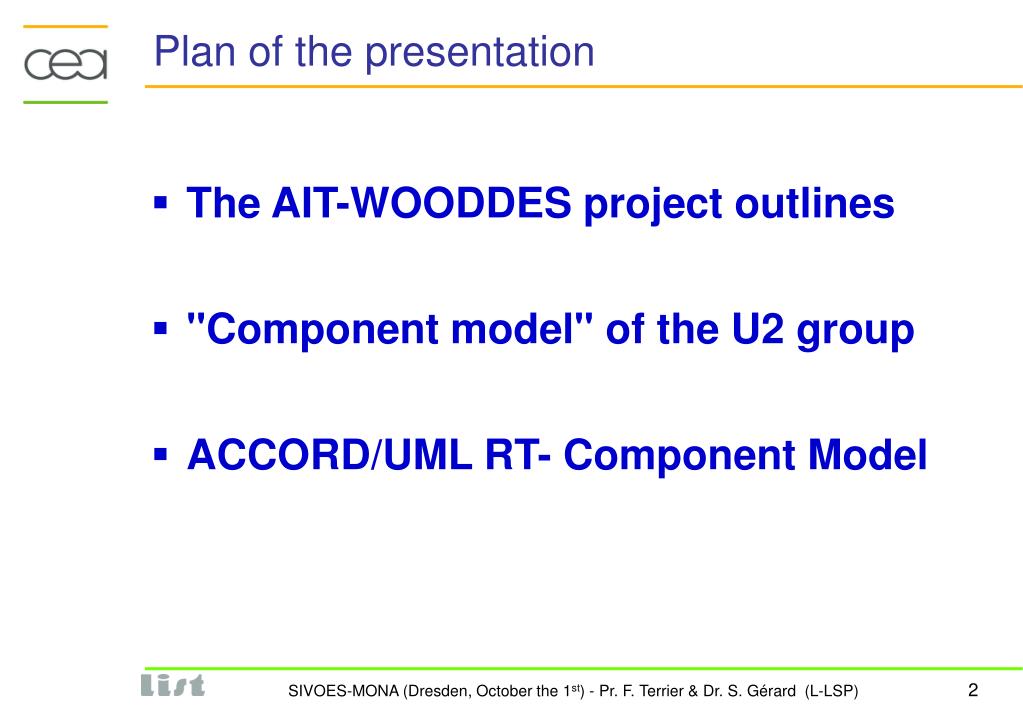

Plan of the presentation

Plan of the presentation

  • The AIT-WOODDES project outlines

  • "Component model" of the U2 group

  • ACCORD/UML RT- Component Model

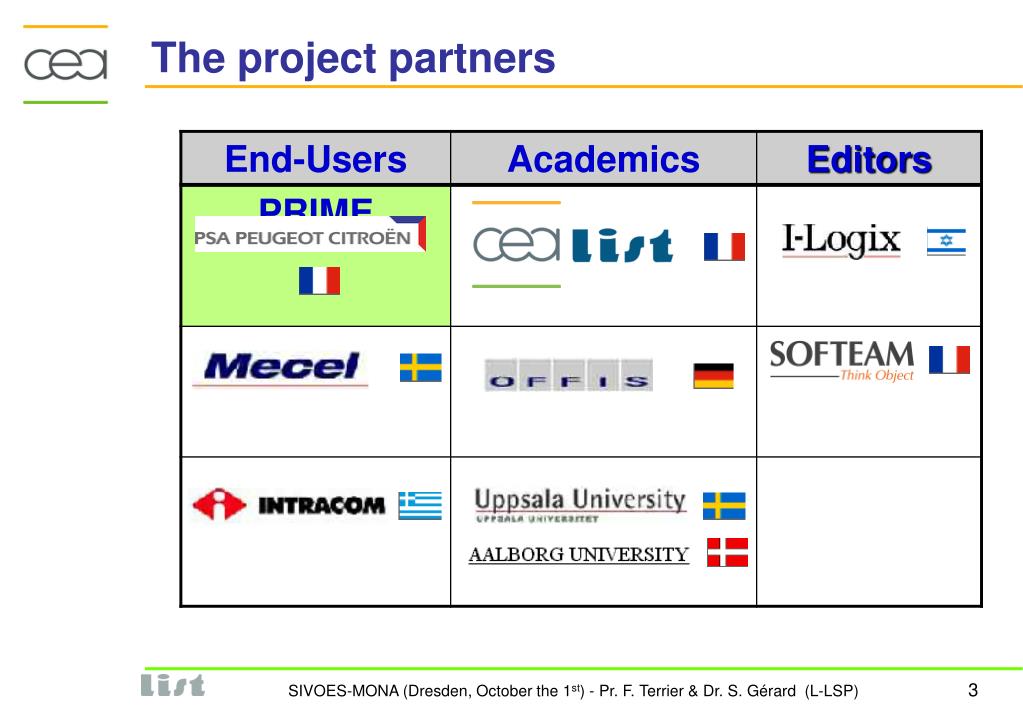

The project partners

The project partners


Uml 2 component model rt feedback of ait wooddes project to the u2 proposal

Development

Validation

Objecteering

Internal

exchange

format

Accord

Agatha

XMI

XMI

Rose

Model

exchange

via XML

UPPAAL

XMI

Internal

exchange

format

Rhapsody

ModelChecker

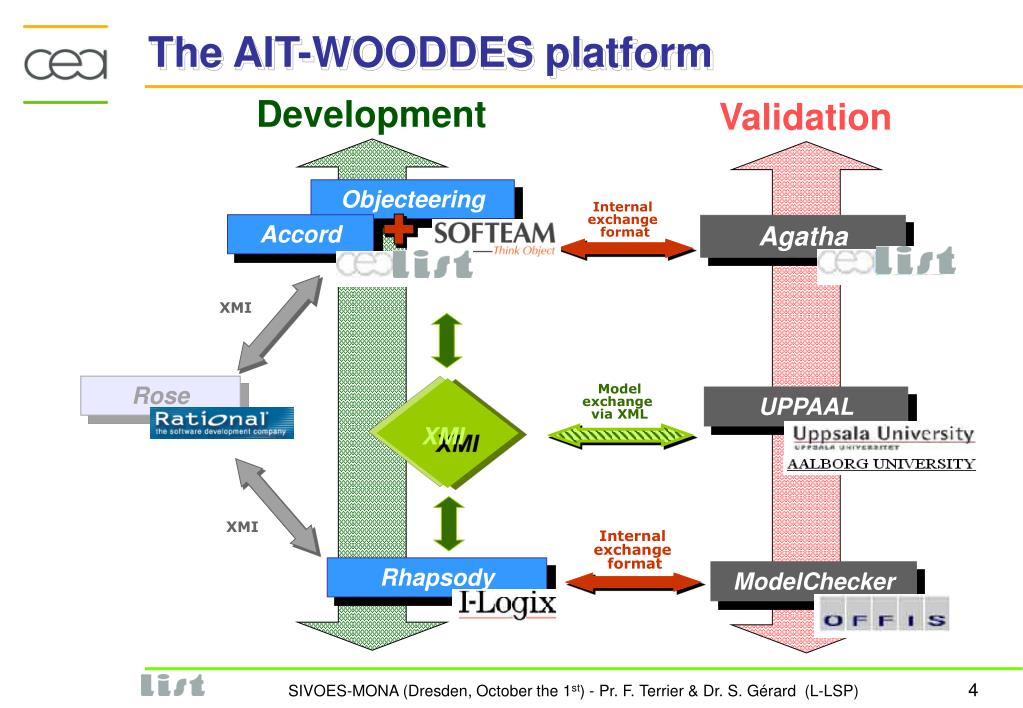

The AIT-WOODDES platform

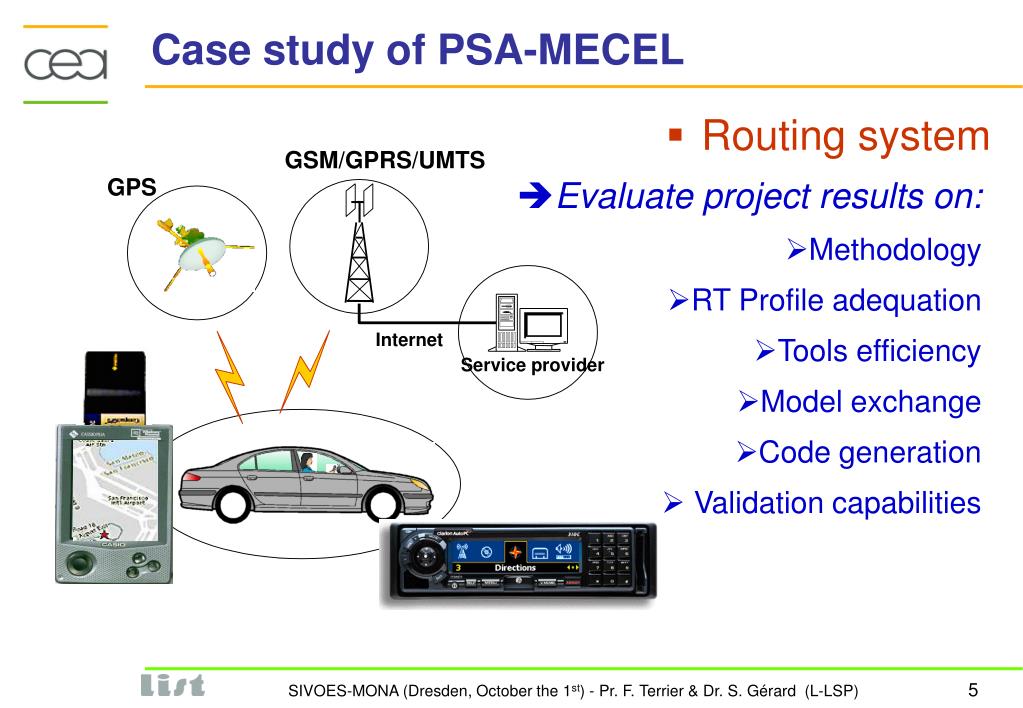

Case study of psa mecel

GSM/GPRS/UMTS

GPS

Internet

Service provider

Case study of PSA-MECEL

  • Routing system

  • Evaluate project results on:

    • Methodology

    • RT Profile adequation

    • Tools efficiency

    • Model exchange

    • Code generation

    • Validation capabilities

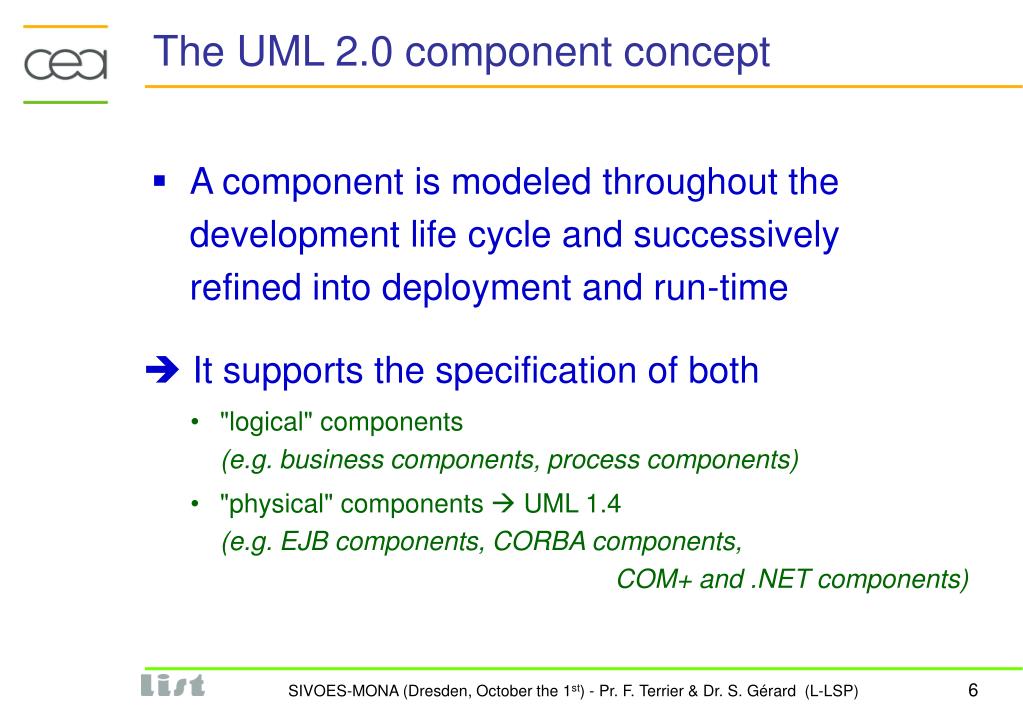

The uml 2 0 component concept

The UML 2.0 component concept

 It supports the specification of both

  • "logical" components(e.g. business components, processcomponents)

  • "physical" components  UML 1.4(e.g. EJB components, CORBA components,COM+ and .NET components)

  • A component is modeled throughout the development lifecycle and successivelyrefined into deployment and run-time

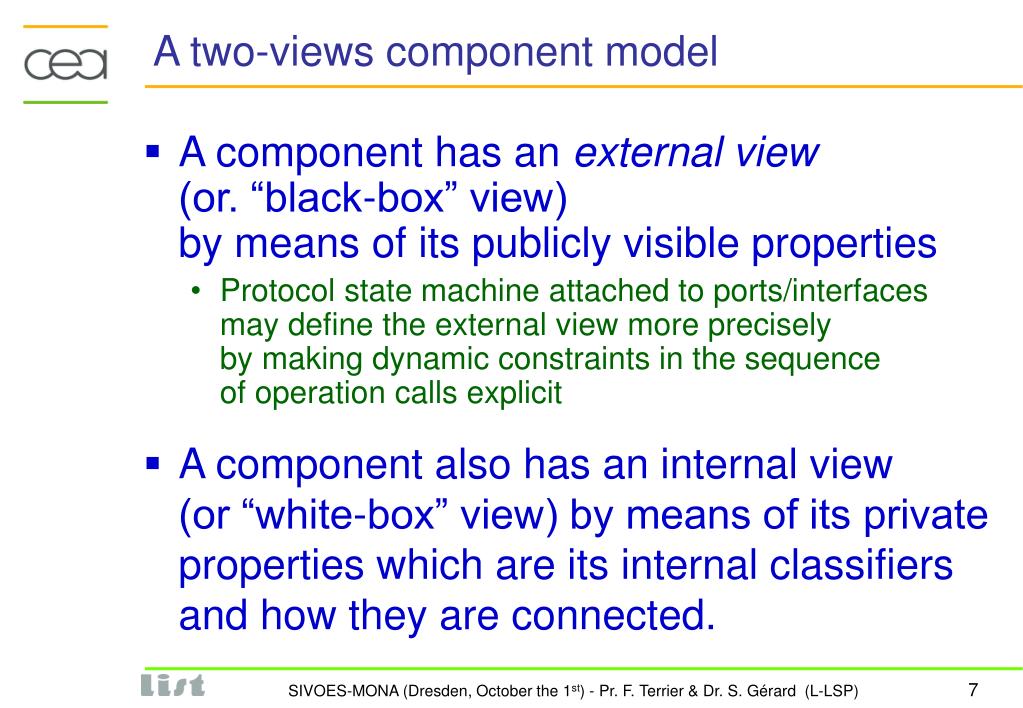

A two views component model

A two-views component model

  • A component has an external view(or. “black-box” view)by means of its publicly visible properties

    • Protocol state machine attached to ports/interfacesmay define the external view more preciselyby makingdynamic constraints in the sequenceof operation calls explicit

  • A component also has an internal view(or “white-box” view) by means of its private properties which are itsinternal classifiers and how they are connected.


Today in u2 proposal 2 possible models

Today, in U2 proposal, 2 possible models

  • a component has Ports typed by Interface

    • components communicated together via messages going through their ports (like processes in SDL or capsules of "ROOM" model)

  • a component has directly Interfaces(required and provided)

    • components communicating also via messages but in this case,messages go through the interfaces themselves (like usual component model, e.g. CCM-CORBA Component Model, ... )

 still under construction …

… and should be completely revisited in incoming version !


Structure of the accord uml methodology

SPE profile

SPT profile

AL profile

Modelling tools

OMG’ Standard profiles !!!

!

ACCORD/UML Profile

ACCORD/UML

Methodology

defined by

user

relizes

+

Structure of the ACCORD/UML Methodology


Details of accord uml models

theSystem

Class

1

theSystem

envElt

Use Case

ucDiag

describedBy

Actor

Diagr

am

*

*

1

envElt

Use Cases Model

*

Use Case

theSystem

dico

Preliminary AnalysisModel

Possible Scénario

1..*

1

Dictionary

High

-

Level Scenarios Models

RT_QoS

interView

1

Analysis Model

Detailed

Scen

arios

Model

RT_QoS

A

B

structView

1

C

Structural Model

Detailed AnalysisModel

behavView

RT_QoS

RT_QoS

RT_QoS

RT_QoS

1

Behavioural

Model

Details of ACCORD/UML models

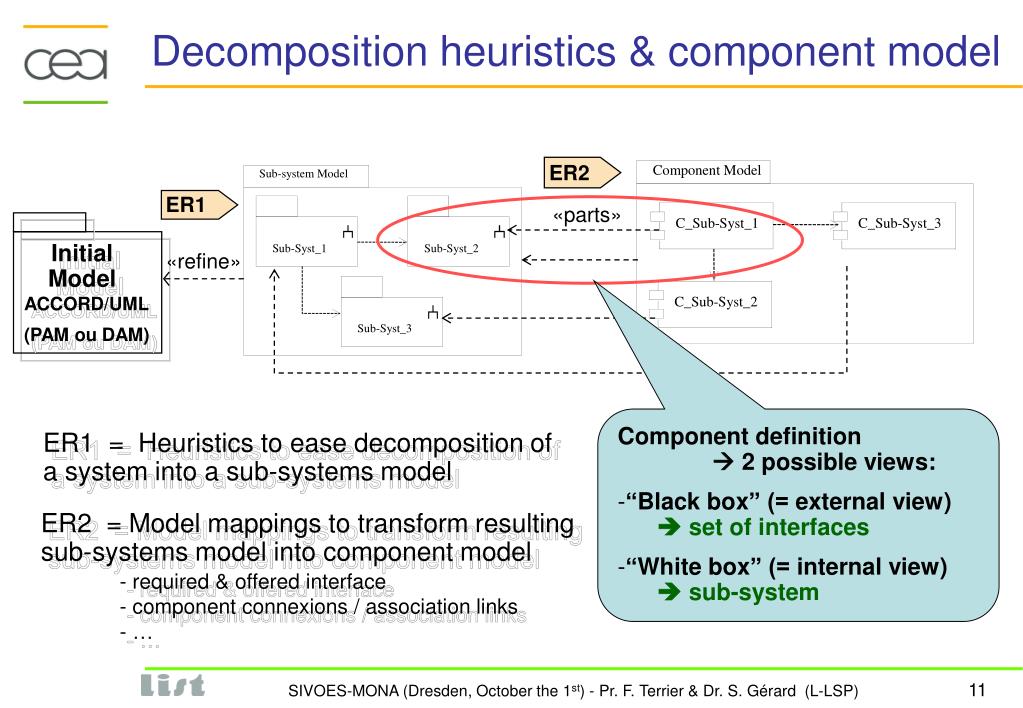

Decomposition heuristics component model

Component Model

ER2

ER1

«parts»

Initial Model

«refine»

ACCORD/UML

(PAM ou DAM)

  • Component definition 2 possible views:

  • “Black box” (= external view)

  •  set of interfaces

  • “White box” (= internal view)

  •  sub-system

Sub-system Model

C_Sub-Syst_1

C_Sub-Syst_3

Sub-Syst_1

Sub-Syst_2

C_Sub-Syst_2

Sub-Syst_3

Decomposition heuristics & component model

ER1 = Heuristics to ease decomposition of a system into a sub-systems model

ER2 = Model mappings to transform resulting sub-systems model into component model

- required & offered interface

- component connexions / association links

- …


The accord uml rt component model

provided

Interface

required

BehavioralFeatures

RT_QoS

The ACCORD/UML RT-Component Model

  • ACCORD/UML component Model based on

  • UML2 component Model + RT_QoS

Component

  •  Interface can have both BehavioralFeatures:

    • operations also with QoS specif.

    • receptions (signals) with QoS specif.

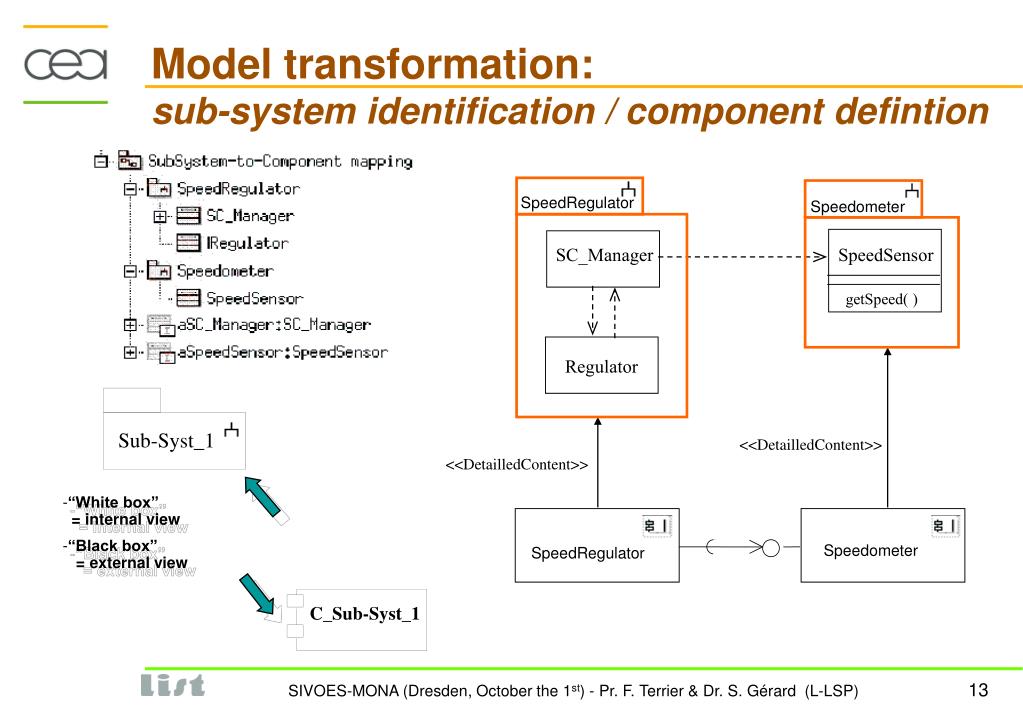

Model transformation sub system identification component defintion

SpeedRegulator

Speedometer

SC_Manager

SpeedSensor

getSpeed( )

Regulator

<<DetailledContent>>

<<DetailledContent>>

  • “White box” = internal view

  • “Black box” = external view

Speedometer

SpeedRegulator

C_Sub-Syst_1

Sub-Syst_1

Model transformation:sub-system identification / component defintion


Uml specialisation for components

Component Model

C_Sub-Syst_1

C_Sub-Syst_3

C_Sub-Syst_2

RT_QoS

RT_QoS

RT_QoS

UML specialisation for components

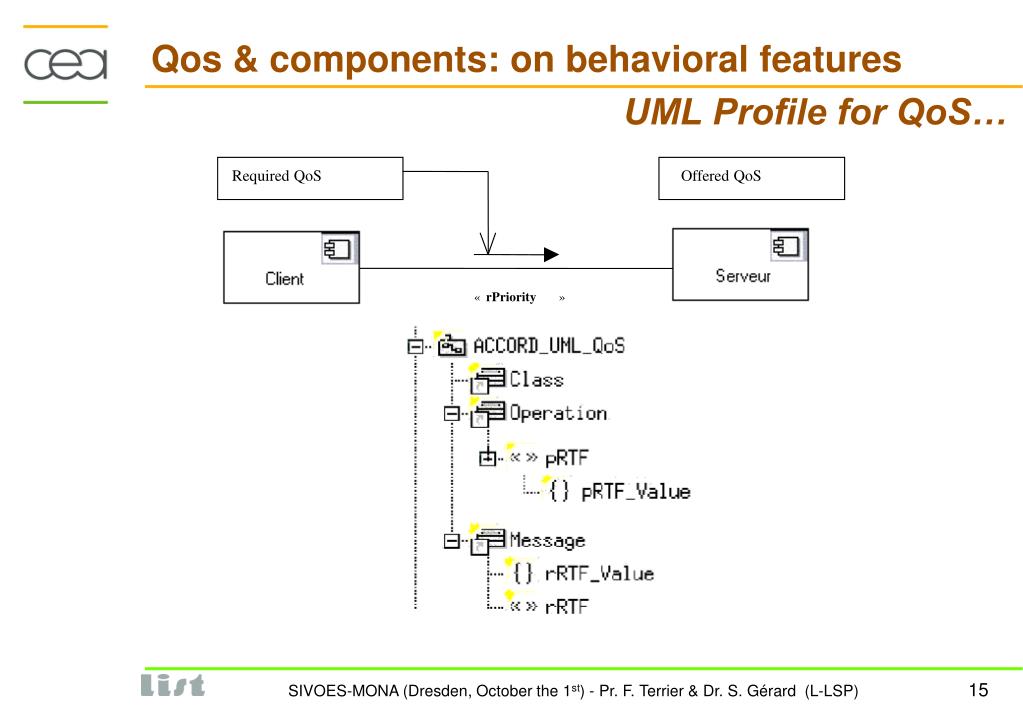

Qos components on behavioral features uml profile for qos

Required QoS

Offered QoS

«

rPriority

»

{

priorValue 5}

Qos & components: on behavioral featuresUML Profile for QoS…


The accord uml rt component model based on a mda approach

RT_QoS

RT_QoS

RT_QoS

RT_QoS

Component Model

ER3

C_Sub-Syst_1

C_Sub-Syst_3

ER2

C_Sub-Syst_2

CCM

Sub-system Model

RT_QoS

RT_QoS

RT_QoS

Sub-Syst_1

Sub-Syst_2

Sub-Syst_3

The ACCORD/UML RT-Component Modelbased on a MDA approach…

ER2 = These mappings take into account specified RT features of the sub-system model PIM-to-PIM

ER3 = Mappings definition from the RT-Component Model of ACCORD/UML towards a platform model (e.g., RT-CCM model)PIM-to-PSM


Uml 2 component model rt feedback of ait wooddes project to the u2 proposal

Valid.

PAM

DAM

Régulateur

Régulateur

Afficheur

Afficheur

Capteur

Capteur

Dico

Xxxx

xxxx

Dico

Xxxx

xxxx

PrM

ACCORD/UML: A full MDA Approach

Modeling concepts

Modeling rules

Model enrichment

PIM level

Modeltranslation filter

Model enrichmentmapping

Runnable level

OS Interf. model

PSM level

Code generation
